Visualization Pipelines for Geo-simulations

This paper discusses the development and optimization of visualization pipelines for geo-simulations, focusing on the massive volume of data involved. It highlights various aspects including data acquisition, transmission, visual mapping, rendering, and display techniques used in simulation environments. Furthermore, it examines the performance metrics such as average response times across different platforms (e.g., MASON, NetLogo, Repast) and operating systems (Linux vs. Windows). The results underscore significant bottlenecks and contradictory outcomes between various implementations, paving the way for future enhancements in the field.

seda
Télécharger la présentation

Visualization Pipelines for Geo-simulations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Visualization Pipelines for Geo-simulations Antônio José da Cunha Rodrigues Tiago Garcia de Senna Carneiro* TerraLAB – Laboratory for Earh System ModelingandSimulation ComputerScienceDepartment Federal Universityof Ouro Preto GeoInfo 2013

  2. Massive volume of data

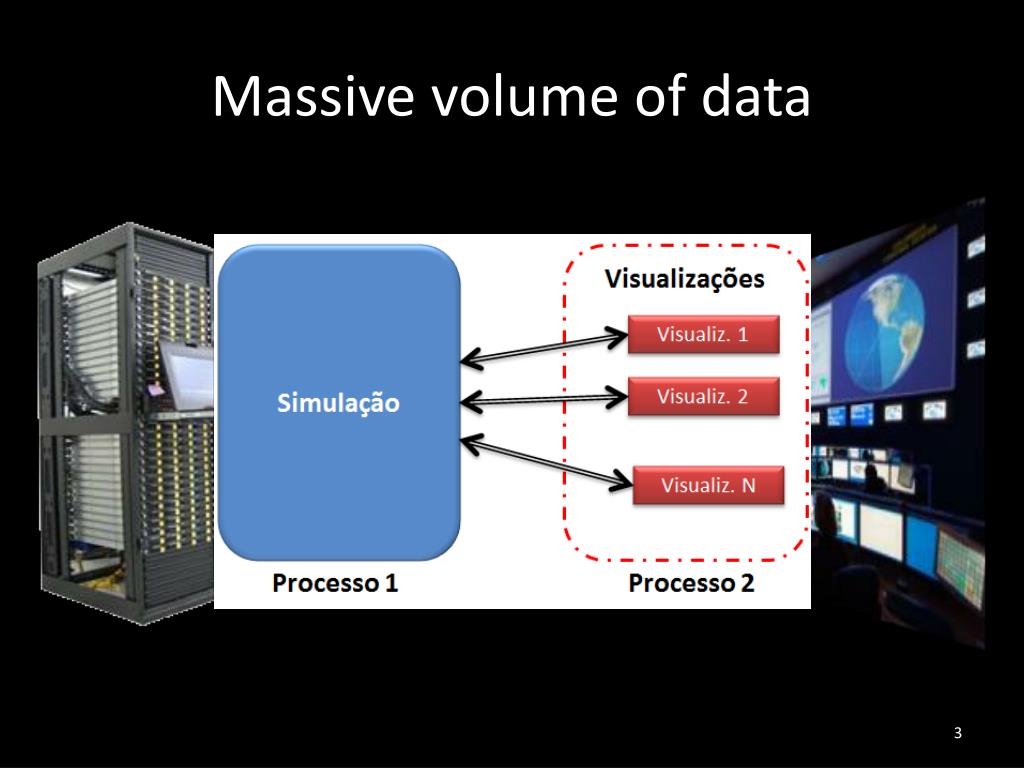

  3. Massive volume of data

  4. O conceito de pipelines Adaptado de Wood et al. (2005) • Visualizationside: • Visualization toolkit memory space • Simulationside: • Script languagesmemory space Data Acquisition Data Transmission Visual Mapping Rendering Display Imagens Compressing protocol Sendonly changes Cache memory Renderingonlychanges Multitaskpipeline

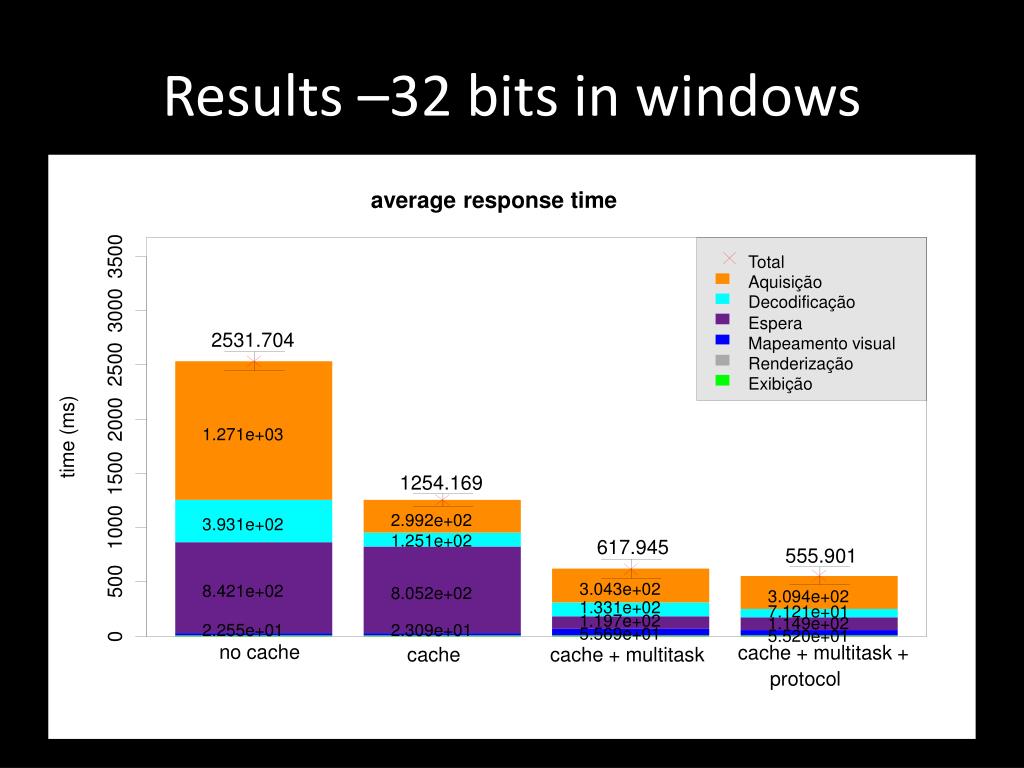

  5. averageresponse time 3500 Total Aquisição Decodificação 3000 Espera 2531.704 Mapeamento visual 2500 Renderização Exibição 2000 1.271e+03 time (ms) 1500 1254.169 2.992e+02 3.931e+02 1000 1.251e+02 617.945 555.901 500 3.043e+02 8.421e+02 8.052e+02 3.094e+02 1.331e+02 7.121e+01 1.197e+02 1.149e+02 2.255e+01 2.309e+01 5.569e+01 0 5.520e+01 no cache • cache + multitask + cache cache + multitask protocol Results –32 bits in windows

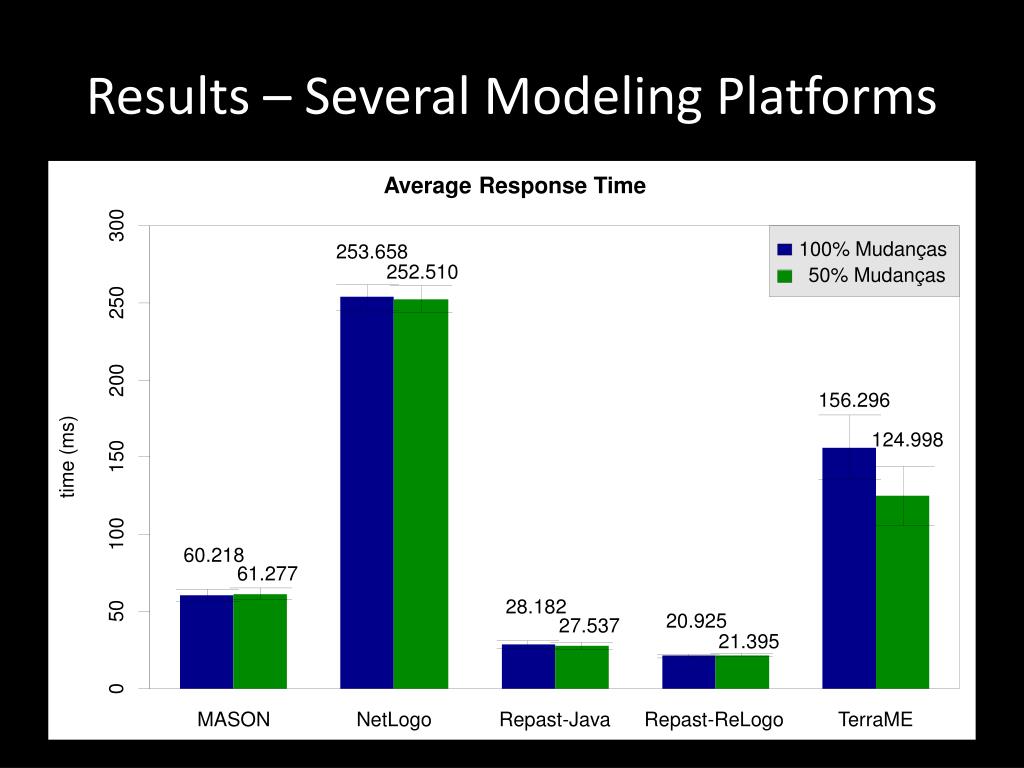

  6. AverageResponse Time 300 100% Mudanças 253.658 252.510 50% Mudanças 250 200 156.296 124.998 time (ms) 150 100 60.218 61.277 28.182 50 20.925 27.537 21.395 0 MASON NetLogo Repast-Java Repast-ReLogo TerraME Results – SeveralModelingPlatforms

  7. Discussion • Acquiring data from script language memory space is still the system bottleneck • Contradictoryresultsbetweenimplementations: • 32versus64 bits • LinuxversusWindows
