High-visibility multi-photon interference for classical light

This publication from the M.V. Lomonosov Moscow State University explores the advancements in multi-photon interference for classical light sources. Transcending the classical visibility limit of 50% in two-photon interference, this research highlights improved visibility limits of 81.8% for three-photon and 94.4% for four-photon interference. The experimental setup utilizing a Nd:YAG laser and photodetectors has been instrumental in verifying these results. Additionally, the findings suggest that the visibility of interference patterns can serve as indicative signatures of nonclassical light behavior.

selima
Télécharger la présentation

High-visibility multi-photon interference for classical light

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

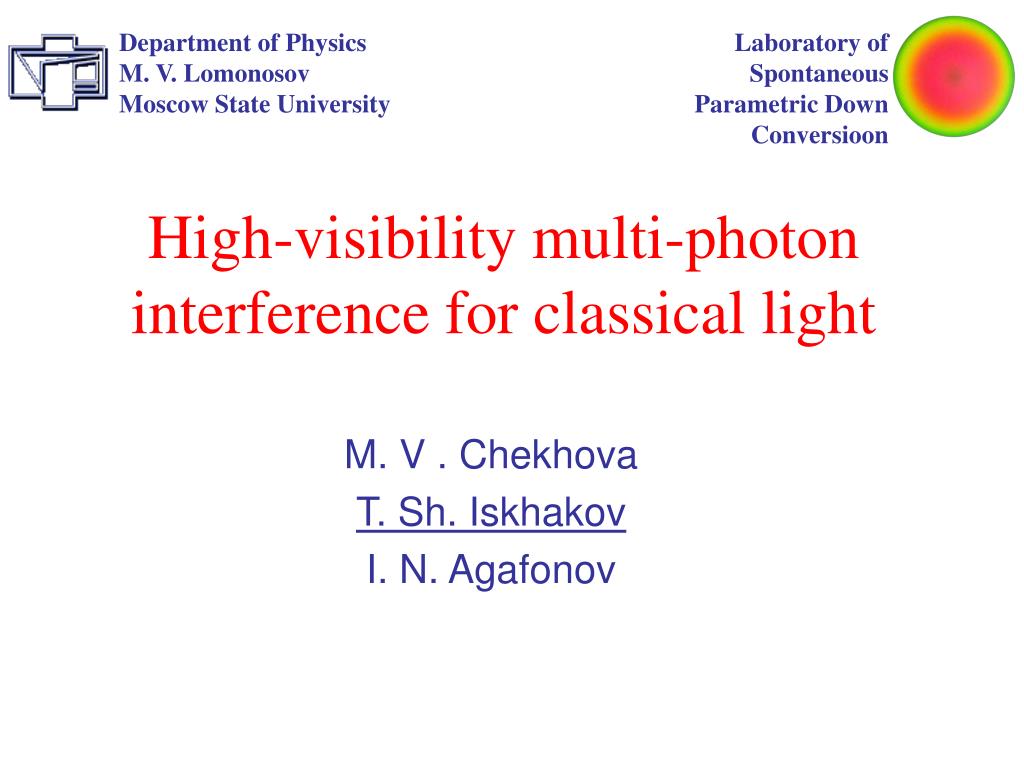

  1. Department of Physics M. V. Lomonosov Moscow State University Laboratory of Spontaneous Parametric Down Conversioon High-visibility multi-photon interference for classical light M. V . Chekhova T. Sh. Iskhakov I. N. Agafonov

  2. Introduction • Classical visibility limit for two-photon interference: 50%. • Multi-photon Interference of nonclassical light • Classical visibility limit for multi-photon Interference

  3. Principal scheme 1 Single counts A CC 2 B 3 Double counts Triple counts

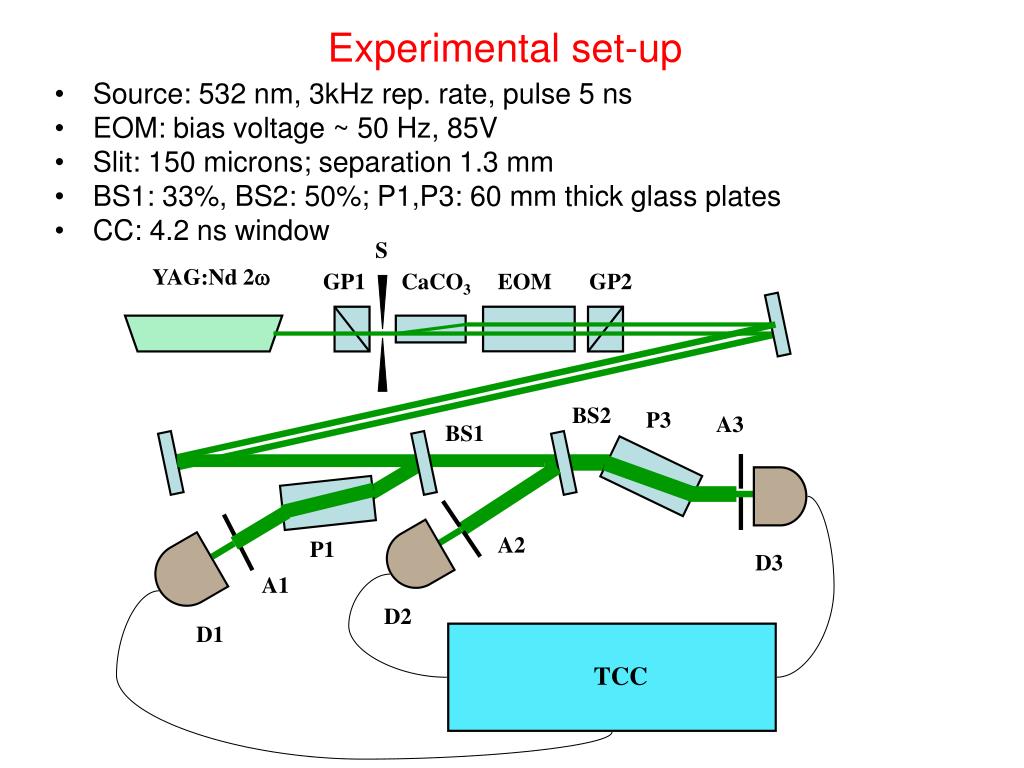

  4. S YAG:Nd 2w GP1 CaCO3 EOM GP2 BS2 P3 A3 BS1 A2 P1 D3 A1 D2 D1 TCC Experimental set-up • Source: 532 nm, 3kHz rep. rate, pulse 5 ns • EOM: bias voltage ~ 50 Hz, 85V • Slit: 150 microns; separation 1.3 mm • BS1: 33%, BS2: 50%; P1,P3: 60 mm thick glass plates • CC: 4.2 ns window

  5. Third-order interference Vth =70.5%, Coherent statistics two detectors moving Coherent statistics one detector moving

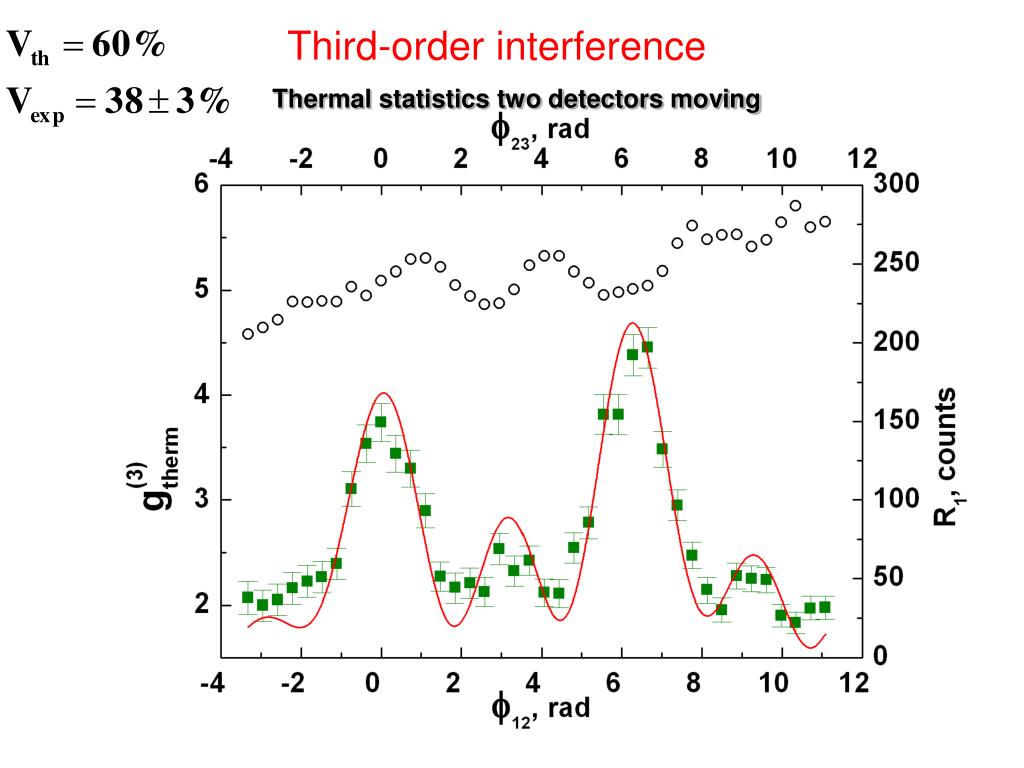

  6. Third-order interference Thermal statistics two detectors moving

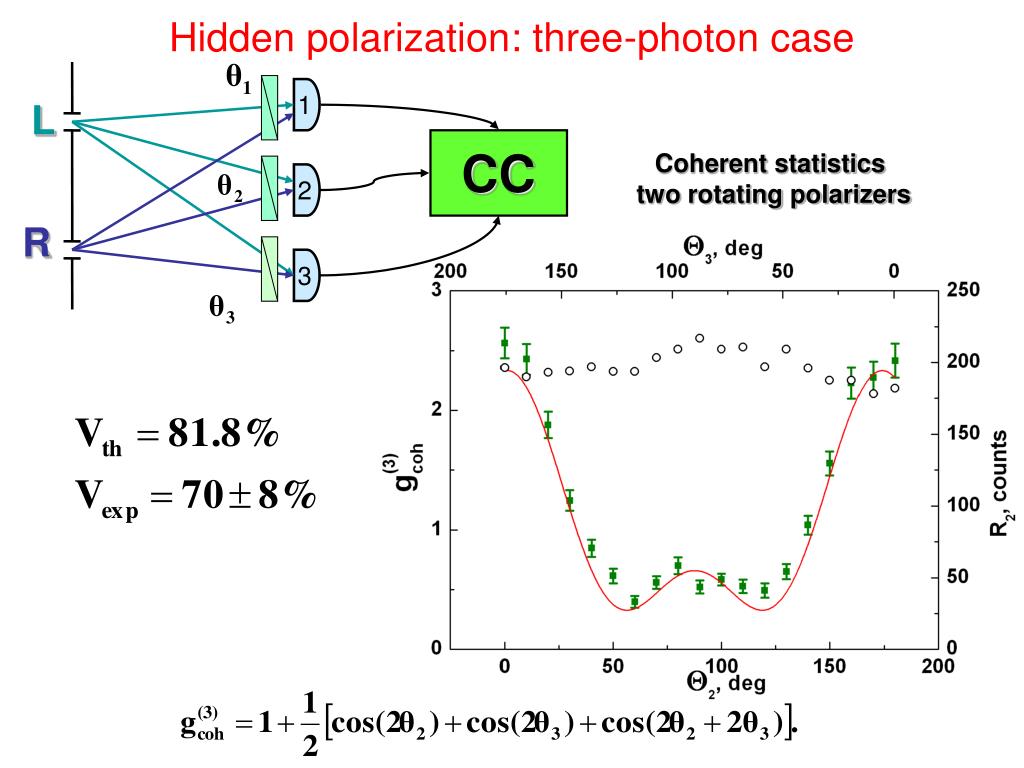

  7. Hidden polarization: three-photon case 1 L CC Coherent statistics two rotating polarizers 2 R 3

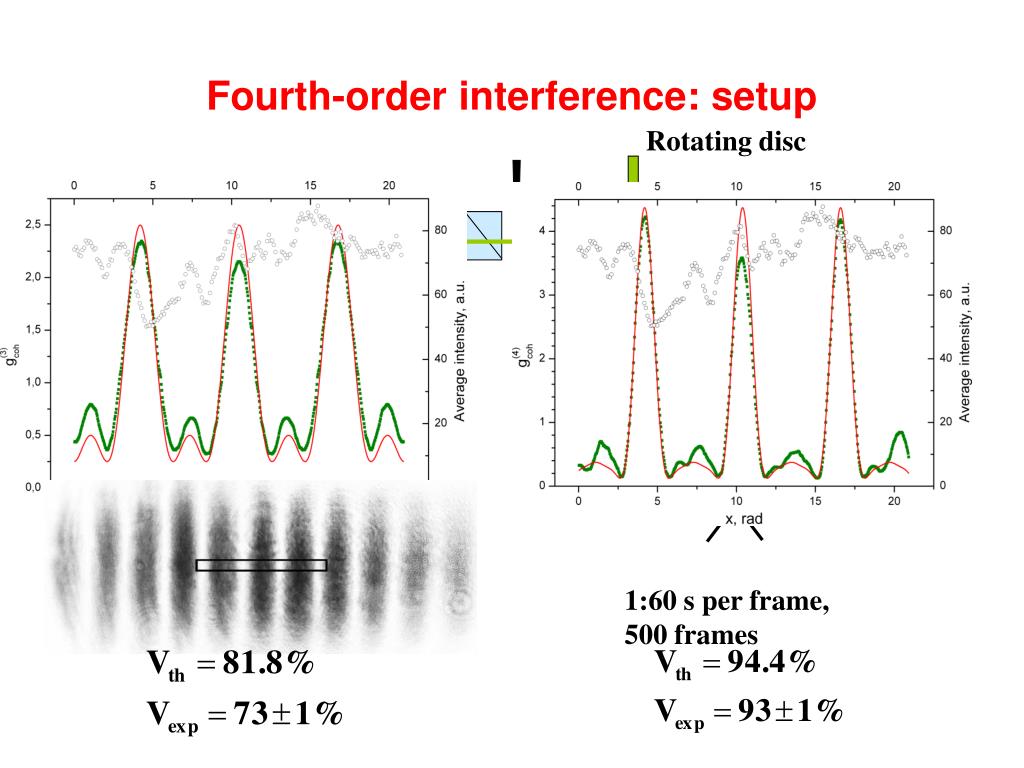

  8. Rotating disc Fourth-order interference: setup CaCO3 YAG:Nd EOM 50 Hz Canon PowerShot S2 IS 1:60 s per frame, 500 frames

  9. Experimental results

  10. Conclusions • Classical multi-photon visibility limit (81.8% for 3-photon, 94.4% for 4-photon interference) is much higher than in the two-photon case (50%). • If visibility of interference pattern is recognized as a “signature” of nonclassicality, it should exceed 81.8% in the three-photon case and 94.4% in the four-photon one.
