  1. Triple correlation Helioseismology Frank P. Pijpers Imperial College London with thanks to HELAS for financial support

  2. multiple correlations definition : c(τ1 ,τ2 , …,τn-1) = ∫ f1(t) f2(t+τ1)…fn(t+τn-1) dt Triple correlation in the Fourier domain : C(ω1,ω2) = F1(ω1 ) F2(ω2) F3*(ω1+ω2)

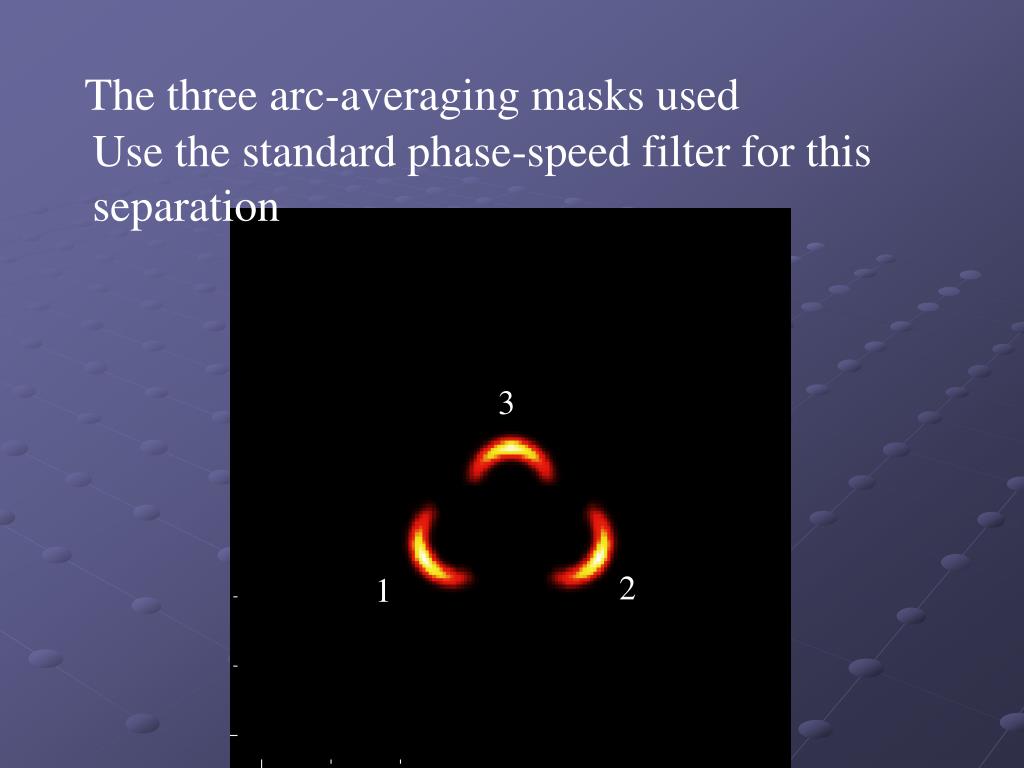

  3. The three arc-averaging masks used Use the standard phase-speed filter for this separation 3 2 1

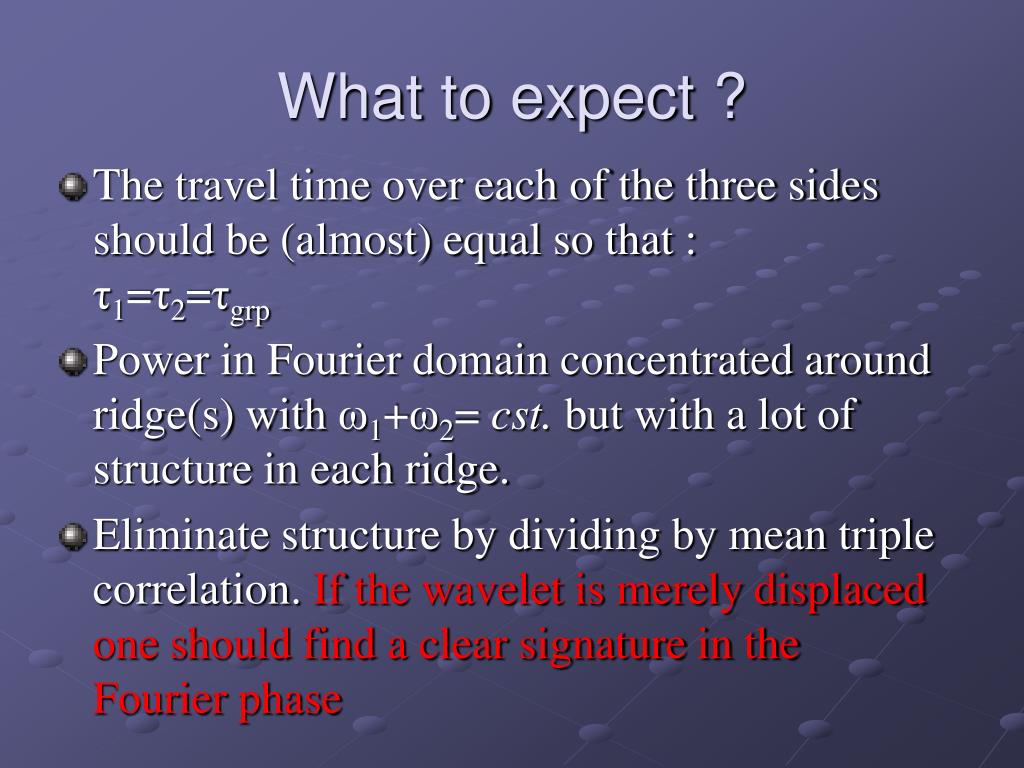

  4. What to expect ? • The travel time over each of the three sides should be (almost) equal so that : τ1=τ2=τgrp • Power in Fourier domain concentrated around ridge(s) with ω1+ω2= cst. but with a lot of structure in each ridge. • Eliminate structure by dividing by mean triple correlation. If the wavelet is merely displaced one should find a clear signature in the Fourier phase

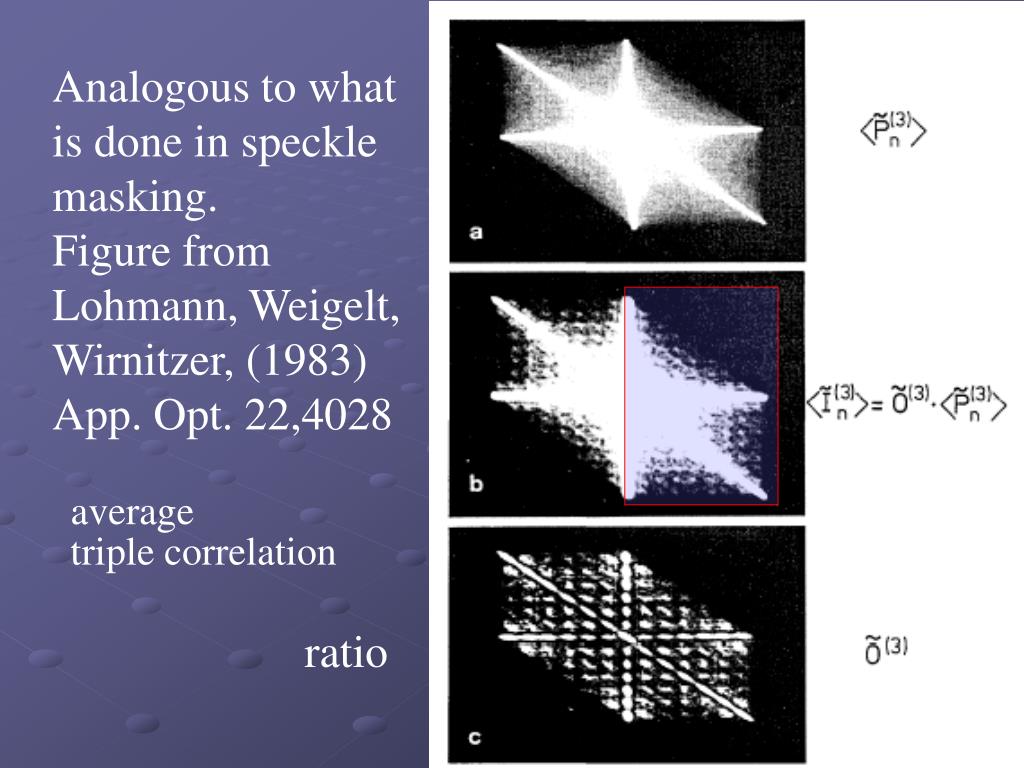

  5. Analogous to what is done in speckle masking. Figure from Lohmann, Weigelt, Wirnitzer, (1983) App. Opt. 22,4028 average triple correlation ratio

  6. The average triple correlation for a cube of 512 128 x 128 images with an averaging mask of arcs on an equilateral triangle (8 by 8 sets) Fourier modulus (logarithmic) Fourier phase

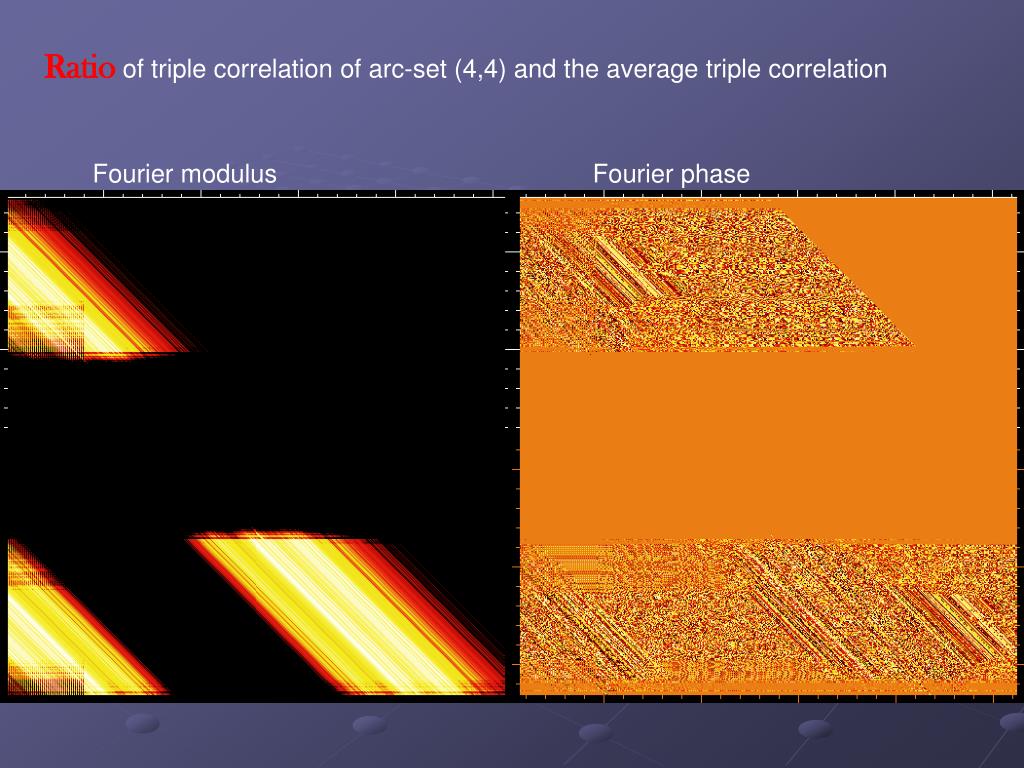

  7. Ratio of triple correlation of arc-set (4,4) and the average triple correlation Fourier modulus Fourier phase

  8. What is gained ? • the ridges are visible in the Fourier modulus : wavelet changes over field. This is indicative of dispersion changes • Differential travel times are directly determined from the triple correlation ratios. Fast and robust extraction of the quantity of interest

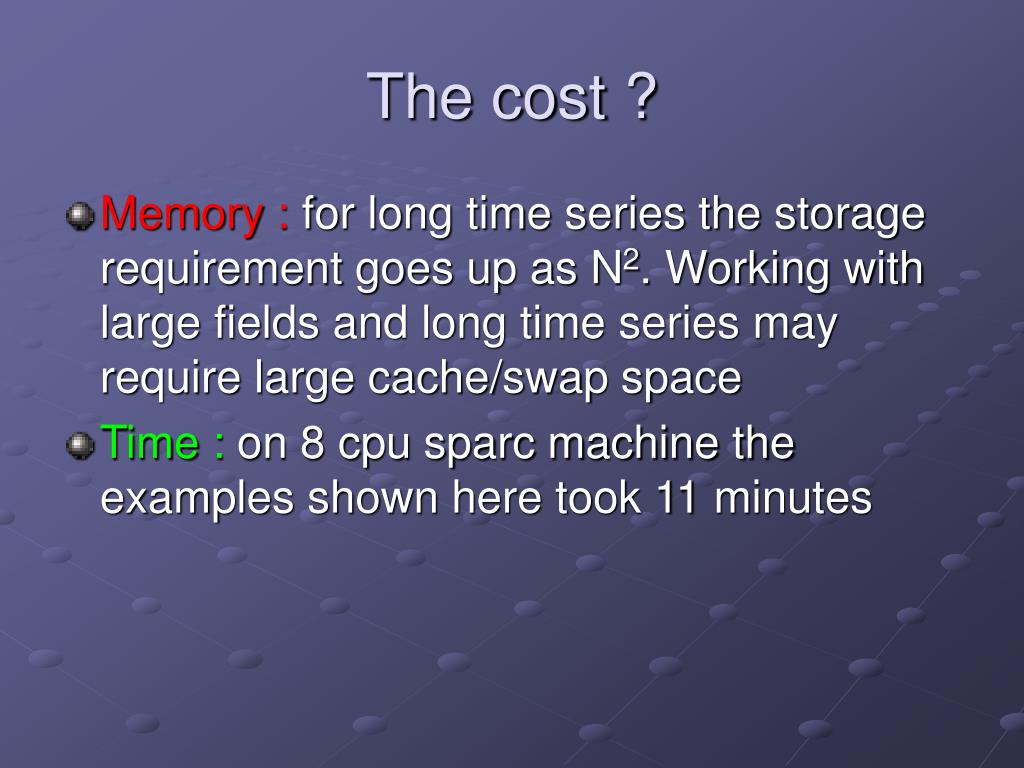

  9. The cost ? • Memory : for long time series the storage requirement goes up as N2. Working with large fields and long time series may require large cache/swap space • Time : on 8 cpu sparc machine the examples shown here took 11 minutes
