Alternative Firing Methods

Alternative Firing Methods. Pit firing, Raku, Salt firing,. Anagama, Gas firing. Pit Firing. Pit firing is probably the oldest method of firing A pit is dug in the ground and layered up from the bottom Fired only once, the pots are porous and not water-tight.

Télécharger la présentation

Alternative Firing Methods

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. Alternative Firing Methods

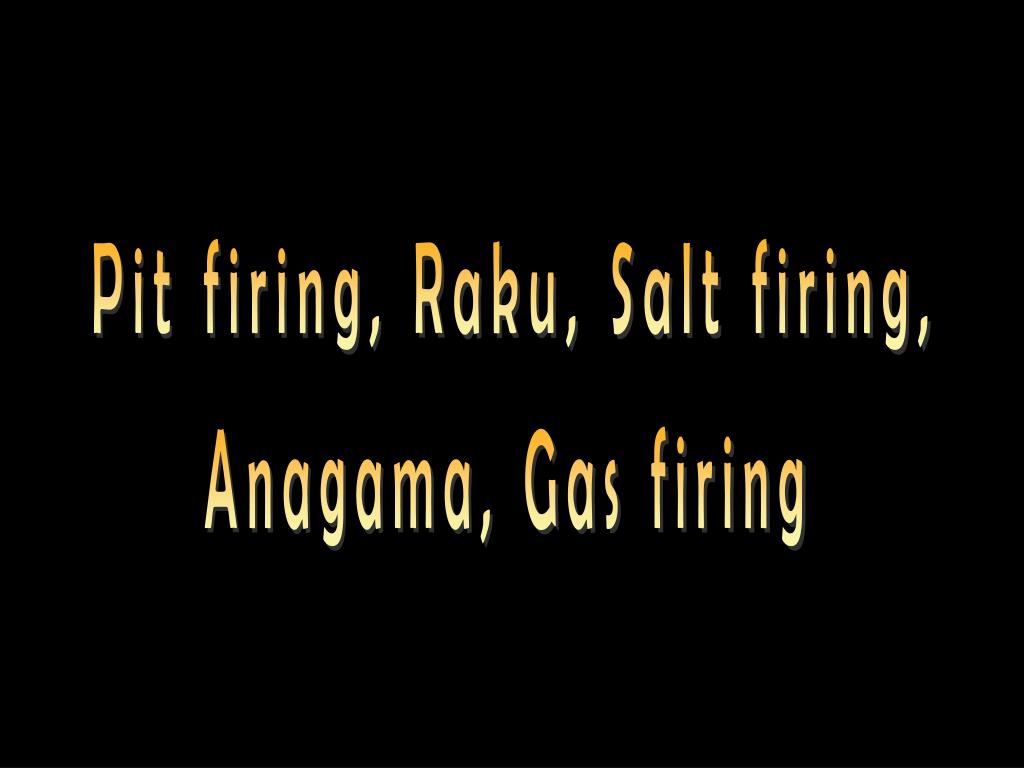

  2. Pit firing, Raku, Salt firing, Anagama, Gas firing

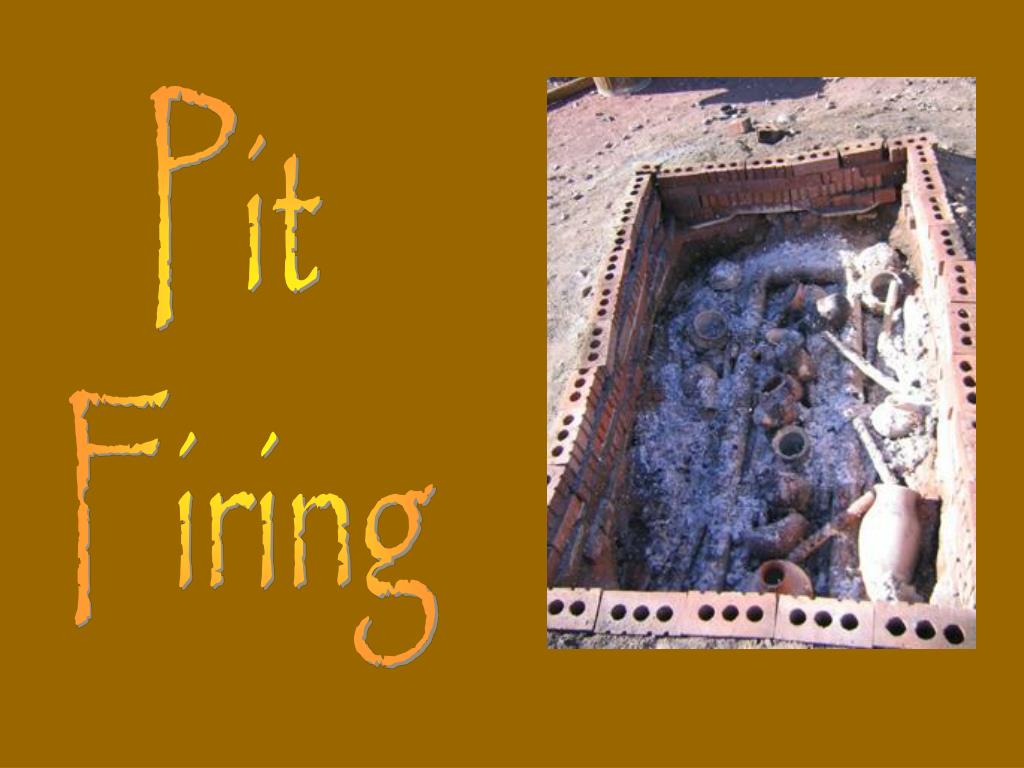

  3. Pit Firing

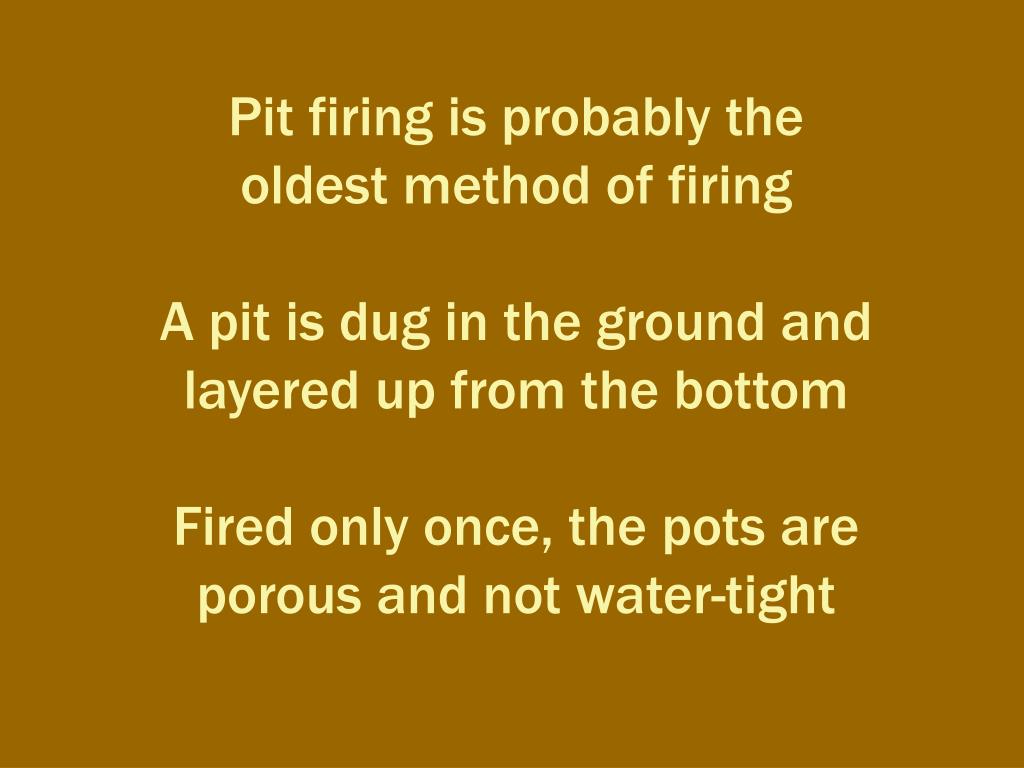

  4. Pit firing is probably the oldest method of firing A pit is dug in the ground and layered up from the bottom Fired only once, the pots are porous and not water-tight

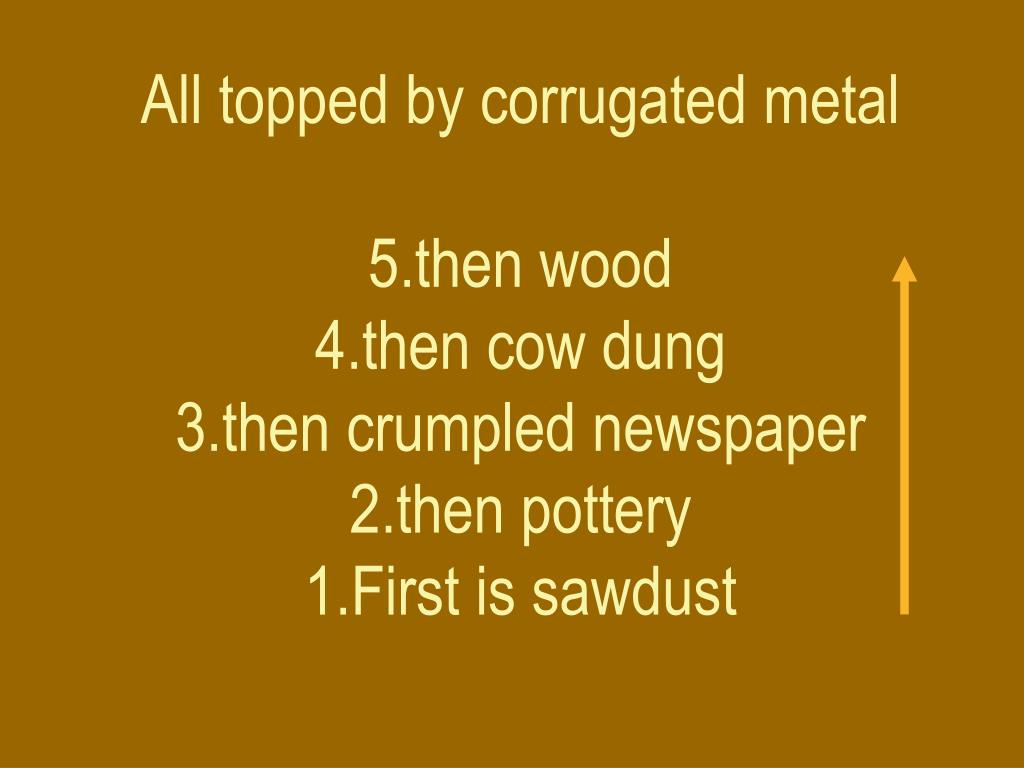

  5. All topped by corrugated metal 5.then wood 4.then cow dung 3.then crumpled newspaper 2.then pottery 1.First is sawdust

  6. Cross Section or Worms Eye View: Side View

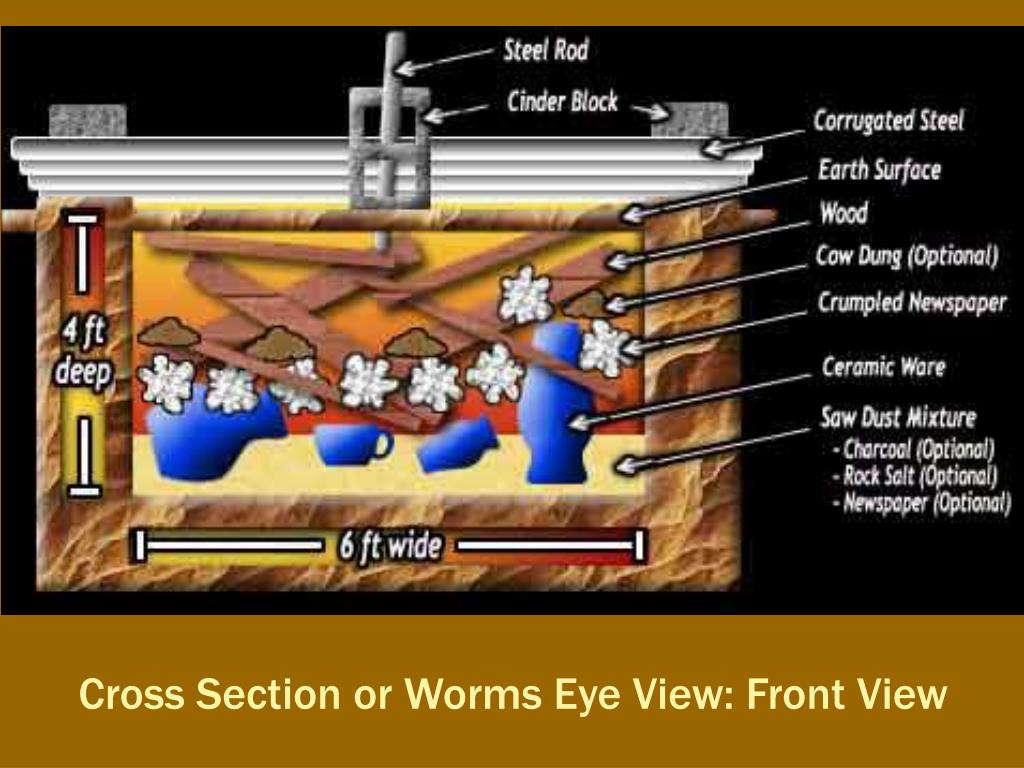

  7. Cross Section or Worms Eye View: Front View

  8. Pieces can be bound with metal wire or organic materials which will result in trails and variations of color.

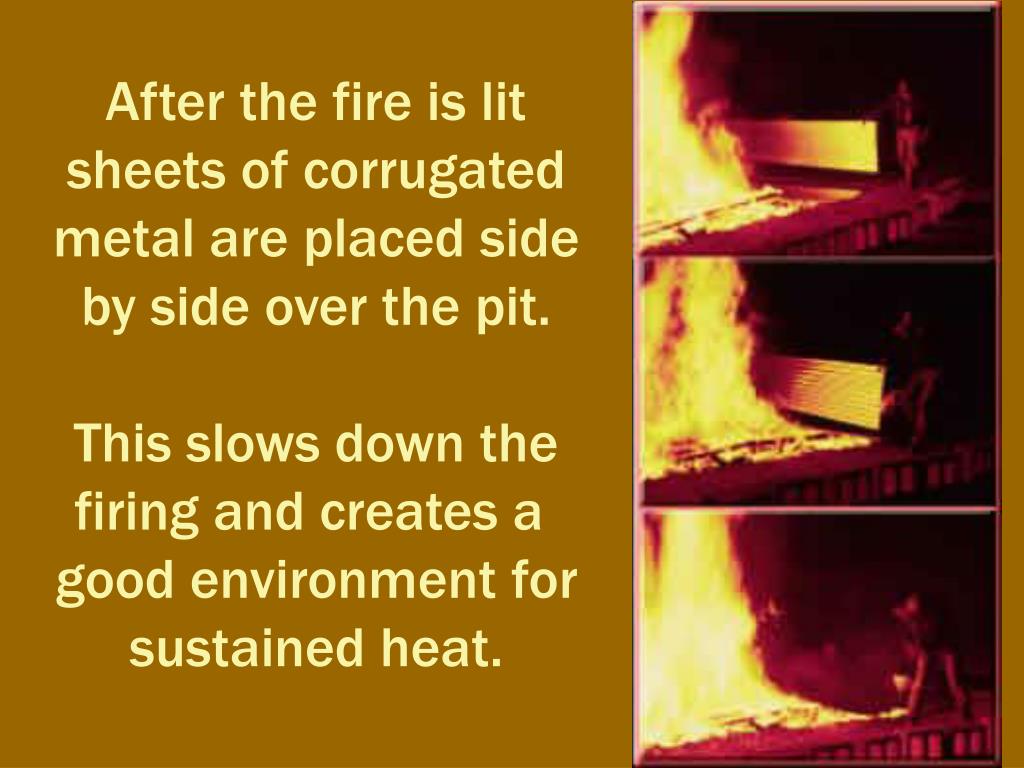

  9. After the fire is lit sheets of corrugated metal are placed side by side over the pit. This slows down the firing and creates a good environment for sustained heat.

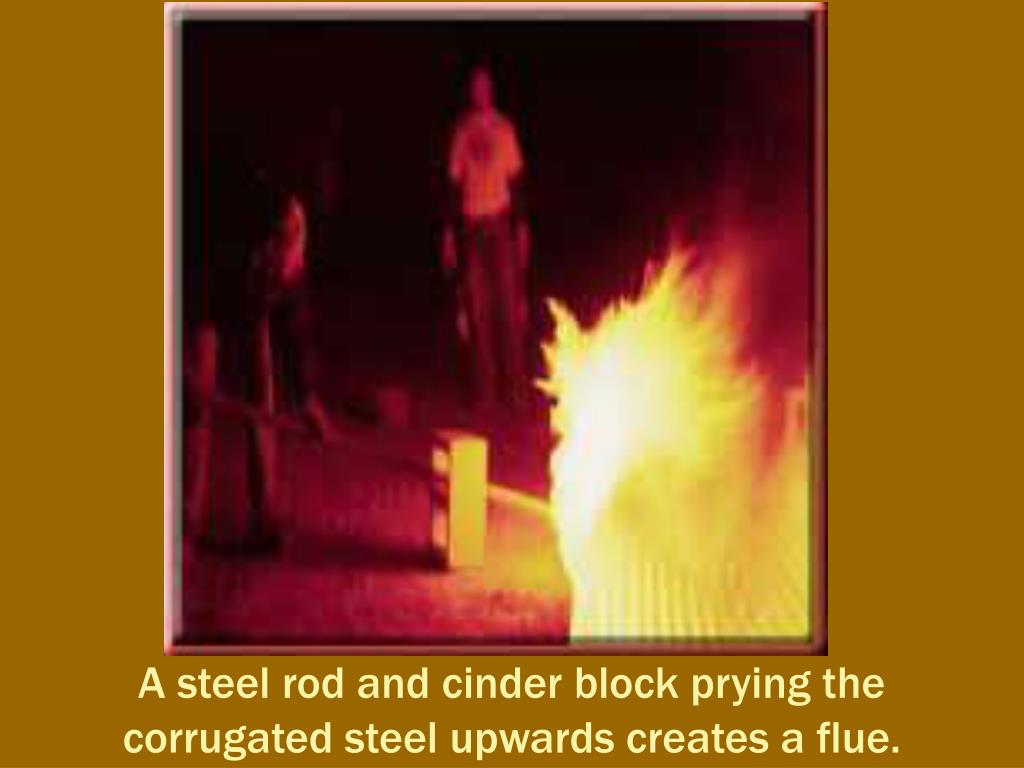

  10. A steel rod and cinder block prying the corrugated steel upwards creates a flue.

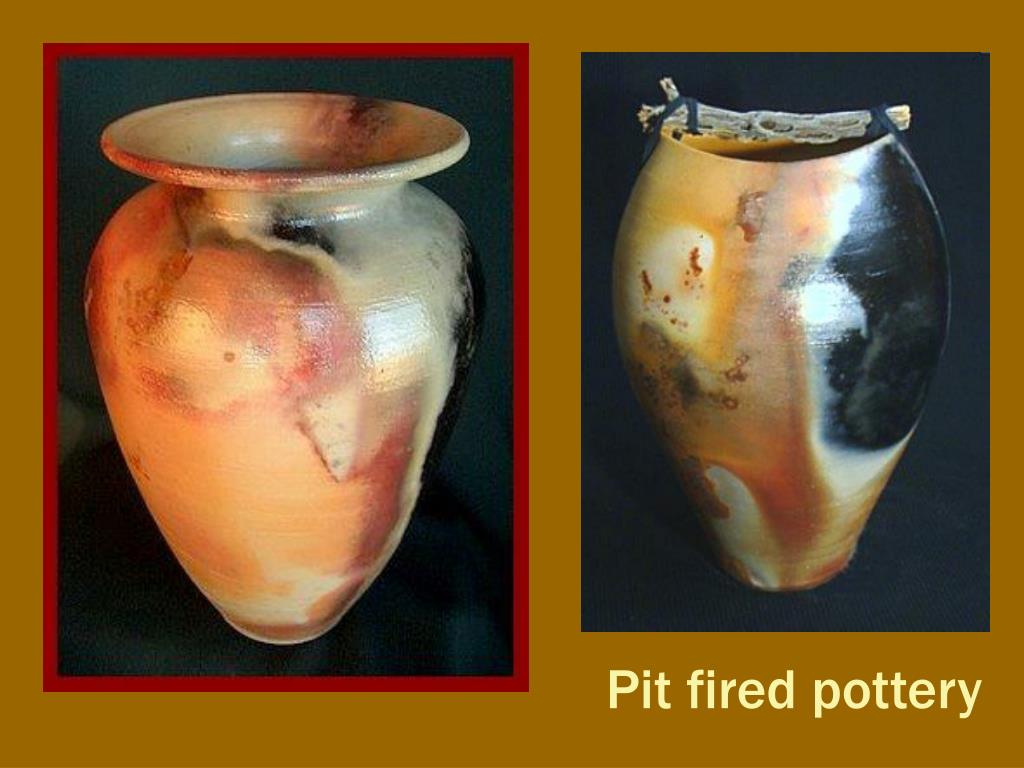

  11. Pit fired pottery

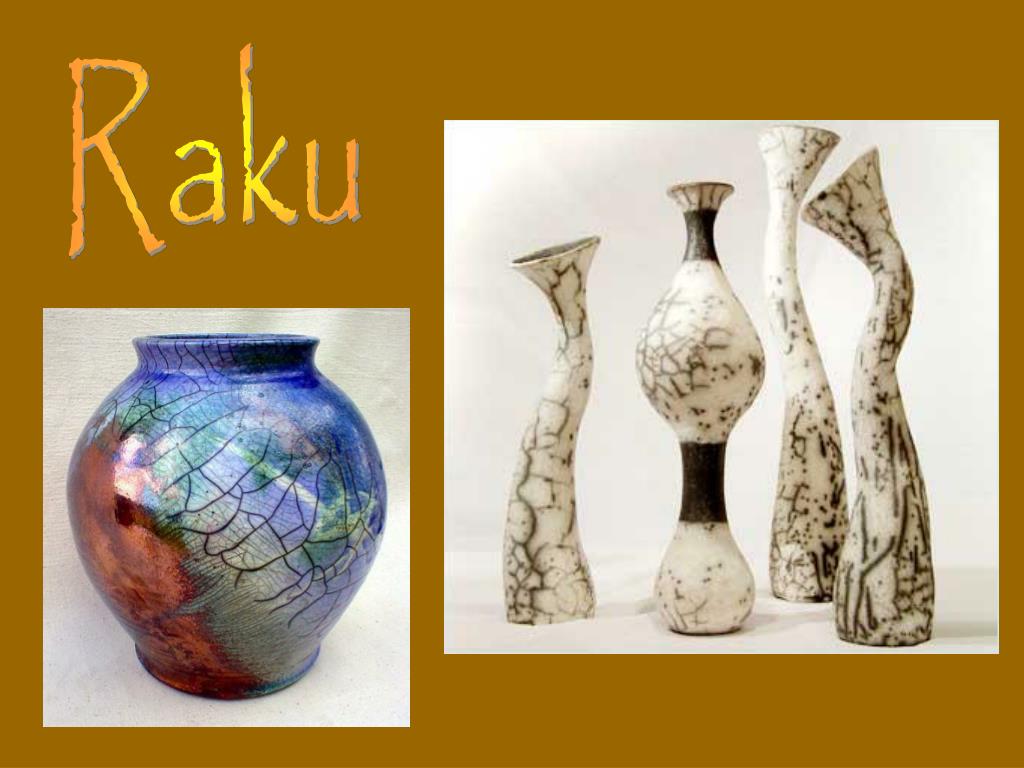

  12. Raku

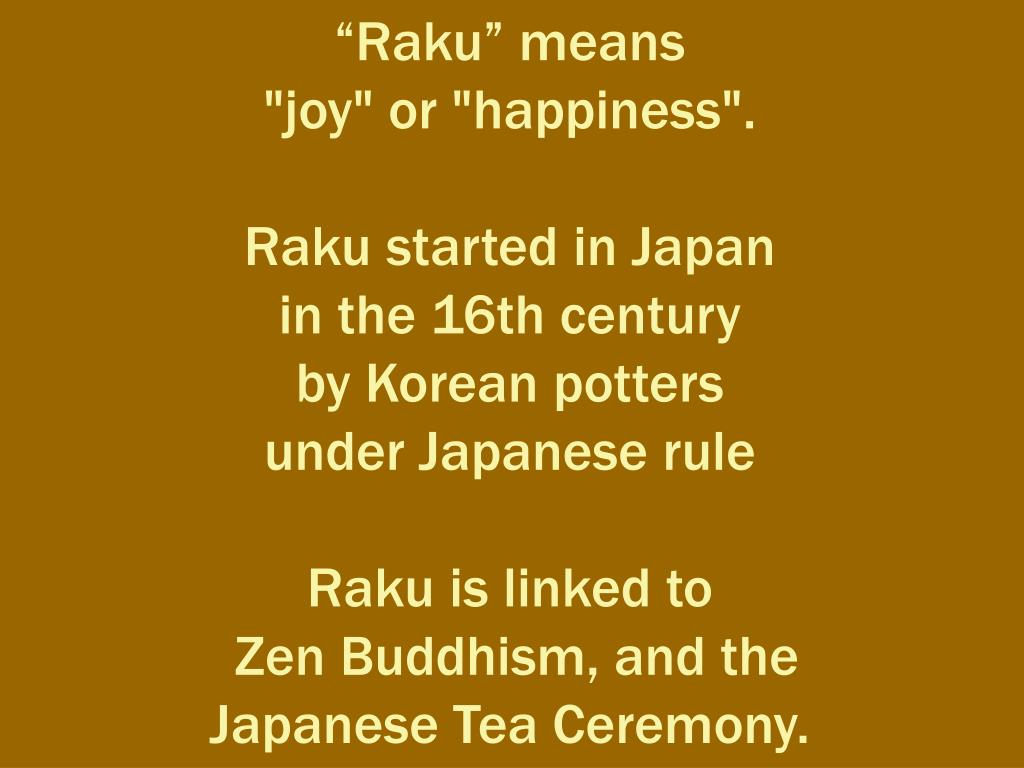

  13. “Raku” means "joy" or "happiness". Raku started in Japan in the 16th century by Korean potters under Japanese rule Raku is linked to  Zen Buddhism, and the Japanese Tea Ceremony.

  14. Glaze is applied to bisque ware

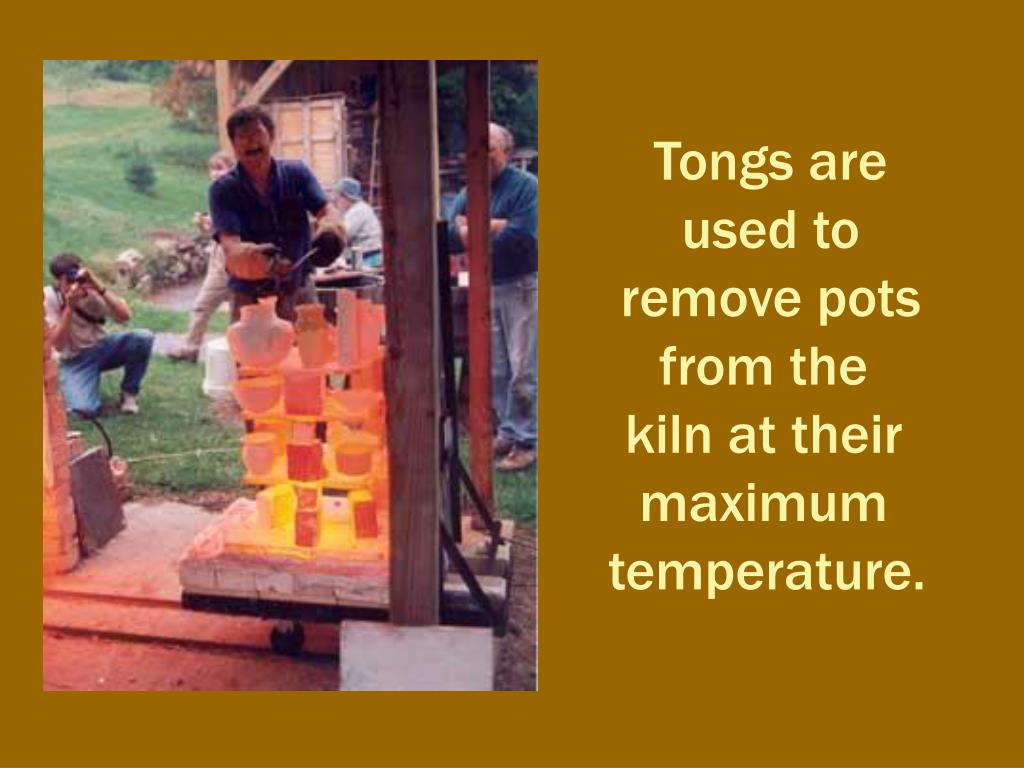

  15. Tongs are used to remove pots from the kiln at their maximum temperature.

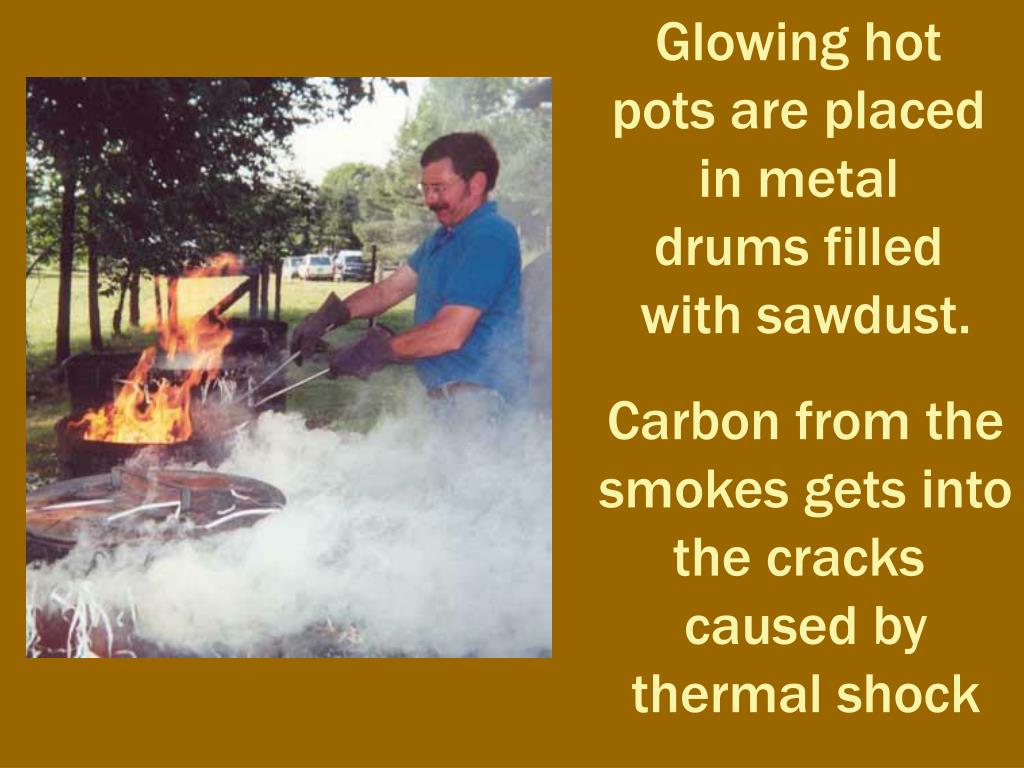

  16. Glowing hot pots are placed in metal drums filled with sawdust. Carbon from the smokes gets into the cracks caused by thermal shock

  17. After pots are doused in water they are scrubbed clean Crackle lines remain

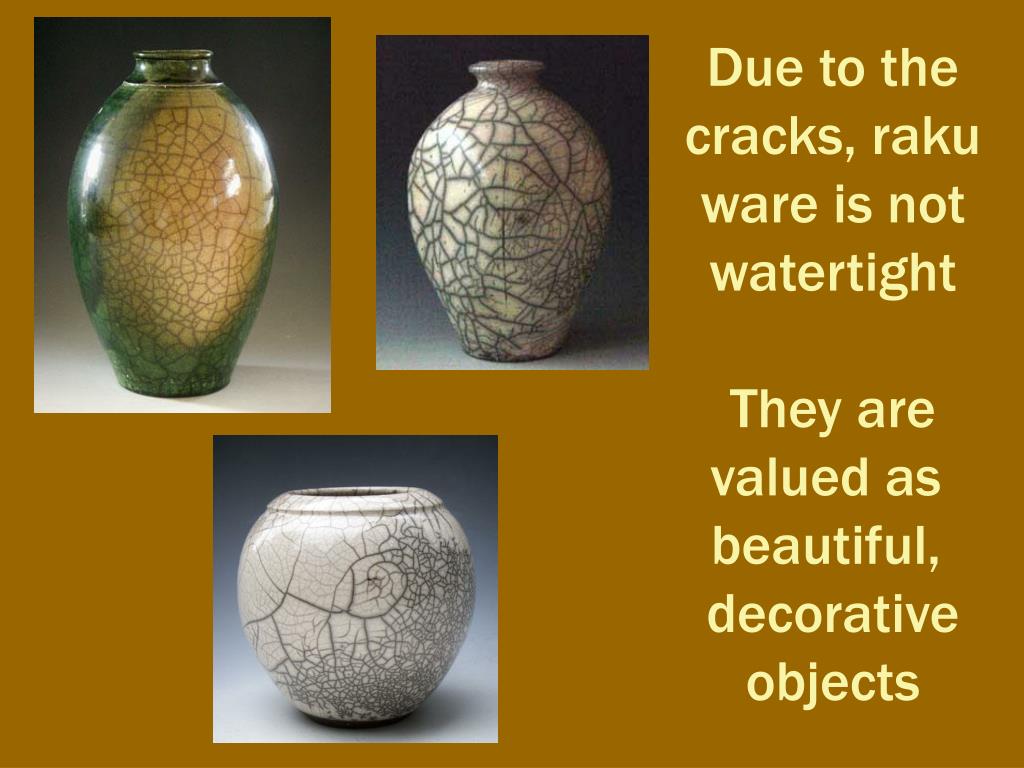

  18. Due to the cracks, raku ware is not watertight They are valued as beautiful, decorative objects

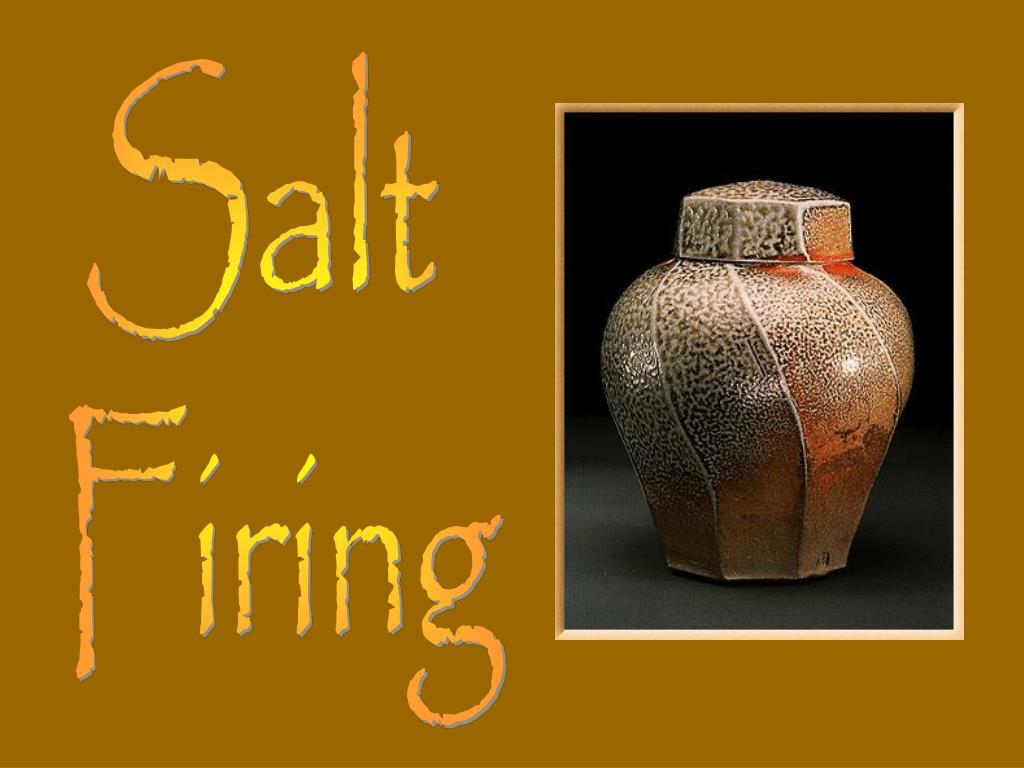

  19. Salt Firing

  20. Salt firing started in Germany in the 15th C. Salt, or sodium chloride, is introducedinto a hot kiln when the temperature reaches 2350 F. or higher. Sodium combines with silica on the surface of pots creating an “orange peel” effect.

  21. Salt becomes an active vapor through the kiln A diluted form of hydrochloric acid is released as a vapor Salt fired kilns can not be used for other kinds of firing.

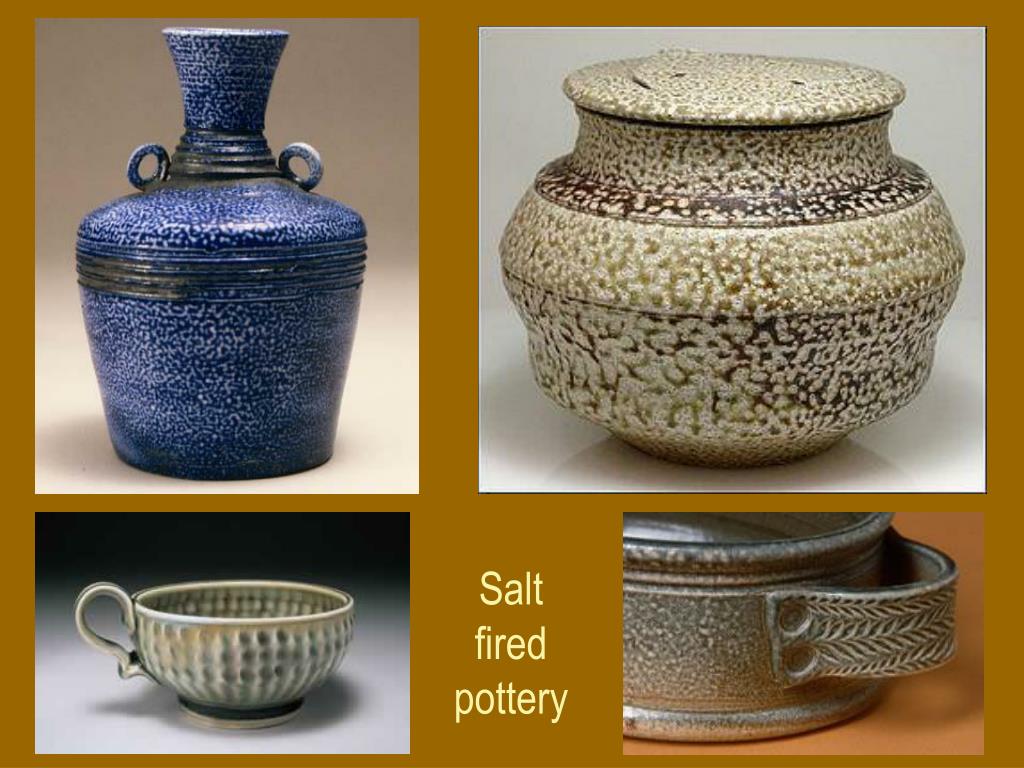

  22. Salt fired pottery

  23. A Japanese term meaning "cave kiln" Anagama Firing

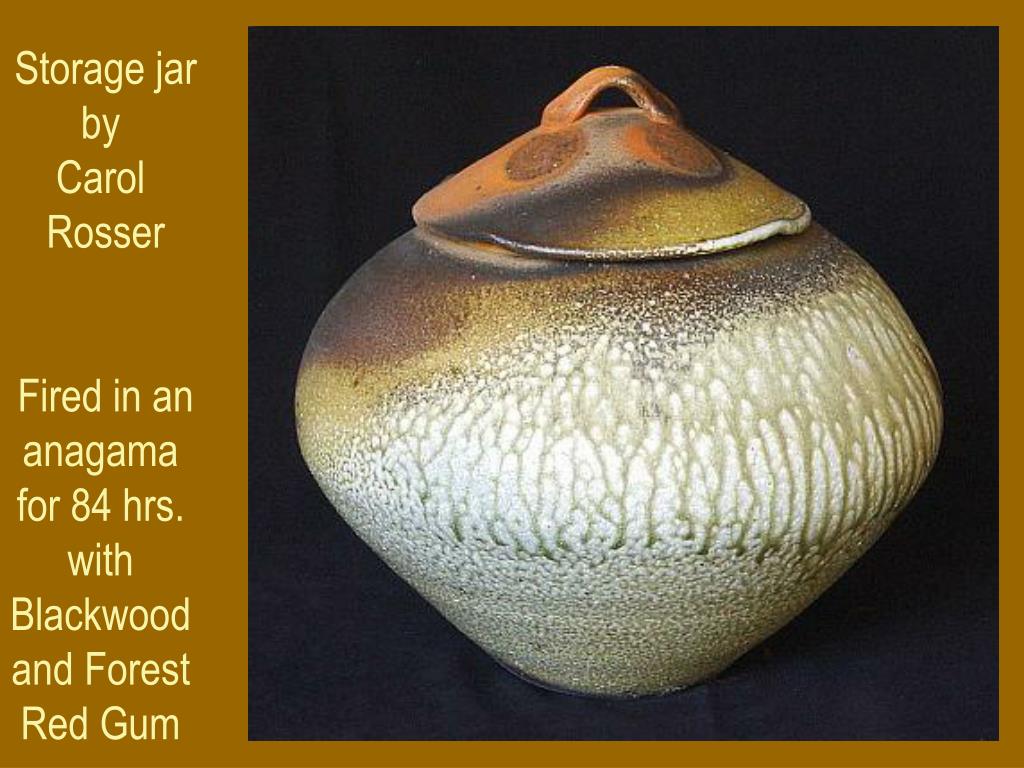

  24. Storage jar by Carol Rosser Fired in an anagama for 84 hrs. with Blackwood and Forest Red Gum

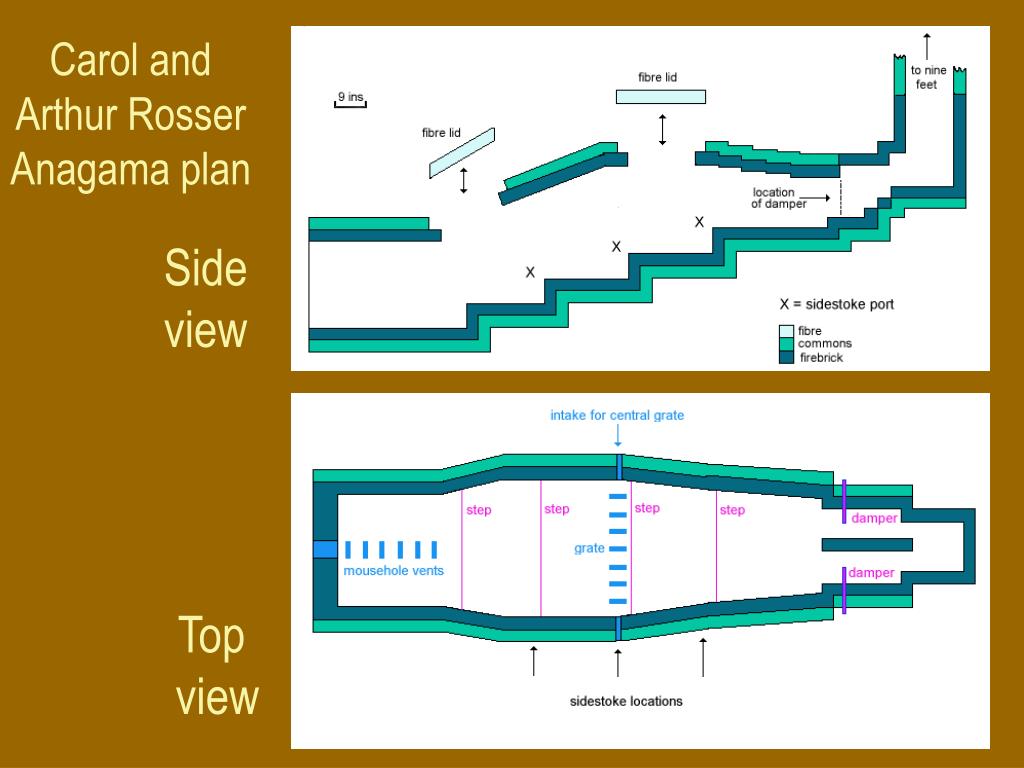

  25. Carol and Arthur Rosser Anagama plan Side view Top view

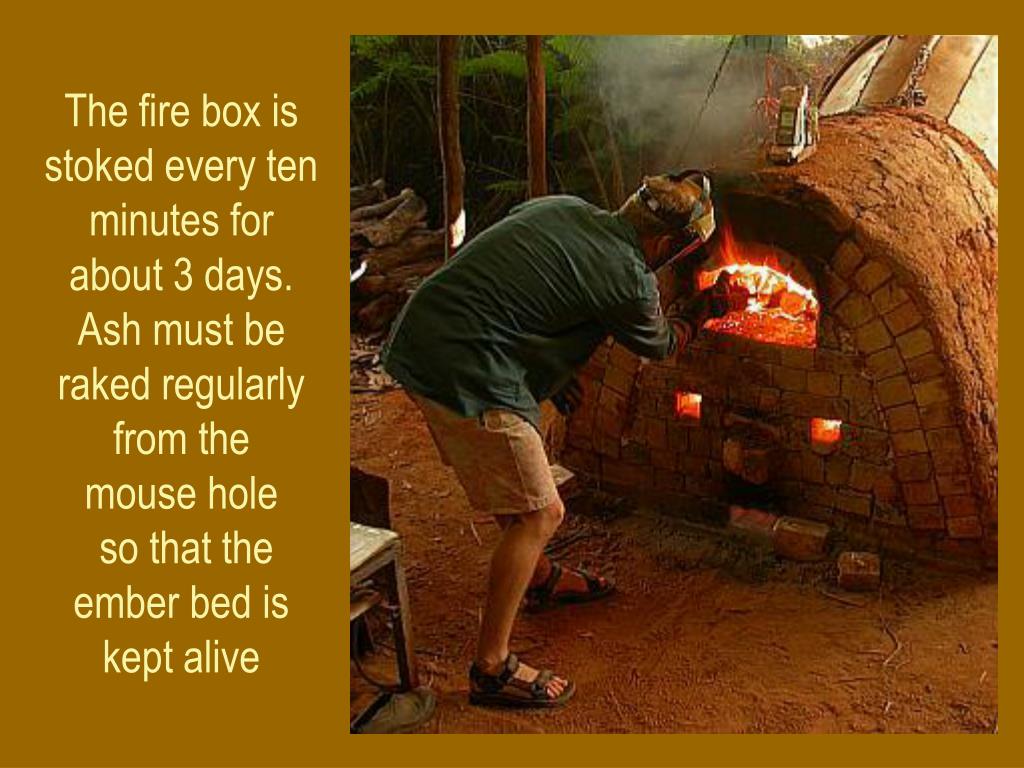

  26. The fire box is stoked every ten minutes for about 3 days.  Ash must be raked regularly from the mouse hole so that the ember bed is kept alive

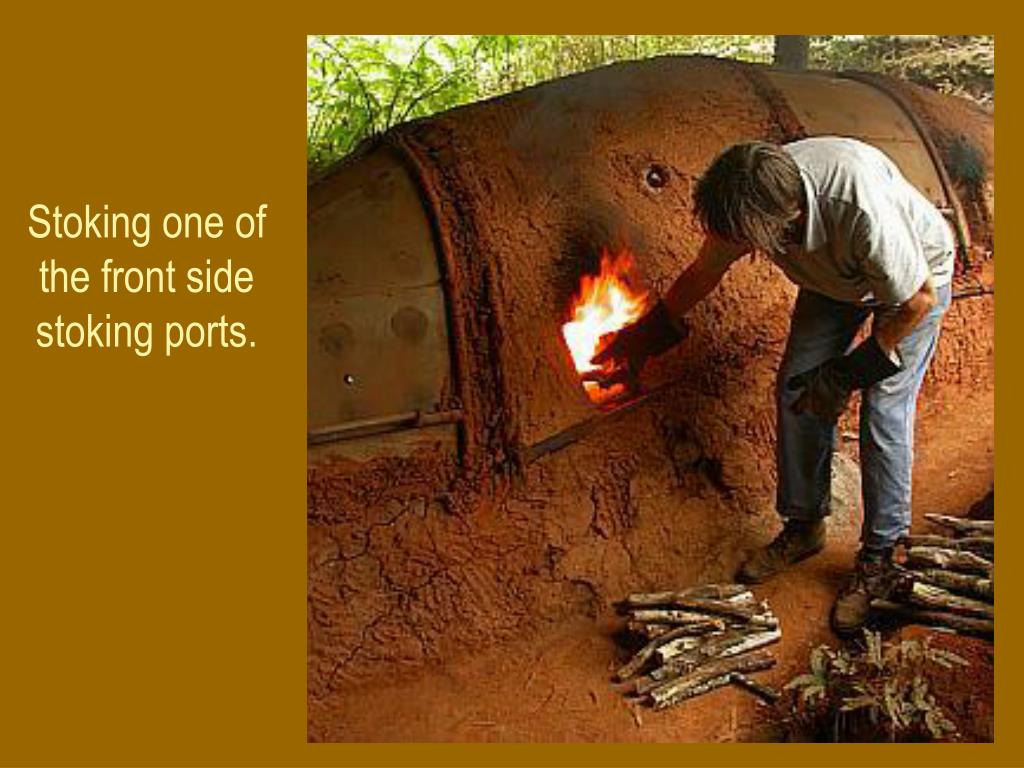

  27. Stoking one of the front side stoking ports.

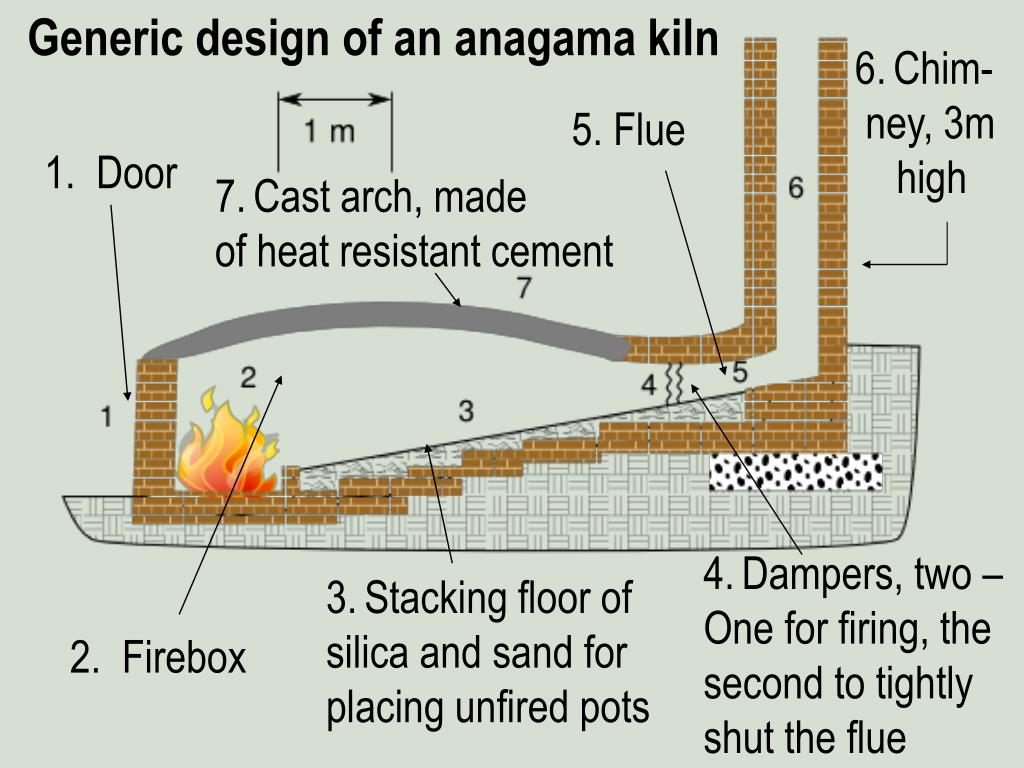

  28. Generic design of an anagama kiln • Chim- • ney, 3m • high 5. Flue 1. Door • Cast arch, made • of heat resistant cement • Dampers, two – • One for firing, the • second to tightly • shut the flue • Stacking floor of • silica and sand for • placing unfired pots 2. Firebox

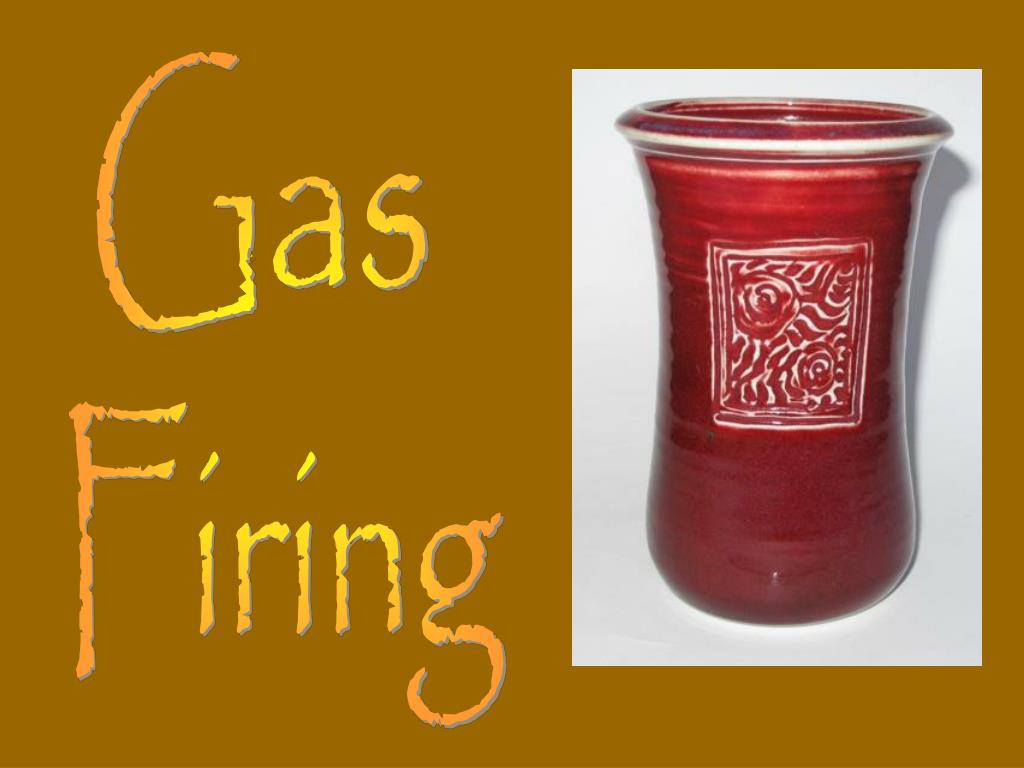

  29. Gas Firing

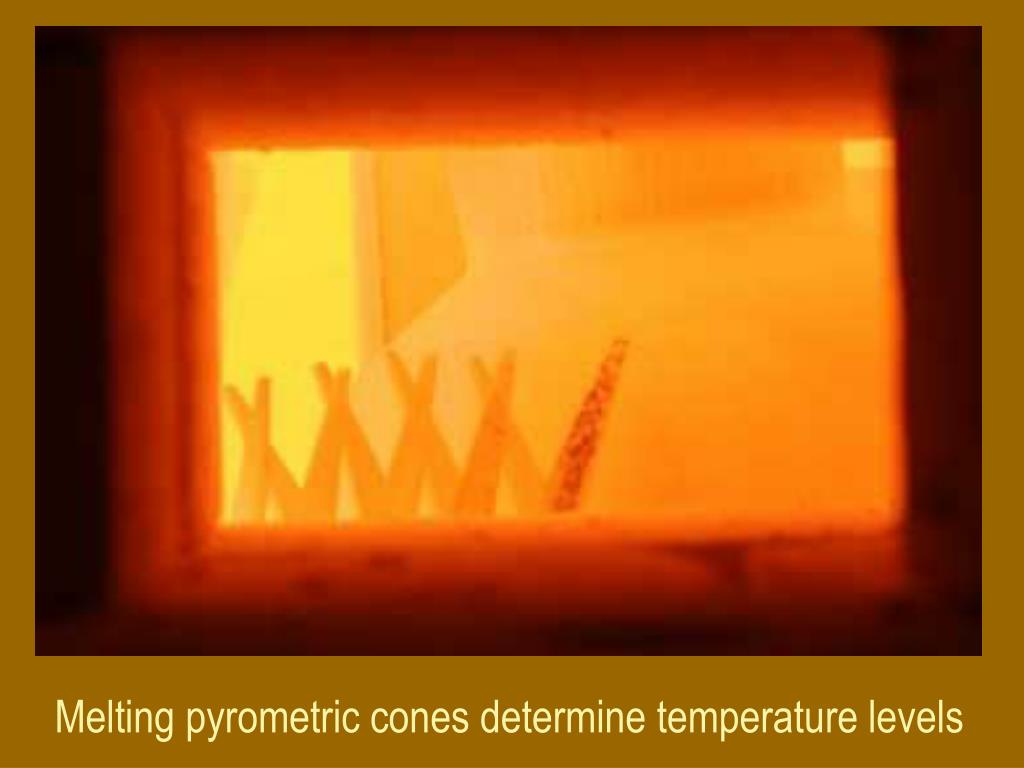

  30. Melting pyrometric cones determine temperature levels

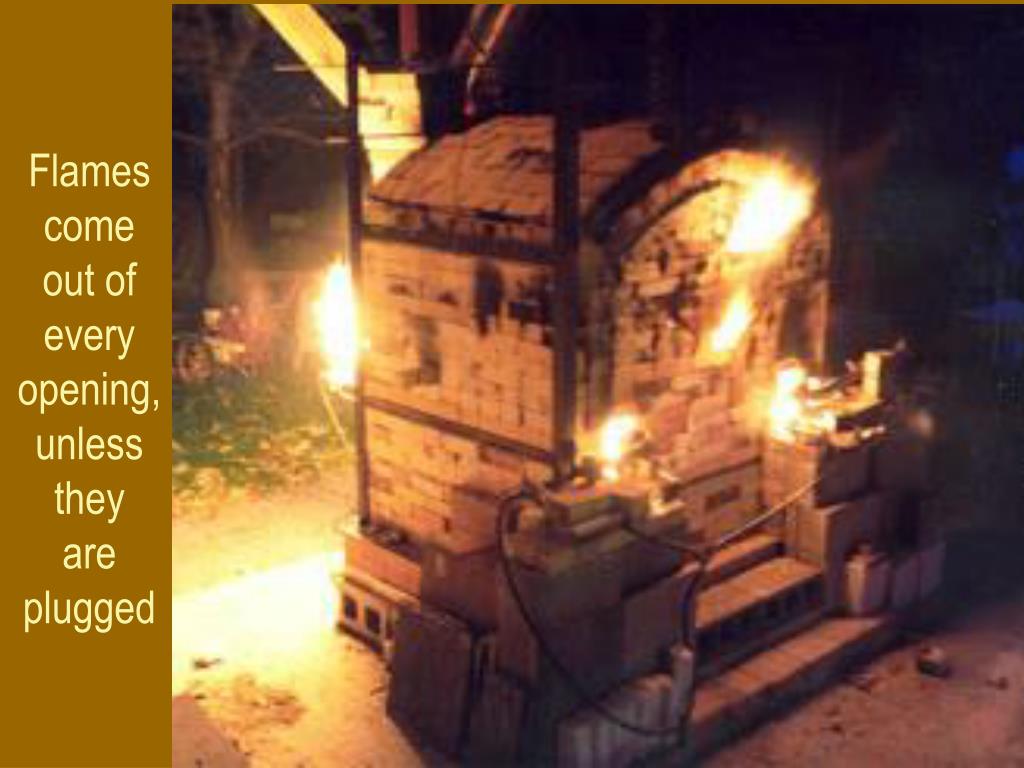

  31. Flames come out of every opening, unless they are plugged

  32. A load of copper red glazes (in the center of the kiln) indicates a variation in reduction between front and rear.

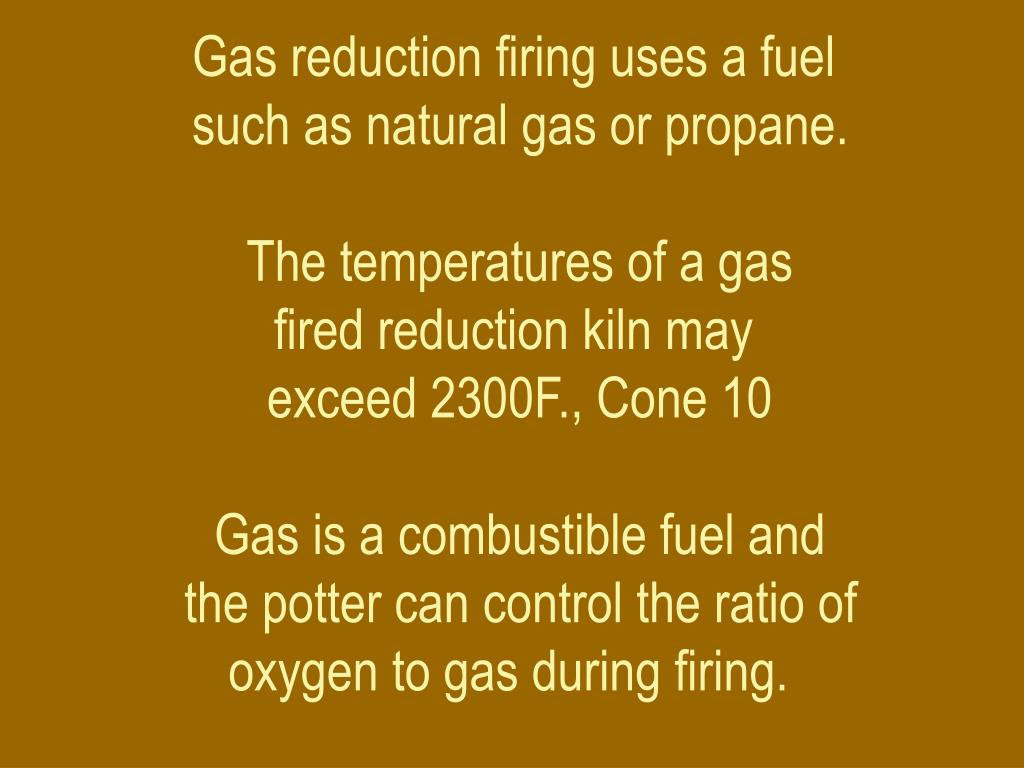

  33. Gas reduction firing uses a fuel such as natural gas or propane. The temperatures of a gas fired reduction kiln may exceed 2300F., Cone 10 Gas is a combustible fuel and the potter can control the ratio of oxygen to gas during firing.

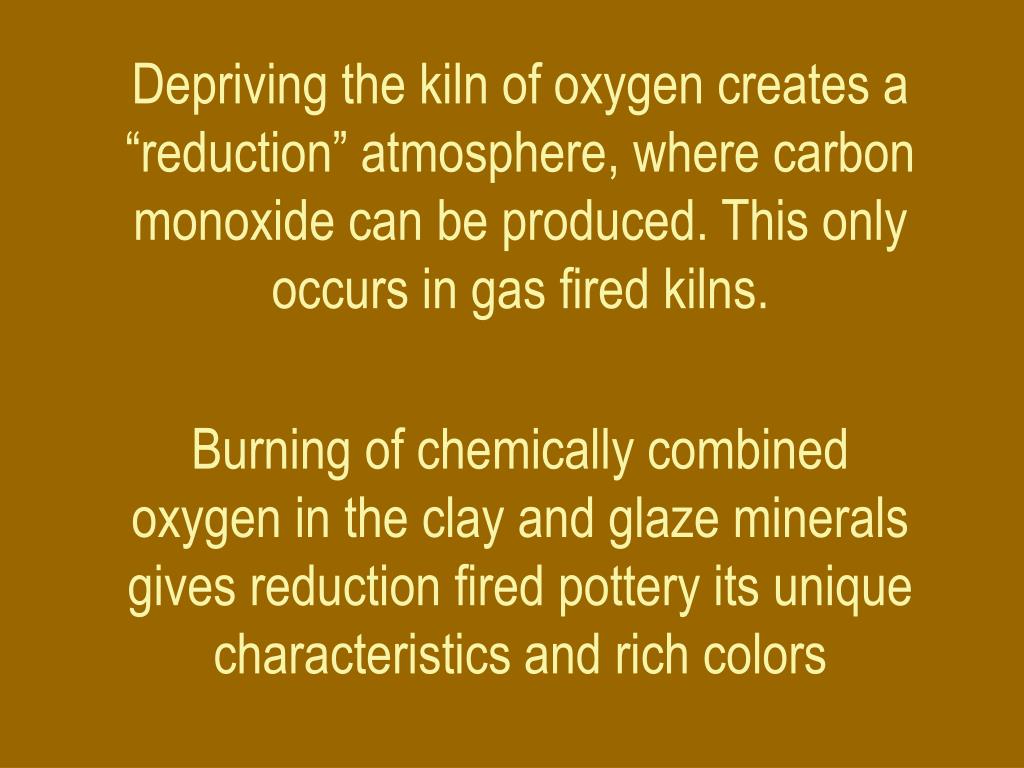

  34. Depriving the kiln of oxygen creates a “reduction” atmosphere, where carbon monoxide can be produced. This only occurs in gas fired kilns. Burning of chemically combined oxygen in the clay and glaze minerals gives reduction fired pottery its unique characteristics and rich colors
