High-Resolution Infrasound Detection System Design for Effective Event Localization

This bulletin outlines the design principles and considerations for high-resolution infrasound detection systems aimed at improving event localization and parameter estimation. It discusses array design, including the use of various detectors like F-detectors and correlation methods. It emphasizes the need for transparency in design, low missed event rates, and cost efficiency. Practical array formation strategies are presented, highlighting the use of genetic algorithms for configuration optimization. Additionally, it details the significance of minimizing side lobes and achieving optimal angular resolution through thoughtful hardware and software integration.

serge
Télécharger la présentation

High-Resolution Infrasound Detection System Design for Effective Event Localization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. High Resolution Array Detector Design of Infrasound Detection and Parameter Estimation Systems Hein Haak & Läslo Evers June-September 2003

  2. Design of the Infrasound network • Bulletin • Localization • Association to events • Parameter estimation • Signal detection • Array layout • Instruments System design Bulletin production, build-up, from IMS to IDC

  3. Detectors / Estimators • Several detectors available: • F-detector • PMCC, MCCM • PWS phase-weighted stacks • LTA/STA … • Generally the detailed descriptions of the detectors could be improved, clear determination of ROCs could be added, black boxes are undesirable, transparency is needed • What is the relation between detector and array design

  4. Basic design considerations • Hardware is hard to adjust, software is more flexible • Frequency wave number analysis is the standard • High resolution methods (Capon) are less robust at low S/N • Coherency detectors are used: Fisher, correlation, semblance throughout the network of arrays • Small arrays, higher resolution, lower costs • Detection without some parameter extraction or estimation is meaningless

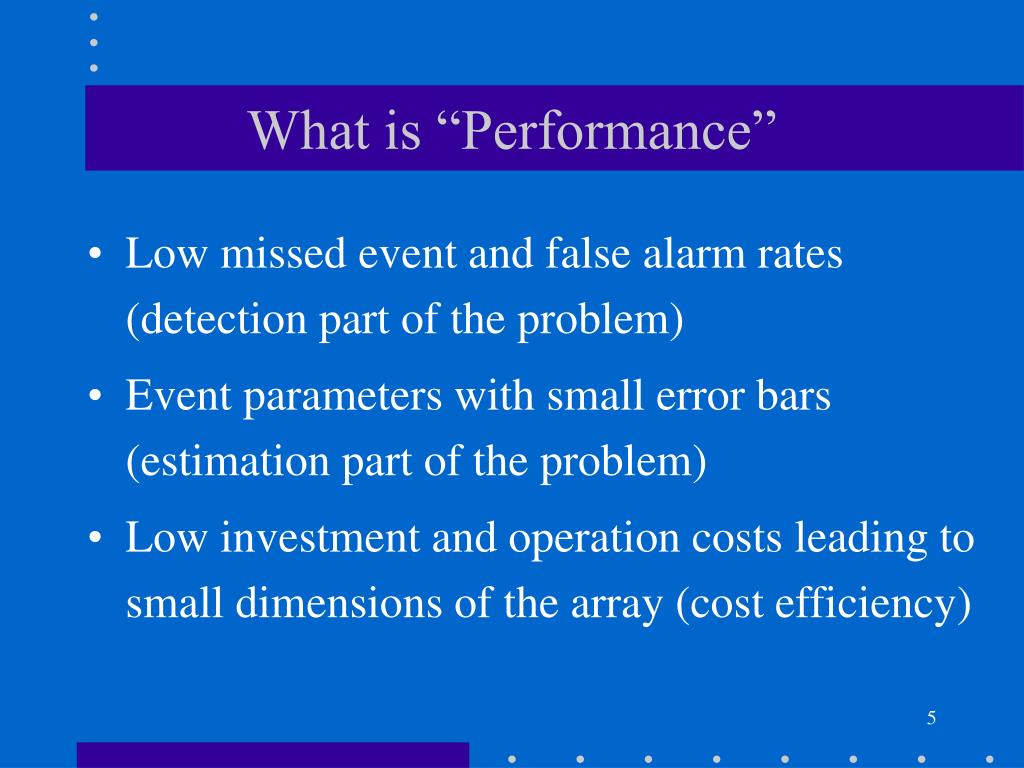

  5. What is “Performance” • Low missed event and false alarm rates (detection part of the problem) • Event parameters with small error bars (estimation part of the problem) • Low investment and operation costs leading to small dimensions of the array (cost efficiency)

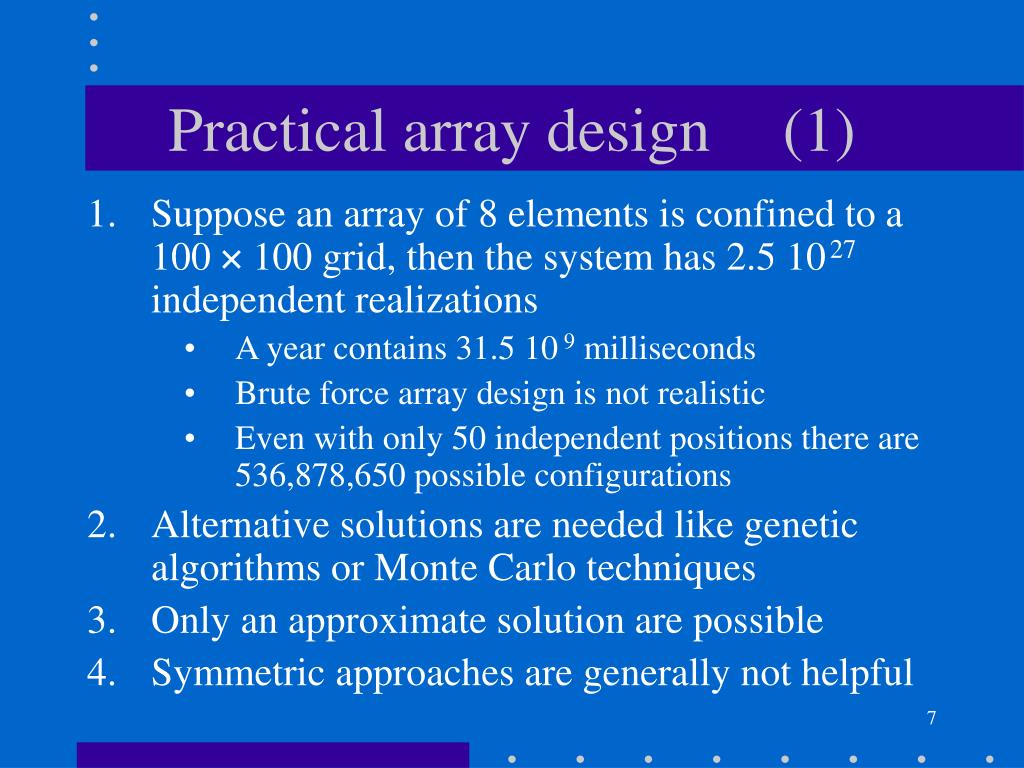

  6. Practical array design (1) • Suppose an array of 8 elements is confined to a 100 100 grid, then the system has 2.5 1027 independent realizations • A year contains 31.5 10 9 milliseconds • Brute force array design is not realistic • Even with only 50 independent positions there are 536,878,650 possible configurations • Alternative solutions are needed like genetic algorithms or Monte Carlo techniques • Only an approximate solution are possible • Symmetric approaches are generally not helpful

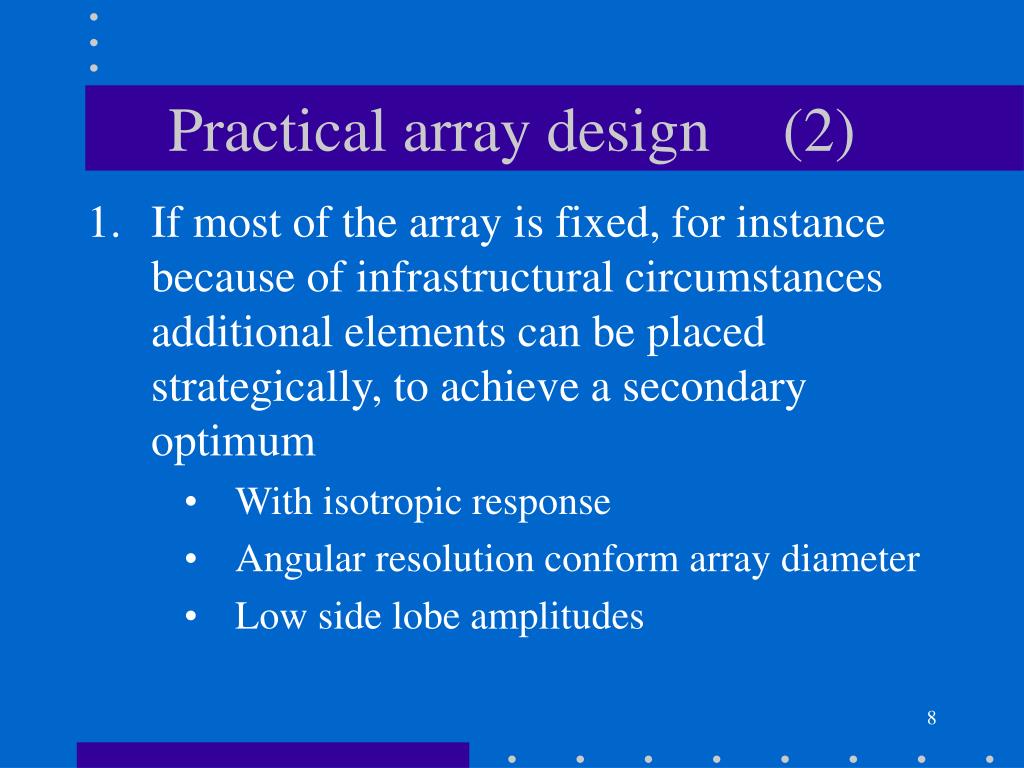

  7. Practical array design (2) • If most of the array is fixed, for instance because of infrastructural circumstances additional elements can be placed strategically, to achieve a secondary optimum • With isotropic response • Angular resolution conform array diameter • Low side lobe amplitudes

  8. Side lobes reducers Side lobes can be reduced through: • Broad frequency band in analysis • Use of Fisher statistics Hardware • Small diameter of the array • Many array elements • Optimal array design in detail Software Conclusion: side lobes should not be a problem

  9. Resolution of arrays; theory • Consider Cramér-Rao Lower Bound • Separation of a signal/noise component and array geometry • Maximize moment of inertia: • Isotropic condition: • Resolution: • Leads to circular arrays with constant radii, the central element is not contributing to the resolution • In sparse arrays non-max-R elements contribute to lower side lobes

  10. Main lobe / side lobe • amplitude vs. • number of elements • S-range: 0.005 sec/m • and 0.0075 sec/m • Resolution conform • diameter of 1200 m • The product: • ·Smax·B  Const.

  11. Array response 8 elements at 1 s period

  12. Array response 8 elements at 4 s period

  13. Array response 8 elements at 1 s period with side lobe penalty function

  14. Array response 8 elements at 4 s period with side lobe penalty function

  15. ‘F’ • Calculation of the F-statistic from multiple time series Xct:

  16. ‘F’ • F in terms of coherent signal-to-noise power ratio: • Power is defined as the square of the amplitude

  17. ‘F’ • Calculation of the F-response: • FKResp. is the normalized FK-array response

  18. ‘F’ • Side lobe suppression: if any measured F-value is larger than Fside lobe then it is originating from the main lobe For R = 2.0, Fside lobe 7 with C = 8

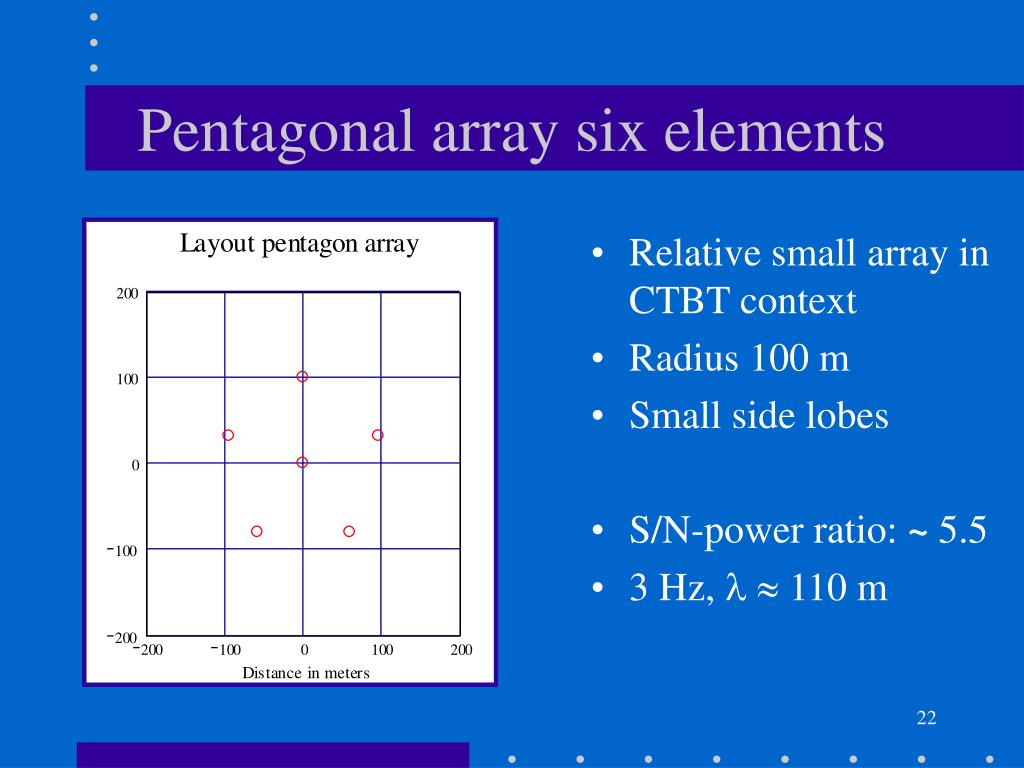

  19. Pentagonal array six elements • Relative small array in CTBT context • Radius 100 m • Small side lobes • S/N-power ratio: ~ 5.5 • 3 Hz,   110 m

  20. F-K and F-plot, S/Np= 5.5, 3 Hz

  21. FK and F-plot, S/Np= 0.2, 3 Hz

  22. F-K, F-plot, 1/f, S/Np= 5.5, 1 Hz

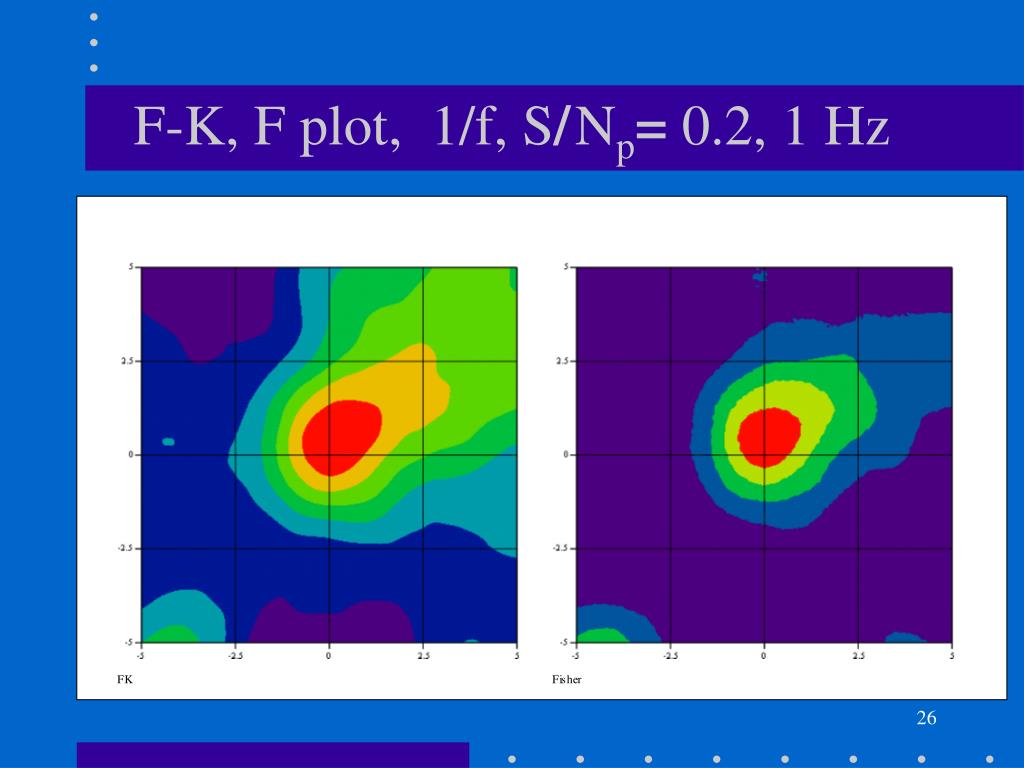

  23. F-K, F plot, 1/f, S/Np= 0.2, 1 Hz

  24. Resolution with F-estimator This plot is made for white, Gaussian noise

  25. A New CTBT Infrasound Array? Smaller array diameter More array elements Optimal detailed design Better adjusted to the detector 
