Measurement of energy spectra of α particles by a solid state detector

A primer course of experimental particle and nuclear physics. Measurement of energy spectra of α particles by a solid state detector. Pham Tuan Anh Osaka, March 6 th 2009. Purpose of experiment. Measurement of energy spectra of α- particle Determine resolution of solid state detector

seven
Télécharger la présentation

Measurement of energy spectra of α particles by a solid state detector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A primer course of experimental particle and nuclear physics Measurement of energy spectra of α particles by a solid state detector Pham Tuan Anh Osaka, March 6th 2009

  2. Purpose of experiment Measurement of energy spectra of α- particle Determine resolution of solid state detector 241AmSource: Solid state detector: Si 241Am 5/2- 9/2- 5388.0 keV (1.4%) 7/2- 5442.9 keV (12.8%) 5/2- 5485.6 keV (85.2%) 5/2+ 237Np

  3. Operation of Si detector P- region N- region + V Depletion region Picture source: www.qsl.net/k0ff/5usPulse.jpg

  4. Collected charged Q Q = η.e.(Eloss/E0) Outputted pulse – height ~ Q E0 = 3.5 eV  high resolution detector

  5. Configuration in the vacuum chamber Si detector Collimator Al foil Am241

  6. The vacuum chamber Valve 3 Pressure gauge Vacuum chamber Valve 1 Valve 2 Rotary pump Vacuum chamber: ~ 0 cm Hg

  7. Configuration of measurement systems • Voltage setup : 100 V • Time for each measurement: 2 minutes. MCA Computer Si α-incident Pre-amplifier Amplifier + V

  8. Vacuum chamber

  9. Rotary pump

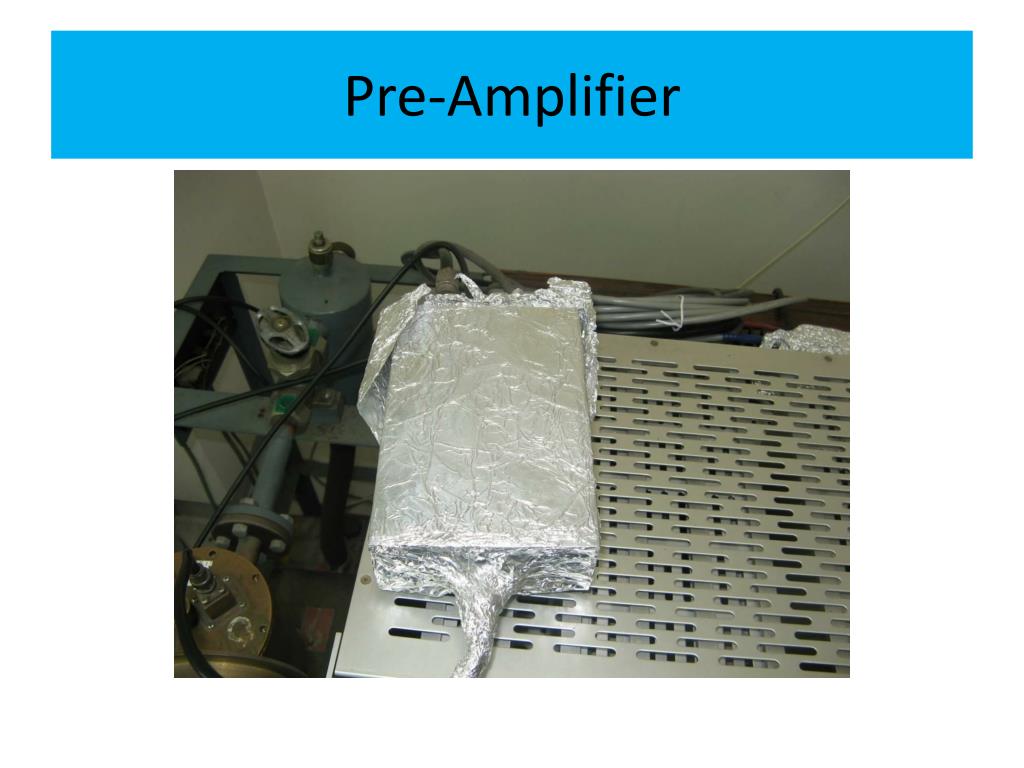

  10. Pre-Amplifier

  11. Amplifier & MCA

  12. Computer

  13. System measurement

  14. Process • 1. Turn on supply: set voltage 100 V (warm-up time ~ 20 minutes). • 2. Close valve 1, 2 and 3. • 3. Turn on rotary pump. • 3. Open valve 2 slowly and look at pressure gauge. (76 cm Hg indicator0 cm Hg inside chamber) .

  15. Process • 4. Turn on computer and look at MCA program. • 5. Set time of measurement. • 6. Energy calibration of the Si detector. • 7. Measurement of energy loss of α particles in materials. • 8. Determination of Al thickness. • 9. Determination of resolution of detector.

  16. Result 2. Measurement of energy loss of α particles in materials

  17. Thank you for your attention

  18. Thank you for your attention

  19. Answer questions • Question 12: • N_(e+p) = E/E_0 ~ 1.56E6 • Expected resolution: • R = 2.35/σ = 2.35/√N = 0.19% • R = 2.35.√(FE_0/E) = 0.07% (F: Fano factor) • Out experimental experiment • R = FWHM/E = 1.82%

  20. Answer questions • FWHM = 2.35/σ = 2.35/√N • Increasing E  FWHM decrease  R decrease  High resolution • R = FWHM/E ~ 1/N1/2

  21. Bibliography Source: • 1. http://www.qsl.net/k0ff/5usPulse.jpg
