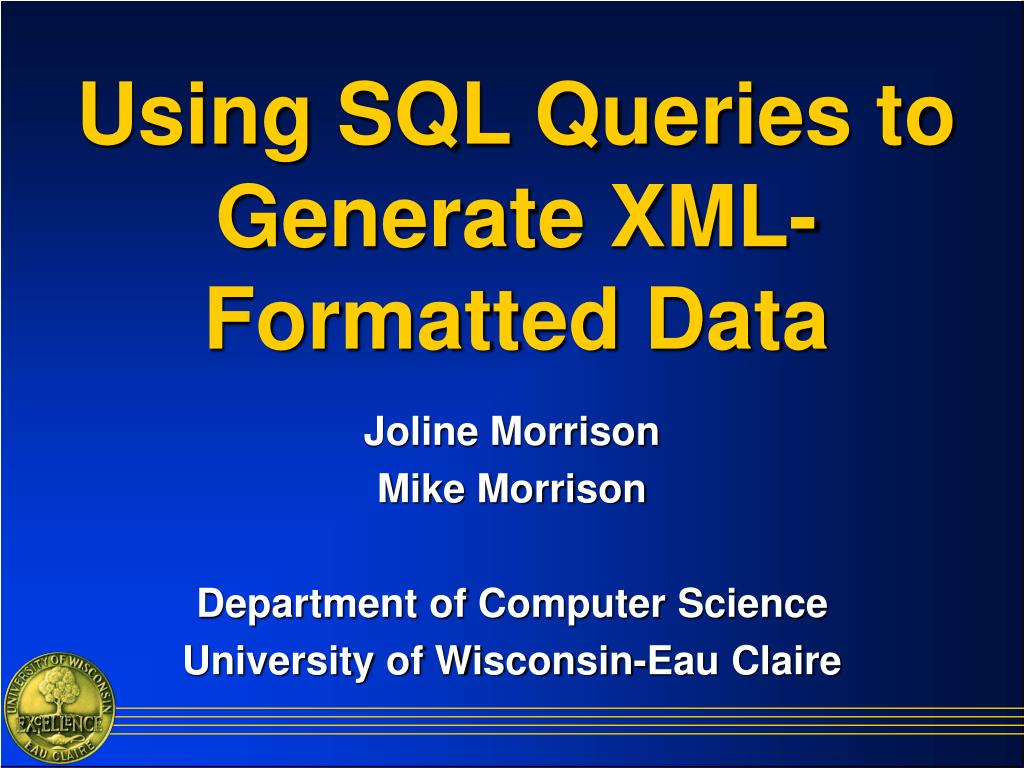

  1. Using SQL Queries to Generate XML-Formatted Data Joline Morrison Mike Morrison Department of Computer Science University of Wisconsin-Eau Claire

  2. Outline • Study motivations • Overview of XML • XML SQL query syntax • Oracle • SQL Server • Conclusions • Platform strengths/weaknesses • Suggestions for student activities

  3. Study Motivations • XML has become the de facto standard for sharing data across diverse applications and hardware/software platforms • SQL-2003 ISO specifies standards for forming queries that retrieve XML-formatted data • But most organizational data is stored in relational databases...

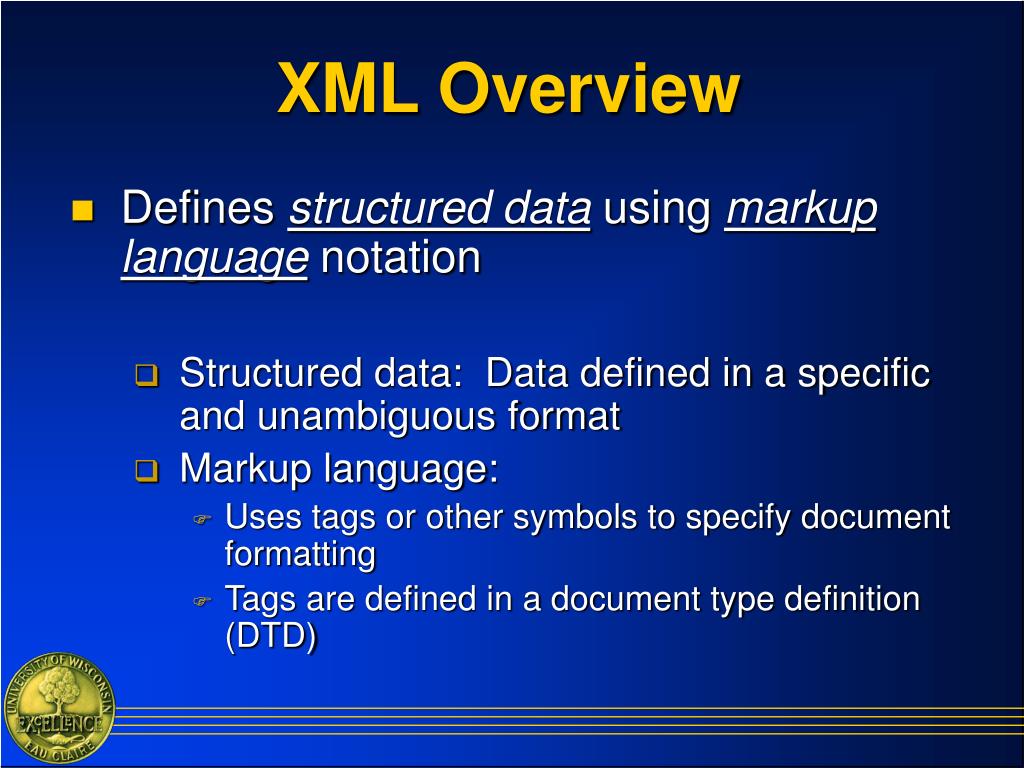

  4. XML Overview • Defines structured data using markup language notation • Structured data: Data defined in a specific and unambiguous format • Markup language: • Uses tags or other symbols to specify document formatting • Tags are defined in a document type definition (DTD)

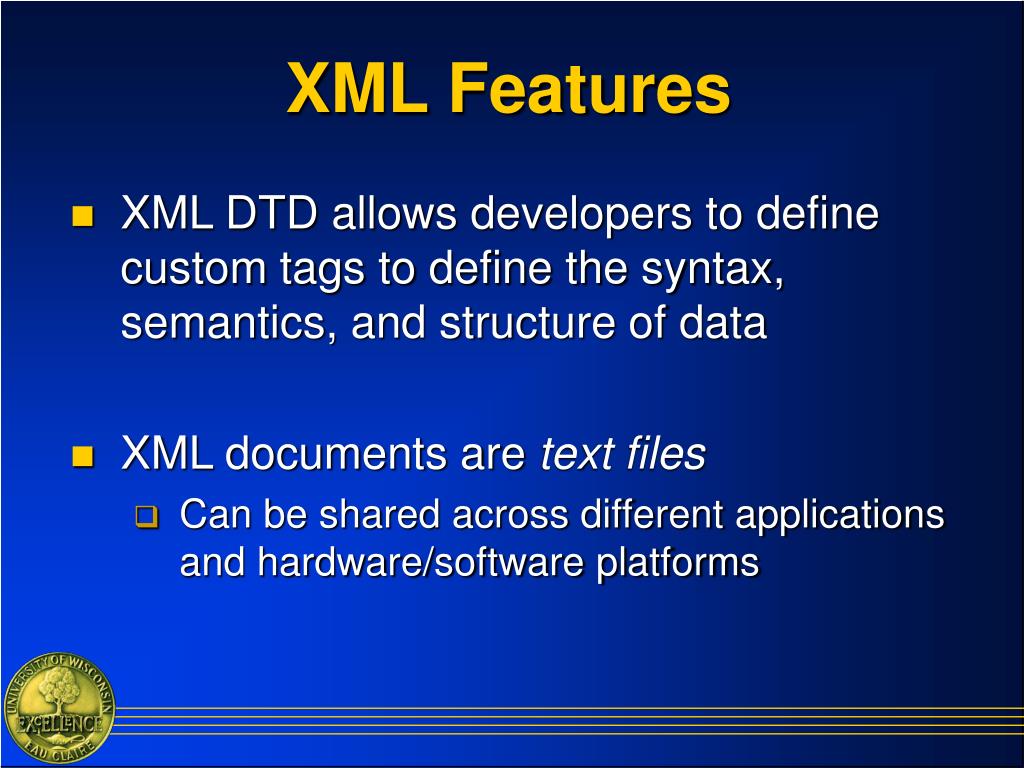

  5. XML Features • XML DTD allows developers to define custom tags to define the syntax, semantics, and structure of data • XML documents are text files • Can be shared across different applications and hardware/software platforms

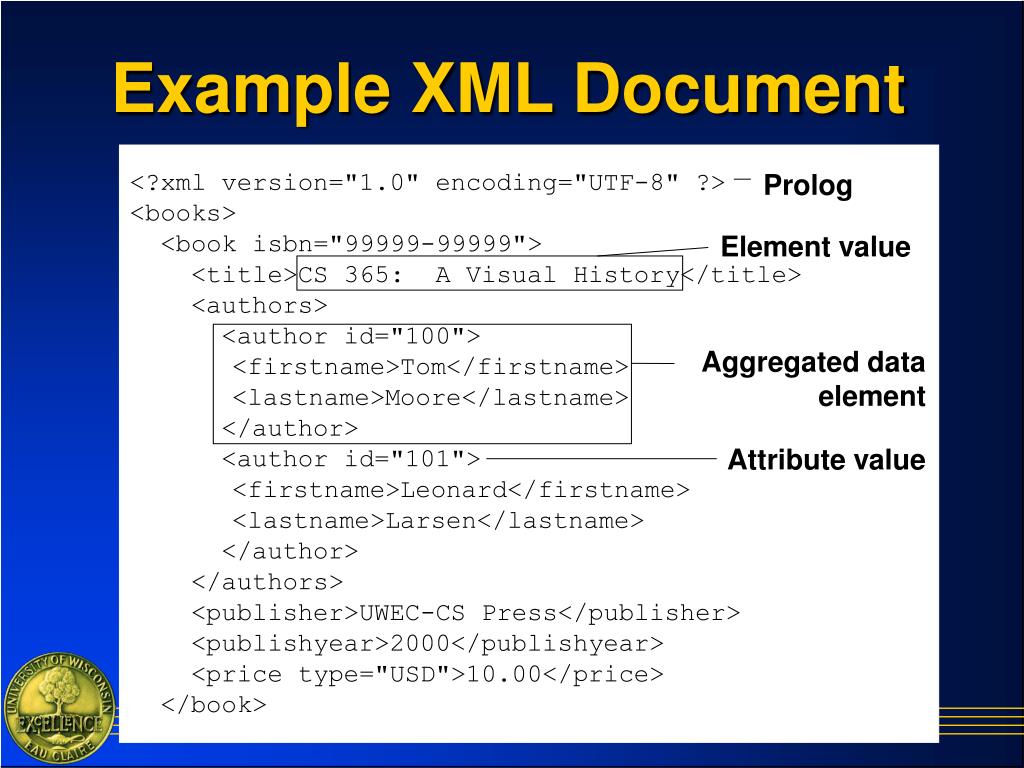

  6. Example XML Document <?xml version="1.0" encoding="UTF-8" ?> <books> <book isbn="99999-99999"> <title>CS 365: A Visual History</title> <authors> <author id="100"> <firstname>Tom</firstname> <lastname>Moore</lastname> </author> <author id="101"> <firstname>Leonard</firstname> <lastname>Larsen</lastname> </author> </authors> <publisher>UWEC-CS Press</publisher> <publishyear>2000</publishyear> <price type="USD">10.00</price> </book> Prolog Element value Aggregated data element Attribute value

  7. Representing Data Relationships in XML Documents <book isbn="99999-99999"> <title>CS 365: A Visual History</title> <authors> <author id="100"> <firstname>Tom</firstname> <lastname>Moore</lastname> </author> <author id="101"> <firstname>Leonard</firstname> <lastname>Larsen</lastname> </author> </authors> • Relationships limited to 1:M • Relationships must be hierarchical

  8. Outline • Research motivations • Overview of XML • XML SQL query syntax • Oracle • SQL Server • Conclusions • Platform strengths/weaknesses • Suggestions for student activities

  9. XML SQL Queries • Approach: create SQL queries that retrieve relational database data and "wrap" it in predefined XML tags • ISO-2003 SQL standards specify required functionality but don't prescribe syntax • Different vendors implement the same functionality quite differently!

  10. Example XML SQL Queries • Operations: • Format values as elements & attributes • Create aggregate elements to represent relationships • Platforms: Oracle & SQL Server

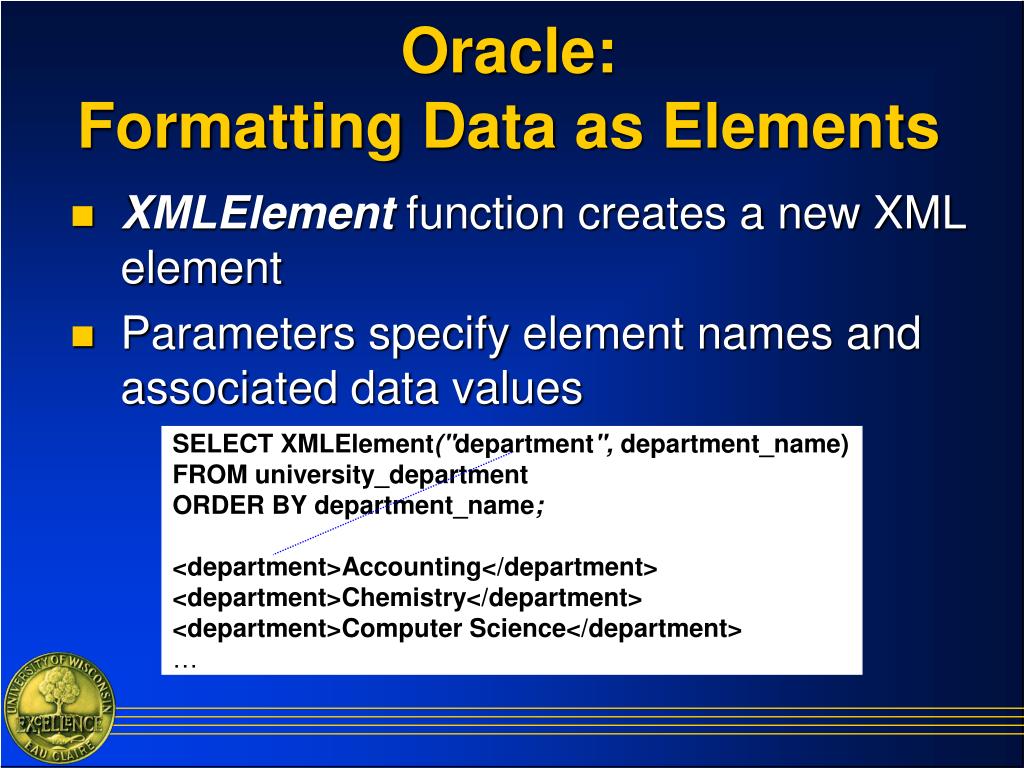

  11. Oracle:Formatting Data as Elements • XMLElement function creates a new XML element • Parameters specify element names and associated data values SELECT XMLElement("department", department_name) FROMuniversity_department ORDER BY department_name; <department>Accounting</department> <department>Chemistry</department> <department>Computer Science</department> …

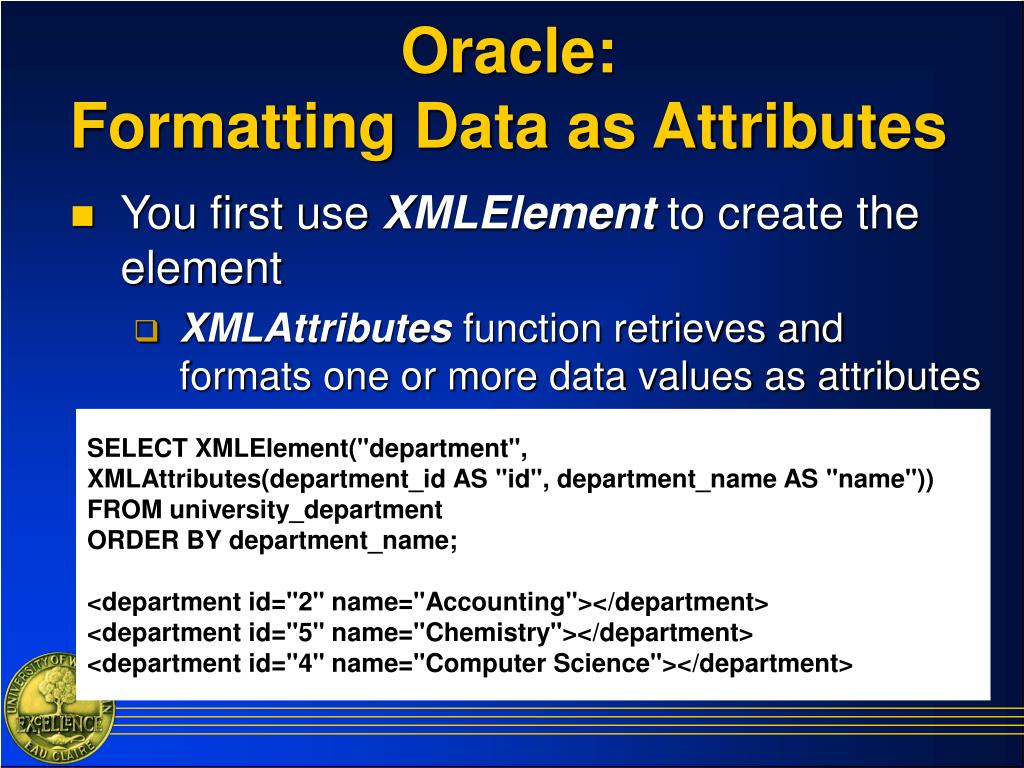

  12. Oracle:Formatting Data as Attributes • You first use XMLElementto create the element • XMLAttributesfunction retrieves and formats one or more data values as attributes SELECT XMLElement("department", XMLAttributes(department_id AS "id", department_name AS "name")) FROM university_department ORDER BY department_name; <department id="2" name="Accounting"></department> <department id="5" name="Chemistry"></department> <department id="4" name="Computer Science"></department>

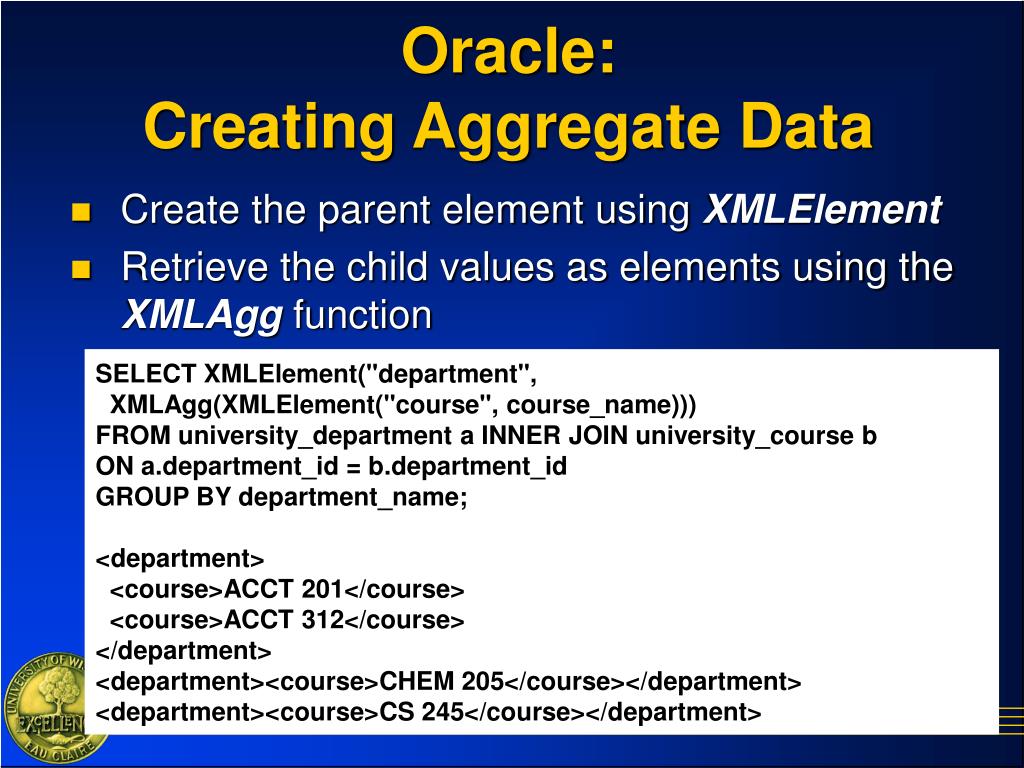

  13. Oracle:Creating Aggregate Data • Create the parent element using XMLElement • Retrieve the child values as elements using the XMLAggfunction SELECT XMLElement("department", XMLAgg(XMLElement("course", course_name))) FROM university_department a INNER JOIN university_course b ON a.department_id = b.department_id GROUP BY department_name; <department> <course>ACCT 201</course> <course>ACCT 312</course> </department> <department><course>CHEM 205</course></department> <department><course>CS 245</course></department>

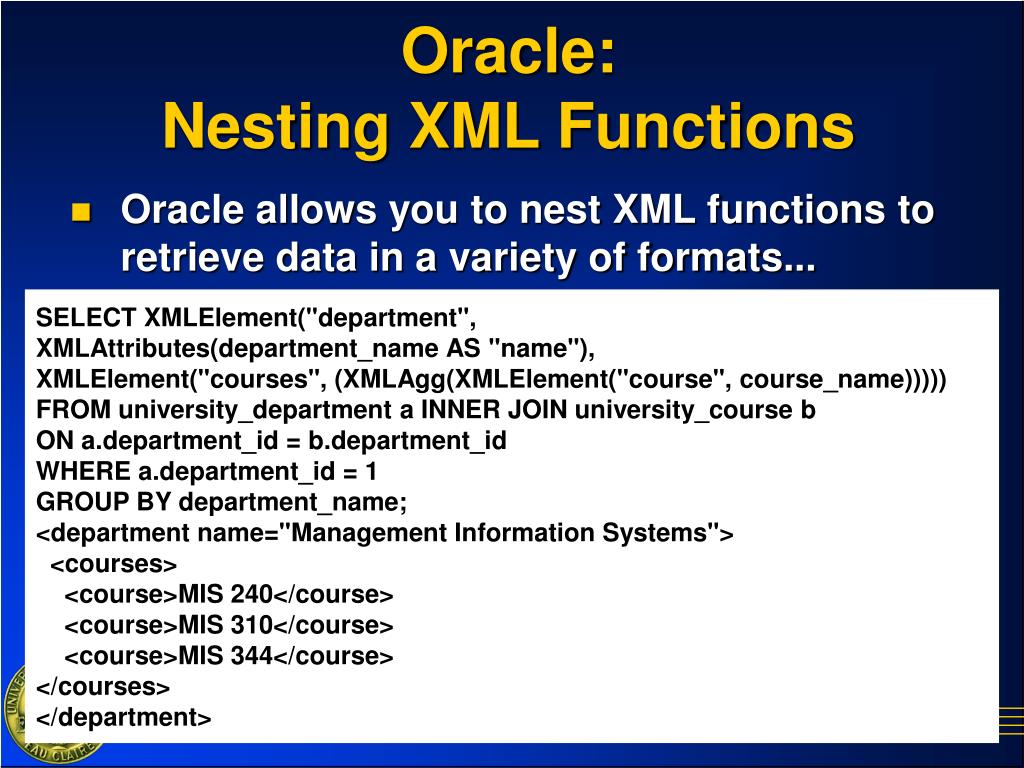

  14. Oracle:Nesting XML Functions • Oracle allows you to nest XML functions to retrieve data in a variety of formats... SELECT XMLElement("department", XMLAttributes(department_name AS "name"), XMLElement("courses", (XMLAgg(XMLElement("course", course_name))))) FROM university_department a INNER JOIN university_course b ON a.department_id = b.department_id WHERE a.department_id = 1 GROUP BY department_name; <department name="Management Information Systems"> <courses> <course>MIS 240</course> <course>MIS 310</course> <course>MIS 344</course> </courses> </department>

  15. SQL Server:General Approach SELECT ... FOR XML Mode[, ELEMENTS] • Mode values: • RAW: returns each record as an XML element enclosed in a <row> element • AUTO: returns each record as a named XML element and hierarchically nests child nodes from JOIN queries • EXPLICIT: provides precise control on how data values are formatted • ELEMENTS option: formats each field as a separate element

  16. SQL Server:Formatting Data as Elements • RAWmode: SELECT DepartmentName, CourseName FROM UniversityDepartment a INNER JOIN UniversityCourse b ON a.DepartmentID = b.DepartmentID ORDER BY DepartmentName, CourseName FOR XML RAW <row DepartmentName="Accounting" CourseName="ACCT 201" /> <row DepartmentName="Accounting" CourseName="ACCT 312" /> <row DepartmentName="Chemistry" CourseName="CHEM 205" />

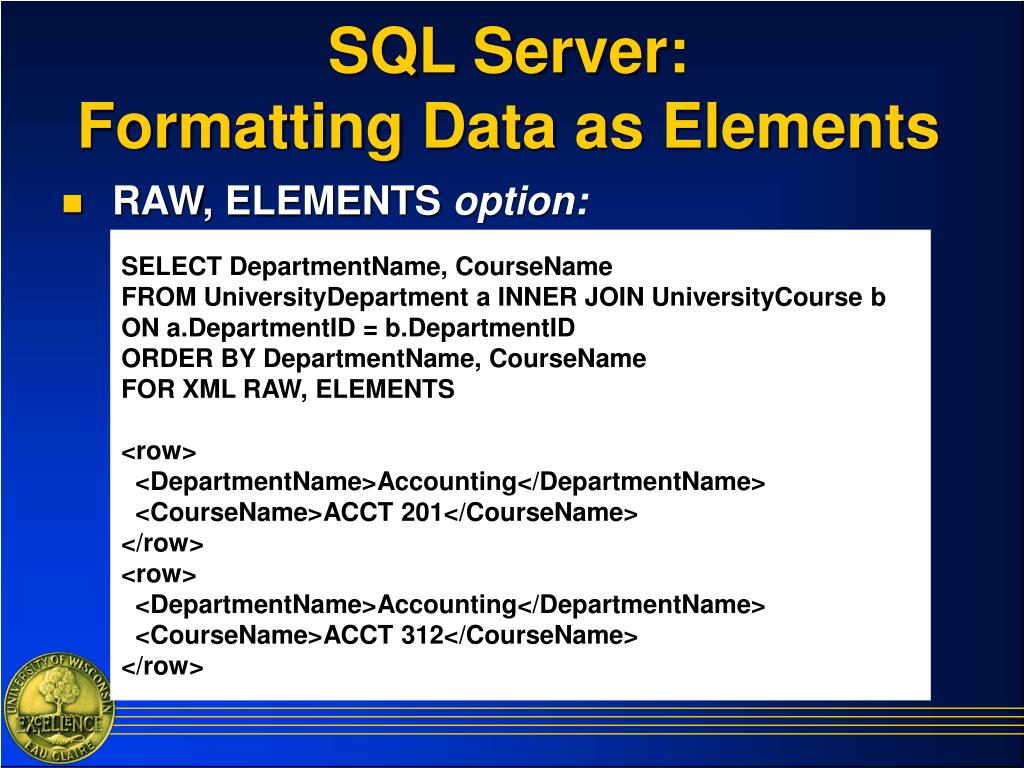

  17. SQL Server:Formatting Data as Elements • RAW, ELEMENTS option: SELECT DepartmentName, CourseName FROM UniversityDepartment a INNER JOIN UniversityCourse b ON a.DepartmentID = b.DepartmentID ORDER BY DepartmentName, CourseName FOR XML RAW, ELEMENTS <row> <DepartmentName>Accounting</DepartmentName> <CourseName>ACCT 201</CourseName> </row> <row> <DepartmentName>Accounting</DepartmentName> <CourseName>ACCT 312</CourseName> </row>

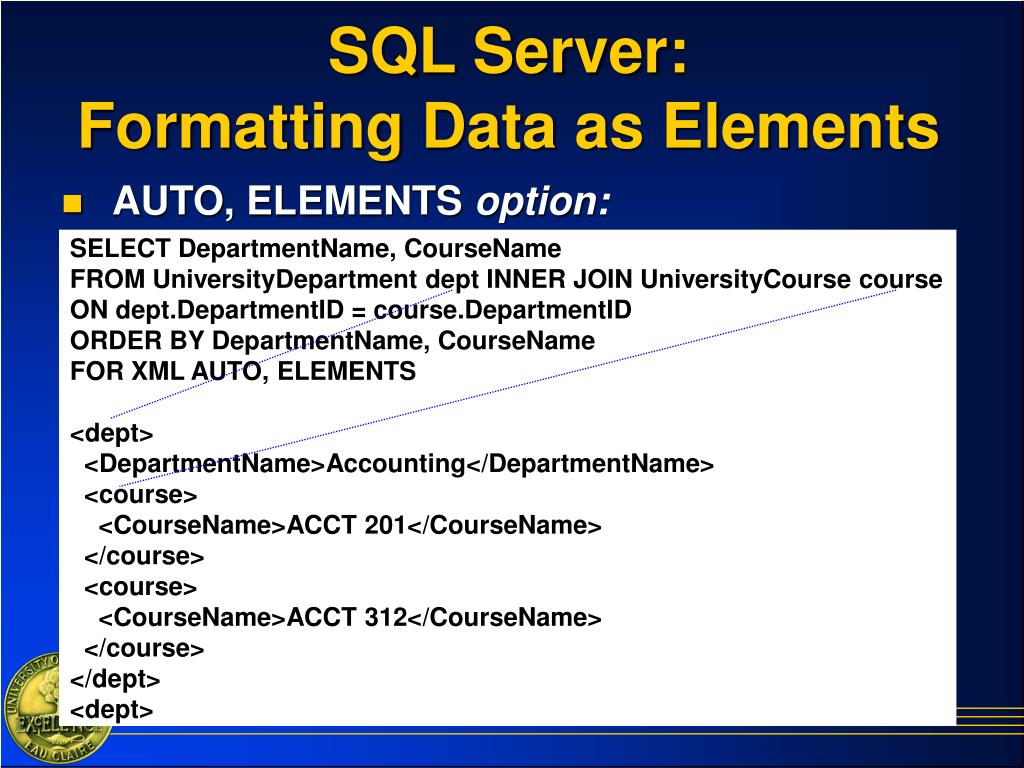

  18. SQL Server:Formatting Data as Elements • AUTO, ELEMENTS option: SELECT DepartmentName, CourseName FROM UniversityDepartment dept INNER JOIN UniversityCourse course ON dept.DepartmentID = course.DepartmentID ORDER BY DepartmentName, CourseName FOR XML AUTO, ELEMENTS <dept> <DepartmentName>Accounting</DepartmentName> <course> <CourseName>ACCT 201</CourseName> </course> <course> <CourseName>ACCT 312</CourseName> </course> </dept> <dept>

  19. SQL Server:Formatting Data as Attributes • AUTO mode (remove ELEMENTS option): SELECT DepartmentName, CourseName FROM UniversityDepartment dept INNER JOIN UniversityCourse course ON dept.DepartmentID = course.DepartmentID ORDER BY DepartmentName, CourseName FOR XML AUTO <dept DepartmentName="Accounting"> <course CourseName="ACCT 201" /> <course CourseName="ACCT 312" /> </dept> <dept DepartmentName="Chemistry"> <course CourseName="CHEM 205" /> </dept> <dept DepartmentName="Computer Science"> <course CourseName="CS 245" /> </dept>

  20. SQL Server:XML EXPLICIT mode • Allows you to specify parent and child elements precisely • Each level is defined within a separate query • Queries are joined using the UNION operator • Level 1 query: SELECT 1 as tag, NULL as parent, DepartmentName AS [dept!1!name!element] FROM UniversityDepartment ORDER BY DepartmentName FOR XML EXPLICIT <dept> <name>Accounting</name> </dept> <dept> <name>Chemistry</name> </dept>

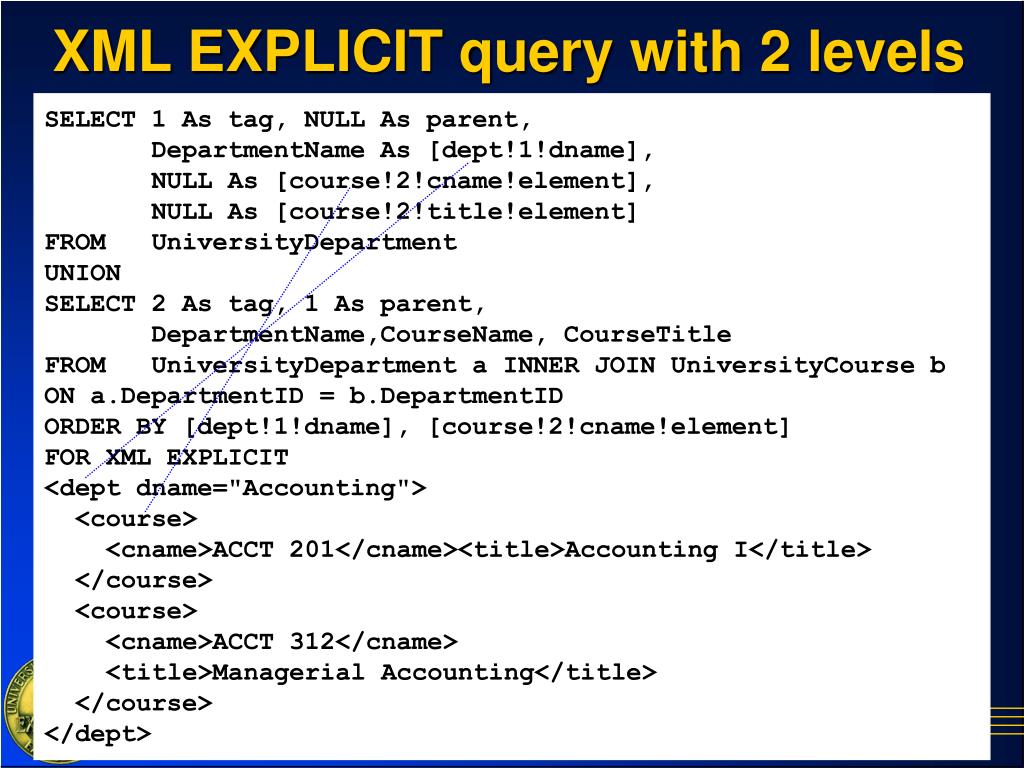

  21. XML EXPLICIT query with 2 levels SELECT 1 As tag, NULL As parent, DepartmentName As [dept!1!dname], NULL As [course!2!cname!element], NULL As [course!2!title!element] FROM UniversityDepartment UNION SELECT 2 As tag, 1 As parent, DepartmentName,CourseName, CourseTitle FROM UniversityDepartment a INNER JOIN UniversityCourse b ON a.DepartmentID = b.DepartmentID ORDER BY [dept!1!dname], [course!2!cname!element] FOR XML EXPLICIT <dept dname="Accounting"> <course> <cname>ACCT 201</cname><title>Accounting I</title> </course> <course> <cname>ACCT 312</cname> <title>Managerial Accounting</title> </course> </dept>

  22. Outline • Study motivations • Overview of XML • XML SQL query syntax • Oracle • SQL Server • Conclusions • Platform strengths/weaknesses • Suggestions for student activities

  23. Conclusions • Platform strengths/weaknesses • Oracle syntax seems a little shorter and cleaner overall • SQL Server automatically creates aggregate data from JOIN queries • SQL Server EXPLICIT mode provides precise formatting • At a high cost!

  24. Conclusions • Platform strengths/weaknesses (continued) • Oracle allows you to create aggregated data in a way that SQL Server does not: <department name="Management Information Systems"> <courses> <course>MIS 240</course> <course>MIS 310</course> <course>MIS 344</course> </courses> </department>

  25. Conclusions • Suggestions for student activities • Manually create XML-formatted data for a series of related database tables • Create queries in both Oracle and SQL Server to retrieve XML-formatted data and analyze syntax differences • Generate XML-formatted data and display it in a browser • Generate XML-formatted data and transform it into and HTML document using XSLTs

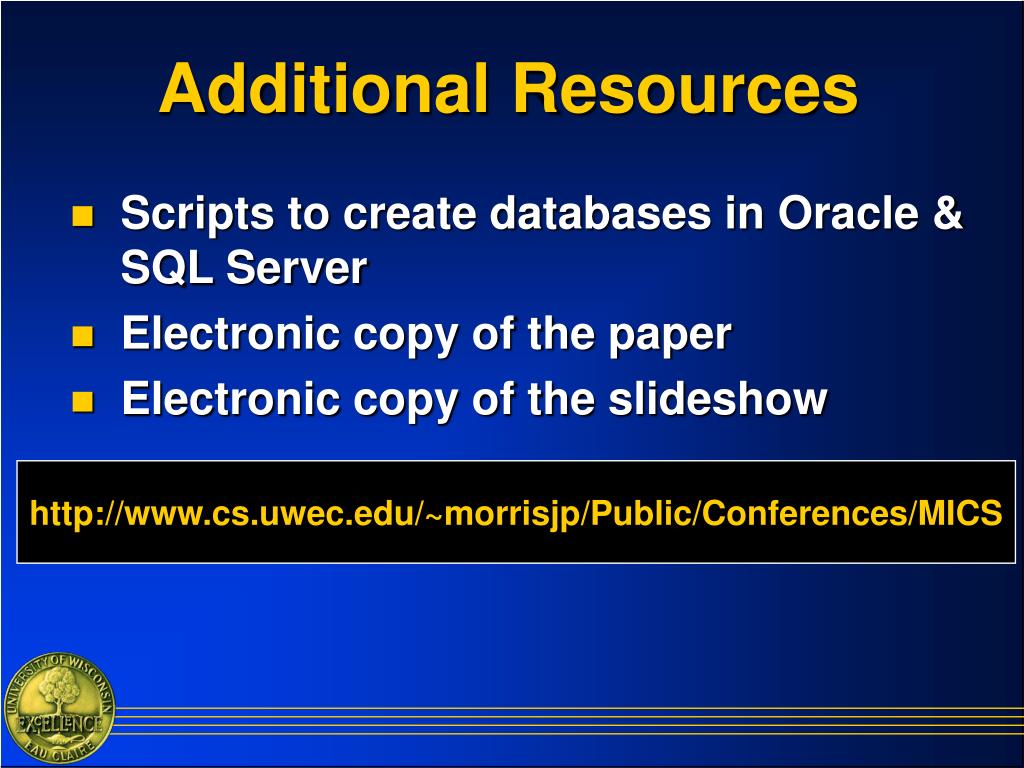

  26. Additional Resources • Scripts to create databases in Oracle & SQL Server • Electronic copy of the paper • Electronic copy of the slideshow http://www.cs.uwec.edu/~morrisjp/Public/Conferences/MICS
