  1. Electron Configuration Quantum Mechanics (Ohh scary)

  2. Quantum Mechanical Model • Schrodinger’s equations, when solved give the most probably location of electrons in the electron cloud. • The energy levels in the electron cloud are labeled by Principle Quantum Numbers (n). • First energy level: n = 1 • Second energy level: n = 2 • Third energy level: n = 3 • Fourth energy level: n = 4

  3. Quantum Mechanical Model • Each sublevel corresponds to orbitals with different shapes. • These orbitals are areas most likely to contain electrons.

  4. S sublevels • The s sublevel is made up of a single s orbital. • It is spherical in shape • A maximum of 2 electrons can fit into any s sublevel

  5. P sublevels • The p sublevel is composed of 3 orbitals: • px • py • pz • These orbitals are dumbbell shaped • A maximum of 6 electrons can be found in the p sublevel

  6. D sublevels • Each d sublevel is composed of 5 orbitals. • A total of 10 electrons can be found in the d sublevel.

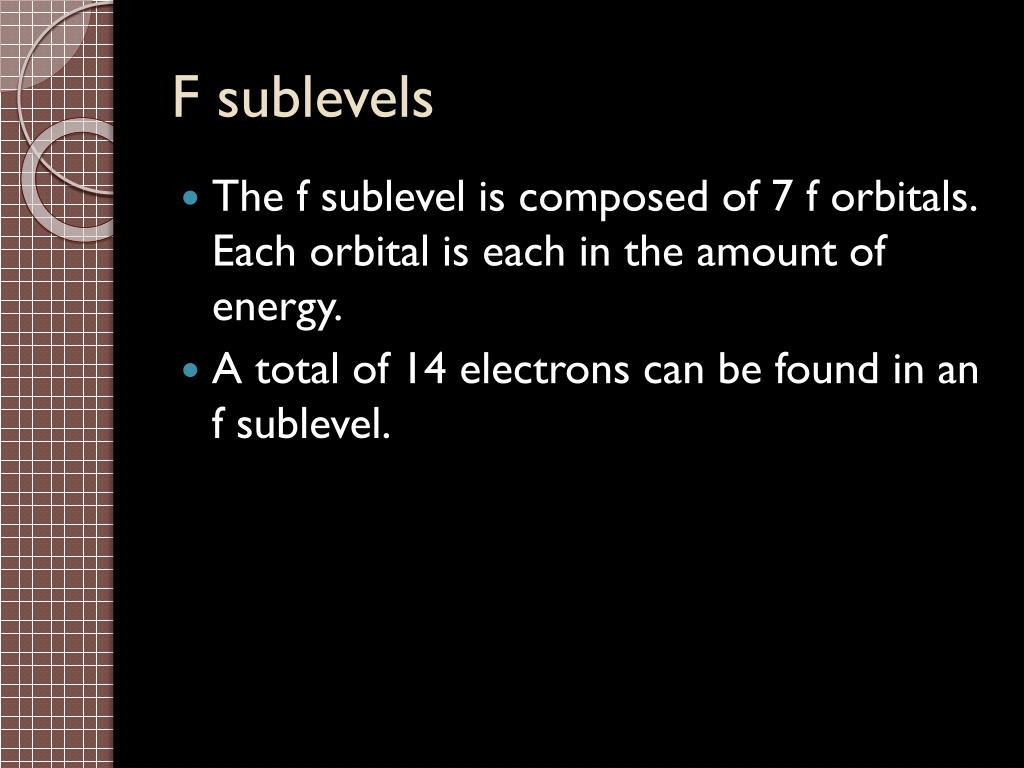

  7. F sublevels • The f sublevel is composed of 7 f orbitals. Each orbital is each in the amount of energy. • A total of 14 electrons can be found in an f sublevel.

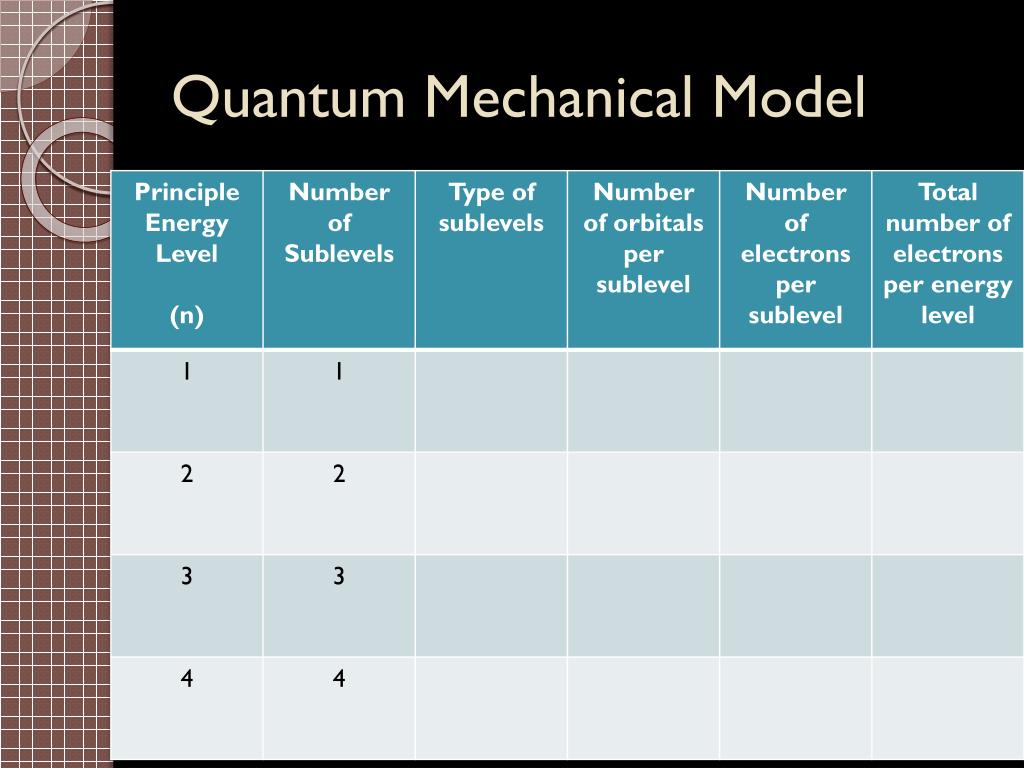

  8. Quantum Mechanical Model
