**Modeling and Prediction of Abdominal Tumor Motion**

This project aims to facilitate real-time tracking of abdominal tumor motion during radiotherapy, ensuring precise radiation dose delivery to mobile tumors. By utilizing methods to model and predict tumor motion, the study explores template matching using Deformable Hidden Markov Models (DHMM) and curve fitting techniques to enhance accuracy and efficiency. Experimental analyses and comparisons of methods showcase potential improvements in predicting tumor motion, paving the way for future enhancements in clip tracking and patient breathing pattern adjustments.

shel
Télécharger la présentation

**Modeling and Prediction of Abdominal Tumor Motion**

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Modeling and Prediction of Abdominal Tumor Motion Haobing Wang Department of Computer Science May 9th, 2003

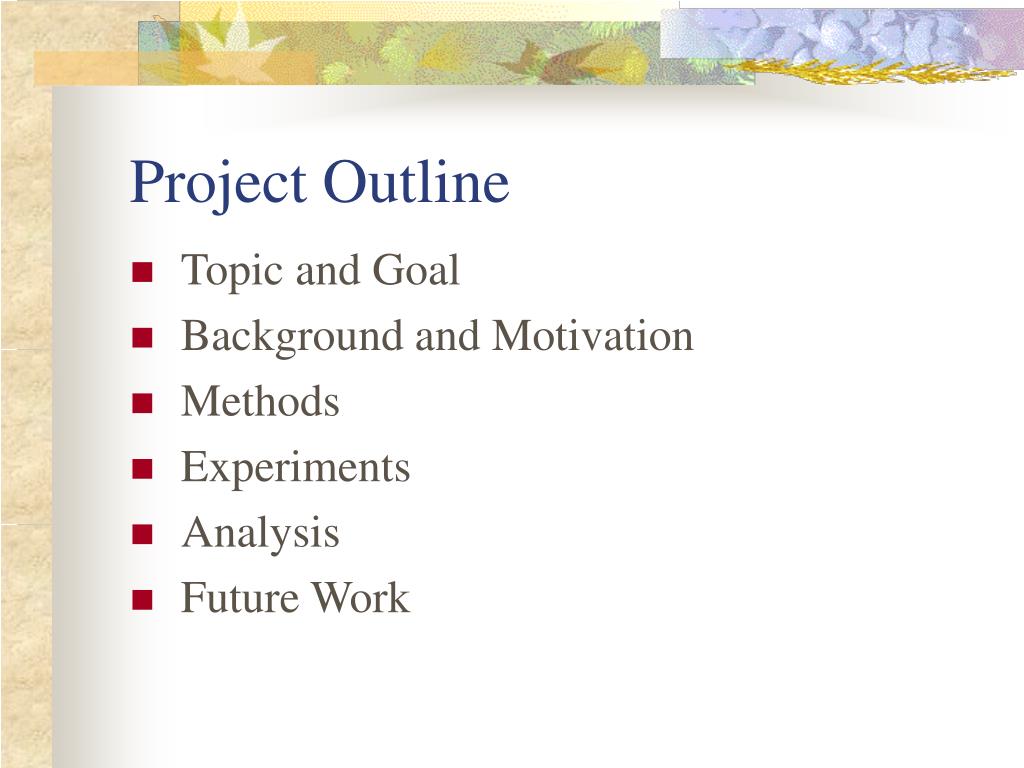

  2. Project Outline • Topic and Goal • Background and Motivation • Methods • Experiments • Analysis • Future Work

  3. Topic and Goal • Facilitate real-time tracking of the tumor motion during radiotherapy and allow for for precise delivery of radiation dose to mobile tumors. • Find methods to model and predict abdominal tumor motion.

  4. Background and Motivation • Tumor position is modeled by tracking surgically implanted clips surrounding the tumor. • The radiation beam has mechanical latency.

  5. Template Matching Using DHMM • DHMM: Deformable Hidden Markov Model • Given a pattern template, recognizing the pattern in a new time series, allowing flexible deformation of time.

  6. Template Matching Using DHMM • Generalize the standard constant model and allow each state to generate data in the form of a regression curve. • K-state segmental HMM each state of which corresponds to one segment in the piecewise linear representation of the template.

  7. Template Matching Using DHMM • Use a sinusoid as template • The DHMM automatically find the period whose shape is similar to a sinusoid. Then the sequence is found is used as the prediction of the next breathing period.

  8. Experiments of DHMM Method

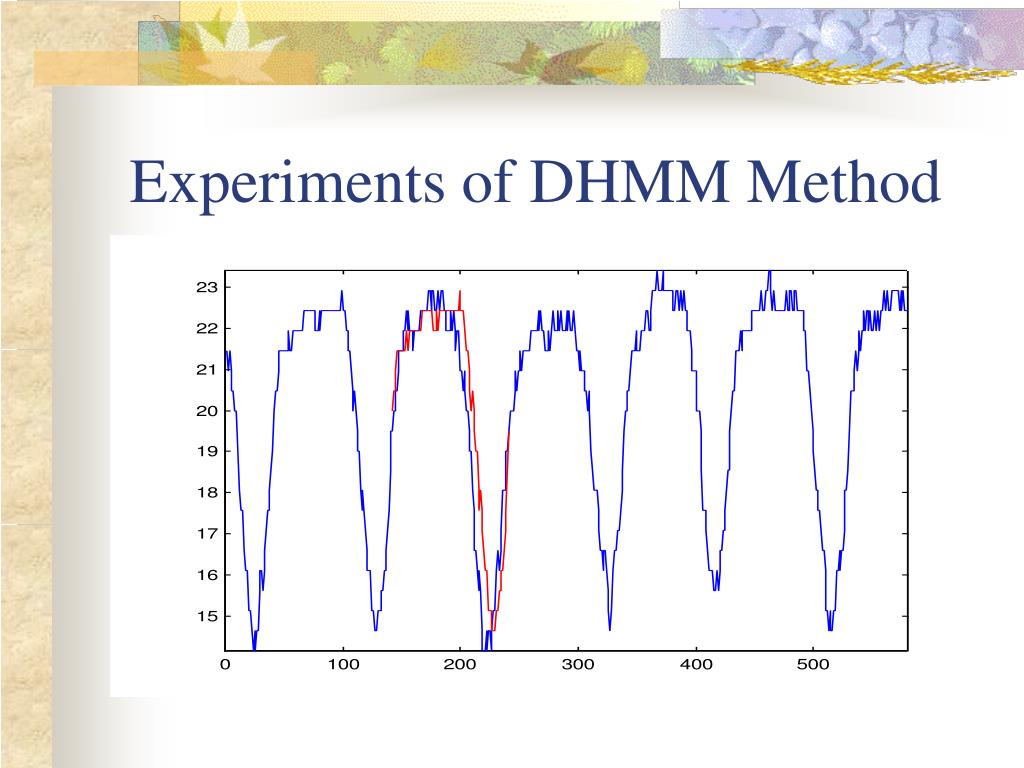

  9. Experiments of DHMM Method Prediction of 100 frames

  10. Analysis of DHMM Method • Average error and error variance is greater than 1 millimeter. • Although the computation time for each clip is around 5 minutes, it’s still cannot be done on-line.

  11. Prediction by Curve Fitting • A least square method to fit the data points to a third order polynomial function: f(x) = b0 + b1x + b2x2 + b3x3 . The set of coefficients [bn] can be found by minimizing the sum:

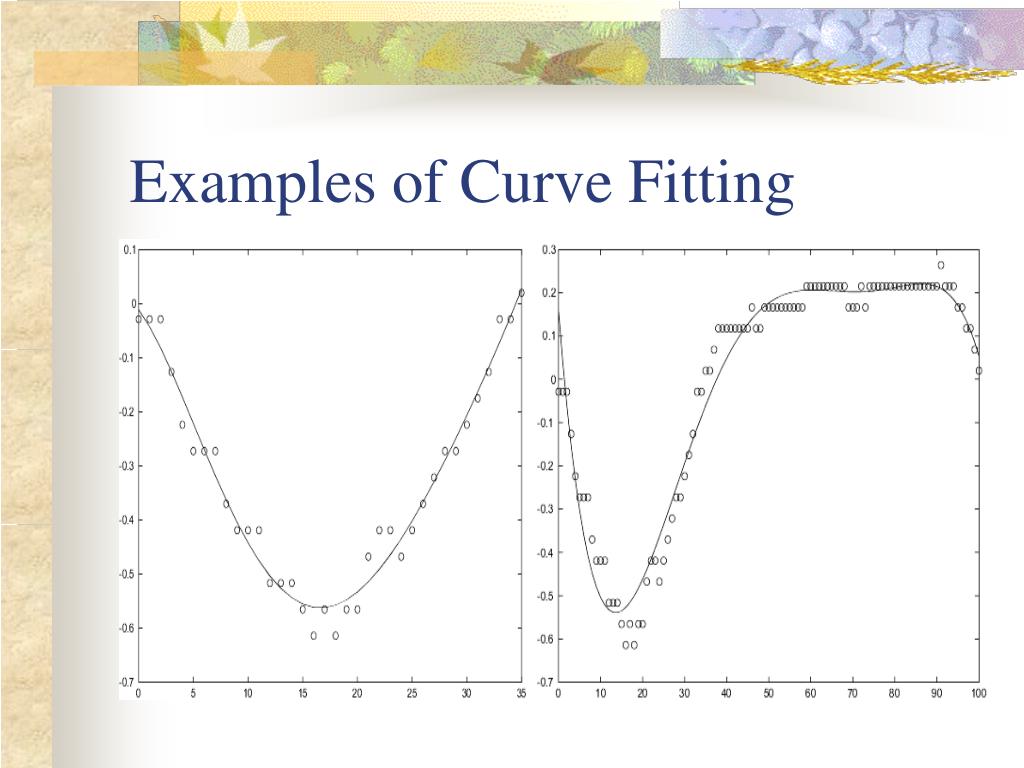

  12. Examples of Curve Fitting

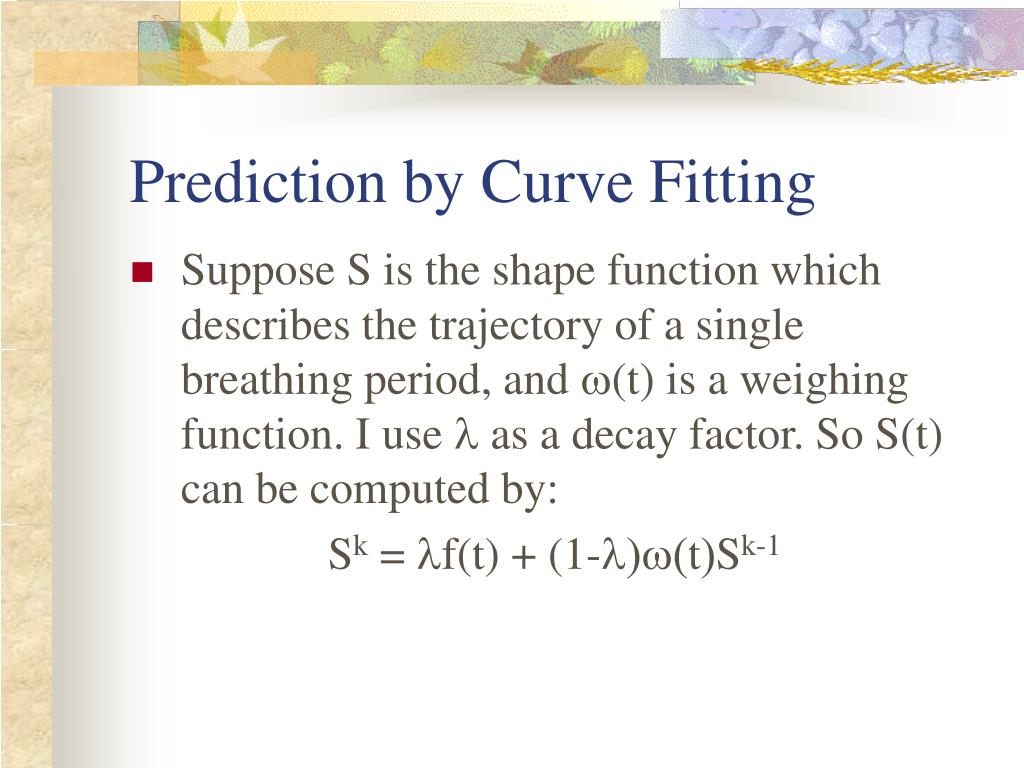

  13. Prediction by Curve Fitting • Suppose S is the shape function which describes the trajectory of a single breathing period, and (t) is a weighing function. I use as a decay factor. So S(t) can be computed by: Sk = f(t) + (1-tSk-1

  14. Experiments of Curve Fitting Bob (clip 2)

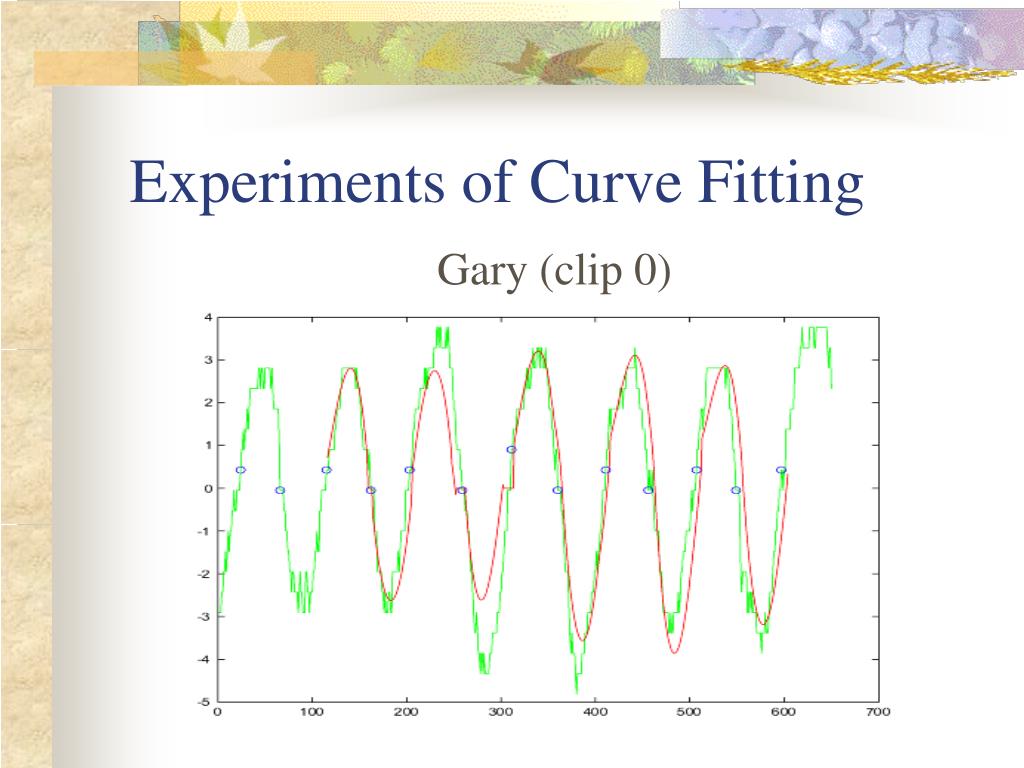

  15. Experiments of Curve Fitting Gary (clip 0)

  16. Experiments of Curve Fitting Results of predicting approximately 550 frames on average

  17. Experiments of Curve Fitting Results of predicting 100 frames

  18. Comparison of Four Methods Predicting 100 frames

  19. Analysis of Curve Fitting • Gives better result. Average error is the best among the four methods, and error variation is the second to the best. • Computation is fast. Can be done on-line.

  20. Future Work • Adjustment of duration of each breathing period. • Improvement of the performance of the clip tracker and patients’ breathing pattern.

  21. Future Work
