  1. Reflection and Formation of Images in Plane Mirrors

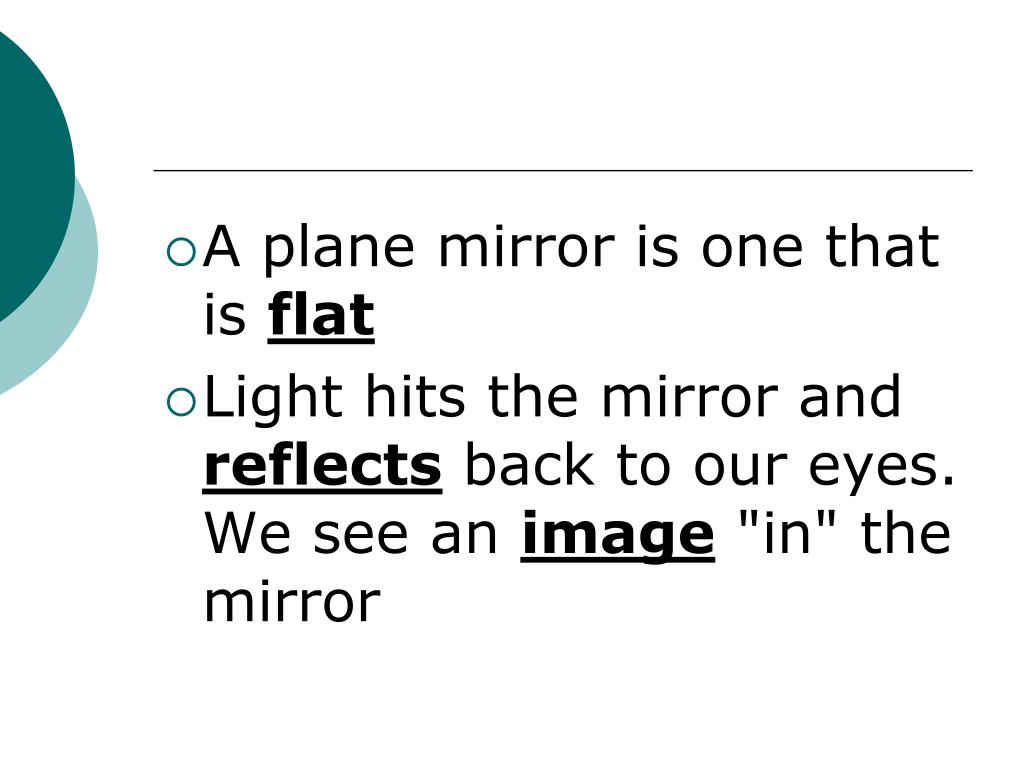

  2. A plane mirror is one that is flat • Light hits the mirror and reflects back to our eyes. We see an image"in" the mirror

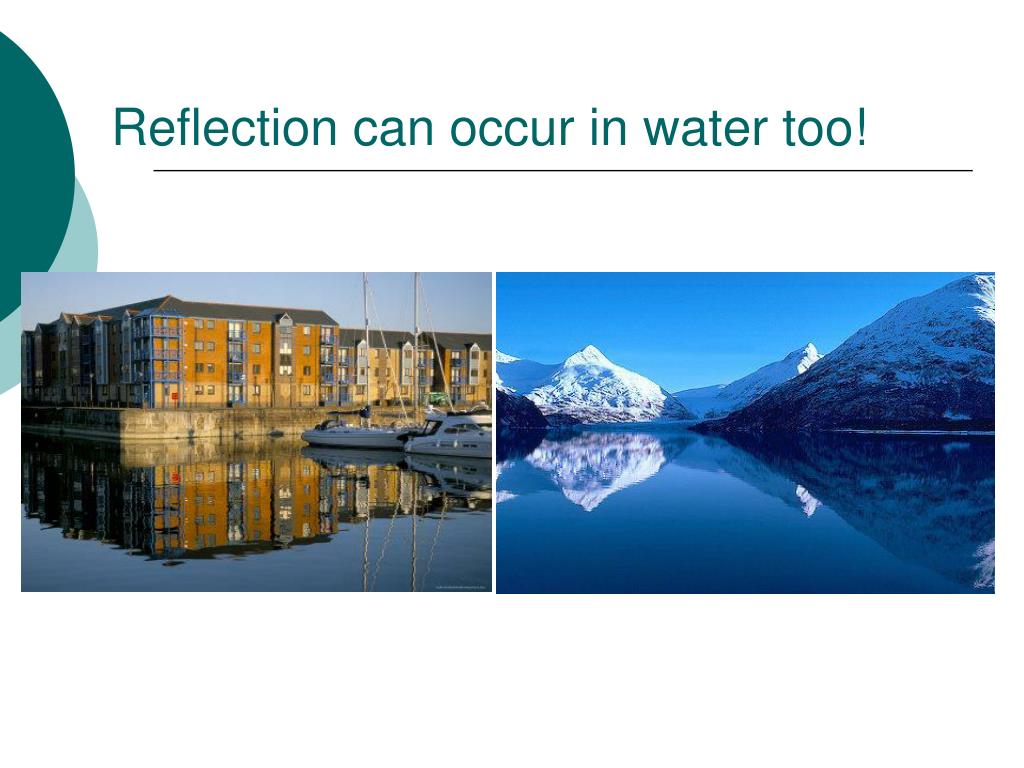

  3. Reflection can occur in water too!

  4. Read Only! • Dyslexia is a condition that many people have – its where people have difficulty reading print • Examples:

  5. Read Only! • One problem with people who have dyslexia is the glare from the light reflecting off white paper • Sometimes using coloured filters helps!

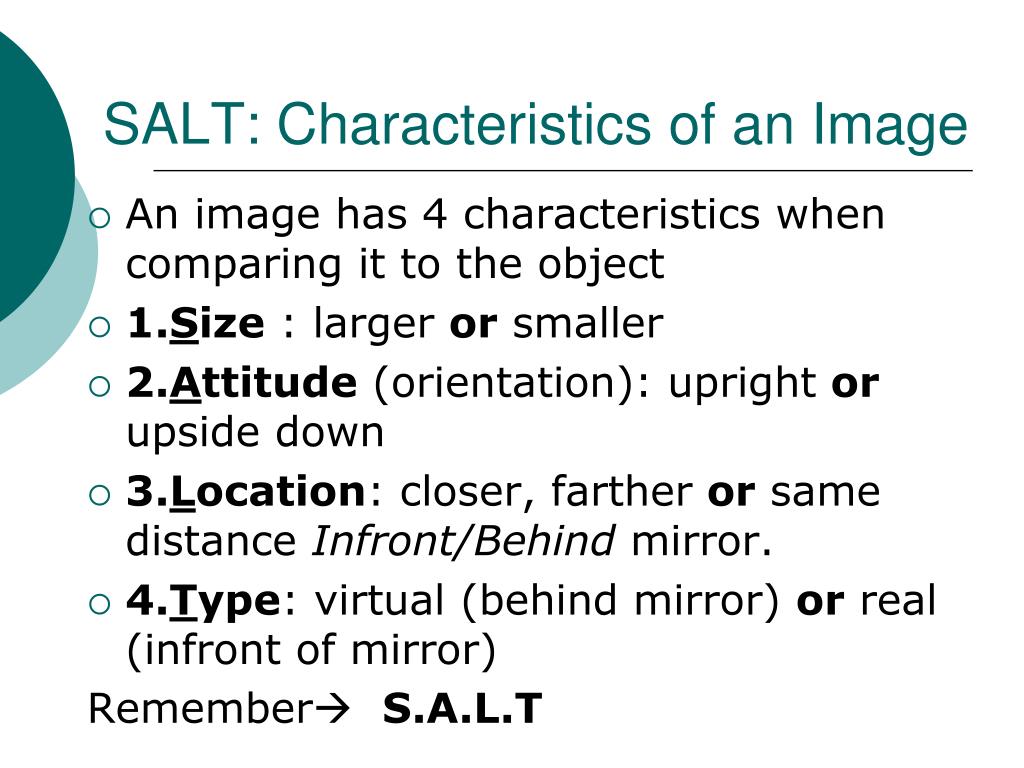

  6. SALT: Characteristics of an Image • An image has 4 characteristics when comparing it to the object • 1.Size: larger or smaller • 2.Attitude(orientation): upright or upside down • 3.Location: closer, farther or same distance Infront/Behind mirror. • 4.Type: virtual (behind mirror) or real (infront of mirror) Remember S.A.L.T

  7. SALT Characteristics of Plane Mirrors • S: Same size • A: Right side up and backwards • L: same distance behind mirror • T: Virtual (not real, can't project it)

  8. Reflection Terms Normal – the line drawn perpendicular to the reflecting surface Incident Ray – a ray traveling towards the reflecting surface

  9. The angle of Incidence (Θi) – the angle between the incident ray and the normal • The point of incidence –the spot where the incident ray hits the reflecting surface

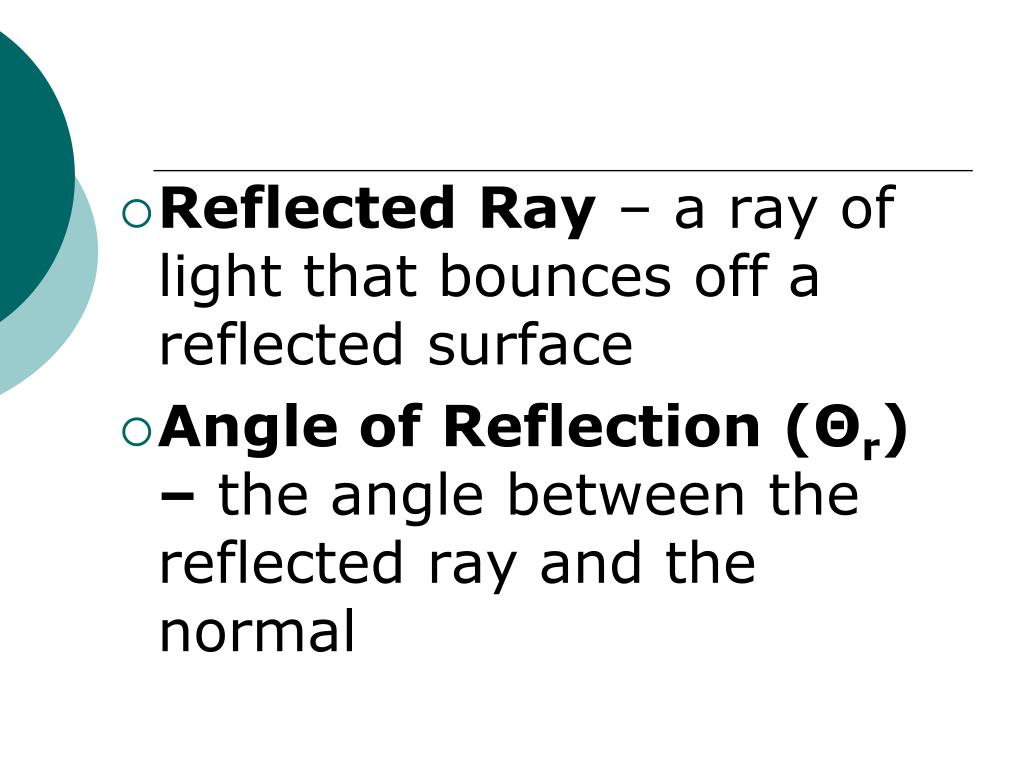

  10. Reflected Ray – a ray of light that bounces off a reflected surface • Angle of Reflection (Θr) – the angle between the reflected ray and the normal

  11. angle of reflection angle of incidence incident ray reflected ray Summary: terms on the reflection of light normal r i

  12. The Law of Reflection 1.) The angle of incidence = the angle of reflection or (Θi = Θr) 2.) The incident ray, reflected ray and normal all lie in the same plane (all flat)

  13. Class Activity We need: • 1 BIG mirror • 1 BIG protractor • 1 string of yarn • 2 students

  14. Look in a mirror Light is reflected. You can see a reflection. 15

  15. Change the direction of the light beam Light is still reflected. You see the reflection in a different location. 16

  16. Types of Reflection: Reflection Specular Reflection Diffuse Reflection • Shiny, smooth surfaces, produces sharp images. 2. Rough surfaces, produce blurry or no image.

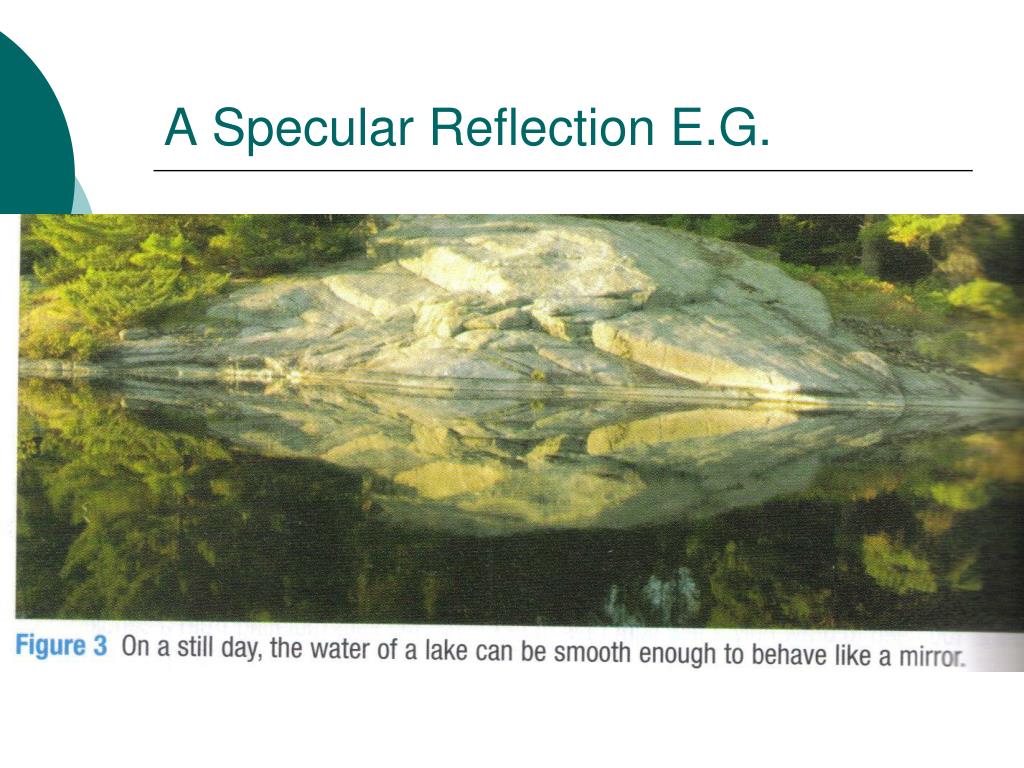

  17. A Specular Reflection E.G.

  18. MIRA Activity!

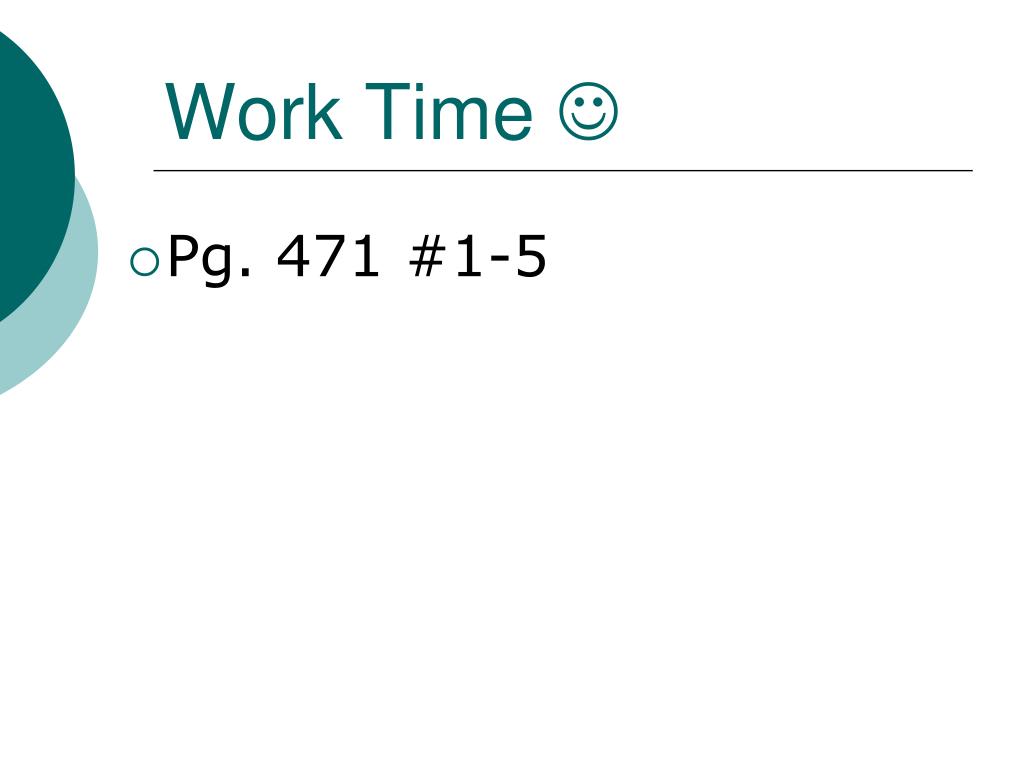

  19. Work Time  • Pg. 471 #1-5
