Classifying Quadrilaterals

siran avatar
siran
10 diapositives · 336 Views · Jul 29, 2014

Classifying Quadrilaterals. DAY 2. Bellwork. Please begin working on P 293 (60-63). Using Algebra to Confirm the Name of a Quadrilateral. Determine the most precise name for a quadrilateral with points: A(-1,1), B(5,3), C(6,0), D(0,-2) Step 1: Find the slopes and side lengths of each side.

Classifying Quadrilaterals - slide 1
01 / 10Classifying Quadrilaterals
1 / 17

Télécharger la présentation

Classifying Quadrilaterals
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Classifying Quadrilaterals DAY 2

  2. Bellwork • Please begin working on P 293 (60-63)

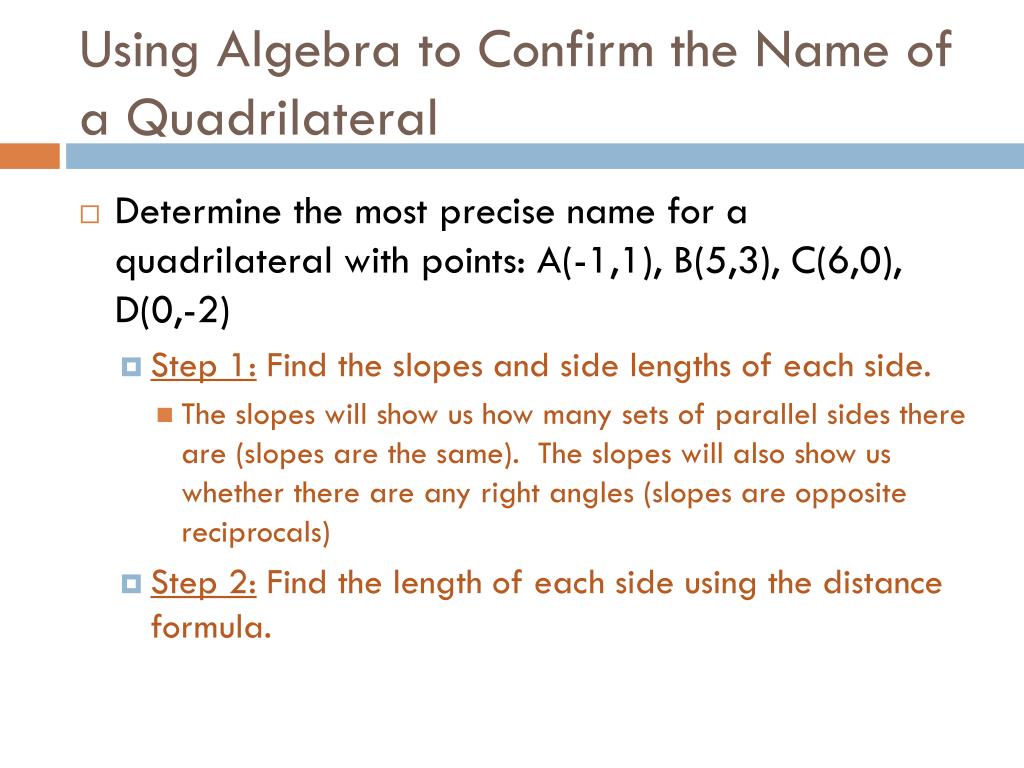

  3. Using Algebra to Confirm the Name of a Quadrilateral • Determine the most precise name for a quadrilateral with points: A(-1,1), B(5,3), C(6,0), D(0,-2) • Step 1: Find the slopes and side lengths of each side. • The slopes will show us how many sets of parallel sides there are (slopes are the same). The slopes will also show us whether there are any right angles (slopes are opposite reciprocals) • Step 2: Find the length of each side using the distance formula.

  4. Using Algebra to Confirm the Name of a Quadrilateral • Determine the most precise name for a quadrilateral with points: A(-1,1), B(5,3), C(6,0), D(0,-2) • Step 1: Find the Slopes of the sides The slopes of AB and CD are the same. The slopes of BC and DA are the same. This means there are two sets of parallel sides and the quadrilateral is some type of Parallelogram.

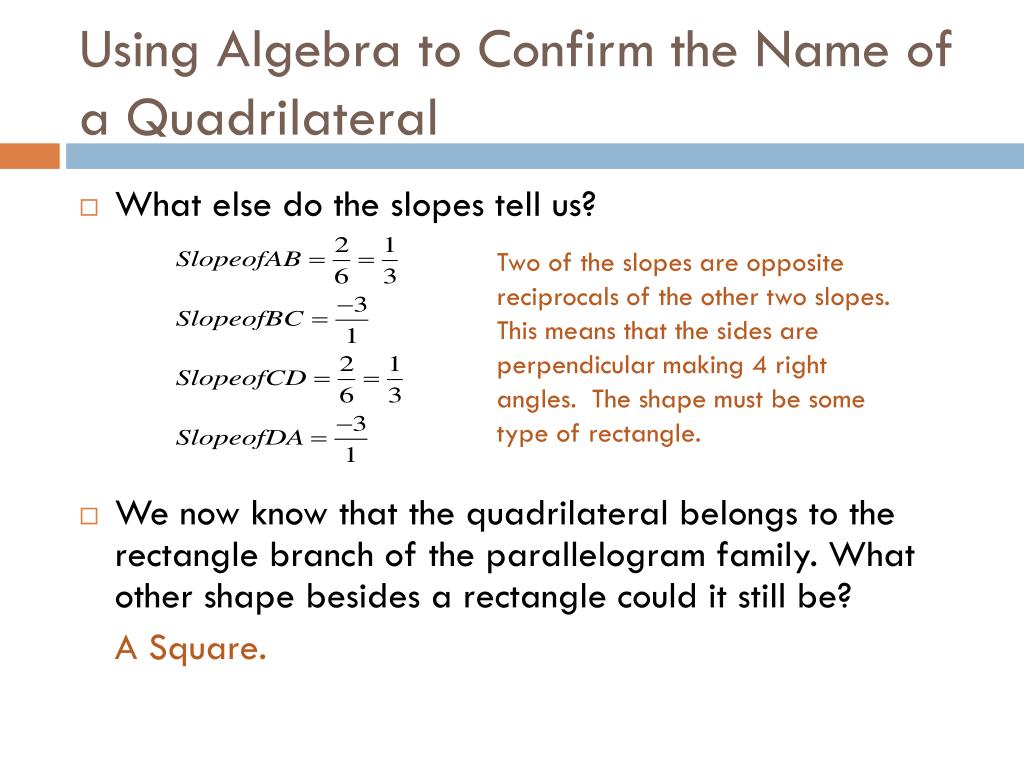

  5. Using Algebra to Confirm the Name of a Quadrilateral • What else do the slopes tell us? • We now know that the quadrilateral belongs to the rectangle branch of the parallelogram family. What other shape besides a rectangle could it still be? A Square. Two of the slopes are opposite reciprocals of the other two slopes. This means that the sides are perpendicular making 4 right angles. The shape must be some type of rectangle.

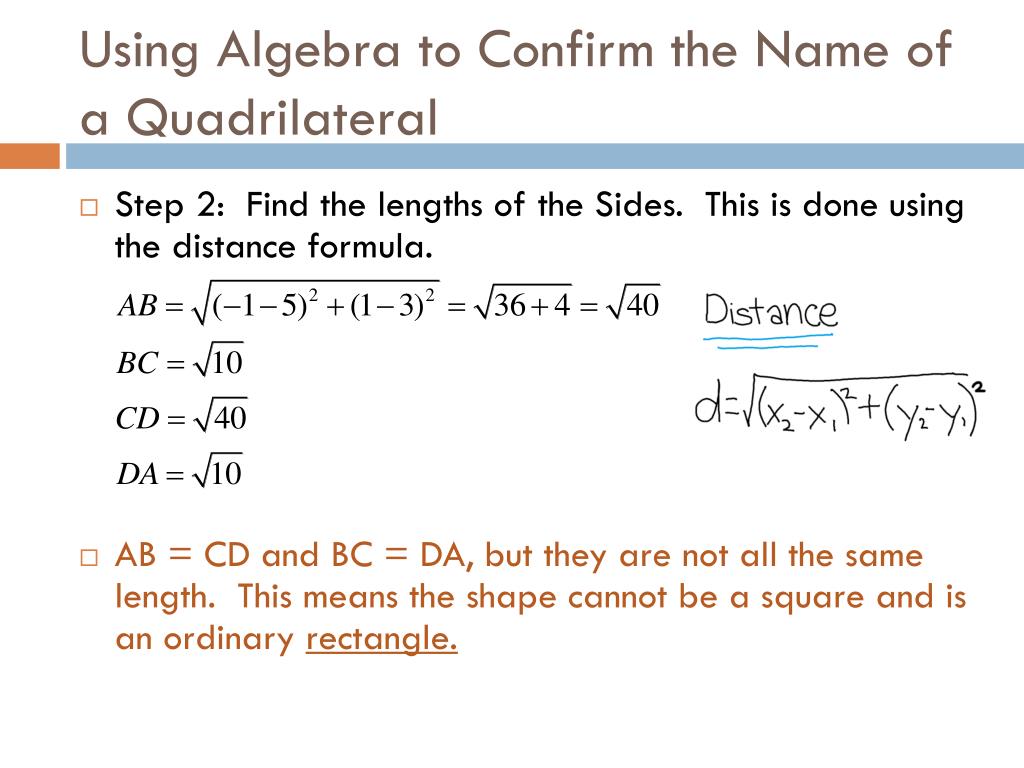

  6. Using Algebra to Confirm the Name of a Quadrilateral • Step 2: Find the lengths of the Sides. This is done using the distance formula. • AB = CD and BC = DA, but they are not all the same length. This means the shape cannot be a square and is an ordinary rectangle.

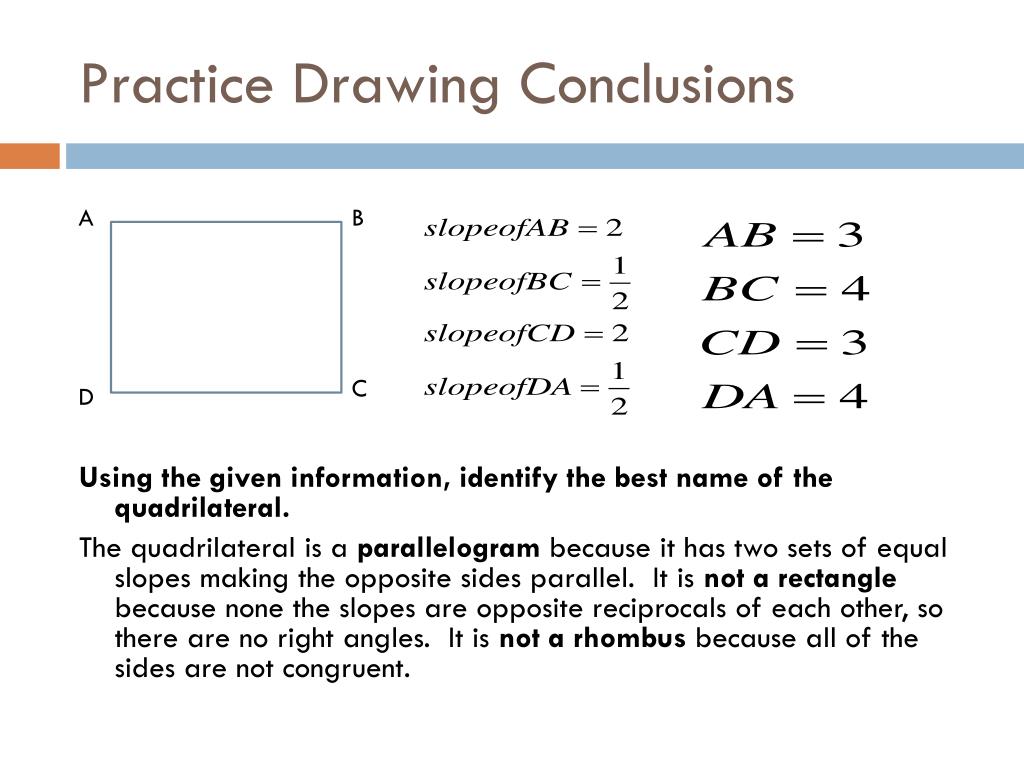

  7. Practice Drawing Conclusions Using the given information, identify the best name of the quadrilateral. The quadrilateral is a parallelogram because it has two sets of equal slopes making the opposite sides parallel. It is not a rectangle because none the slopes are opposite reciprocals of each other, so there are no right angles. It is not a rhombus because all of the sides are not congruent. A B C D

  8. Practice Drawing Conclusions Using the given information, identify the best name of the quadrilateral. The quadrilateral is a Trapezoid because one set of slopes are equal meaning that one set of sides are parallel. It is not an isosceles trapezoid because none of the sides are congruent. A B C D

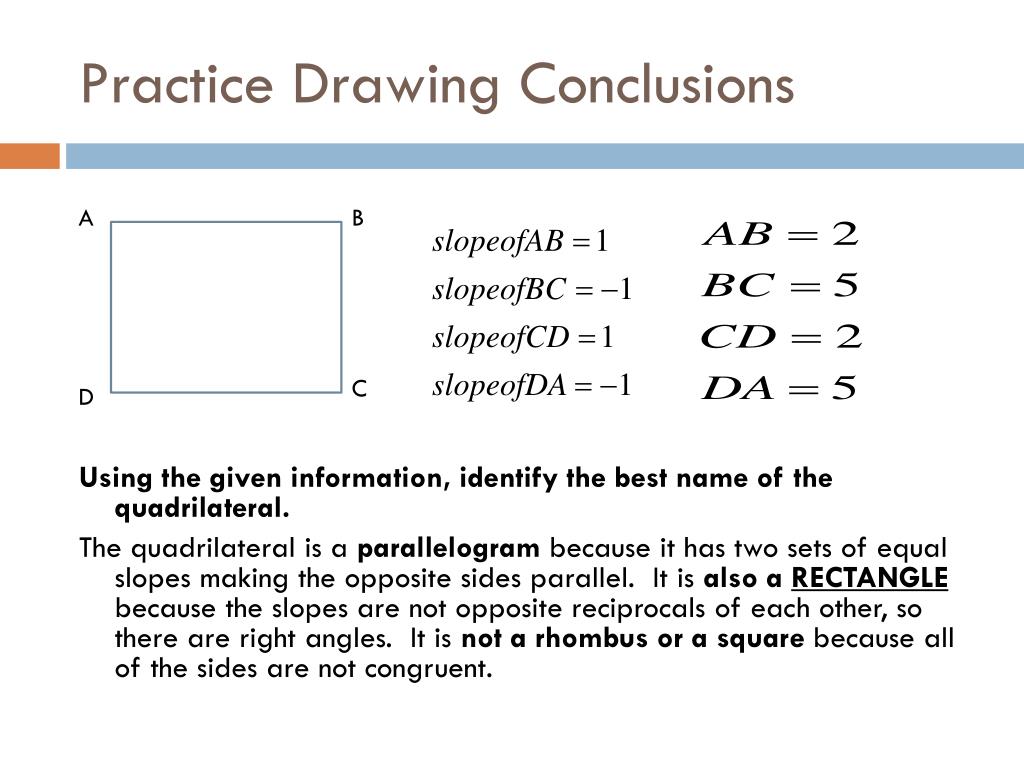

  9. Practice Drawing Conclusions Using the given information, identify the best name of the quadrilateral. The quadrilateral is a parallelogram because it has two sets of equal slopes making the opposite sides parallel. It is also a RECTANGLEbecause the slopes are not opposite reciprocals of each other, so there are right angles. It is not a rhombus or a square because all of the sides are not congruent. A B C D

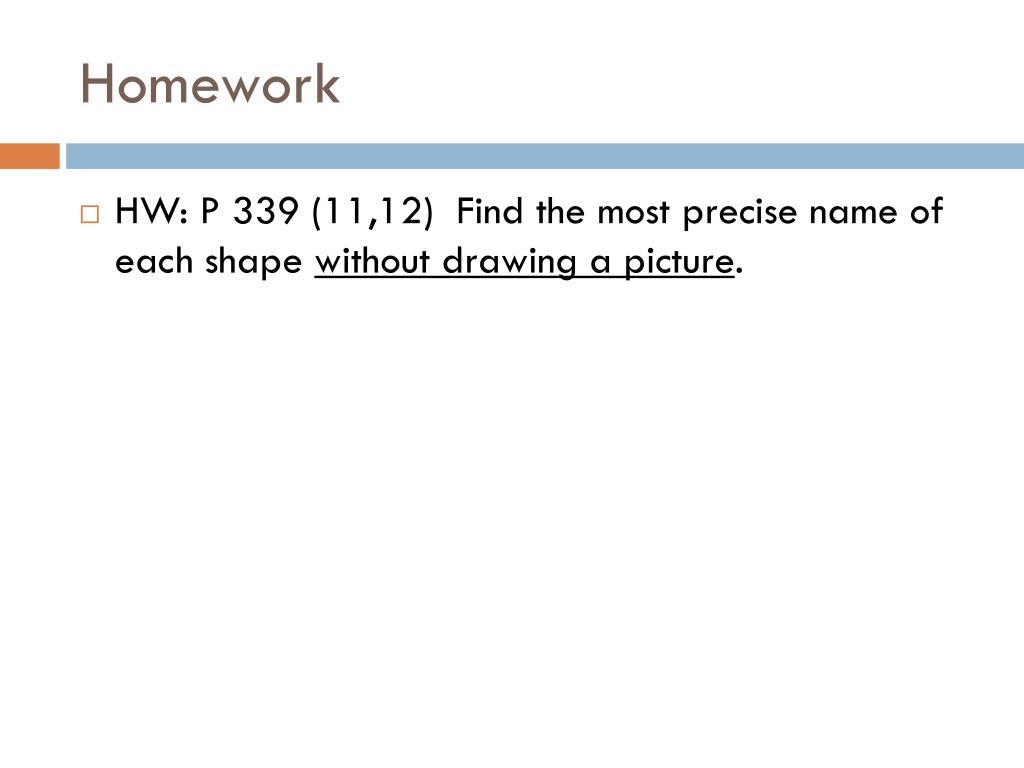

  10. Homework • HW: P 339 (11,12) Find the most precise name of each shape without drawing a picture.
