  1. Project introduction Mike Mineter m.mineter@ed.ac.uk TOE-NeSC, Edinburgh

  2. This file contains several short talks given during the OMII-Europe / NextGRID event in Edinburgh on 17 March 2008 • A fuller set of material is here , the OMII-Europe tutorial for D-Grid.

  3. What is OMII-Europe • OMII-Europe stands for • Open Middleware Infrastructure Institute for Europe • It is an EU-funded project: FP6, RI • It has an initial duration of 2 years • May 2006 -> April 2008 • It has been granted a contribution of 8M € • It involves 16 partners • 8 EU • 4 USA • 4 China

  4. Vision “ e-Science having easy access and use of Grid resources in heterogeneous e-infrastructures crossing national, pan-European and global boundaries “

  5. Mission “ Enabling of e-infrastructure interoperability by providing standards-based middleware components leveraging existing work and activities “

  6. Further Information Later talks! http://omii-europe.org

  7. Current status of grids: the need for standards Mike Mineter m.mineter@ed.ac.uk TOE-NeSC, Edinburgh

  8. Outline • Effect of the grid islands • Bridging grid islands • What OMII-Europe is Doing

  9. Revision • Grid supports “virtual computing across administrative domains” • EGEE and most grids have Virtual Organisation concept • A VO is a collaboration • Shares resources • Express membership of VO, its groups and roles in some way as a basis for grid services to authorise users’ requests

  10. Grid Islands Isolate: Data Computers Expertise CROWN UNICORE gLite Globus Toolkit 4

  11. Effect of grid islands • A VO can only use resources that share the same Authorisation/Authentication basis • Can’t span UNICORE and EGEE grids for example • EGEE – EU-funded grid infrastructure promoting collaborative research by sharing access to data and clusters, gLite with VOMS (Virtual Organisation Membership Service) • DEISA – grid spanning HPC resources, built on UNICORE middleware • Applications must be written for specific grid • Disincentive for tool / high level service developers • Need standards that all grids accept… and are complete! • “Complete” = if standards are supported, then services are interoperable

  12. Bridges – to enable… “The global grid” VO to span gridsApplication portability CROWN UNICORE gLite Globus Toolkit 4

  13. Bridges – for interoperability Job execution Data access and integration Accounting Info Services AuthN, AuthZ … CROWN UNICORE gLite Globus Toolkit 4

  14. Approaches to Interoperability • Adapters-based: • The ability of Grid middleware to interact via adapters that translate the specific design aspects from one domain to another • Standard-based: • the native ability of Grid middleware to interact directly via well-defined interfaces and common open standards * definition inspired by OGF GIN CG

  15. Who Benefits from Interoperability? • Grid Developers • A single standard set of services on all Grid middleware systems • Applications portable across different Grid middleware systems • E-Science application users • Common ways for accessing any e-infrastructure resources • Potential access to a significantly larger set of resources • E-resource owners • Reduced management overheads as only a single Grid middleware system needs deployment • Potential for greater resource utilisation “For the Grid to deliver on it’s promises interoperability needs to be taken for granted like network interoperability”

  16. How to achieve interoperability? • Application level • SAGA – support same API on all grids • Interoperability or simply easier, portable applications? • Need • Conform to standards • BUT standards are not enough (at present) • E.g. Common security basis • OMII-Europe: build components in negotiation with gLite, UNICORE, Globus, CROWN

  17. October 2001 View Grid Services Web Services Grid Technology • Research driven • Data-intensive • Compute intensive • Collaboration – sharing of resources • - Trust: opening resources • Commerce • Standards • Tools Open Grid Services Architecture

  18. What OMII-Europe is Doing? • Initial focus on providing common interfaces and integration of major Grid software infrastructures • Common interoperable services: • Database Access • Virtual Organisation Management • Accounting • Job Submission and Job Monitoring • Infrastructure integration • Initial gLite/UNICORE/Globus interoperability • Interoperable security framework • Access these infrastructure services through a portal

  19. JRA4 SA3 SA1 JRA3 SA2 The Virtuous Cycle – Technology transfer with Grid projects and standards organisations Standards Compliance Testing and QA JRA2 New Components Standards Implementation Components JRA1 IN Globus Benchmarking Repository OUT OMII-UK Components CROWN Supported Components on Eval. Infrastructure Integrated Components

  20. Common security base OMII-Europe Gateway (portal) Components based on standards Components – How easy are they to use? You will easily be able to find out! Evaluation infrastructures

  21. Participation in Middleware Standardisation • Most project participants involved as member/observer in many OGF WG • 11 project participant hold senior positions in • OGSA DAIS WG (Database Access and Integration Services) • OGSA RUS WG (Resource Usage Server) • OGSA BES WG (Basic Execution Service) • OGSA JSDL WG (Job Submission Description Language) • GIN CG (Grid Interoperability Now) • OGSA-AuthZ-WG (Authorization) • GLUE WG • GFSG WG (Grid File System) • RM WG (Reference Model) • OGSA Naming WG • Technical Standards Committee • GSA RG (Grid Scheduling Architecture) • GRAAP WG (Grid Research Agreement Allocation Protocol) • OGSA BYTE IO WG • OGSA D WG (Data) • OGSA DMI WG (Data Movement Interface)

  22. Summary • OMII-Europe is a 24 Month EU funded project with 16 partners to establish grid infrastructure interoperability through implementing a set of agreed open standards on all middleware platforms • OMII-Europe is implementing a number of components that will allow identically specified jobs to be run, managed and migrated to different middleware platforms • Users can try interoperability on the OMII-Europe evaluation infrastructure, or obtain services for installation on their own resources from the OMII-Europe repository • We anticipate OMII-Europe services will be integrated into standard middleware distributions - already in UNICORE 6

  23. Further Information http://omii-europe.org

  24. Information Schema and Mike Mineter m.mineter@ed.ac.uk TOE-NeSC, Edinburgh

  25. Next slide is to illustrate how… • OMII-Europe is: • Leading in standards initiatives • Alert to non-grid world • Building with others’ software where possible • Cooperating – the glue between different middleware developers and seeking community agreement And for information systems, the GLUE 2 …

  26. Context: Summary View Slide from Sergio Andreozzi

  27. More standards-related bodies…. • Web-Based Enterprise Management (WBEM) - seeks to unify the management of distributed computing environments. http://wbemservices.sourceforge.net/ • Common Information Model • Distributed Management Task Force http://www.dmtf.org/homeDeveloping management standards & promotinginteroperability for enterprise & Internet environments

  28. Security Mike Mineter m.mineter@ed.ac.uk TOE-NeSC, Edinburgh

  29. Not only Classic VOMS but also SAML-VOMS Same VO database can release:attribute Certificates signed SMAL assertions Venturi et al. [3]

  30. Open standards-based SAML-compliant VOMS is the foundation for interoperability Works not onlyin conjunction withOGSA-BES The basic idea worksin principle with allWeb services SAML-based Interoperability Marzolla et al. [4] http://www.unicore.eu

  31. Technical: Interoperability approach in OMII-Europe Venturi et al. [3] e-Infrastructure Interoperability by using more than one technology! From Morris Riedel, OMII-Europe training for D-Grid

  32. Job execution: Interoperability scenario Mike Mineter m.mineter@ed.ac.uk TOE-NeSC, Edinburgh SLIDES: From Morris Riedel, OMII-Europe training for D-Grid

  33. VOMS in Interoperability Scenario WISDOM SAML- based Attribute Authority (AA) VOMS getscentralrole & middlewareindependent

  34. CREAM-BES Support SAML-based VOMS authorization Developed by gJAF Framework usesSAML assertions to grantor deny access CREAM-BES + SAML VOMS http://www.unicore.eu

  35. Used in conjunction withAuthZ Attribute Exchange Profile (OGF AuthZ group)to obtain a SAML assertionfrom a Policy Information Point (PIP) SAML assertions are transported in the SOAPheader during WS calls E.g. WS-Security Extensions Developed by SAML-based VOMS Support in UNICORE 6 http://www.unicore.eu

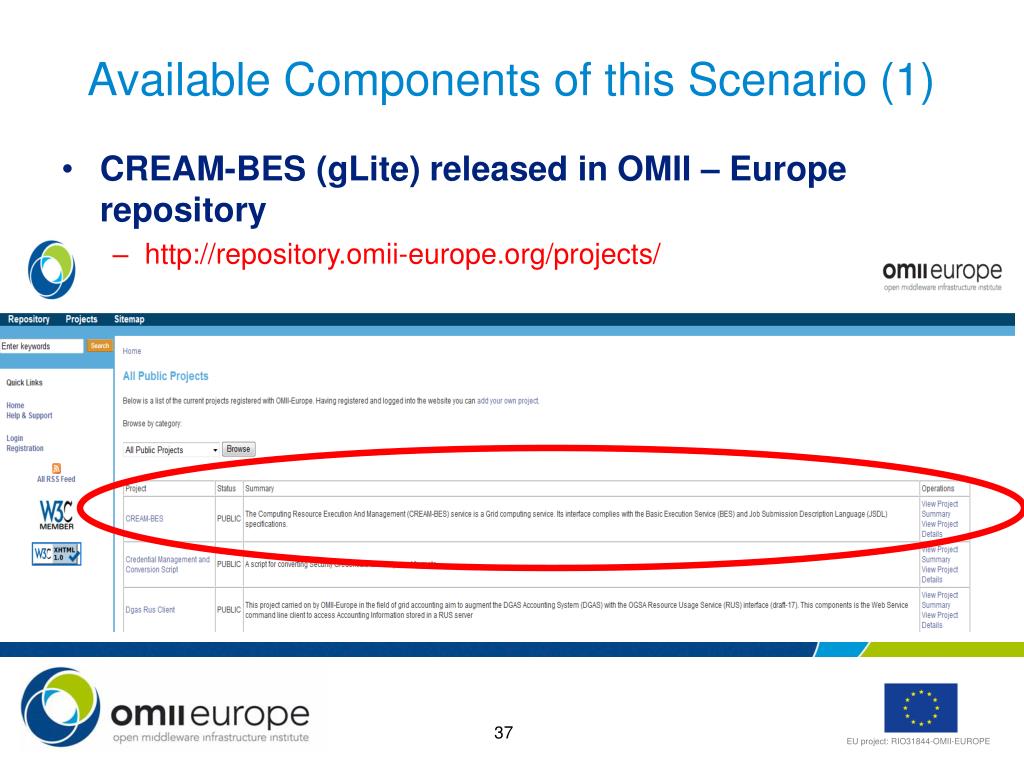

  36. Available Components of this Scenario (1) CREAM-BES (gLite) released in OMII – Europe repository http://repository.omii-europe.org/projects/

  37. Available Components of this Scenario (2) SAML VOMS released in OMII – Europe repository http://repository.omii-europe.org/projects/

  38. Available Components of this Scenario (3) SAML-based VOMS Support and OGSA-BES for UNICORE 6 released in OMII – Europe repository http://repository.omii-europe.org/projects/ Also released on the UNICORE@SourceForge platform http://www.unicore.eu

  39. Data management Mike Mineter m.mineter@ed.ac.uk TOE-NeSC, Edinburgh

  40. Data Access • Porting OGSA-DAI 3.0 from Globus / OMII-UK to other middleware distributions available throughout Europe and China • UNICORE • gLite (port = GT4 + classic VOMS) • CROWN
