  1. Simultaneous Sampling ADC Data Acquisition System for the QUIET Experiment Mircea Bogdan, Dorothea Samtleben, Keith Vanderlinde The University of Chicago Mircea Bogdan, NSS2005 Oct. 23-29, 2005 – Windham El Conquistador Resort, Puerto Rico

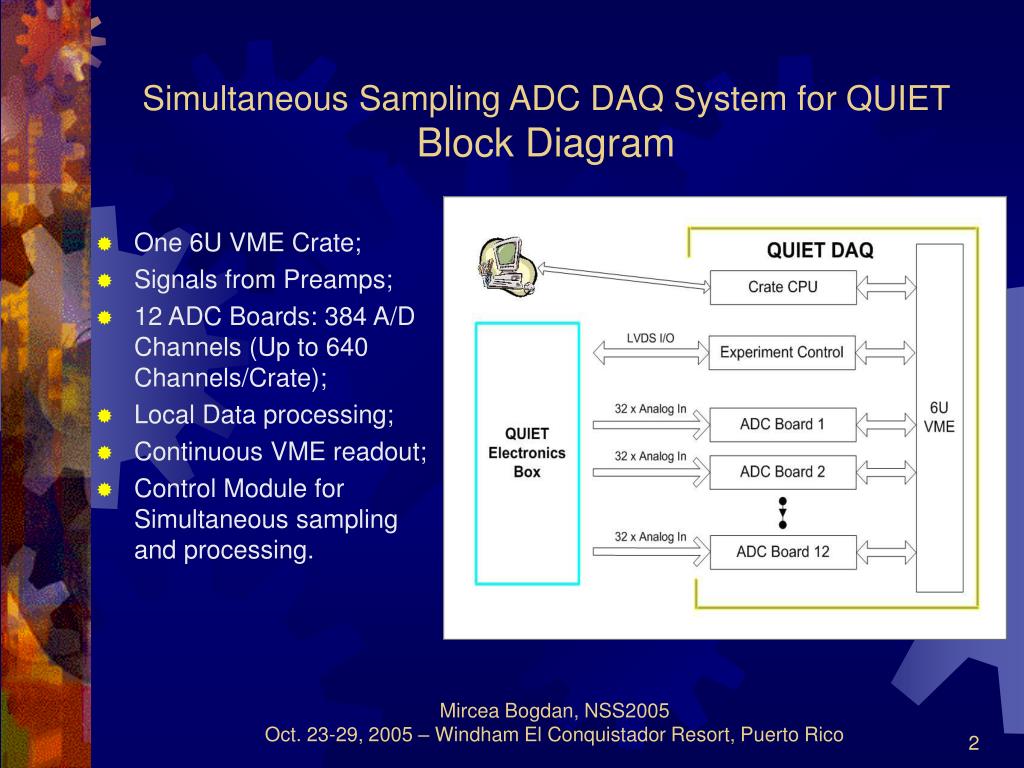

  2. Simultaneous Sampling ADC DAQ System for QUIET Block Diagram • One 6U VME Crate; • Signals from Preamps; • 12 ADC Boards: 384 A/D Channels (Up to 640 Channels/Crate); • Local Data processing; • Continuous VME readout; • Control Module for Simultaneous sampling and processing. Mircea Bogdan, NSS2005 Oct. 23-29, 2005 – Windham El Conquistador Resort, Puerto Rico

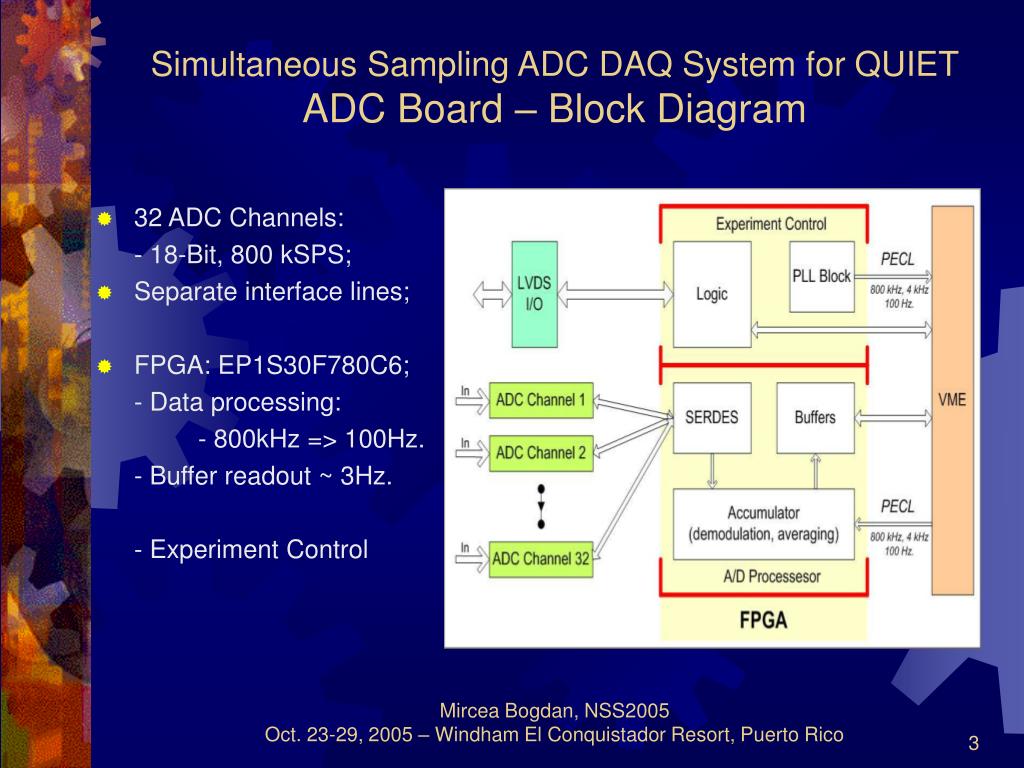

  3. Simultaneous Sampling ADC DAQ System for QUIET ADC Board – Block Diagram • 32 ADC Channels: - 18-Bit, 800 kSPS; • Separate interface lines; • FPGA: EP1S30F780C6; - Data processing: - 800kHz => 100Hz. - Buffer readout ~ 3Hz. - Experiment Control Mircea Bogdan, NSS2005 Oct. 23-29, 2005 – Windham El Conquistador Resort, Puerto Rico

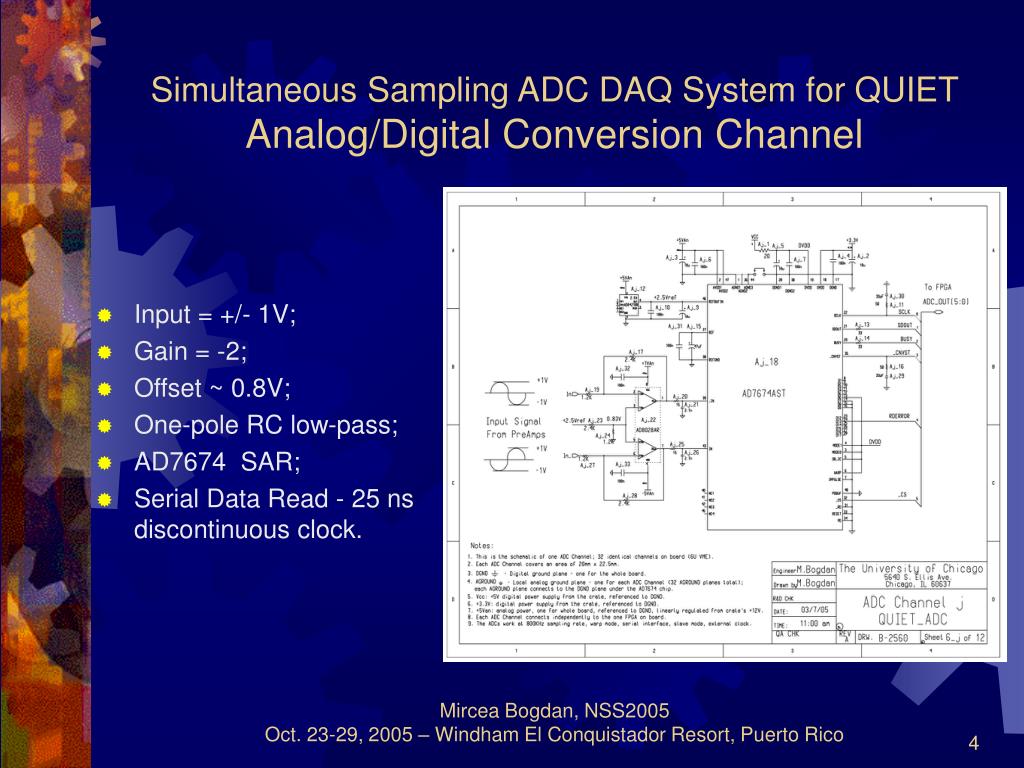

  4. Simultaneous Sampling ADC DAQ System for QUIET Analog/Digital Conversion Channel • Input = +/- 1V; • Gain = -2; • Offset ~ 0.8V; • One-pole RC low-pass; • AD7674 SAR; • Serial Data Read - 25 ns discontinuous clock. Mircea Bogdan, NSS2005 Oct. 23-29, 2005 – Windham El Conquistador Resort, Puerto Rico

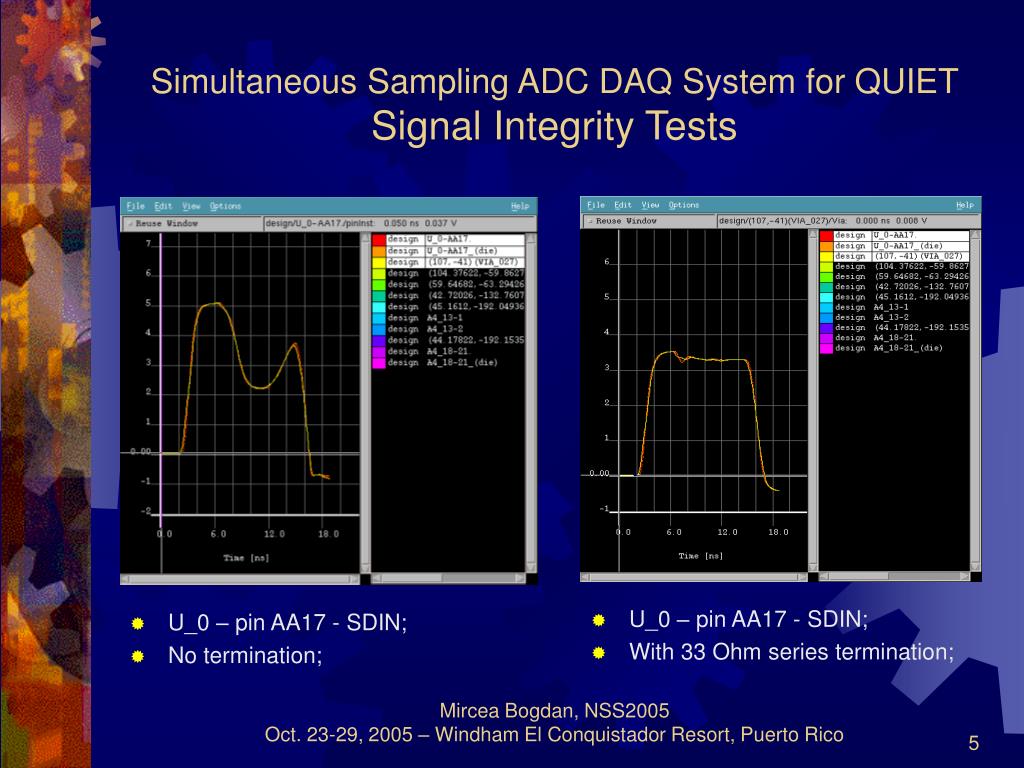

  5. Simultaneous Sampling ADC DAQ System for QUIET Signal Integrity Tests • U_0 – pin AA17 - SDIN; • No termination; • U_0 – pin AA17 - SDIN; • With 33 Ohm series termination; Mircea Bogdan, NSS2005 Oct. 23-29, 2005 – Windham El Conquistador Resort, Puerto Rico

  6. Simultaneous Sampling ADC DAQ System for QUIET Conclusions • 32 Channel, 18 bits, 800 kSPS ADC; • 1 pole input filter – configurable; • Powerful local processing with FPGA; • Low cost, 6U VME, 5V/2A, 3.3V/1A. Built and tested 3 prototypes: • Input noise voltage ~ 15uV RMS; • Channel-to-Channel Skew ~ 5ns. http://quiet.uchicago.edu Mircea Bogdan, NSS2005 Oct. 23-29, 2005 – Windham El Conquistador Resort, Puerto Rico
