Session Objectives And Takeaways • Session Objective(s): • Understand host and guest clustering high availability advantages • Host and Guest clustering both have valuable high availability advantages for services and applications • Know when to pick the right solution
Failover Clustering + Hyper-V • To increase the availability of VM’s and the applications they host: • Hardware health detection • Host operating system health detection • Virtual machine health detection • Application/service health detection • Automatic recovery • VM mobility Clustering keeps you from putting all your VM eggs in 1 basket
What – is a Host Cluster? • Cluster service runs inside parent partition of a Hyper-V enabled server • Cluster manages VM’s • VM’s move from server to server SAN

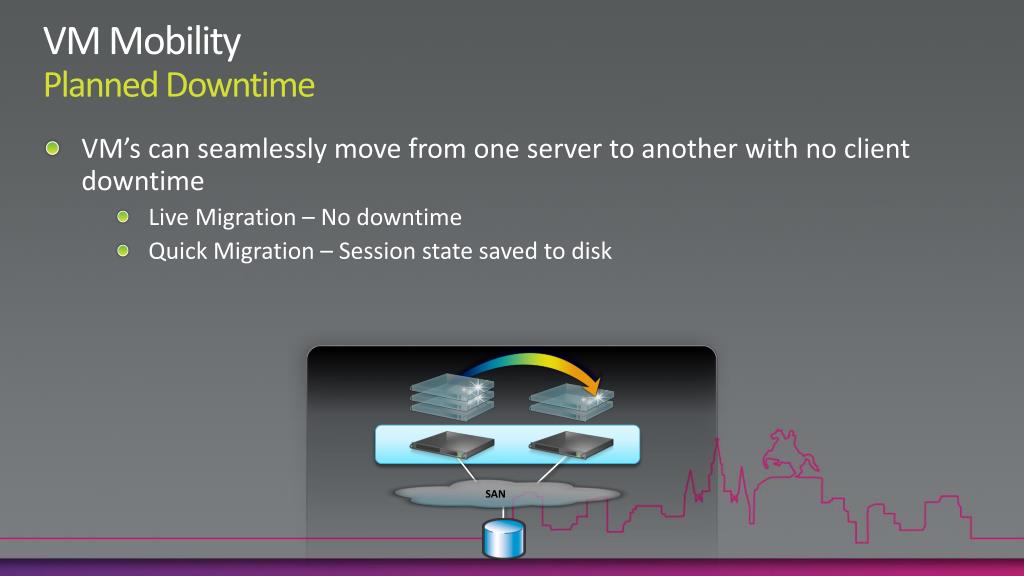

VM MobilityPlanned Downtime • VM’s can seamlessly move from one server to another with no client downtime • Live Migration – No downtime • Quick Migration – Session state saved to disk SAN
VM MobilityUnplanned Downtime • Recovery from failures due to hardware or problem in parent partition • VM’s are cold restarted on a surviving server SAN
OS Health Monitoring • Enables any app to be covered by increased availability • Virtual machines are health checked • Requires Integration Components installed SAN

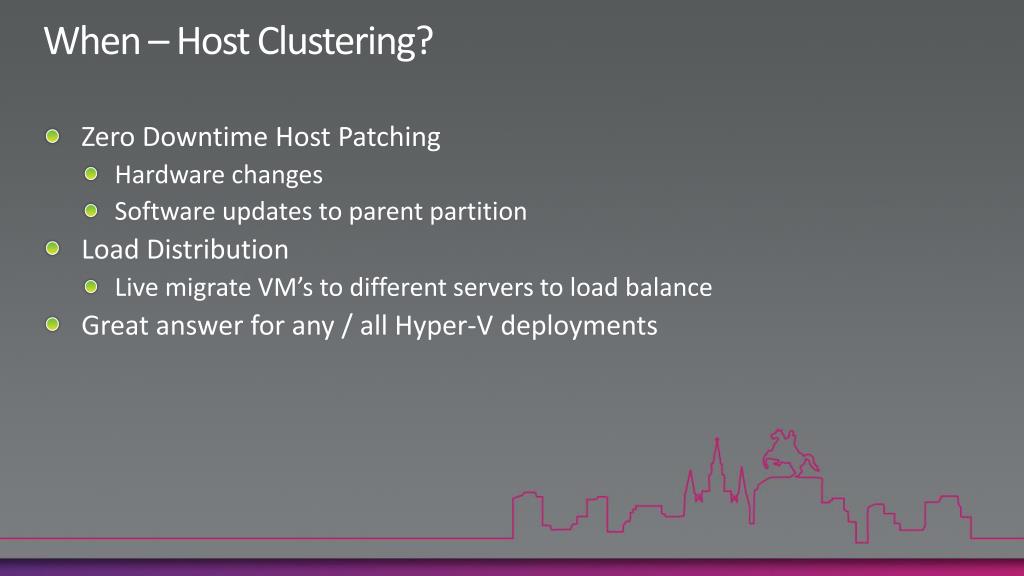

When – Host Clustering? • Zero Downtime Host Patching • Hardware changes • Software updates to parent partition • Load Distribution • Live migrate VM’s to different servers to load balance • Great answer for any / all Hyper-V deployments

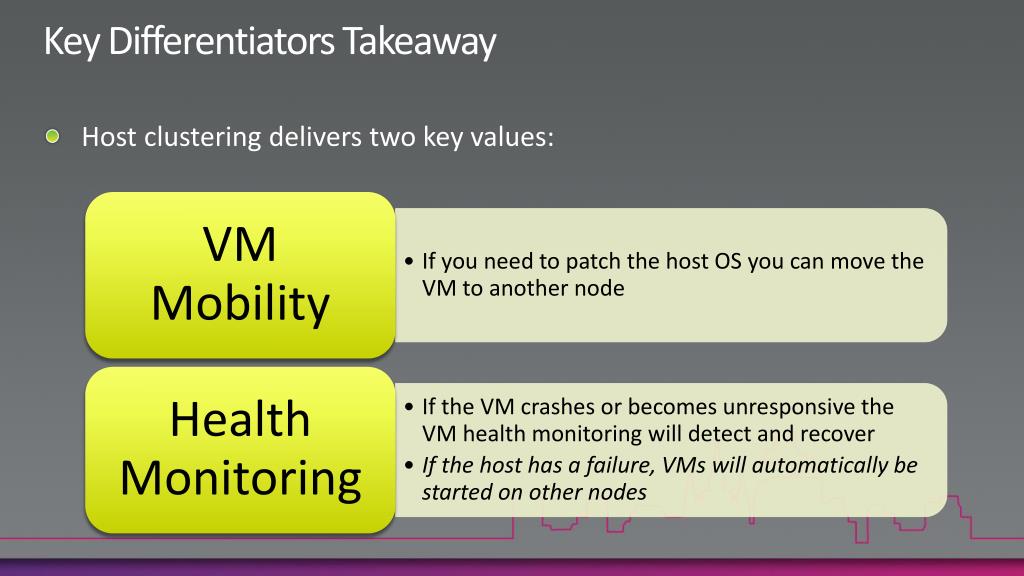

Key Differentiators Takeaway • Host clustering delivers two key values:
What – is a Guest Cluster? • Cluster service runs inside a Hyper-V guest • Application and services running inside the VM are managed by the cluster • Apps move from VM to VM iSCSI

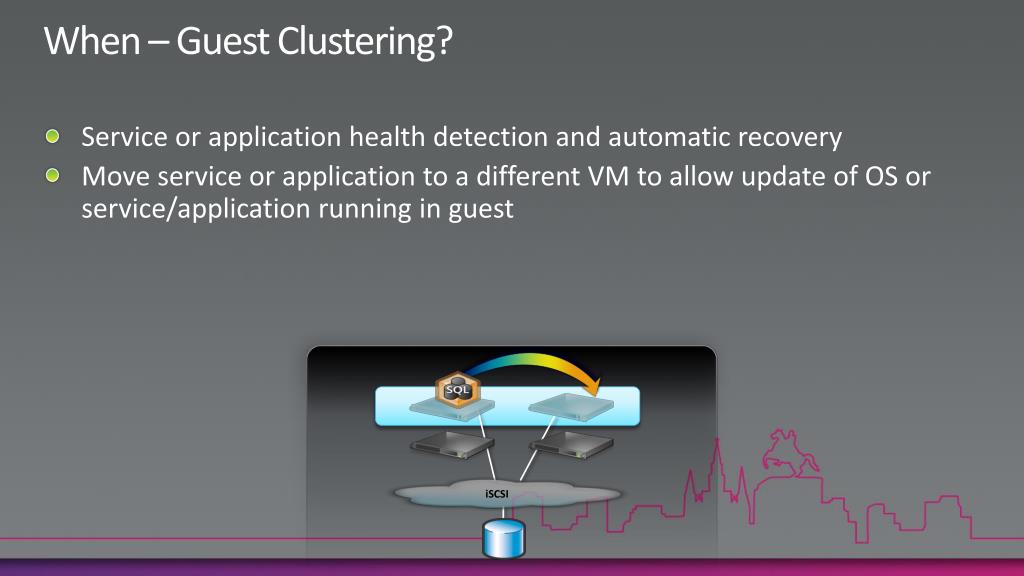

When – Guest Clustering? • Service or application health detection and automatic recovery • Move service or application to a different VM to allow update of OS or service/application running in guest iSCSI
Why – App Mobility • Applications and services running inside the guest are health checked • Storage is presented to the VM directly via the Microsoft iSCSI Software Initiator iSCSI

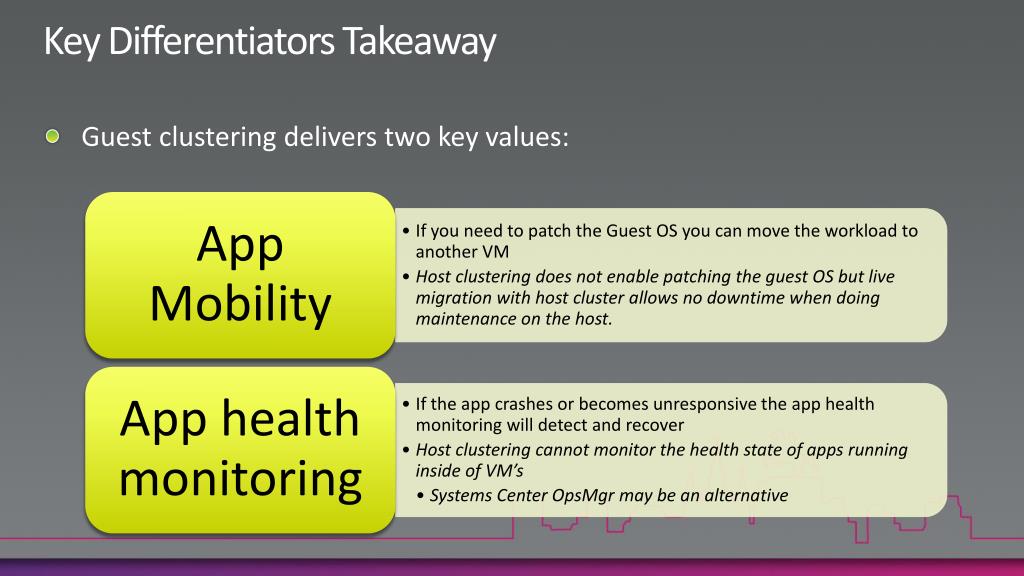

Key Differentiators Takeaway • Guest clustering delivers two key values:

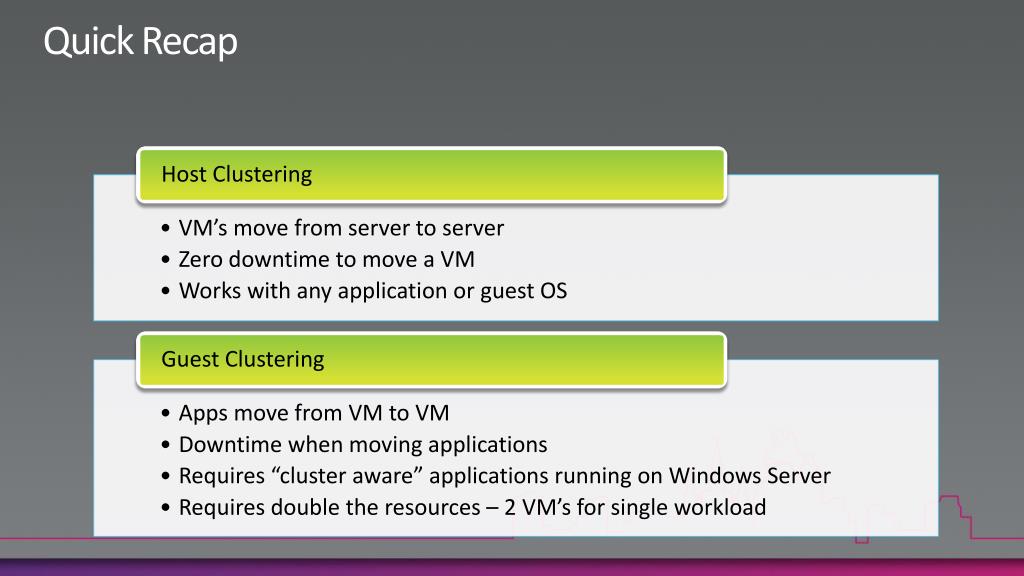

Host + Guest Clustering Best of both worlds • Provides the most flexibility and protection • VM and App mobility • Consider host VM action’s effects on guest cluster • Live migrate • Quick migrate • Shutdown VM • Pause VM • A cluster on a cluster does come at increased complexity…
Using Host/Guest Clusters Steven EkrenSenior Program ManagerMicrosoft DEMO
Demo Configuration CorpNet Internal iSCSI Target 1 Target 2 iSCSI

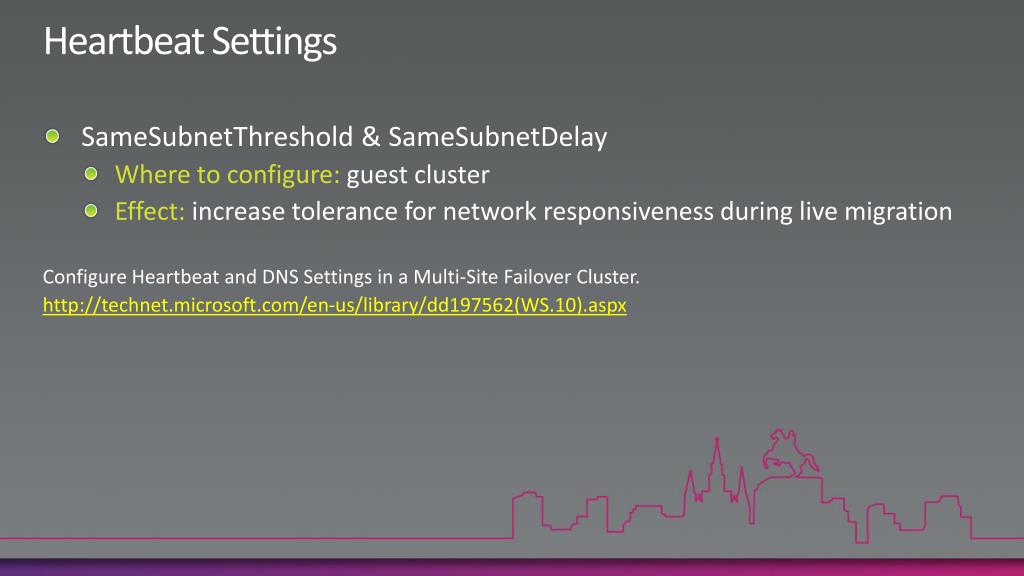

Heartbeat Settings • SameSubnetThreshold & SameSubnetDelay • Where to configure: guest cluster • Effect: increase tolerance for network responsiveness during live migration Configure Heartbeat and DNS Settings in a Multi-Site Failover Cluster. http://technet.microsoft.com/en-us/library/dd197562(WS.10).aspx

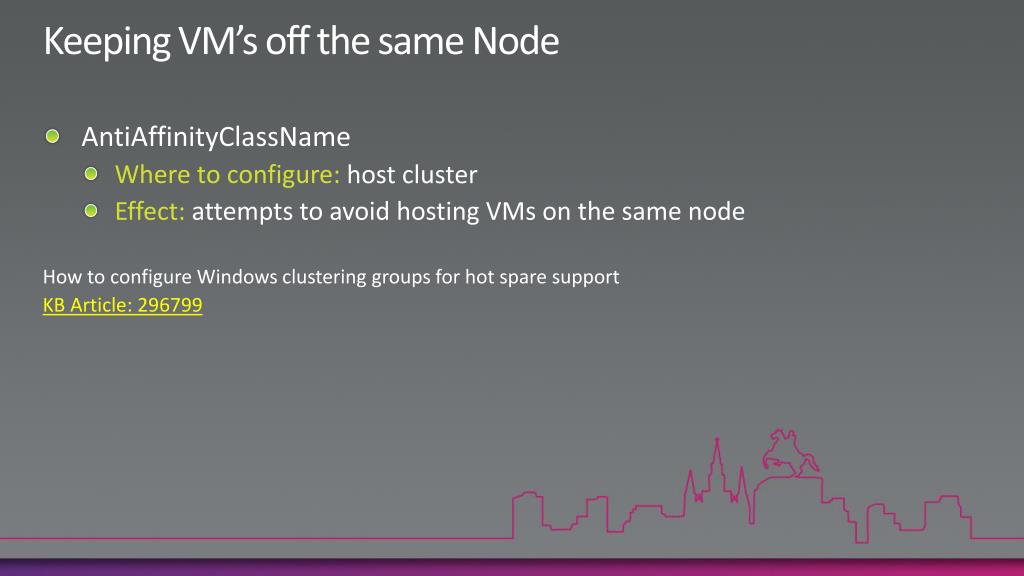

Keeping VM’s off the same Node • AntiAffinityClassName • Where to configure: host cluster • Effect: attempts to avoid hosting VMs on the same node How to configure Windows clustering groups for hot spare support KB Article: 296799
Low Priority VM’s • AutoStart (Windows Server 2008 R2) • Where to configure: host cluster • Effect: if set to “no”, VM will not automatically start if there is a node or group failure.

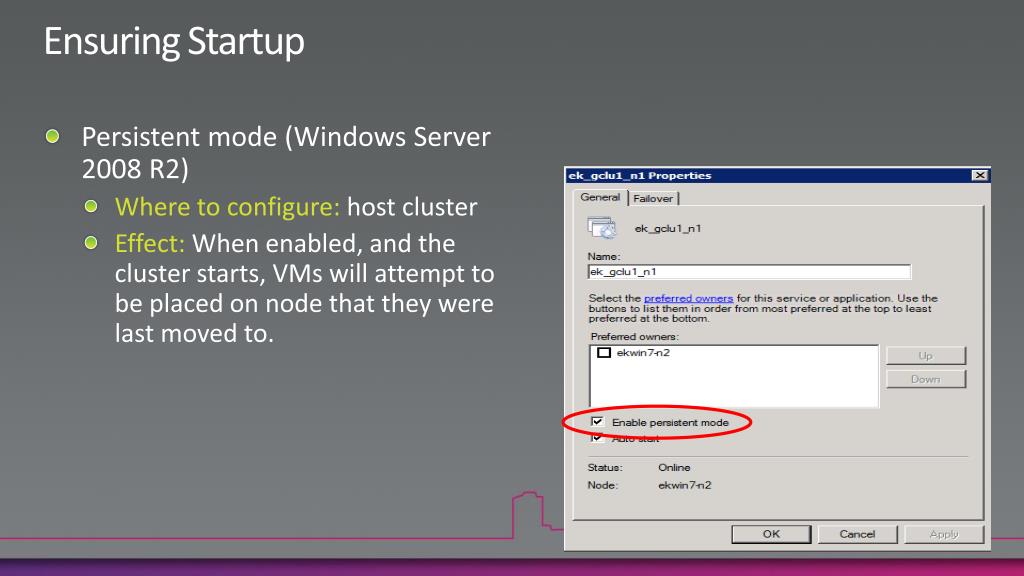

Ensuring Startup • Persistent mode (Windows Server 2008 R2) • Where to configure: host cluster • Effect: When enabled, and the cluster starts, VMs will attempt to be placed on node that they were last moved to.

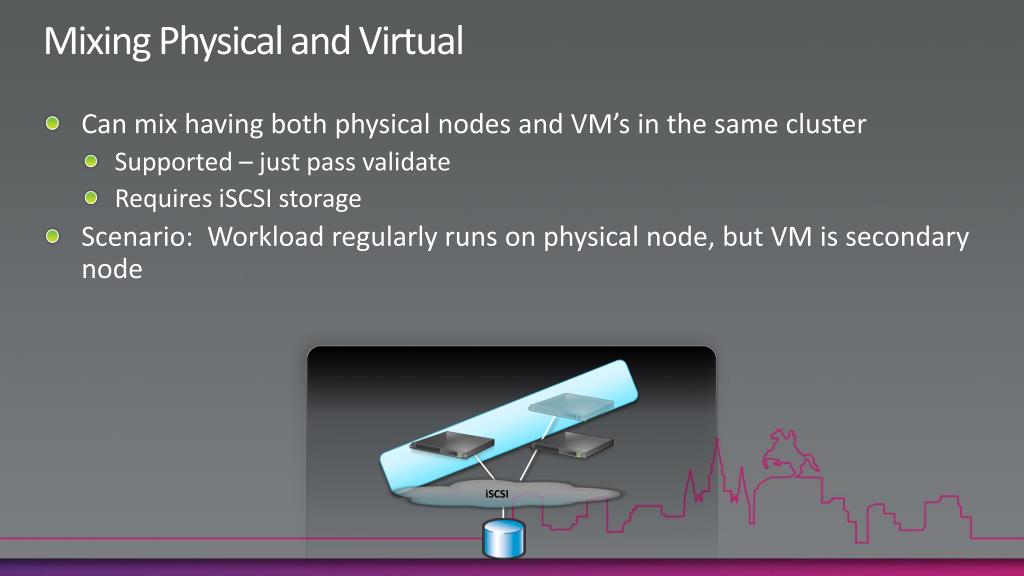

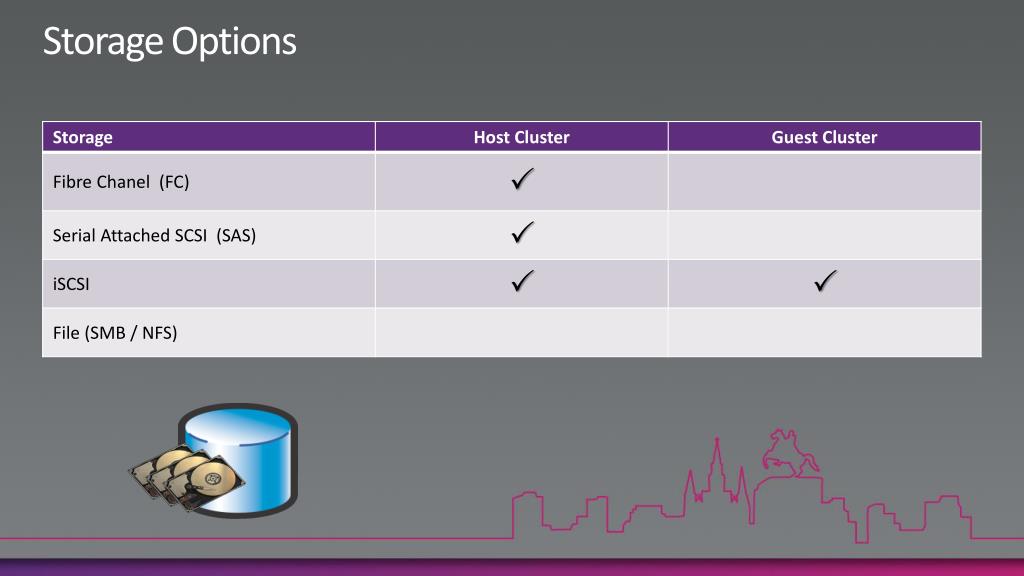

Mixing Physical and Virtual • Can mix having both physical nodes and VM’s in the same cluster • Supported – just pass validate • Requires iSCSI storage • Scenario: Workload regularly runs on physical node, but VM is secondary node iSCSI

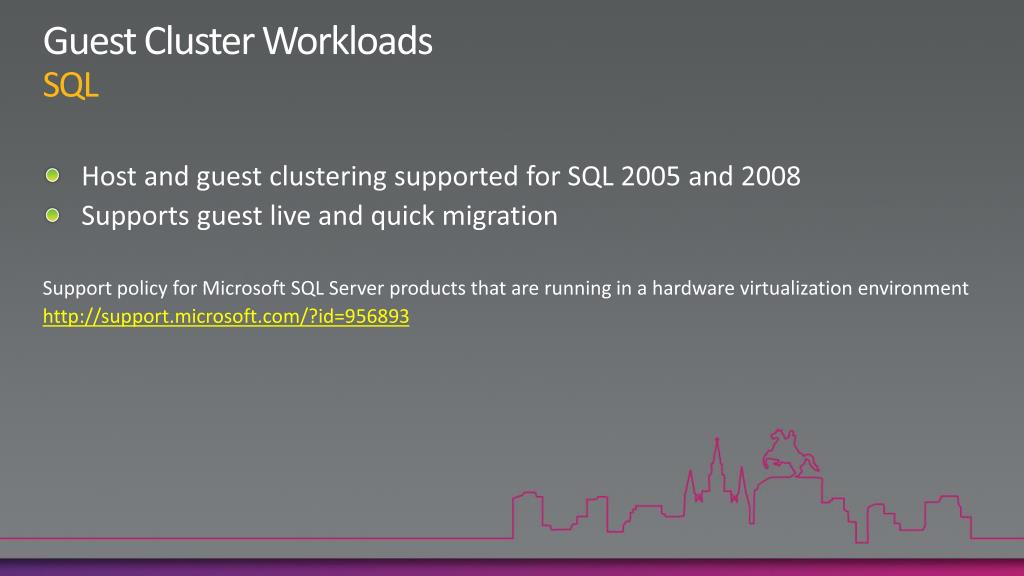

Guest Cluster WorkloadsSQL • Host and guest clustering supported for SQL 2005 and 2008 • Supports guest live and quick migration Support policy for Microsoft SQL Server products that are running in a hardware virtualization environment http://support.microsoft.com/?id=956893
Guest Cluster WorkloadsExchange • Exchange 2007 SP1 (and later) supported for guest and host clustering • Exchange 2007 SP1 HA solutions are supported for guest clustering http://technet.microsoft.com/en-us/library/cc794548.aspx
Guest Cluster WorkloadsFile Server • Supported • Live migration is a great solution for moving the file server to a different physical system without breaking client TCP/IP connections
Summary • Configuring VM’s for high availability is the norm, not the exception • Each model has it’s advantages • Understand your customers goals to help choose what’s right for them • There is no general right or wrong answer
Passion for High Availability? Are You Up For a Challenge? Become a Cluster MVP! Contact: ClusMVP@microsoft.com
Related Content • Breakout Sessions • WSV313 | Failover Clustering Deployment Success • WSV314 | Failover Clustering Pro Troubleshooting with Windows Server 2008 R2 • VIR303 | Disaster Recovery by Stretching Hyper-V Clusters across Sites • ARC308 | High Availability: A Contrarian View • DAT207 | SQL Server High Availability: Overview, Considerations, and Solution Guidance • DAT303 | Architecting and Using Microsoft SQL Server Availability Technologies in a Virtualized World • DAT305 | See the Largest Mission Critical Deployment of Microsoft SQL Server around the World • DAT401 | High Availability and Disaster Recovery: Best Practices for Customer Deployments • DAT407 | Windows Server 2008 R2 and Microsoft SQL Server 2008: Failover Clustering Implementations • UNC304 | Microsoft Exchange Server 2010: High Availability Deep Dive • UNC305 | Microsoft Exchange Server 2010 High Availability Design Considerations Visit the Cluster Team in the TLC Failover Clustering Booth WSV-7 • Interactive Sessions • VIR06-INT | Failover Clustering with Hyper-V Unleashed with Windows Server 2008 R2 • UNC01-INT | Real-World Database Availability Group (DAG) Design • VIR02-INT | Hyper-V Live Migration over Distance: A Multi-Datacenter Approach • BOF34-IT | Microsoft Exchange Server High Availability and Disaster Recovery: Are You Prepared? • Hands-on Labs • WSV01-HOL | Failover Clustering in Windows Server 2008 R2 • DAT01-HOL | Create a Two-Node Windows Server 2008 R2 Failover Cluster • DAT02-HOL | Create a Windows Server 2008 R2 MSDTC Cluster • DAT09-HOL | Installing a Microsoft SQL Server 2008 + SP1 Clustered Instance • DAT12-HOL | Maintaining a Microsoft SQL Server 2008 Failover Cluster • UNC02-HOL | Microsoft Exchange Server 2010 High Availability and Storage Scenarios • VIR06-HOL | Implementing High Availability and Live Migration with Windows Server 2008 R2 Hyper-V

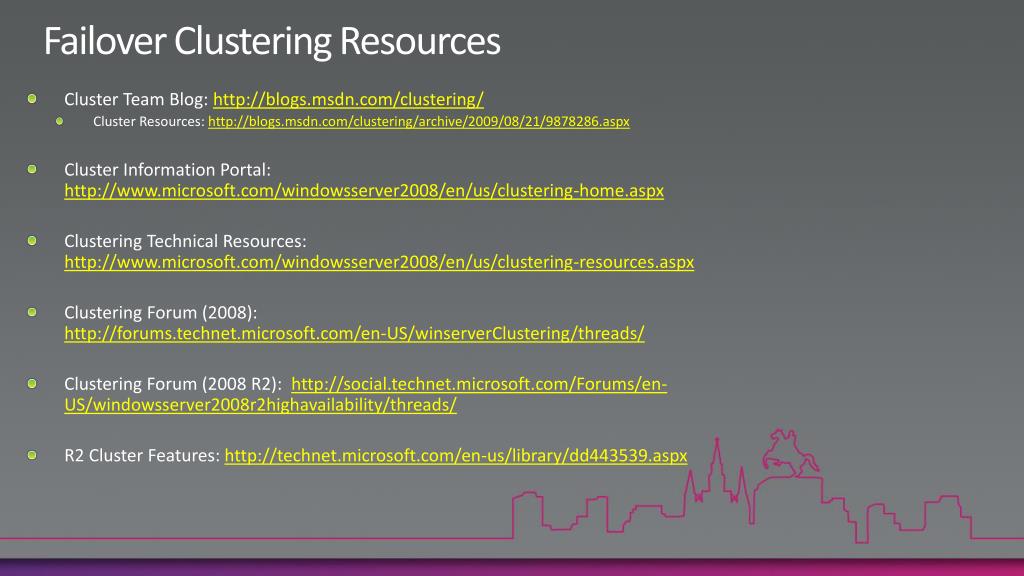

Failover Clustering Resources • Cluster Team Blog: http://blogs.msdn.com/clustering/ • Cluster Resources: http://blogs.msdn.com/clustering/archive/2009/08/21/9878286.aspx • Cluster Information Portal: http://www.microsoft.com/windowsserver2008/en/us/clustering-home.aspx • Clustering Technical Resources: http://www.microsoft.com/windowsserver2008/en/us/clustering-resources.aspx • Clustering Forum (2008): http://forums.technet.microsoft.com/en-US/winserverClustering/threads/ • Clustering Forum (2008 R2): http://social.technet.microsoft.com/Forums/en-US/windowsserver2008r2highavailability/threads/ • R2 Cluster Features: http://technet.microsoft.com/en-us/library/dd443539.aspx
