Block Diagram For System Using ADC

DESCRIPTION

Block Diagram For System Using ADC. Aliasing. ADC Architectures. 3-bit ADC Characteristic. INL and DNL. S/H. Clock Jitter. FFT Test for ADC. Effective Number of Bits. ENOB = (SNR_DB – 1.76) / 6.02. Histogram Test for ADC. Input/Output Test for ADC. Input/Output Test for 4-bit ADC.

1 / 13

Télécharger la présentation

Block Diagram For System Using ADC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Block Diagram For System Using ADC

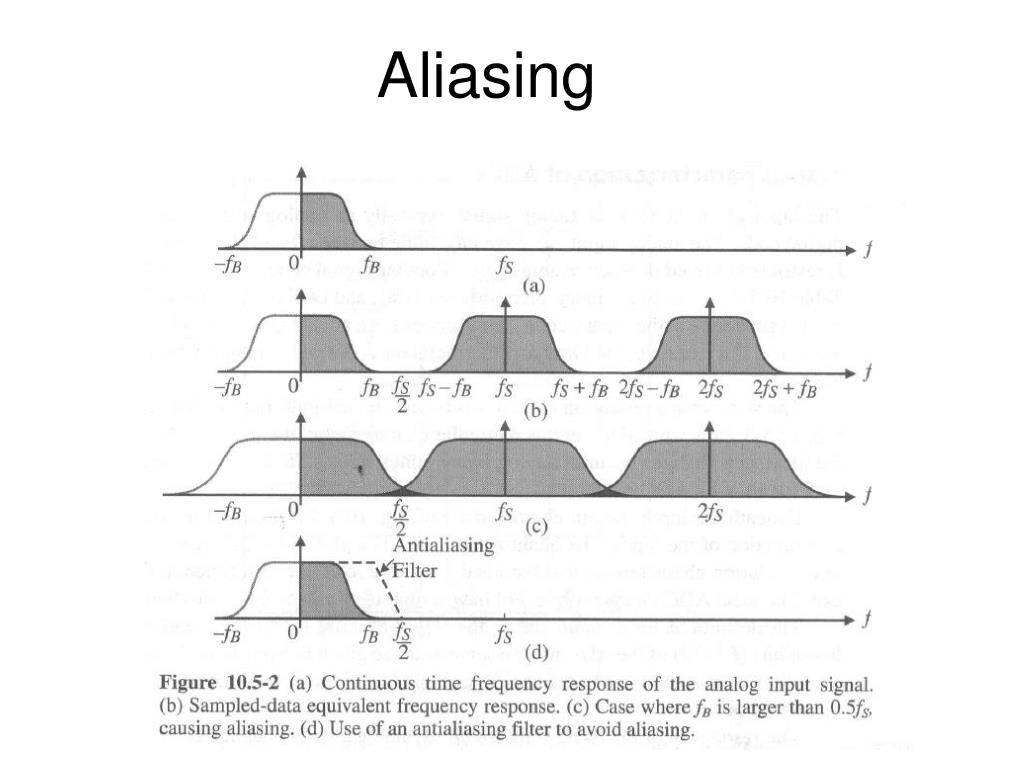

  2. Aliasing

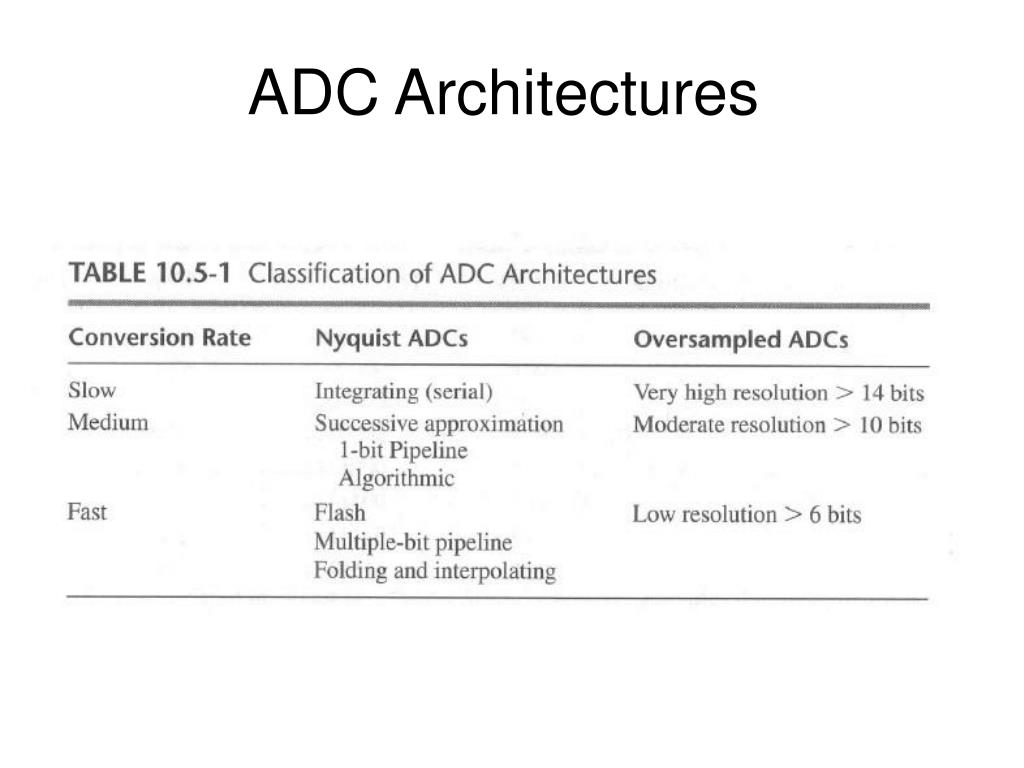

  3. ADC Architectures

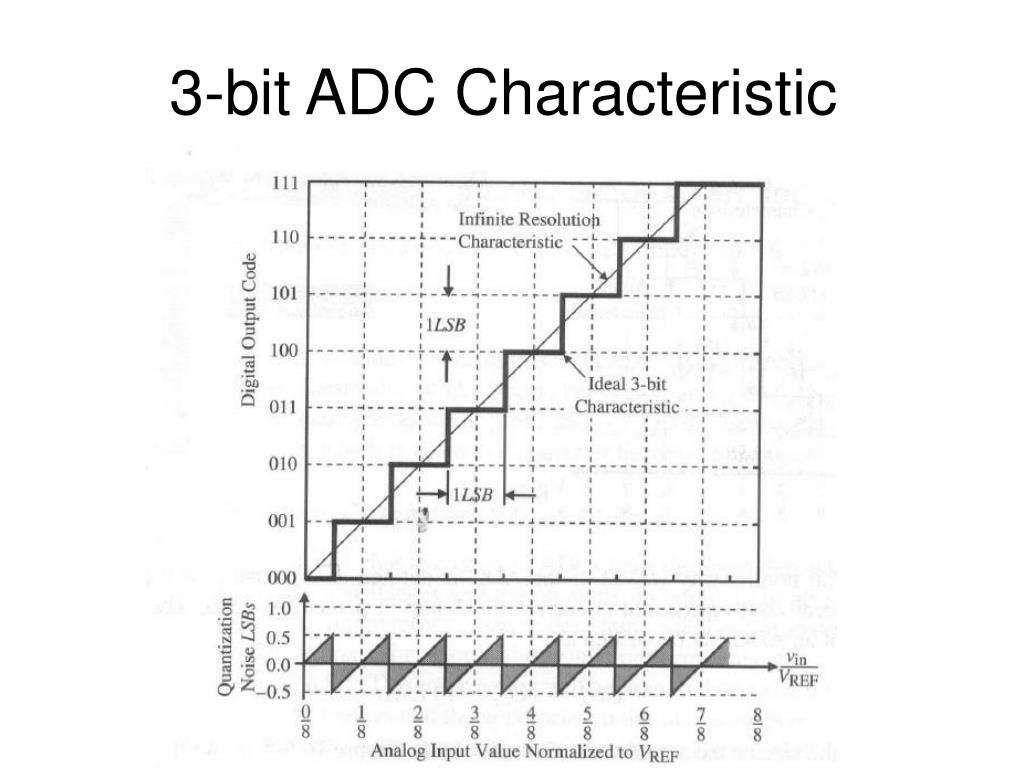

  4. 3-bit ADC Characteristic

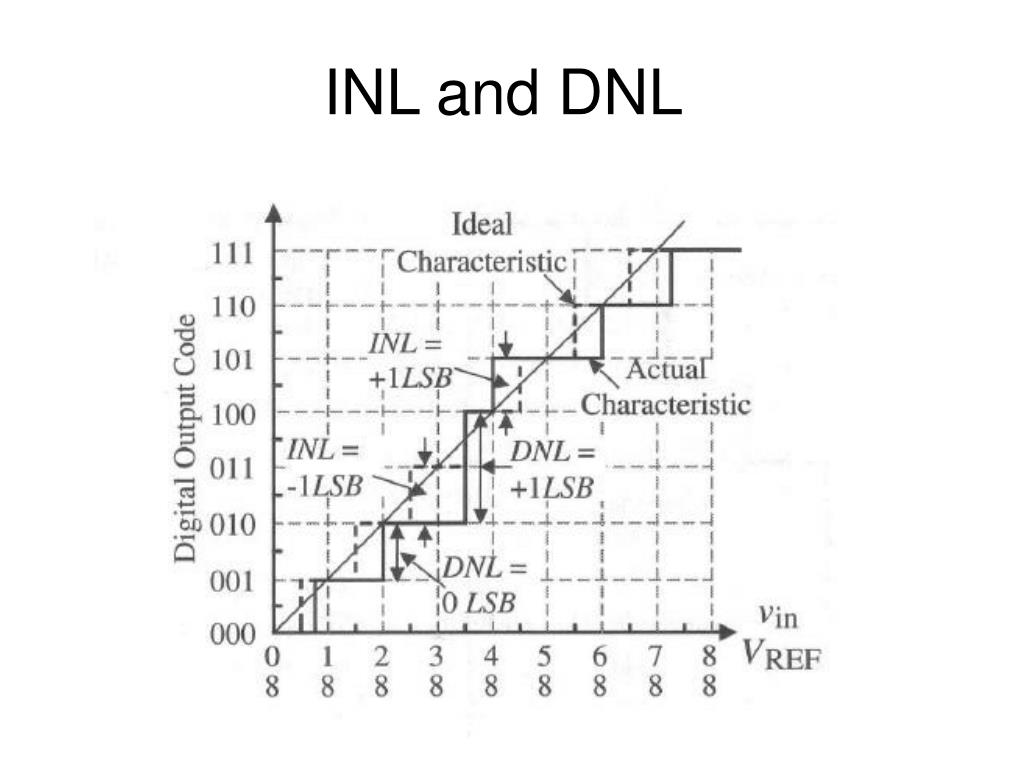

  5. INL and DNL

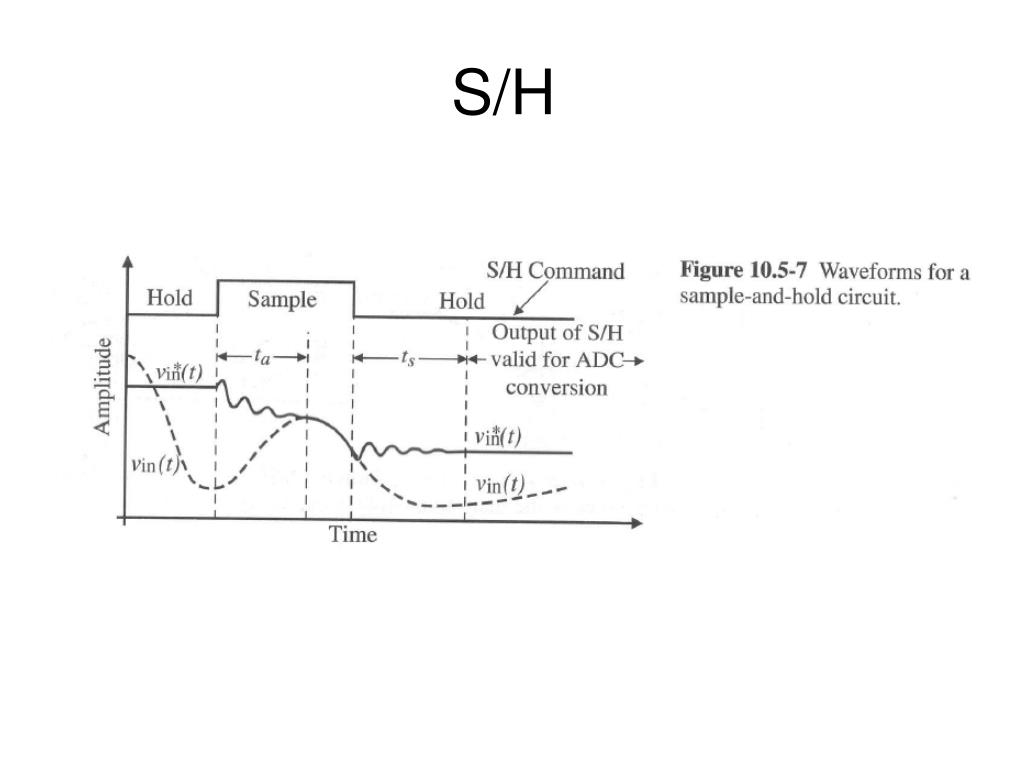

  6. S/H

  7. Clock Jitter

  8. FFT Test for ADC

  9. Effective Number of Bits ENOB = (SNR_DB – 1.76) / 6.02

  10. Histogram Test for ADC

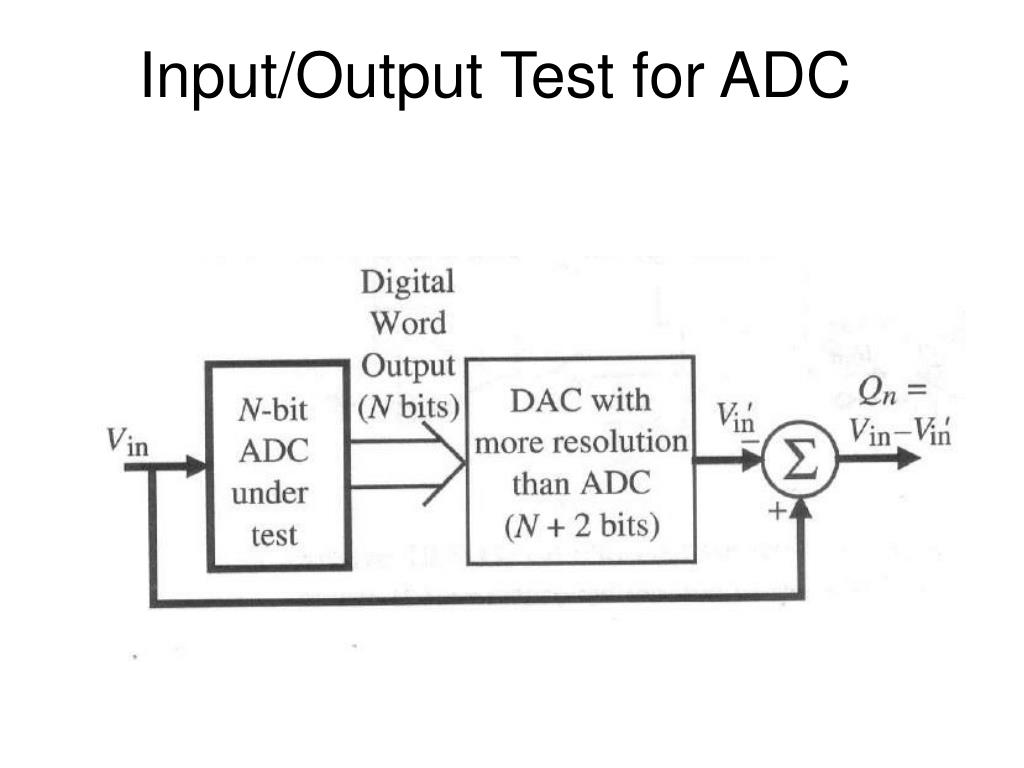

  11. Input/Output Test for ADC

  12. Input/Output Test for 4-bit ADC

  13. Comparison of Tests for ADCs
