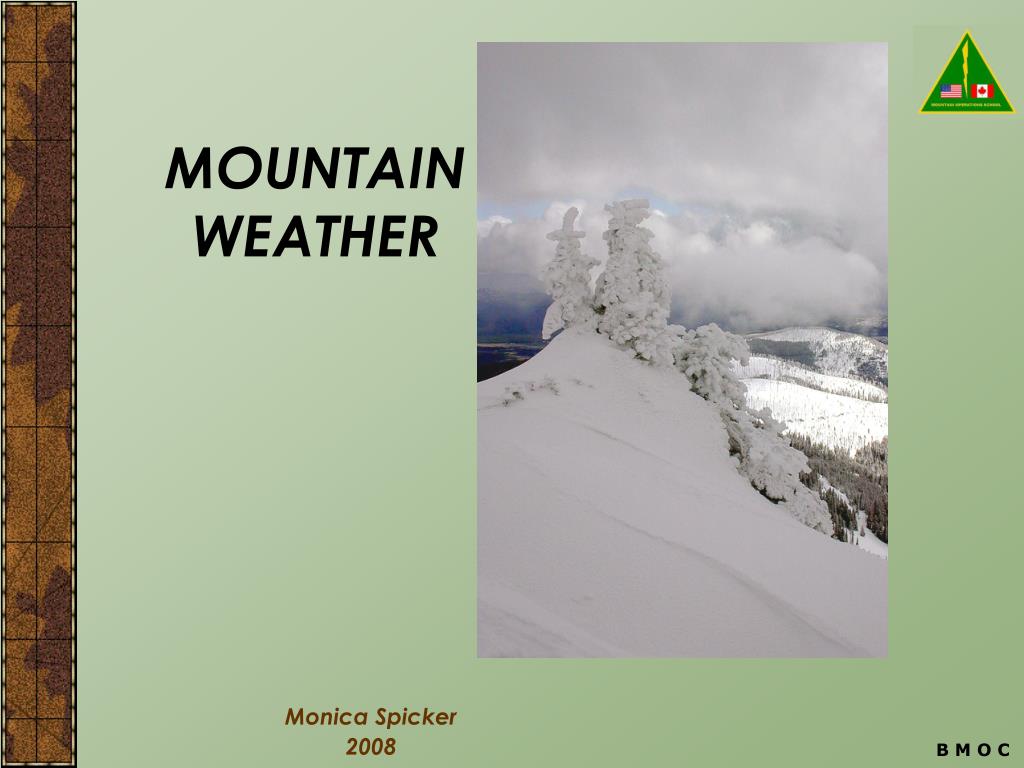

  1. MOUNTAIN WEATHER Monica Spicker 2008 B M O C

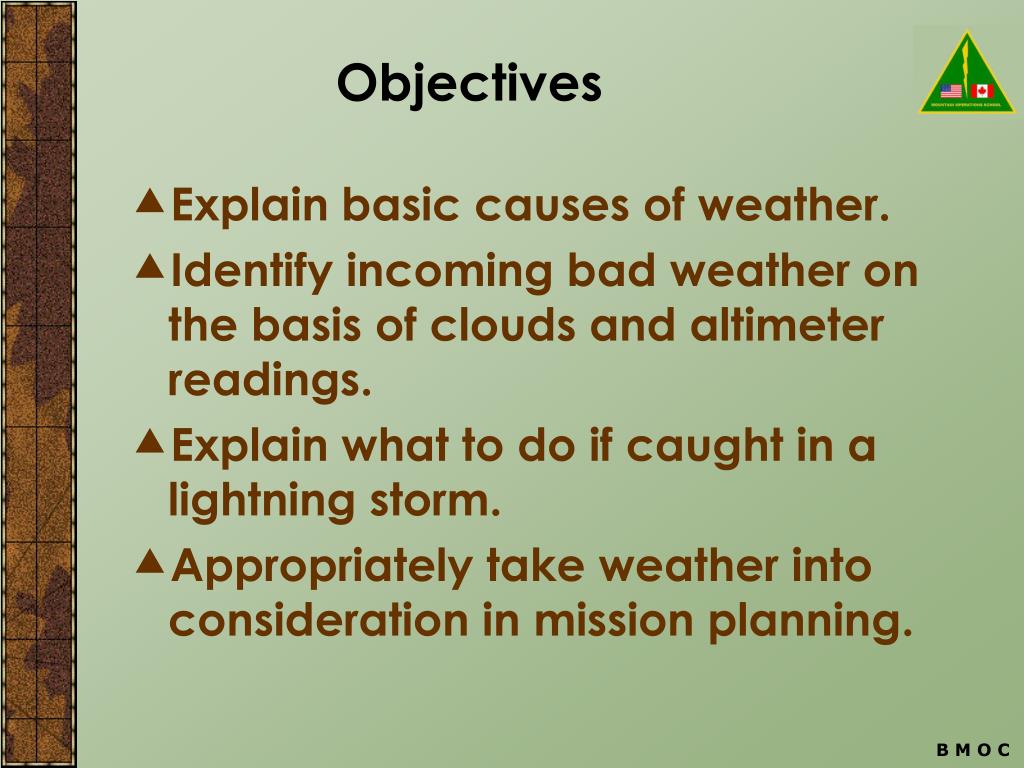

  2. Objectives • Explain basic causes of weather. • Identify incoming bad weather on the basis of clouds and altimeter readings. • Explain what to do if caught in a lightning storm. • Appropriately take weather into consideration in mission planning. B M O C

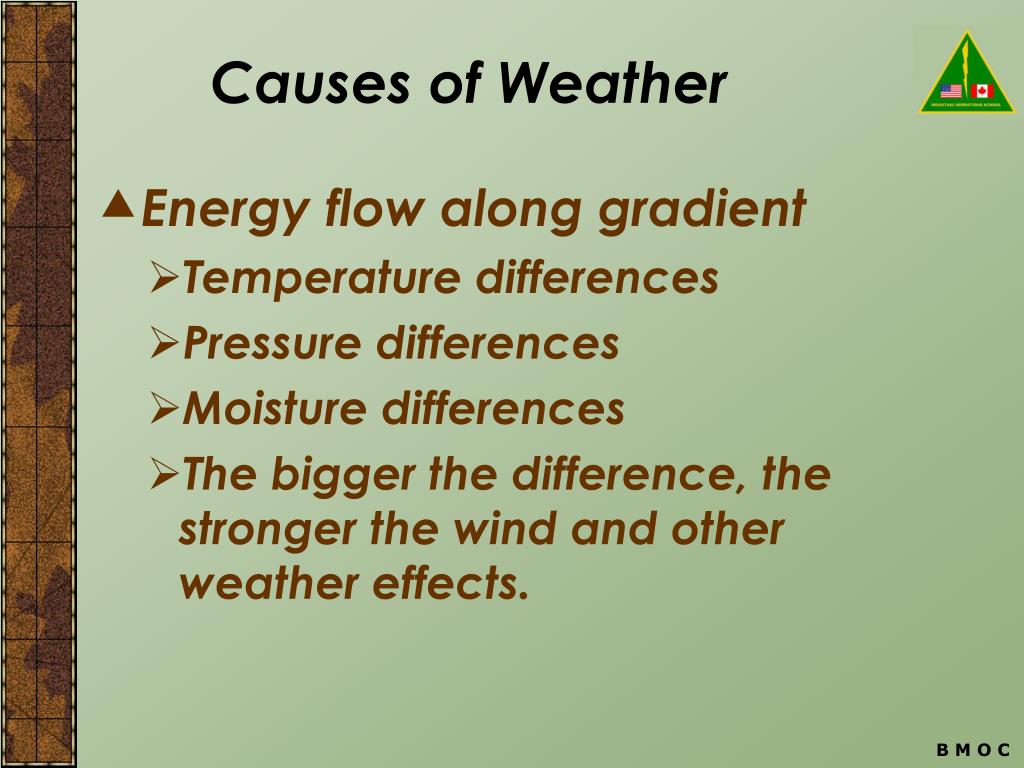

  3. Causes of Weather • Energy flow along gradient • Temperature differences • Pressure differences • Moisture differences • The bigger the difference, the stronger the wind and other weather effects. B M O C

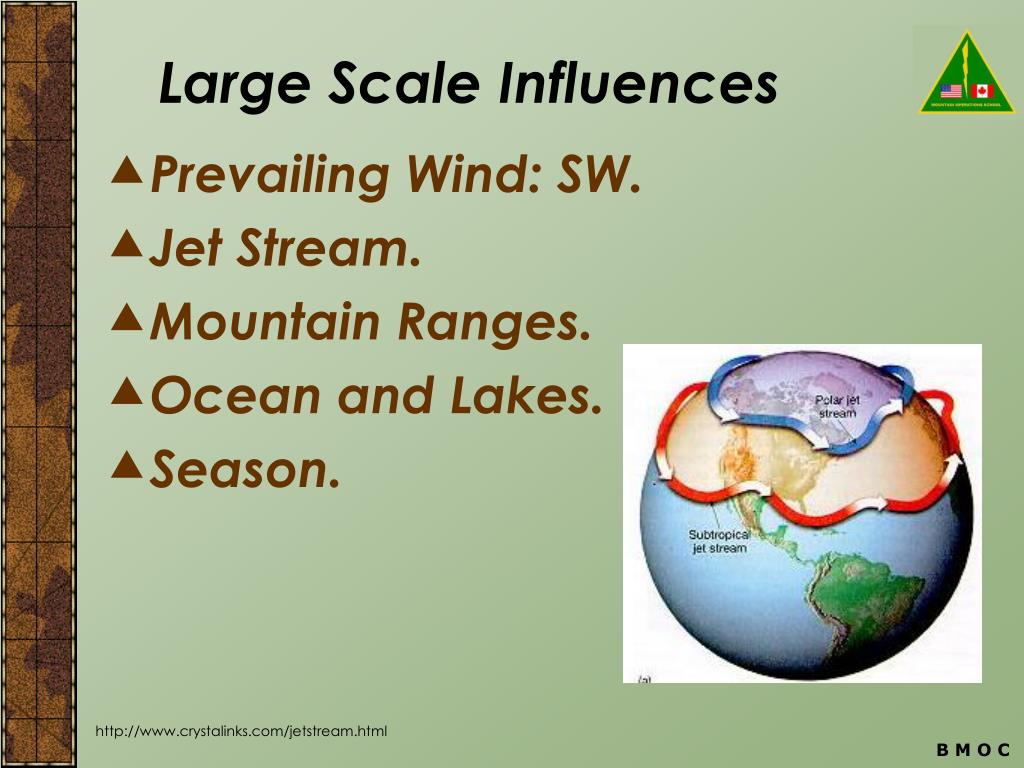

  4. Large Scale Influences • Prevailing Wind: SW. • Jet Stream. • Mountain Ranges. • Ocean and Lakes. • Season. http://www.crystalinks.com/jetstream.html B M O C

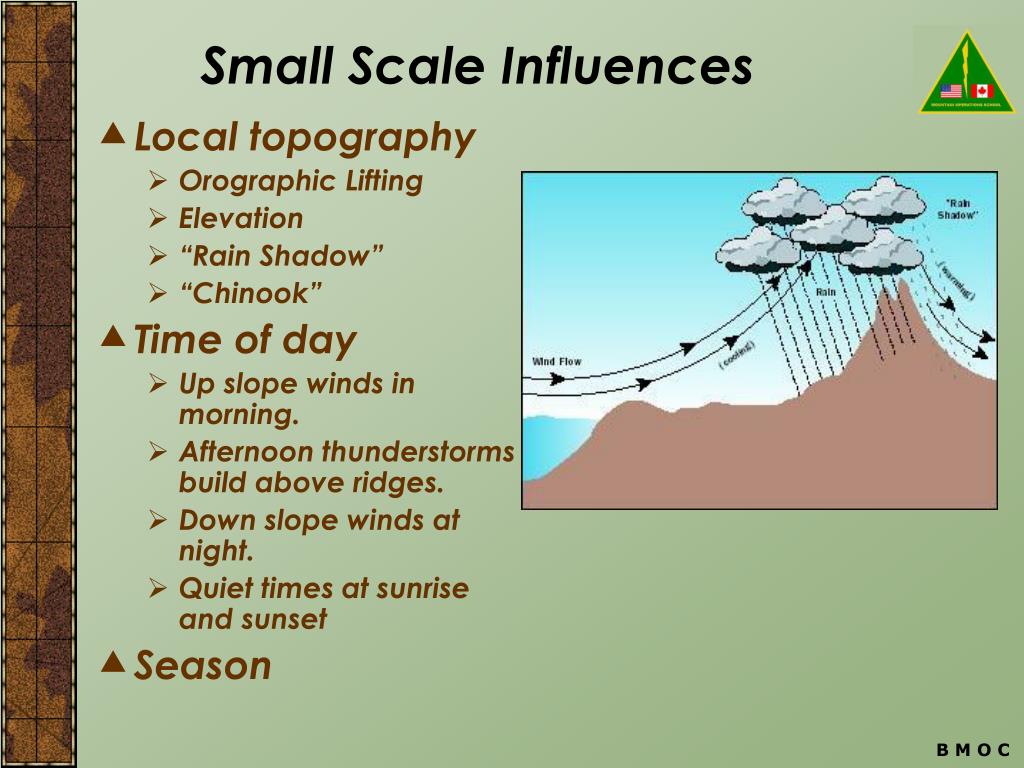

  5. Small Scale Influences • Local topography • Orographic Lifting • Elevation • “Rain Shadow” • “Chinook” • Time of day • Up slope winds in morning. • Afternoon thunderstorms build above ridges. • Down slope winds at night. • Quiet times at sunrise and sunset • Season B M O C

  6. Good Weather • Sinking, stable air • Cool • Dry • High pressure • Counterclockwise air flow (anticyclone) http://library.thinkquest.org/03oct/01054/Cyclone/cyclone.html B M O C

  7. Bad Weather • Rising unstable air • Warm • Wet • Low pressure • Clockwise flow in northern hemisphere (Cyclone) B M O C

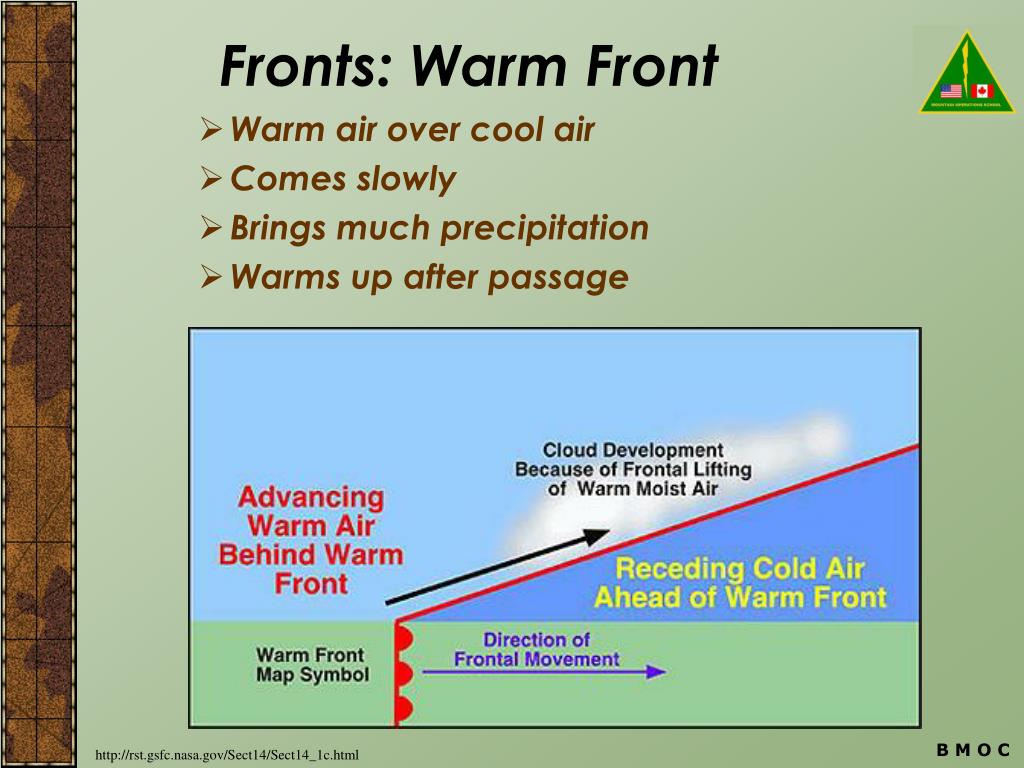

  8. Fronts: Warm Front • Warm air over cool air • Comes slowly • Brings much precipitation • Warms up after passage B M O C http://rst.gsfc.nasa.gov/Sect14/Sect14_1c.html

  9. Fronts: Cold Front • Cold air overtaking and coming up underneath warm air • Comes quickly, often violently • Thunderstorms B M O C http://rst.gsfc.nasa.gov/Sect14/Sect14_1c.html

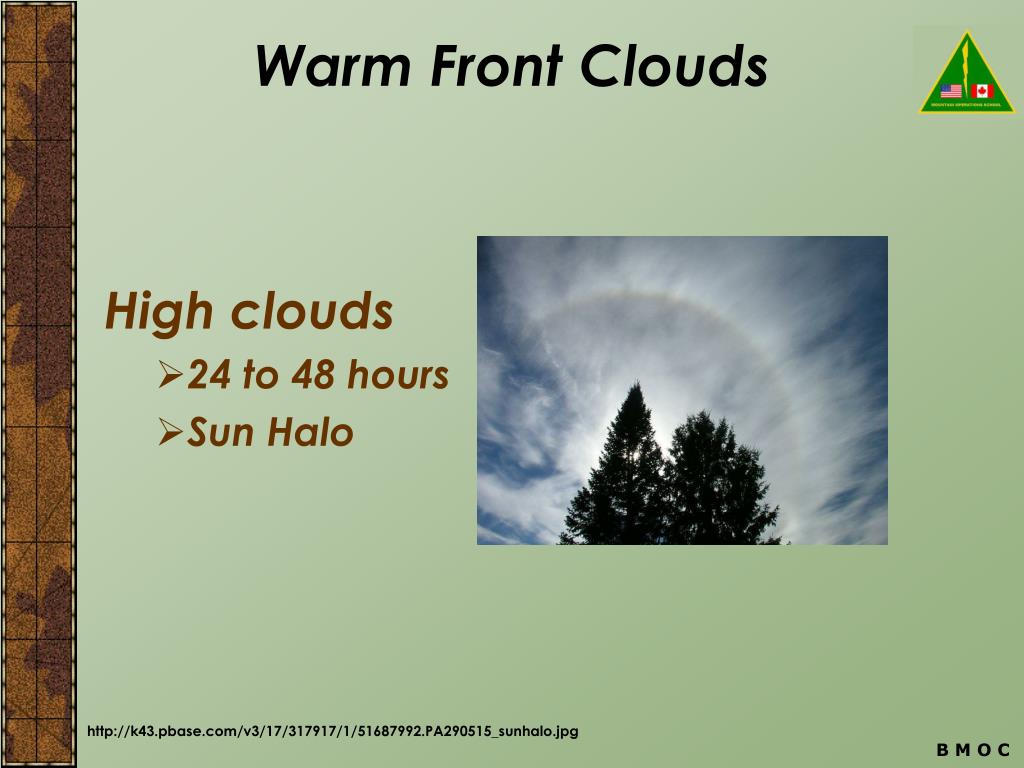

  10. Warm Front Clouds High clouds • 24 to 48 hours • Sun Halo http://k43.pbase.com/v3/17/317917/1/51687992.PA290515_sunhalo.jpg B M O C

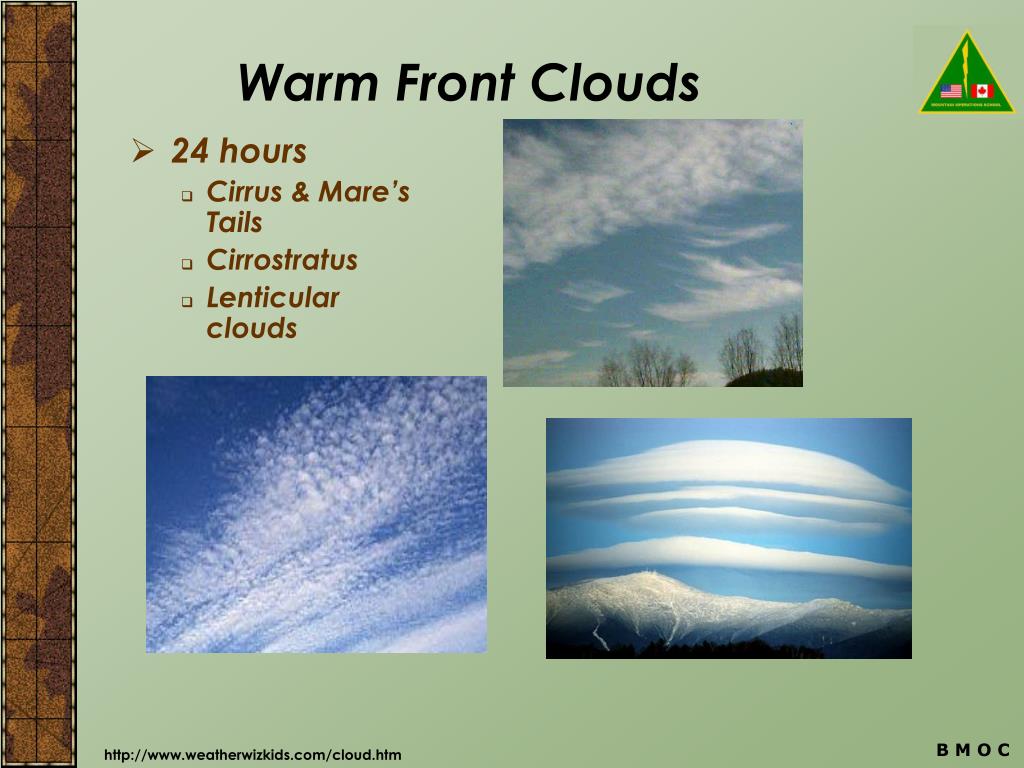

  11. Warm Front Clouds • 24 hours • Cirrus & Mare’s Tails • Cirrostratus • Lenticular clouds B M O C http://www.weatherwizkids.com/cloud.htm

  12. Warm Front Clouds Middle clouds • 12 to 24 hours away! • Altostratus http://www.weatherwizkids.com/cloud.htm B M O C

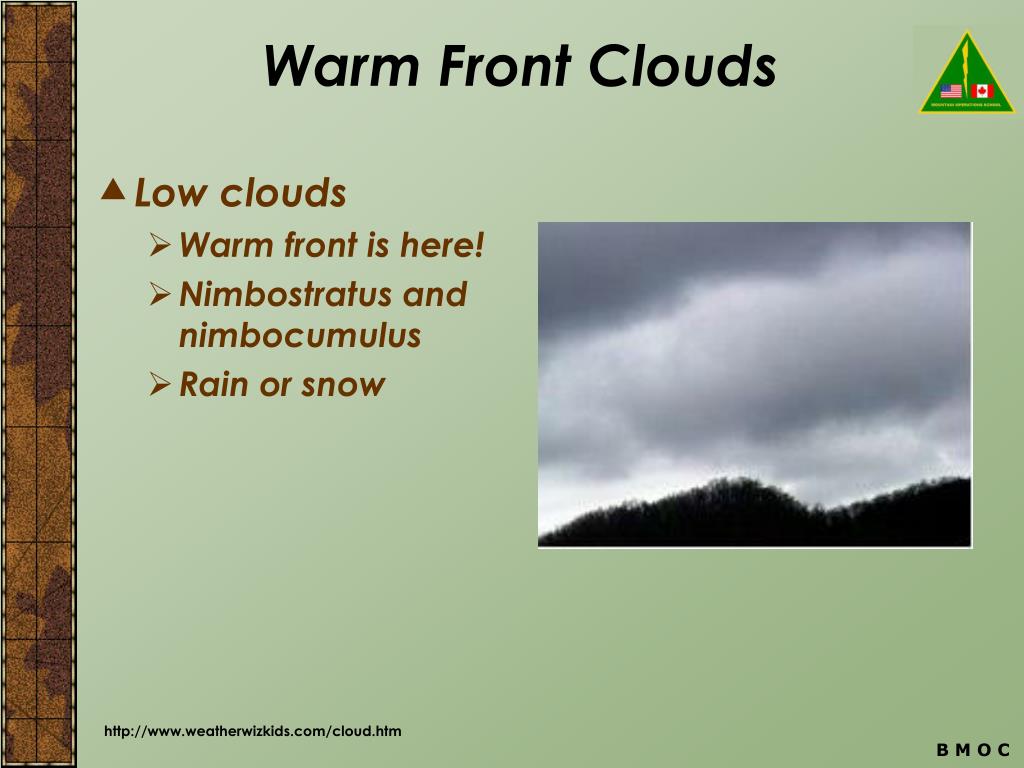

  13. Warm Front Clouds • Low clouds • Warm front is here! • Nimbostratus and nimbocumulus • Rain or snow http://www.weatherwizkids.com/cloud.htm B M O C

  14. Cold Front Clouds Cumulonimbus • Sudden uplift – very unstable • Reaches to stratosphere – anvil shape • Irregular, direction changing winds • Rain, hail, sleet, lightning • Mammutus clouds are associated with severe winds and tornadoes. http://www.weatherwizkids.com/cloud.htm B M O C

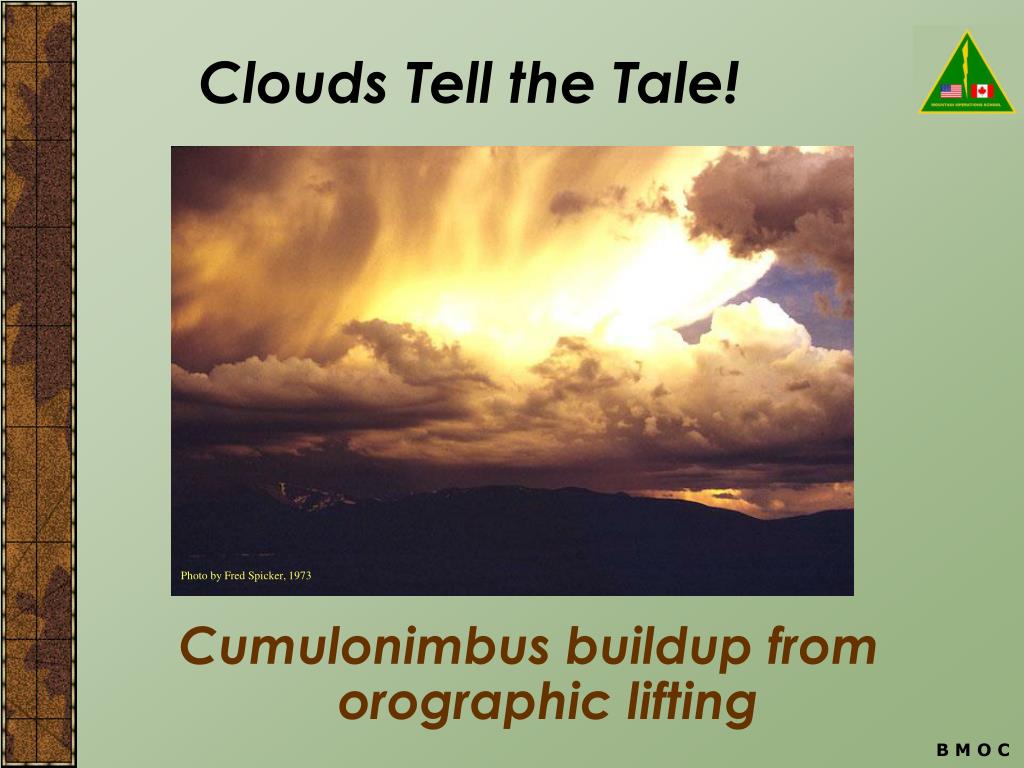

  15. Cumulonimbus buildup from orographic lifting Clouds Tell the Tale! Photo by Fred Spicker, 1973 B M O C

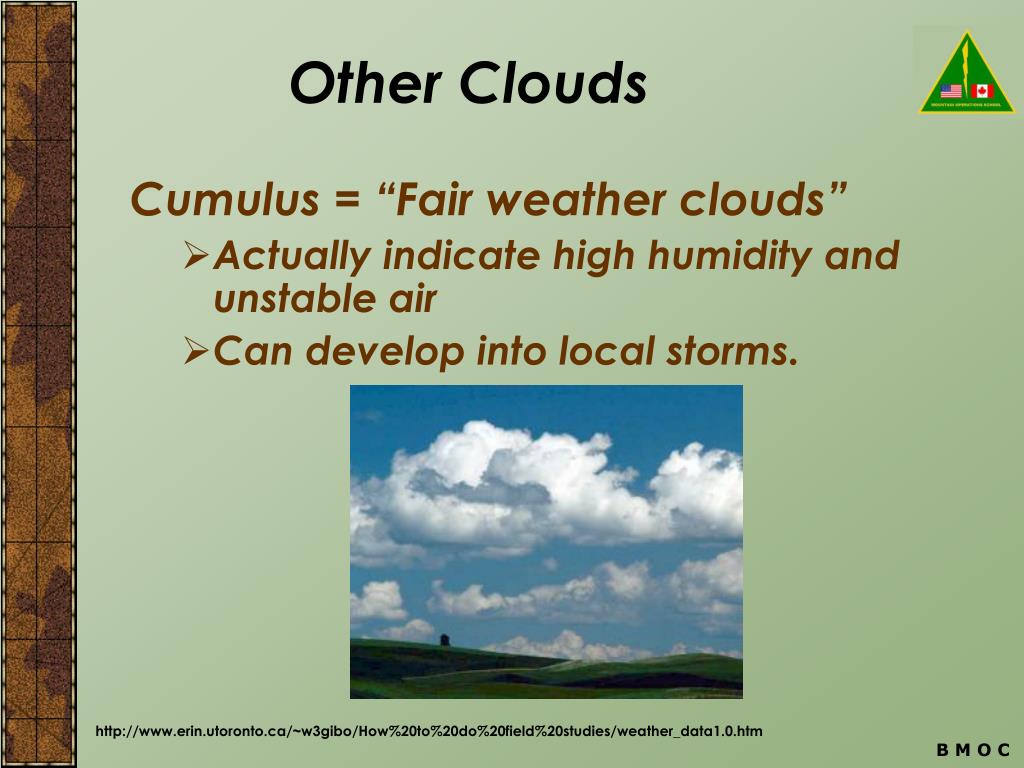

  16. Other Clouds Cumulus = “Fair weather clouds” • Actually indicate high humidity and unstable air • Can develop into local storms. http://www.erin.utoronto.ca/~w3gibo/How%20to%20do%20field%20studies/weather_data1.0.htm B M O C

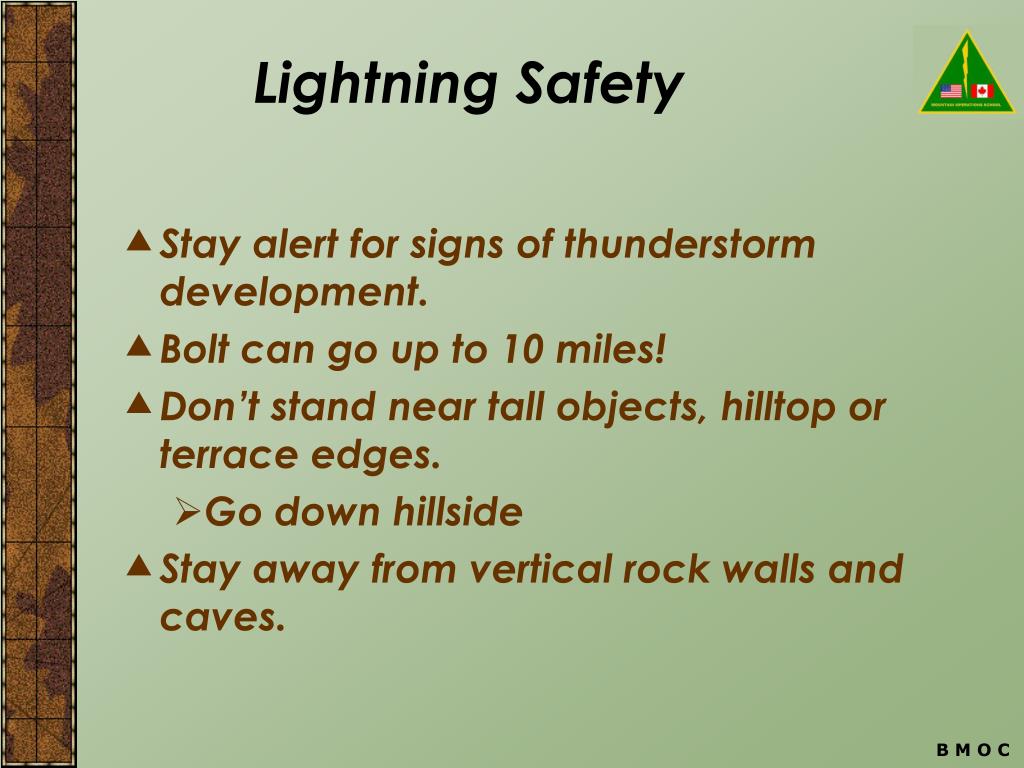

  17. Lightning Safety • Stay alert for signs of thunderstorm development. • Bolt can go up to 10 miles! • Don’t stand near tall objects, hilltop or terrace edges. • Go down hillside • Stay away from vertical rock walls and caves. B M O C

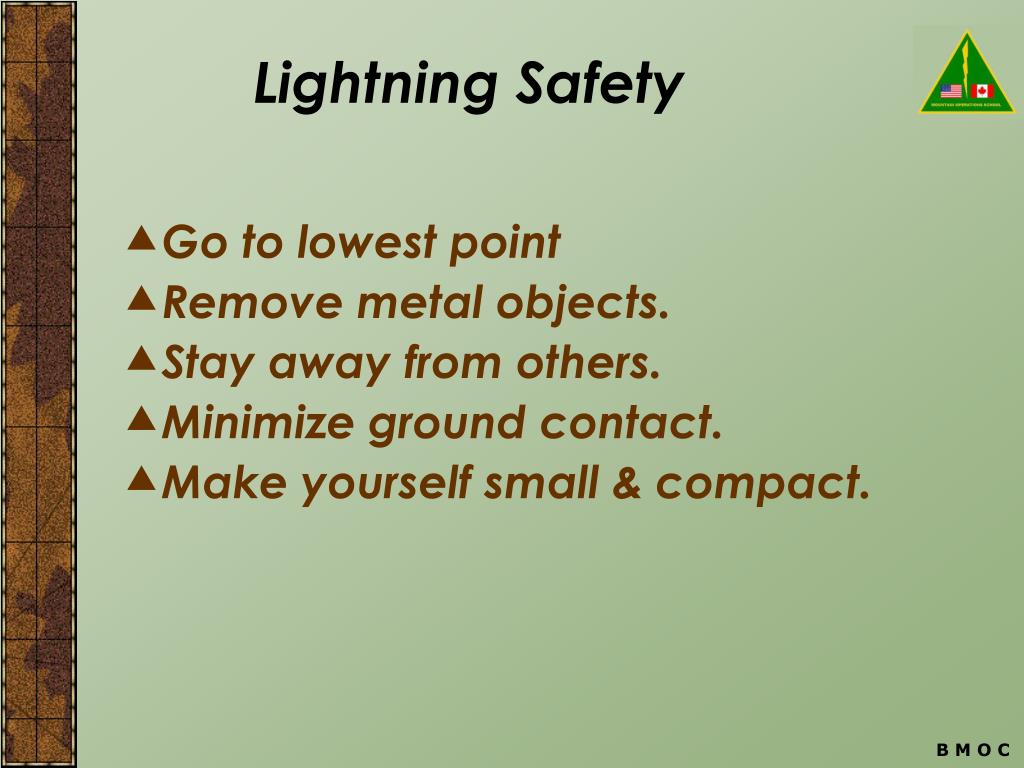

  18. Lightning Safety • Go to lowest point • Remove metal objects. • Stay away from others. • Minimize ground contact. • Make yourself small & compact. B M O C

  19. Other Signs of Approaching Bad Weather • Altimeter reading rises in a given place means low pressure system approaching. • Changing direction and strength of winds. • Low = shift from N, NE to SE; increasing speed. • Cold front = shift from SE to SW • High = shift from SW to N B M O C

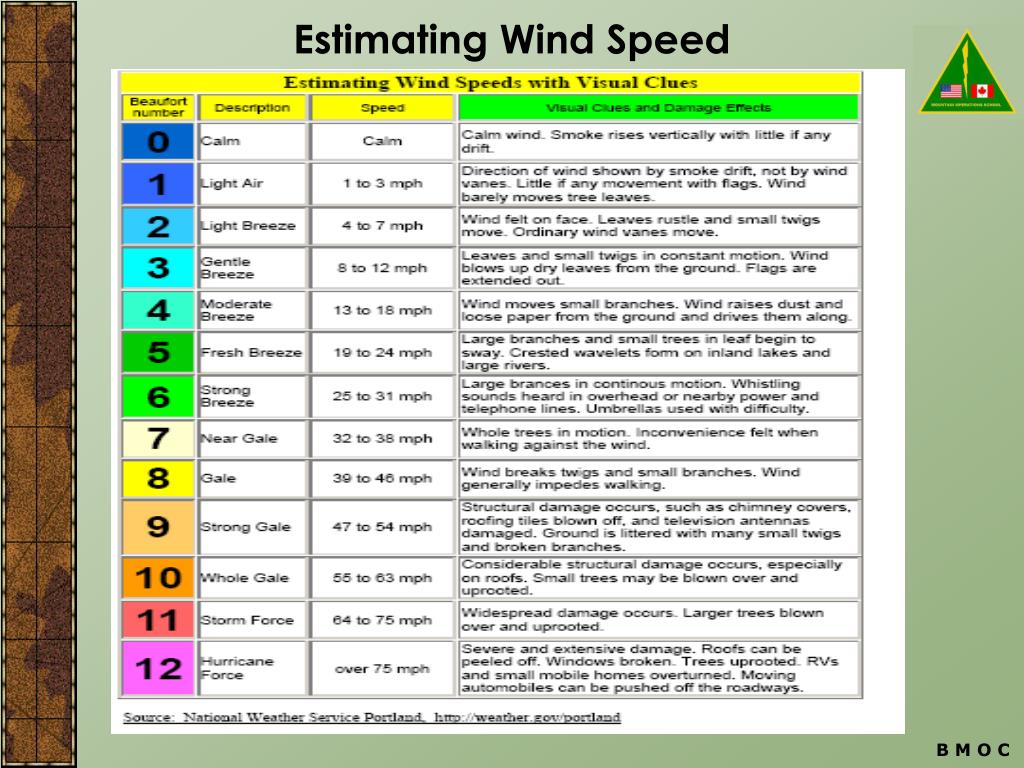

  20. Estimating Wind Speed B M O C

  21. Other Considerations • Weather patterns prior to trip • Current forecast • Use altimeter • Monitor clouds and temperature changes. B M O C

  22. Where to Get Forecasts • NOAA National Weather Service (http://www.nws.noaa.gov/) • Meteorological Service of Canada (http://www.weatheroffice.ec.gc.ca/) • State and Province DOT • Weather Underground – worldwide (http://www.wunderground.com/) • Forest Service Fire Weather • Local news or newspaper B M O C
