Update on Dynamic Source Routing (DSR) Protocol

This update by David B. Johnson at Rice University reviews the Dynamic Source Routing (DSR) protocol, highlighting its on-demand approach to routing. DSR simplifies the routing process into two main parts: Route Discovery and Route Maintenance. Key properties include full on-demand operation, automatic scaling with node movement, and minimal overhead when stationary. The project includes an ongoing implementation of DSR under Windows in collaboration with Microsoft Research, emphasizing its adaptability to multiple network interfaces. Recent publications discuss security enhancements and applications in mobile wireless ad hoc networks.

soo
Télécharger la présentation

Update on Dynamic Source Routing (DSR) Protocol

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

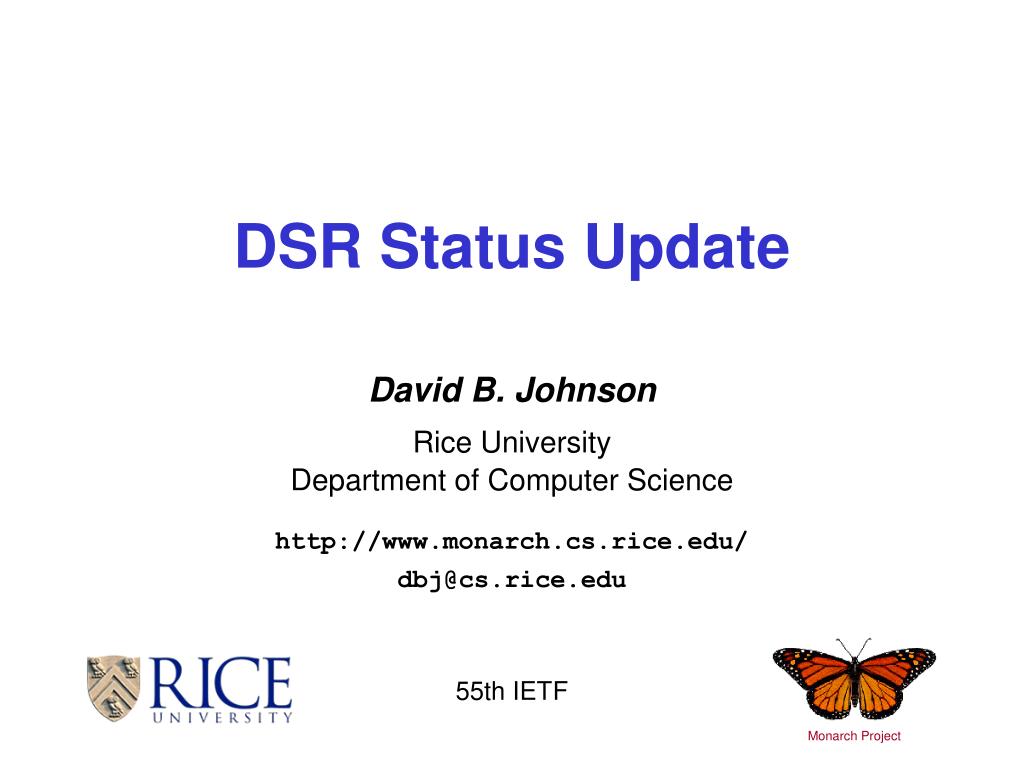

  1. Monarch Project DSR Status Update David B. Johnson Rice University Department of Computer Science http://www.monarch.cs.rice.edu/ dbj@cs.rice.edu 55th IETF

  2. DSR: Dynamic Source Routing Protocol • Divides routing problem into two parts: • Route Discovery: only try to find a route to some destinationwhen you don’t have one and need one • Route Maintenance: only while you’re actually using a route,try to keep it working or fix it in spite of changes • Important properties of DSR: • All aspects of protocol operation are entirely on-demand • Nodes ignoreall topology changes not affecting them • Overhead scales automaticallyas movement increases • Zerooverhead when stationary and found routes already • Also can support unidirectionallinks and asymmetricroutes • Extensive implementation and demonstration with real workloads

  3. New DSR Implementation Work • Implementation under Windows jointly with Microsoft Research: • Implemented at the link layer • Uses the same primitives as DSR: • Route Discovery • Route Maintenance (explicit, due to NDIS limitations) • Source routing • Packet formats based on those in the DSR Internet-Draft • Not fully optimized (salvaging, expanding ring) • We plan (and expect) to be able to release the code

  4. Recent Papers (Security) • Yih-Chun Hu, David B. Johnson, and Adrian Perrig. SEAD: Secure Efficient Distance Vector Routing for Mobile Wireless Ad Hoc Networks. WMCSA 2002, June 2002. • Yih-Chun Hu, Adrian Perrig, and David B. Johnson. Ariadne: A Secure On-Demand Routing Protocol for Ad Hoc Networks.MobiCom 2002, September 2002. • Yih-Chun Hu, Adrian Perrig, and David B. Johnson. Efficient Security Mechanisms for Routing Protocols. NDSS 2003, February 2003, to appear. • Yih-Chun Hu, Adrian Perrig, and David B. Johnson. Packet Leashes: A Defense against Wormhole Attacks in Wireless Ad Hoc Networks. INFOCOM 2003, April 2003, to appear.

  5. Recent Papers (Other) • Yih-Chun Hu and David B. Johnson. Design and Demonstration of Live Audio and Video over Multihop Wireless Ad Hoc Networks. MILCOM 2002, October 2002. • Yih-Chun Hu and David B. Johnson. Ensuring Cache Freshness in On-Demand Ad Hoc Network Routing Protocols.POMC 2002, October 2002. • Santashil PalChaudhuri and David B. Johnson, Power Mode Scheduling for Ad Hoc Networks (Extended Abstract),ICNP 2002, November 2002.

  6. Internet-Draft Status • Adding some things (back) to the draft: • Have been in previous drafts: draft-ietf-manet-dsr-03.txt, Oct 1999: • And of course, lots of proofreading of the draft • Expect to complete final version of draft by end of December • Use of multiple network interfaces • Implicit source routing

  7. Use of Multiple Network Interfaces • Allows routing between different types of networks • Example: some nodes have both short-range and long-range radios, but most have only short-range • Also allows integration with Internet and Mobile IP • Implemented and demonstrated in DSR testbed, Pittsburgh, December 1998 through March 1999 • Documented in: • Josh Broch, David A. Maltz, and David B. Johnson. Supporting Hierarchy and Heterogeneous Interfaces in Multi-Hop Wireless Ad Hoc Networks. In Proceedings of the Workshop on Mobile Computing, ISPAN’99, June 1999 • David A. Maltz, Josh Broch, and David B. Johnson. Lessons From a Full-Scale Multi-Hop Wireless Ad Hoc Network Testbed. IEEE Personal Communications, February 2001

  8. Implicit Source Routing • Establishes hop-by-hop state based on source route from sender • Avoids carrying source route in most packets • All state is soft state – no correctness problems if it is lost • Implemented and demonstrated in DSR QoS demo, DARPA GloMo PI meeting, Eatontown, NJ, July 2000 • Documented in: • Yih-Chun Hu and David B. Johnson. Implicit Source Routes for On-Demand Ad Hoc Network Routing. In Proceedings MobiHoc 2001, October, 2001. • Yih-Chun Hu and David B. Johnson. Design and Demonstration of Live Audio and Video over Multihop Wireless Ad Hoc Networks. In Proceedings of MILCOM 2002, October 2002.
