Great Theoretical Ideas In Computer Science Planar Graphs Lecture 23 CS 15-251

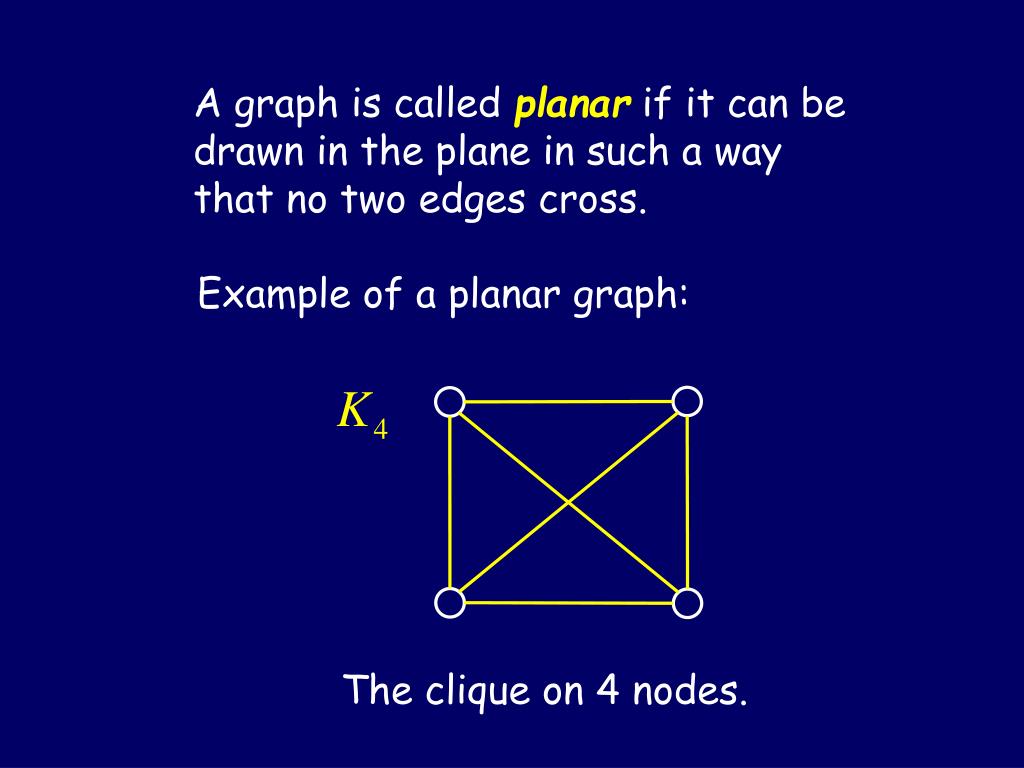

The clique on 4 nodes. A graph is called planar if it can be drawn in the plane in such a way that no two edges cross. Example of a planar graph:
Is K5 planar?
What about K3,3 ?
What about the intriguing object that I brought to class today?
The problem of drawing a graph in the plane arises frequently in VLSI layout problems.

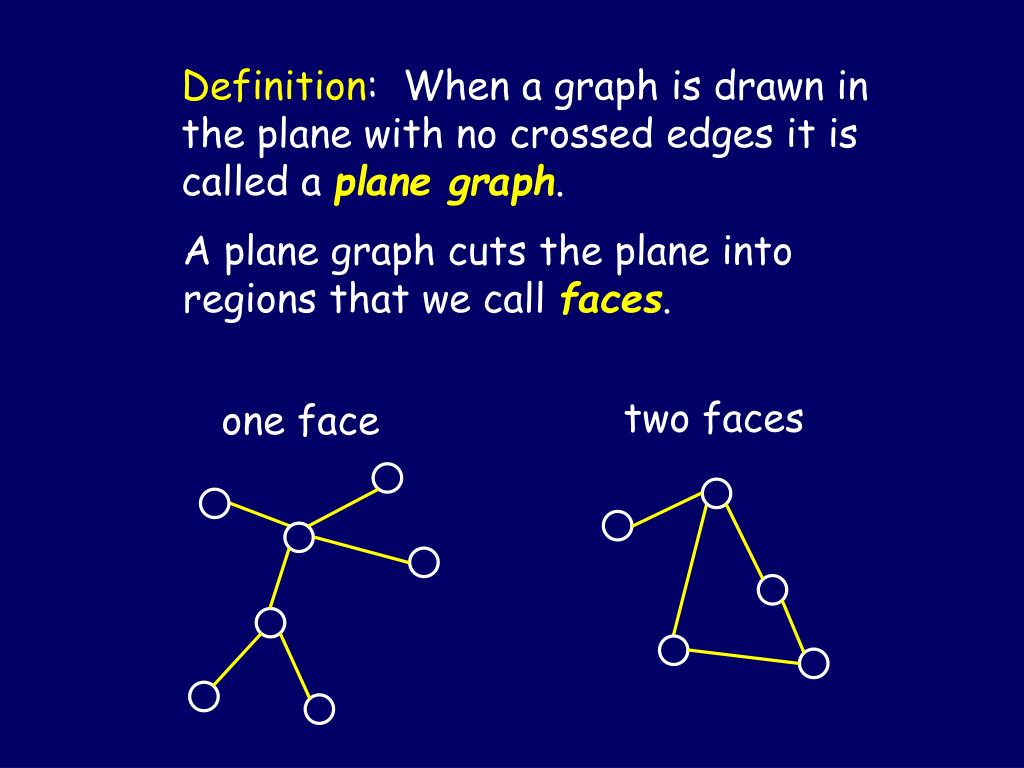

two faces one face Definition: When a graph is drawn in the plane with no crossed edges it is called a plane graph. A plane graph cuts the plane into regions that we call faces.
Question: Can you redraw this graph as a plane graph so as to alter the number of its faces?

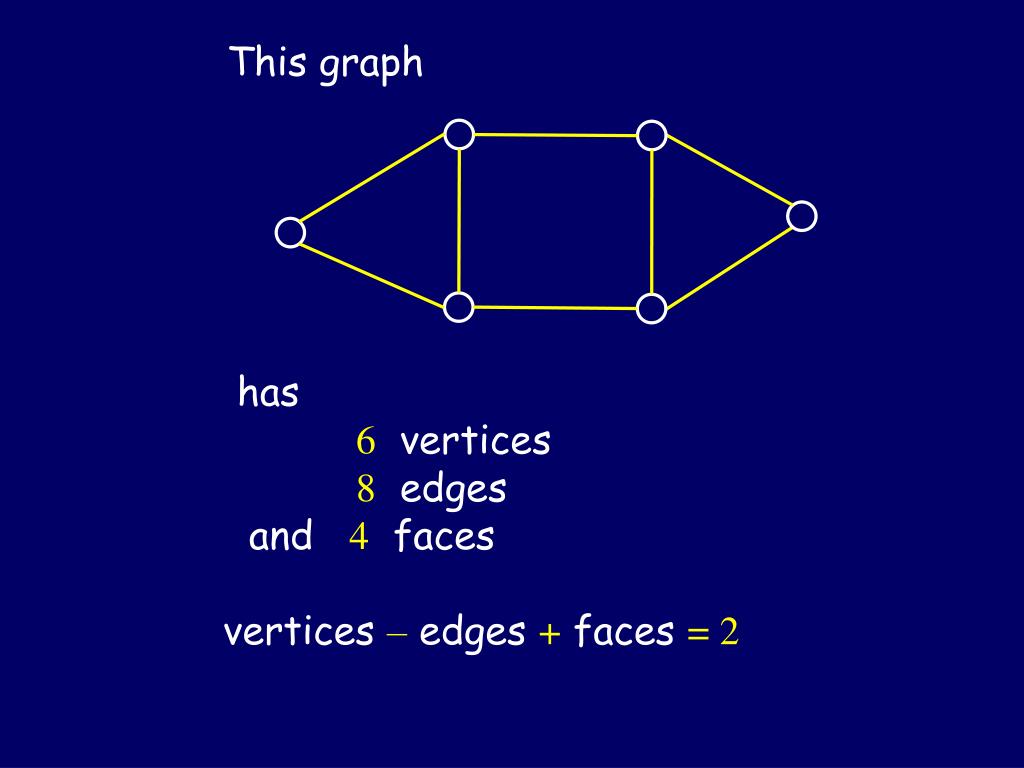

This graph has 6 vertices 8 edges and 4 faces vertices – edges + faces = 2
This graph has 7 vertices 12 edges and 7 faces vertices – edges + faces = 2
Euler 1752 If G is a connected plane graph, then vertices – edges + faces = 2 Let v = # of vertices e = # of edges f = # of faces

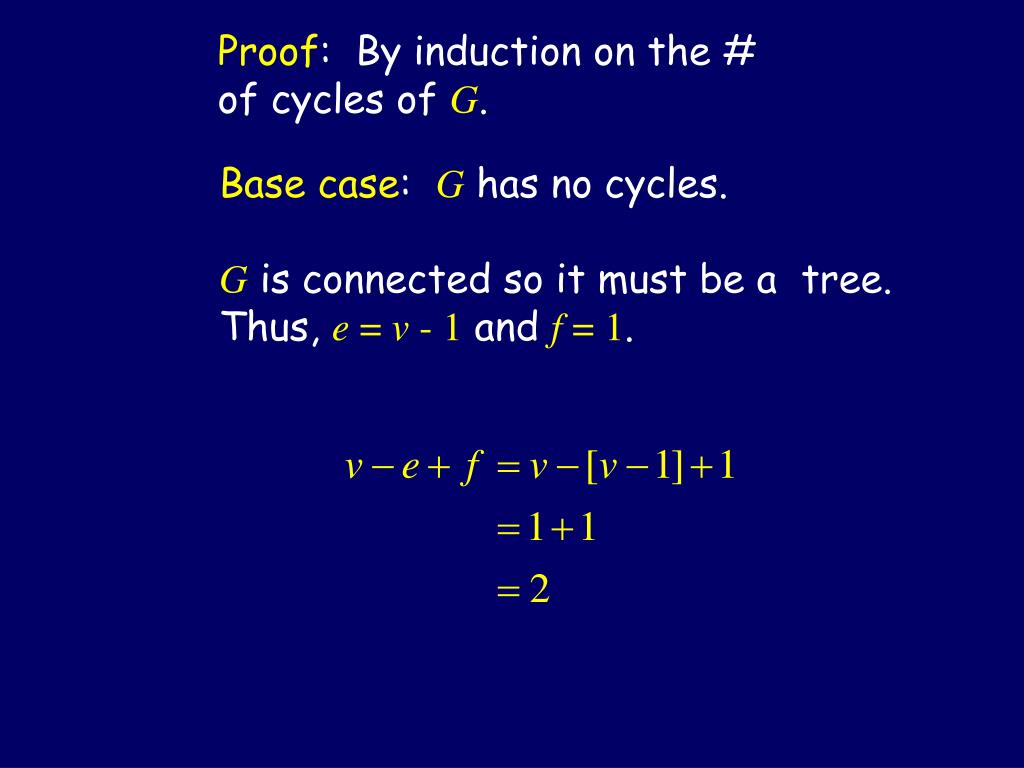

Proof: By induction on the # of cycles of G. Base case: G has no cycles. G is connected so it must be a tree. Thus, e = v - 1 and f = 1.

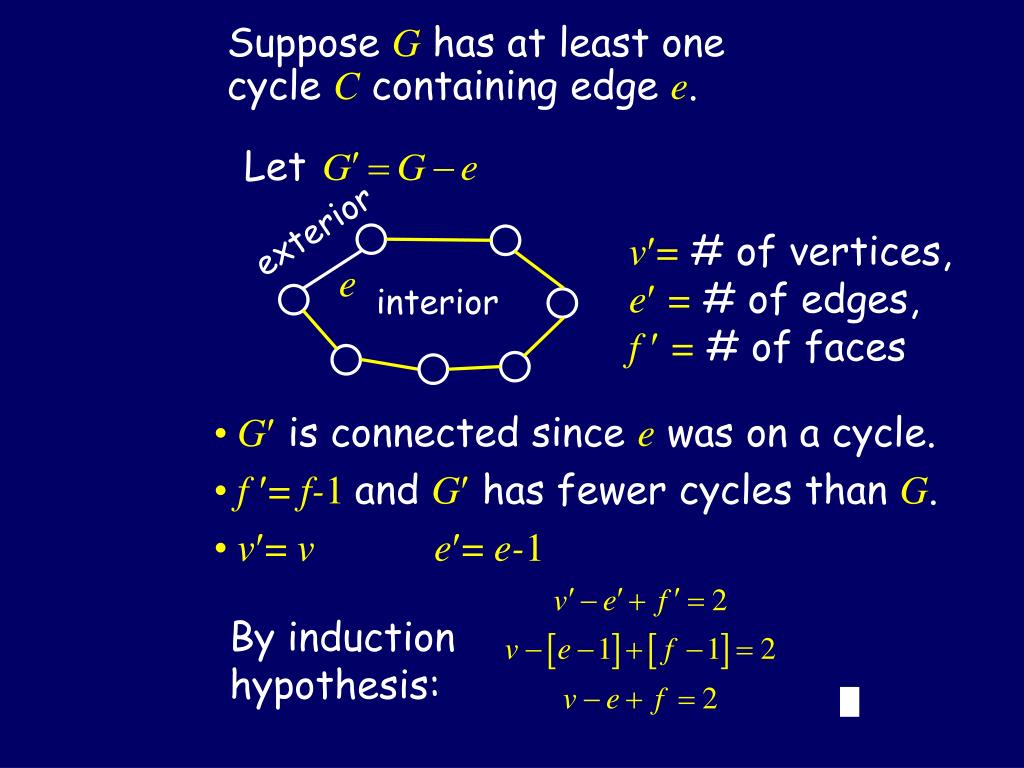

Let v= # of vertices, e= # of edges, f = # of faces exterior e interior By induction hypothesis: Suppose G has at least one cycle C containing edge e. • G is connected since e was on a cycle. • f = f-1 and G has fewer cycles than G. • v= v e= e-1
Corollary: No matter how we redraw a plane graph it will have the same # of faces. Proof: f = 2 – v + e is determined by v and e, neither of which change when we redraw the graph.
A Platonic solid has congruent regular polygons as faces and has the same number of edges meeting at each corner. Platonic Solids Each one can be flattened into a planar graph: With constant degree: k and the same number of edges bounding each face: l

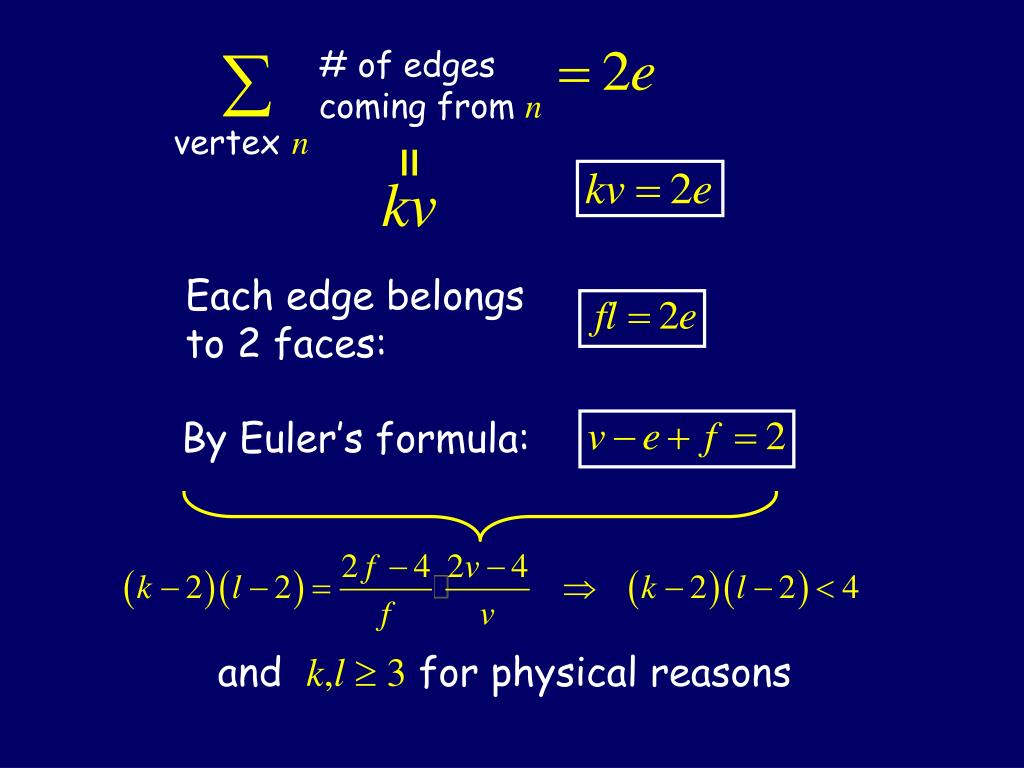

# of edges coming from n vertexn = Each edge belongs to 2 faces: By Euler’s formula: and k,l 3 for physical reasons
The only solutions: tetrahedron cube octahedron dodecahedron icosahedron

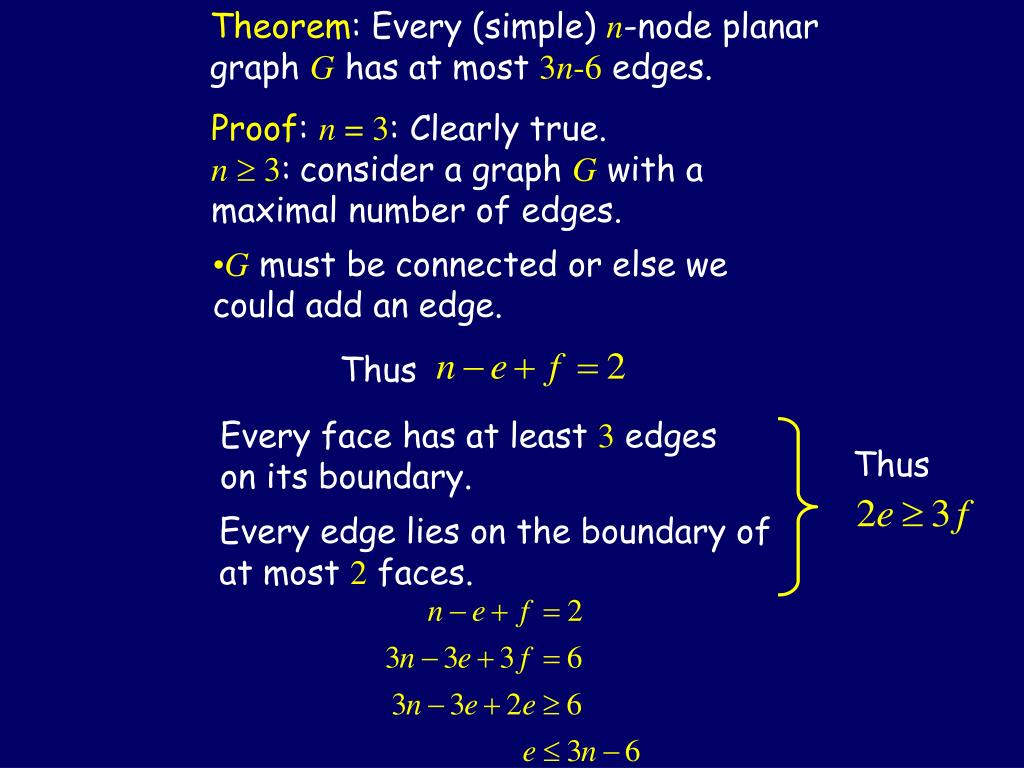

Theorem: Every (simple) n-node planar graph G has at most 3n-6 edges. Thus Thus Proof: n = 3: Clearly true. n 3:consider a graph G with a maximal number of edges. • G must be connected or else we could add an edge. Every face has at least 3 edges on its boundary. Every edge lies on the boundary of at most 2 faces.
The Kuratowski Graphs
Corollary: K5 is not planar. A planar graph on n = 5 nodes can have at most 3n-6 = 9 edges. Thus: K5 is not planar.
When we redraw K3,3 , the yellow cycle will be laid out: x a b z y c Fact: K3,3 is not planar either. a x y b z c

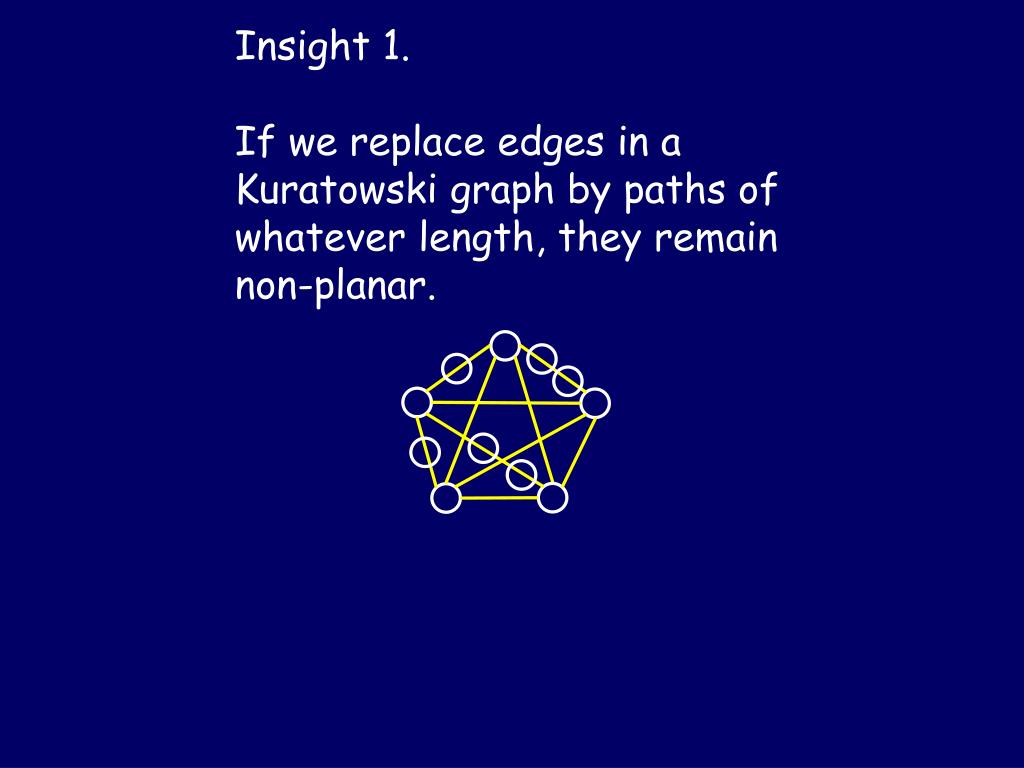

Insight 1. If we replace edges in a Kuratowski graph by paths of whatever length, they remain non-planar.

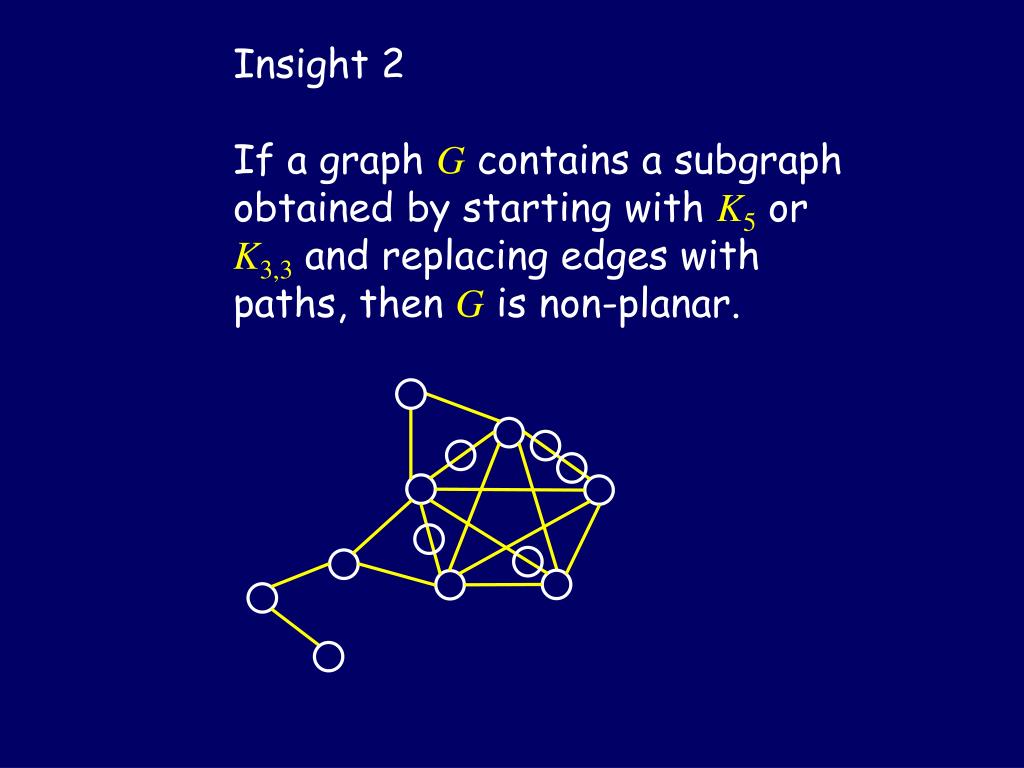

Insight 2 If a graph G contains a subgraph obtained by starting with K5 or K3,3 and replacing edges with paths, then G is non-planar.
Kuratowski’s Theorem [1930] A graph is planar if and only if it contains no subgraph obtainable from K5 or K3,3 by replacing edges with paths.

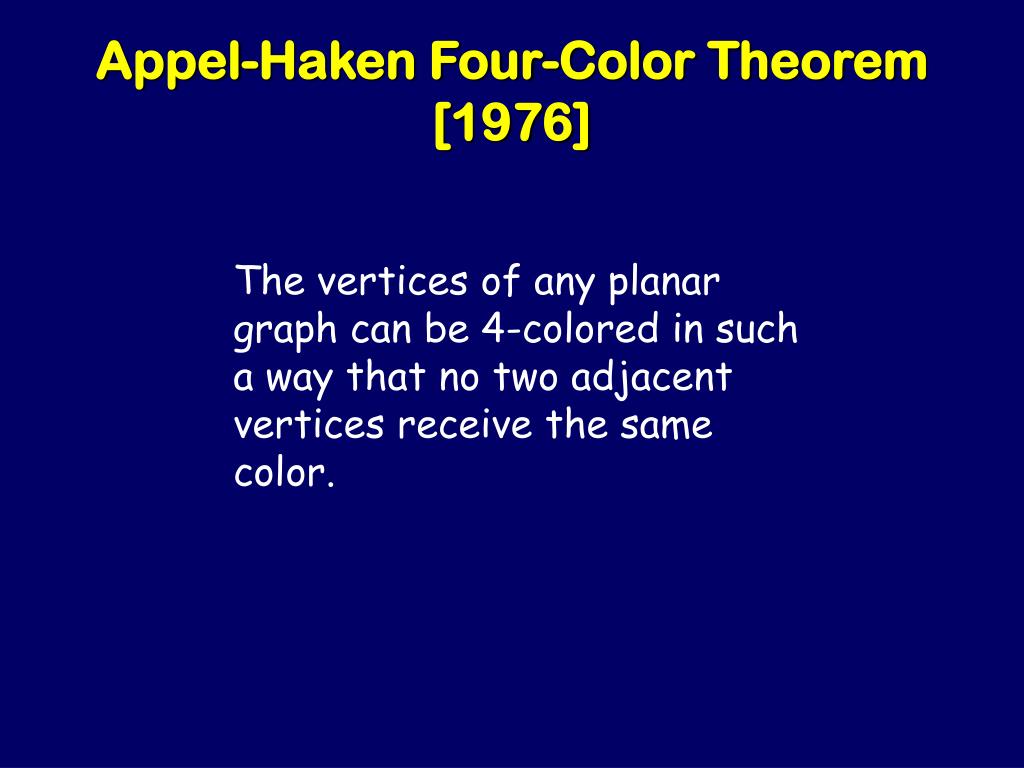

Appel-Haken Four-Color Theorem [1976] The vertices of any planar graph can be 4-colored in such a way that no two adjacent vertices receive the same color.
2 4 3 User Interface How many objects appear in the pink window? (real-time response required)

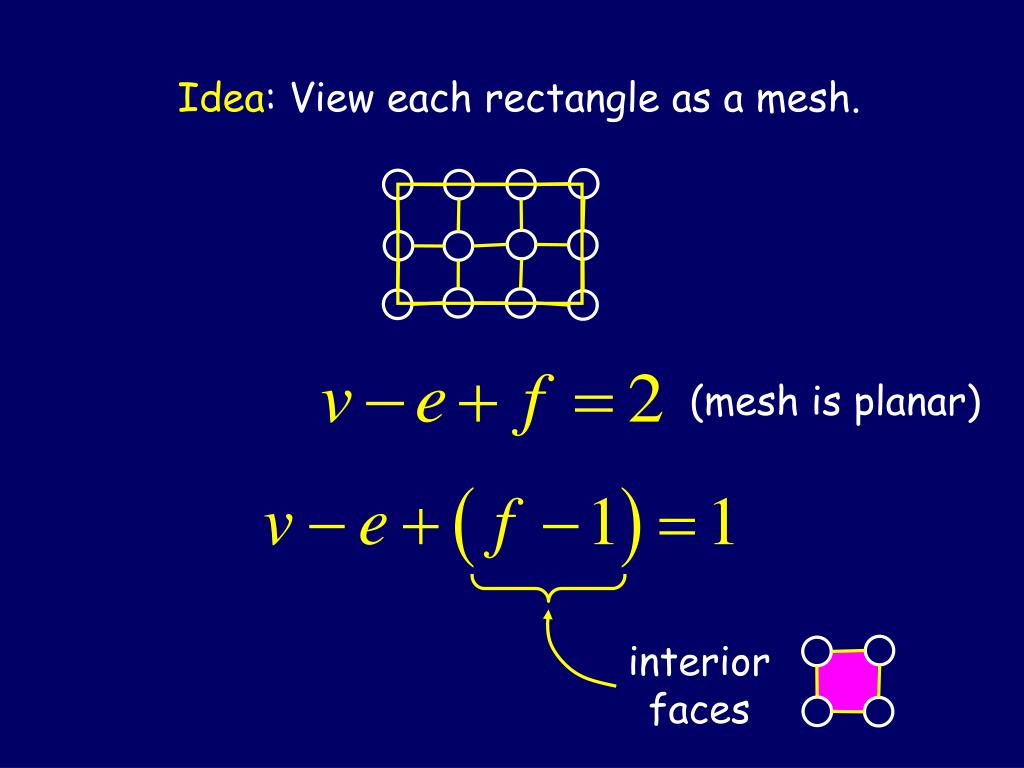

(mesh is planar) interior faces Idea: View each rectangle as a mesh.

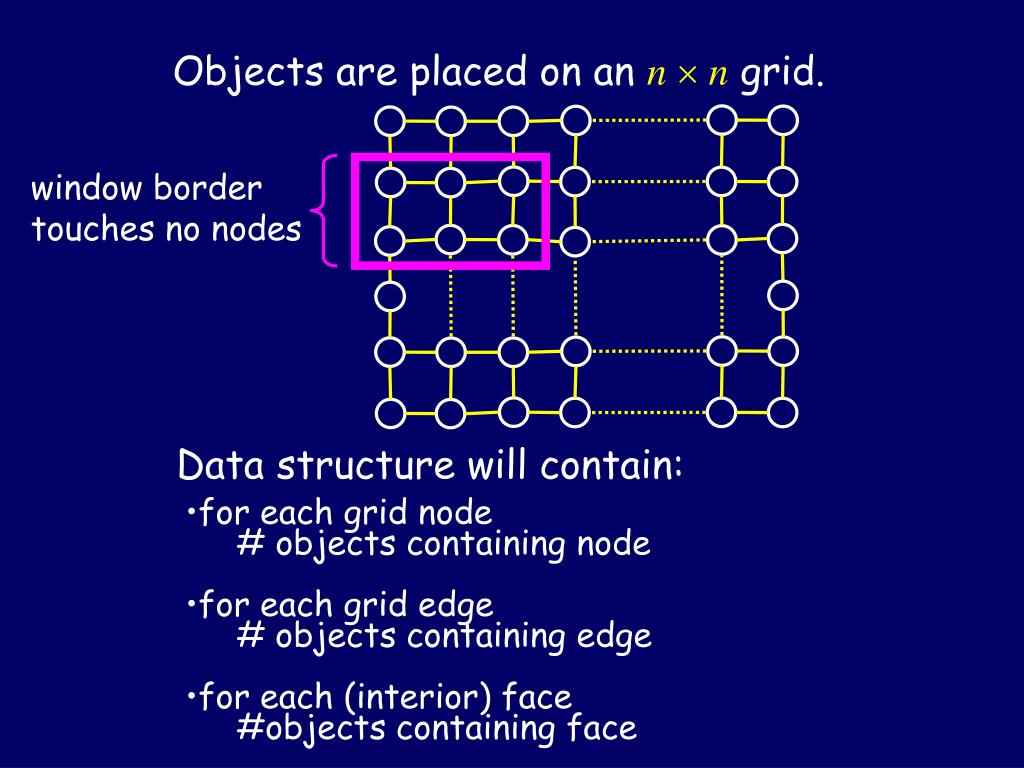

window border touches no nodes Objects are placed on an nn grid. Data structure will contain: • for each grid node • # objects containing node • for each grid edge • # objects containing edge • for each (interior) face • #objects containing face

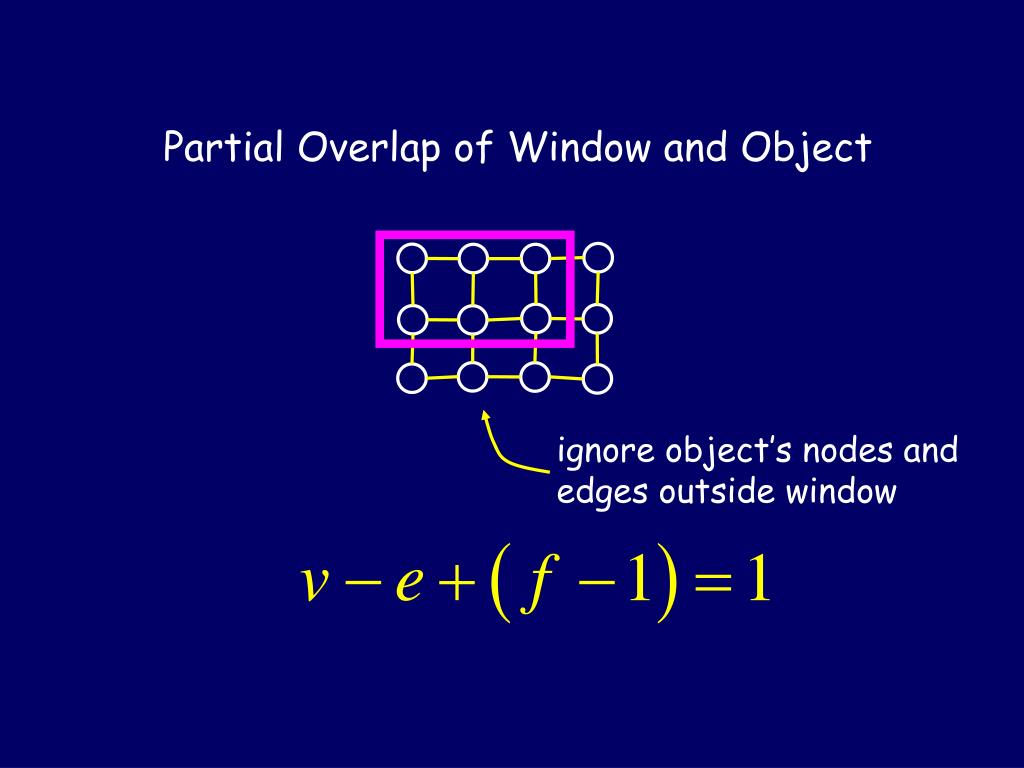

ignore object’s nodes and edges outside window Partial Overlap of Window and Object
edge counts in node counts in face counts in # of objects intersecting

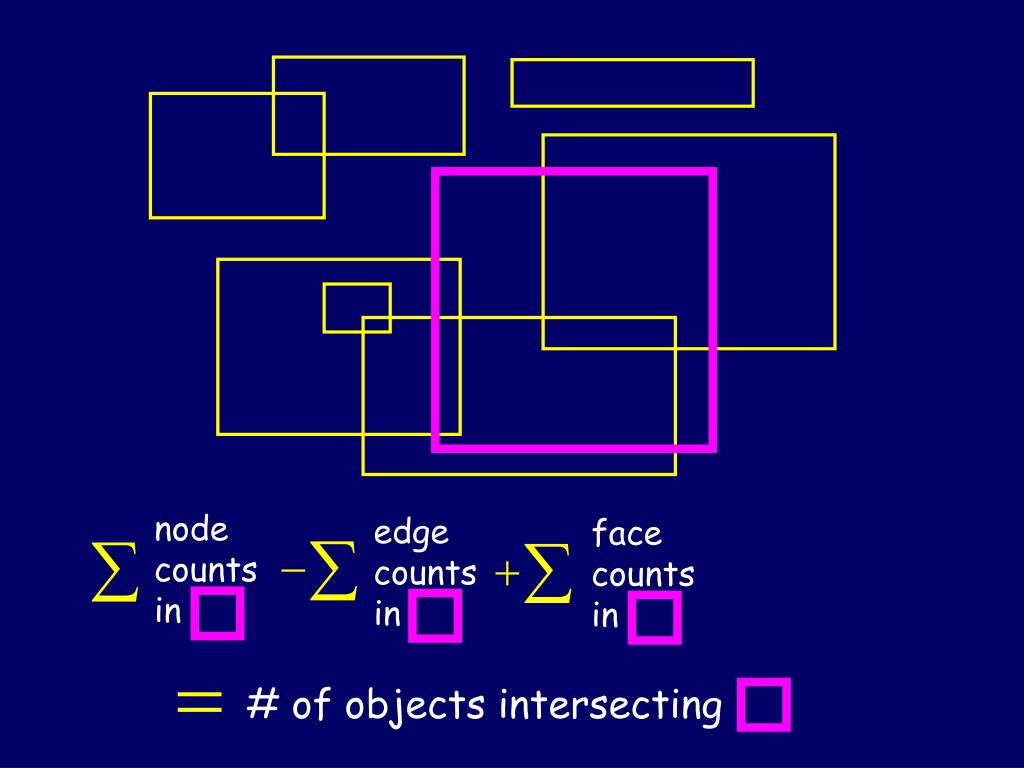

sum of node counts in sum of edge counts in sum of face counts in Inclusion-Exclusion Speed-up! store 3-tuple:
a c d b Node count in is a – b – c + d. c a 1 1 0 b d -1 0 0 1 0 1
