Computer Selection - Hardware Components

stamos avatar
stamos
15 diapositives · 642 Views · Sep 22, 2014

Computer Selection - Hardware Components. Considerations for selection. Topics to cover. User requirements Budget Warranty and Support. Introduction. Computers are available in many different form factors. They may contain the same component types, e.g. A Hard disk, RAM, CPU, MB, etc.

Computer Selection - Hardware Components - slide 1
01 / 15Computer Selection - Hardware Components
1 / 17

Télécharger la présentation

Computer Selection - Hardware Components
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

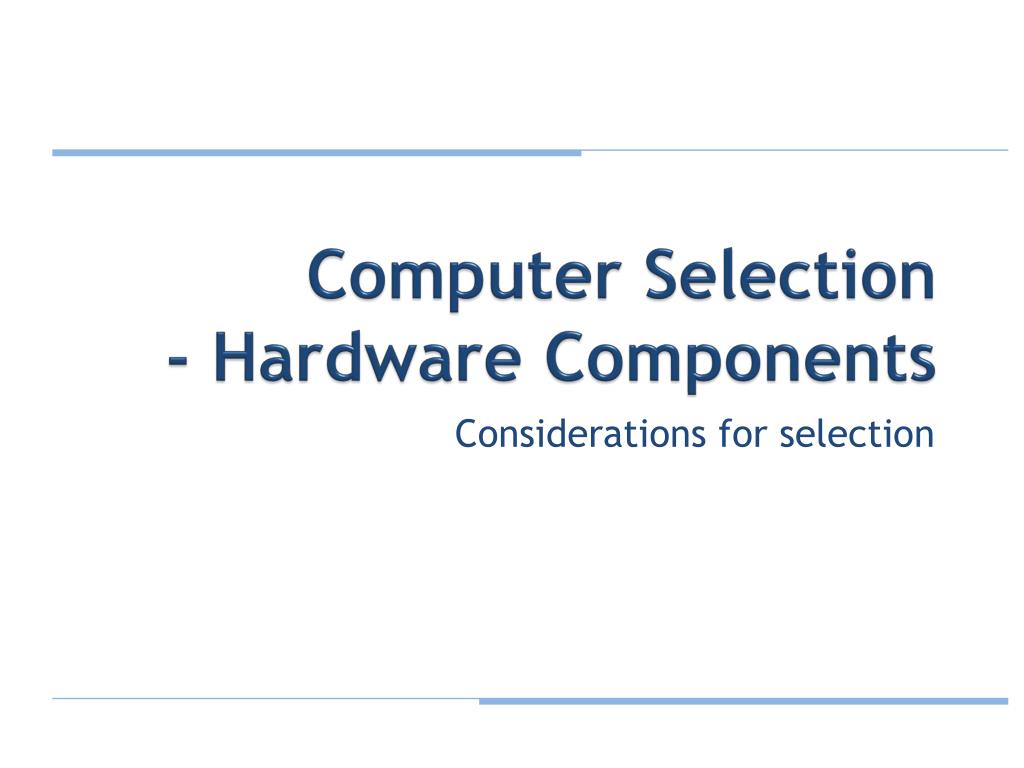

  1. Computer Selection- Hardware Components Considerations for selection

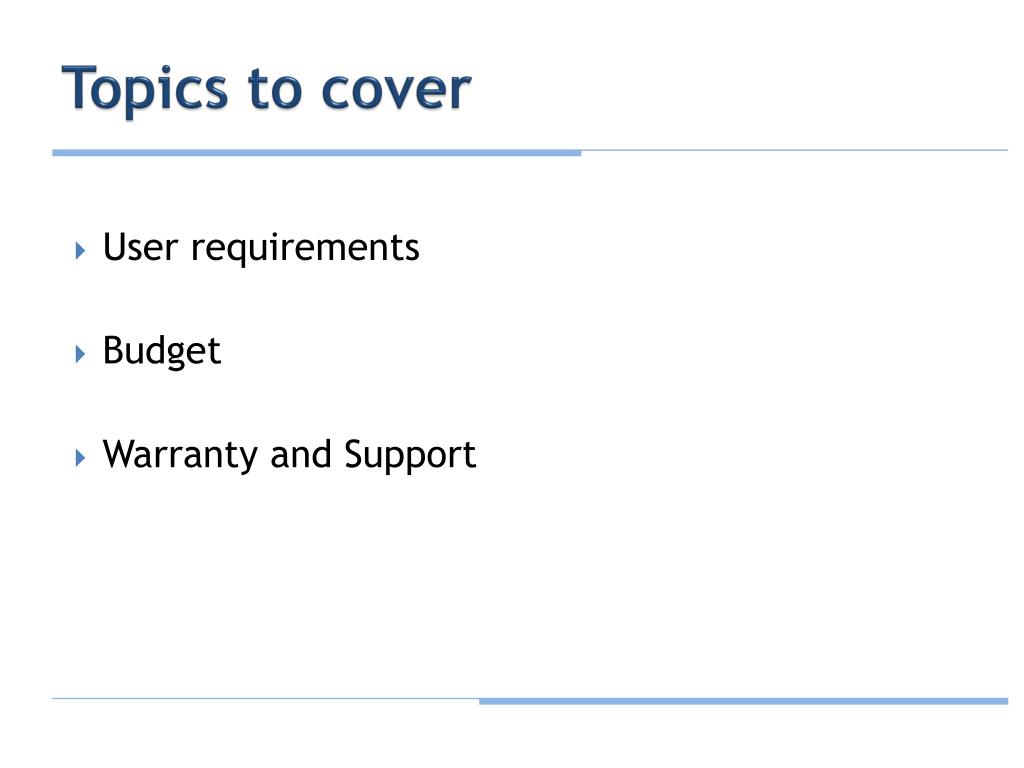

  2. Topics to cover • User requirements • Budget • Warranty and Support

  3. Introduction • Computers are available in many different form factors. • They may contain the same component types, e.g. A Hard disk, RAM, CPU, MB, etc. • But there are noticeable differences between the component specifications. • These differences will affect performance for different tasks, typically this will also affect the overall cost of the system.

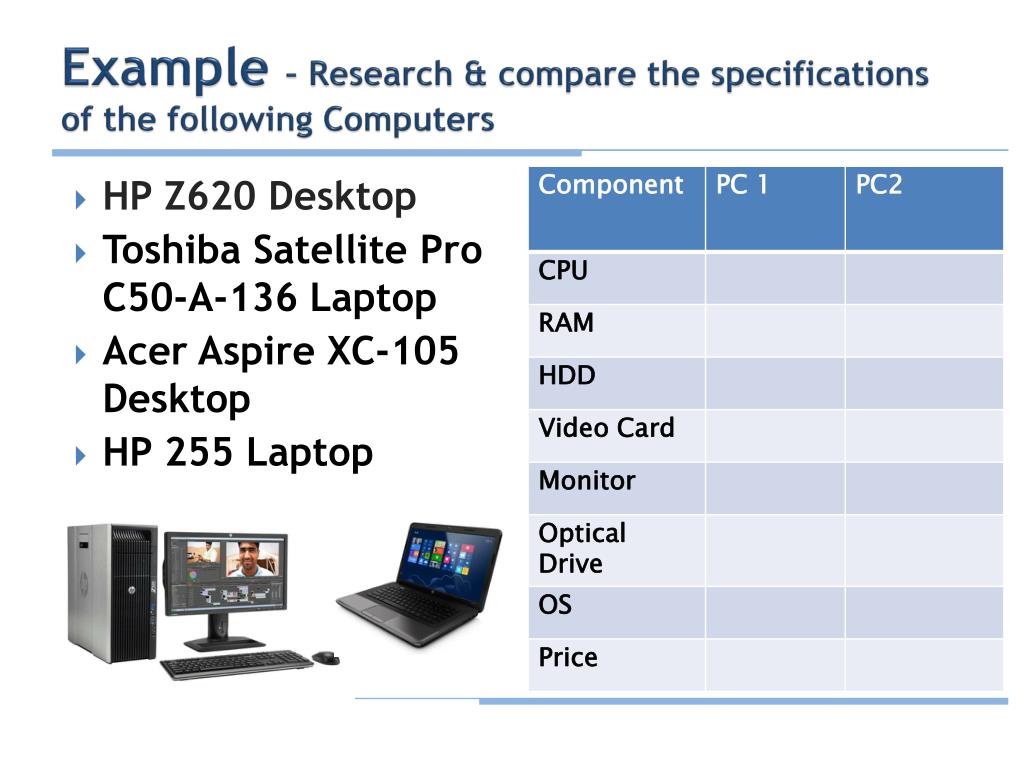

  4. Example – Research & compare the specifications of the following Computers • HP Z620 Desktop • Toshiba Satellite Pro C50-A-136 Laptop • Acer Aspire XC-105 Desktop • HP 255 Laptop

  5. Budget • The budget can be the most important factor when selecting components. • There may have to be a compromise between desired and required specification, this should be based on the users needs. • Component prices trend line. • What PC components are the most expensive?

  6. The price is right…. • Based on current Ebuyer.com prices • 2 GB RAM DDR2 standard RAM 800 MHz • 4 GB DDR 3 (2 X 2 GB Kingston) • 16 GB DDR 3 1600 MHz OCZ 4 X 4 GB

  7. The price is right…. • 2 GB RAM DDR2 standard RAM 800 MHz £17 (£24) • 4 GB DDR 3 Kingston £14 (£32) • 16 GB DDR 3 1600 MHz OCZ 4 X 4 GB £43 £90 Total = £146

  8. The price is right…. • Based on Ebuyer.com • Phenom X6 black edition 3.3 GHz Intel I7 , 960 3.2 GHz Quad Core AMD Athlon X2 2.5 GHz

  9. The price is right…. • Based on Ebuyer.com • Phenom X6 black edition 3.3 GHz £138 (£156) Intel I7 , 960 3.2 GHz Quad Core £235 (£232) AMD Athlon X2 2.5 GHz £29 (£35) Total £402 Total £423

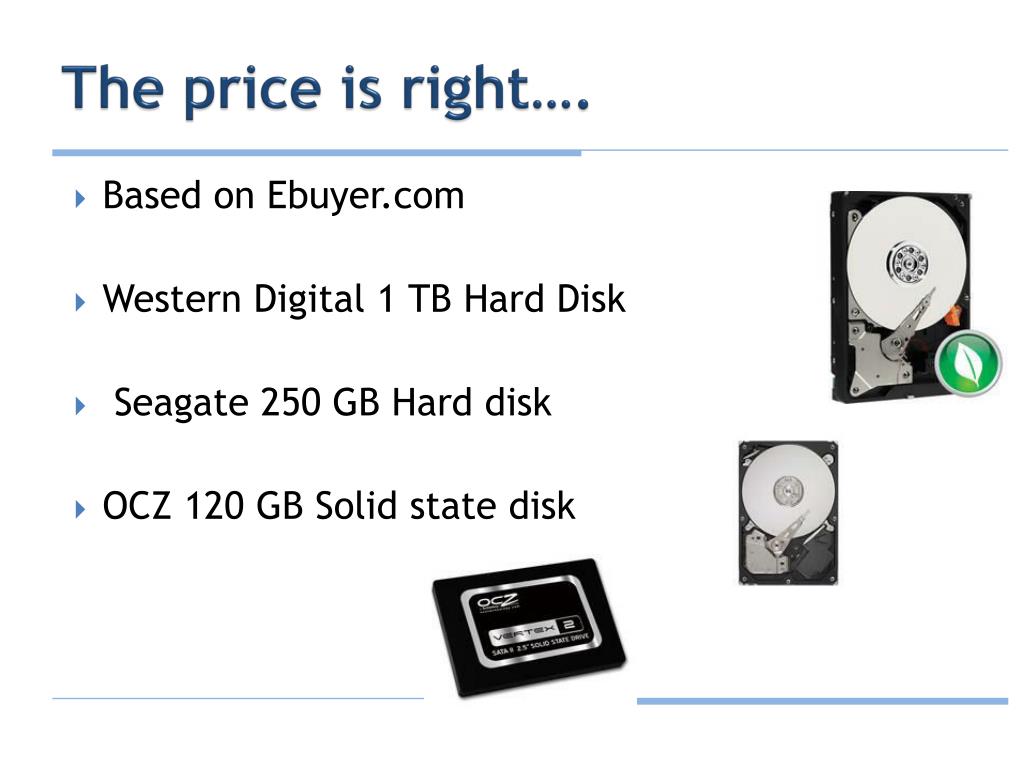

  10. The price is right…. • Based on Ebuyer.com • Western Digital 1 TB Hard Disk • Seagate 250 GB Hard disk • OCZ 120 GB Solid state disk

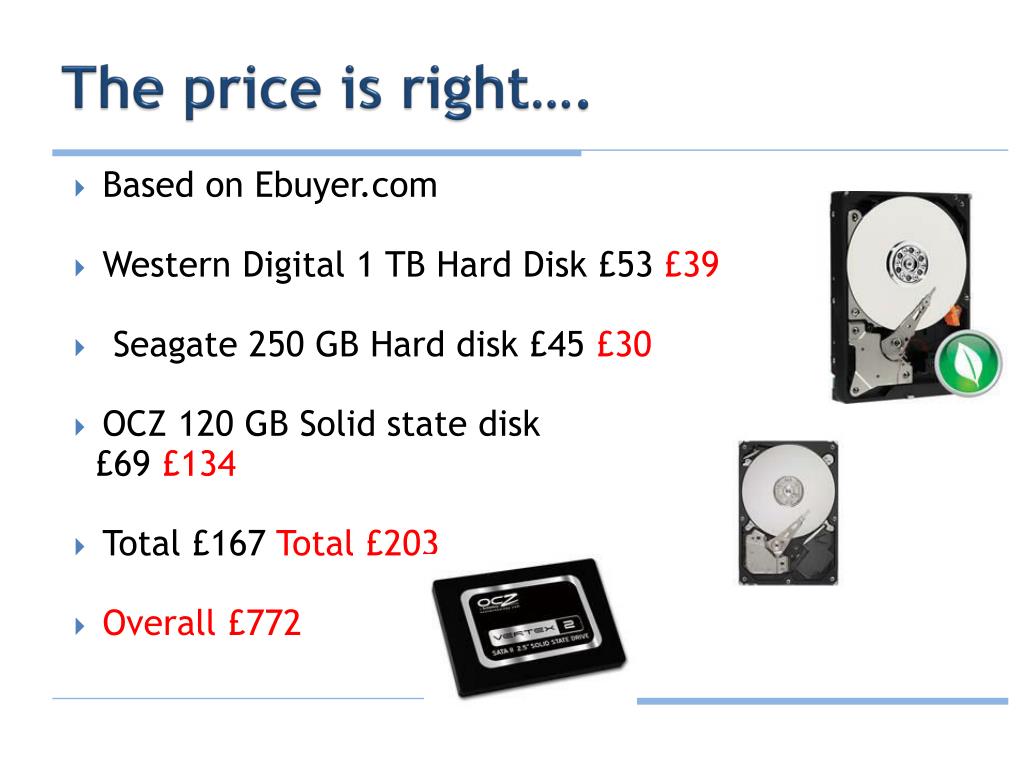

  11. The price is right…. • Based on Ebuyer.com • Western Digital 1 TB Hard Disk £53 £39 • Seagate 250 GB Hard disk £45 £30 • OCZ 120 GB Solid state disk £69 £134 • Total £167 Total £203 • Overall £772

  12. Price ranges • Monitors-(key characteristics include response rate, resolution support, ports, size) • Motherboards- (integrated components, support for given processors, SLI/Crossfire support, upgradability) • Cases and PSU-(Wattage, modules, noise levels)

  13. Selecting outputs • Connecting a Media Centre to an output device • Connect to Sounds System • Use with Web camera • Digital Movie/Photo editing

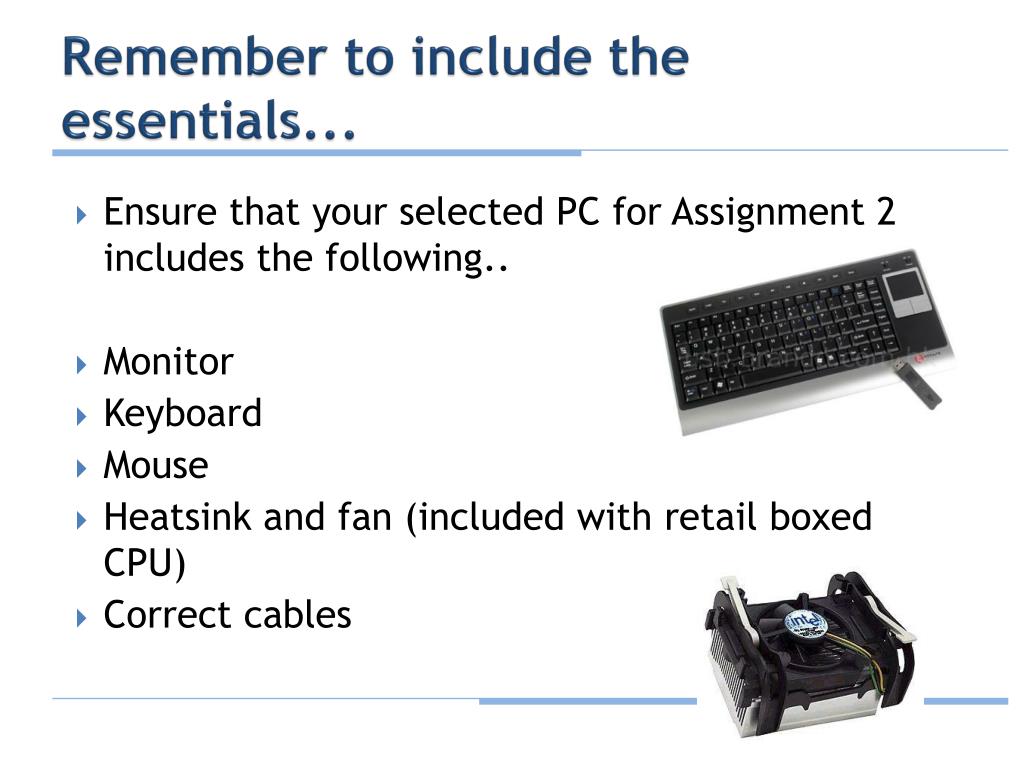

  14. Remember to include the essentials... • Ensure that your selected PC for Assignment 2 includes the following.. • Monitor • Keyboard • Mouse • Heatsink and fan (included with retail boxed CPU) • Correct cables

  15. Software Requirements • The appropriate hardware can be determined by the software to be used. • What software will be used for the following user types? • Advertising Creative • CAD engineer • Sales Rep • Media Developer • Gamer
