Understanding Logical Volume Management with SuSe Linux

Learn how Logical Volume Management software allows configuring storage capacity without changing hardware. Guide on setting up LVM in SuSe Linux via command line tools. Extend and shrink volumes without data loss. Advantages of LVM.

steel-salazar
Télécharger la présentation

Understanding Logical Volume Management with SuSe Linux

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A Brief Look By: Aaron J Hudson

  2. What is Logical Volume Management? Software that allows the user to edit the storage configuration without manipulating the actual hardware and vice versa.

  3. How Does LVM Work? The LVM hides information about where information is stored, on which hardware, and where exactly on that hardware from the entire Operating System allowing it to manipulate the configuration of the storage capacities.

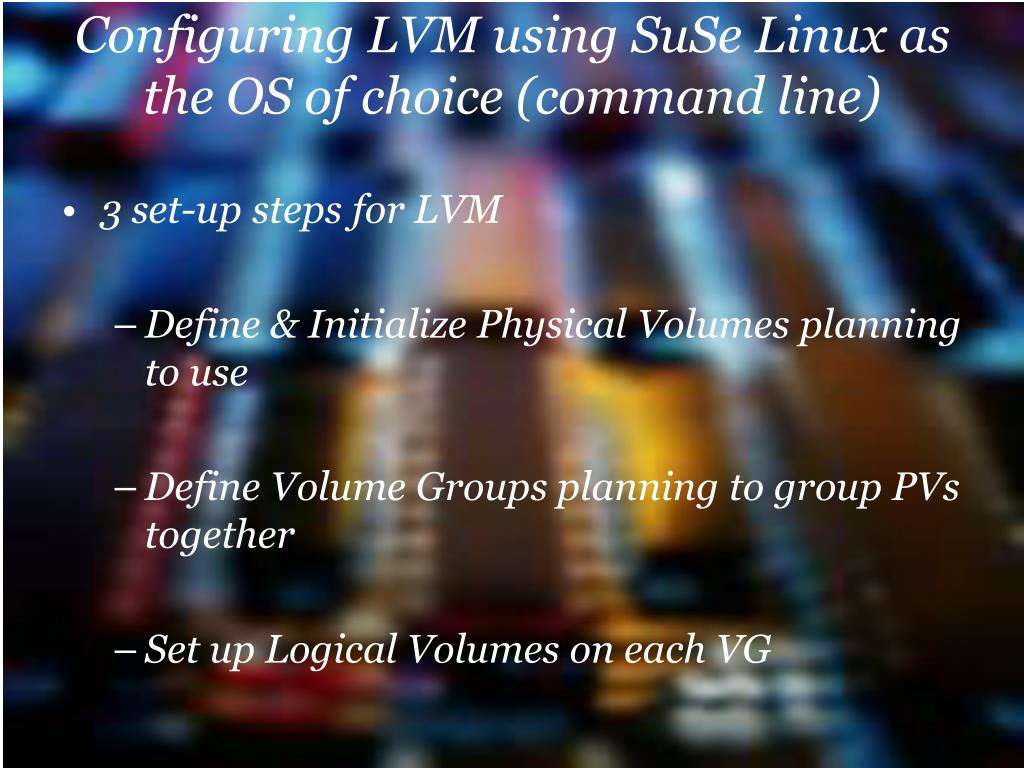

  4. Configuring LVM using SuSe Linux as the OS of choice (command line) • 3 set-up steps for LVM • Define & Initialize Physical Volumes planning to use • Define Volume Groups planning to group PVs together • Set up Logical Volumes on each VG

  5. Command line tools for configuration • pvcreate /dev/device [/dev/device] • pvcreate command initializes a physical device as a physical volume. • vgcreate vg-name /dev/device [dev/device] • vgcreate command creates a volume group with all the physical volumes specified. • lvcreate –L size –n lv-name vg-name • lvcreate command creates a logical volume on the volume group vg-name.

  6. Extending Volume without losing data • First you create your physical volumes by the following command: • pvcreate /dev/device1 • Then you extend your volume groups using this command: • vgextend vg-name /dev/device1

  7. Shrinking Volume without losing data • Removing a physical volume is just as simple by using the following command: • vgreduce vg-name /dev/device

  8. Advantages • LVM has the capacity to manage extremely large data sets • PVs can be added, VG’s and VL’s can be extended while file systems are still mounted and in use

  9. Source Page • SuSe Linux (LVM) • Google (images) • Cool Text (fonts)
