  1. EUROWATERNET-Emissions and EPER EEA - ETC Water / EIONET WORKSHOP Budapest, Hungary 22-23 May 2003 Benoît FRIBOURG-BLANC

  2. INTRODUCTION Two types of emissions reporting tools: • Mandatory tools, of which EPER, tool of IPPC Directive for DGEnv of the Commission • Non-mandatory, of which EUROWATERNET-Emissions for ETC/WTR of the EEA (=>they take into account mandatory reporting data first + other data)

  3. EPER : Context • Directive IPPC 96/61 on Integrated Pollution Prevention and Control • Decision adopted on 17 July 2000 related to public access to information (art. 15) • Implementation of a European Pollutant Emission Register EPER • emissions from individual facilities to air and to water • 56 industrial activities (including waste treatment, landfills, intensive rearing of poultry and pigs) • First reporting from MS in June 2003 (emissions in 2001) • EEA assists the Commission : data publicly accessible on the Internet

  4. Status of EPER implementation • Detailed description of data to report available (guidance) • Consultant to develop tools to collect, store and disseminate EPER data • tools for MS (validation and data exchange module) • tool at EEA (database, GIS, and web site) • Schedule • Tool for MS 15th May 2003 • Reporting by MS End June 2003 • Design document of the web site : Mid June 2003 • Role of EEA • participation in the design of the tools, metadata, global checks of the reported data…) • Operating the web site

  5. Link with Eurowaternet emissions • Collection of data for individual facilities • Consistency between reporting years • … but some gaps • Not final emissions to water • Limited set of substances • Thresholds • Reporting limited to MS (and not member countries of EEA)

  6. EUROWATERNET-Emissions database • Ewn-e database is at a development stage • 6 data sources taken into account: • OSPAR (HARP-HAZ) • Emissions Inventory of ICPDR (Danube) • EUROSTAT-Newcronos • Denmark, DMU • Hungary, Vituki Consult Rt • The Netherlands, Ministry of Environment • Objective : conduct a practical application of EWN-e database

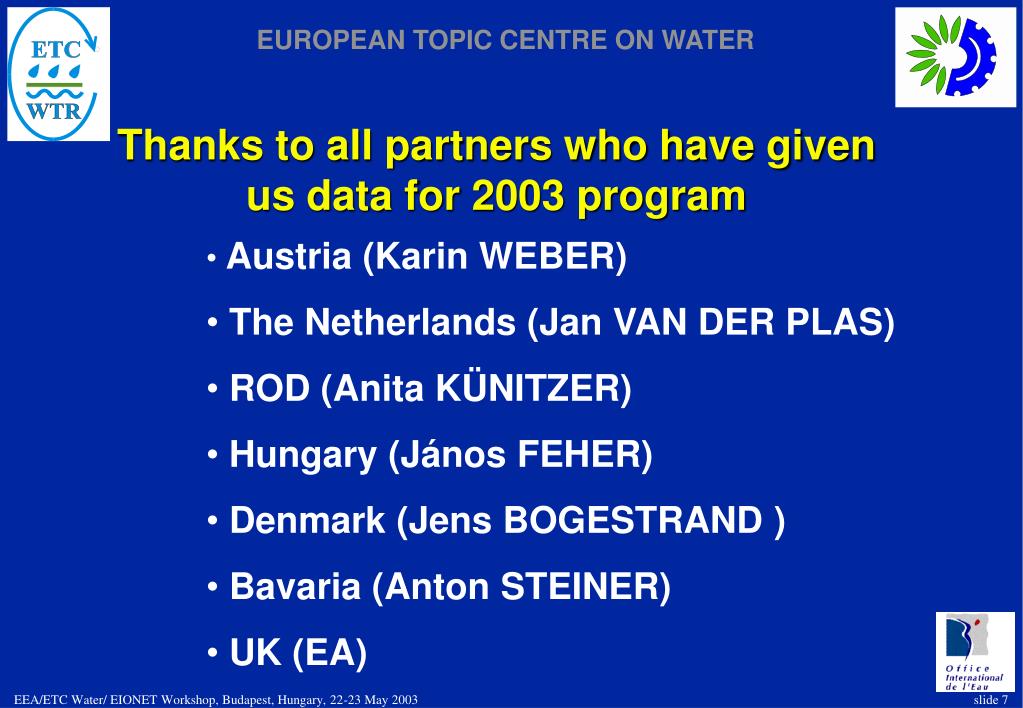

  7. Thanks to all partners who have given us data for 2003 program • Austria (Karin WEBER) • The Netherlands (Jan VAN DER PLAS) • ROD (Anita KÜNITZER) • Hungary (János FEHER) • Denmark (Jens BOGESTRAND ) • Bavaria (Anton STEINER) • UK (EA)

  8. Status of data collection • Marine Conventions: expecting data from OSPAR (HARP-Nut), HELCOM (IGMW), • PRB’s: contact with EEA and PRB WGs, • EPER: expecting data from June 2003, • French data: received data from 1996 to 2000, • Germany data: data received in concentration, • Slovenia: contact with Slovenian NFP.

  9. PRINCIPLE of EWN-e database

  10. PRINCIPLE of EWN-e database • Required data • Assessment Unit: area code and area name • Source categories: 7 emission sources in EWN-e • Individual sources: activities/location behind emissions • Determinands: name, amount and unit • Temporal Aggregation: year and period EWN-e database tables

  11. PROCESS (1) • Differences between collected data and required data : • file format: ACCESS, Excel, etc • determinands name • emission units: kg/day, kg/year • sources categories • geographical coverage: country or sub-basin Turn the collected data into the right format

  12. Table 1 Table 2 Table 3 Table 4 PROCESS (2) EWN-e database main structure Data in original format Data converted into Access format and processed

  13. DATABASE STRUCTURE (1) • Main structure tables T_EWN_e_SOURCES_CATEGORY T_PRESSURES T_ASSESSMENT_UNIT T_EMISSIONS T_IND_SOURCES_LIST T_EWN_e_ DETERMINANDS

  14. T_EMISSIONS description • Amount of emissions per determinand, per year, and links with others tables

  15. T_ASSESSMENT_UNIT description • Localisation of emission area. It has a unique code and a unique name to allow future identification of the same area.

  16. T_PRESSURES description • Pressures (type and value) by assessment unit and by year/period

  17. T_EWN-e_DETERMINANDS description • Determinands used in EWN-e database, their unit and their identification code : CAS number, EU number, National code

  18. T_EWN-e_SOURCES_CATEGORY description • Classification of emission sources used in EWN-e.

  19. T_IND_SOURCES_LIST description • Name of the individual sources (activities or locations) that are behind emissions

  20. OTHER TABLES description (1)

  21. OTHER TABLES description (2)

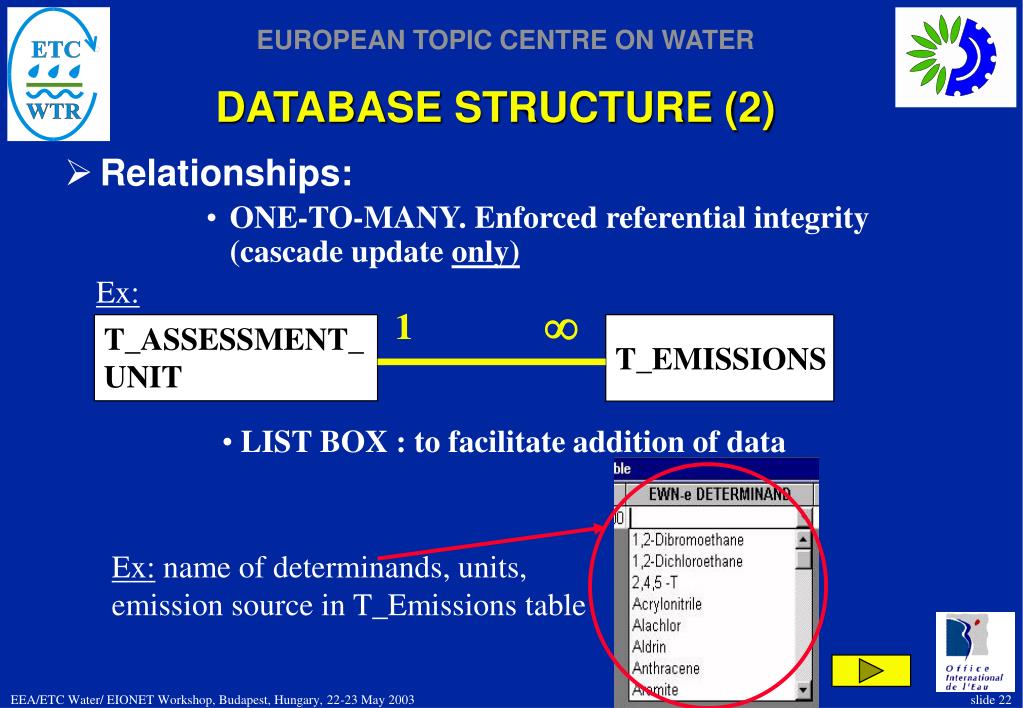

  22. 1 T_ASSESSMENT_UNIT T_EMISSIONS DATABASE STRUCTURE (2) • Relationships: • ONE-TO-MANY. Enforced referential integrity (cascade update only) Ex: • LIST BOX : to facilitate addition of data Ex: name of determinands, units, emission source in T_Emissions table

  23. Relationships scheme

  24. OSPAR : HARP-Haz • Oslo-Paris Convention for the Protection of the Marine Environment of the North-East Atlantic: Harmonised Quantification and Reporting Procedures on Hazardous substances • Objective of OSPAR for hazardous substances: prevent pollution of the maritime area by continuously reducing their release • Data format: ACCESS tables

  25. HARP-Haz vs EWN-e emission sources (1)

  26. HARP-Haz vs EWN-e Emission sources (2)

  27. HARP-Haz vs EWN-e Emission sources (3) • HARP-Haz sources not classified: • - Rivers • - Directs inputs from point sources : general • - Other loads directly into the marine environment: general and offshore • EWN-e source not provided: - Forestry Creation of the link between sources : addition of EWN-e sources code in OSPAR Sub-group of sources table

  28. OSPAR HARP-Haz vs EWN-e:Assessment Unit (1) • Geographical coverage: national level but restricted to the river basins that discharge to the maritime area • 8 countries in HARP-Haz

  29. OSPAR HARP-Haz vs EWN-e:Assessment Unit (2) • 8 Assessment Units:

  30. OSPAR HARP-Haz vs EWN-e:Emissions • Substances: 66 substances, 17 included in WFD priority substances • Units: kg/year in OSPAR • Years provided: 1985 and 1990 • Recipient: air and water • Approach: SOA and LOA Pressures and individual sources • No data provided

  31. Process from OSPAR to EWN-e (1) Ospar_ SubGroupsOf Sources Ospar_ Discharge Ospar_ Recipient Ospar_ Hazardous Substances Ospar_ Country EWN-e sources Amount Year Water SOA/LOA EWN-e Determinands Emissions Data source determinands Assessment Unit • Realise links between EWN-e and OSPAR features • Create fields in table: primary and foreign key

  32. Process from OSPAR to EWN-e (2) • Data analysis • Removal of empty records • Updating general category data : adding its sub-groups amount when there is no value • Change of unit: from kg/year to t/year • Sum of emission per EWN-e sources Ex 1 Ex 2

  33. = 100 + 200 Process from OSPAR to EWN-eExample • Updating general category data

  34. Process from OSPAR to EWN-eExample • Sum of emission per EWN-e sources

  35. Conclusion about OSPAR use in EWN-e • 8 assessment units • 66 determinands of which 17 are WFD priority substances • 498 emissions for 6 sources (no forestry sources) • very interesting data source but: • assessment unit at an aggregated level and limited to river basins that discharge into the maritime area • no pressures specified • no individual sources specified

  36. ICPDR • International Commission for the Protection of the Danube River (ICPDR) • Emission Inventory realised by Emissions Expert Group (EMIS/EG) • Available in ICPDR web site • Data copied and imported in Excel sheets

  37. ICPDR vs EWN-e emission sources Creation of a link table in EWN-e database

  38. ICPDR vs EWN-e:Assessment Unit (1) 270 Assessment Units created

  39. ICPDR vs EWN-e:Assessment Unit (2) • Link fields between ICPDR and Assessment Unit table: Country  Country_ID River Basin  Basin_NM Main River  Catch_NM Ex: 270 Assessment Units created

  40. ICPDR vs EWN-e:Emissions • 4 substances: BOD, COD, N, P Other determinands can be added. • Units: t/year • Years provided: 2000 • Approach: SOA Pressures and individual sources • No pressures specified • 771 individual sources specified: activities and location name

  41. Process from ICPDR to EWN-e (1) Country River Basin Location Sector COD P Main River AV Code BOD N EWN-e Sources Determinand/Amount Assessment Unit Individual sources Emissions

  42. Process from ICPDR to EWN-e (2) • Data analysis • no calculation • putting the right shape • other information about emissions and individual sources available in next tables (one per individual source) but difficult to reach for a data treatment Example

  43. Process from ICPDR to EWN-eExample ICPDR T_IND_SOURCE_LIST T_ASSESSMENT_UNIT T_EMISSION

  44. Conclusion about ICPDR use in EWN-e • 270 assessment units • 4 determinands: BOD, COD, N, P • 2674 emissions for 3 sources (urban, industrial, agricultural) • 771 individual sources • very interesting data source but: • Only 4 determinands and for one year • Quality of data variable • No pressures specified • The data must be completed afterwards

  45. EUROSTAT-Newcronos • Statistical information service of the European Union • Newcronos database available on internet and loaded in CSV format (Excel) • 2 tables used in Environmental statistics domain (Theme 8) and Water section:

  46. TABLES PRESENTATION (1)IWQ 4 : % population connected 2.1 Primary 2.2 Secondary 2.3 Tertiary 2 UWW treatment 3 Other UWW treatment 4 UWW collecting system with treatment 5 UWW collecting system without treatment 7 Independent WW collecting system 6 Total UWW collecting system 100 % National Population

  47. TABLES PRESENTATION (2) IWQ 4 • Objective: calculate raw and net pollution from these values • Only 6 fields are used in the calculations • Relationships : data coherence verified in a Excel table • When obvious missing value in these 6 fields, value completed by ETC/WTR • When no coherence (underestimated emission), it would be specified in EWN-e database on remarks field

  48. TABLES PRESENTATION (3) IWQ 7 • Raw pollution provided for 15 water parameters of which 13 are determinands. • 20 sources provided, only 3 general sources are used: • WW3_1_1 : Waste water generated by agriculture, forestry, fishing (point source) • WW3_1_6: Waste water generated by all industrial activities • WW3_1_7: Waste water generated by domestic sector (Total)

  49. Eurostat vs EWN-e emission sources • Calculations necessary to calculate raw and net pollution • No distinction between agricultural emissions and forestry emissions

  50. Ex : Eurostat vs EWN-e Assessment Unit • Geographical coverage: national level • 38 countries in IWQ 4 table • 29 countries in IWQ 7 table 38 Assessment Unit but 9 of them have no value
