The Metric System is a standardized measurement system widely used by scientists for various parameters like length, volume, mass, density, and temperature. Known as the International System of Units (SI), it is based on units of ten, making it easier to use and convert between different measurements. Understanding terms like mass (the amount of matter in an object), volume (the space an object occupies), and density (mass per unit volume) is crucial for practical applications. This guide covers essential tools and techniques for measuring these properties effectively.

Understanding the Metric System: Measurement Fundamentals - slide 1
01 / 51Understanding the Metric System: Measurement Fundamentals
1 / 17

Télécharger la présentation

Understanding the Metric System: Measurement Fundamentals
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Metric System Mr. Martin

  2. What is the metric system? A standard system used by scientists to measure Length, Volume, Mass, Density, & Temperature Based on units of 10 A.K.A. International System of Units or SI

  3. Does this make sense to you?

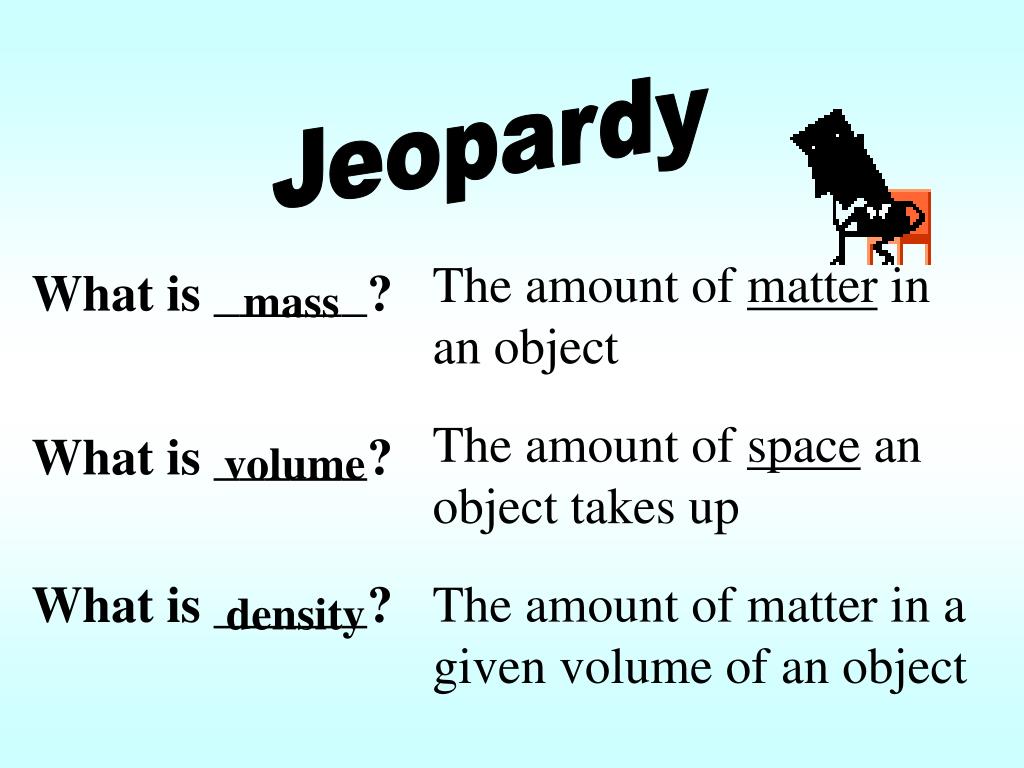

  4. What is ______? What is ______? What is ______? The amount of matter in an object The amount of space an object takes up The amount of matter in a given volume of an object Jeopardy mass volume density

  5. What is matter? Anything that has mass & takes up space Examples: Solid, Liquids, & Gases

  6. Anyone want to work for me this weekend What are units? • Words used to describe numbers • Example: • meters, liters, grams, %, $…

  7. Meter (m) Metric ruler Metric ruler or graduated cylinder Liter, cm3 = mL Triple-beam balance Grams (g) Tools for mass & volume g/ml or g/cm3 thermometer ºC or K

  8. http://brainpop.com/

  9. Date: 9/19/2006 Tuesday Aim: Lab: How can we use the metric ruler to determine the length of an object? Do Now: 1. Take out homework. 2. Put your name & period on the lab Homework: Handout (Section 1-4) BRING IN A CALCULATOR TOMORROW!!!

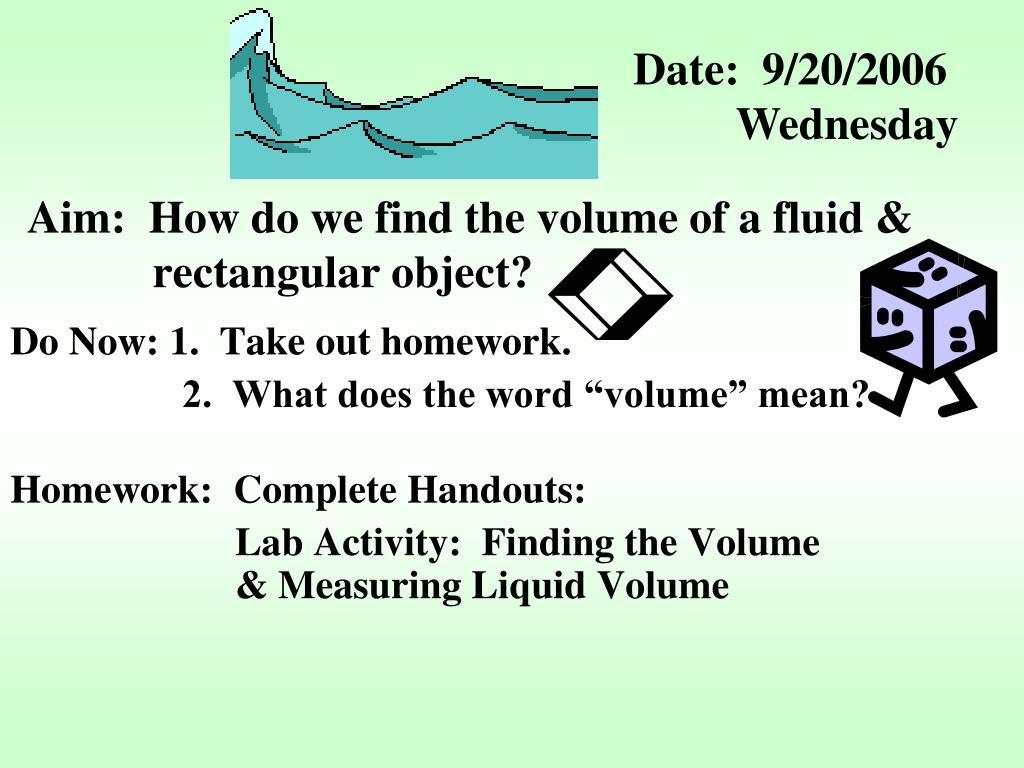

  10. Date: 9/20/2006 Wednesday Aim: How do we find the volume of a fluid & rectangular object? Do Now: 1. Take out homework. 2. What does the word “volume” mean? Homework: Complete Handouts: Lab Activity: Finding the Volume & Measuring Liquid Volume

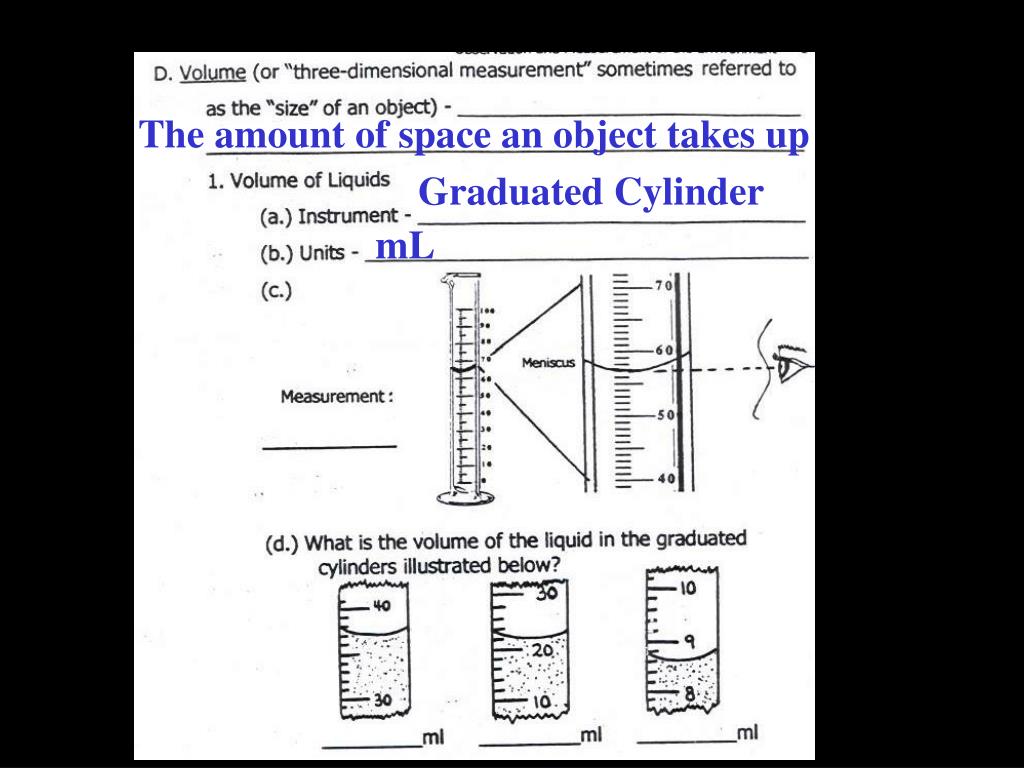

  11. The amount of space an object takes up Graduated Cylinder mL

  12. Metric ruler Length x Width x Height (L x W x H) cc cm3 cm m3 1 1

  13. Volume Displacement • Add at least 20 mL of water to graduated cylinder. • Place the object in the water. • Note where the water level rises & then subtract: Final Water Level - Initial Water Level = Volume of the Object

  14. 5 mL 50 mL 55 mL

  15. Length Metric Ruler Liter Volume Gram Triple-beam balance ºC Temperature Mass = The amount of matter in an object Weight = The gravitational pull on the mass of an object

  16. The amount of matter in a given object Triple-beam balance Grams (g) mg

  17. The gravitational pull on the mass of an object Spring Scale Newtons Pounds

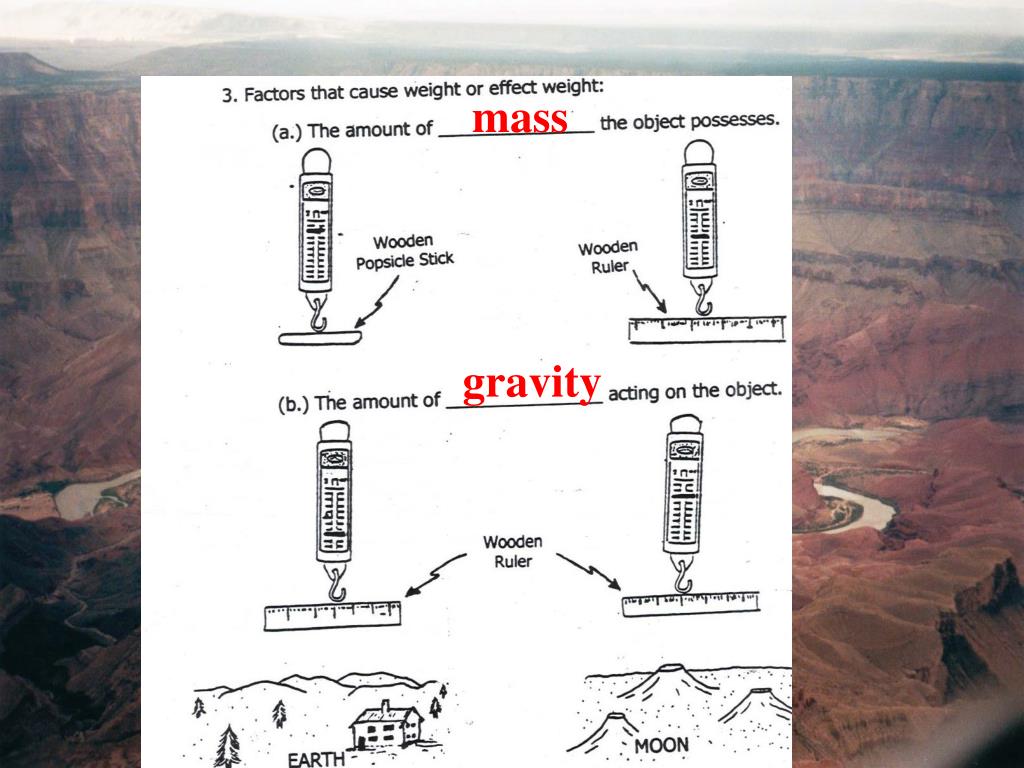

  18. mass gravity

  19. The amount of matter in a given volume of an object (how tightly packed together the particles are) Least Greatest D = M/V M V = M/D or M= D(V) D V Graduated Cylinder Triple-beam balance Metric Ruler

  20. g/mL g/cm3 D = M/V D = 150g/V (V = 1 x 5 x 2) D = 150g/10cm3 D = 15g/cm3

  21. D = M/V 3.2 g/mL D = 80.0g/V V = 65.0-40.0 = 25.0 mL D = 80g/25 mL

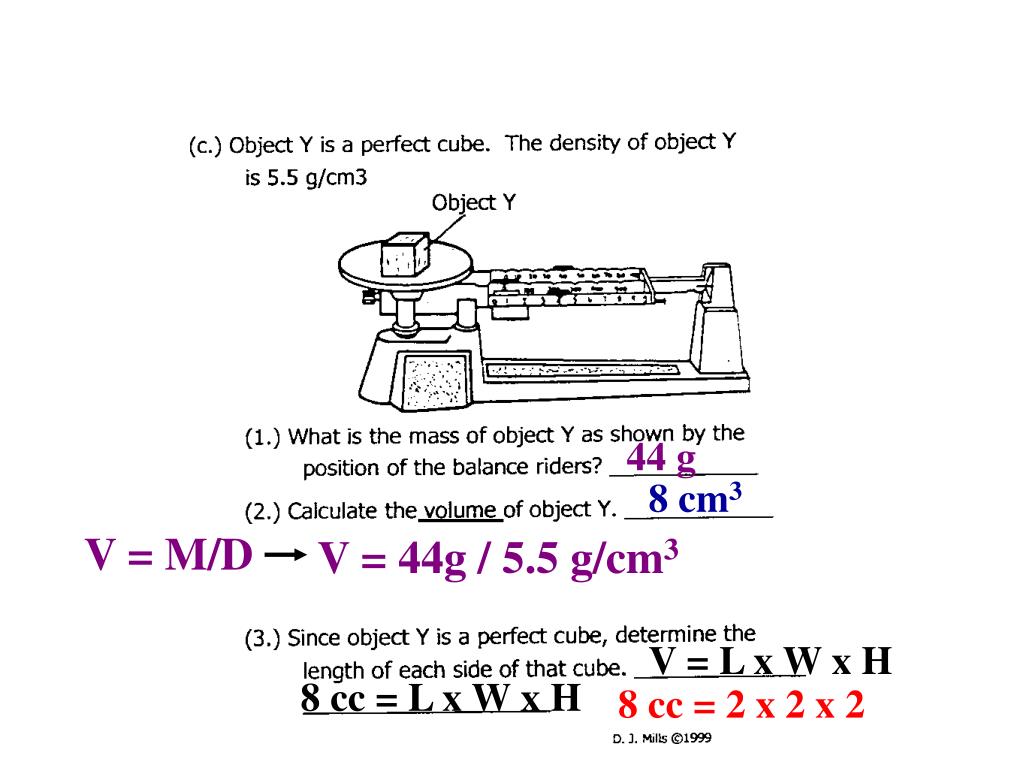

  22. 44 g 8 cm3 V = M/D V = 44g / 5.5 g/cm3 V = L x W x H 8 cc = L x W x H 8 cc = 2 x 2 x 2

  23. What do we know about density & water? Density of water = 1.0g/mL Anything less than 1.0g/mL FLOATS Anything greater than 1.0g/mL SINKS Density of Ice = 0.9 g/mL (Floats)

  24. Match the Following Densities to the Picture: A. 1.0 g/cm3 B. 2.0 g/cm3 C. 0.7 g/cm3 D E C D. 0.2 g/cm3 A E. 0.5 g/cm3 B

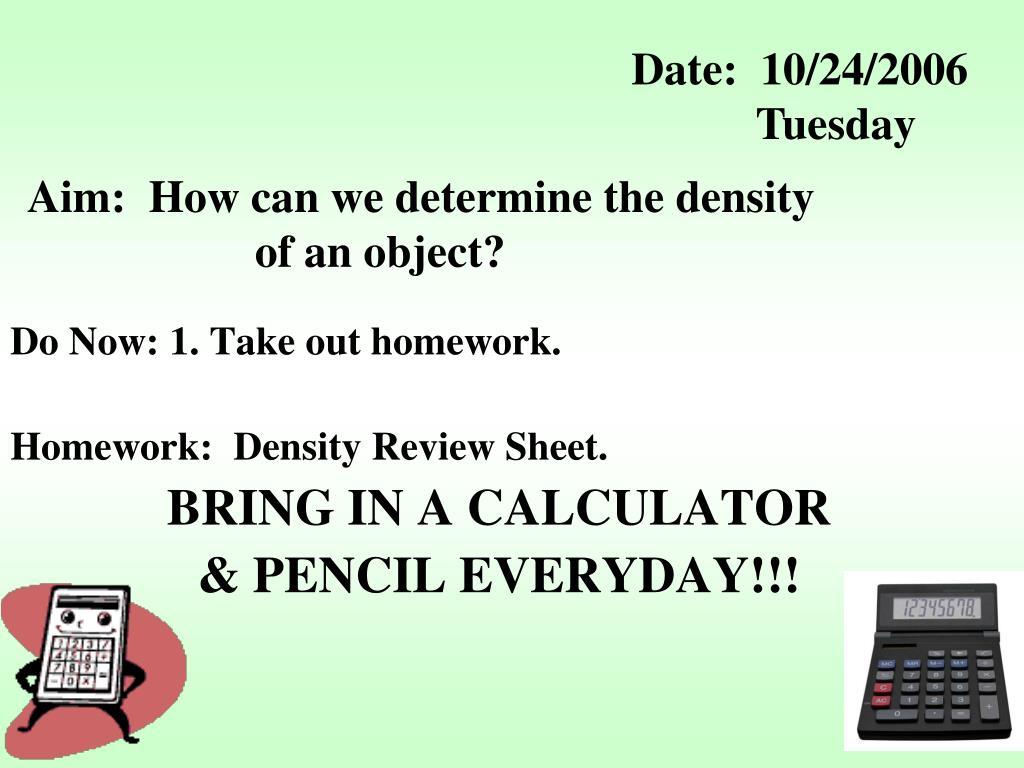

  25. Date: 10/24/2006 Tuesday Aim: How can we determine the density of an object? Do Now: 1. Take out homework. Homework: Density Review Sheet. BRING IN A CALCULATOR & PENCIL EVERYDAY!!!

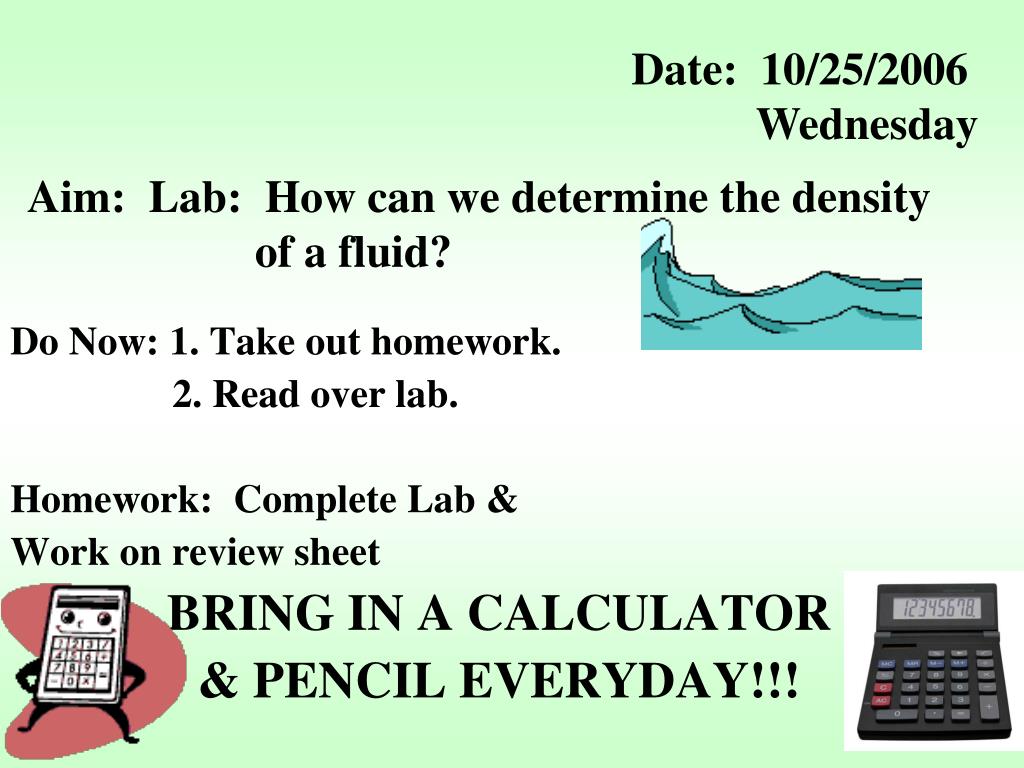

  26. Date: 10/25/2006 Wednesday Aim: Lab: How can we determine the density of a fluid? Do Now: 1. Take out homework. 2. Read over lab. Homework: Complete Lab & Work on review sheet BRING IN A CALCULATOR & PENCIL EVERYDAY!!!

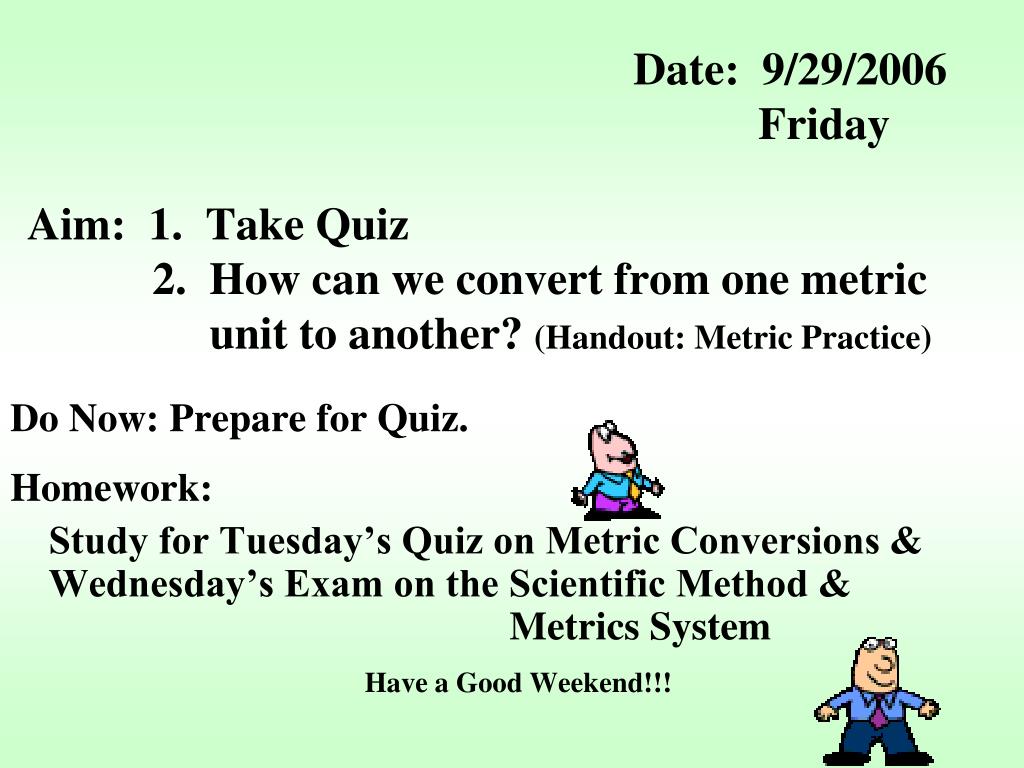

  27. Date: 9/29/2006 Friday Aim: 1. Take Quiz 2. How can we convert from one metric unit to another? (Handout: Metric Practice) Do Now: Prepare for Quiz. Homework: Study for Tuesday’s Quiz on Metric Conversions & Wednesday’s Exam on the Scientific Method & Metrics System Have a Good Weekend!!!

  28. Mouths Lips Gums K I D S H A V E D I R T Y D R I N K I N G C H O C O L A T E M I L K

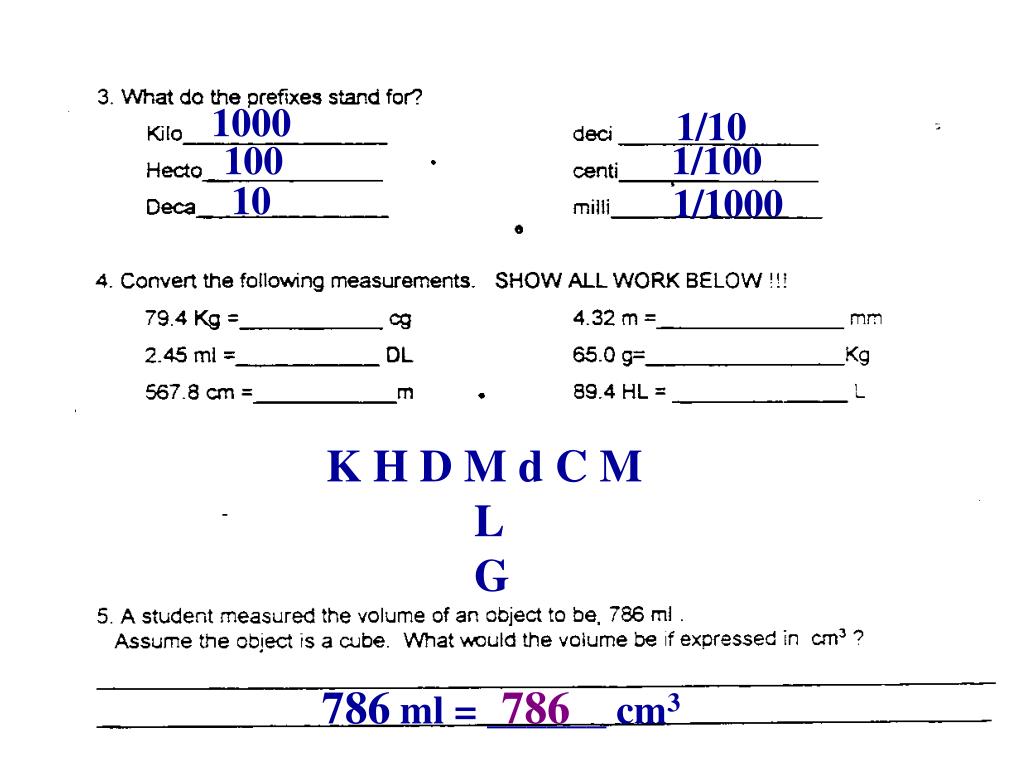

  29. 1000 1/10 100 1/100 10 1/1000 K H D M d C M L G 786 ml = ______ cm3 786

  30. Date: 10/26/2006 Thursday Aim: How can we determine the density of an object? Do Now: Take out lab. Homework: Finish review sheet.

  31. Date: 10/27/2006 Wednesday Aim: Review: Jeopardy, of the unit test Do Now: Open your notebooks to a blank sheet of paper. Homework: Study for the exam on the Scientific Method & Metrics System. BRING IN A CALCULATOR & PENCIL

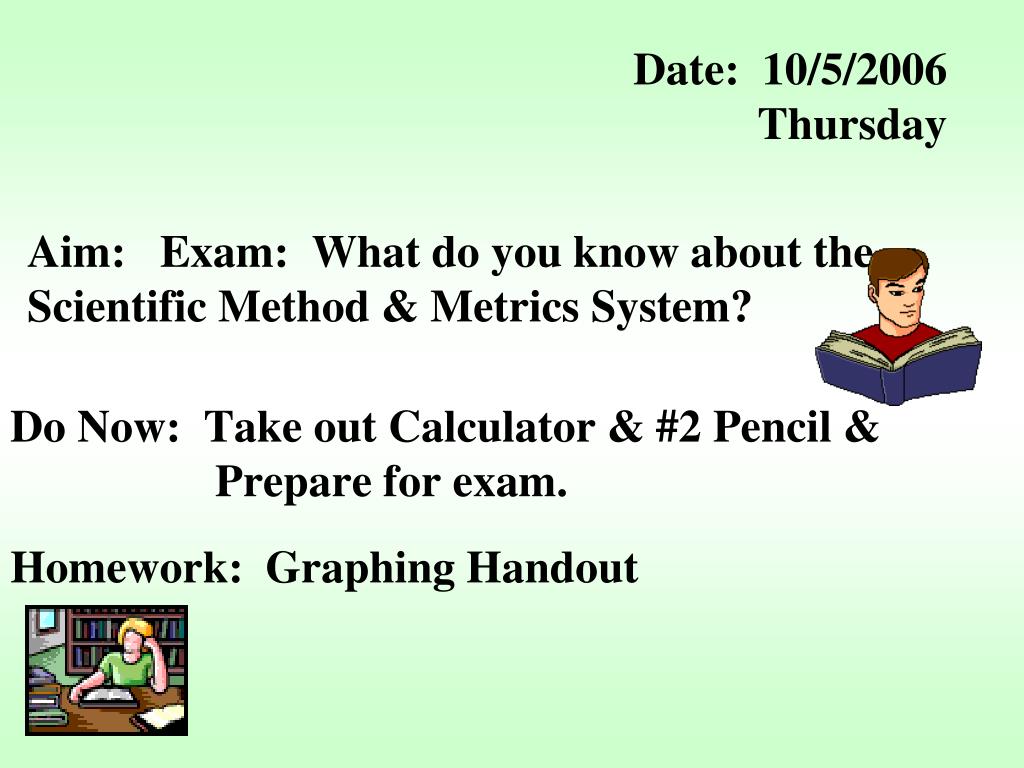

  32. Date: 10/5/2006 Thursday Aim: Exam: What do you know about the Scientific Method & Metrics System? Do Now: Take out Calculator & #2 Pencil & Prepare for exam. Homework: Graphing Handout

  33. Date: 10/23/2006 Monday Aim: 1. How can we determine the density of an object? Do Now: 1. Take word Search. Homework: 1. In text read pgs.18-21, answer question #2 on pg 21. 2. Have quiz signed, and corrections BRING IN A CALCULATOR & PENCIL EVERYDAY!!!

  34. Date: 9/21/2006 Thursday Aim: How can we determine the volume of an irregularly shaped object? Do Now: 1. Take out & go over homework. 2. What is the volume of the following objects: Homework: Study for quiz (BRING CALCULATOR) A. B. 2 cm 2 cm cube 5cm 3cm

  35. Date: 9/22/2006 Friday Aim: 1. Take Quiz 2. How can we determine the mass & weight of an object? Do Now: 1. Prepare for Quiz. Homework: Have a Good Weekend!!!
