  1. ADAM-6000 Web-enabled Smart I/O Γιάννης Στάβαρης Technical Manager Ιούνιος 26, 2007

  2. Features & Benefits • Combined I/O designation for various applications • Event Trigger/Data Stream supporting for Critical Monitoring Application • Monitor multi-devices in one working zone • Easy to configure embedded web page • Wireless LAN I/O module to solve wiring problem

  3. External Ethernet InterfaceV.S.Seamless Ethernet (10/100 Mbps) Ethernet Ethernet 10/100 Mbps Communication Rate Up to 921.6 kbps Ethernet Data Gateway Serial Network(up to 921.6 kbps) I/O TC-FCCN01 TC-FCCN01 TC-FCCN01 TC-FCCN01 Honeywell Honeywell Honeywell Honeywell Seamless Interface Best Communication Performance You do not speed up the Communication Rate actually! . . . . . . . . . . . . External Ethernet Interface Seamless Ethernet ADAM-6000 Bring You Ultimate Ethernet I/O Solution

  4. Local LAN Limitation V.S. Internet Available General Ethernet Devices in LAN Internet ADAM-6000 in LAN Distance is always a problem in remote system Now you can operate your system anywhere !

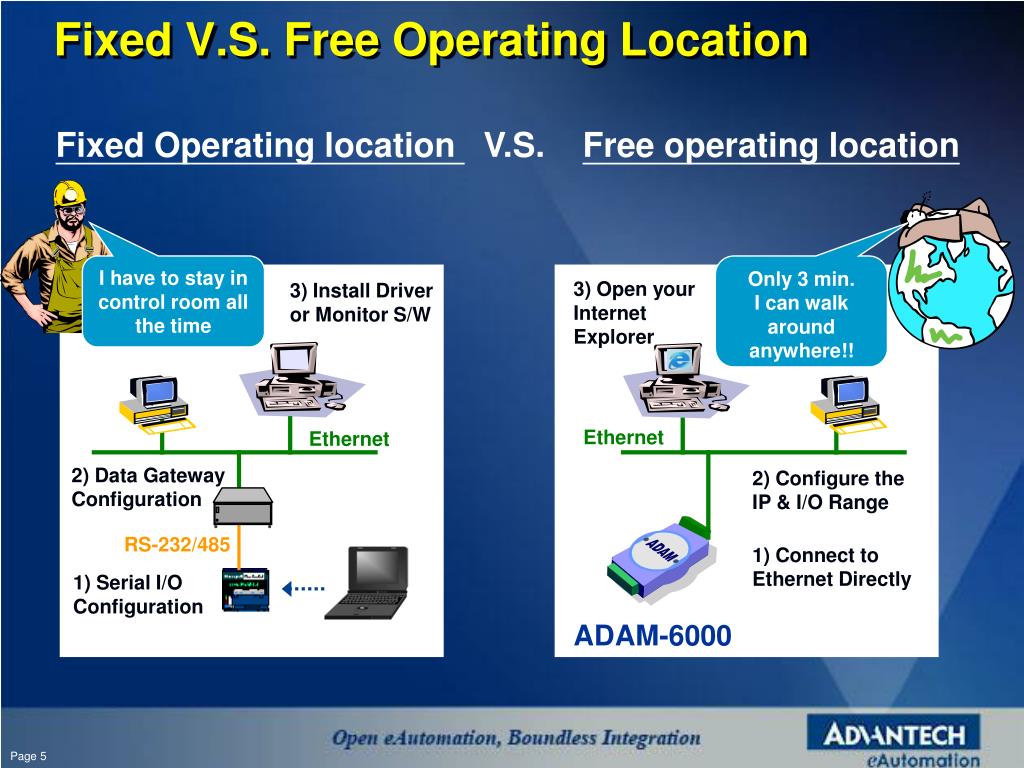

  5. Fixed V.S. Free Operating Location 3) Open your Internet Explorer 3) Install Driver or Monitor S/W 2) Configure the IP & I/O Range 1) Connect to Ethernet Directly 1) Serial I/O Configuration ADAM-6000 Fixed Operating location V.S. Free operating location I have to stay in control room all the time Only 3 min. I can walk around anywhere!! Ethernet Ethernet 2) Data Gateway Configuration RS-232/485

  6. Proprietary V.S. Open System Architectures Specific HMI Server Specificnetwork Specific I/O Devices Proprietary System Architecture V.S. Open System Architecture Any HMI Package with Modbus/TCP OPC Server Any User’s AP with Modbus/TCP Driver Ethernet ( Modbus/TCP ) “Specific” means, No expansion, No integration, and No choice! Any field equipment follow Modbus/TCP protocol ADAM-6000 Modbus/TCP, the world-wide standard

  7. eAutomation System Solution Architecture Internet HMI Station Internet Network TCP/IP& UDP ADAM-6520 ADAM-6520 UNO series ADAM-6500 Comm. Controller ADAM-6022 PID Controller ADAM-6000 I/O ADAM-6000 I/O ADAM-6000W series

  8. ADAM-6000 Product Line Overview Controller • ADAM-6500 • Win CE.NET 4.1 • StrongARM 206 • 1 LAN (10 • Base-T) • RS-232 x 3 • RS-485 x 2 • ADAM-6501 • WinCE.NET 4.2 • XScale 400 • 1 LAN • (10/100Mbps) • 1 RS-232/1 • RS-485 • External CF Slot • ADAM-6015 • - 7 RTD • ADAM-6017 • 8 AI/ 2 DO • ADAM-6018 • 8 AI/ 8 DO • ADAM-6510 • 4-port Hub • ADAM-6520 • 5-port Switch • ADAM-6521 • 5-port Switch • (w/Fiber • interface) • ADAM-6022 • 2 PID Loop • 6 AI/ 2 AO/ • 2 DI/ 4 DO • ADAM-6050 • 12 DI/ 6 DO • ADAM-6051 • 12 DI/ 2 DO/ 2 • Counter • ADAM-6052 • - 8 DI/ 8 DO • ADAM-6060 • 6 DI/ 6 Relay • Output • ADAM-6066 -6 DI/ 6 Power RelayOutput Analog Input Analog Output Network Digital I/O Platform • ADAM-6024 • 6 AI / 2 AO/ • 2 DI / 4 DO

  9. ADAM-6015/6018 Temp. Input Module Platform Digital I/O Analog Input Analog Output Controller • ADAM-6015 • - 7 RTD • - 16-bit, 16 samples/sec • - Multi-channel / Multi-range • - Pt-100, Pt-1000, Ni, • Balco • - Burn-out Detection • ADAM-6018 - 8 Thermocouple/ 8 DO - 16-bit, 10 samples/sec - Multi-channel/ Multi-range - Thermocouple - Alarm trigger to DO - Burn-out Detection

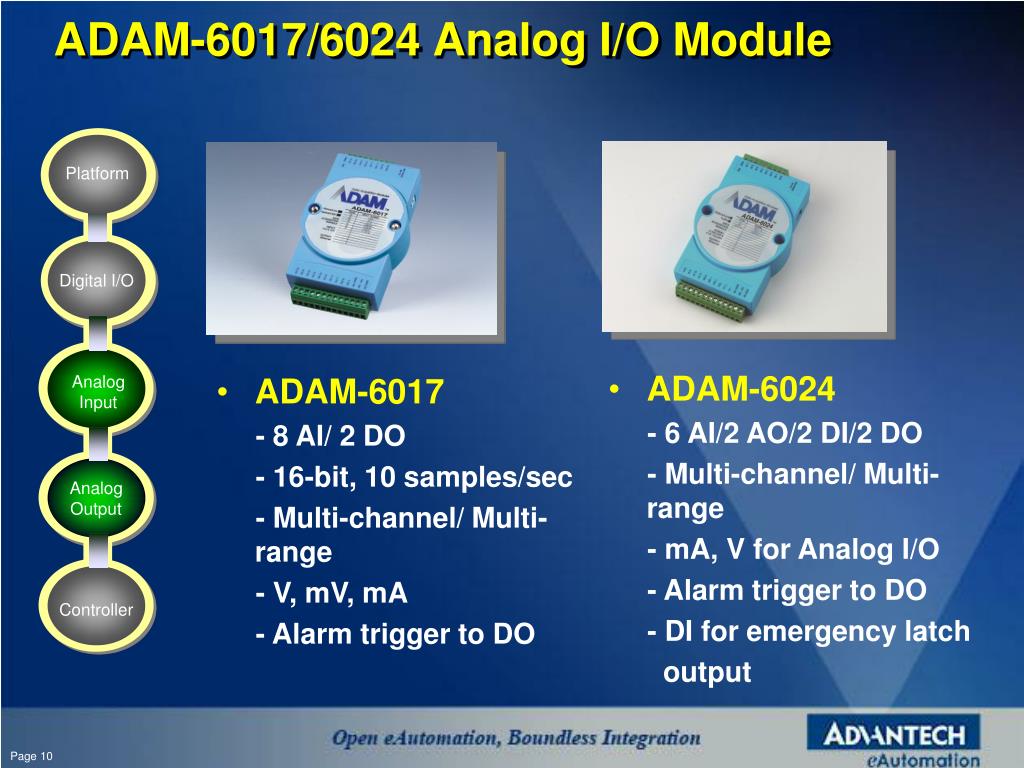

  10. ADAM-6017/6024 Analog I/O Module Platform Digital I/O Analog Input Analog Output Controller • ADAM-6024 - 6 AI/2 AO/2 DI/2 DO - Multi-channel/ Multi-range - mA, V for Analog I/O - Alarm trigger to DO - DI for emergency latch output • ADAM-6017 - 8 AI/ 2 DO - 16-bit, 10 samples/sec - Multi-channel/ Multi-range - V, mV, mA - Alarm trigger to DO

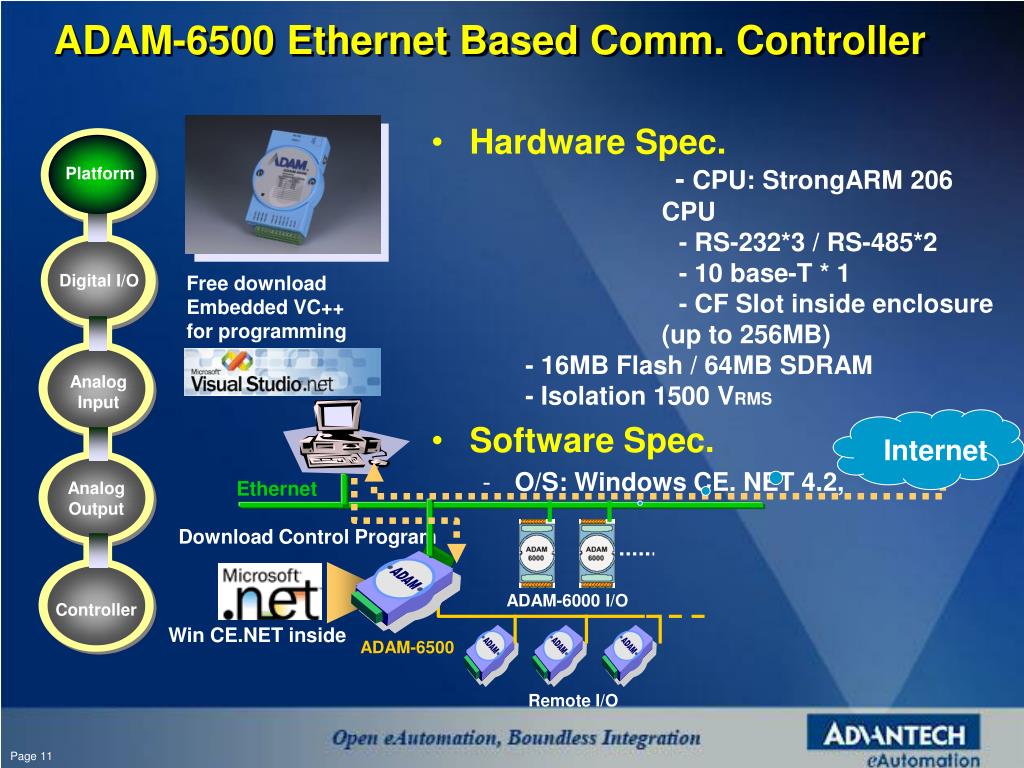

  11. ADAM-6500 Ethernet Based Comm. Controller Platform Free download Embedded VC++ for programming Digital I/O Analog Input Internet Analog Output ADAM-6000 I/O Win CE.NET inside Controller Remote I/O • Hardware Spec. • - CPU: StrongARM 206 CPU • - RS-232*3 / RS-485*2 • - 10 base-T * 1 • - CF Slot inside enclosure (up to 256MB) • - 16MB Flash / 64MB SDRAM • - Isolation 1500 VRMS • Software Spec. • O/S: Windows CE. NET 4.2, Ethernet Download Control Program ADAM-6500

  12. ADAM-6501 Web-enabled Universal Communication Controller Platform Digital I/O Analog Input Analog Output Controller • Hardware Spec. • - CPU: Xscale 4000 • - RS-232*1 / RS-485*1 • - 10/100Mbps Ethernet * 1 • - Open CF Slot (up to 512MB) • - 32MB Flash / 64MB SDRAM • - Battery Backup RAM : 2MB • - Isolation 1000 VRMS • Software Spec. • O/S: Windows CE. NET 4.2

  13. ADAM-6500 StrongArm 206 Ethernet : 10 Base-T Flash Memory : 16MB CF Slot inside enclosure --- (up to 256MB) No Backup RAM 3xRS-232 + 2xRS-485 ADAM-6500/6501 Differences • ADAM-6501 • Xscale 400 • Ethernet : 10/100Mbps • Flash Memory : 32MB • Open CF Slot --- (up to 512MB) • Backup RAM : 2 MB • 1xRS-232 + 1xRS-485

  14. ADAM-6022 Dual Loop PID Control Module Platform Digital I/O Analog Input Analog Output Controller • ADAM-6022 • - 2 AO/ 6 AI/ 2DI/ 4DO • - AO: mA, Voltage output, • Output Read-back • - AI: V, mV, mA, T/C • - DI: TTL input • - DO: Open collector to 30 VDC • - 3000 VDC Isolation • - Built-in PID

  15. Remote Management Solution Internet Data Center Equipment Diagnostic System History Record Service … Service Scope • Vending Machine • Traffic Service • Environment • Automatic Metering • Building • Facility Mobile Network Wireless LAN Ethernet Data Gateway Ethernet I/O Wireless Device Wireless Ethernet I/O Wireless Ethernet Data Gateway … Serial Devices

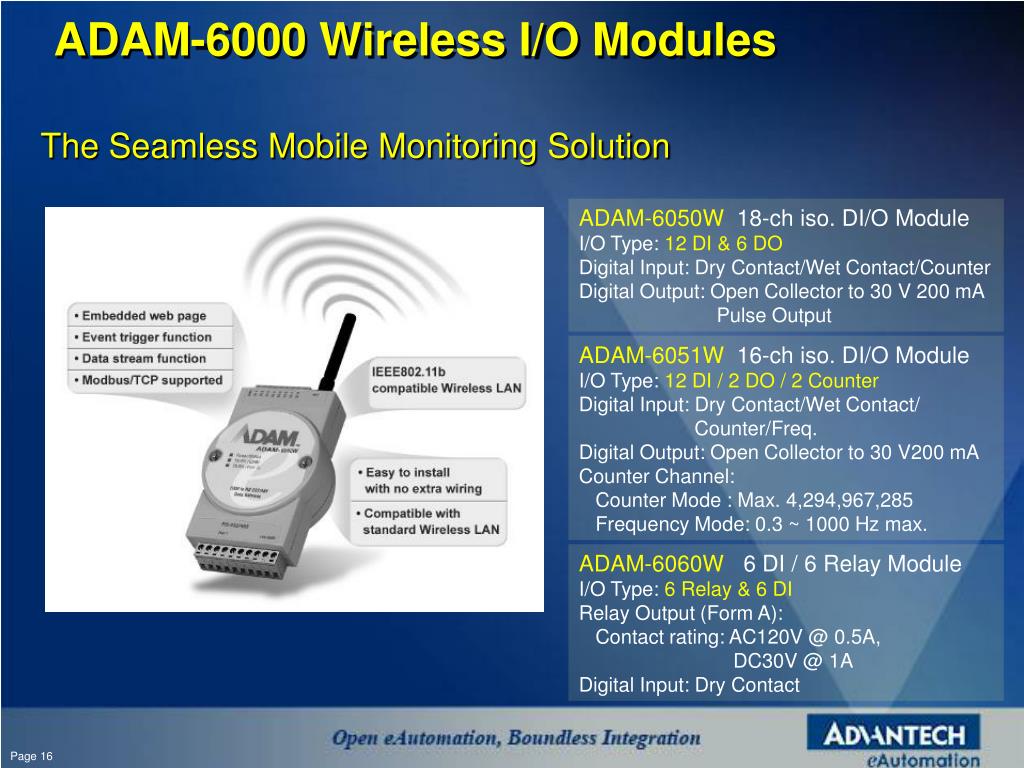

  16. ADAM-6000 Wireless I/O Modules The Seamless Mobile Monitoring Solution ADAM-6050W 18-ch iso. DI/O Module I/O Type: 12 DI & 6 DO Digital Input: Dry Contact/Wet Contact/Counter Digital Output: Open Collector to 30 V 200 mA Pulse Output ADAM-6051W 16-ch iso. DI/O Module I/O Type: 12 DI / 2 DO / 2 Counter Digital Input: Dry Contact/Wet Contact/ Counter/Freq. Digital Output: Open Collector to 30 V200 mA Counter Channel: Counter Mode : Max. 4,294,967,285 Frequency Mode: 0.3 ~ 1000 Hz max. ADAM-6060W 6 DI / 6 Relay Module I/O Type: 6 Relay & 6 DI Relay Output (Form A): Contact rating: AC120V @ 0.5A, DC30V @ 1A Digital Input: Dry Contact

  17. Modbus Integrated Architecture IEEE802.11b Modbus/TCP Ethernet Modbus/TCP ADAM-6000 Wireless LAN I/O Modules Industrial PC & Human Machine Interface Software IEEE802.11b Modbus/TCP Ethernet Modbus/TCP ADAM-6000 Wireless LAN I/O Modules Ethernet-based Operator Panel IEEE802.11b Modbus/TCP Ethernet Modbus/TCP ADAM-6000 Wireless LAN I/O Modules Ethernet-based Modbus Controller

  18. Quick Customized Web Page • Web page customization Utility • Customized Tag Name • Customized Tag Description • Customized Status Description • Customized Page Description Download into ADAM-6000 Set your customized web page in a few seconds!!!

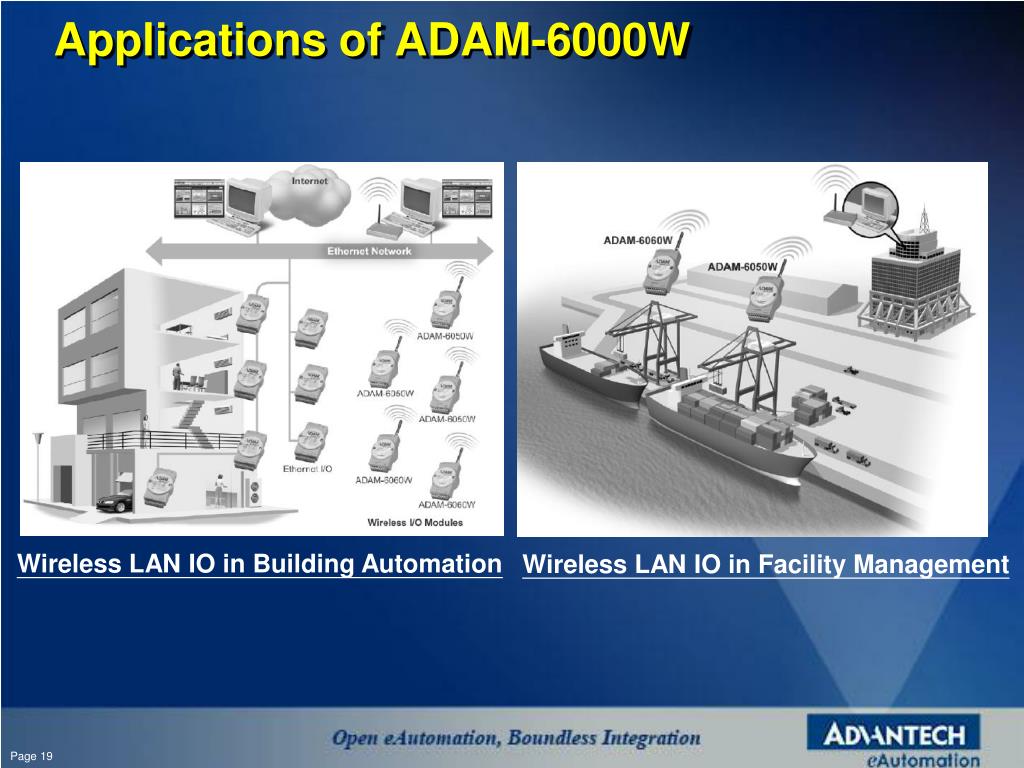

  19. Applications of ADAM-6000W Wireless LAN IO in Building Automation Wireless LAN IO in Facility Management

  20. Thank You
