1. Series 22 Geo-Marine®Connectors, Cables and Accessories

2. The 5000 PSI Connector with Extreme Temperature and Corrosion Resistance • Environmentally and hermetically sealed connectors for rugged geophysical and marine applications • Marine grade alloy 31 stainless steel machined shells • Marine grade naval bronze ams 4640 plug coupling rings • Contact layouts from two to 128 contacts • Anti-vibration, anti-decoupling device on all plugs • Locksmith-keyed polarization • Full line of accessories, covers and molding solutions • Single-start, stub-Acme threads • Castellated and knurled plug coupling rings for easy mating and unmating • Plug shell leading edge configuration assures key-keyway alignment and engagement prior to mating of the plug coupling ring threads.

3. Geo-Marine Connector Anatomy 5000 PSI piston-sealed extreme environmental submersible

4. Geo-Marine Product Selection Guide

5. Geo-Marine Contact Arrangements

6. Ingress Protection Ratings (IP) in Environmental Connectors

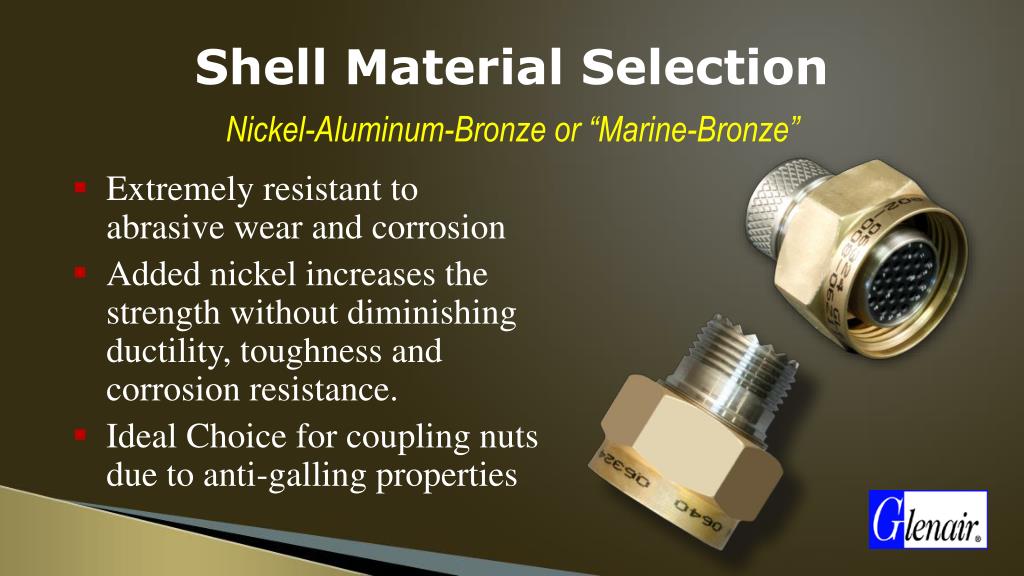

7. Shell Material Selection Nickel-Aluminum-Bronze or “Marine-Bronze” • Extremely resistant to abrasive wear and corrosion • Added nickel increases the strength without diminishing ductility, toughness and corrosion resistance. • Ideal Choice for coupling nuts due to anti-galling properties

8. Shell Material Selections Austenetic Grade, 300 Series, Corrosion Resistant Steel (CRES) • Not magnetic • High chromium and nickel content for maximum corrosion resistance • Fine mechanical properties • Perfectly suited for connector shells, backshells, and protective covers used in extreme environmental applications

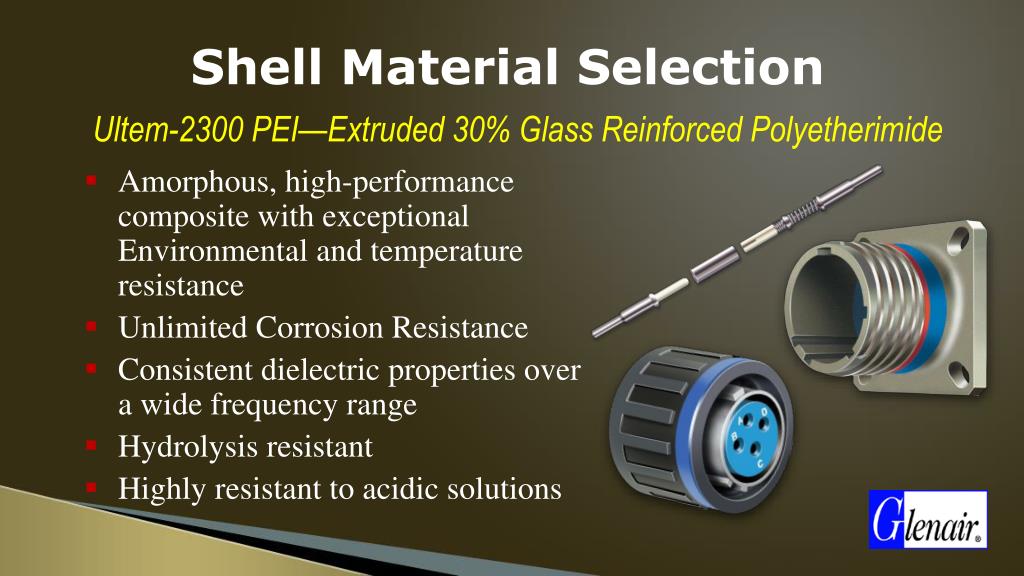

9. Shell Material Selection Ultem-2300 PEI—Extruded 30% Glass Reinforced Polyetherimide • Amorphous, high-performance composite with exceptional Environmental and temperature resistance • Unlimited Corrosion Resistance • Consistent dielectric properties over a wide frequency range • Hydrolysis resistant • Highly resistant to acidic solutions

10. The Pinnacle of High-Performance Plating Materials: Nickel-PTFE

11. Sealing/Insert Materials Materials Selection for Extreme Environmental Applications • Viton: Water and chemical resistant overmold and/or jacket material • Fluorosilicone Rubber: O-ring, grommet and interfacial seal material best suited for env. applications • LCP and/or Vitreous Glass: Rigid insulator and dielectric materials designed for extreme environmental and hermetic applications

12. Series 22 Geo-Marine 5000 PSI piston-sealed extreme environmental submersible • Single-start, stub-Acme thread for quick-coupling of plug and receptacle reduces thread fouling and binding due to dirt, grit and other foreign matter. • Castellated and knurled plug coupling ring provides easy mating and unmating, even with arctic gloves. • Plug shell leading edge configuration assures key-keyway alignment and engagement prior to mating of the plug coupling ring threads.

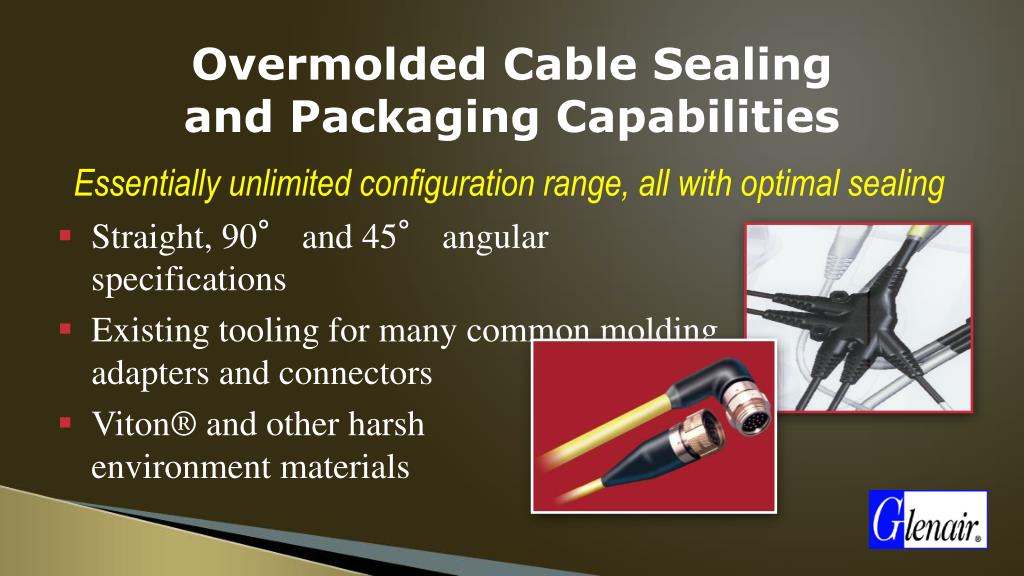

13. Overmolded Cable Sealing and Packaging Capabilities Essentially unlimited configuration range, all with optimal sealing • Straight, 90° and 45° angular specifications • Existing tooling for many common molding adapters and connectors • Viton® and other harshenvironment materials

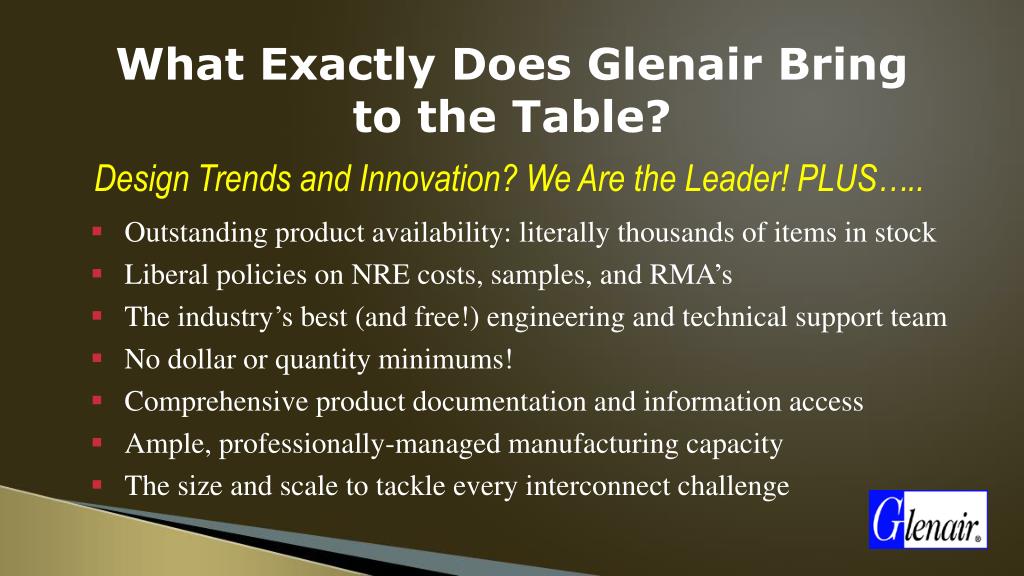

14. What Exactly Does Glenair Bringto the Table? Design Trends and Innovation? We Are the Leader! PLUS….. • Outstanding product availability: literally thousands of items in stock • Liberal policies on NRE costs, samples, and RMA’s • The industry’s best (and free!) engineering and technical support team • No dollar or quantity minimums! • Comprehensive product documentation and information access • Ample, professionally-managed manufacturing capacity • The size and scale to tackle every interconnect challenge
