  1. Network Customer Meeting Access Metric Update November 16, 2006

  2. Agenda • 2006 Access Goal • Purpose of Discussion • April Metric Discussion and Decision • Locational Marginal Prices and Net Ratepayer Benefit • LMP Differentials in the Paddock-Rockdale Analysis • Revised Metric Proposal • Access Goal Update

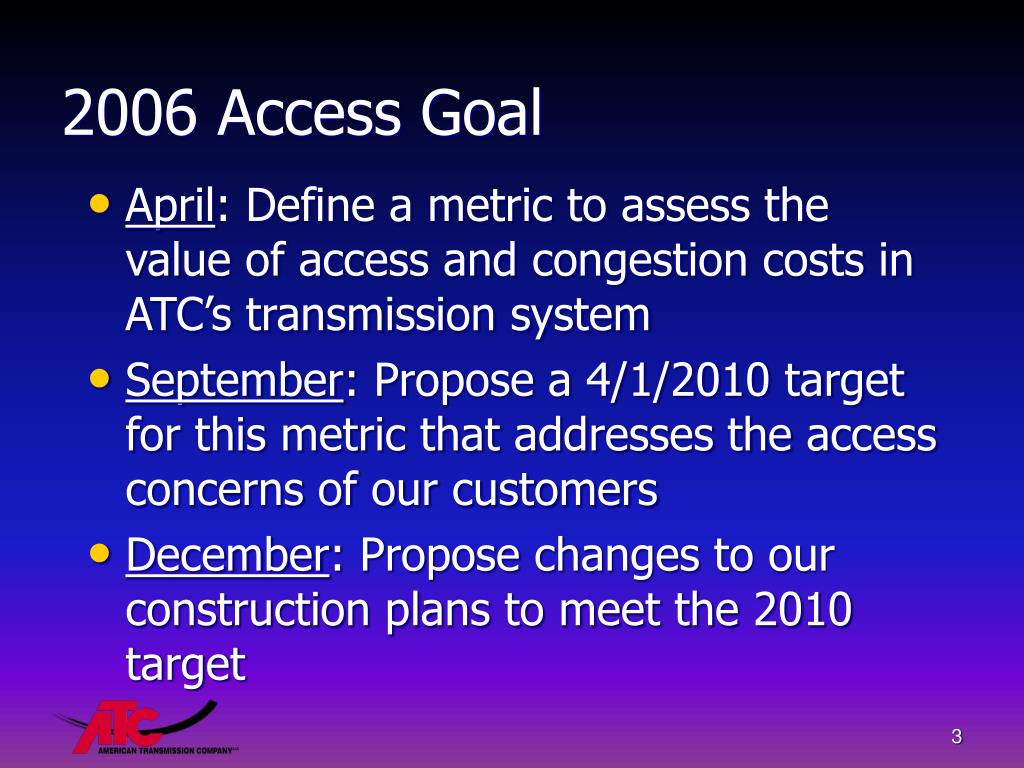

  3. 2006 Access Goal • April: Define a metric to assess the value of access and congestion costs in ATC’s transmission system • September: Propose a 4/1/2010 target for this metric that addresses the access concerns of our customers • December: Propose changes to our construction plans to meet the 2010 target

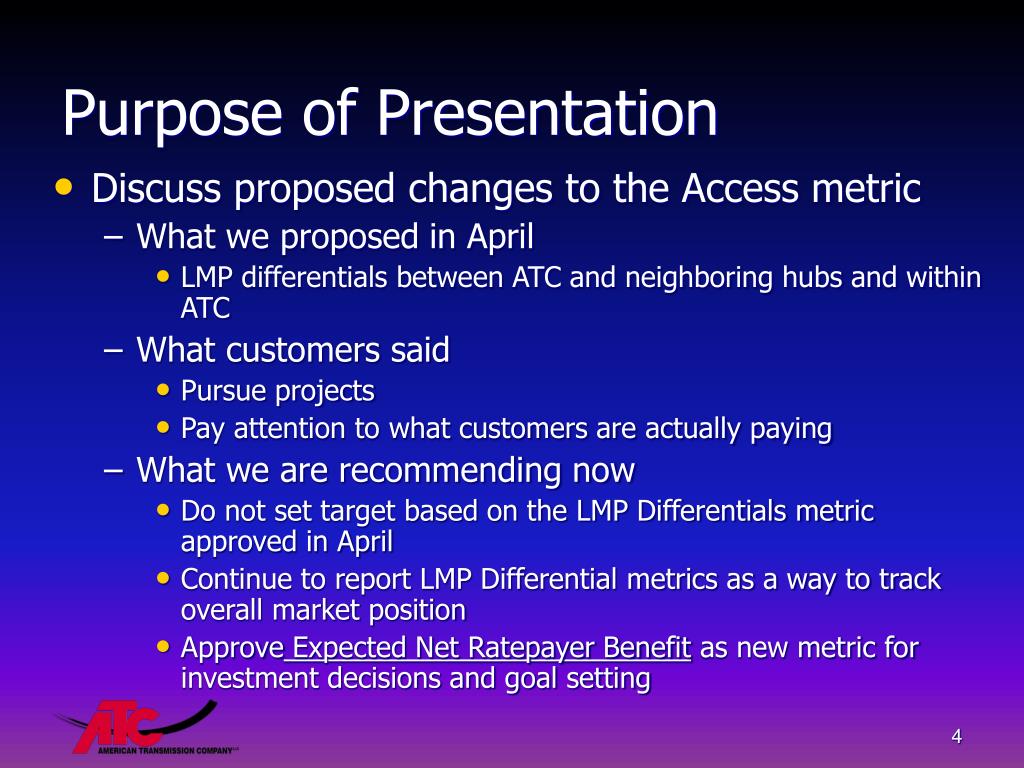

  4. Purpose of Presentation • Discuss proposed changes to the Access metric • What we proposed in April • LMP differentials between ATC and neighboring hubs and within ATC • What customers said • Pursue projects • Pay attention to what customers are actually paying • What we are recommending now • Do not set target based on the LMP Differentials metric approved in April • Continue to report LMP Differential metrics as a way to track overall market position • Approve Expected Net Ratepayer Benefit as new metric for investment decisions and goal setting

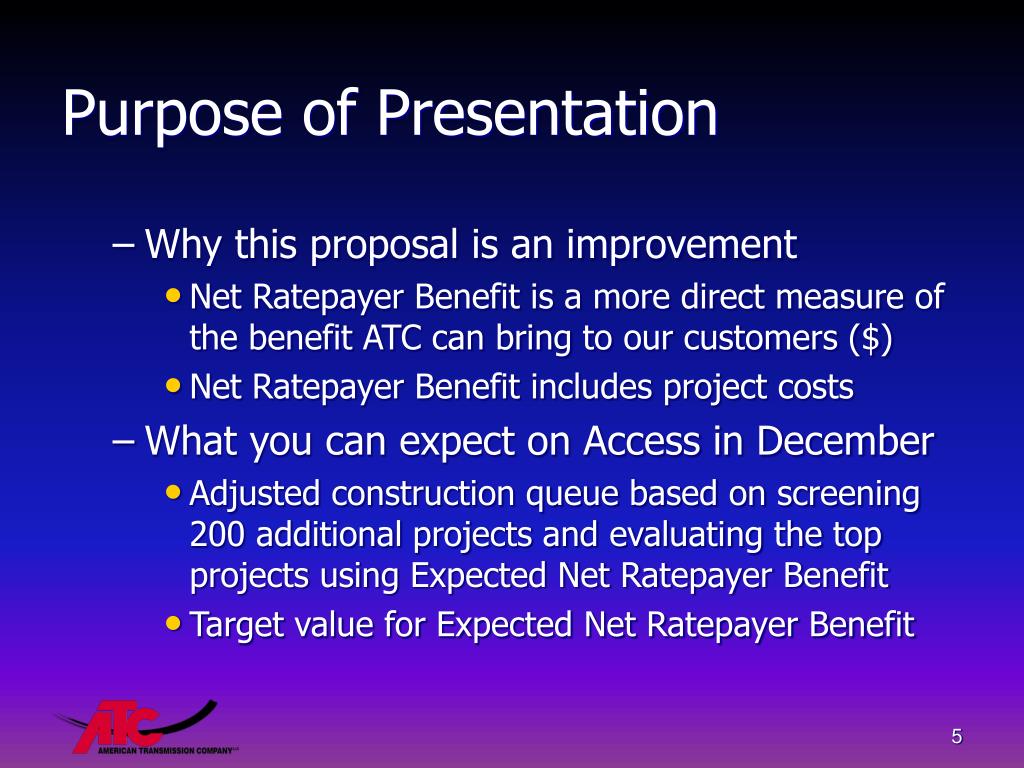

  5. Purpose of Presentation • Why this proposal is an improvement • Net Ratepayer Benefit is a more direct measure of the benefit ATC can bring to our customers ($) • Net Ratepayer Benefit includes project costs • What you can expect on Access in December • Adjusted construction queue based on screening 200 additional projects and evaluating the top projects using Expected Net Ratepayer Benefit • Target value for Expected Net Ratepayer Benefit

  6. Review April Metric Discussion

  7. April Milestone: 2006 Access Goal Goal Status • Define a metric to assess the value of access and congestion costs in ATC’s transmission system • Completed April 30, 2006: • Weighted average of: • LMP differentials between ATC and 3 neighboring hubs (“Into” metric) • Absolute value of LMP differentials within ATC footprint (“Within” metric)

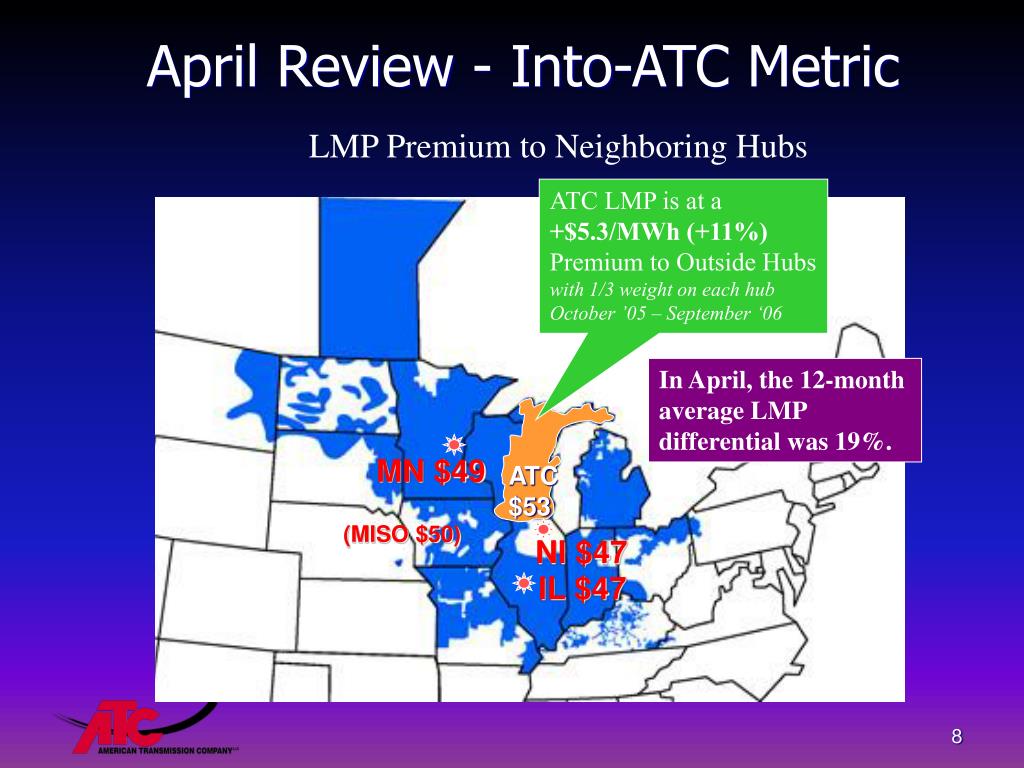

  8. ATC LMP is at a +$5.3/MWh (+11%) Premium to Outside Hubs with 1/3 weight on each hub October ’05 – September ‘06 MN $49 ATC $53 (MISO $50) NI $47 IL $47 April Review - Into-ATC Metric LMP Premium to Neighboring Hubs In April, the 12-month average LMP differential was 19%.

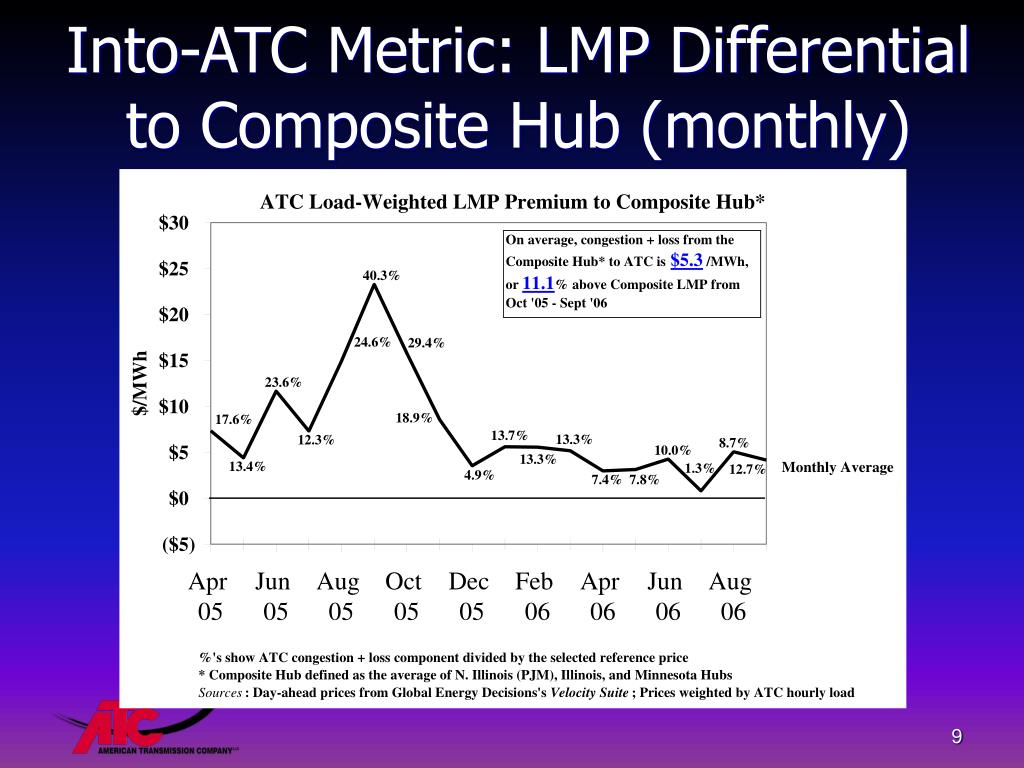

  9. Into-ATC Metric: LMP Differential to Composite Hub (monthly)

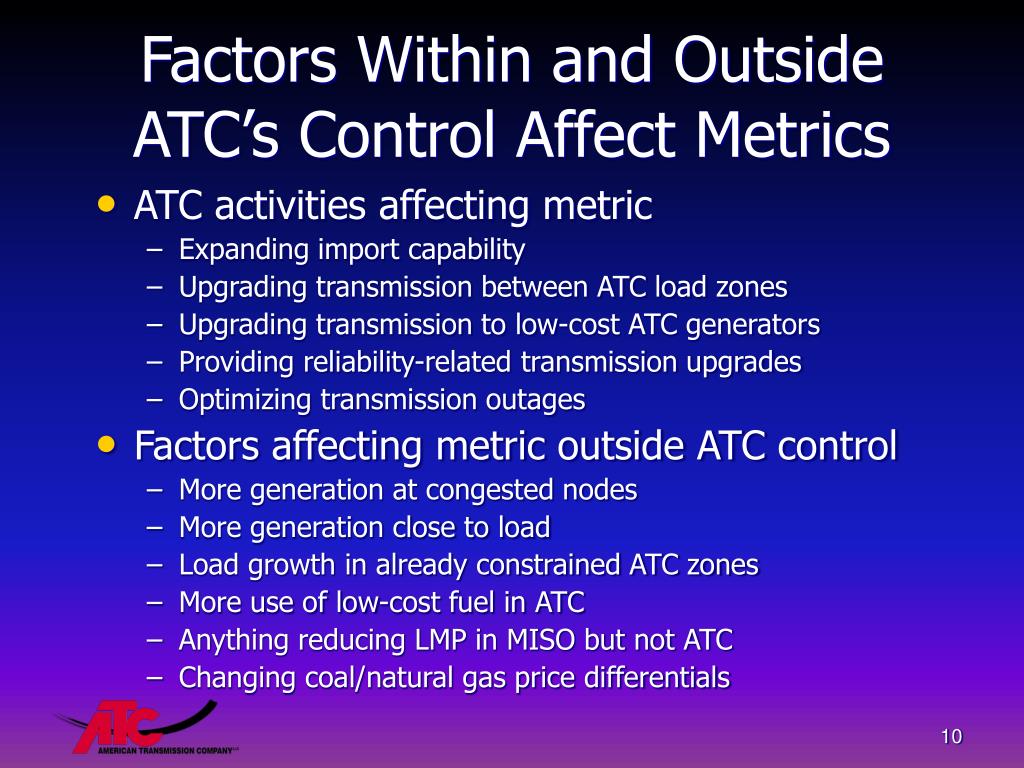

  10. Factors Within and Outside ATC’s Control Affect Metrics • ATC activities affecting metric • Expanding import capability • Upgrading transmission between ATC load zones • Upgrading transmission to low-cost ATC generators • Providing reliability-related transmission upgrades • Optimizing transmission outages • Factors affecting metric outside ATC control • More generation at congested nodes • More generation close to load • Load growth in already constrained ATC zones • More use of low-cost fuel in ATC • Anything reducing LMP in MISO but not ATC • Changing coal/natural gas price differentials

  11. Net Ratepayer Benefit • Net Ratepayer Benefit: Savings in energy costs to retail customers (over the life of the project) net of project costs • Energy cost to retail customers in the MISO market • Cost of supply at load LMP • Minus: LMP revenues to utility • Plus: cost of utility generation • Minus: FTR revenues to utilities

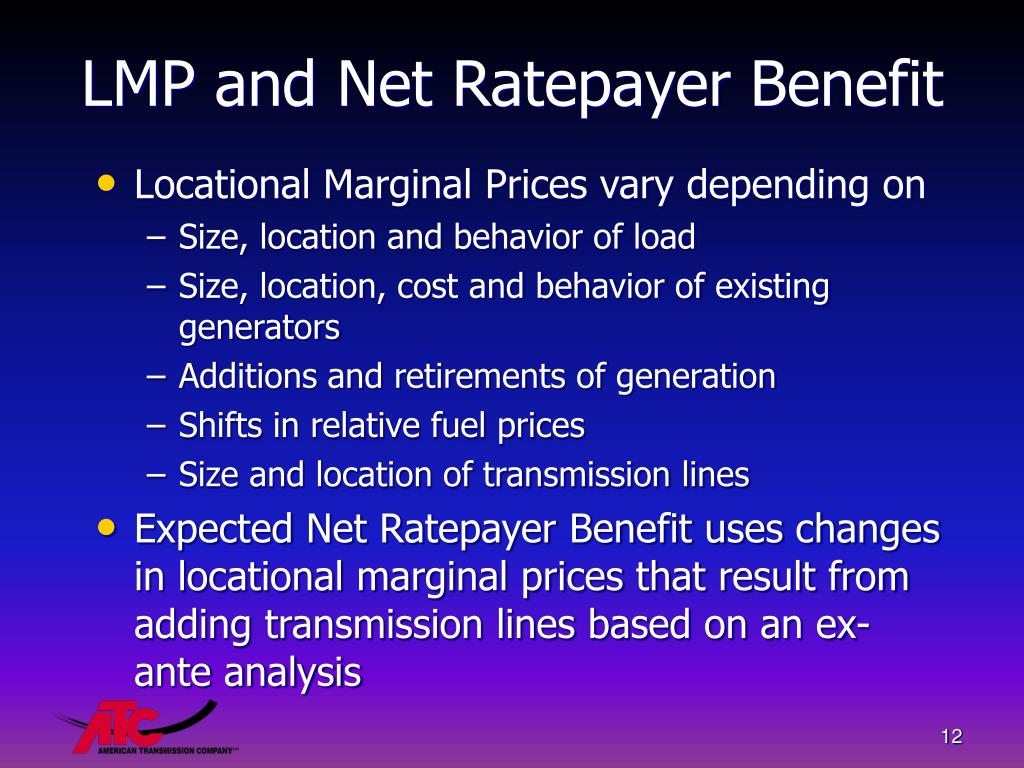

  12. LMP and Net Ratepayer Benefit • Locational Marginal Prices vary depending on • Size, location and behavior of load • Size, location, cost and behavior of existing generators • Additions and retirements of generation • Shifts in relative fuel prices • Size and location of transmission lines • Expected Net Ratepayer Benefit uses changes in locational marginal prices that result from adding transmission lines based on an ex-ante analysis

  13. Paddock-Rockdale Analysis Impacts on Into-ATC LMP Differentials and Net Ratepayer Benefit

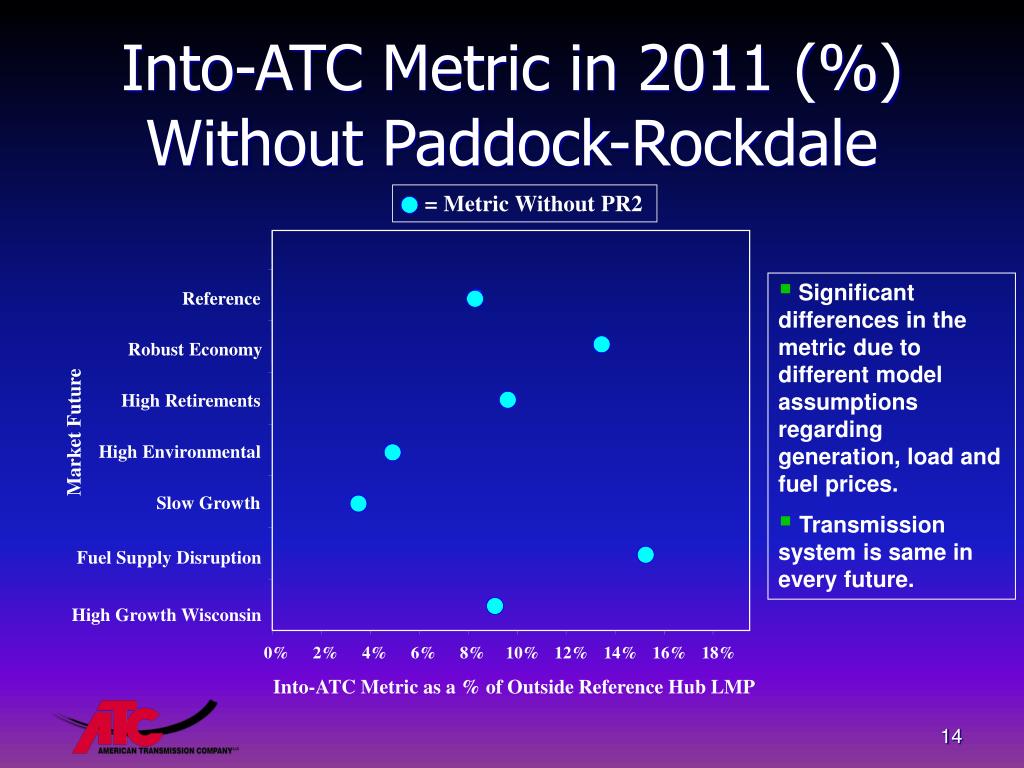

  14. = Metric Without PR2 Into-ATC Metric in 2011 (%)Without Paddock-Rockdale • Significant differences in the metric due to different model assumptions regarding generation, load and fuel prices. • Transmission system is same in every future. Reference Robust Economy High Retirements Market Future High Environmental Slow Growth Fuel Supply Disruption High Growth Wisconsin 0% 2% 4% 6% 8% 10% 12% 14% 16% 18% Into-ATC Metric as a % of Outside Reference Hub LMP

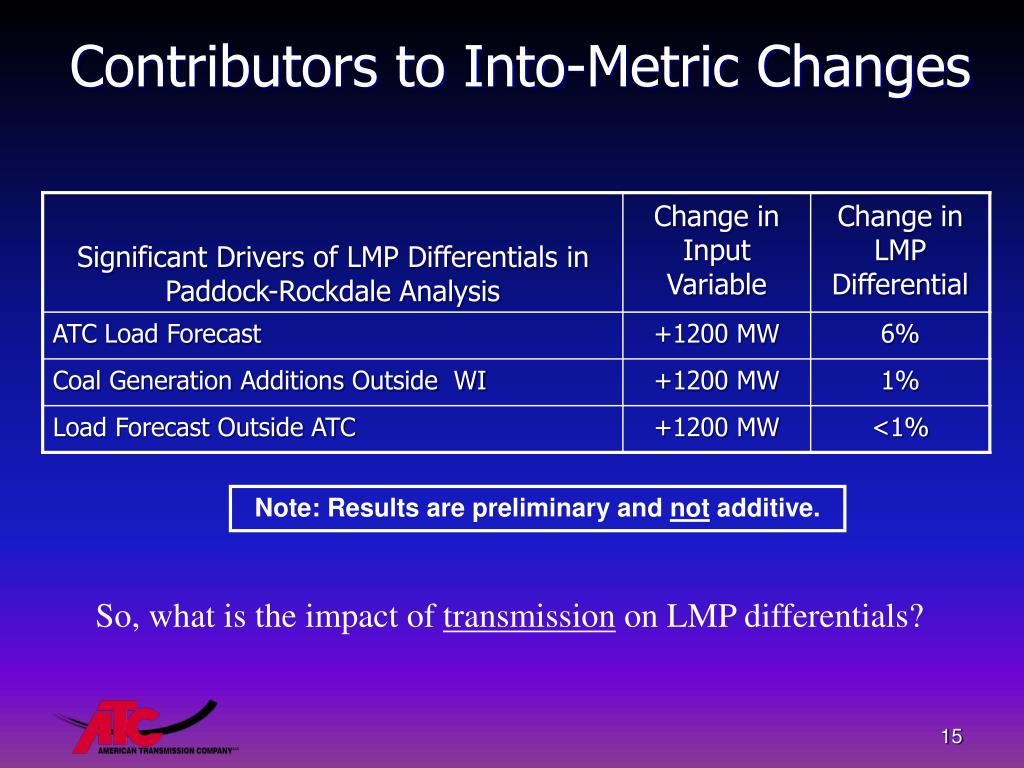

  15. Contributors to Into-Metric Changes Note: Results are preliminary and not additive. So, what is the impact of transmission on LMP differentials?

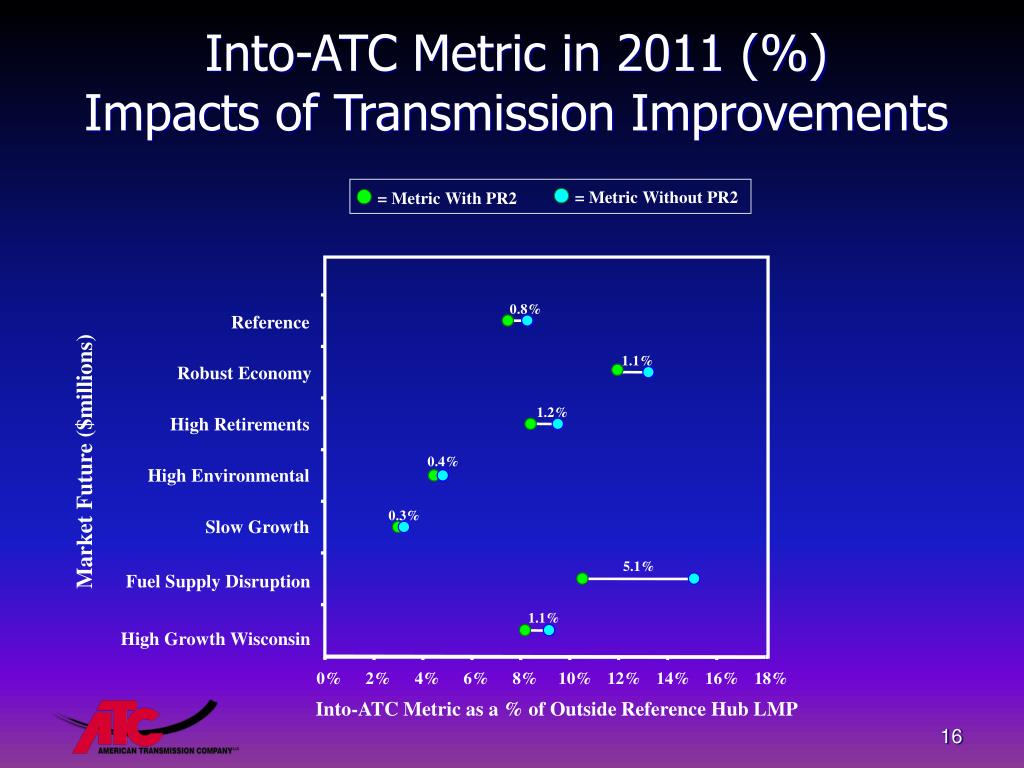

  16. = Metric Without PR2 = Metric With PR2 Into-ATC Metric in 2011 (%)Impacts of Transmission Improvements 0.8% Reference 1.1% Robust Economy 1.2% High Retirements Market Future ($millions) 0.4% High Environmental 0.3% Slow Growth 5.1% Fuel Supply Disruption 1.1% High Growth Wisconsin 0% 2% 4% 6% 8% 10% 12% 14% 16% 18% Into-ATC Metric as a % of Outside Reference Hub LMP

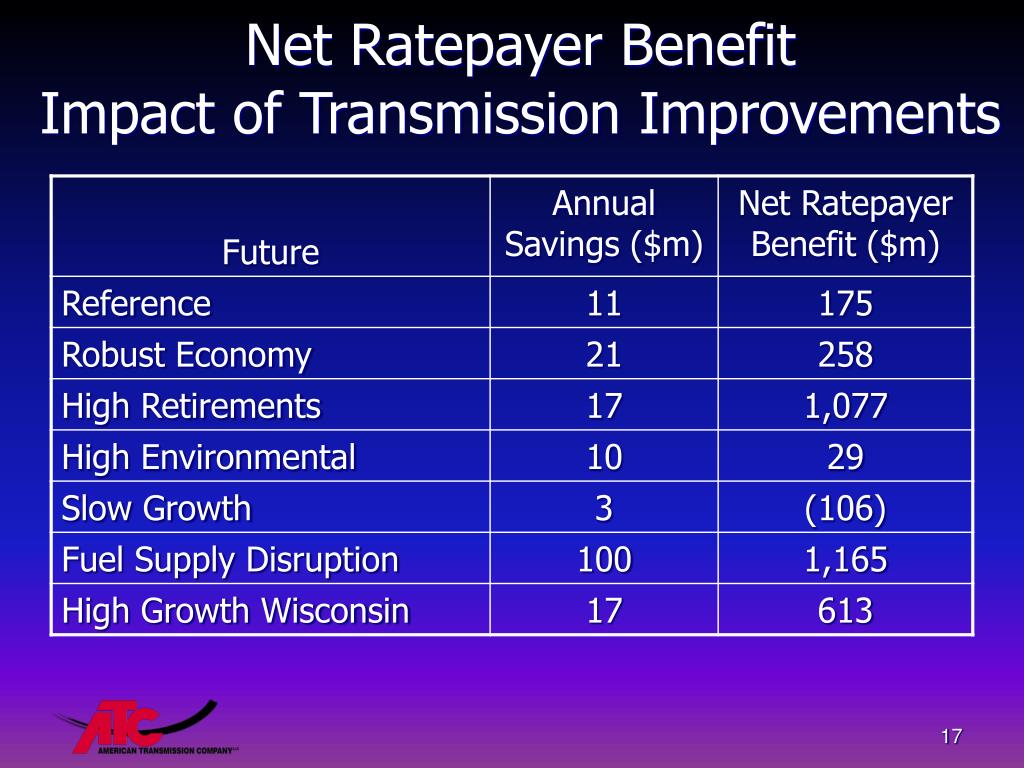

  17. Net Ratepayer BenefitImpact of Transmission Improvements

  18. Lessons Learned • LMP differentials are impacted by market events beyond ATC’s control • ATC has developed a methodology for estimating net ratepayer benefits resulting from transmission improvements • Net Ratepayer Benefits are the best way to evaluate transmission investment decisions • We did not recommend setting a target based on the LMP Differentials metric approved in April.

  19. September Milestone 2006 Access Goal Goal Recommendation • Propose a 4/1/2010 target for this metric that addresses the access concerns of our customers • Adopt Expected Net Ratepayer Benefit as the metric • Put in service by 2010 projects that provide $xxx million of Net Ratepayer Benefit over the life of the projects • Will provide a target in December • Target will be measured on an ex-ante basis • New projects will be analyzed across a range of futures (details to be developed)

  20. December Milestone 2006 Access Goal Goal Status/Recommendation • Inserted Paddock-Rockdale and associated projects into construction queue • For additional projects • Developed an efficient economic screening process • Identified 200 projects for screening and prioritization • Evaluate Net Ratepayer Benefits of top projects • Adjust the construction queue based on net ratepayer benefit and in-service date of projects • Present target number • Propose changes to our construction plans to meet the 2010 target
