  1. Fluvial Criteria in the FAHP

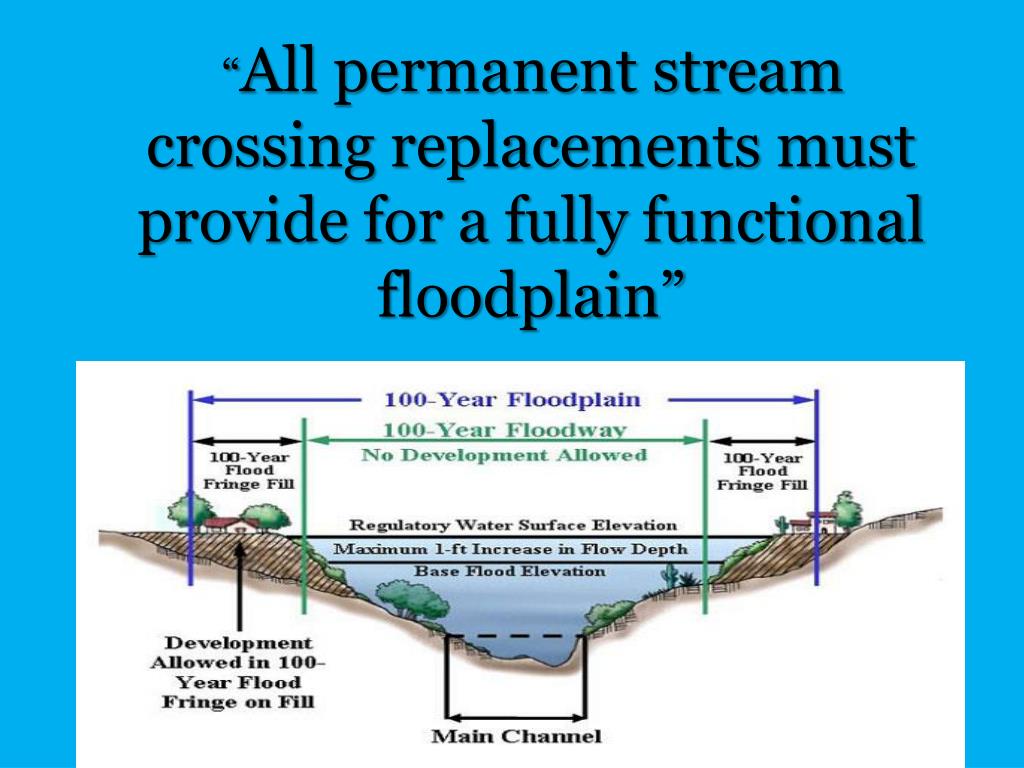

  2. “All permanent stream crossing replacements must provide for a fully functional floodplain”

  3. The OTIA III Fluvial Performance Standard Allow normative physical processes within the stream-floodplain corridor.

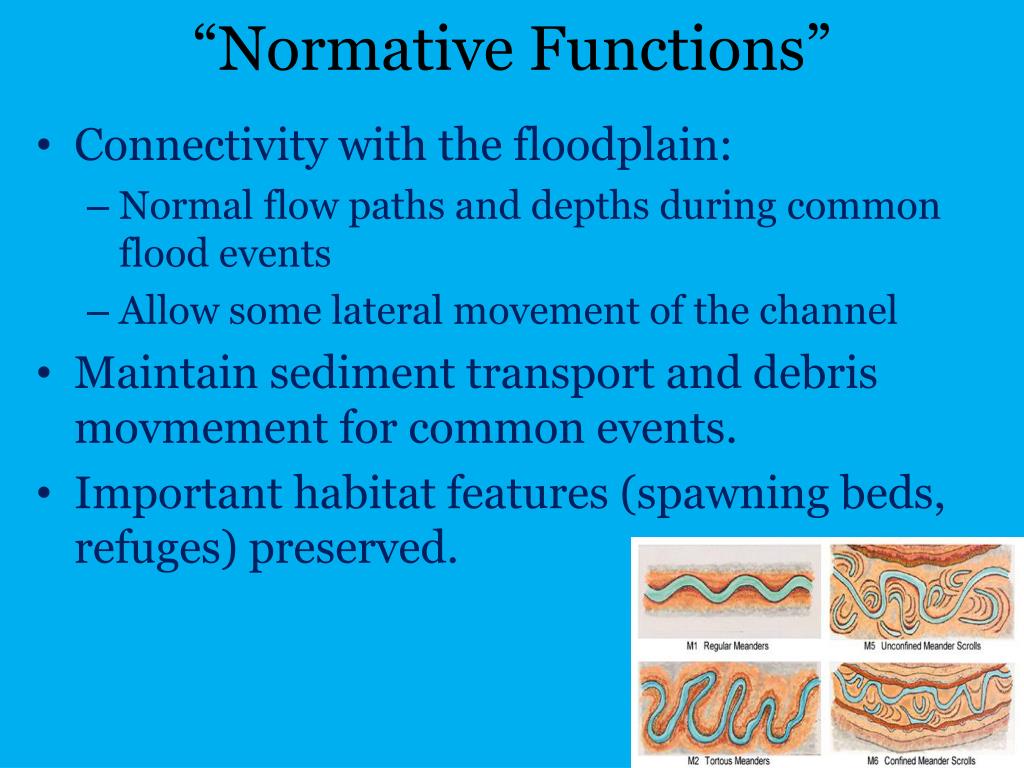

  4. “Normative Functions” Connectivity with the floodplain: Normal flow paths and depths during common flood events Allow some lateral movement of the channel Maintain sediment transport and debris movmement for common events. Important habitat features (spawning beds, refuges) preserved.

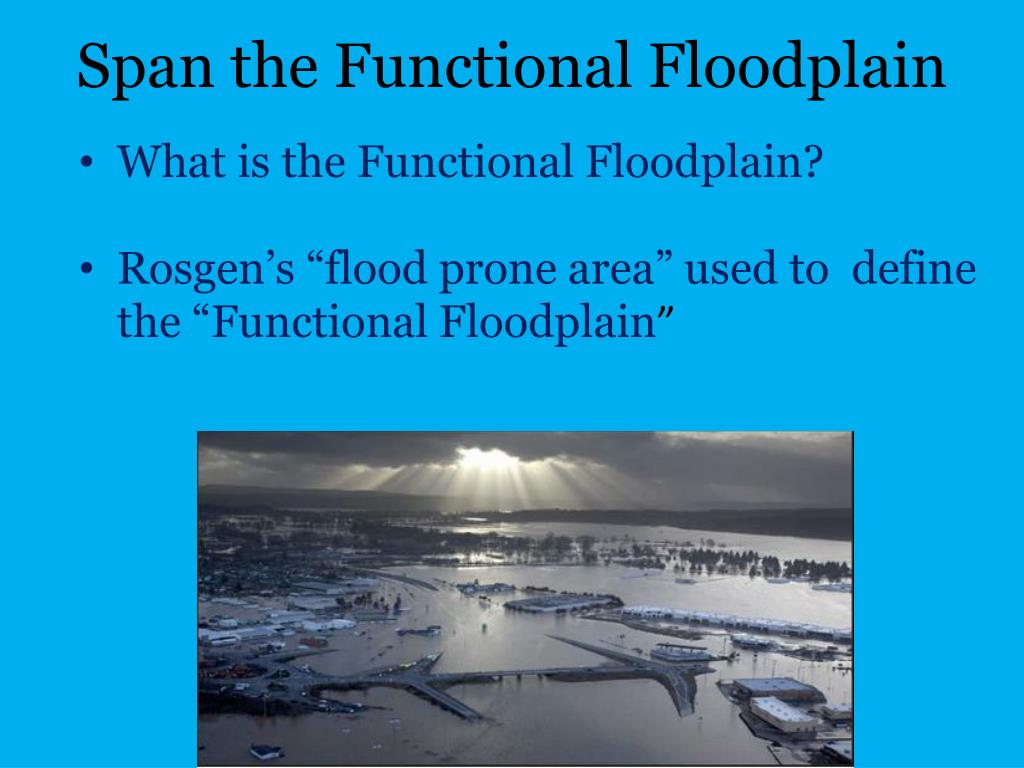

  5. Span the Functional Floodplain What is the Functional Floodplain? Rosgen’s “flood prone area” used to define the “Functional Floodplain”

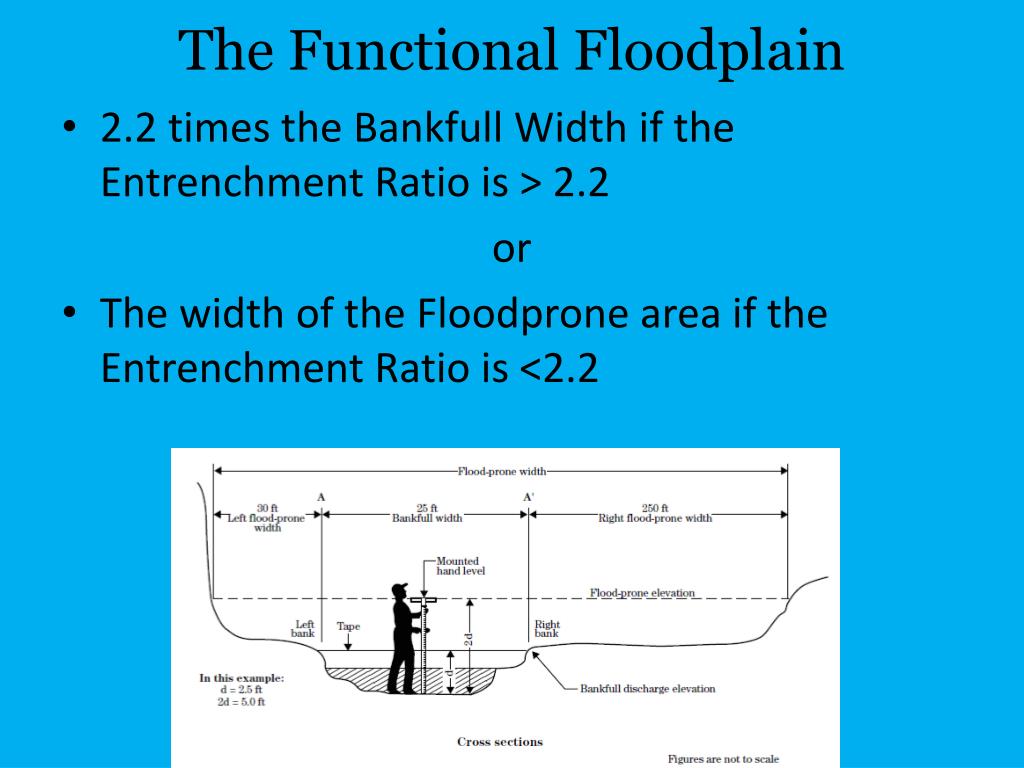

  6. The Functional Floodplain 2.2 times the Bankfull Width if the Entrenchment Ratio is > 2.2 or The width of the Floodprone area if the Entrenchment Ratio is <2.2

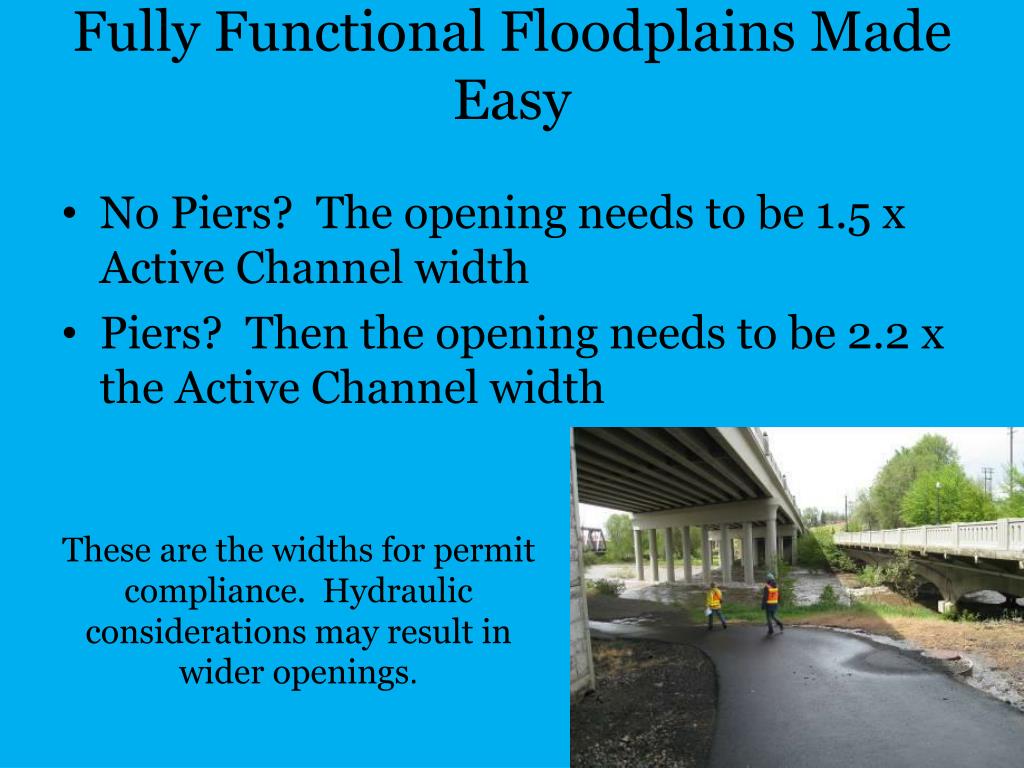

  7. Fully Functional Floodplains Made Easy • No Piers? The opening needs to be 1.5 x Active Channel width • Piers? Then the opening needs to be 2.2 x the Active Channel width These are the widths for permit compliance. Hydraulic considerations may result in wider openings.

  8. Incised stream channel

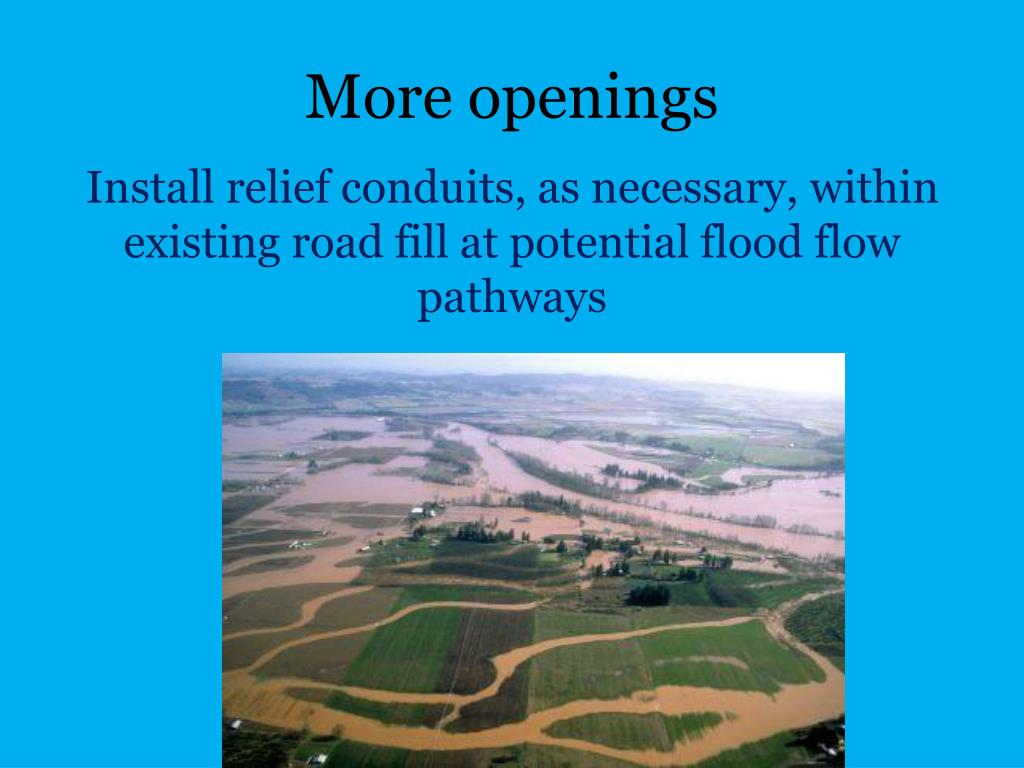

  9. More openings Install relief conduits, as necessary, within existing road fill at potential flood flow pathways

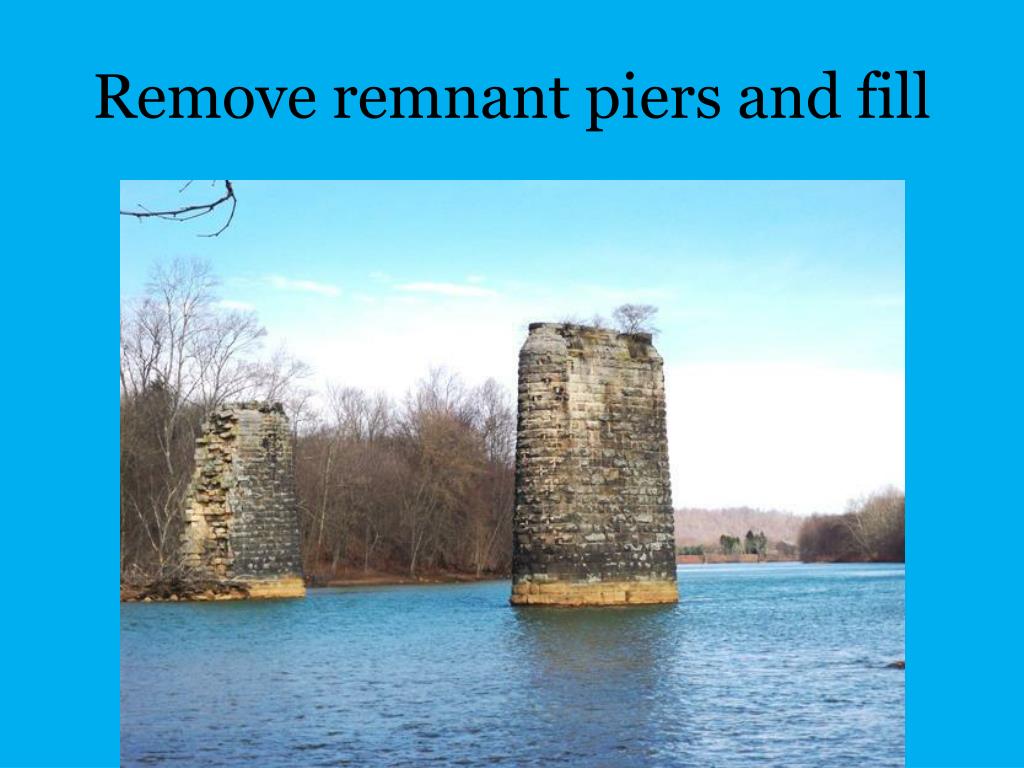

  10. Remove remnant piers and fill

  11. Protecting Abutments: Staying outside the scour prism

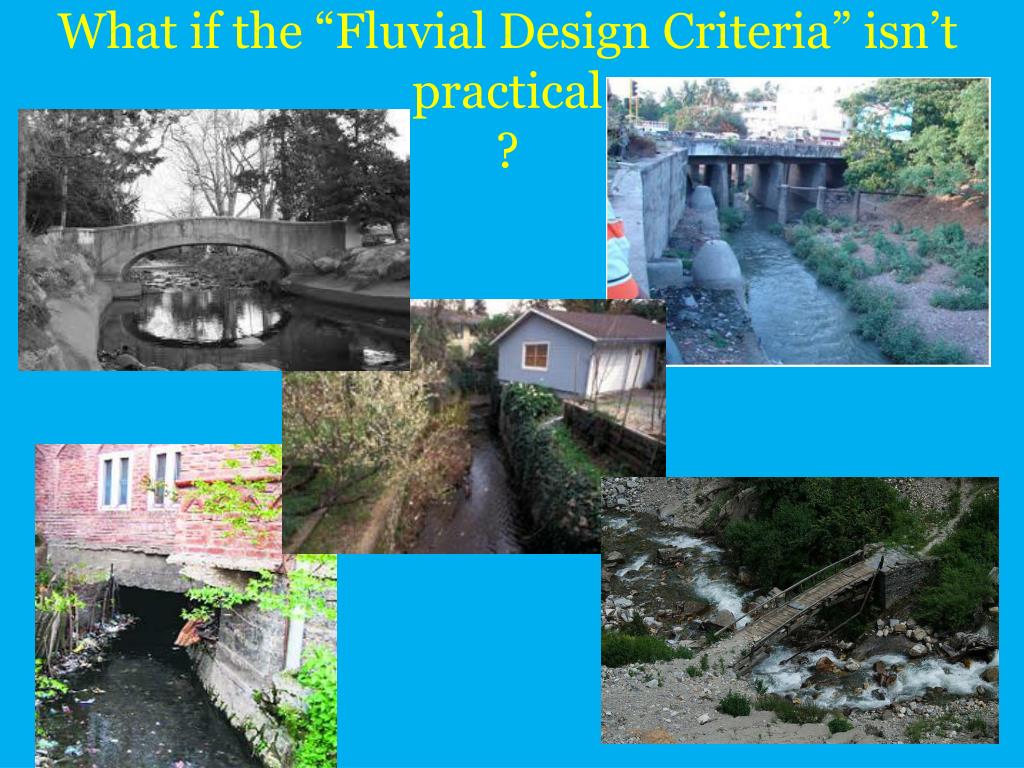

  12. What if the “Fluvial Design Criteria” isn’t practical?

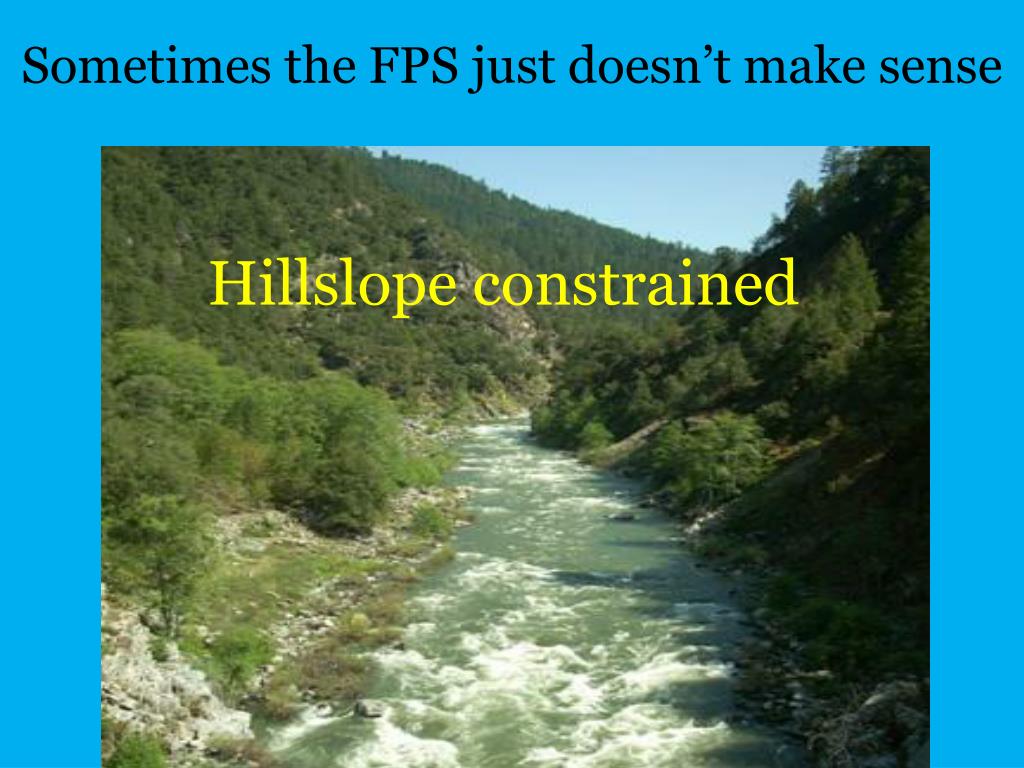

  13. Sometimes the FPS just doesn’t make sense Hillslope constrained

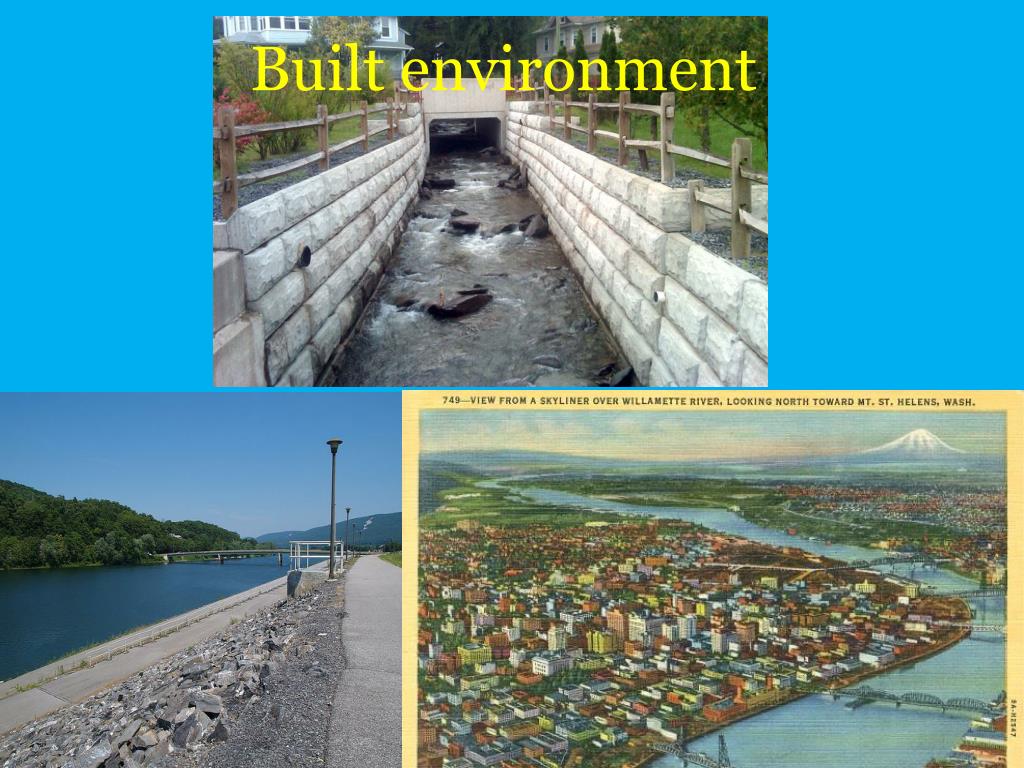

  14. Built environment

  15. Estuarine or Large River Delta

  16. Coordinate with NMFS!

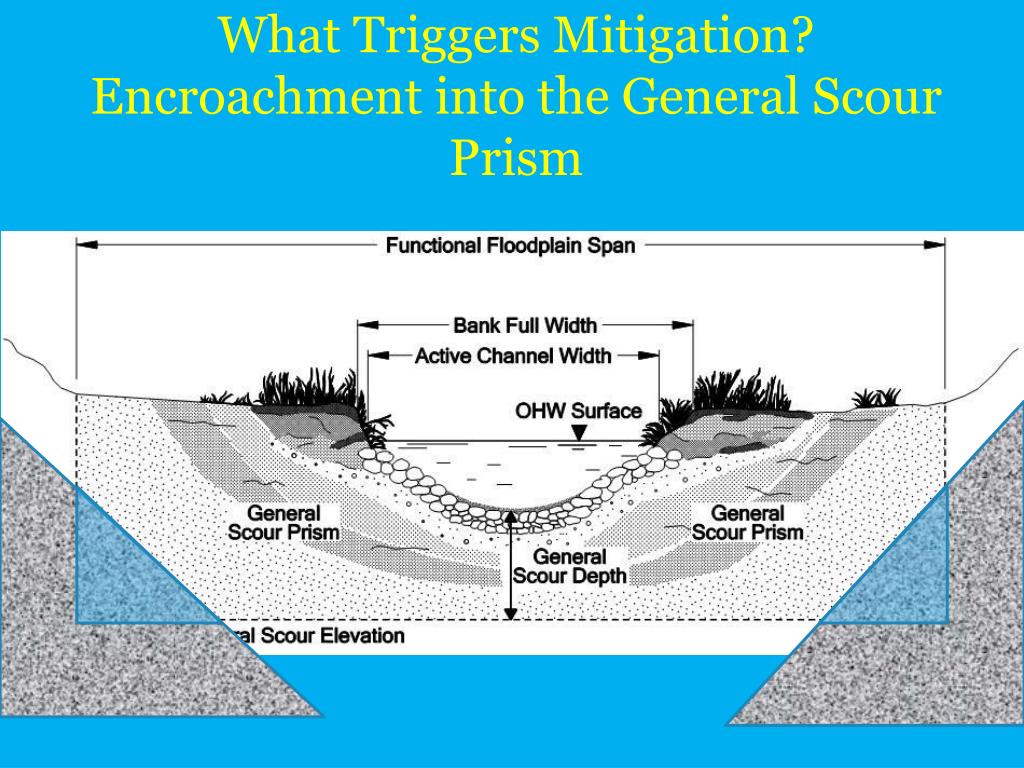

  17. What Triggers Mitigation?Encroachment into the General Scour Prism

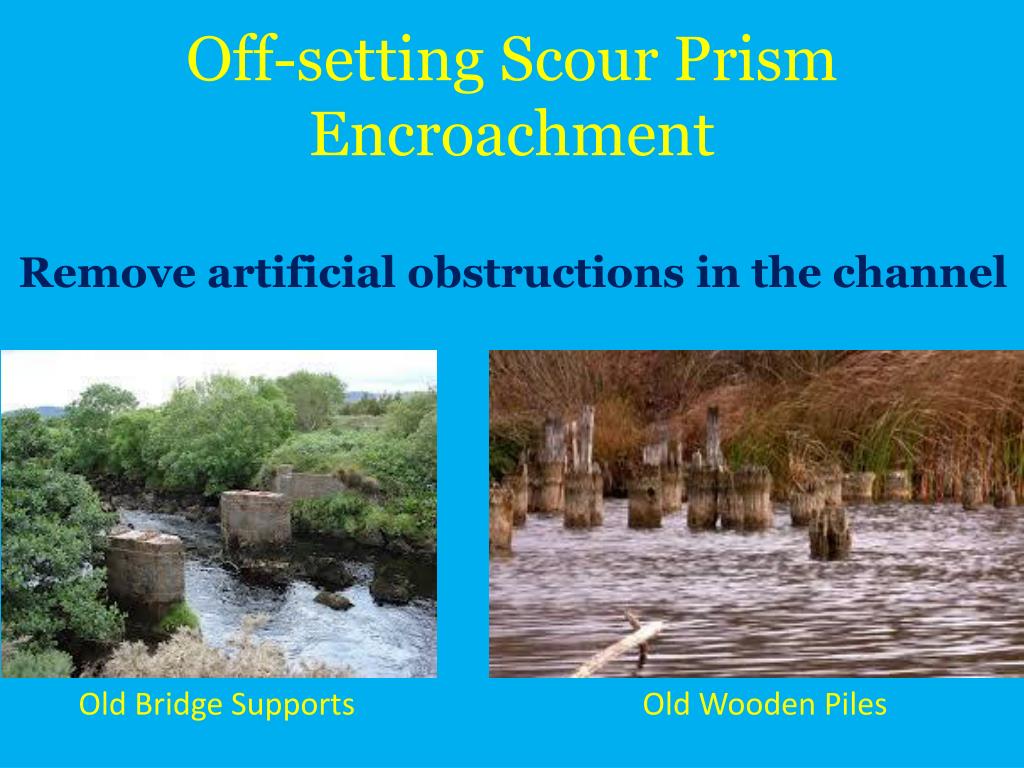

  18. Off-setting Scour Prism Encroachment Remove artificial obstructions in the channel Old Bridge Supports Old Wooden Piles

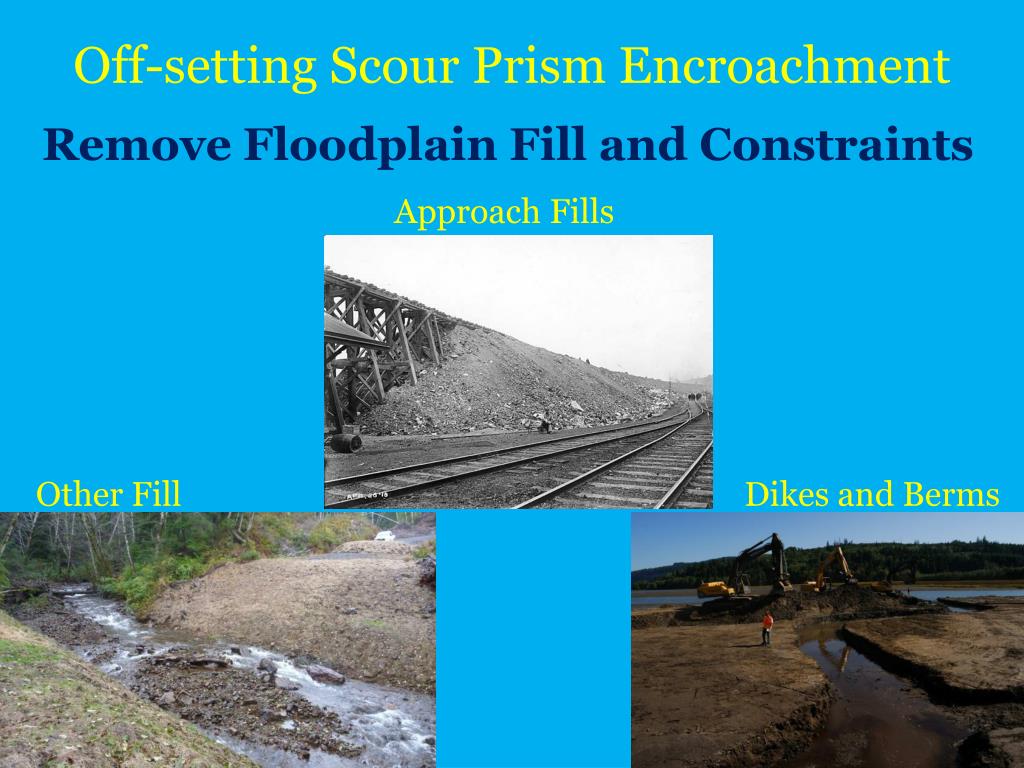

  19. Off-setting Scour Prism Encroachment Remove Floodplain Fill and Constraints Approach Fills Other Fill Dikes and Berms

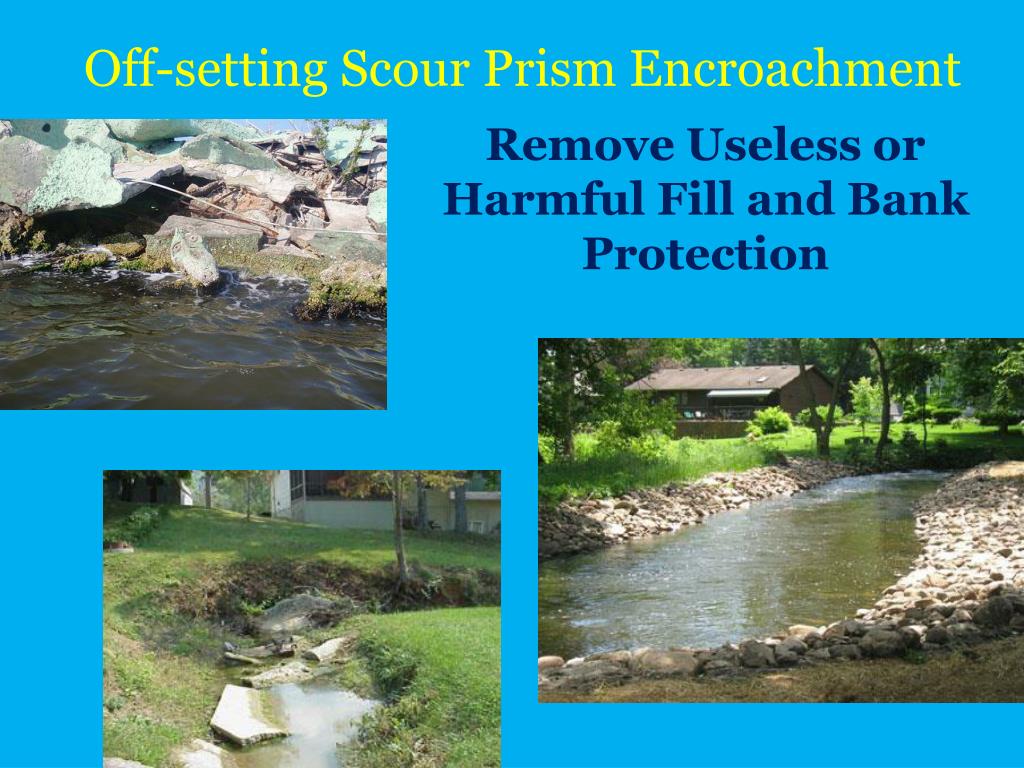

  20. Off-setting Scour Prism Encroachment Remove Useless or Harmful Fill and Bank Protection
