ECOSYSTEM ECOLOGY

ECOSYSTEM ECOLOGY. … the integrated study of biotic and abiotic components of ecosystems and their interactions. To achieve this integration: follow the path of matter and energy. Divides ecosystems into stores and fluxes. Modeling pools and fluxes:.

tadhg
Télécharger la présentation

ECOSYSTEM ECOLOGY

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ECOSYSTEM ECOLOGY … the integrated study of biotic and abiotic components of ecosystems and their interactions. To achieve this integration: follow the path of matter and energy. Divides ecosystems into stores and fluxes.

  2. Modeling pools and fluxes: • XP : quantity of compound x in pool P in units of • mass/area or mass/volume • kg carbon m-2 • mmol NO3 l-1 • Qx, P1-P2 : flux density for compound X from pool P1 to pool P2 in units of mass/(area*time) or mass/(volume*time) • kg carbon m-2 yr-1 • mmol NO3 l-1 s-1 Q Q X, Pi -Pj X, Pj -Pk X Pj

  3. Modeling pools and fluxes: Q Q X, Pi -Pj X, Pj -Pk X Pj

  4. Fluxes are controlled by different sorts of processes, which determine their mathematical representation: Case 1A: Chemostat (mixing of a constant volume): Q Q X, Pi -Pj X, Pj -Pk X Pj

  5. Cin = 0.2

  6. Case 1B: Mixing with volume change: Q Q Q Q X, Pi -Pj X, Pj -Pk W, Pi -Pj W, Pj -Pk X W Pj Pj

  7. Concentration C: Amount X: Cin = 0.2

  8. Case 2: Biochemical cycles: Nmin Plant uptake Microbial mineralization Plant senescence Nlitter Nplant

  9. Nmin Plant uptake • Notes: • Michaelis-Menton relationship • for nutrient uptake assumes saturation of uptake; • Nutrients in a constant relation to total biomass in living organisms; • stoichiometric ratios between nutrients maintained. Plant senescence Nplant

  10. Microbial mineralization • Notes: • Rates of loss are the same for all plant nutrients, when nutreint concentrations are assumed fixed. Plant senescence Nlitter Nplant

  11. Microbial mineralization Nmin Plant uptake Nlitter Nplant

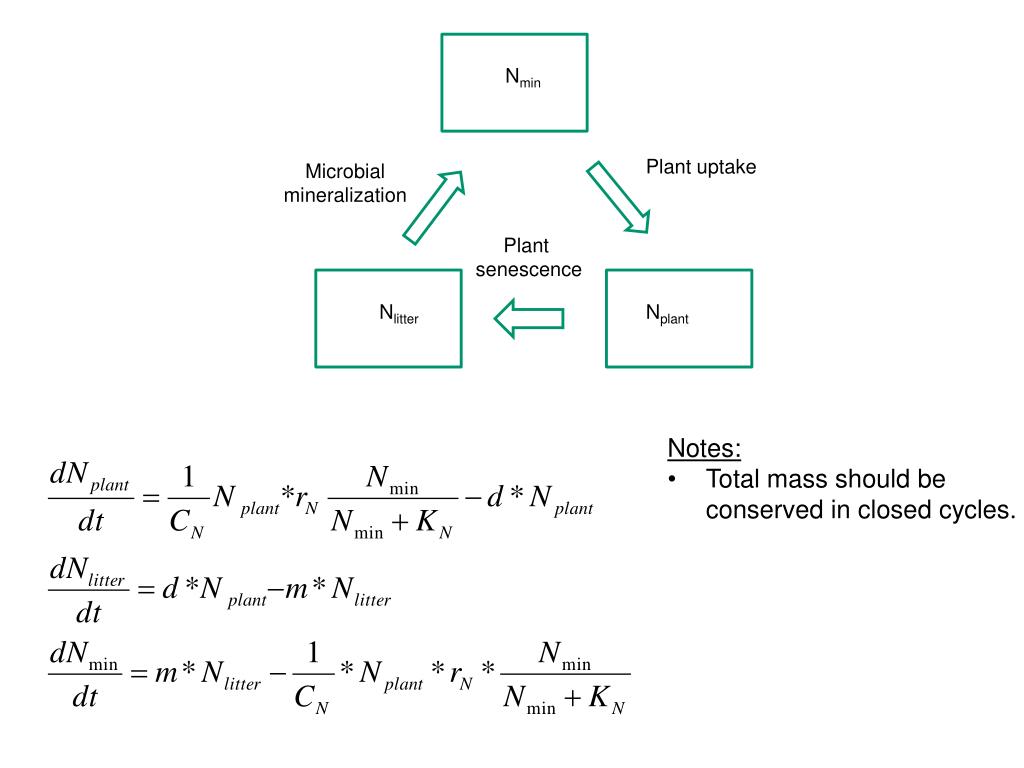

  12. Microbial mineralization Nmin Plant uptake • Notes: • Total mass should be conserved in closed cycles. Plant senescence Nlitter Nplant
