Advanced Constraint Analysis for Object-Oriented Programs

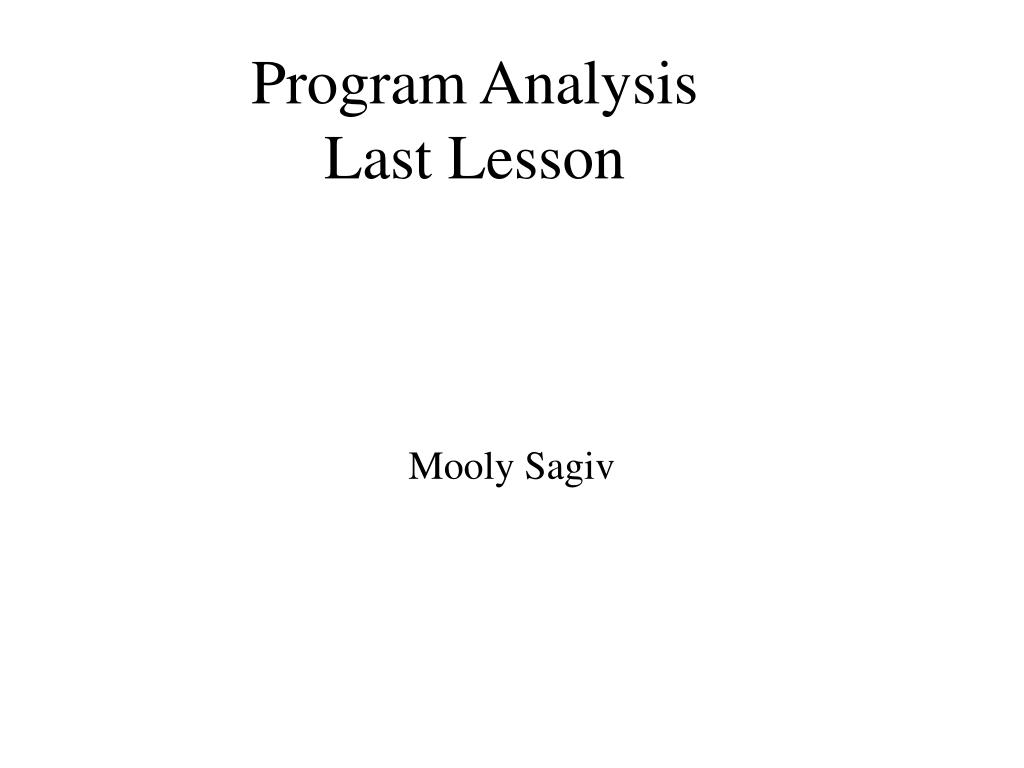

1. Program AnalysisLast Lesson Mooly Sagiv

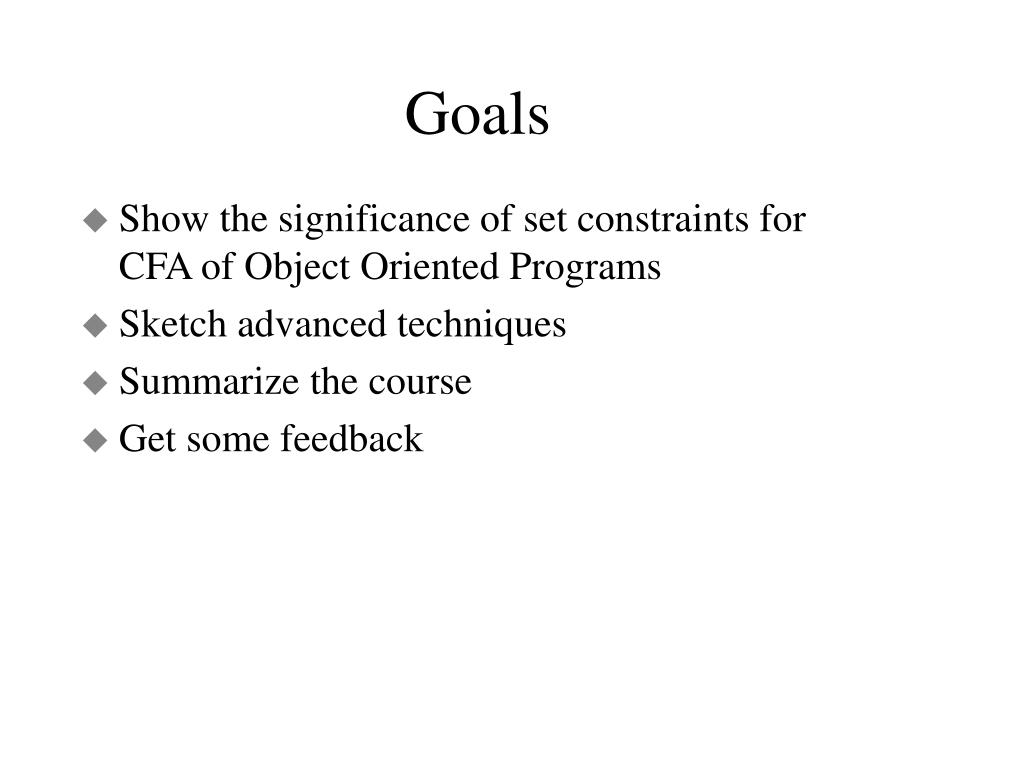

2. Goals • Show the significance of set constraints forCFA of Object Oriented Programs • Sketch advanced techniques • Summarize the course • Get some feedback

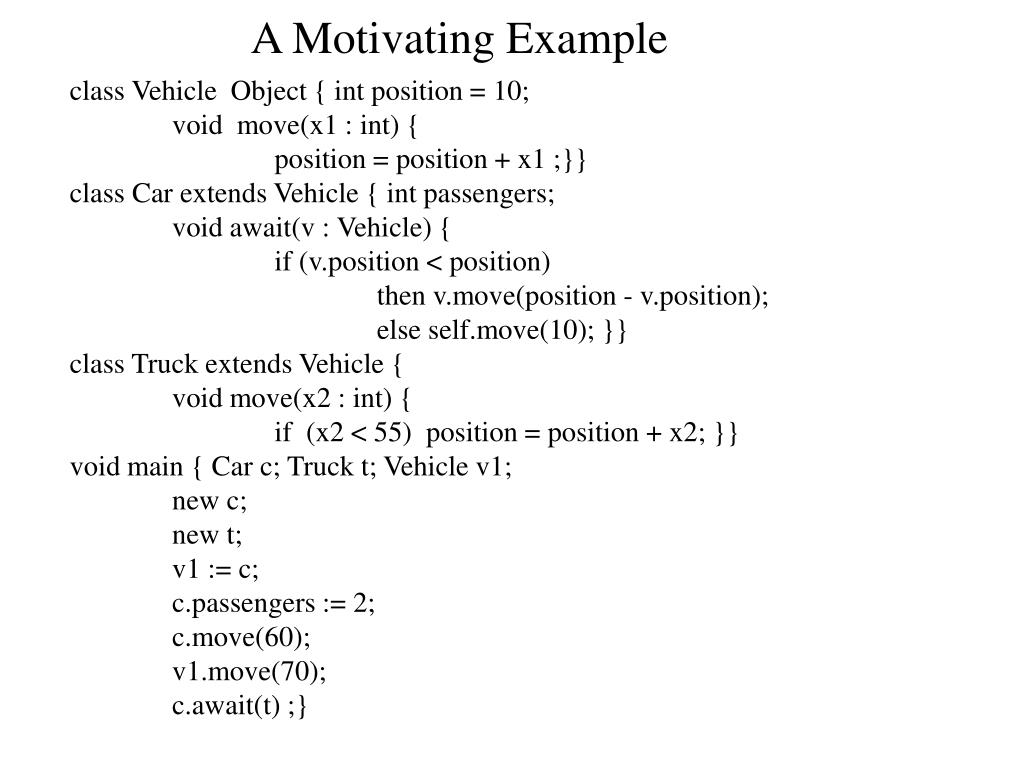

3. A Motivating Example class Vehicle Object { int position = 10; void move(x1 : int) { position = position + x1 ;}} class Car extends Vehicle { int passengers; void await(v : Vehicle) { if (v.position < position) then v.move(position - v.position); else self.move(10); }} class Truck extends Vehicle { void move(x2 : int) { if (x2 < 55) position = position + x2; }} void main { Car c; Truck t; Vehicle v1; new c; new t; v1 := c; c.passengers := 2; c.move(60); v1.move(70); c.await(t) ;}

4. A Motivating Example class Vehicle Object { int position = 10; void move(x1 : int) { position = position + x1 ;}} class Car extends Vehicle { int passengers; void await(v {Truck} : Vehicle) { if (v {Truck} .position < position) then v {Truck}.move(position - v.position); else self {Car}.move(10); }} class Truck extends Vehicle { void move(x2 : int) { if (x2 < 55) position = position + x2; }} void main { Car c; Truck t; Vehicle v1; new c {Car} ; new t {Truck} ; v1 {Car} := c {Car} ; c {Car} .passengers := 2; c {Car} .move(60); v1 {Car}.move(70); c {Car} .await(t {Truck} ) ;}

5. Flow Insensitive Class Analysis • Determine the set of potential classes of every variable at every program point • Compute a mapping  from variables into a set of class names • Combine values of variables at different points • Generate a set of constraints for every statement • Find a minimal solution

6. A Motivating Example class Vehicle Object { int position = 10; void move(x1 : int) { position = position + x1 ;}} class Car extends Vehicle { int passengers; void await(v1 : Vehicle) { if (v1.position < position) then v1.move(position - v1.position); else self.move(10); }} class Truck extends Vehicle { void move(x2 : int) { if (x2 < 55) position = position + x2; }} void main { Car c; Truck t; Vehicle v2; new c; new t; v2 := c; c.passengers := 2; c.move(60); v2.move(70); c.await(t) ; } {Car}  (c) {Truck}  (t) (c)  (v2) {Car}  (c) (t)  (v1)

7. Class Analysis Summary • Resolve called function • Can also perform type inference and checking • Can be used to warn against programmer errorsat compile-time

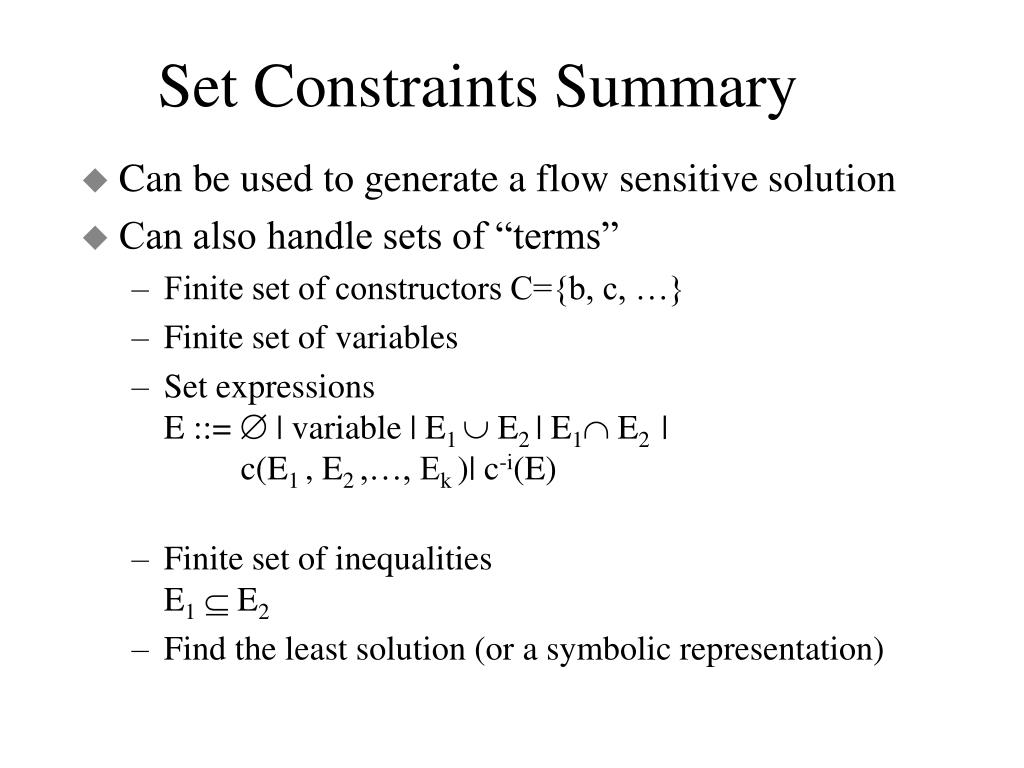

8. Set Constraints Summary • Can be used to generate a flow sensitive solution • Can also handle sets of “terms” • Finite set of constructors C={b, c, …} • Finite set of variables • Set expressionsE ::=  | variable | E1  E2 | E1 E2 | c(E1 , E2 ,…, Ek )| c-i(E) • Finite set of inequalitiesE1  E2 • Find the least solution (or a symbolic representation)

9. Advanced Abstract Interpretation Techniques • Origin [Cousot&Cousot POPL 1979]Download from the course homepage • Widening & Narrowing • Combining dataflow analysis problems • Semantic reductions • ...

10. Widening • Accelerate the termination of Chaotic iterations by computing a more conservative solution • Can handle lattices of infinite heights

11. Example Interval Analysis • Find a lower and an upper bound of the value of a variable • Lattice L = (ZZ, , , , ,) • [a, b]  [c, d] if c  a and d  b • [a, b]  [c, d] = [min(a, c), max(b, d)] • [a, b]  [c, d] = [max(a, c), min(b, d)] •  = •  = • Programx := 1 ;while x  1000 do x := x + 1;

12. Widening for Interval Analysis •  [c, d] = [c, d] • [a, b]  [c, d] = [ if a  c then a else if 0  c then 0 else minint,if b  d then b else if d  0 then 0 else maxint

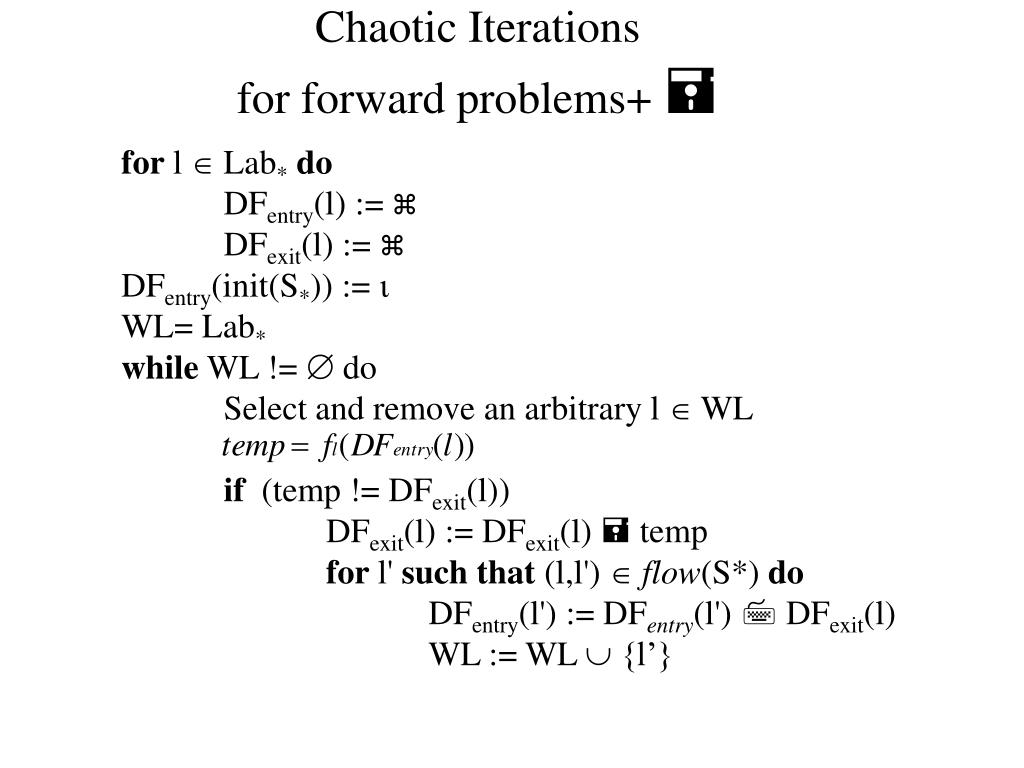

13. Chaotic Iterationsfor forward problems+  for l  Lab*do DFentry(l) :=  DFexit(l) :=  DFentry(init(S*)) :=  WL= Lab* while WL !=  do Select and remove an arbitrary l  WL if (temp != DFexit(l)) DFexit(l) := DFexit(l)  temp for l' such that (l,l') flow(S*) do DFentry(l') := DFentry(l')  DFexit(l) WL := WL  {l’}

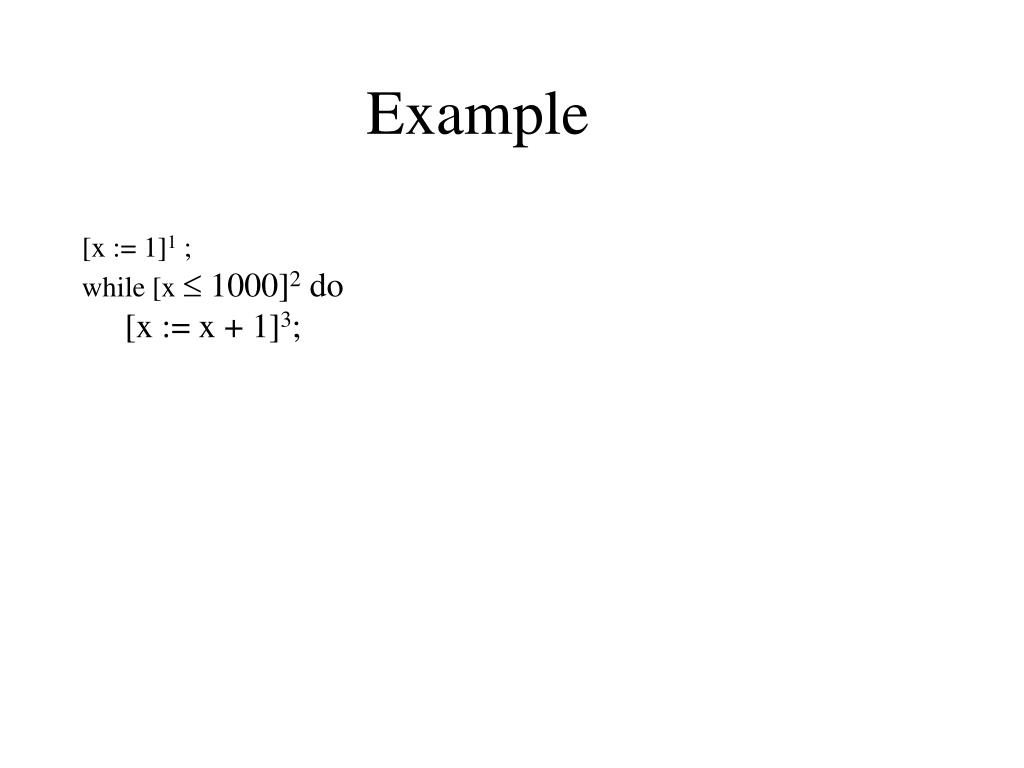

14. Example [x := 1]1 ;while [x  1000]2 do [x := x + 1]3;

15. Requirements on Widening • For all elements l1  l2  l1  l2 • For all ascending chains l0  l1  l2  …the following sequence is finite • y0 = l0 • yi+1 = yi  li+1

16. Narrowing • Improve the result of widening

17. Example [x := 1]1 ;while [x  1000]2 do [x := x + 1]3;

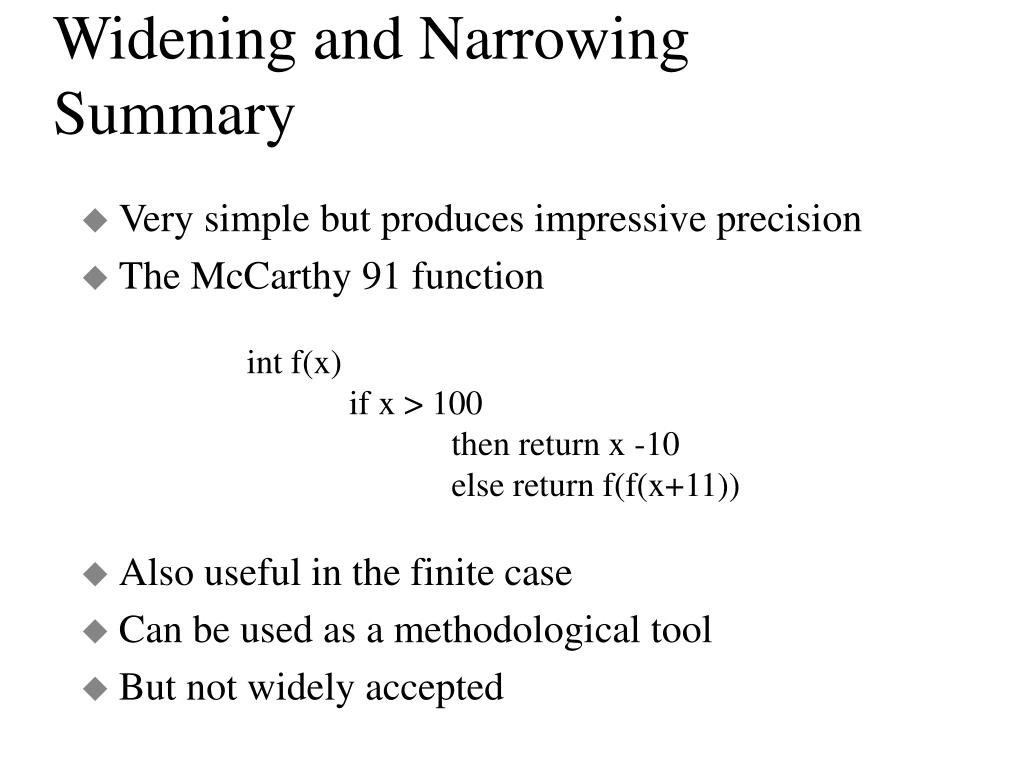

18. Widening and Narrowing Summary • Very simple but produces impressive precision • The McCarthy 91 function • Also useful in the finite case • Can be used as a methodological tool • But not widely accepted int f(x) if x > 100 then return x -10 else return f(f(x+11))

19. Combining dataflow analysis problems • How to combine different analyses • The result can be more precise than both! • On some programs more efficient too • Many possibly ways to combine (4.4) • A simple example sign+parity analysisx := x - 1

20. Cartezian Products • Analysis 1 • Lattice (L1, 1, 1, 1, 1,1) • Galois connection 1: P(States)  L1 1: L1  P(States) • Transfer functionsop1:L1  L1 • Analysis 2 • Lattice (L2, 2, 2, 2, 2,2) • Galois connection2: P(States)  L2 1: L2  P(States) • Transfer functionsop2:L2 L2 • Combined Analysis • L = (L1 L2, ) where (l1, l2)  (u1, u2) if l1 1 u1 and l2 2 u2 • Galois connection • Transfer functions

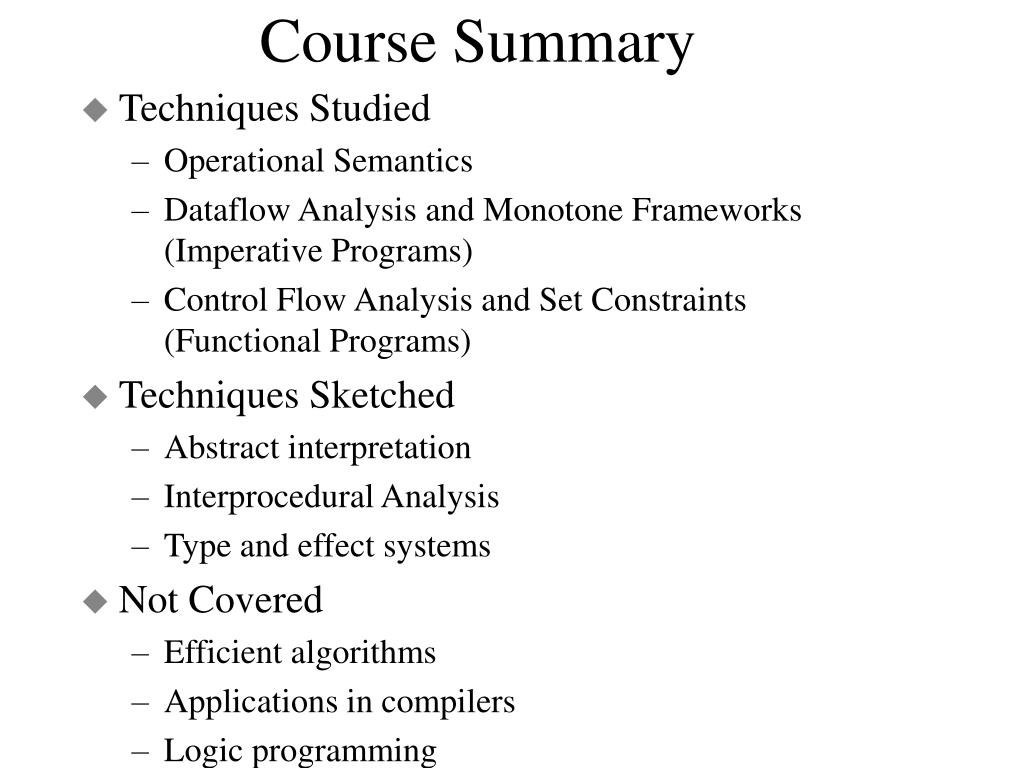

21. Course Summary • Techniques Studied • Operational Semantics • Dataflow Analysis and Monotone Frameworks (Imperative Programs) • Control Flow Analysis and Set Constraints (Functional Programs) • Techniques Sketched • Abstract interpretation • Interprocedural Analysis • Type and effect systems • Not Covered • Efficient algorithms • Applications in compilers • Logic programming

22. Course Summary • Able to understand advanced static analysis techniques • Find faults in existing algorithms • Be able to develop new algorithms • Gain a better understanding of programming languages • Functional Vs. Imperative • Operational Semantics

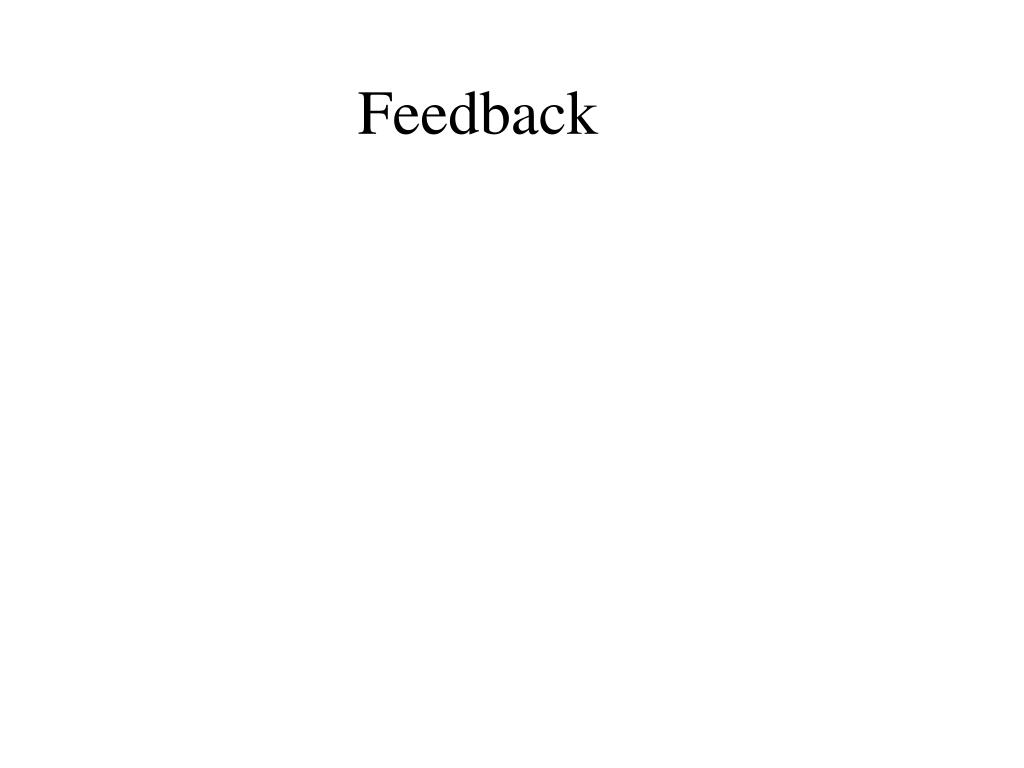

23. Feedback
