  1. Phased Array Radars Naval Weapons Systems

  2. Limitations of Mechanical Scanning Radars • Positioning Antenna is SLOW • Reduced reaction times • Blind Sided! • Mechanical error

  3. Electronic Scanning • Increased Data Rates • Instantaneous Beam Positioning • Elimination of Mechanical Errors • Multi-mode Operation • Multi-target capability

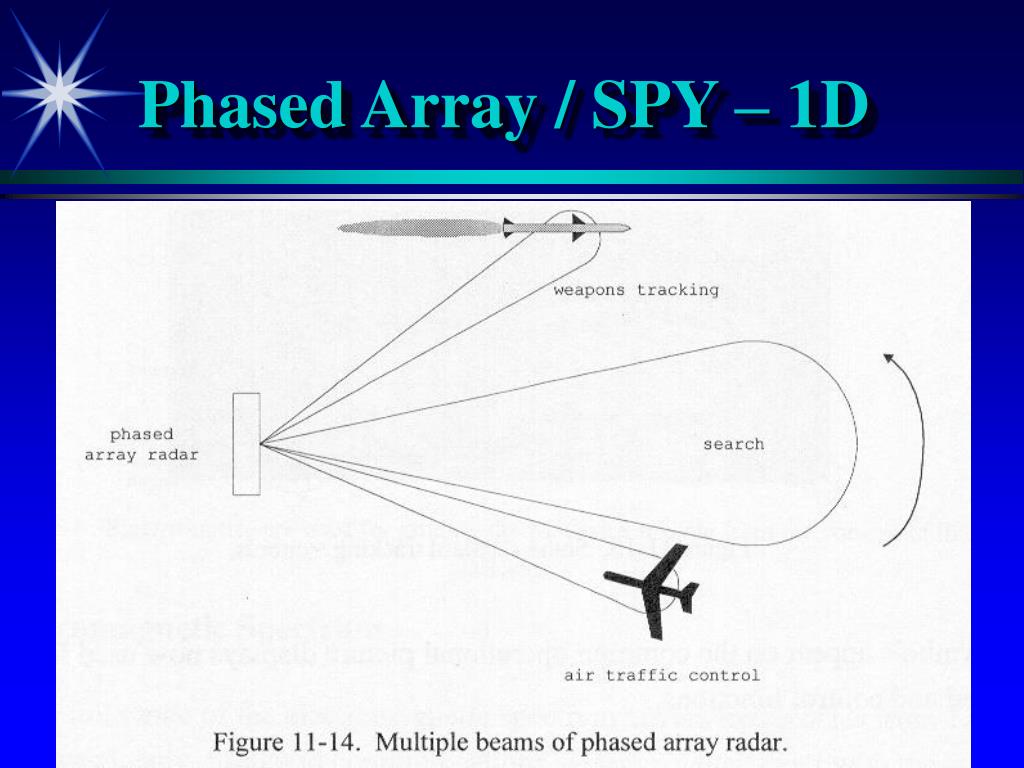

  4. Phased Array / SPY – 1D

  5. Phase Concept Principle of Operation The electromagnetic energy received at a point in space from two or more closely spaced radiating elements is a maximum when the energy from each radiating element arrives at the point in phase.

  6. Phase Relationships • Constructive Interference • Destructive Interference

  7. Wave Fronts of Maximum Energy Beam Axis Boresight Boresight Axis Axis Altering the Phase to Radiating in Phase Change the Axis Generating a Directional Main Lobe in a Phased Array Radar

  8. Beam Positioning P Point “P” where all waves arrive in phase

  9. Methods of Beam Steering • 3 Kinds • Time Delay Scanning • Frequency Scanning • Phase Scanning

  10. Methods of Beam Steering • Time Delay Scanning • Use of time delay to achieve the desired phase relationship • Time delay networks installed in front of each radiating element • Expensive, Complex & Heavy

  11. Time Delay Scanning d

  12. Methods of Beam Steering • Frequency Scanning • The physical length of the wave guide to delay the frequency interval • Vary the frequency about a base frequency • Very simple and relatively inexpensive.

  13. AN/SPS-48

  14. Wave guide feed horns Case #1 All Waves transmitted Wave guide are in phase Case #2 Waves transmitted are phase Wave guide shifted Frequency Scanning

  15. Phase Scanning Radiating elements fed by phase-shifting networks (Phasers) Phasers are electronically adjustable More expensive than frequency scanning but cheaper than time delay Most widely used – SPY1 Methods of Beam Steering

  16. SPY-1

  17. Phase Scanning Phasers!!

  18. Fleet Uses of Electronic Scanning • Ticonderoga • Arleigh Burke • SPS-48 Air Search

  19. AN/SPS – 48

  20. Angular Resolution • Cross-Range Resolution • Antenna beam width • Range • For accurate angular resolution need very long antenna (~10 km long!) • Motion of the transmitter/receiver simulates long antenna

  21. SAR

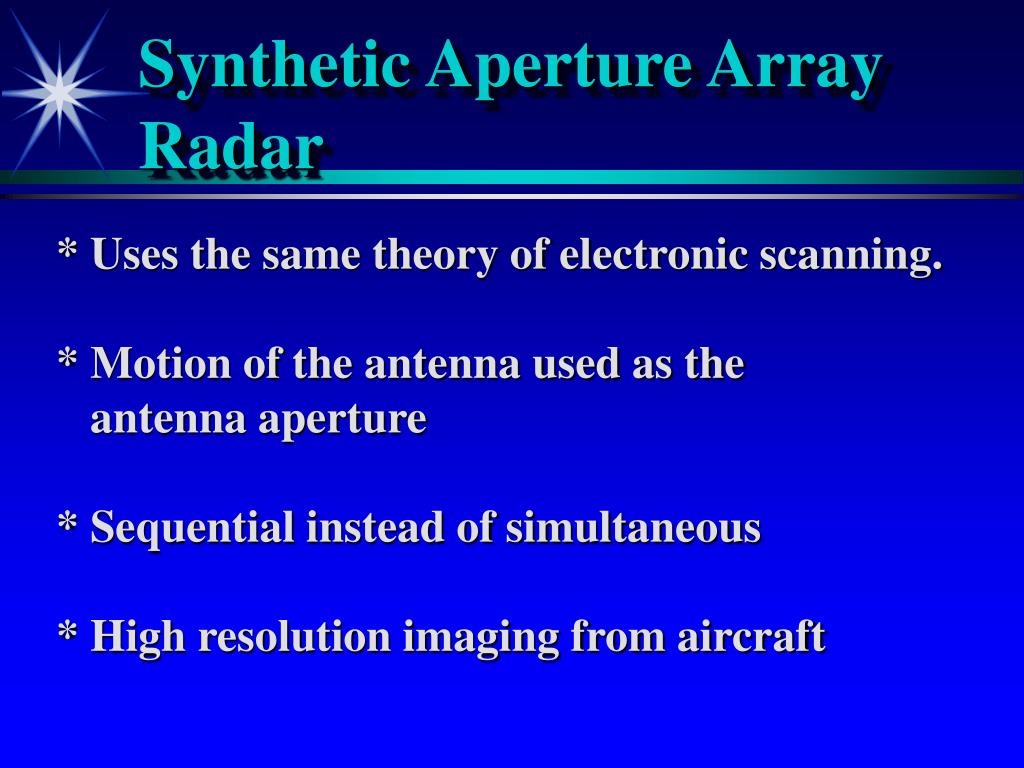

  22. Synthetic Aperture Array Radar * Uses the same theory of electronic scanning. * Motion of the antenna used as the antenna aperture * Sequential instead of simultaneous * High resolution imaging from aircraft

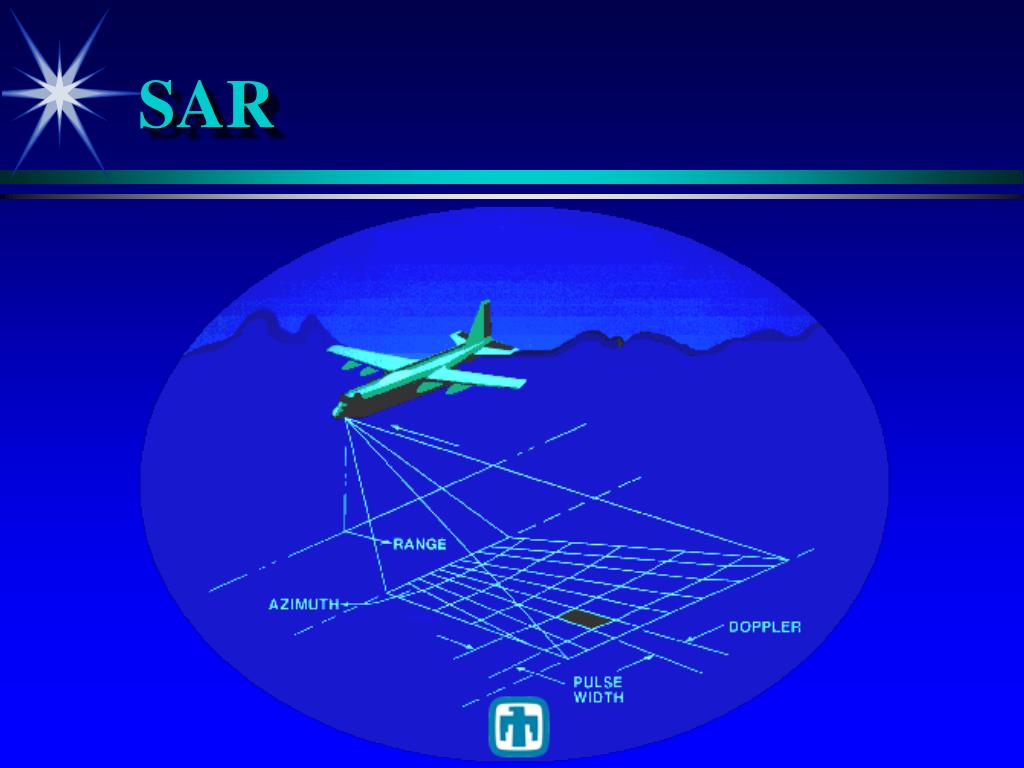

  23. SAR

  24. Electronic Scanning Summary • Multiple functions • Search • Track (so, TWS) • Beam Steering • Time delay, Frequency, and Phase scanning • VERY BASIC LOOK AT ELECTRONIC SCANNING!

  25. QUESTIONS?
