4R-UAV

Status Report 1. September 1 st , 2010. 4R-UAV. James Martinez Jonathan Rodriguez Juan Tafoya. 4R-UAV is a 4 rotor autonomous quadcopter packed with an array of sensors capable of monitoring remote and hostile areas. Overall Need.

tameka
Télécharger la présentation

4R-UAV

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Status Report 1 September 1st, 2010 4R-UAV James Martinez Jonathan Rodriguez Juan Tafoya 4R-UAV is a 4 rotor autonomous quadcopter packed with an array of sensors capable of monitoring remote and hostile areas.

  2. Overall Need • The 4 rotor UAV is a rapid deployment platform that can be used to aid law enforcement, military, and rescue personnel in reaching inaccessible areas and gathering intelligence. • Milestones • Planning 100% • Design • Research • Build • Test • Present final design project 12/2010

  3. Tasks Completed • Gathered most of the materials • Started to upload arduino programming code • Soldered protoboard • Found our home in the lab

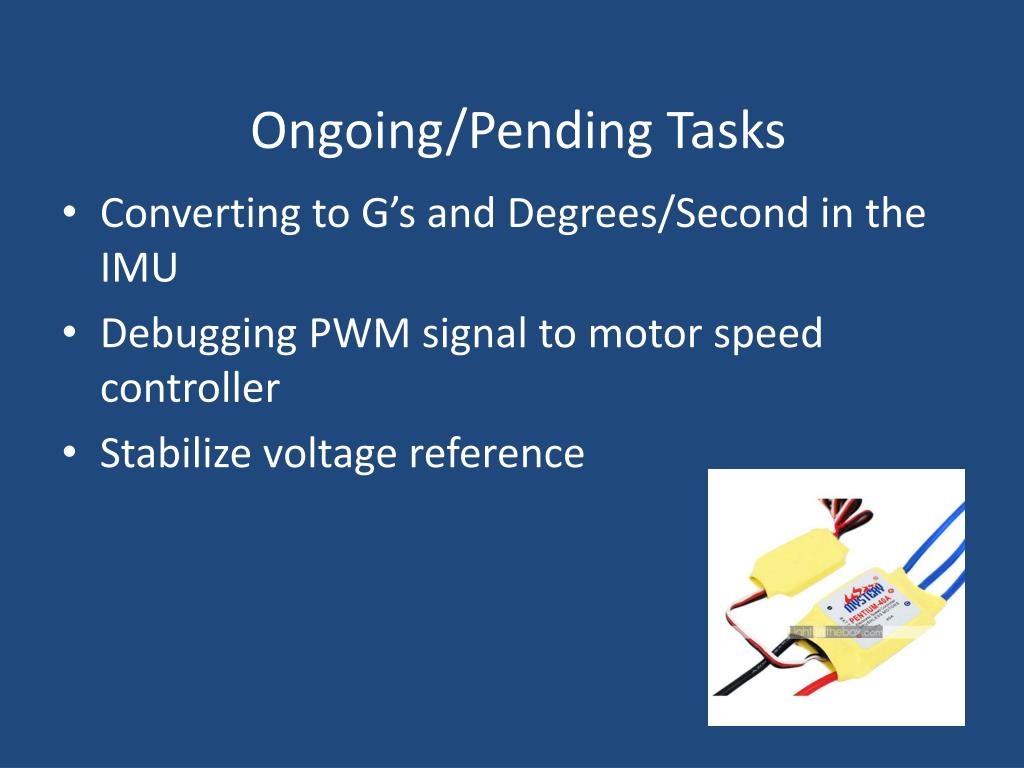

  4. Ongoing/Pending Tasks • Converting to G’s and Degrees/Second in the IMU • Debugging PWM signal to motor speed controller • Stabilize voltage reference

  5. Upcoming Tasks • Mount motors • Test lipo and nimh battery output • Use a separate battery to arduino/ atmega1280 board for power • Write a function/expression for the IMU filtering

  6. 60% 95% 90% 80%

  7. Project schedule.
