Infiniium Oscilloscopes: 21 OSD Measurements Addon for Simultaneous Visual Display

This Infiniium addon, developed by Pascal, enables users to display and analyze up to 21 measurements simultaneously on screen. With capabilities for user definable measures, drag-and-drop functionality, and deep statistics, this tool provides enhanced analysis capabilities. Users can easily set up, define, save, and recall measurement setups, making it efficient and convenient. The tool also offers a new GUI pop-up menu for easy configuration of measurements, saving time and effort in data analysis. The Measarray setup file, saved in a simple ASCII format, contains measurement names and SCPI query strings for result retrieval, enhancing user convenience. The tool computes activated measures once triggered and acquired, providing quick measurement insights. For a better understanding of Infiniium oscilloscopes' SCPI programming language, users can refer to the provided resources. Press "Stop" to properly exit the tool. Contact pascal_grison@agilent.com for comments, feedback, or enhancements.

tameka
Télécharger la présentation

Infiniium Oscilloscopes: 21 OSD Measurements Addon for Simultaneous Visual Display

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AGILENT INFINIIUM OSCILLOSCOPES21 SimultaneousMeasurementsOn Screen Display beta 0.5 An Infiniium Addon by Pascal. All files availableat: http://scopetools.free.fr/VEE/21_Meas_OSD/ DemoVideoAvailable: http://scopetools.free.fr/VEE/21_Meas_OSD/21_MEAS_OSD_DemoVideo.avi Requires XVID CODEC: http://scopetools.free.fr/VEE/Video_Codec/Xvid-1.1.3-27042008.exe

  2. Std Infiniium Scope MeasCapabilities 5 User DefinableMeasures Drag and Drop Capability With Single Meas per Trigor Measure All edges in Memory ProvidesDeepStatistics

  3. New Analysis Item: New AnalysisCapabilityCalled 21 Meas OSD

  4. New Analysis Menu New GUI Pop upEnable User to Easily setup Meas Define up to 21 Meas Save Meas Setup RecallMeas Setup Stop 21 Meas OSD

  5. Configure a New Measure Click ADD MEASURE A dropdownlist of all Infiniium availablemeasureappear Select desiredmeas and OKor Double Click on desiredmeasure

  6. Configure Measure Then Select required informations such Mode and Channel Source(s) Required for selectedmeasure

  7. SavingMeas Setup WhenSatisfiedwithDefinedMeasuresClick on SAVE MEASE TABLE This willallowany user to recallmeas setup in a single operation

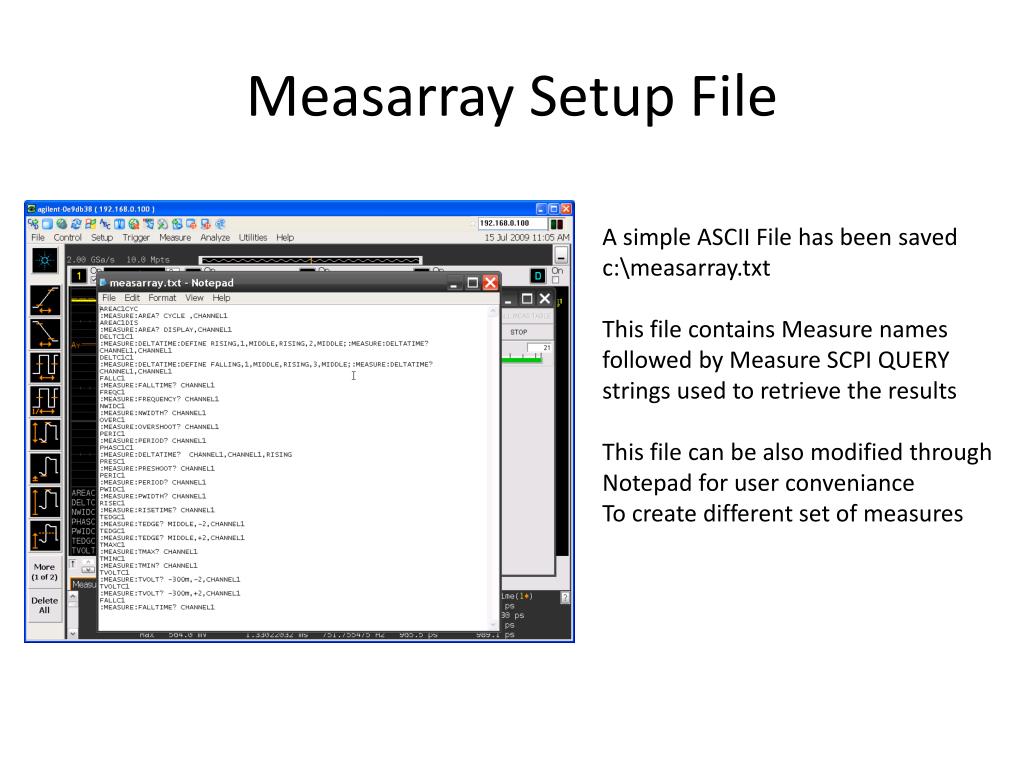

  8. MeasarraySetup File A simple ASCII File has been savedc:\measarray.txt This file containsMeasurenamesfollowed by Measure SCPI QUERY strings used to retrieve the results This file canbealsomodifiedthrough Notepad for user conveniance To createdifferent set of measures

  9. MeasarraySetup File Atany time Use RECALL MEAS TABLE buttonto instantlyreload the last savedc:\measarray.txt file intoMeasurmentAlgorythm.

  10. 5 QuickMeas + 21 Meas On screen Algorythmiswaiting for Trigger and Acquisition complete to computeAll activatedMeasures Measarray.txt file isalsousefull to get a good understanding on Infiniium Oscilloscopes SCPI ProgrammingLanguage Press Stop to properlyQuit21 Meas OSD

  11. Thank You for your time Comments? Feedbacks? Enhencements? pascal_grison@agilent.com
