  1. Scaled Instruments Accurately Reading Them

  2. What are They? • A device that has ordered markings at an equal distance from each other. • Used for measurement

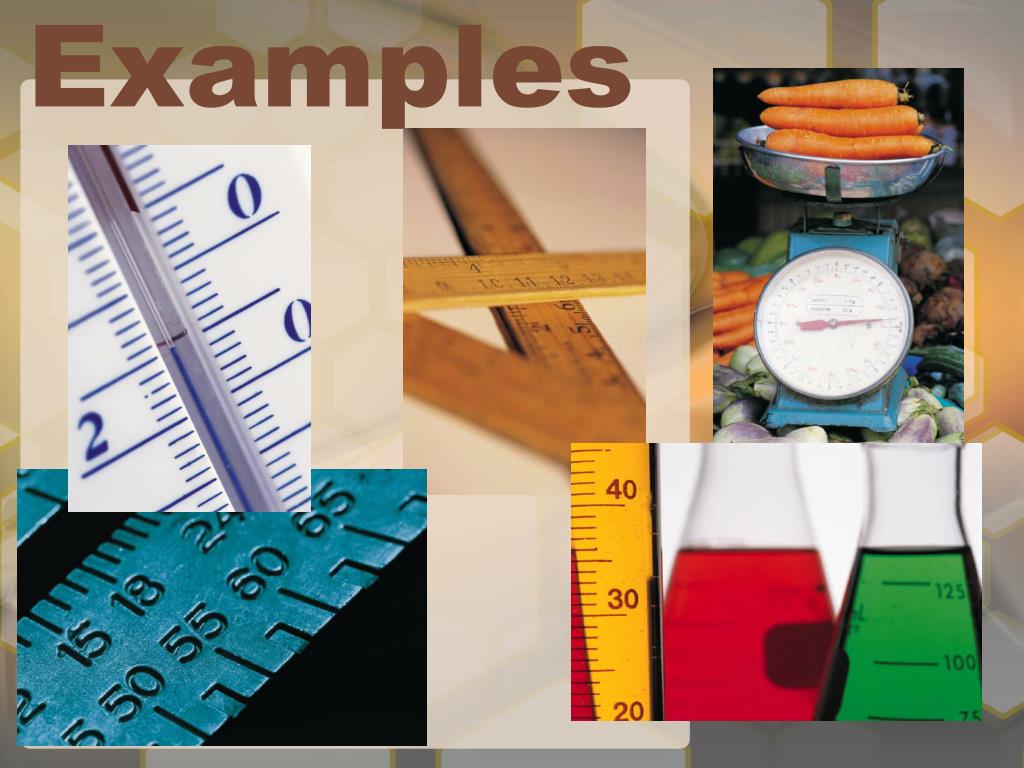

  3. Examples

  4. Reading Them • Look closely. • Don’t Rush.

  5. Reading Scales The key to Success.

  6. Formula for Success Value of Each line = JUMPdivided by# ofSPACES JUMP #of SPACES = Value of Line

  7. What’s a “Jump” Jump is the value betweentheNUMBERS on the scale. “How much do the numbers count up by?” JUMP Jump = 5

  8. What’s “# of Spaces?” # of spaces can be found by counting spaces betweenNUMBERS. #of Spaces =5 Spaces

  9. To The Formula JUMP = 5 #of SPACES = 5 JUMP #ofSPACES 5 1 = = 5

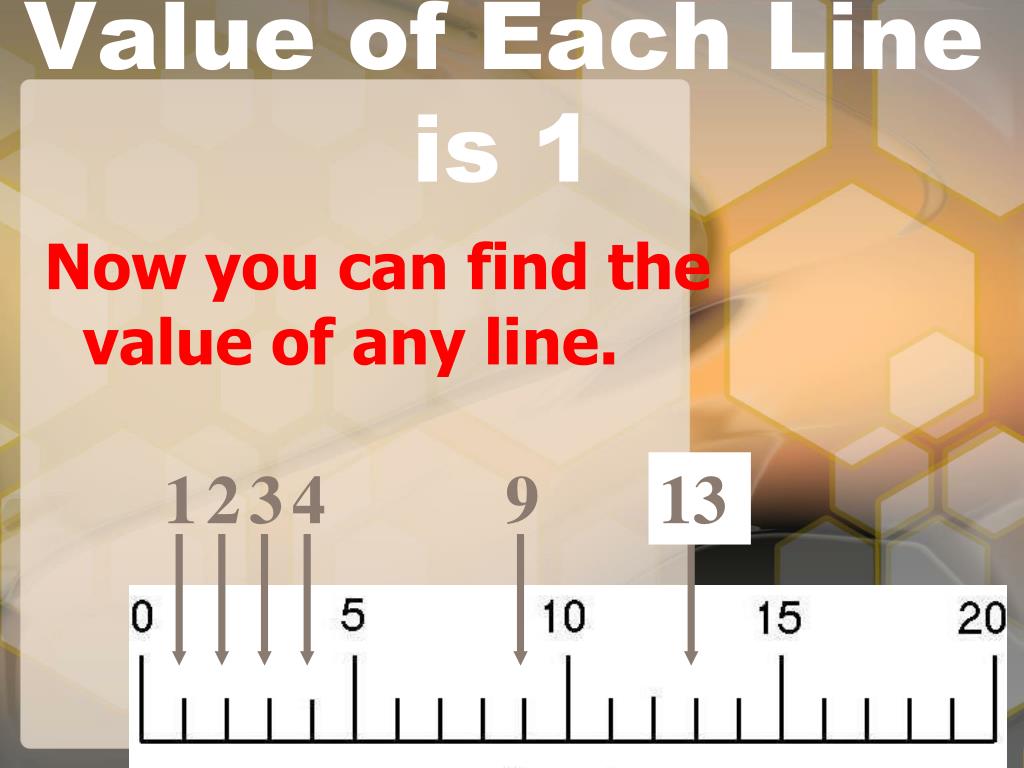

  10. Value of Each Line is 1 Now you can find the value of any line. 1 2 3 4 9 13

  11. A Little Practice JUMP = ?? 10 ____ = 1 10 #of Spaces = ?? 27 14 10 20 30

  12. Let’s Review “JUMP”is the value between the printed numbers. “#of Spaces”is the number of spaces you count between the printed numbers.

  13. Let’s Review Formula for success is: JUMP #of SPACES

  14. Off to the Lab Bring a Calculator
