Presentation Transcript

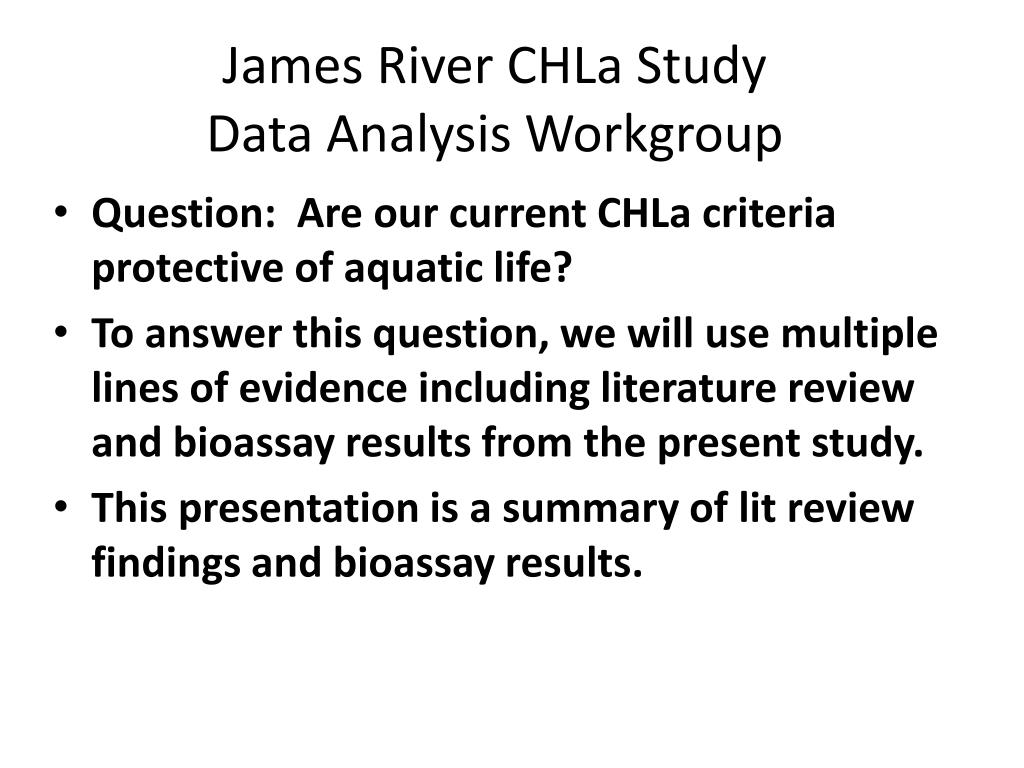

  1. James River CHLa Study Data Analysis Workgroup • Question: Are our current CHLa criteria protective of aquatic life? • To answer this question, we will use multiple lines of evidence including literature review and bioassay results from the present study. • This presentation is a summary of lit review findings and bioassay results.

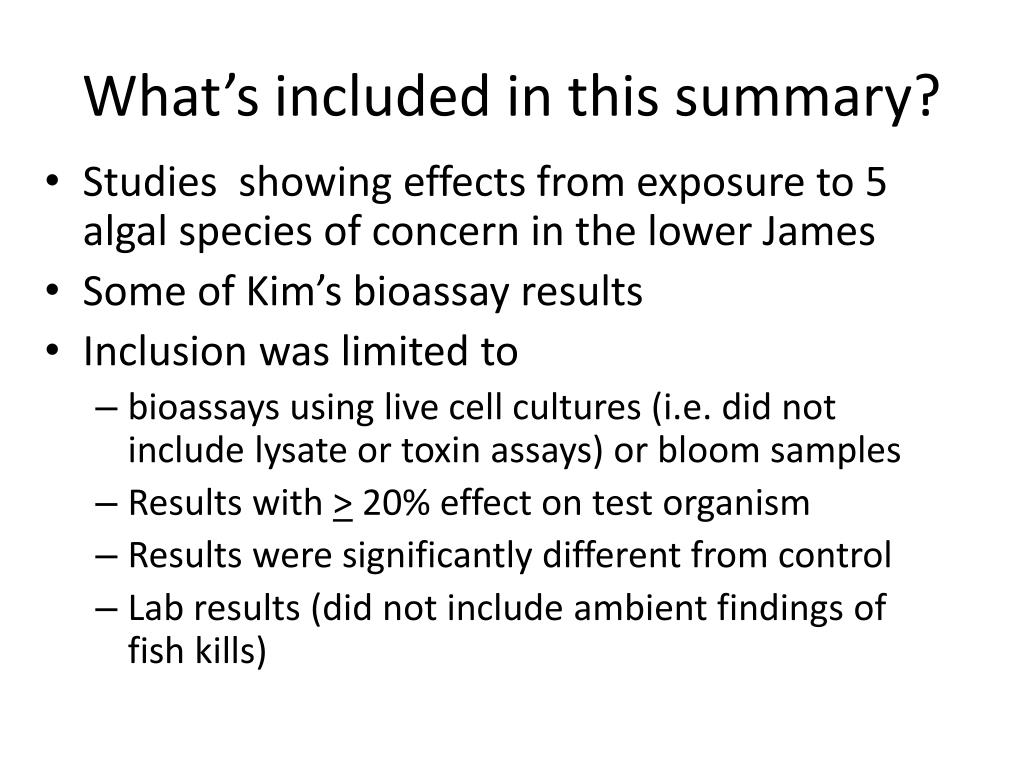

  2. What’s included in this summary? • Studies showing effects from exposure to 5 algal species of concern in the lower James • Some of Kim’s bioassay results • Inclusion was limited to • bioassays using live cell cultures (i.e. did not include lysate or toxin assays) or bloom samples • Results with > 20% effect on test organism • Results were significantly different from control • Lab results (did not include ambient findings of fish kills)

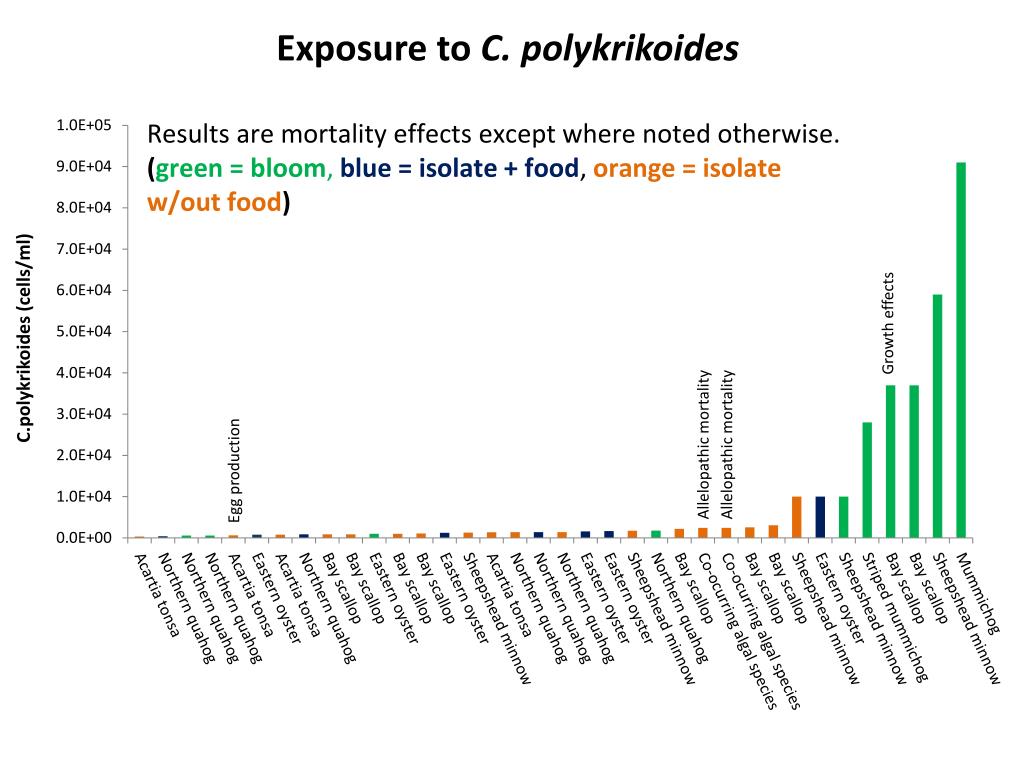

  3. Exposure to C. polykrikoides

  4. Exposure to C. polykrikoides

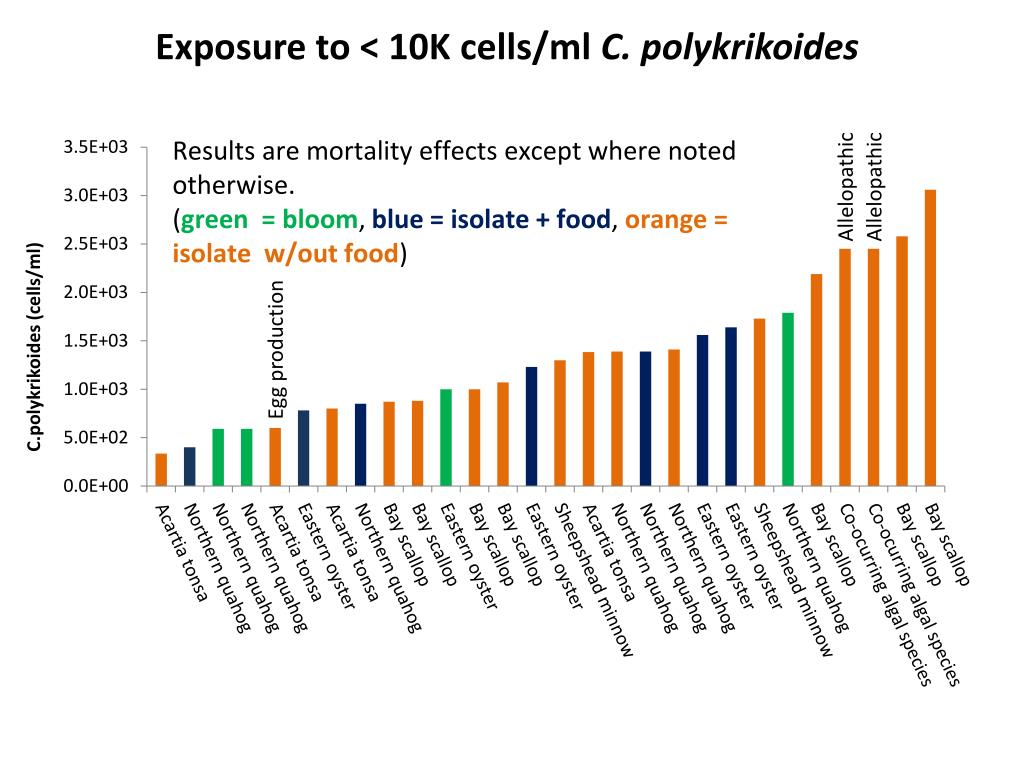

  5. Exposure to < 10K cells/ml C. polykrikoides

  6. Mortality from exposure to < 10K cells/ml C. polykrikoides • Many variables within the studies: • Algal strain • Test organism and age of organism • Type of study (bloom, mono-culture, lysate, toxin) • Stage of culture • Proportion of bloom that is algal species of interest

  7. Other algal species of concern in lower JR: Alexandrium monilatum, Karlodinium veneficum,Scrippsiella trochoidea, Prorocentrum minimum

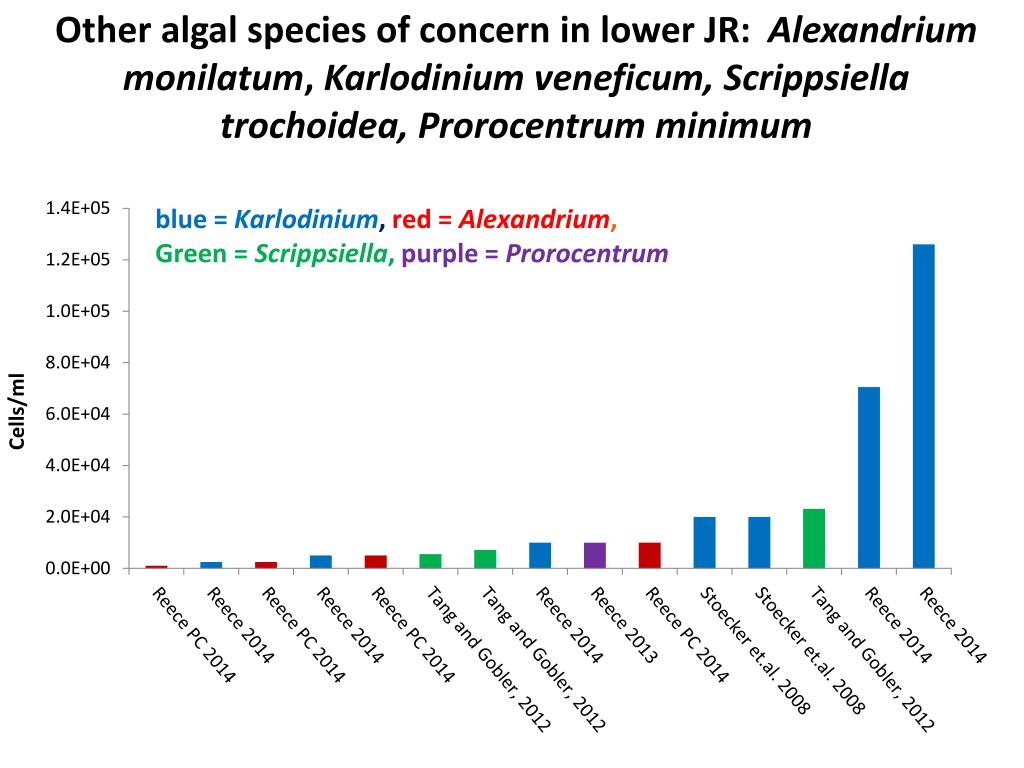

  8. Other algal species of concern in lower JR: Alexandrium monilatum, Karlodinium veneficum,Scrippsiella trochoidea, Prorocentrum minimum blue = Karlodinium, red = Alexandrium, Green = Scrippsiella, purple = Prorocentrum

  9. Mortality effects blue = Karlodinium, red = Alexandrium, Green = Scrippsiella, purple = Prorocentrum

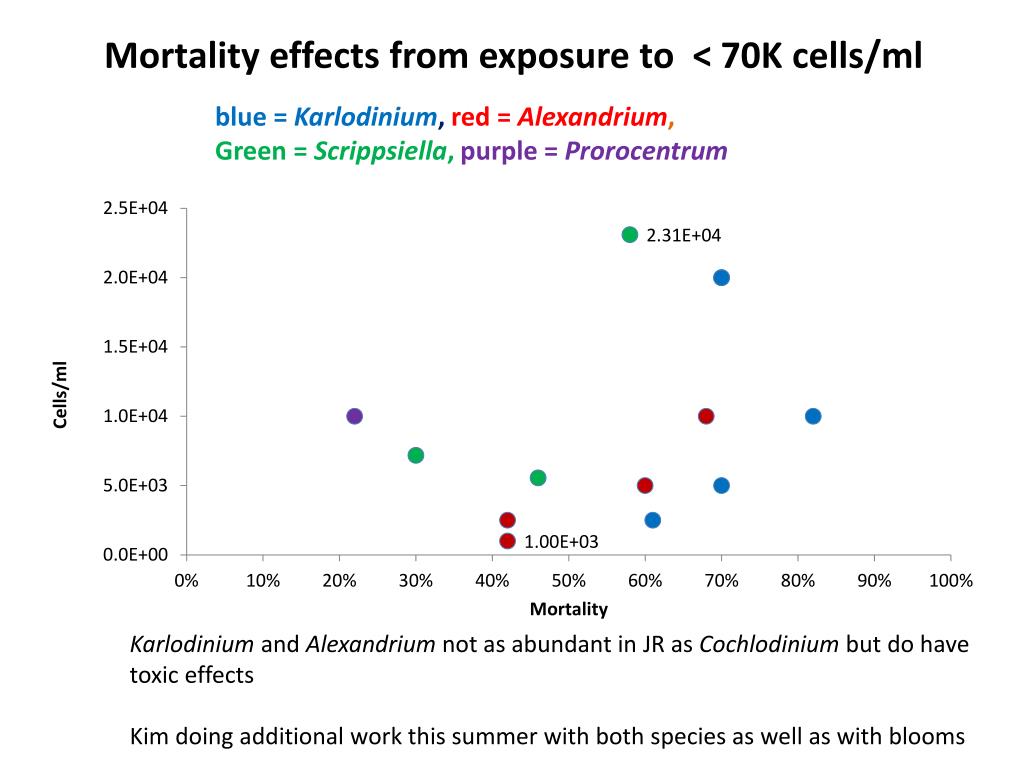

  10. Mortality effects from exposure to < 70K cells/ml blue = Karlodinium, red = Alexandrium, Green = Scrippsiella, purple = Prorocentrum Karlodinium and Alexandrium not as abundant in JR as Cochlodinium but do have toxic effects Kim doing additional work this summer with both species as well as with blooms

  11. Microcystis aeruginosa

  12. Microcystis aeruginosa 100% mortality in 96 h • James River cell concentrations: • < 10K fixed station monitoring in last 3 years • VIMS has observed concentrations up to 2.2M at ConMon sites in 2013

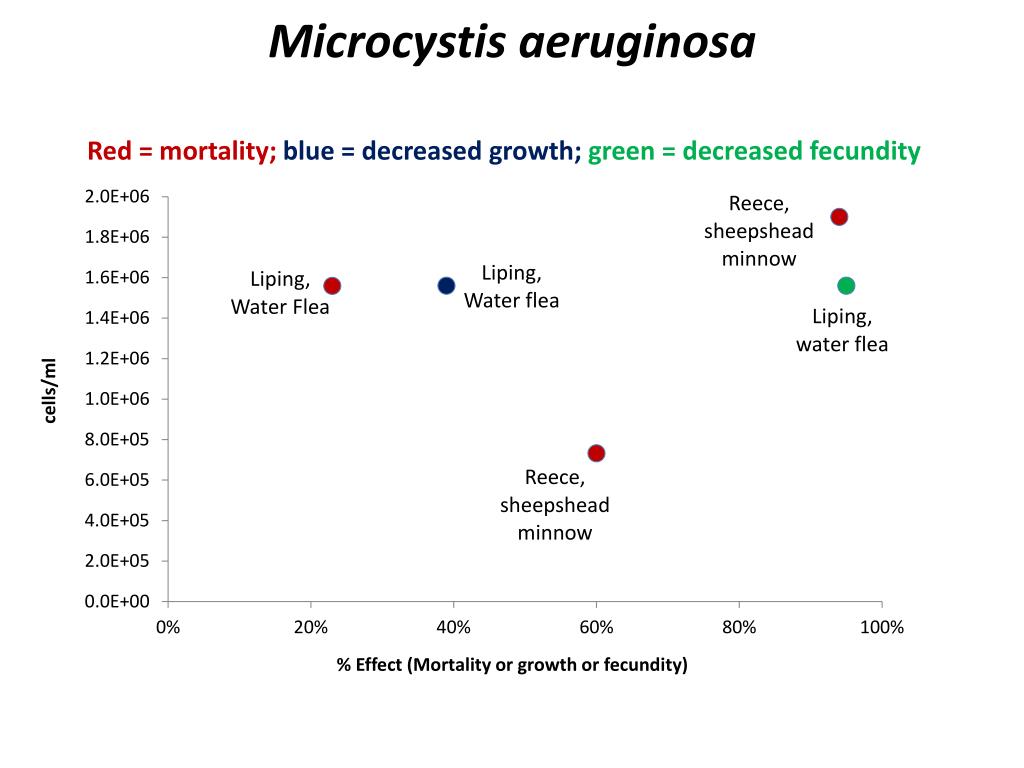

  13. Microcystis aeruginosa Red = mortality; blue = decreased growth; green = decreased fecundity

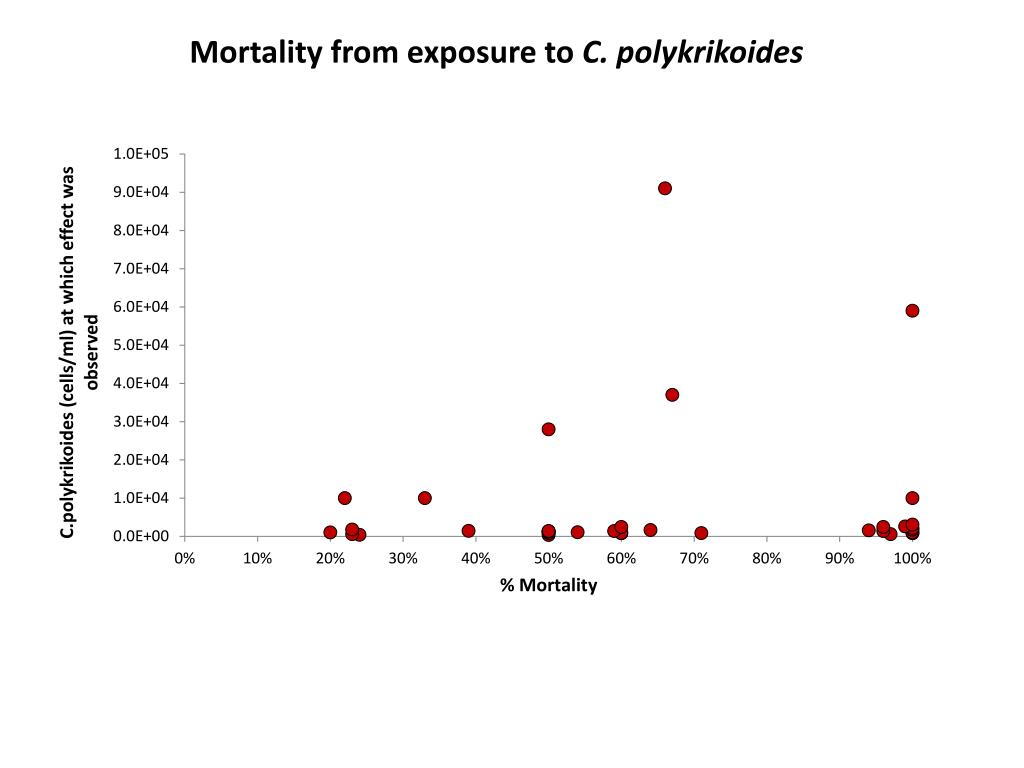

  14. Mortality from exposure to C. polykrikoides
