  1. Nonimaging Physiologic Tests Assessment of Lower Extremity Arterial Disease

  2. Understanding the Anatomy, Physiology and Pathophysiology

  3. Understanding the Equipment

  4. Knowing the Limitations

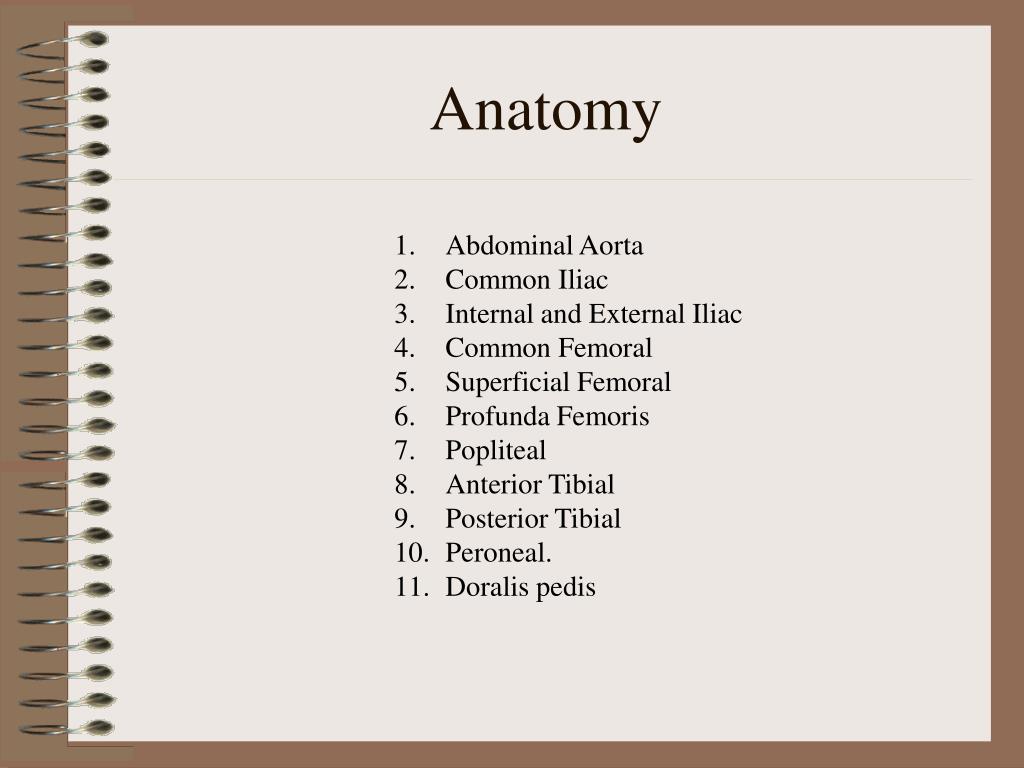

  5. Anatomy • Abdominal Aorta • Common Iliac • Internal and External Iliac • Common Femoral • Superficial Femoral • Profunda Femoris • Popliteal • Anterior Tibial • Posterior Tibial • Peroneal. • Doralis pedis

  6. Physiology • Blood Flow • Regulation of Blood Flow • Ventricular Contraction • Stroke Volume • Pressure Wave • Shape and Amplitude of Pressure Wave • Pressure Gradient • Peak Systolic Pressure

  7. Pathophysiology • Ateriosclerosis Obliterans • Most Common Site - SFA • Next Most Common Site – AI • Diabetic Vs Nondiabetic • Multiple Segments

  8. Clinical Symptoms • Ischemia – exercise and rest • Intermittent Claudication • Common Sites – calf, thigh, hip and buttock • Instep Claudication - TAO • Pseudoclaudication • Rest Pain

  9. Clinical Symptoms • Skin Changes • Ulcers • Gangrene

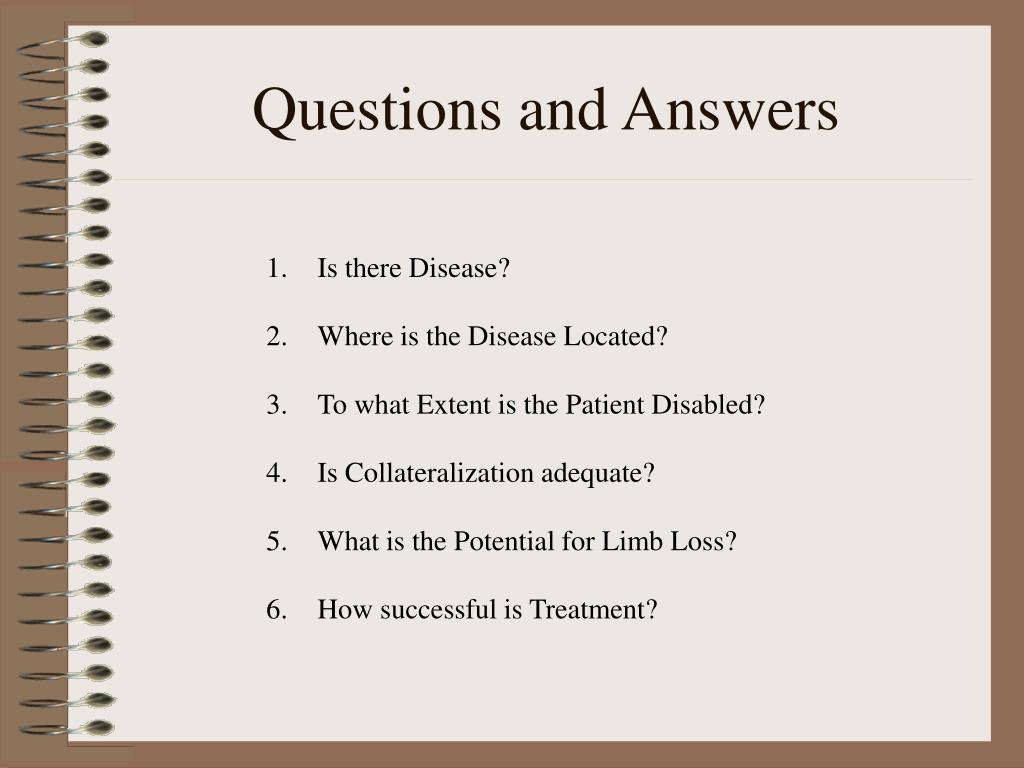

  10. Questions and Answers • Is there Disease? • Where is the Disease Located? • To what Extent is the Patient Disabled? • Is Collateralization adequate? • What is the Potential for Limb Loss? • How successful is Treatment?

  11. Instrumentation • Doppler Flowmeters • Plethysmographs - Pneumo, Strain Gauge, Impedance and Photo • Recording Devices

  12. Measurement of SystolicBlood Pressure • Wave amplification – Reflected waves, differences in • compliances • Peak Systolic Pressure • Critical Stenosis – degree of narrowing that produces • significant drop in distal pressure. • 4. Critical Stenosis – flow dependent

  13. Measurement of Systolic Blood Pressure • Ankle Pressure • Ankle Pressure Index • Values less than 1 indicate the presence of disease • Values > 0.5 < 1.0 – Single-level occlusion • Values < 0.5 – Multiple levels of occlusion

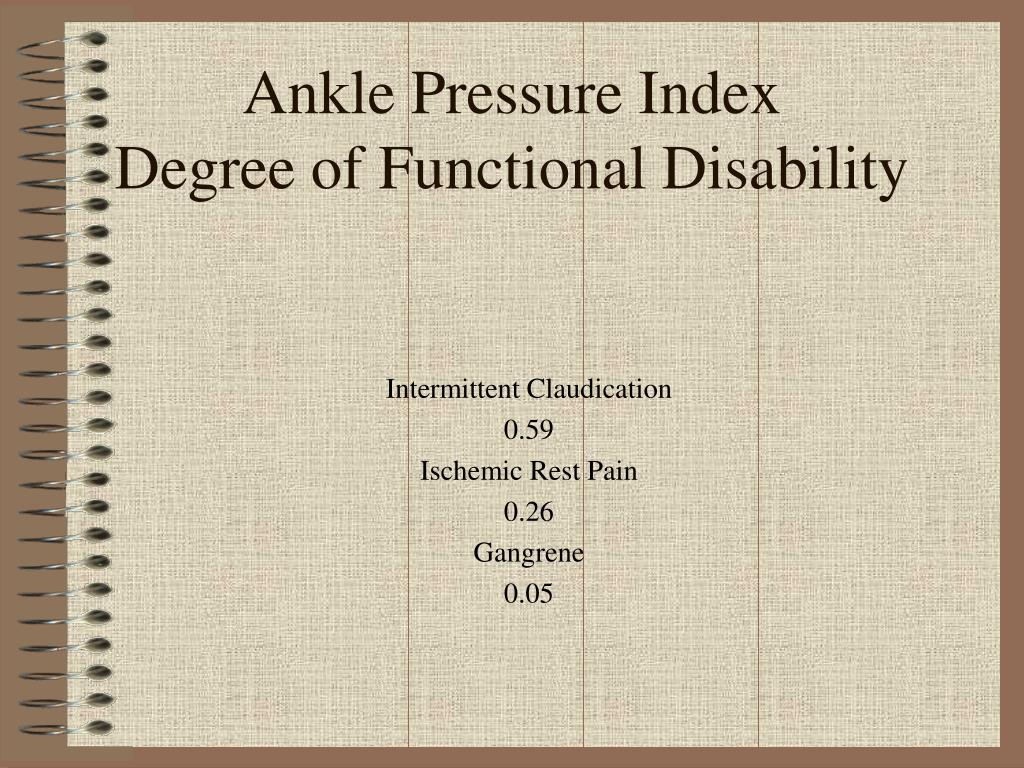

  14. Ankle Pressure IndexDegree of Functional Disability Intermittent Claudication 0.59 Ischemic Rest Pain 0.26 Gangrene 0.05

  15. Segmental Pressures • Location, Location, Location • Relative Significance • Cuff Placement – HT, AK, BK, and Ankle • HTSP – 30 to 40 mm Hg > BSP • Thigh Pressure Index - > 1.2 • TPI > 0.8 < 1.2 – Aortoiliac stenosis • TPI < 0.8 – Aortoiliac occlusion.

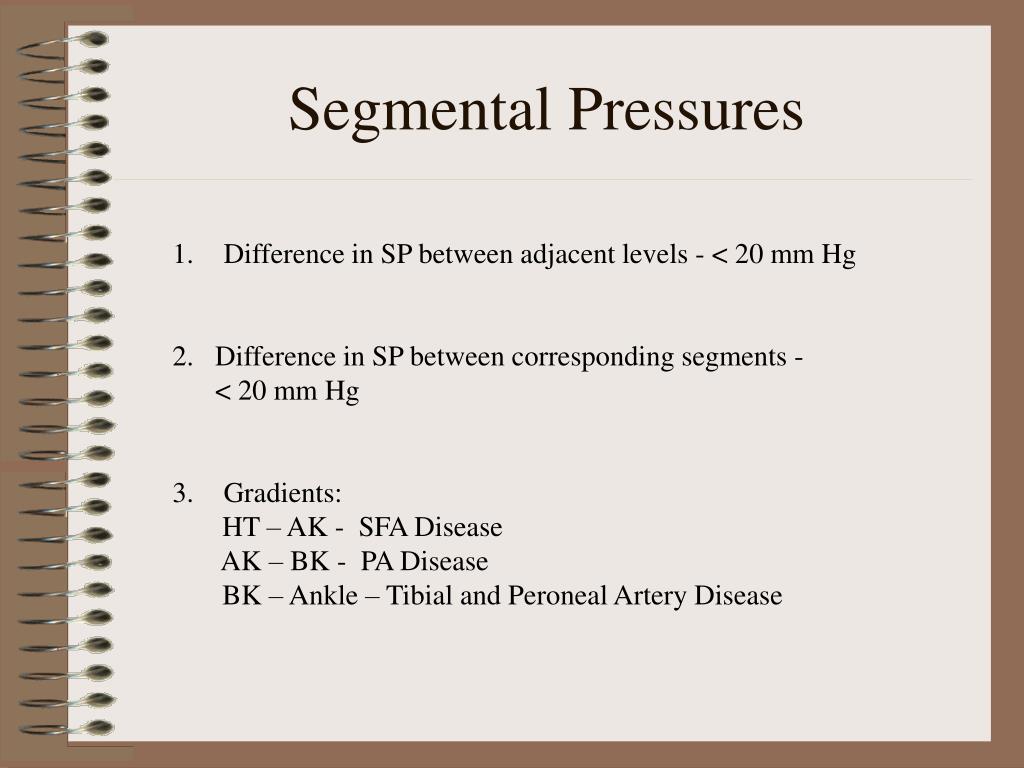

  16. Segmental Pressures • Difference in SP between adjacent levels - < 20 mm Hg • 2. Difference in SP between corresponding segments - • < 20 mm Hg • Gradients: • HT – AK - SFA Disease • AK – BK - PA Disease • BK – Ankle – Tibial and Peroneal Artery Disease

  17. Toe Pressure • Obstructive Disease - Pedal Arch and Digital Arteries • API – Spuriously high • Photoplethysmograph • Toe Pressure Index – 0.80 – 0.90 • TBI < 0.66 is considered abnormal
