  1. Conceptual ModelTranslation Translating an ERD into a relational database schema SFDV3002

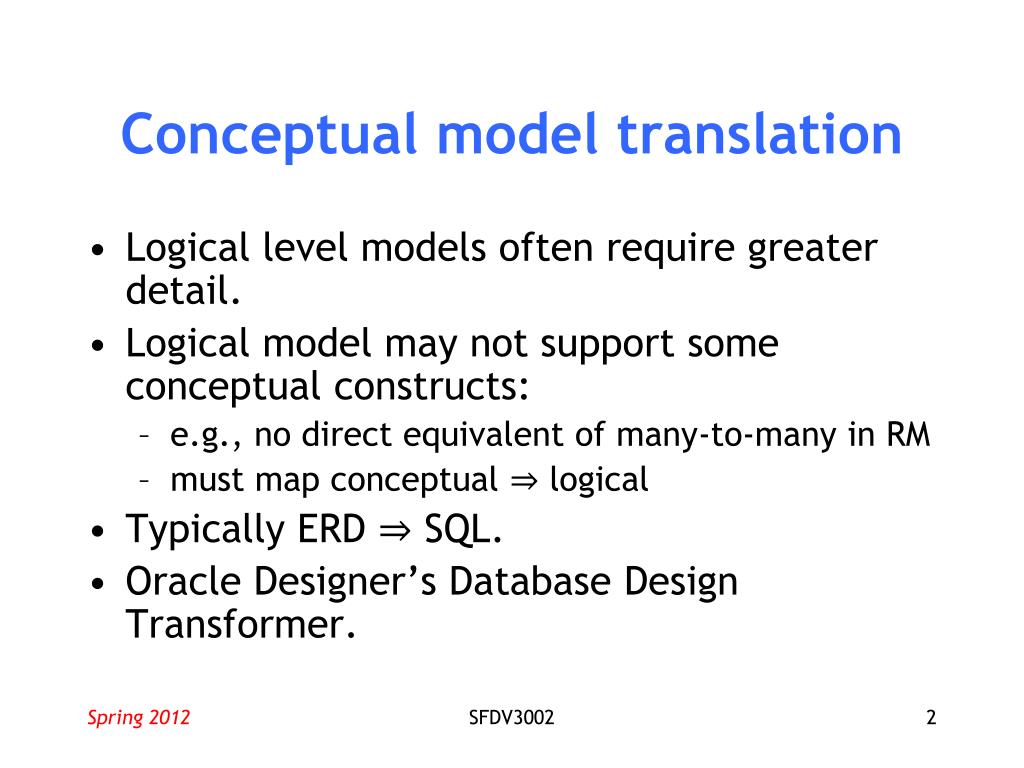

  2. Conceptual model translation • Logical level models often require greater detail. • Logical model may not support some conceptual constructs: • e.g., no direct equivalent of many-to-many in RM • must map conceptual ⇒ logical • Typically ERD ⇒ SQL. • Oracle Designer’s Database Design Transformer. SFDV3002

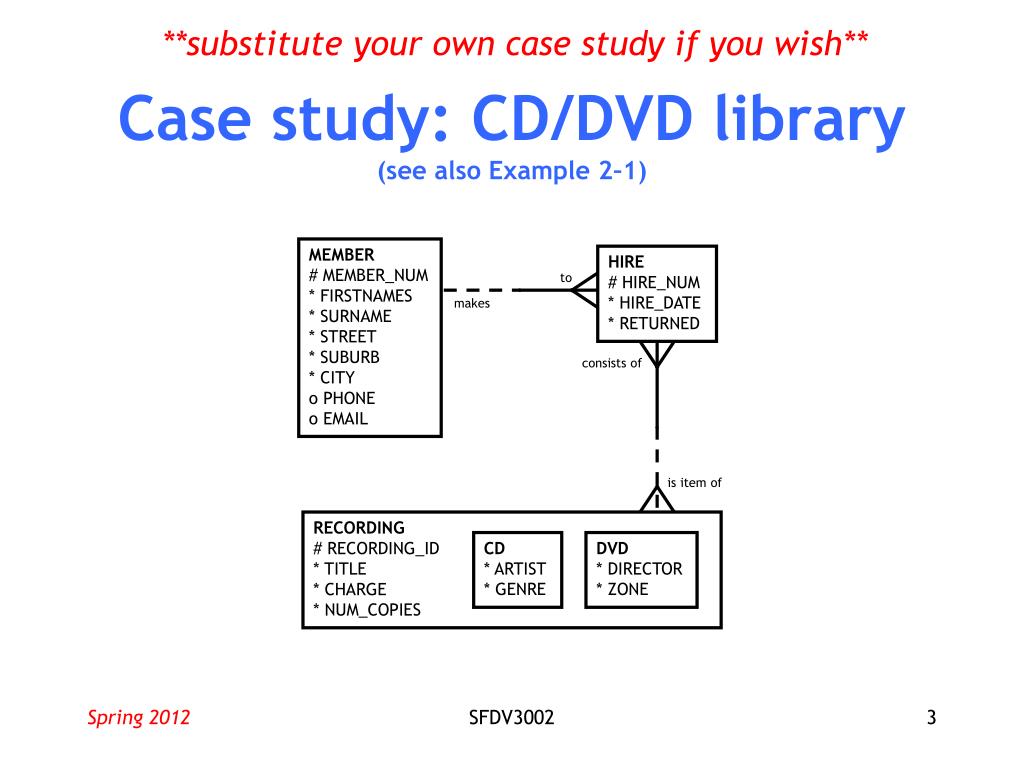

  3. **substitute your own case study if you wish** Case study: CD/DVD library(see also Example 2–1) MEMBER # MEMBER_NUM * FIRSTNAMES * SURNAME * STREET * SUBURB * CITY o PHONE o EMAIL HIRE # HIRE_NUM * HIRE_DATE * RETURNED to makes consists of is item of RECORDING # RECORDING_ID * TITLE * CHARGE * NUM_COPIES CD * ARTIST * GENRE DVD * DIRECTOR * ZONE SFDV3002

  4. General approach to translation • Generate candidate relations via: • entity translation • subtypes (see SFDV3003) • attribute translation • primary key definition • relationship translation • Normalise candidate relations if necessary, to at least 3NF (see SFDV3003) SFDV3002

  5. Translation rules Entity translation • each ERD entity ⇒ relation (usually) • different ways to handle subtypes (see slides **20–25**) Attribute translation • each ERD attribute ⇒ attribute in corresponding relation Primary key definition • entity unique ID ⇒ PK of corresponding relation Relationship translation • implement relationships through FK placements SFDV3002

  6. Entity and attribute translation • Each entity (usually) ⇒ relation. • entity name ⇒ relation name • Each attribute of entity ⇒ attribute of corresponding relation. • entity attribute name ⇒ relation attribute name SFDV3002

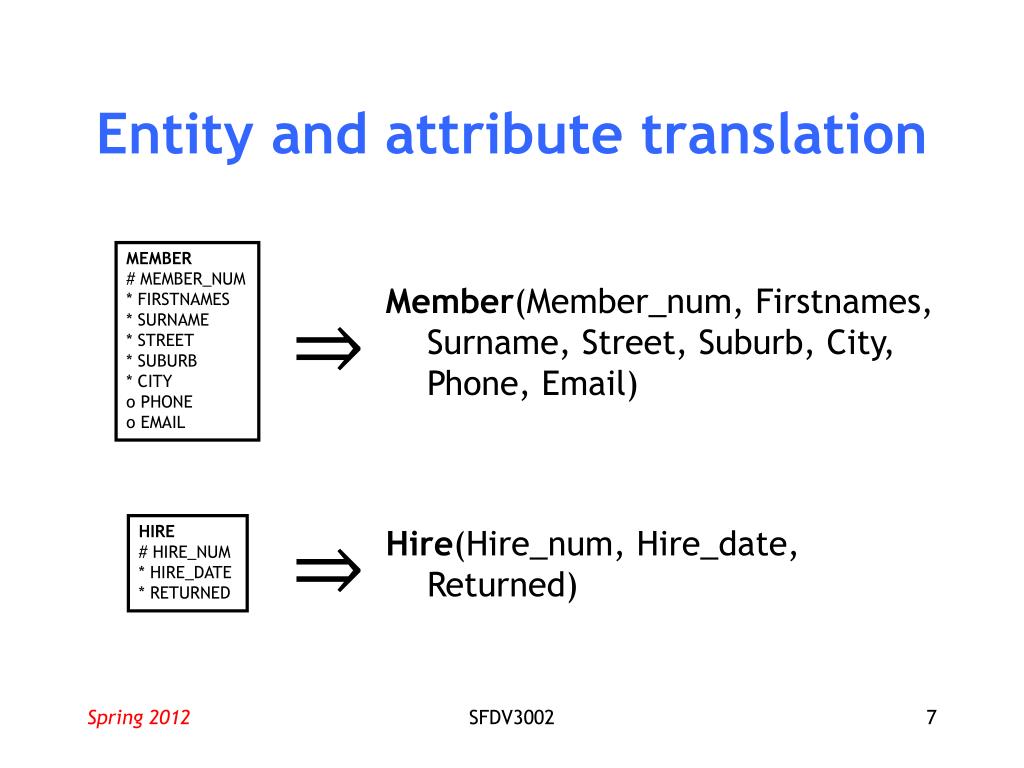

  7. Entity and attribute translation MEMBER # MEMBER_NUM * FIRSTNAMES * SURNAME * STREET * SUBURB * CITY o PHONE o EMAIL HIRE # HIRE_NUM * HIRE_DATE * RETURNED SFDV3002

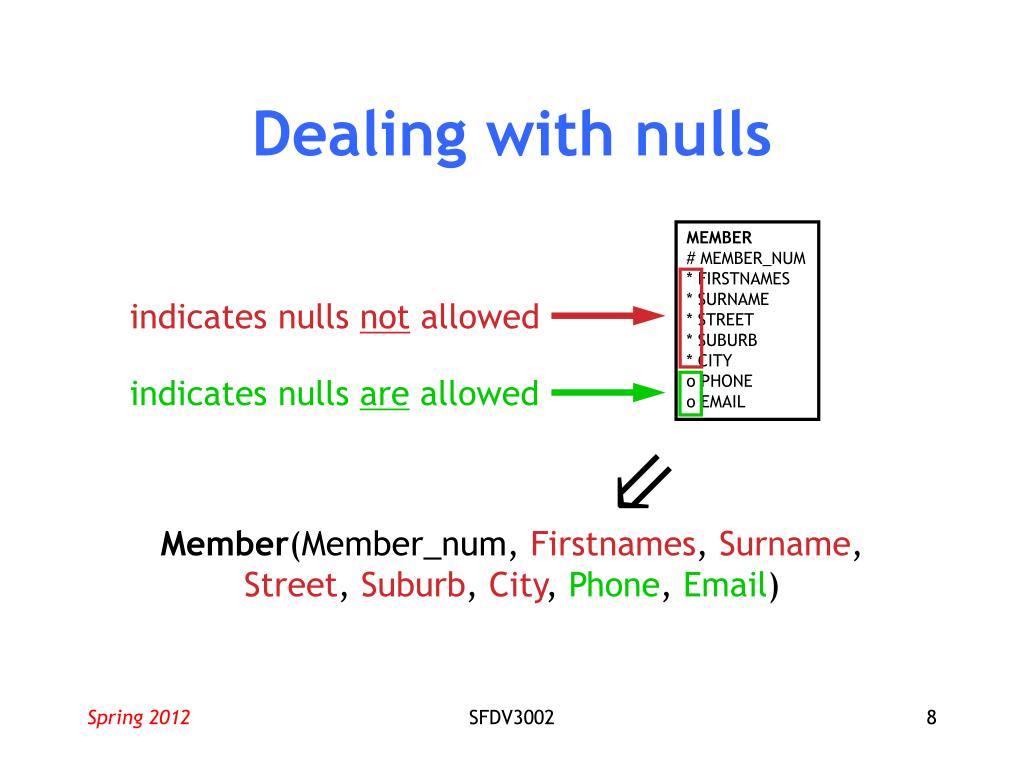

  8. Dealing with nulls MEMBER # MEMBER_NUM * FIRSTNAMES * SURNAME * STREET * SUBURB * CITY o PHONE o EMAIL indicates nulls not allowed indicates nulls are allowed ⇒ Member(Member_num, Firstnames, Surname,Street, Suburb, City, Phone, Email) SFDV3002

  9. Translating subtypes: Approach 1(D’Orazio & Happel, pp. 143–144) • One relation per subtype entity plus one for supertype entity. • Most flexible. • No wasted space. • Most complex implementation. SFDV3002

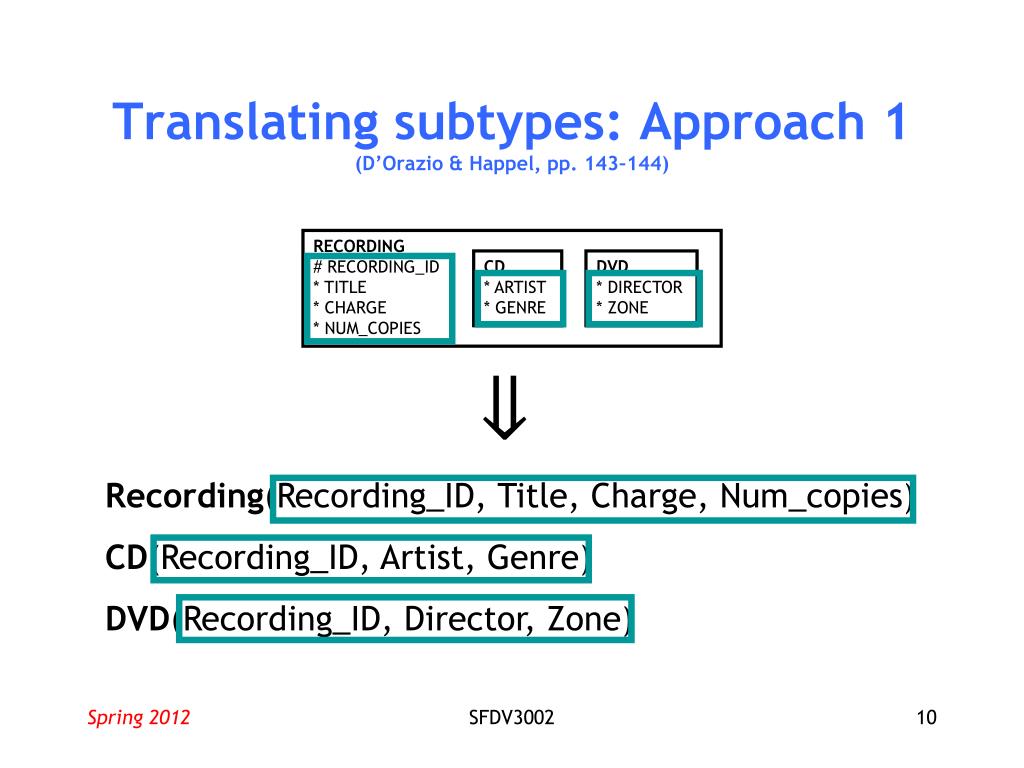

  10. Translating subtypes: Approach 1(D’Orazio & Happel, pp. 143–144) RECORDING # RECORDING_ID * TITLE * CHARGE * NUM_COPIES CD * ARTIST * GENRE DVD * DIRECTOR * ZONE ⇒ Recording(Recording_ID, Title, Charge, Num_copies) CD(Recording_ID, Artist, Genre) DVD(Recording_ID, Director, Zone) SFDV3002

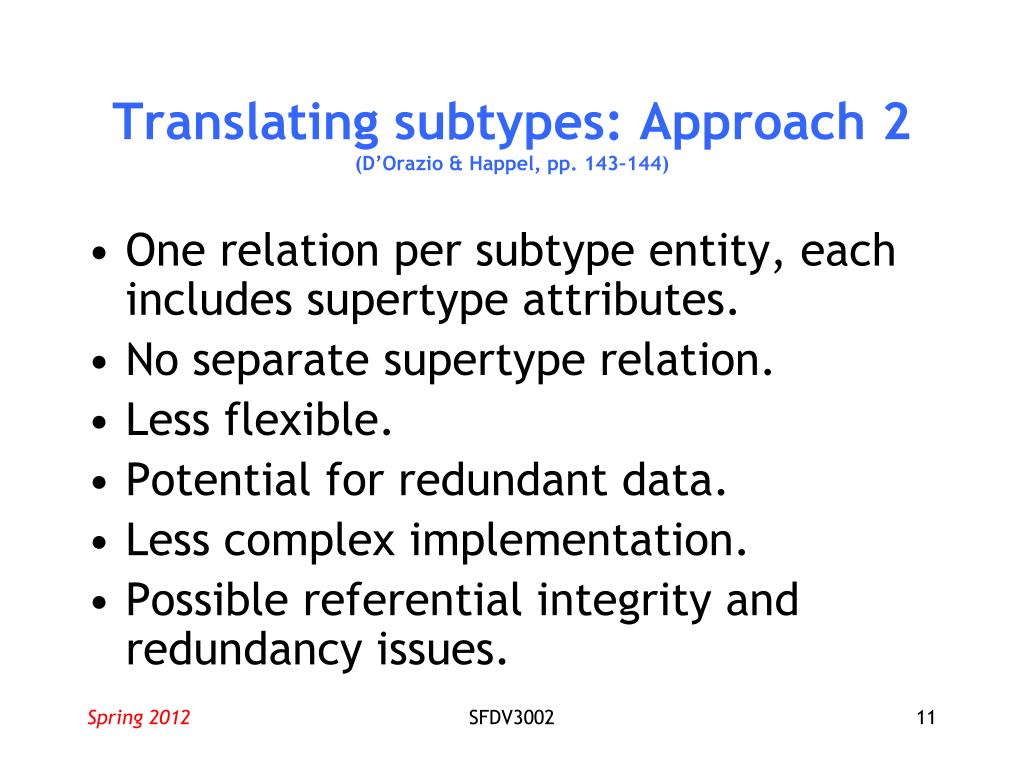

  11. Translating subtypes: Approach 2(D’Orazio & Happel, pp. 143–144) • One relation per subtype entity, each includes supertype attributes. • No separate supertype relation. • Less flexible. • Potential for redundant data. • Less complex implementation. • Possible referential integrity and redundancy issues. SFDV3002

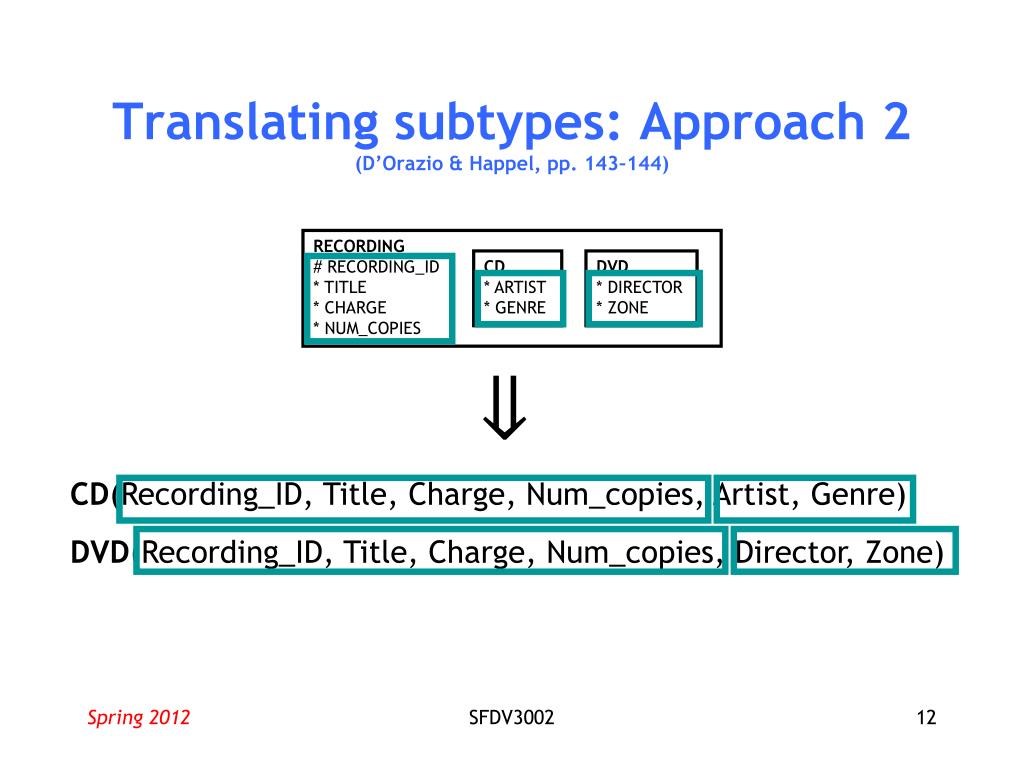

  12. Translating subtypes: Approach 2(D’Orazio & Happel, pp. 143–144) RECORDING # RECORDING_ID * TITLE * CHARGE * NUM_COPIES CD * ARTIST * GENRE DVD * DIRECTOR * ZONE ⇒ CD(Recording_ID, Title, Charge, Num_copies, Artist, Genre) DVD(Recording_ID, Title, Charge, Num_copies, Director, Zone) SFDV3002

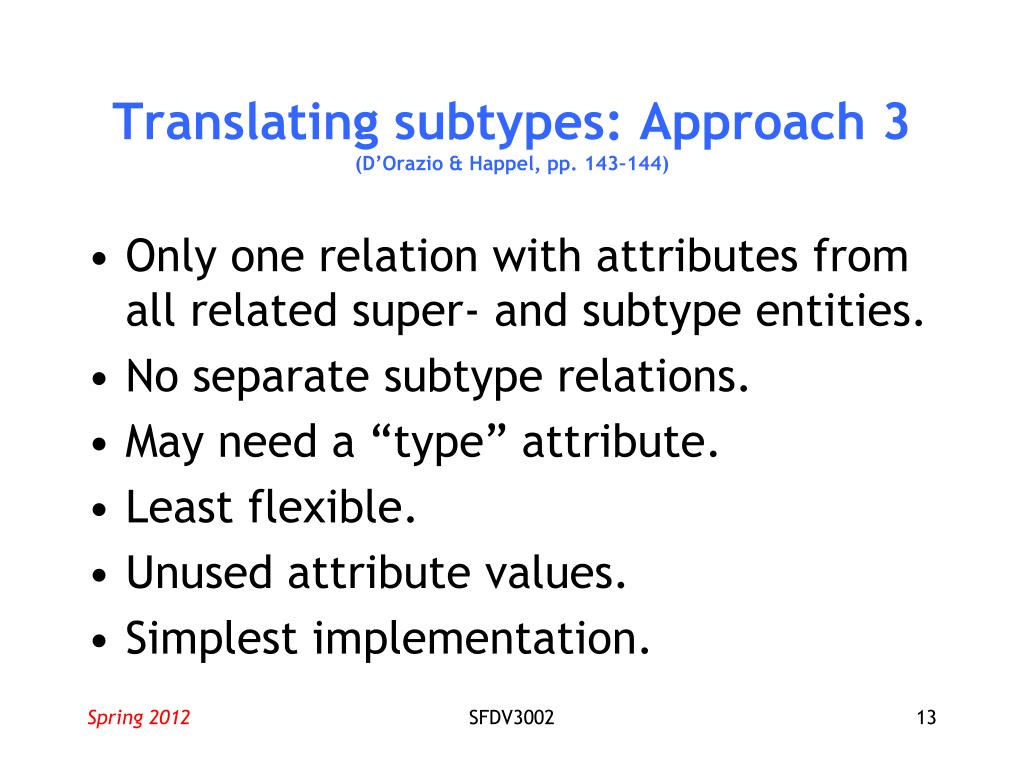

  13. Translating subtypes: Approach 3(D’Orazio & Happel, pp. 143–144) • Only one relation with attributes from all related super- and subtype entities. • No separate subtype relations. • May need a “type”attribute. • Least flexible. • Unused attribute values. • Simplest implementation. SFDV3002

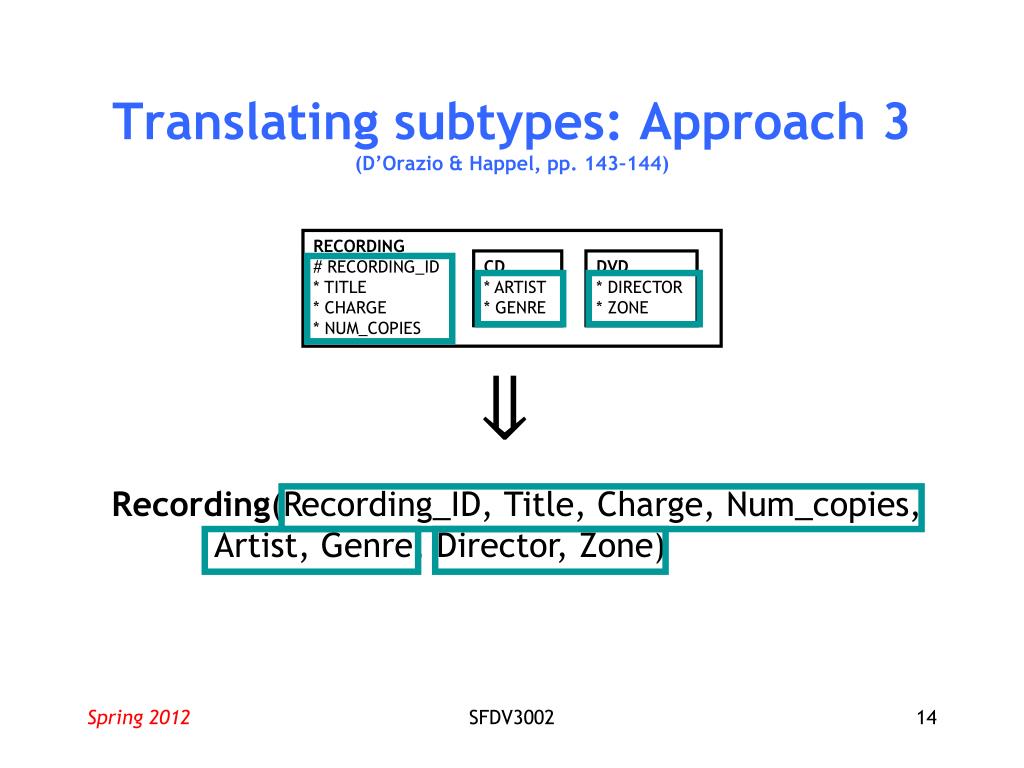

  14. Translating subtypes: Approach 3(D’Orazio & Happel, pp. 143–144) RECORDING # RECORDING_ID * TITLE * CHARGE * NUM_COPIES CD * ARTIST * GENRE DVD * DIRECTOR * ZONE ⇒ Recording(Recording_ID, Title, Charge, Num_copies, Artist, Genre, Director, Zone) SFDV3002

  15. Primary key definition • Entity unique identifier ⇒ corresponding relation’s PK. SFDV3002

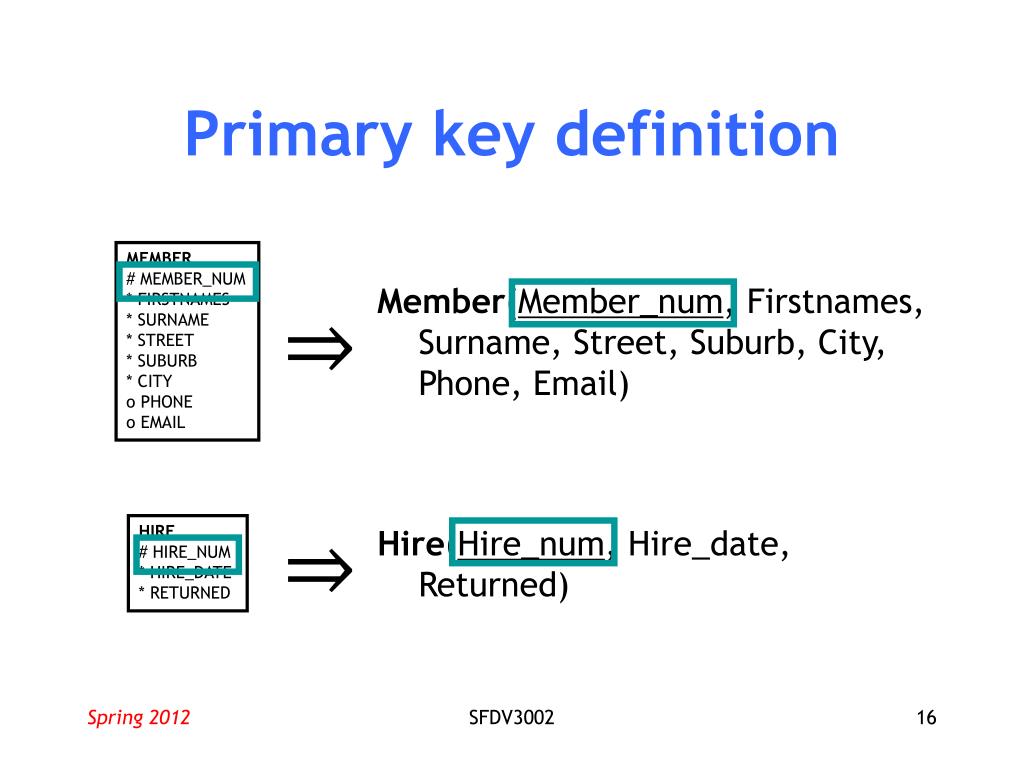

  16. Primary key definition MEMBER # MEMBER_NUM * FIRSTNAMES * SURNAME * STREET * SUBURB * CITY o PHONE o EMAIL HIRE # HIRE_NUM * HIRE_DATE * RETURNED SFDV3002

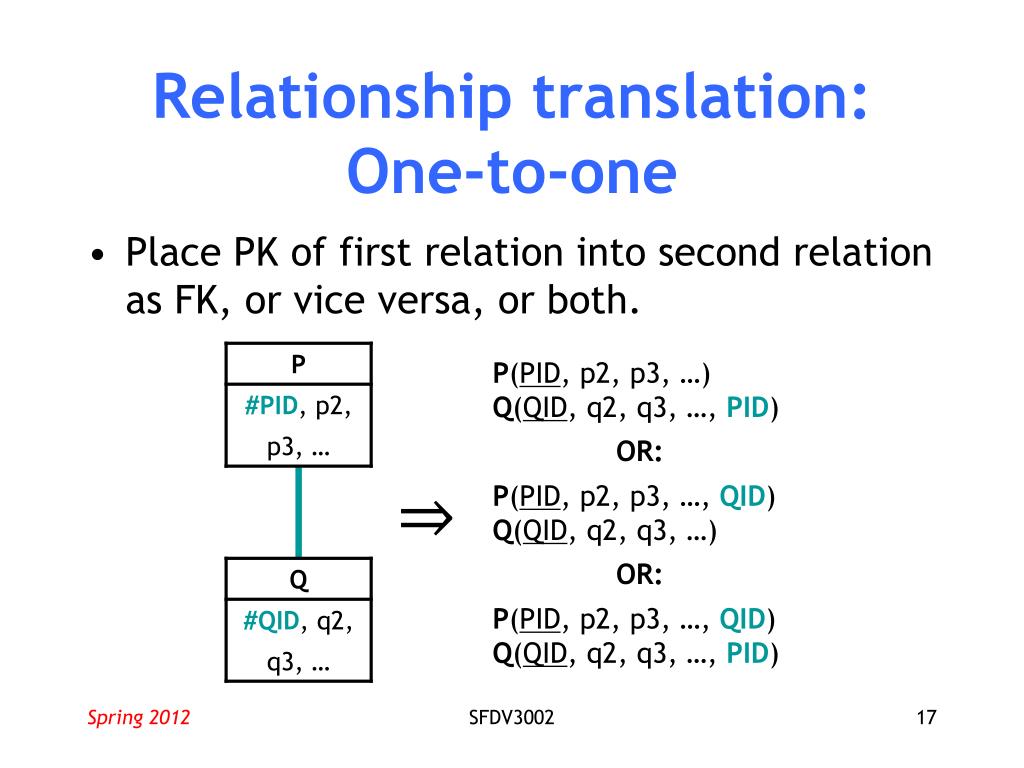

  17. Relationship translation: One-to-one • Place PK of first relation into second relation as FK, or vice versa, or both. SFDV3002

  18. Relationship translation: One-to-one • If one entity optional and other mandatory, put FK in “optional” relation. Ensures no nulls in FK (see slide **37**) SFDV3002

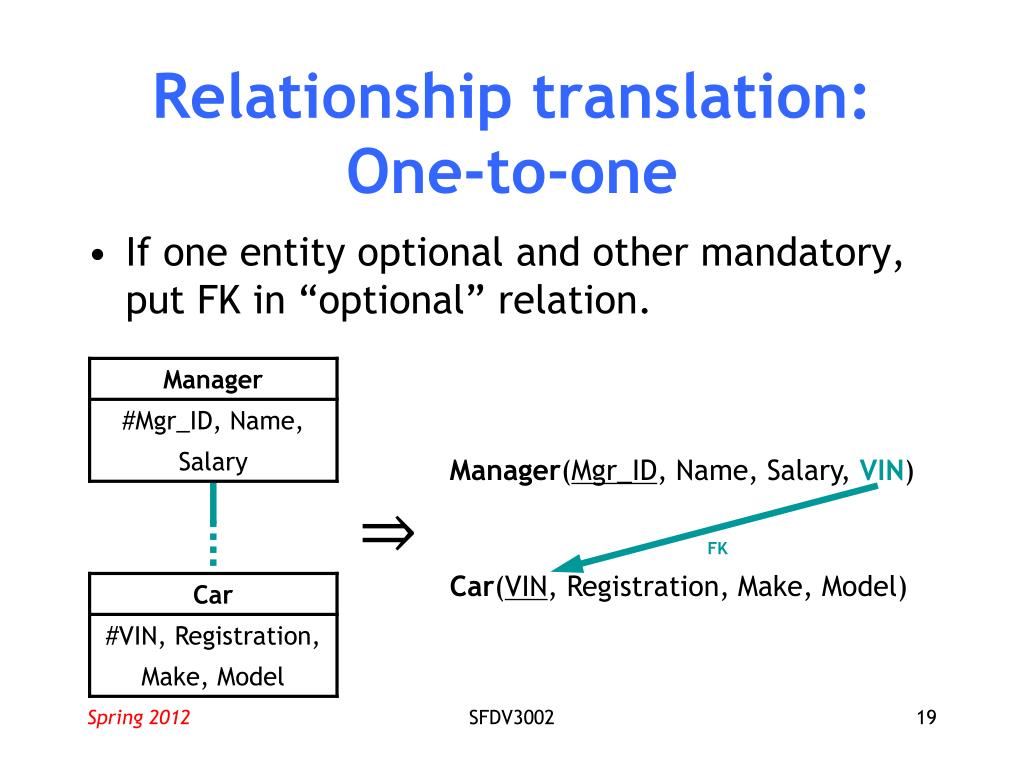

  19. Relationship translation: One-to-one • If one entity optional and other mandatory, put FK in “optional” relation. FK SFDV3002

  20. Relationship translation: One-to-many • Place PK of “one” relation into “many” relation as FK. SFDV3002

  21. Relationship translation: One-to-many MEMBER # MEMBER_NUM * FIRSTNAMES * SURNAME * STREET * SUBURB * CITY o PHONE o EMAIL HIRE # HIRE_NUM * HIRE_DATE * RETURNED to makes ⇒ Hire(Hire_num, Hire_date, Returned, Member) ⇒ FK Member(Member_num, Firstnames, Surname, Street, Suburb, City, Phone, Email) SFDV3002

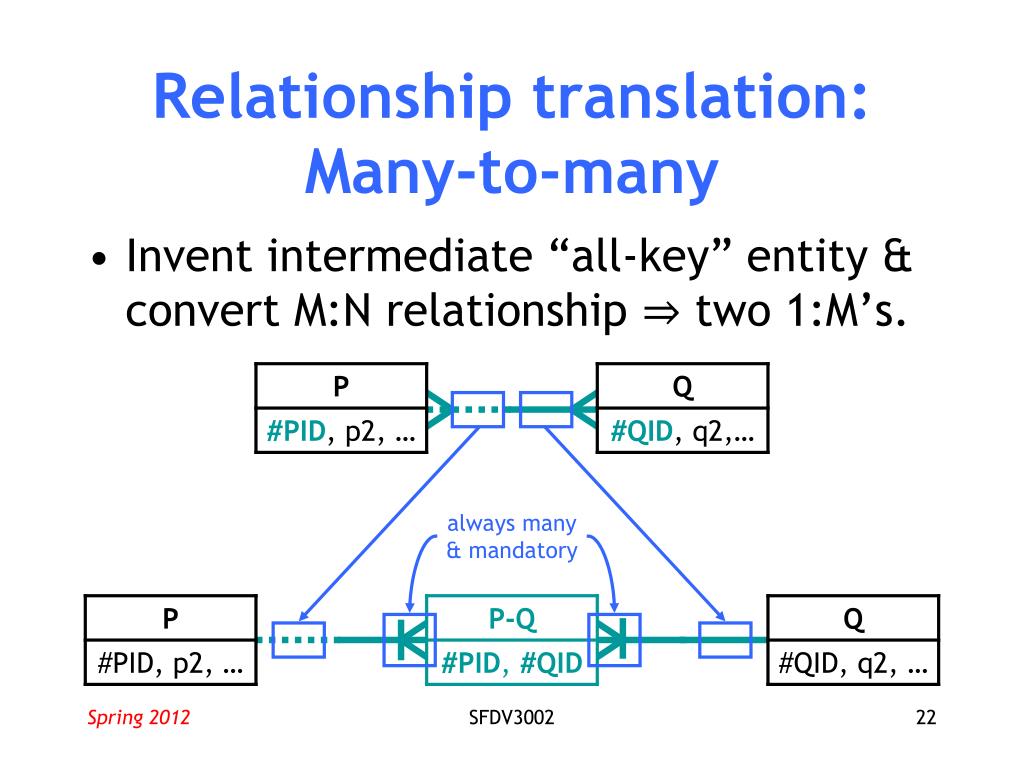

  22. Relationship translation: Many-to-many • Invent intermediate “all-key”entity & convert M:N relationship ⇒ two 1:M’s. always many & mandatory SFDV3002

  23. Relationship translation: Many-to-many ⇐ HIRE # HIRE_NUM * HIRE_DATE * RETURNED Hire(Hire_num, Hire_date, Returned, Member) FK ⇐ consists of Recording_Hire(Hire_num, Recording_ID) FK is item of Recording(Recording_ID, Title, Charge, Num_copies, Artist, Genre, Director, Zone) ⇐ RECORDING # RECORDING_ID * TITLE * CHARGE * NUM_COPIES CD * ARTIST * GENRE DVD * DIRECTOR * ZONE SFDV3002

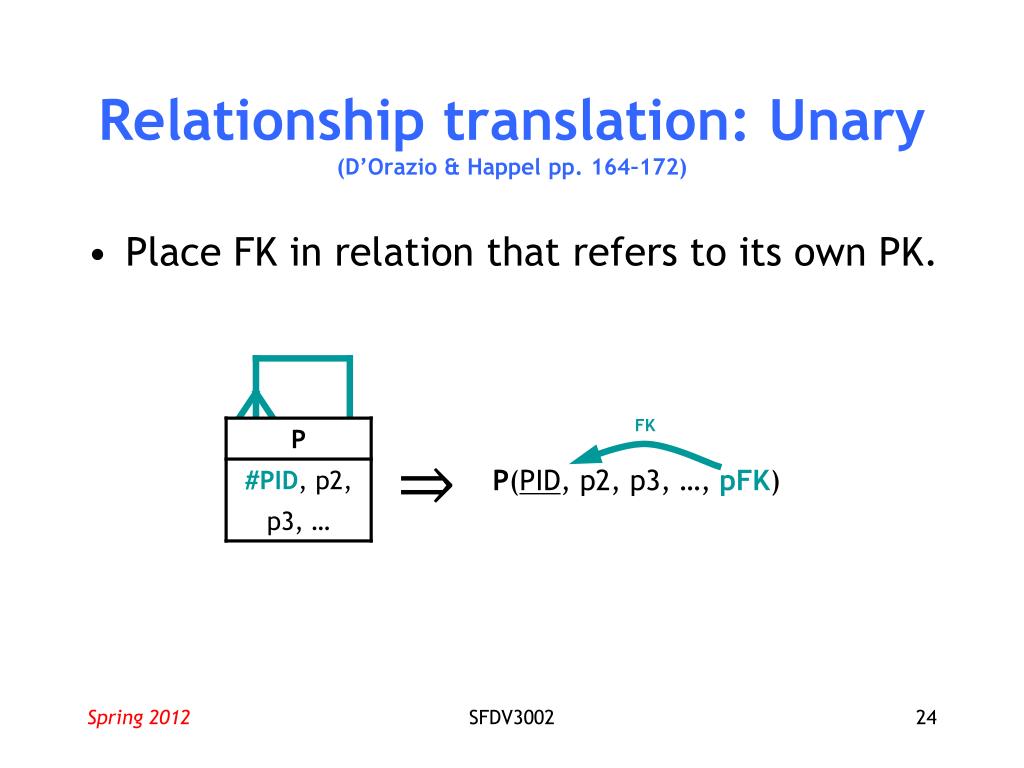

  24. Relationship translation: Unary(D’Orazio & Happel pp. 164–172) • Place FK in relation that refers to its own PK. FK SFDV3002

  25. Relationship translation: Unary(D’Orazio & Happel pp. 164–172) FK SFDV3002

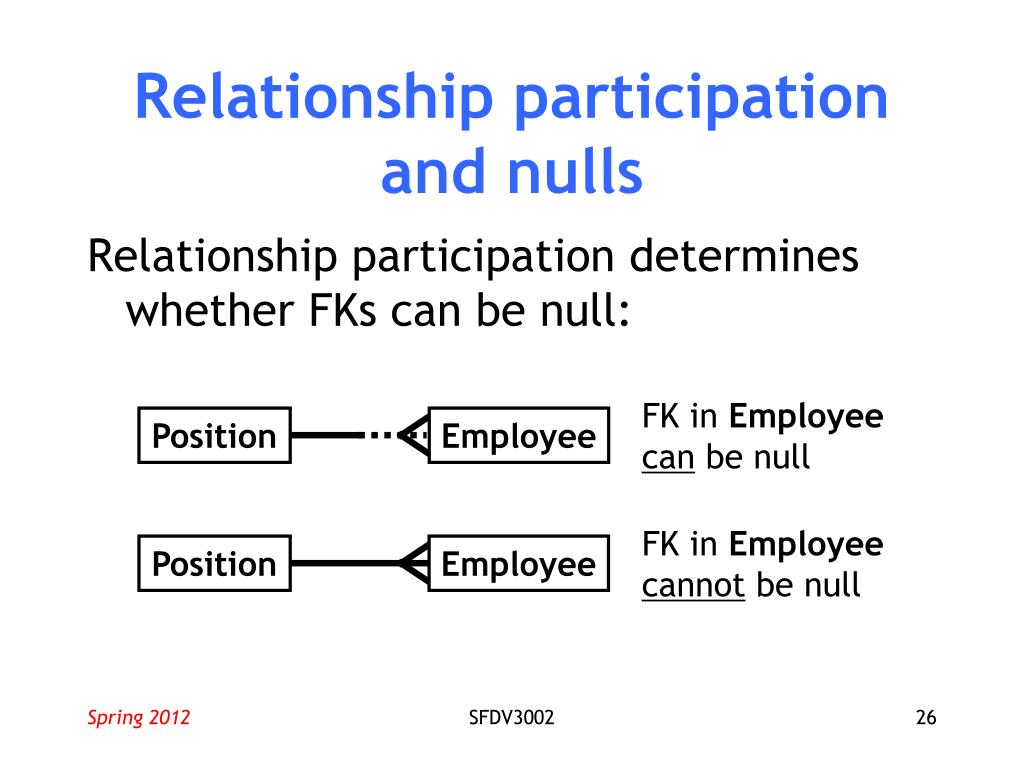

  26. Relationship participation and nulls Relationship participation determines whether FKs can be null: FK in Employeecan be null Position Employee FK in Employeecannot be null Position Employee SFDV3002

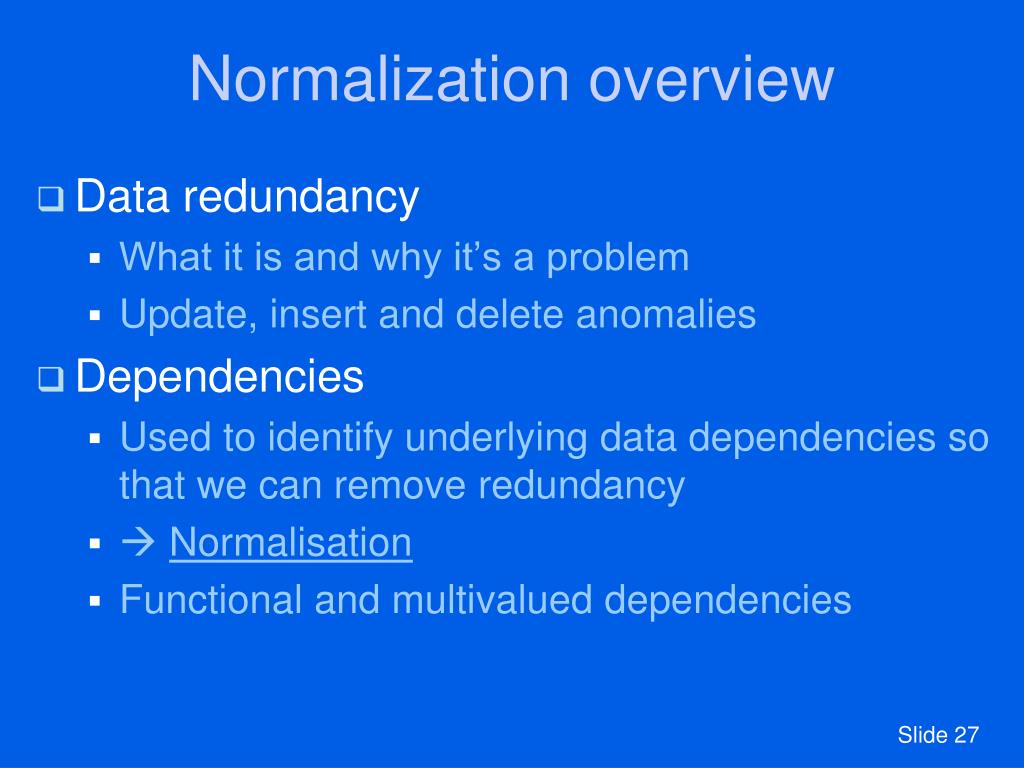

  27. Normalization overview • Data redundancy • What it is and why it’s a problem • Update, insert and delete anomalies • Dependencies • Used to identify underlying data dependencies so that we can remove redundancy • Normalisation • Functional and multivalued dependencies

  28. Data redundancy • Values stored repetitively in relations (esp. poorly designed relations) • Potential for anomalous data to be stored This relation associates employees with projects. Assume no nulls are allowed.

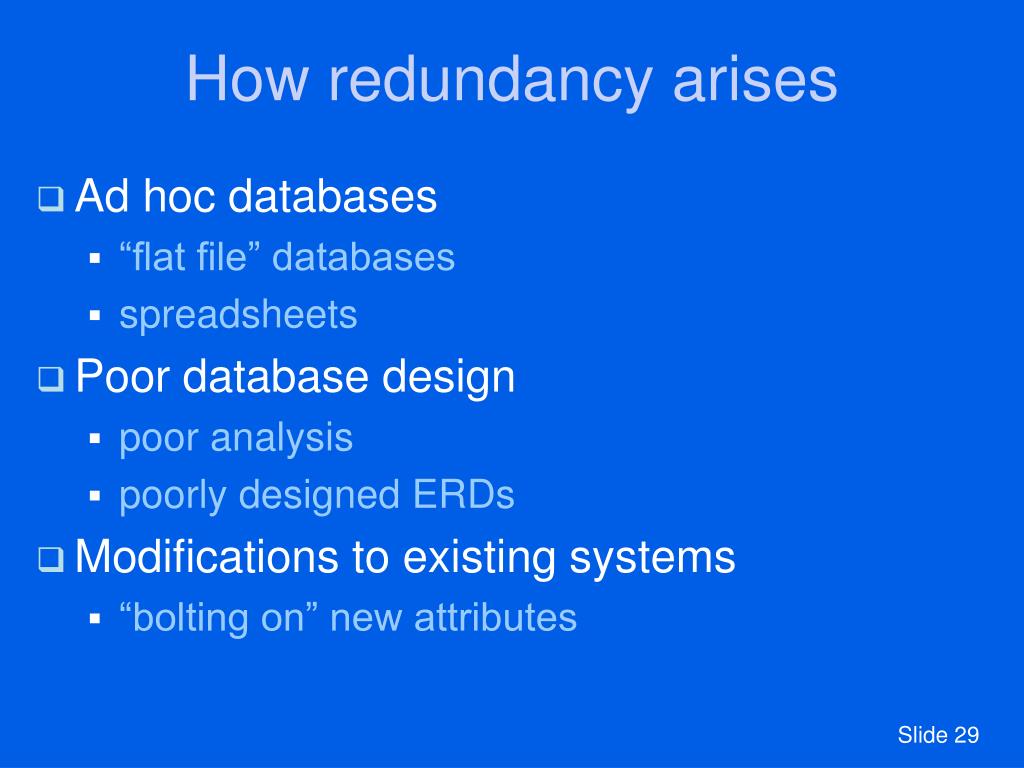

  29. How redundancy arises • Ad hoc databases • “flat file” databases • spreadsheets • Poor database design • poor analysis • poorly designed ERDs • Modifications to existing systems • “bolting on” new attributes

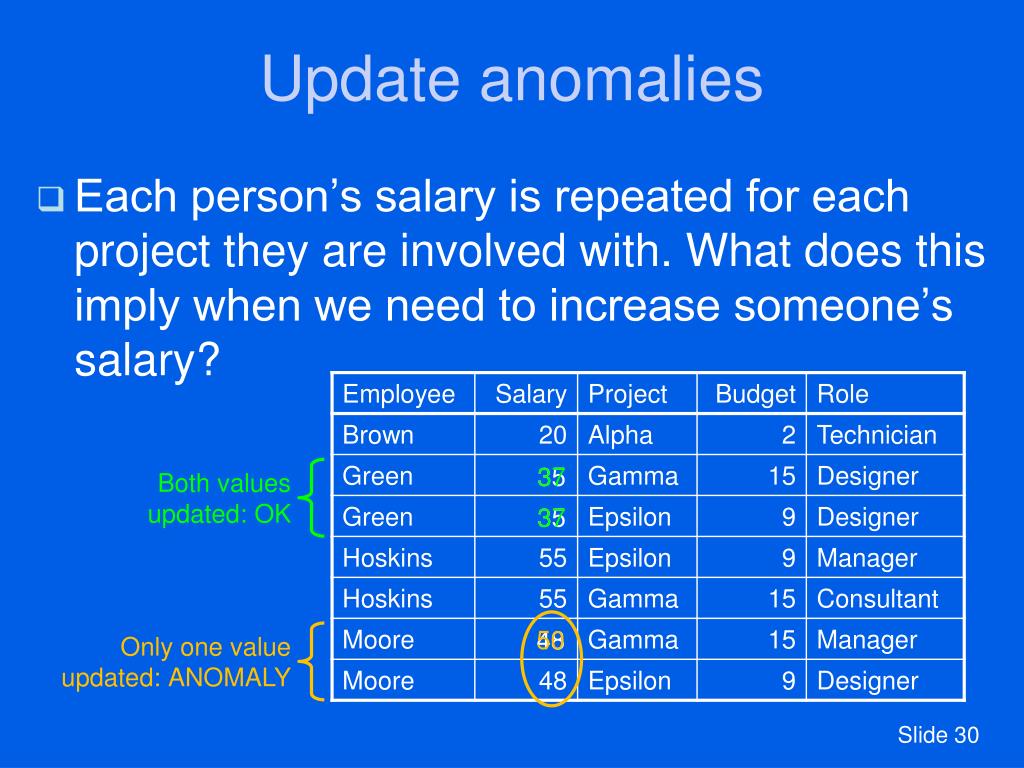

  30. 37 35 37 35 Only one value updated: ANOMALY Update anomalies • Each person’s salary is repeated for each project they are involved with. What does this imply when we need to increase someone’s salary? Both values updated: OK 50 48

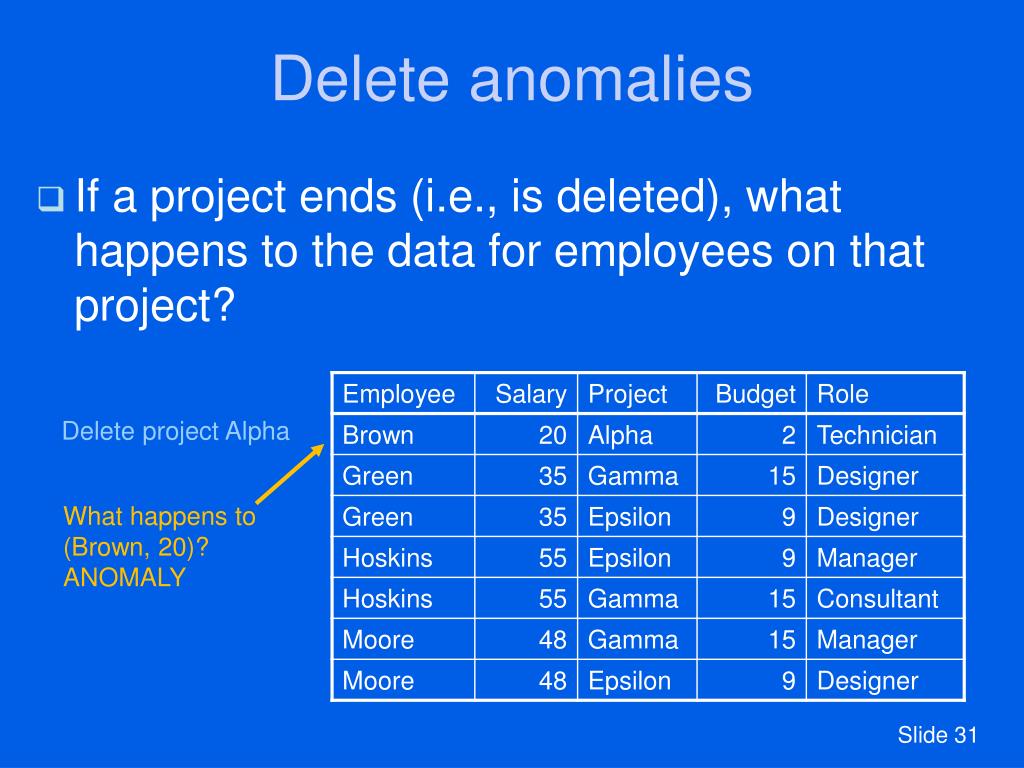

  31. What happens to (Brown, 20)? ANOMALY Delete anomalies • If a project ends (i.e., is deleted), what happens to the data for employees on that project? Delete project Alpha

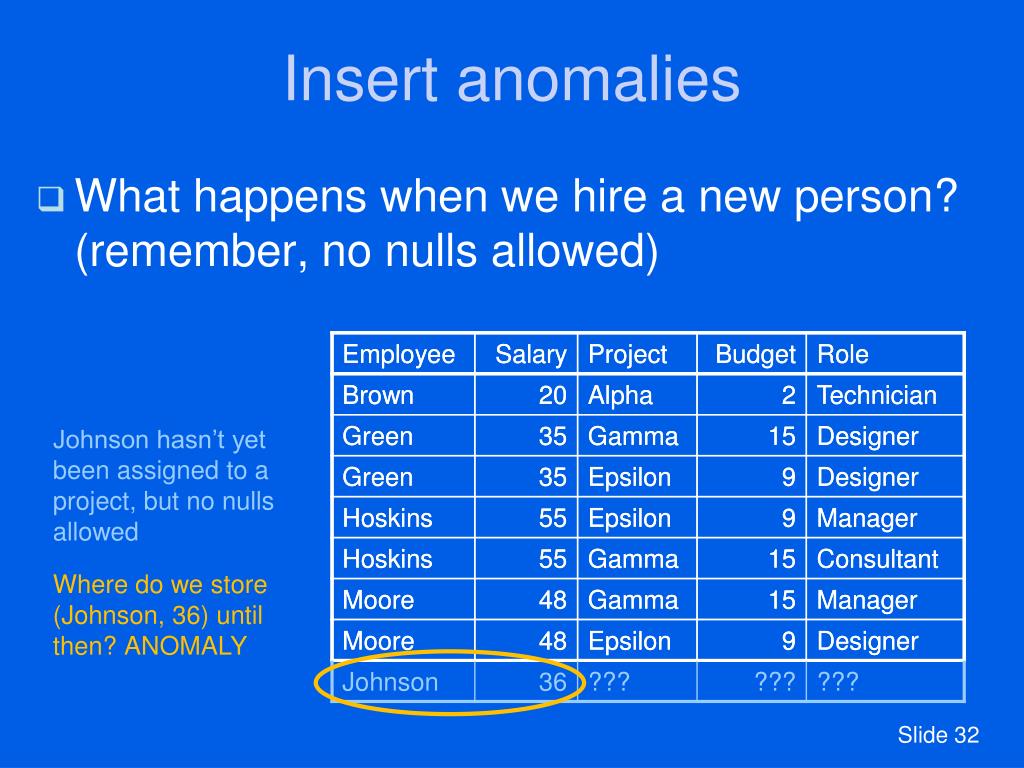

  32. Where do we store (Johnson, 36) until then? ANOMALY Insert anomalies • What happens when we hire a new person? (remember, no nulls allowed) Johnson hasn’t yet been assigned to a project, but no nulls allowed

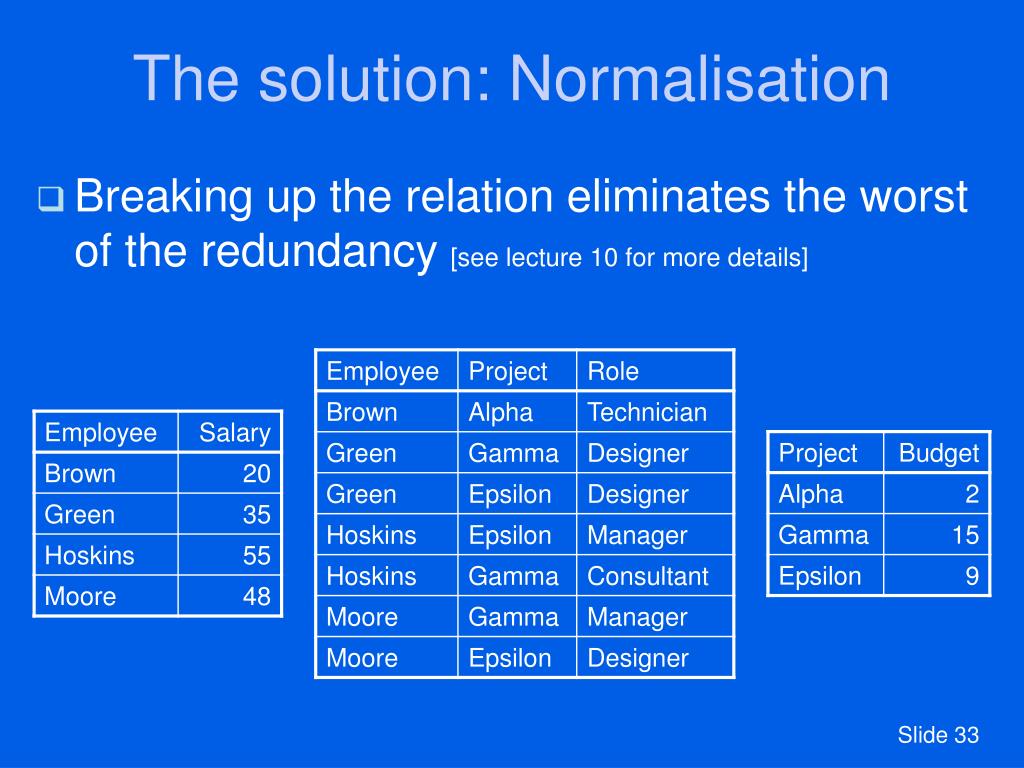

  33. The solution: Normalisation • Breaking up the relation eliminates the worst of the redundancy [see lecture 10 for more details]

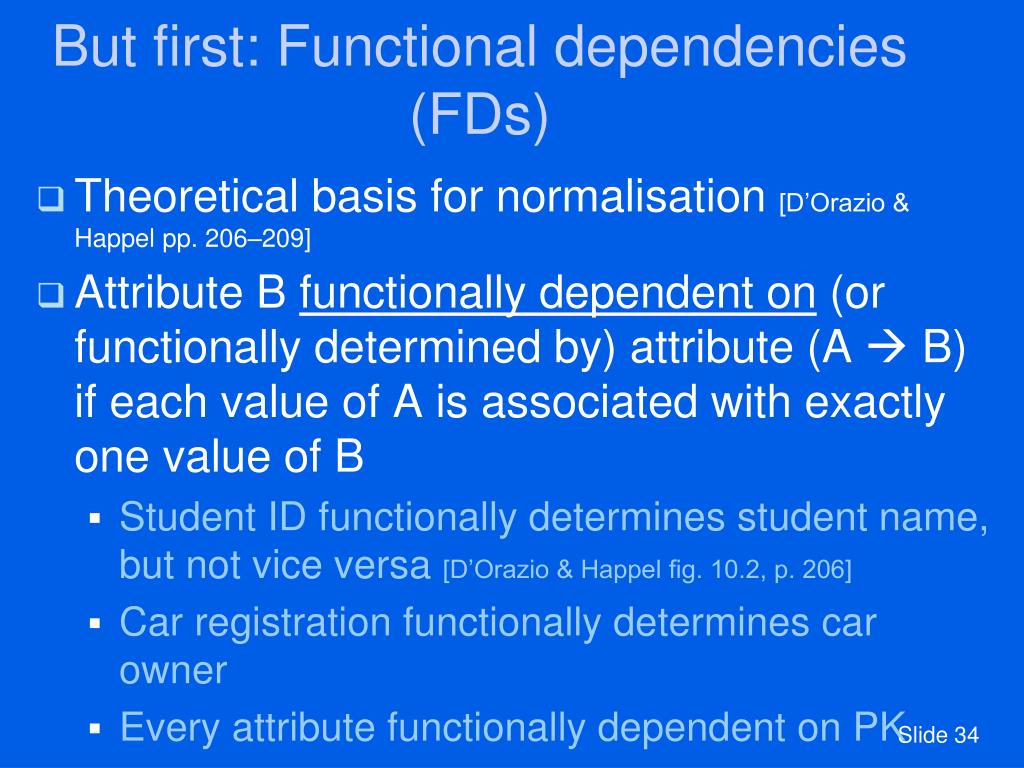

  34. But first: Functional dependencies (FDs) • Theoretical basis for normalisation [D’Orazio & Happel pp. 206–209] • Attribute B functionally dependent on (or functionally determined by) attribute (A  B) if each value of A is associated with exactly one value of B • Student ID functionally determines student name, but not vice versa [D’Orazio & Happel fig. 10.2, p. 206] • Car registration functionally determines car owner • Every attribute functionally dependent on PK

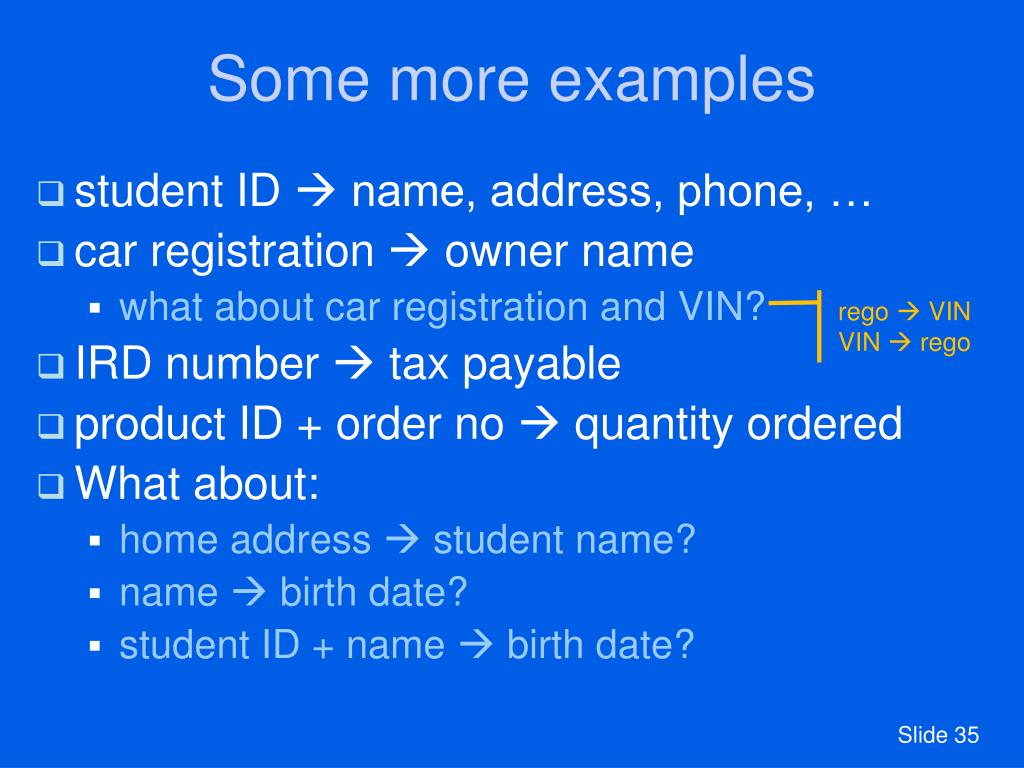

  35. Some more examples • student ID  name, address, phone, … • car registration  owner name • what about car registration and VIN? • IRD number  tax payable • product ID + order no  quantity ordered • What about: • home address  student name? • name  birth date? • student ID + name  birth date? rego  VIN VIN  rego

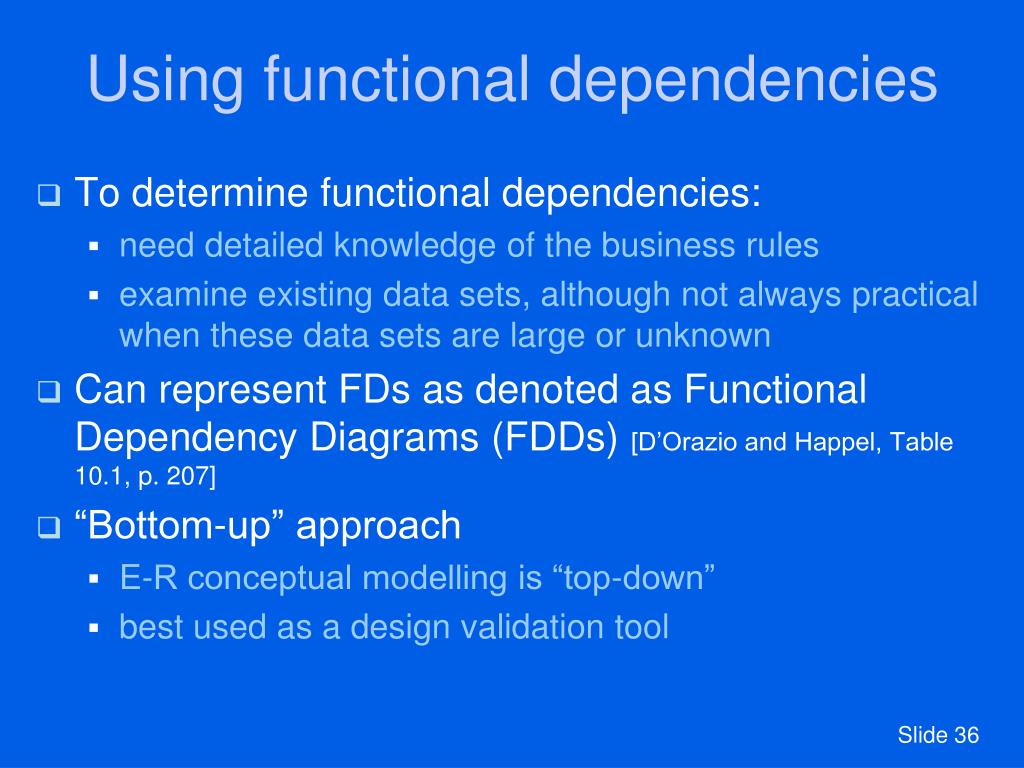

  36. Using functional dependencies • To determine functional dependencies: • need detailed knowledge of the business rules • examine existing data sets, although not always practical when these data sets are large or unknown • Can represent FDs as denoted as Functional Dependency Diagrams (FDDs) [D’Orazio and Happel, Table 10.1, p. 207] • “Bottom-up” approach • E-R conceptual modelling is “top-down” • best used as a design validation tool

  37. Types of functional dependency • Dependencies on more than one attribute • always arise with composite PKs • Example: • year + course code  course coordinator (i.e., course coordinator determined by combination of both a particular year and a course code) Year Course coordinator Course code

  38. Student Name Invoice Date Types of functional dependency • Partial functional dependency • Subset of left hand side determines right hand side • “extra” attributes on LHS are unnecessary Invoice Number Student ID Date of Birth Invoice Total

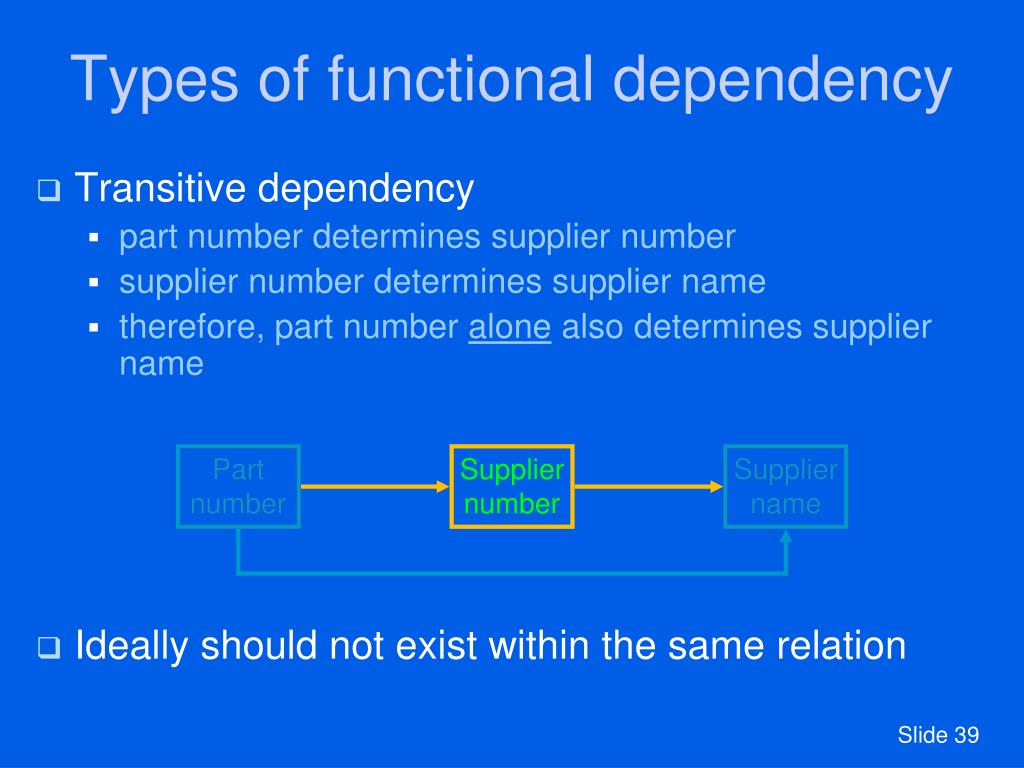

  39. Types of functional dependency • Transitive dependency • part number determines supplier number • supplier number determines supplier name • therefore, part number alone also determines supplier name • Ideally should not exist within the same relation Part number Part number Supplier number Supplier name Supplier name

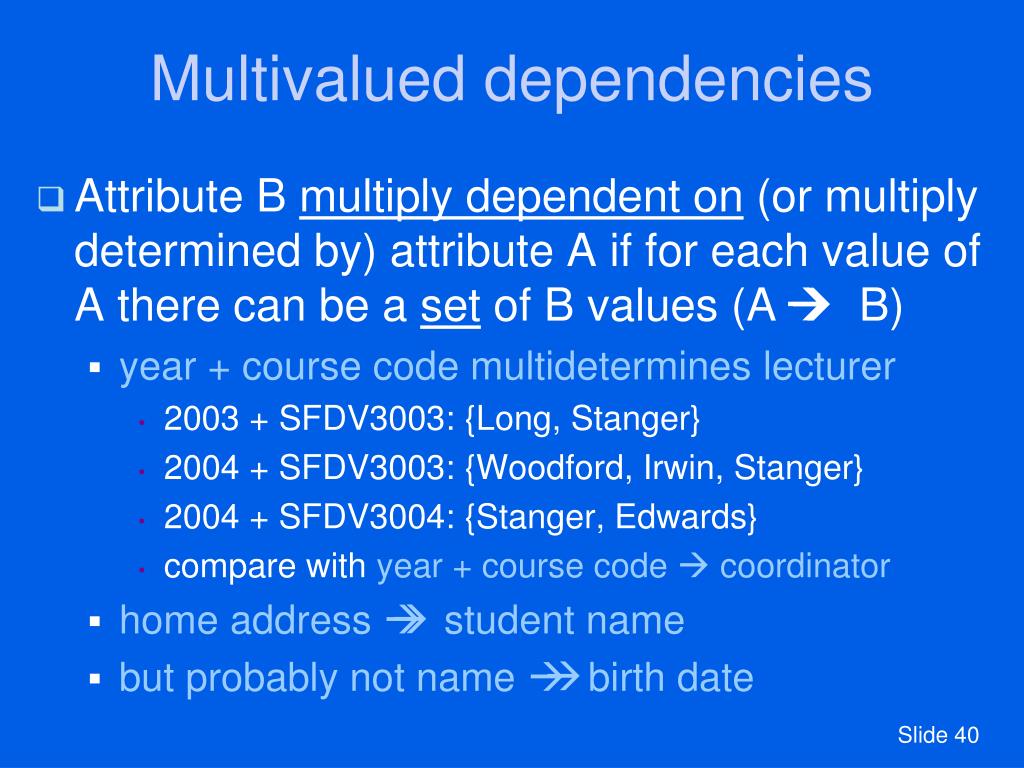

  40. Multivalued dependencies • Attribute B multiply dependent on (or multiply determined by) attribute A if for each value of A there can be a set of B values (A B) • year + course code multidetermines lecturer • 2003 + SFDV3003: {Long, Stanger} • 2004 + SFDV3003: {Woodford, Irwin, Stanger} • 2004 + SFDV3004: {Stanger, Edwards} • compare with year + course code  coordinator • home address  student name • but probably not name  birth date   

  41. summary • Redundancy and anomalies • Causes and consequent problems • Functional Dependencies • Partial vs. full dependency • Transitive dependency • Multivalued dependencies
