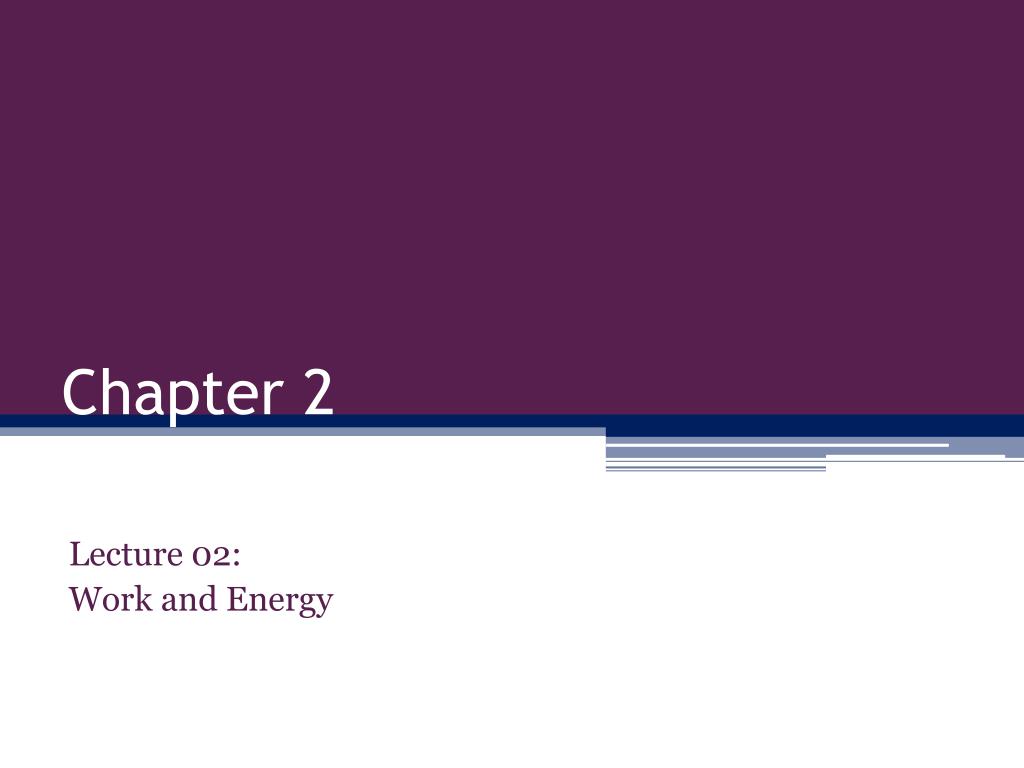

  1. Chapter 2 Lecture 02: Work and Energy

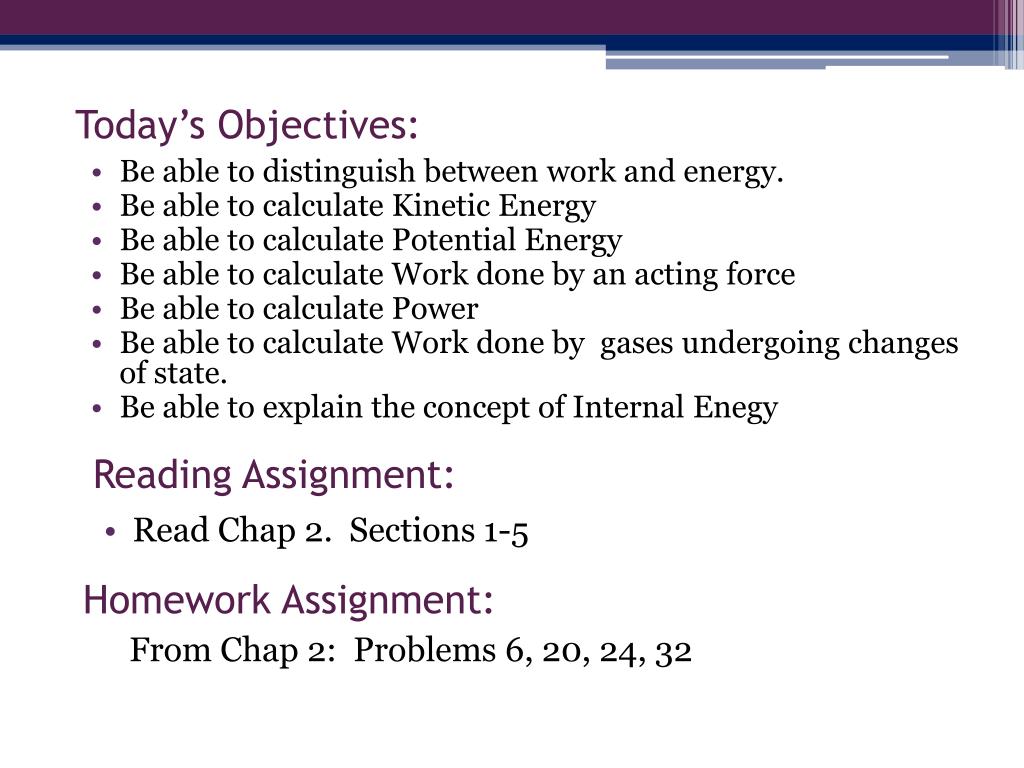

  2. Today’s Objectives: • Be able to distinguish between work and energy. • Be able to calculate Kinetic Energy • Be able to calculate Potential Energy • Be able to calculate Work done by an acting force • Be able to calculate Power • Be able to calculate Work done by gases undergoing changes of state. • Be able to explain the concept of Internal Enegy Reading Assignment: • Read Chap 2. Sections 1-5 Homework Assignment: From Chap 2: Problems 6, 20, 24, 32

  3. Sec 2.1: Reviewing Mechanical Concepts of Energy Work, Heat, and Energy • Ways to Transfer Energy Into or Out of A System • Work – transfers by applying a force and causing a displacement of the point of application of the force. • Mechanical Waves – allow a disturbance to propagate through a medium. • Heat – is driven by a temperature difference between two regions in space. • Matter Transfer – matter physically crosses the boundary of the system, carrying energy with it. • Electrical Transmission – transfer is by electric current. • Electromagnetic Radiation – energy is transferred by electromagnetic waves Energy is conserved, but can be converted to different types W = PE = KE = U

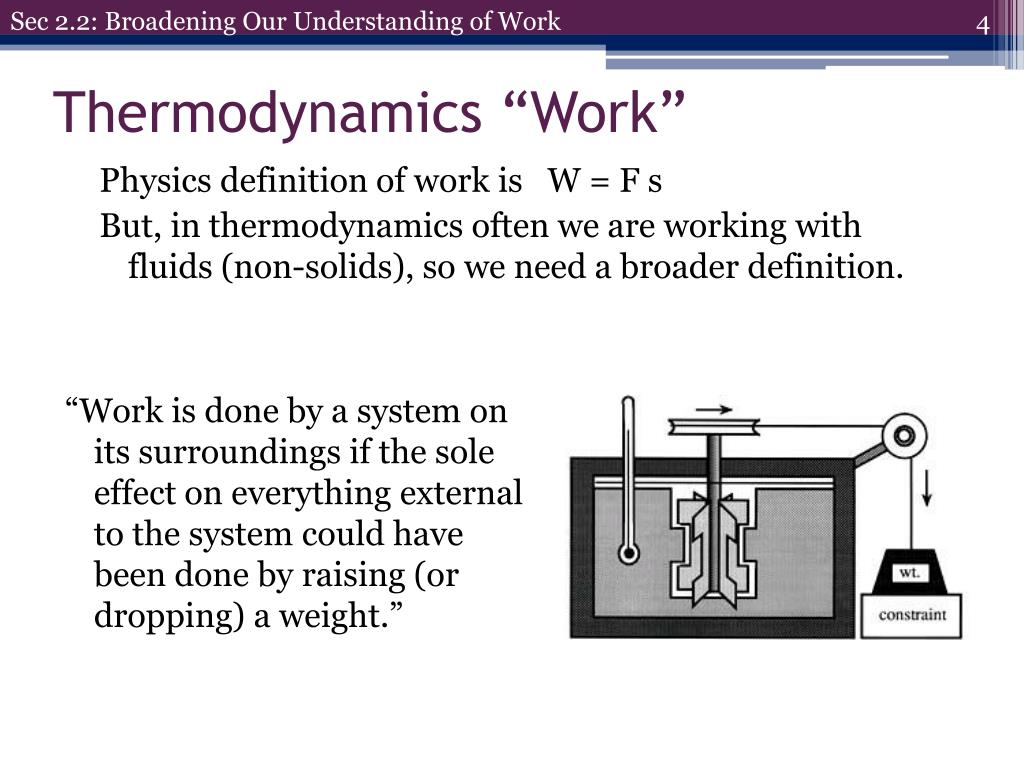

  4. Sec 2.2: Broadening Our Understanding of Work Thermodynamics “Work” Physics definition of work is W = F s But, in thermodynamics often we are working with fluids (non-solids), so we need a broader definition. “Work is done by a system on its surroundings if the sole effect on everything external to the system could have been done by raising (or dropping) a weight.”

  5. Sec 2.2: Broadening Our Understanding of Work Joule’s Experiment (1845-Salford, England) Joule dropped a known mass and measured the change in temperature of the water. The experiment was conducted in the basement of his family’s brewery, where there was a constant ambient temperature. The friction of the water molecules rubbing together caused the temperature to increase. Joule’s Equipment - Manchester

  6. Sec 2.2.1: Sign Convention Work Sign Convention W > 0 : Work done BY the system W < 0 : Work done ON the system Sign is not inherently important, but this is the convention. W < 0 : Work done ON the system (System is compressed) W > 0 : Work done BY the system (System expands)

  7. Sec 2.2 .2: Power Power = Rate of Energy Transfer Book’s convention: Dot above symbol represents the rate. The rate of work can be expressed as

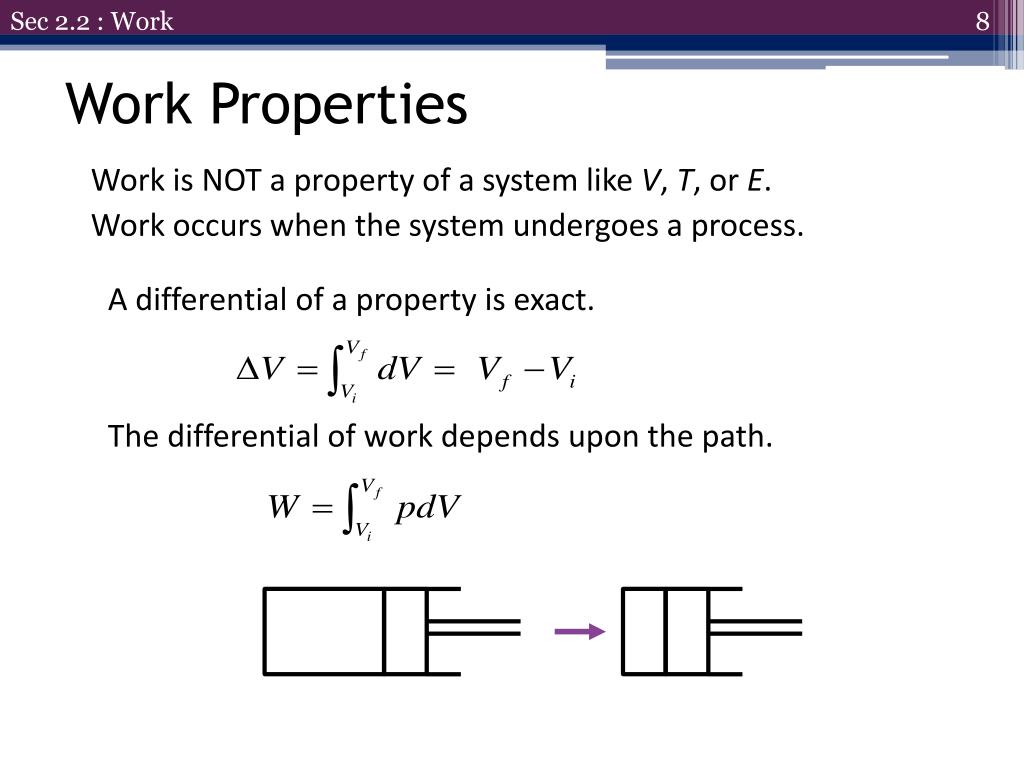

  8. Sec 2.2 : Work Work Properties Work is NOT a property of a system like V, T, or E. Work occurs when the system undergoes a process. A differential of a property is exact. V The differential of work depends upon the path.

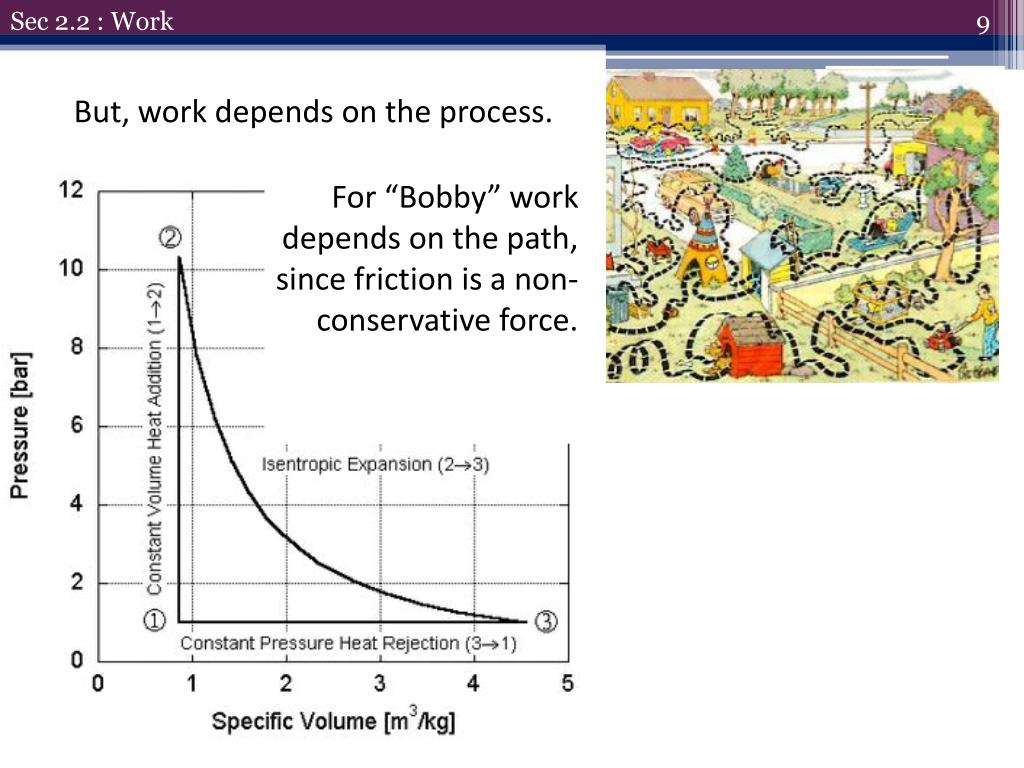

  9. Sec 2.2 : Work For “Bobby” work depends on the path, since friction is a non-conservative force. But, work depends on the process.

  10. Sec 2.2 : Work The process of changing volume is NOT necessarily in equilibrium. - He balloon popping, gas does not instantly mix with air - Gas cylinder rupture, pressure inside is higher then outside for some time, t So, we need to have a PV relationship for the process. For this class, we will used an idealized process, that are completely reversible. We call this type of process - quasi-equilbirium - quasi-static

  11. Sec 2.2 : Work Non-quasi-static Process V V V Consider a box initially divided in half. - Initially, one is filled with gas, the other a vacuum. - The divider is then removed. - The gas takes some time to fill the new volume. During that time, there are different local values for P in the volume. There is also likely some heat generated, as the process is irreversible. Thermodynamics ≠ Kinetics

  12. Sec 2.2 : Work Quasi-static V V V V V V V V Now we move the wall slowly, such that the gas is able to adjust instantly. This is a reversible quasi-static process.

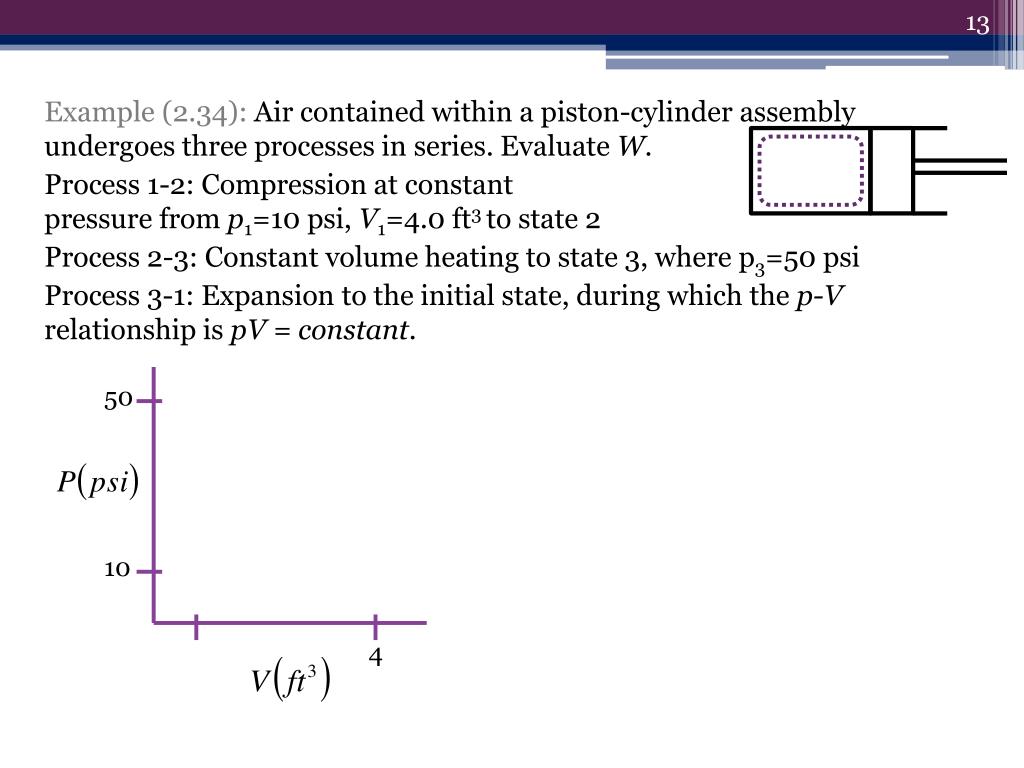

  13. Example (2.34): Air contained within a piston-cylinder assembly undergoes three processes in series. Evaluate W. Process 1-2: Compression at constant pressure from p1=10 psi, V1=4.0 ft3 to state 2 Process 2-3: Constant volume heating to state 3, where p3=50 psi Process 3-1: Expansion to the initial state, during which the p-V relationship is pV = constant. V 50 10 4

  14. Sec 2.3: Broadening Our Understanding of Energy Energy Physics energy types Kinetic Energy: Energy of objects in motion Potential Energy: Energy of objects in a field (g,E,B) Internal Energy Spring Chemical Pressure Pressure can be a form of energy if P> Patm Thus, the general energy equation is P Patm

  15. Example Problem (2.37) A 10 V battery supplies a constant current of 0.5 amp to a resistance for 30 min. a) Determine the resistance, in ohms. b) For the battery, determine the amount of energy transfer to work, in kJ. Solution:

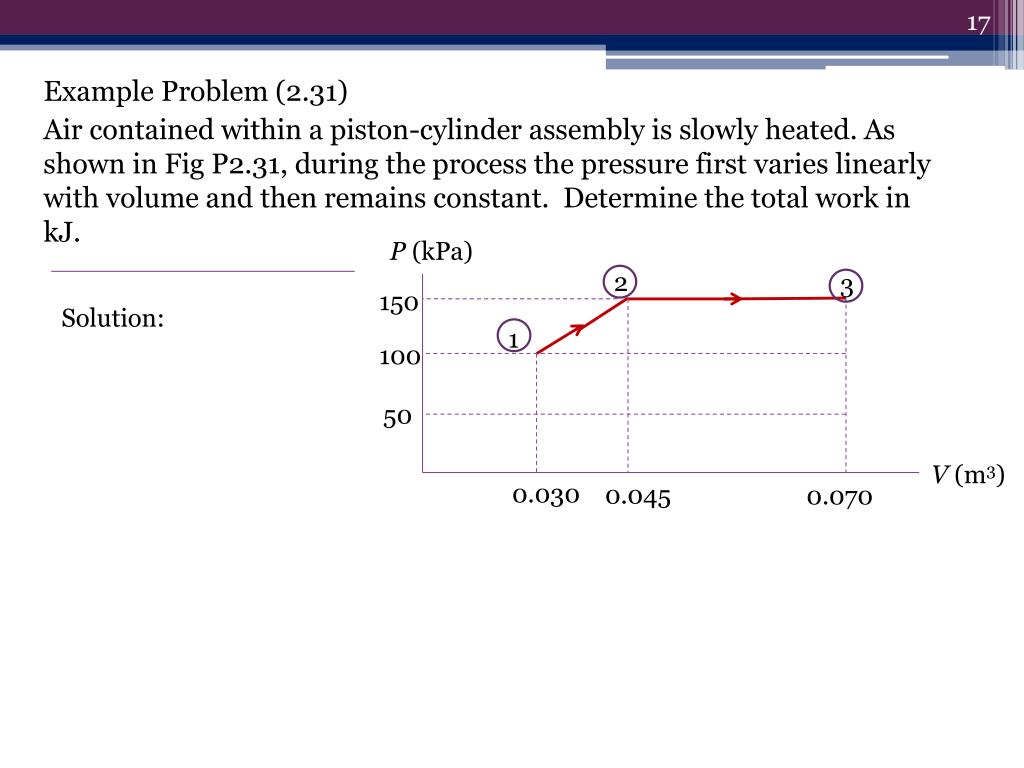

  16. P (kPa) 2 Example Problem (2.31) Air contained within a piston-cylinder assembly is slowly heated. As shown in Fig P2.31, during the process the pressure first varies linearly with volume and then remains constant. Determine the total work in kJ. 3 Solution: 1 50 150 V (m3) 100 0.030 0.045 0.070

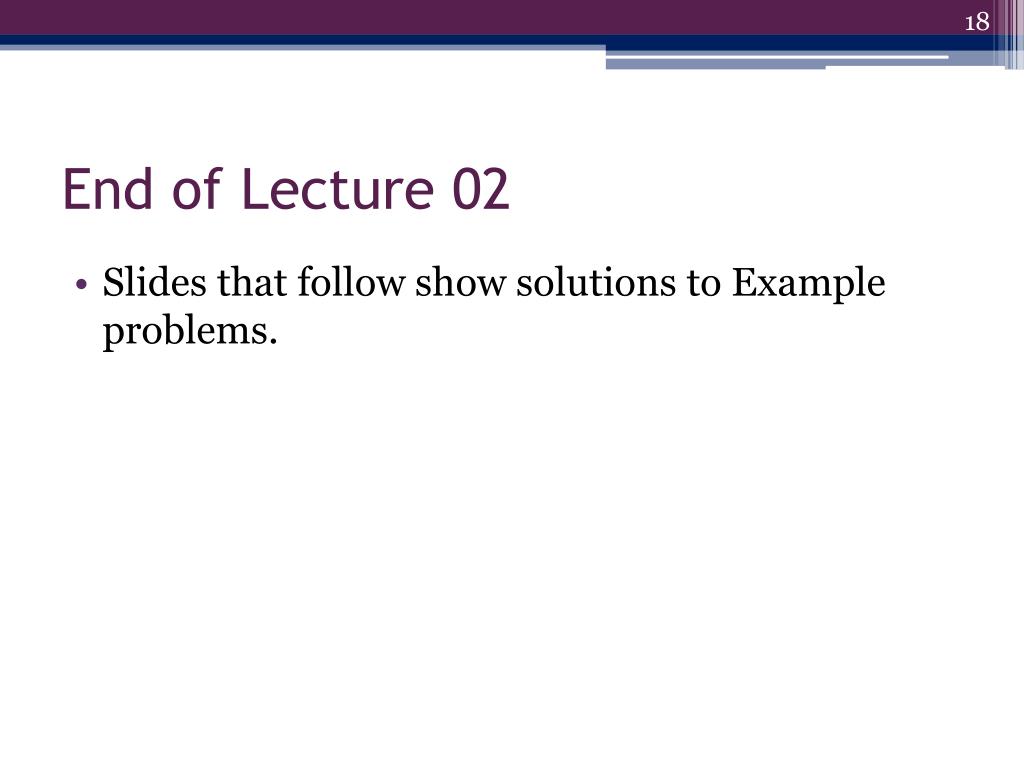

  17. End of Lecture 02 • Slides that follow show solutions to Example problems.

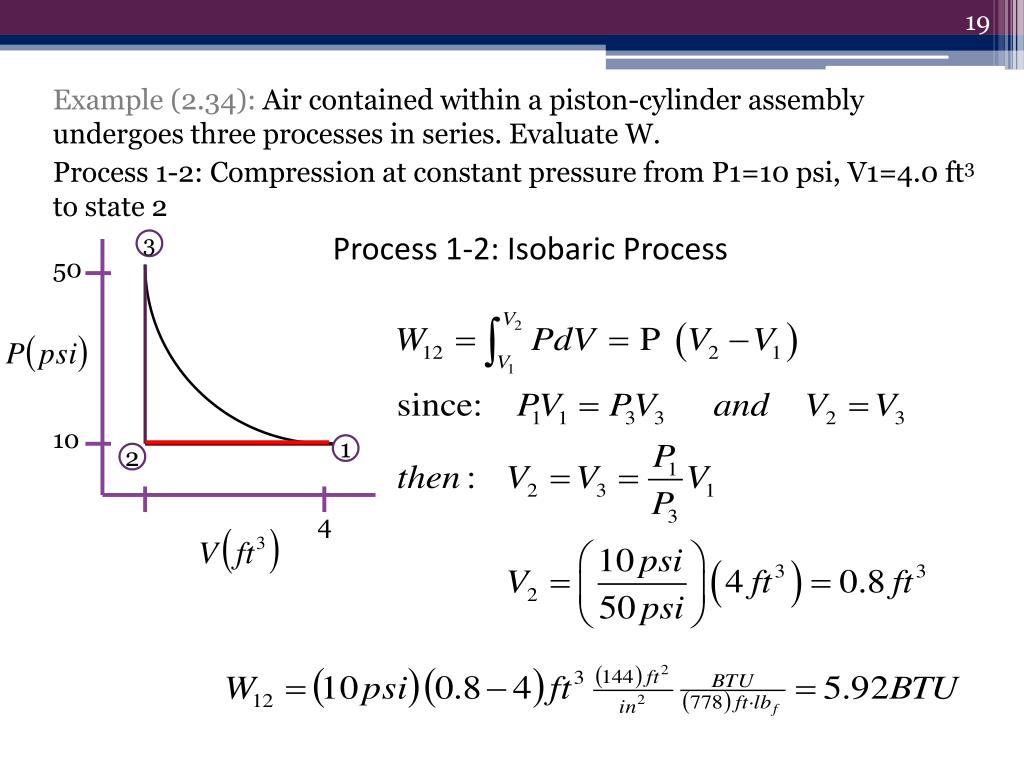

  18. Process 1-2: Isobaric Process Example (2.34): Air contained within a piston-cylinder assembly undergoes three processes in series. Evaluate W. Process 1-2: Compression at constant pressure from P1=10 psi, V1=4.0 ft3 to state 2 3 50 10 1 2 4

  19. Example (2.34): Air contained within a piston-cylinder assembly undergoes three processes in series. Evaluate W. Process 2-3: Constant volume heating to state 3, where P3=50 psi Process 3-1: Expansion to the initial state, during which the P-V relationship is PV = constant. • Process 2-3: Isovolumetric Process 3 50 10 2 1 4

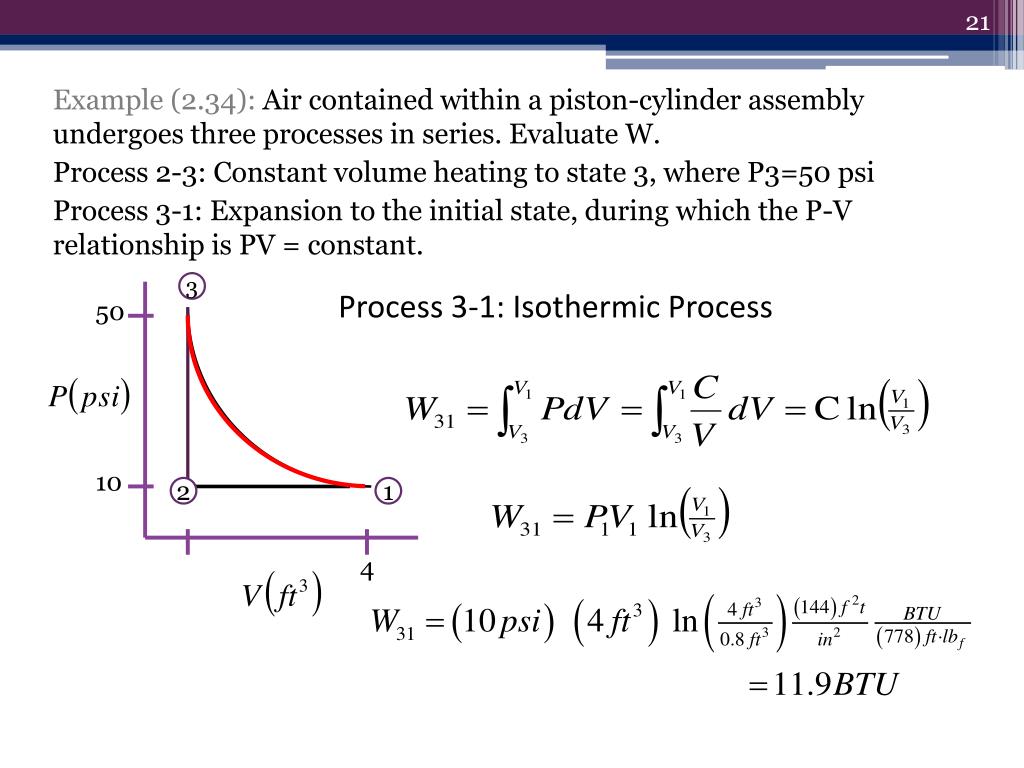

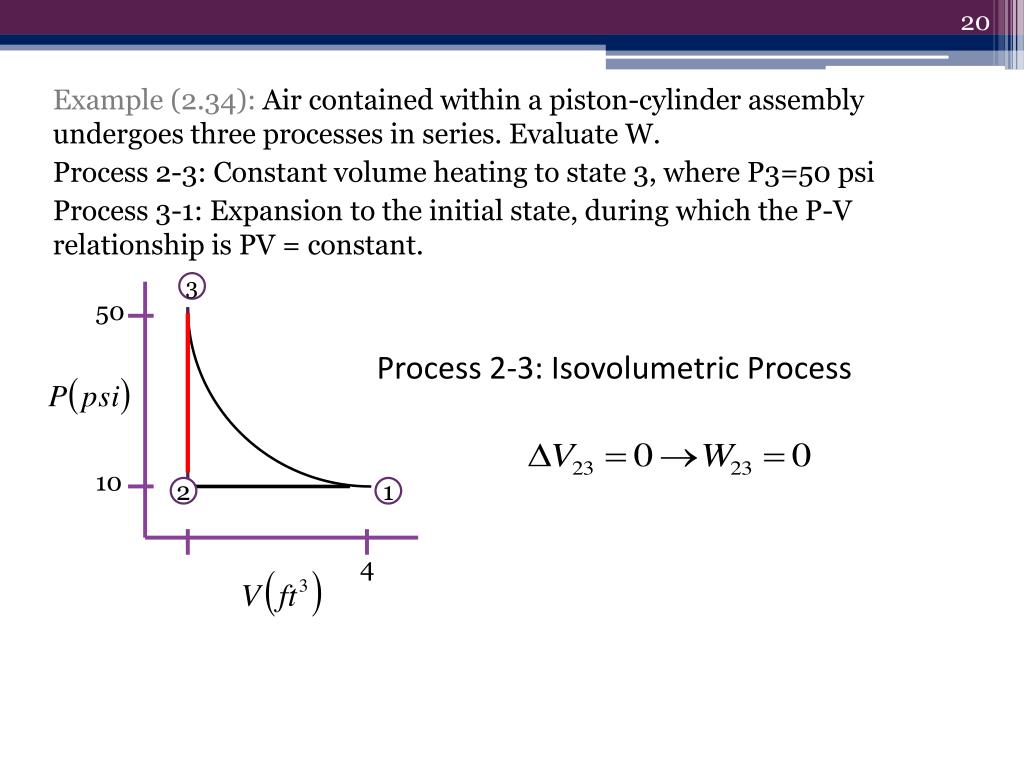

  20. Example (2.34): Air contained within a piston-cylinder assembly undergoes three processes in series. Evaluate W. Process 2-3: Constant volume heating to state 3, where P3=50 psi Process 3-1: Expansion to the initial state, during which the P-V relationship is PV = constant. Process 3-1: Isothermic Process 3 50 10 2 1 4

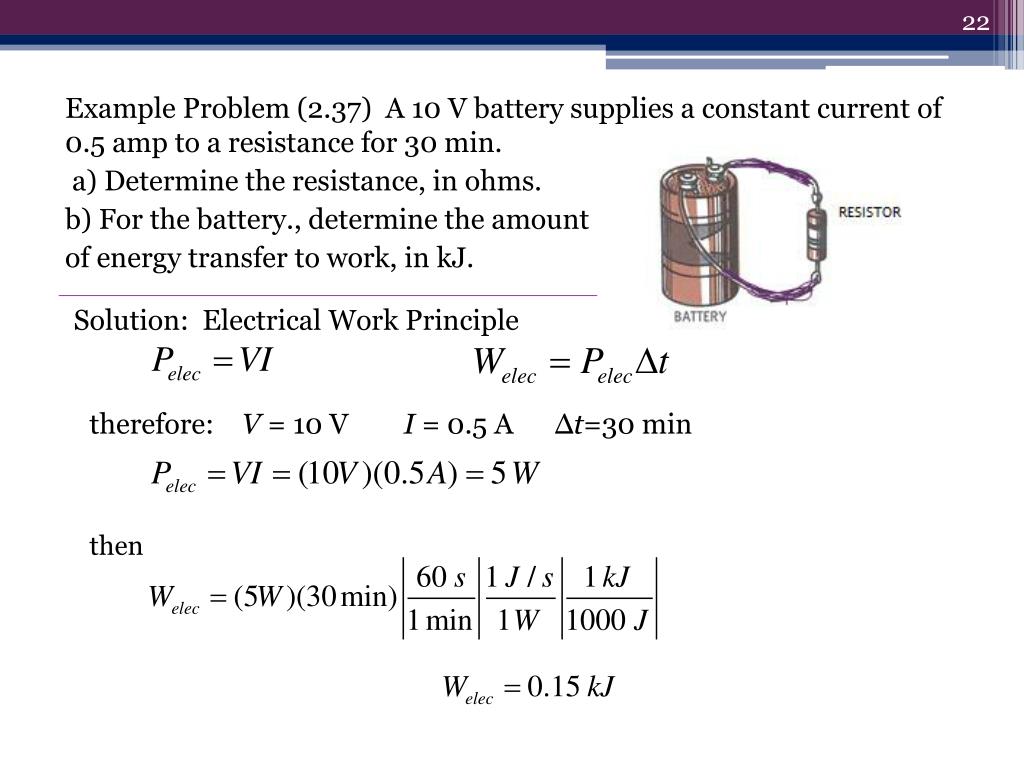

  21. Example Problem (2.37) A 10 V battery supplies a constant current of 0.5 amp to a resistance for 30 min. a) Determine the resistance, in ohms. b) For the battery., determine the amount of energy transfer to work, in kJ. Solution: Electrical Work Principle therefore: V = 10 V I = 0.5 A Δt=30 min then

  22. Solution: P (kPa) 2 Example Problem (2.31) Air contained within a piston-cylinder assembly is slowly heated. As shown in the figure, during the process the pressure first varies linearly with volume and then remains constant. Determine the total work in kJ. 3 1 Conceptually, this represents the area of the P-V plot underneath the process lines. 50 150 V (m3) 100 0.030 0.045 0.070
