Example on pushover analysis

Example on pushover analysis. 5-Span continuous & straight. CIP Concrete box girder. Two columns integral bent. CIP concrete piles with steel casing. Example (Cont’d). SUBJECT: Pushover Example. DATE:. CALCULATED BY :. Example (Cont’d). Moment-Curvature Plot. SUBJECT: Pushover. DATE:.

terrel
Télécharger la présentation

Example on pushover analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

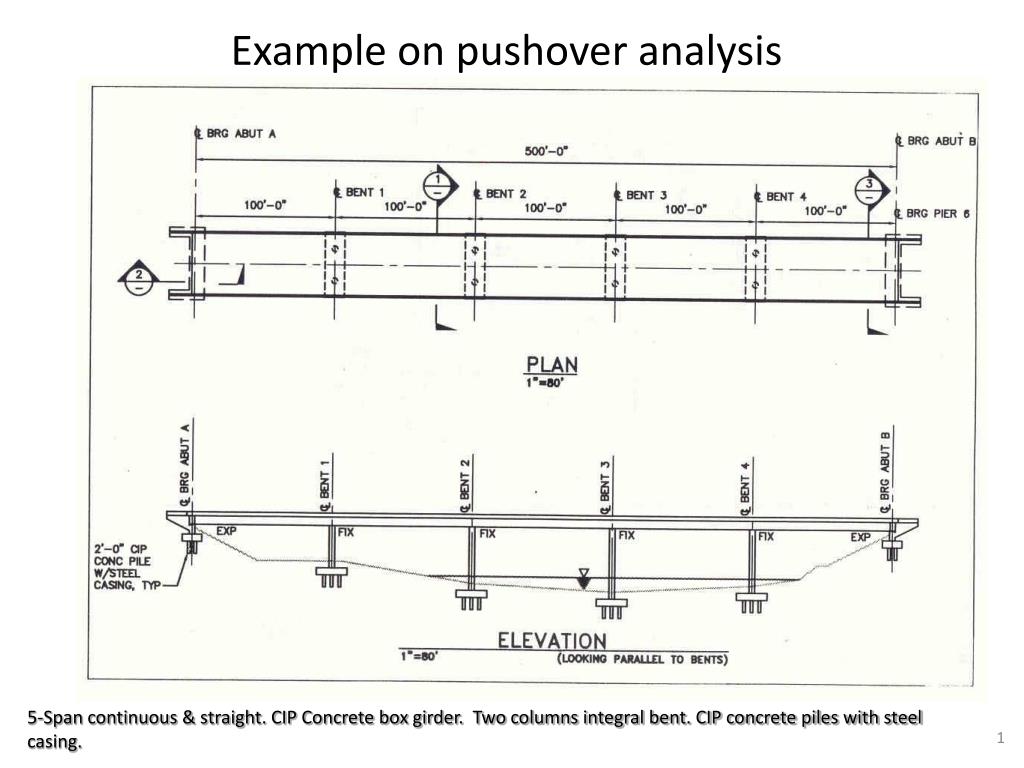

  1. Example on pushover analysis 5-Span continuous & straight. CIP Concrete box girder. Two columns integral bent. CIP concrete piles with steel casing.

  2. Example (Cont’d)

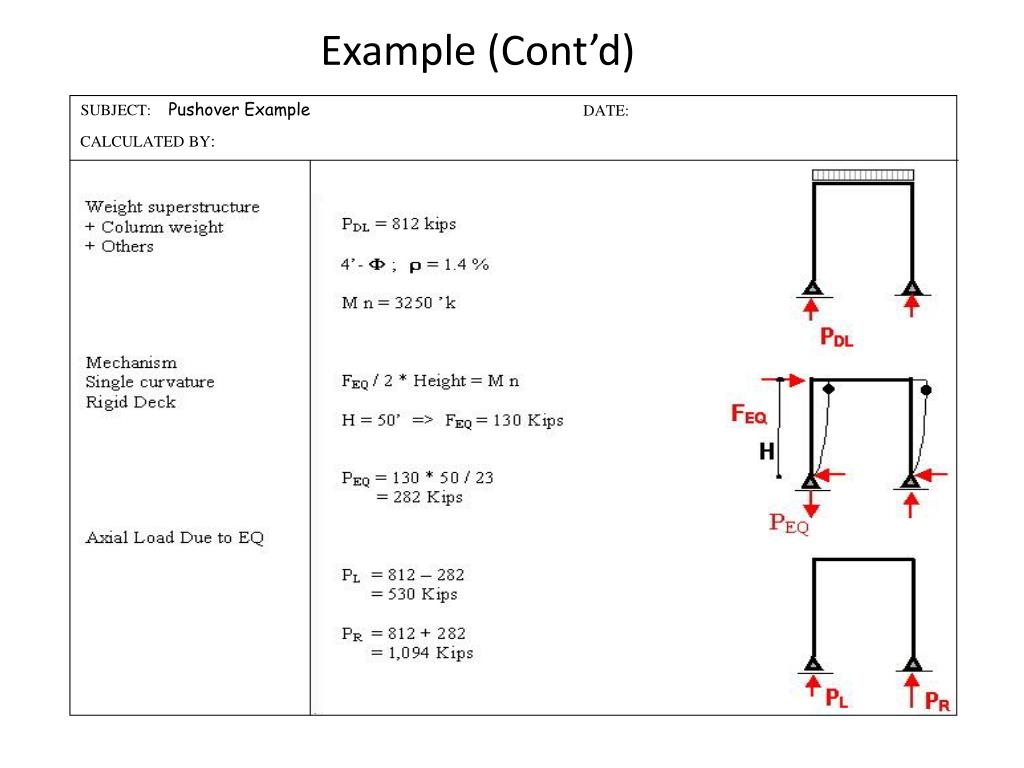

  3. SUBJECT:Pushover Example DATE: CALCULATED BY: Example (Cont’d)

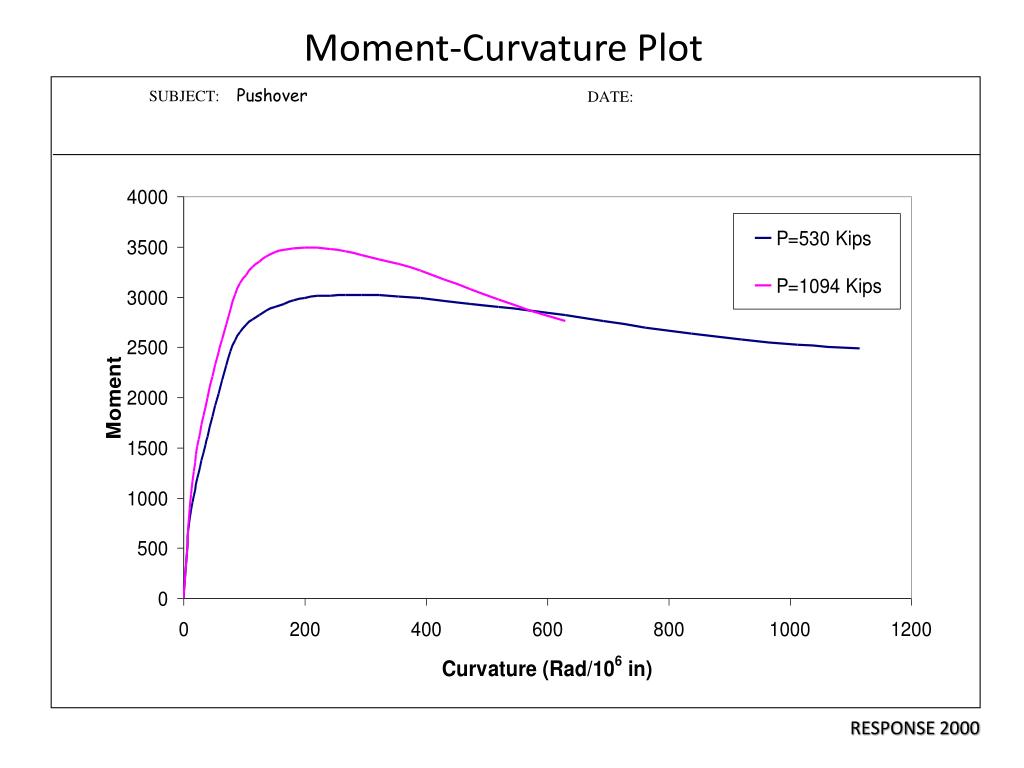

  4. Moment-Curvature Plot SUBJECT:Pushover DATE: RESPONSE 2000

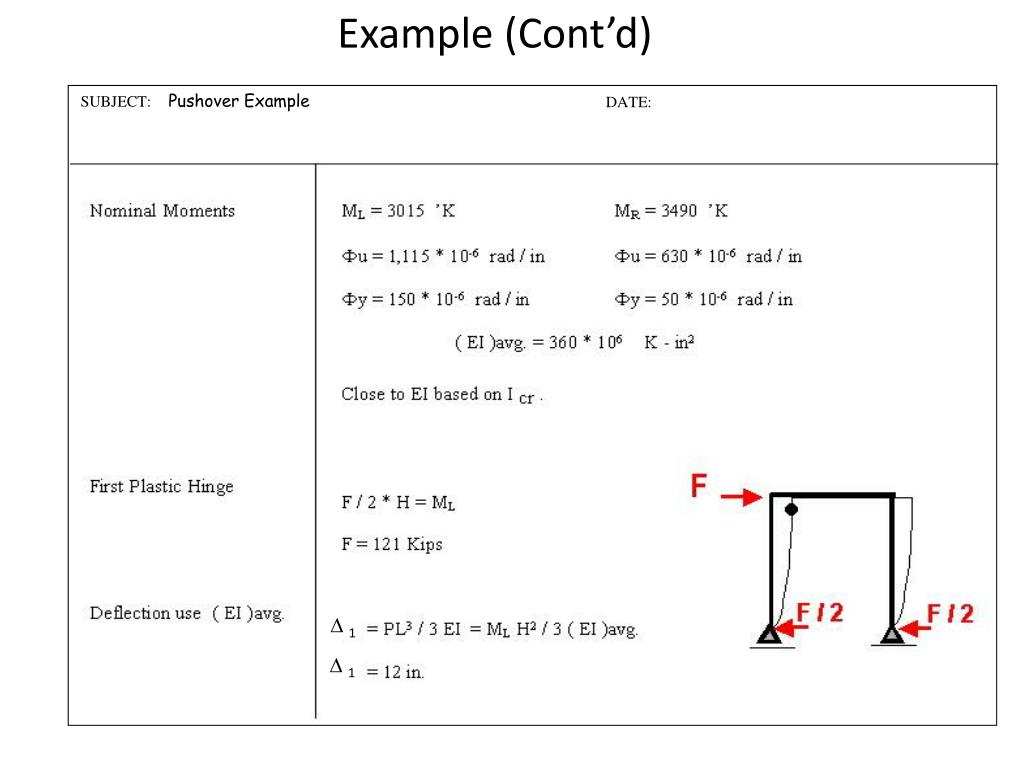

  5. SUBJECT:Pushover Example DATE: D 1 D 1 Example (Cont’d)

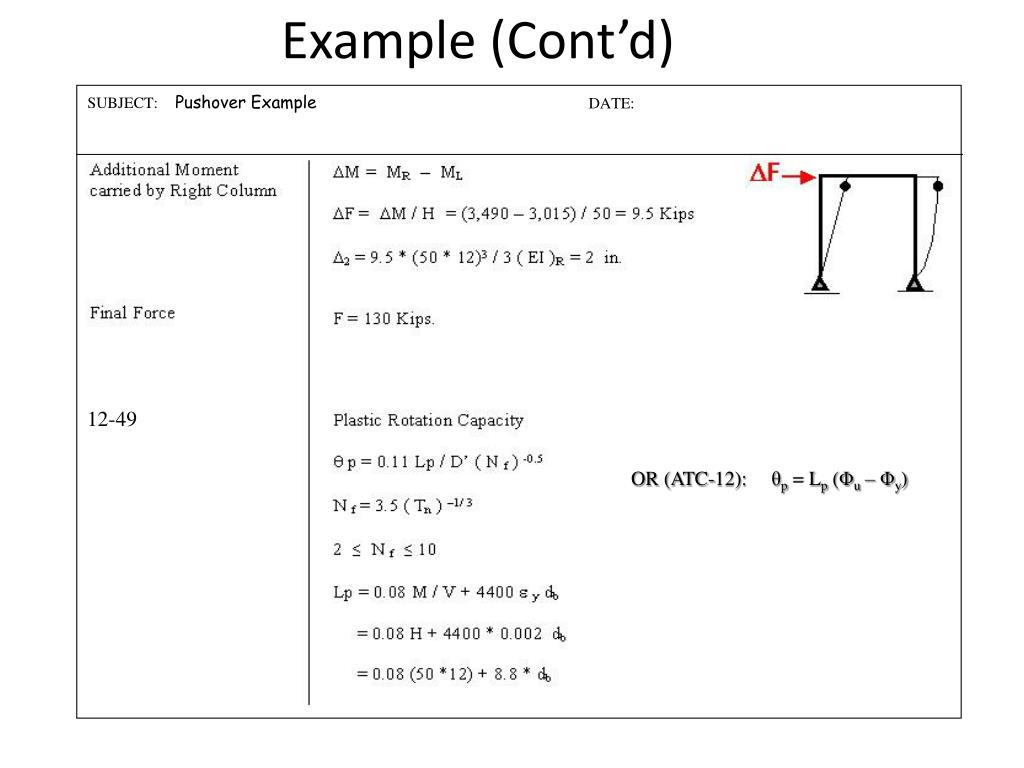

  6. SUBJECT:Pushover Example DATE: 12-49 Example (Cont’d) OR (ATC-12): θp = Lp (Φu – Φy)

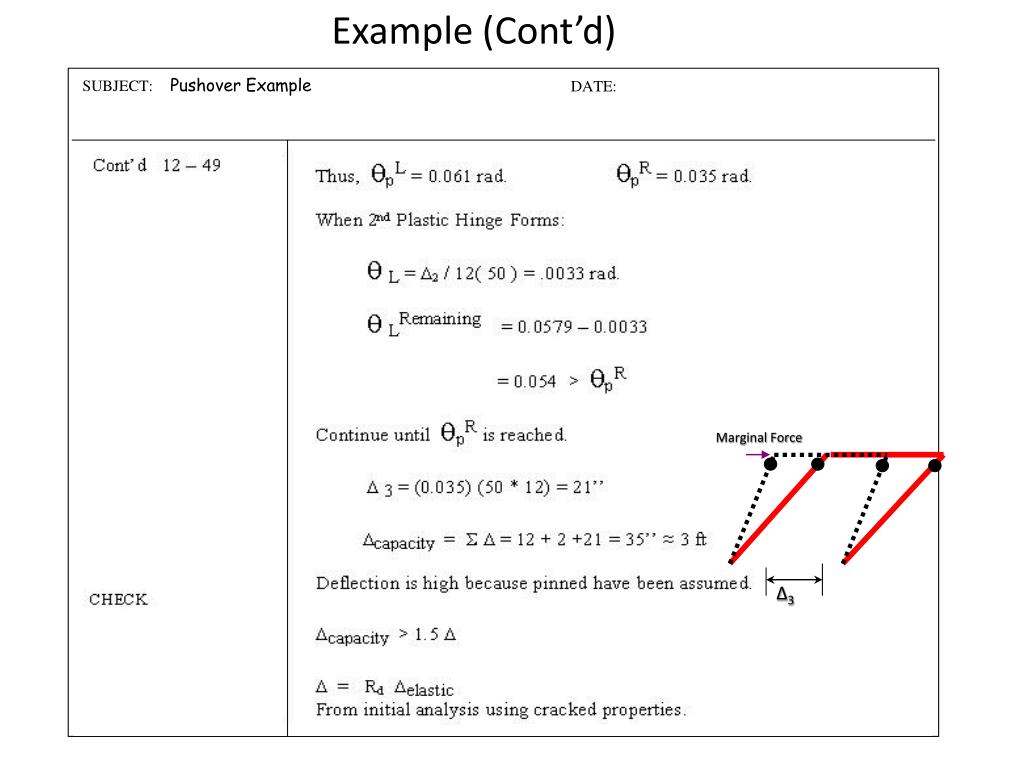

  7. SUBJECT:Pushover Example DATE: Marginal Force Δ3 Example (Cont’d)

  8. SUBJECT:Pushover Example DATE: D2 D3 Dcapacity Load – Deformation
