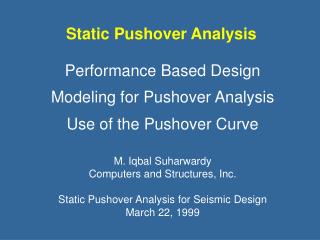

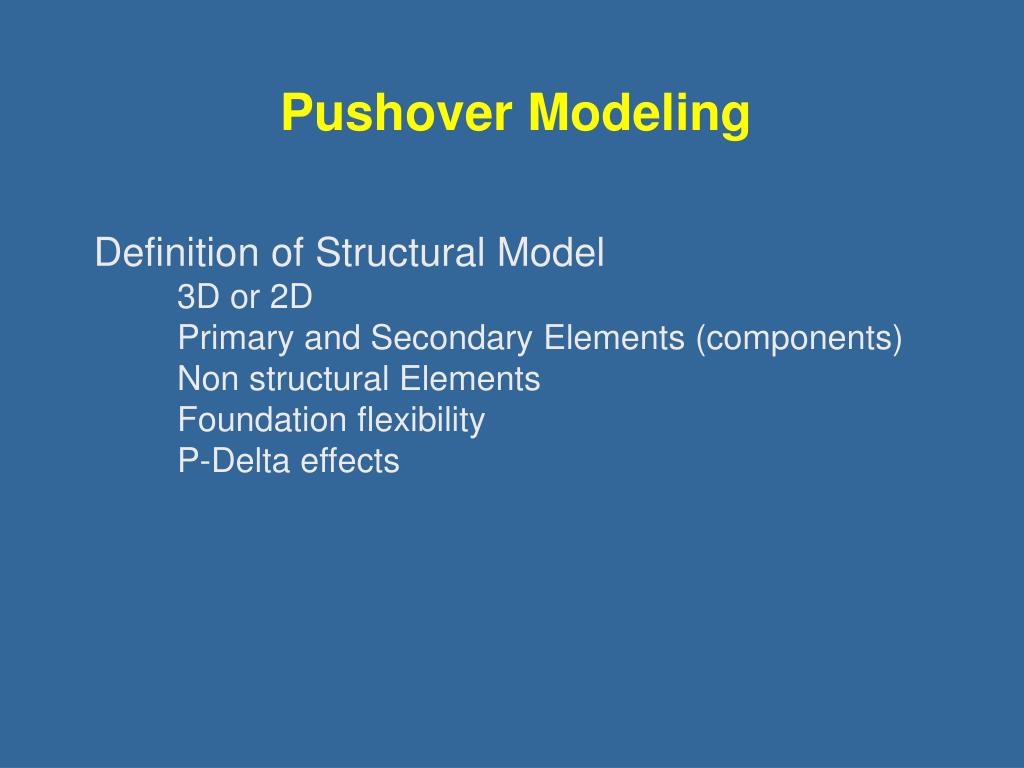

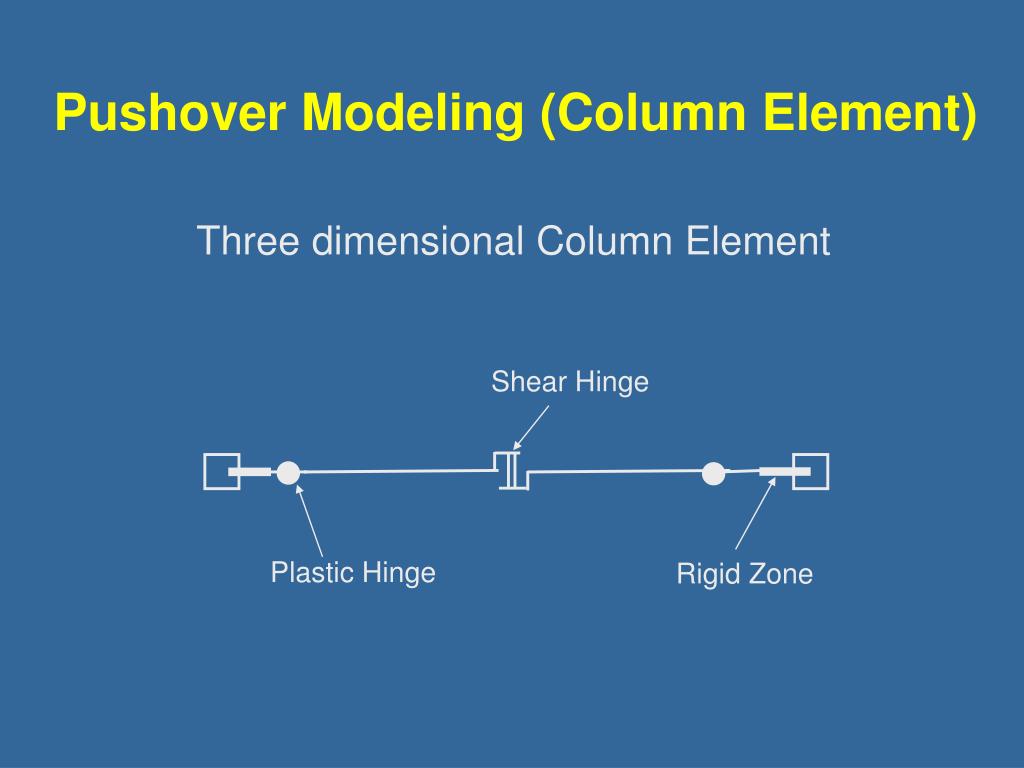

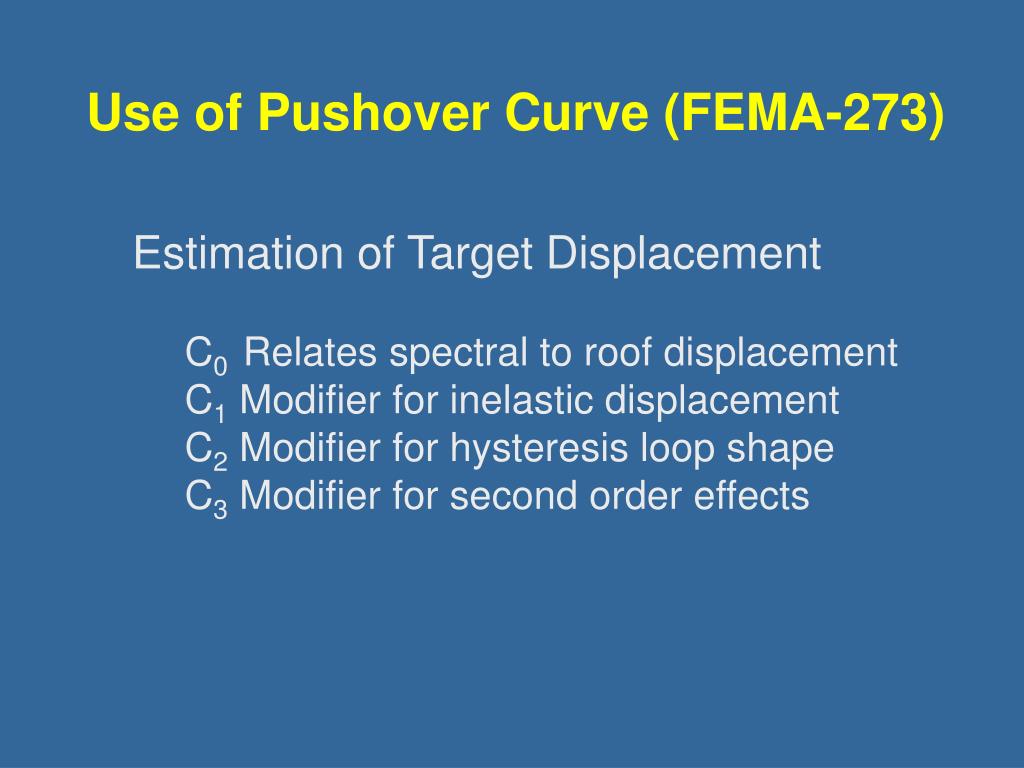

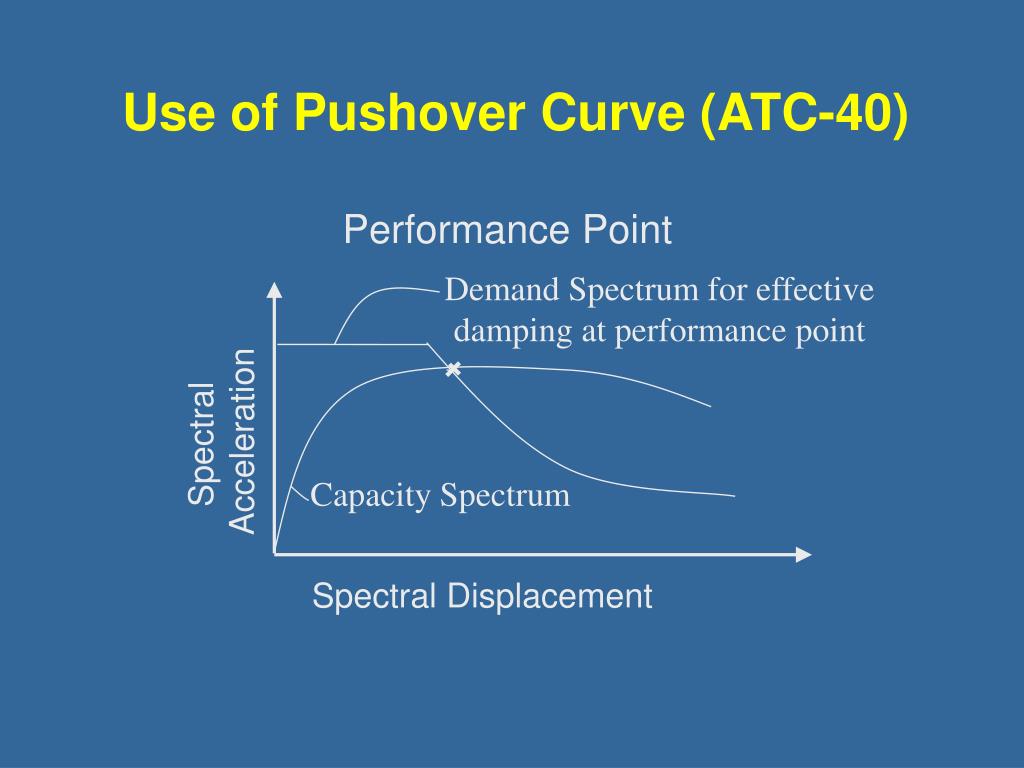

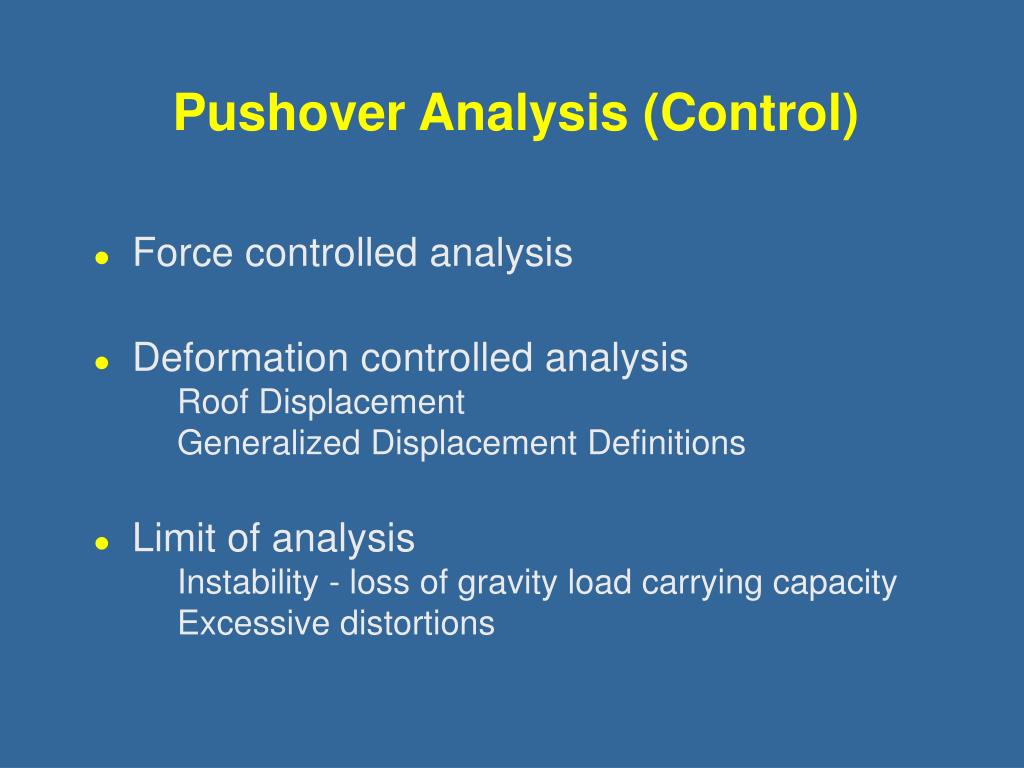

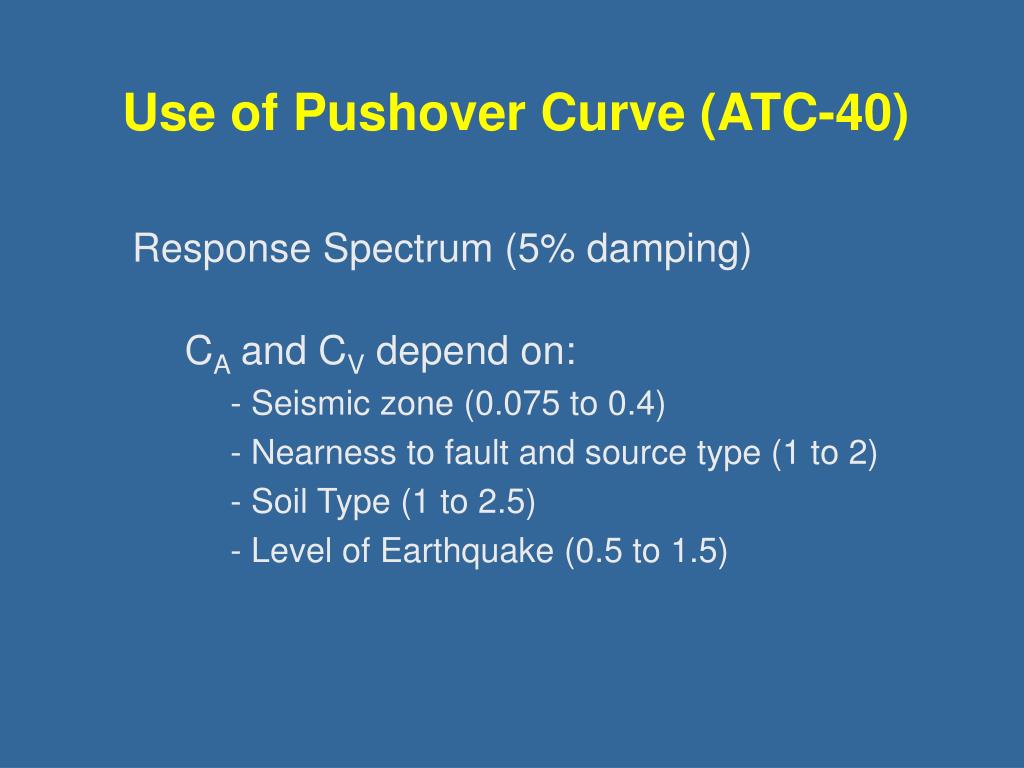

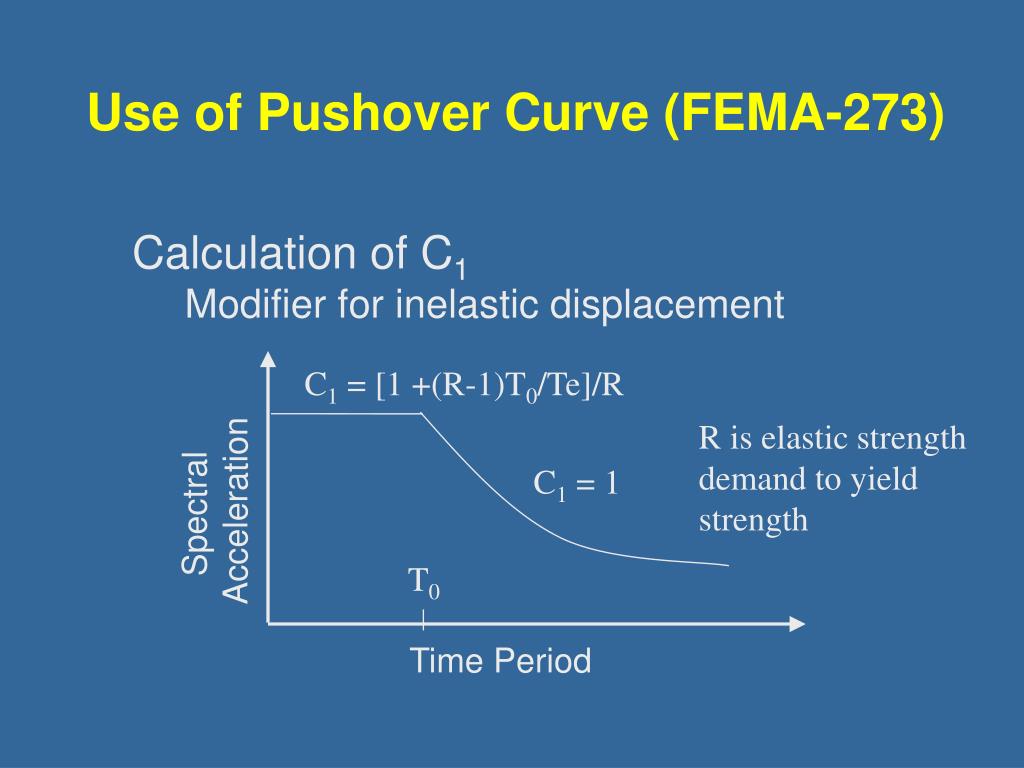

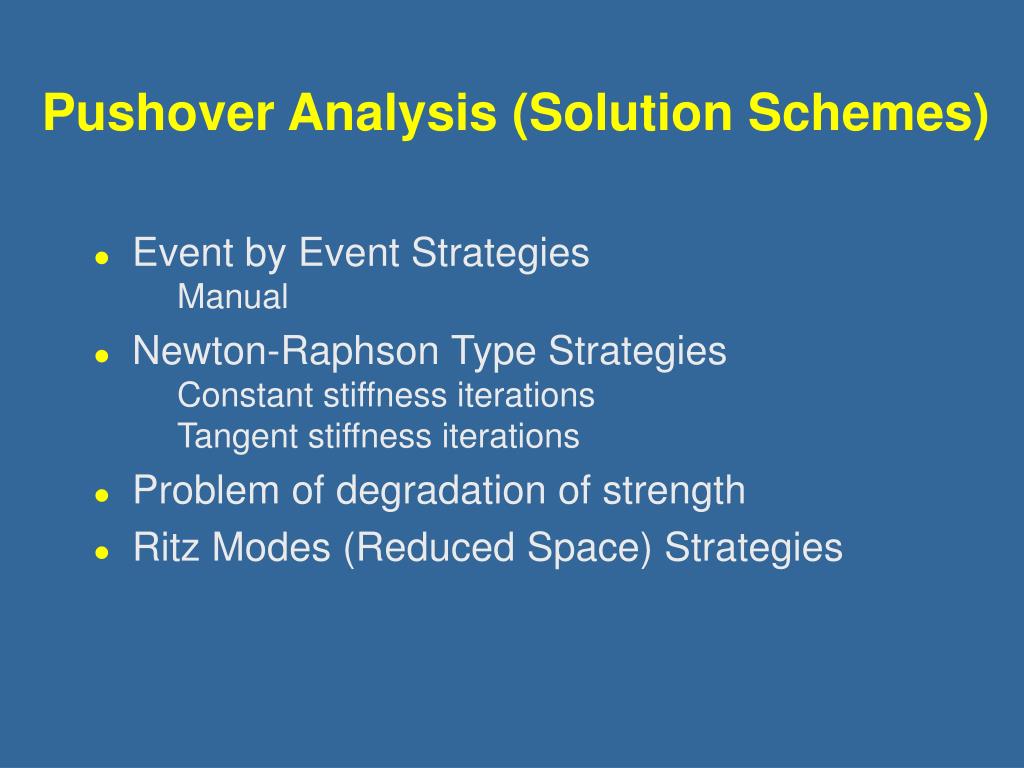

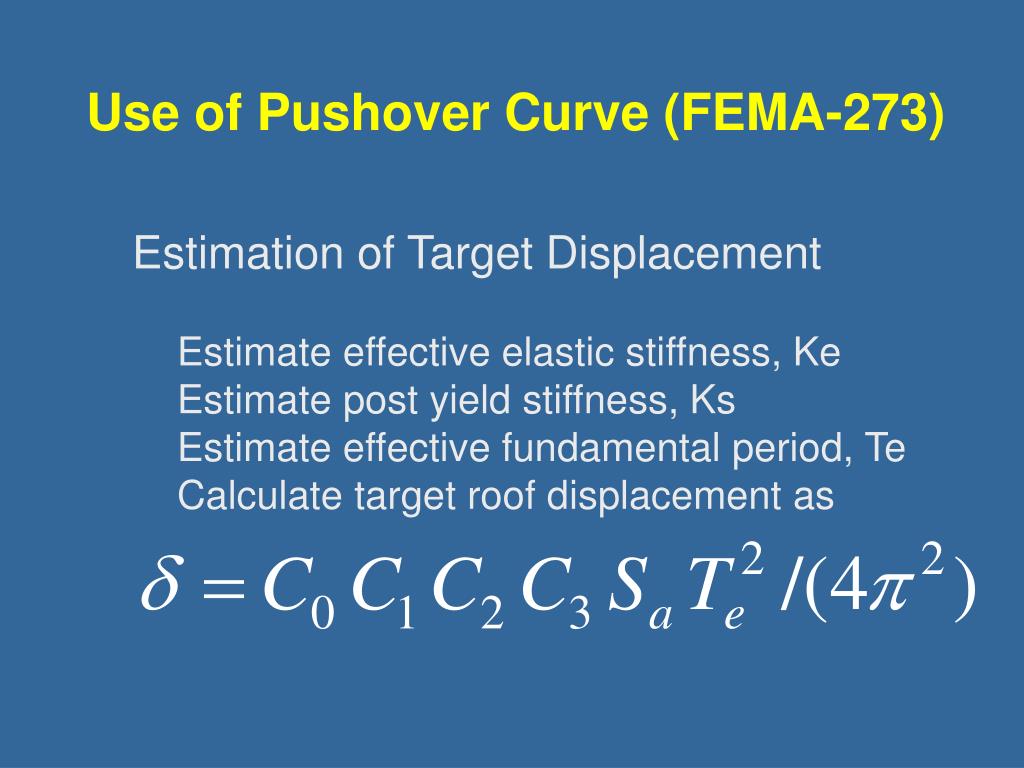

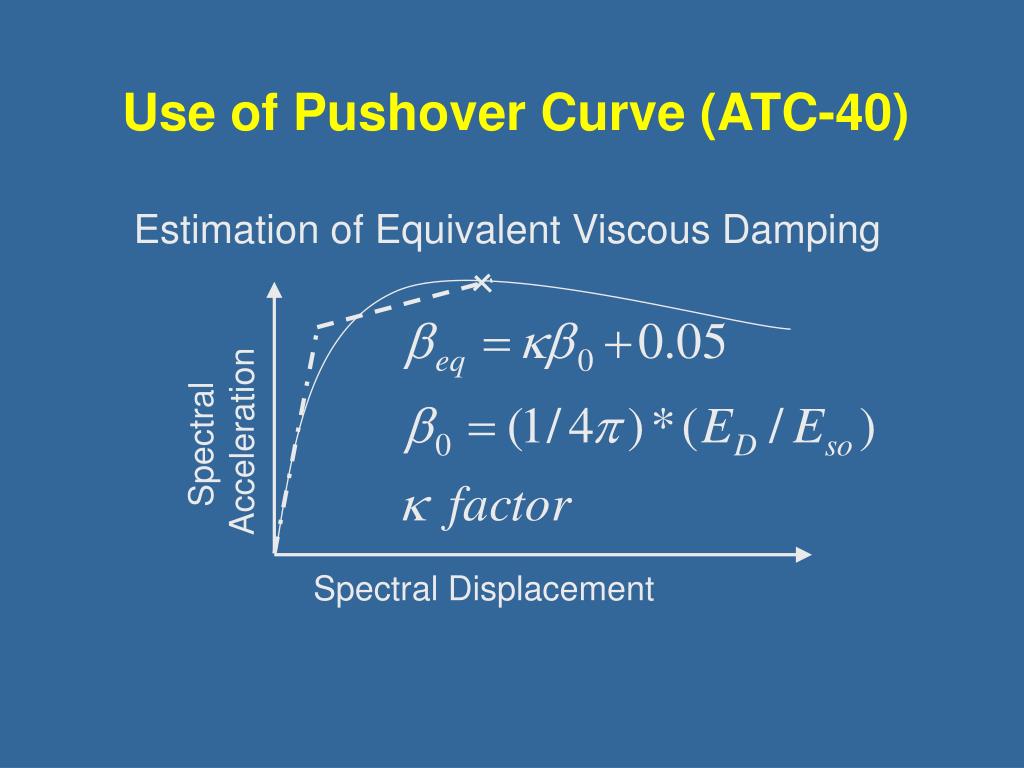

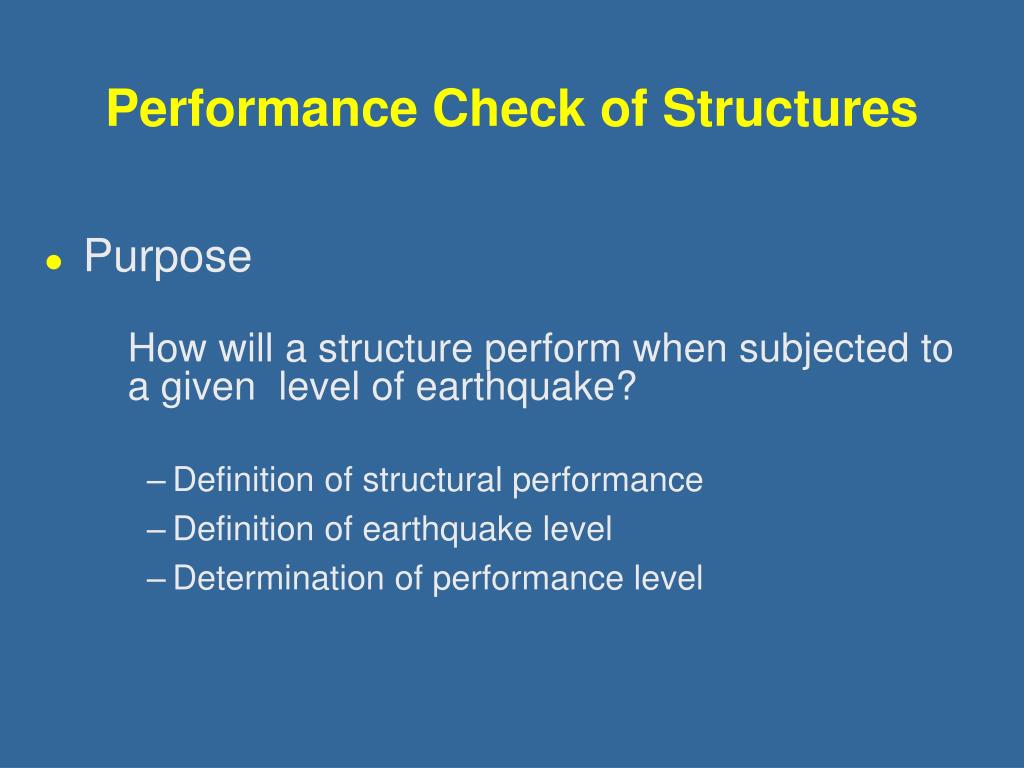

**Static Pushover Analysis**Performance Based Design Modeling for Pushover Analysis Use of the Pushover Curve M. Iqbal Suharwardy Computers and Structures, Inc. Static Pushover Analysis for Seismic Design March 22, 1999**Performance Check of Structures**• Purpose • How will a structure perform when subjected to a given level of earthquake? • Definition of structural performance • Definition of earthquake level • Determination of performance level**Performance Check of Structures**• Process • Recently released guidelines for Seismic Rehabilitation of Buildings: • ATC-40 • FEMA 273 (ATC-33)**Types of Performance Checks**• Linear Static Analysis • Linear Dynamic Analysis • Nonlinear Static Analysis(Pushover Analysis) • Nonlinear Dynamic Analysis**Performance Check Using Pushover**Expected Performance Point for given Earthquake Force Measure Performance Limits (IO, LS, CP) Deformation Measure Goal is to predict peak response of building and components for a given earthquake**Why Do Pushover Analysis?**• Design Earthquakes cause nonlinear behavior • Better understand building behavior- Identify weak elements- Realistic prediction of element demands • Less conservative acceptance criteria can be used with consequences understood**Steps in Performance Check**• Construct Pushover curve • Select earthquake level(s) to check • Select performance level(s) to check • Select acceptance criteria for each performance level • Verify acceptance • Capacity Spectrum Method (ATC-40) • Displacement Coefficient Method (FEMA 273)**Constructing Pushover Curve**• Define Structural Model • Elements (components) • Strength - deformation properties • Define Loads • Gravity • Lateral load pattern • Select Control Displacements or Drifts • Perform Pushover Analysis**Pushover Modeling**Definition of Structural Model • 3D or 2D • Primary and Secondary Elements (components) • Non structural Elements • Foundation flexibility • P-Delta effects**Pushover Modeling (Elements)**• Types • Truss - yielding and buckling • 3D Beam - major direction flexural and shear hinging • 3D Column - P-M-M interactionand shear hinging • Panel zone - Shear yielding • In-fill panel - Shear failure • Shear wall - P-M-Shear interaction! • Spring - for foundation modeling**Pushover Modeling (Properties)**Force-Deformation Relationship C B Force D E A Deformation**Pushover Modeling (Properties)**Force-Deformation (Back bone Curve) Force Deformation**Pushover Modeling (Beam Element)**Three dimensional Beam Element Flexible Connection Span Loads Shear Hinge Plastic Hinge Rigid Zone**Pushover Modeling (Column Element)**Three dimensional Column Element Shear Hinge Plastic Hinge Rigid Zone**Pushover Modeling (Column Element)**Axial Load - Moment Interaction (Concrete) P M**Pushover Modeling (Column Element)**Axial Load - Moment Interaction (Steel)**Pushover Modeling (Loads)**• Start with Gravity Loads • Dead Load • Some portion of Live Load • Select Lateral Load Pattern • Lateral Load Patterns (Vertical Distribution) • Lateral Load Horizontal Distribution • Torsional Effects • Orthogonal Effects**Pushover Modeling (Loads)**Lateral Load Patterns (Vertical Distribution) Mode 1 Code Lateral Uniform**Pushover Analysis (Control)**• Force controlled analysis • Deformation controlled analysis • Roof Displacement • Generalized Displacement Definitions • Limit of analysis • Instability - loss of gravity load carrying capacity • Excessive distortions**Pushover Analysis (Solution Schemes)**• Event by Event Strategies • Manual • Newton-Raphson Type Strategies • Constant stiffness iterations • Tangent stiffness iterations • Problem of degradation of strength • Ritz Modes (Reduced Space) Strategies**Pushover Analysis (Solution Schemes)**Event by Event Strategy Base Shear Roof Displacement**Pushover Analysis (Solution Schemes)**Problem of Degradation of Strength Base Shear Roof Displacement**Pushover Analysis (Results)**Force Measure Deformation Measure**Use of Pushover Curve**• Capacity Spectrum Method - detailed in ATC-40 - and as alternate method in FEMA-273 • Displacement Coefficient Method - detailed in FEMA-273**Use of Pushover Curve (ATC-40)**• Construct Capacity Spectrum • Estimate Equivalent Damping • Determine Demand Spectrum • Determine Performance Point • Verify Acceptance**Use of Pushover Curve (ATC-40)**Constructing Capacity Spectrum Spectral Acceleration Base Shear Roof Displacement Spectral Displacement**Use of Pushover Curve (ATC-40)**Constructing Capacity Spectrum The displaced shape at any point on the pushover curve is used to obtain an equivalent SDOF system. a is the mass participation and relates the base shears PF is the participation factor and relates the roof displacement to the SDOF displacement Equivalent SDOF MDOF**Use of Pushover Curve (ATC-40)**Constructing Capacity Spectrum Spectral Acceleration Spectral Displacement**Use of Pushover Curve (ATC-40)**Estimation of Equivalent Viscous Damping Spectral Acceleration Spectral Displacement**Use of Pushover Curve (ATC-40)**Estimation of Equivalent Damping Spectral Acceleration Eso Spectral Displacement Ed**Use of Pushover Curve (ATC-40)**Response Spectrum (5% damping) 2.5CA CV/T Spectral Acceleration Time Period**Use of Pushover Curve (ATC-40)**• Response Spectrum (5% damping) • CA and CV depend on: • - Seismic zone (0.075 to 0.4) • - Nearness to fault and source type (1 to 2) • - Soil Type (1 to 2.5) • - Level of Earthquake (0.5 to 1.5)**Use of Pushover Curve (ATC-40)**Reduced Spectrum (Effective damping) 2.5CA/Bs Spectral Acceleration CV/(T BL) Time Period**Use of Pushover Curve (ATC-40)**Acceleration-Displacement Response Spectrum T0 Sd = SaT2/4p2 Spectral Acceleration Spectral Acceleration T0 Spectral Displacement Time Period**Use of Pushover Curve (ATC-40)**Performance Point Demand Spectrum for effectivedamping at performance point Spectral Acceleration Capacity Spectrum Spectral Displacement**Use of Pushover Curve (ATC-40)**Performance Point Spectral Acceleration Spectral Displacement**Use of Pushover Curve (ATC-40)**Verification of Acceptance Expected Performance Point for given Earthquake Force Measure Performance Limits (IO, LS, CP) Deformation Measure**Use of Pushover Curve (FEMA-273)**• (Displacement Coefficient Method) • Estimate Target Displacement • Verify Acceptance**Use of Pushover Curve (FEMA-273)**• Estimation of Target Displacement • Estimate effective elastic stiffness, Ke • Estimate post yield stiffness, Ks • Estimate effective fundamental period, Te • Calculate target roof displacement as**Use of Pushover Curve (FEMA-273)**• Estimation of Target Displacement • C0 Relates spectral to roof displacement • C1 Modifier for inelastic displacement • C2 Modifier for hysteresis loop shape • C3 Modifier for second order effects**Use of Pushover Curve (ATC-40)**Estimation of Effective Elastic Period, Te Vy aKe = Ks Estimate Te using Ke Estimate Elastic Spectral Displacement .6Vy Base Shear Ke Roof Displacement**Use of Pushover Curve (FEMA-273)**• Calculation of C0 • Relates spectral to roof displacement • - use modal participation factor for control node from first mode • - or use modal participation factor for control node from deflected shape at the target displacement • - or use tables based on number of stories and varies from 1 to 1.5**Use of Pushover Curve (FEMA-273)**• Calculation of C1 • Modifier for inelastic displacement C1 = [1 +(R-1)T0/Te]/R R is elastic strength demand to yield strength Spectral Acceleration C1 = 1 T0 Time Period**Use of Pushover Curve (FEMA-273)**• Calculation of C2 • Modifier for hysteresis loop shape • - from Tables • - depends on Framing Type (degrading strength) • - depends on Performance Level • - depends on Effective Period • - varies from 1.0 to 1.5**Use of Pushover Curve (FEMA-273)**• Calculation of C3 • Modifier for dynamic second order effects • C3 = 1 if post yield slope, a is positive • else • C3 = 1 +[ |a|(R-1)3/2 ]/Te**Use of Pushover Curve (FEMA-273)**Verification of Acceptance Target Displacement (or corresponding deformation) for given Earthquake Force Measure Performance Limits (IO, LS, CP) Deformation Measure**Use of Pushover Curve**• Do these methods work? • Comparisons with: • - Nonlinear time history analysis • - Single degree of freedom systems • - Multi-degree of freedom systems • - Observed damage • How do they compare with each other?**SAP2000/ETABS Pushover Options**• SAP2000 released September, 1998 • Full 3D implementation • Single model for - linear static analysis - linear response spectrum analysis - linear time history analysis - nonlinear time history analysis - nonlinear static pushover analysis - steel and concrete design
