  1. Reflectance Function Approximation Ted Wild CS 766 Thursday, December 11, 2003

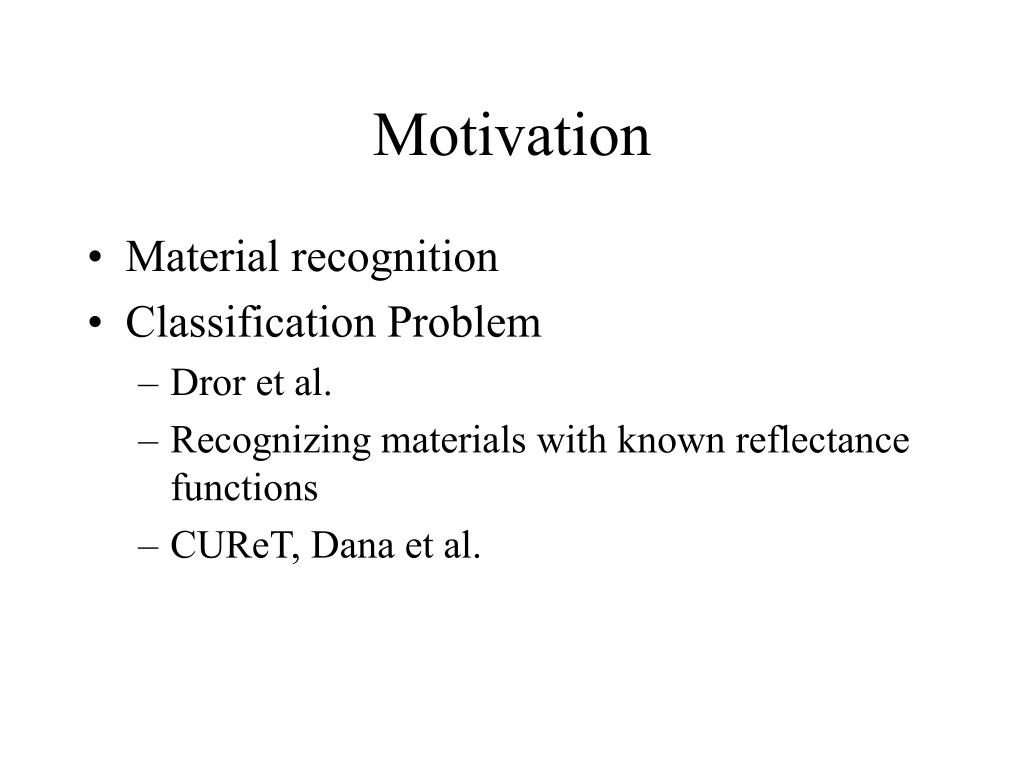

  2. Motivation • Material recognition • Classification Problem • Dror et al. • Recognizing materials with known reflectance functions • CUReT, Dana et al.

  3. Example • Denim + Cotton + Skin = Person • Can make feature tracking, segmentation, etc. easier • Would work under different pose, lighting

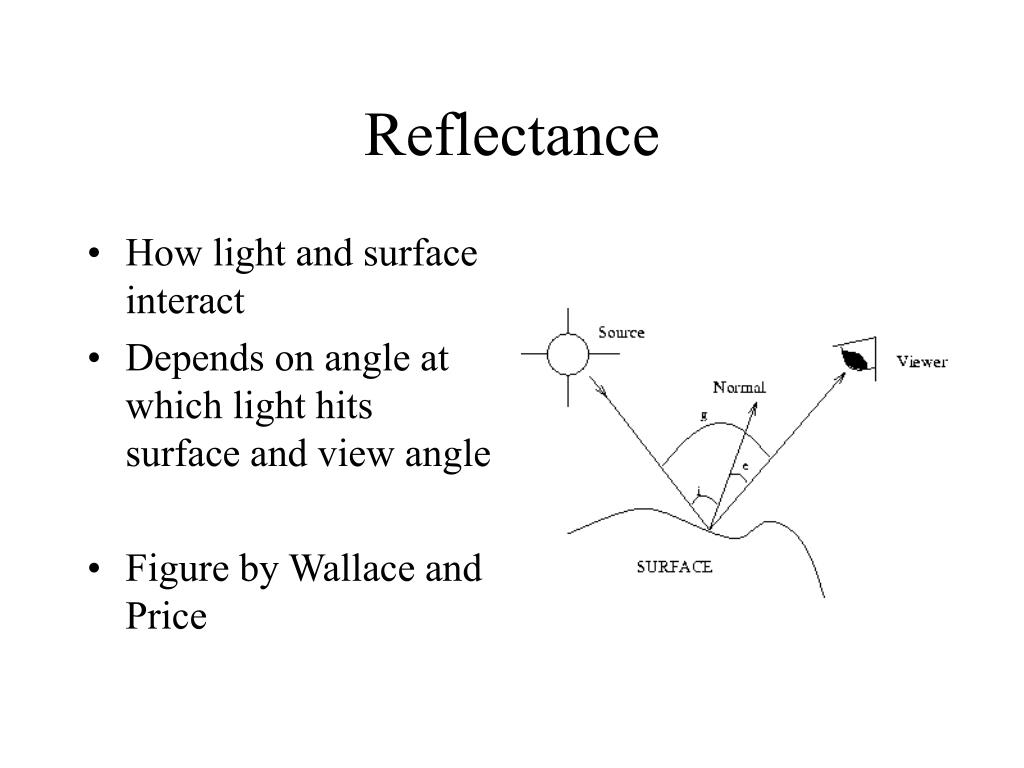

  4. Reflectance • How light and surface interact • Depends on angle at which light hits surface and view angle • Figure by Wallace and Price

  5. Bidirectional Reflectance Distribution Functions • Scalar function of 4 variables: • Incident light (2 angles) • View direction (2 angles) • CUReT data • BRDF’s of 61 materials • 205 measurements per material

  6. CUReT

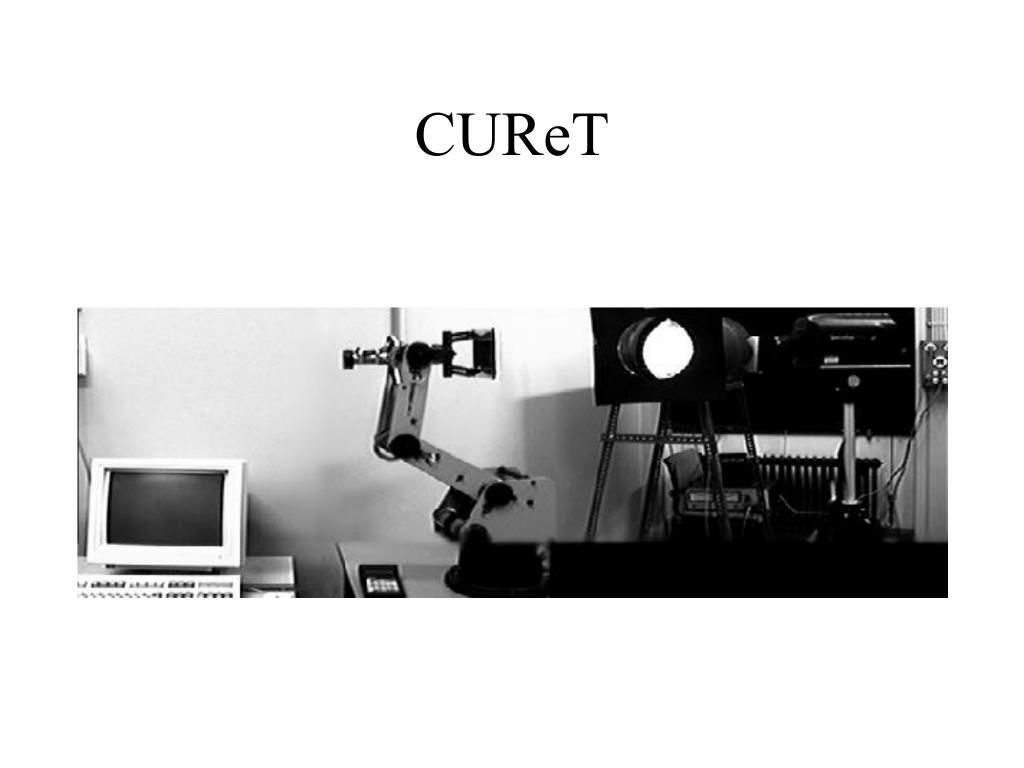

  7. CUReT

  8. CUReT

  9. BRDF Approximation • Kernel regression • Gaussian kernels • 2 parameters

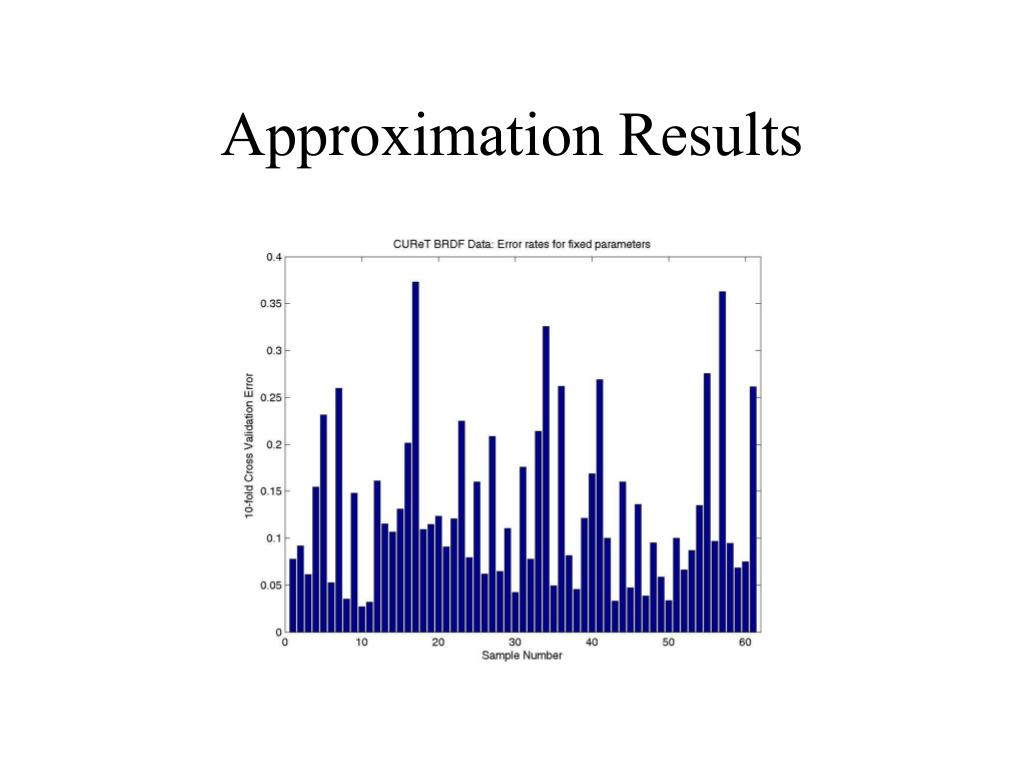

  10. Approximation Results

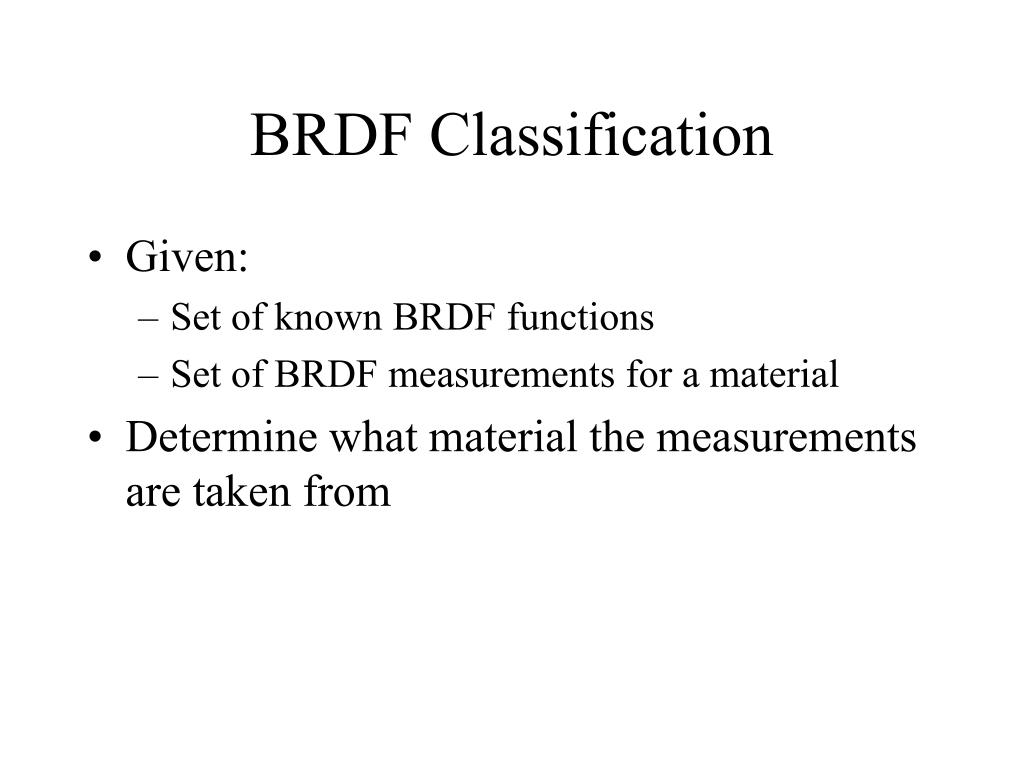

  11. BRDF Classification • Given: • Set of known BRDF functions • Set of BRDF measurements for a material • Determine what material the measurements are taken from

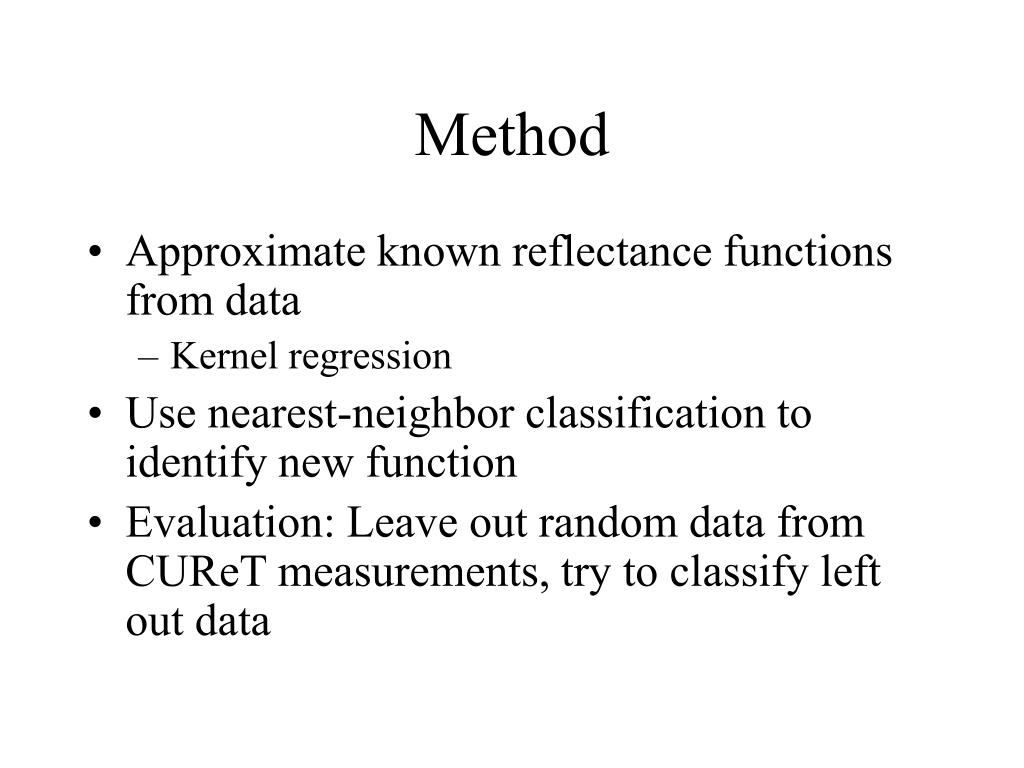

  12. Method • Approximate known reflectance functions from data • Kernel regression • Use nearest-neighbor classification to identify new function • Evaluation: Leave out random data from CUReT measurements, try to classify left out data

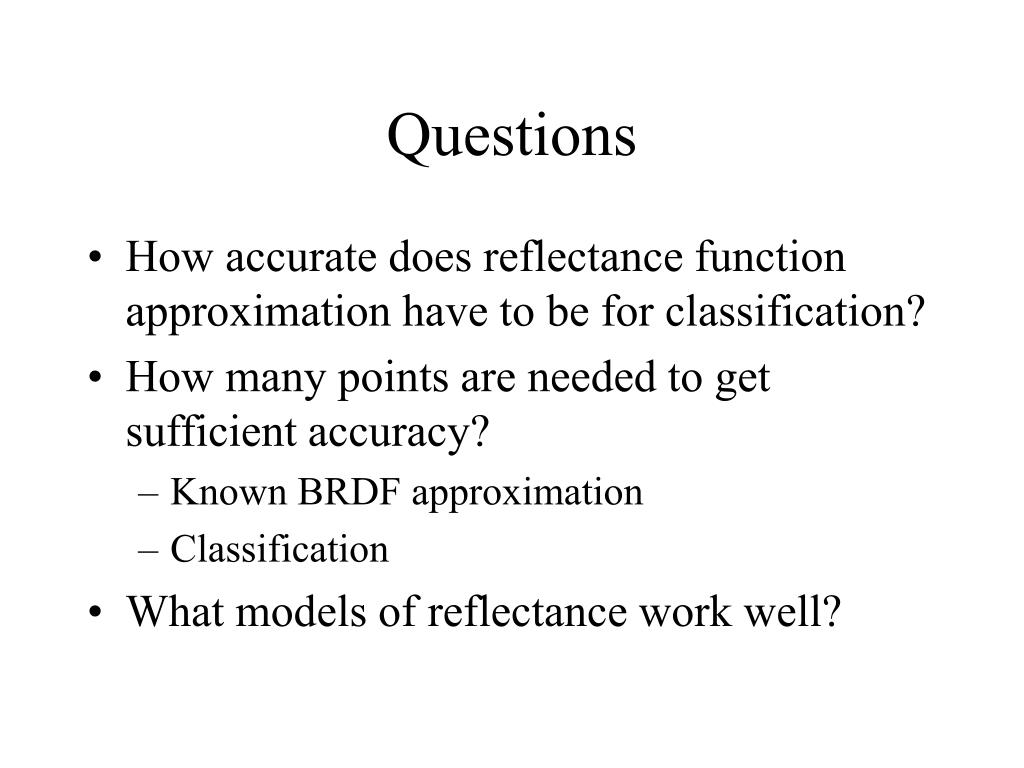

  13. Questions • How accurate does reflectance function approximation have to be for classification? • How many points are needed to get sufficient accuracy? • Known BRDF approximation • Classification • What models of reflectance work well?

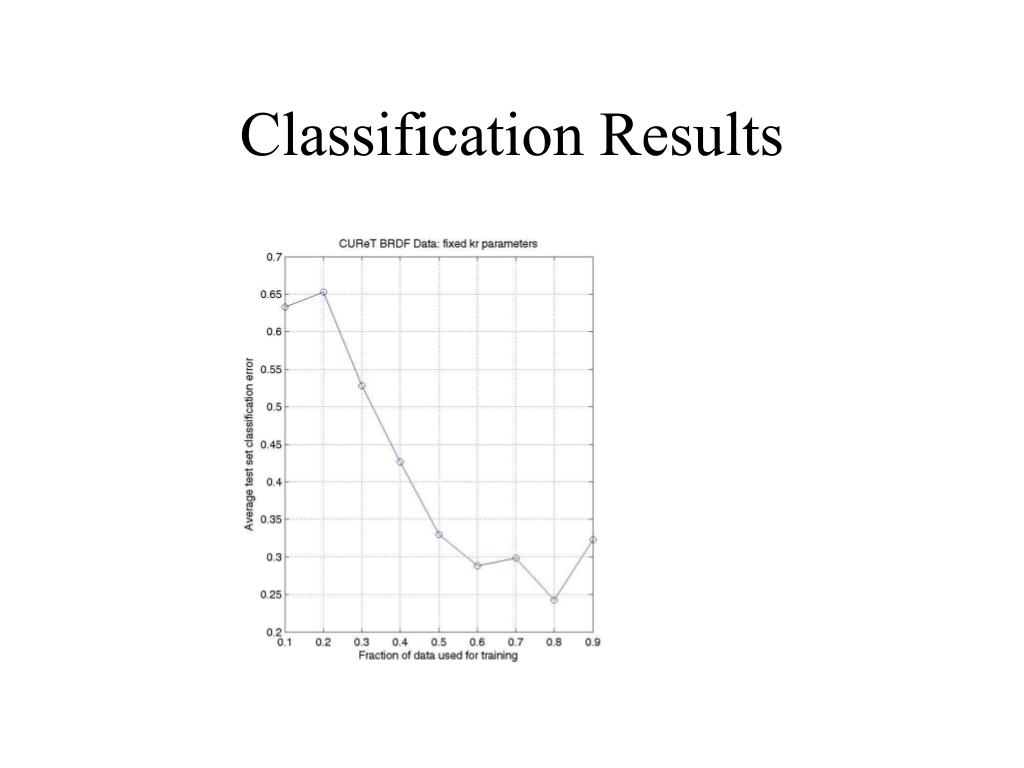

  14. Classification Results

  15. Problems • Need to know: • Geometry • Discussed in class • Illumination • Ramamoorthi and Hanrahan • Factorization technique to recover BRDF and lighting in some cases • Can only recognize “known” materials

  16. Recognizing Unseen Materials • If input is sufficiently different from known BRDF’s, create a new class for it • Use linear combination of known BRDF’s for further recognition • May need less points for recognition than for approximation • Can improve approximation of new class as more of its measurements are identified

  17. Very Early Results • Leave one material out: • When testing, classify material as unseen if the distance to its nearest neighbor >= tol • tol = 0.25 • Average error: 0.40, Predicting unseen: 0.51 • tol = 0.20 • Average error: 0.45, Predicting unseen: 0.29 • Trials only run once!

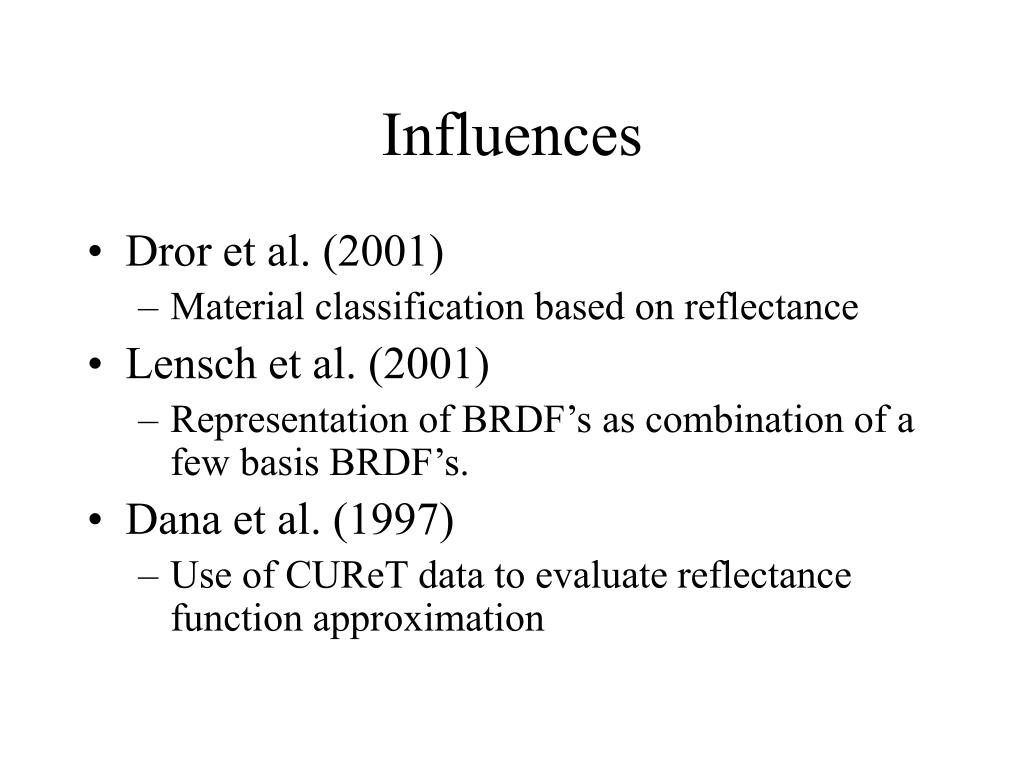

  18. Influences • Dror et al. (2001) • Material classification based on reflectance • Lensch et al. (2001) • Representation of BRDF’s as combination of a few basis BRDF’s. • Dana et al. (1997) • Use of CUReT data to evaluate reflectance function approximation

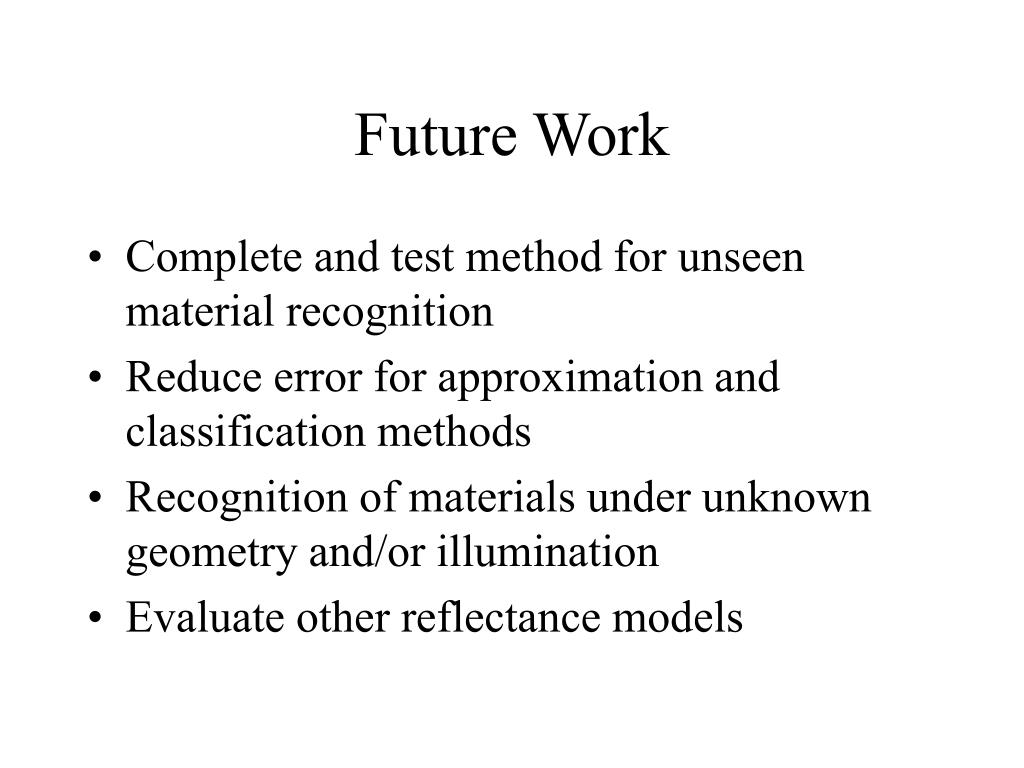

  19. Future Work • Complete and test method for unseen material recognition • Reduce error for approximation and classification methods • Recognition of materials under unknown geometry and/or illumination • Evaluate other reflectance models
