  1. Introduction to Chemistryfor Allied Health SciencesDimensional AnalysisKirk HunterChemical Technology DepartmentTexas State Technical College Waco

  2. Dimensional Analysis

  3. Dimensional Analysis(Factor-Unit Method) • A simple, powerful tool. • Converts among measurements expressed in different units. • Develops relationships between units and expresses this relationship as a factor of both units.

  4. Dimensional Analysis(Factor-Unit Method) • Example: • 500 grams is equivalent to how many pounds?

  5. Dimensional Analysis(Factor-Unit Method) • Example: • 500 grams is equivalent to how many pounds? Step 1: Write the statement as a mathematical formula.

  6. Dimensional Analysis(Factor-Unit Method) • Example: • 500 grams is equivalent to how many pounds? Step 2: Write the relationship between the known and unknown units. 1 pound = 454 grams

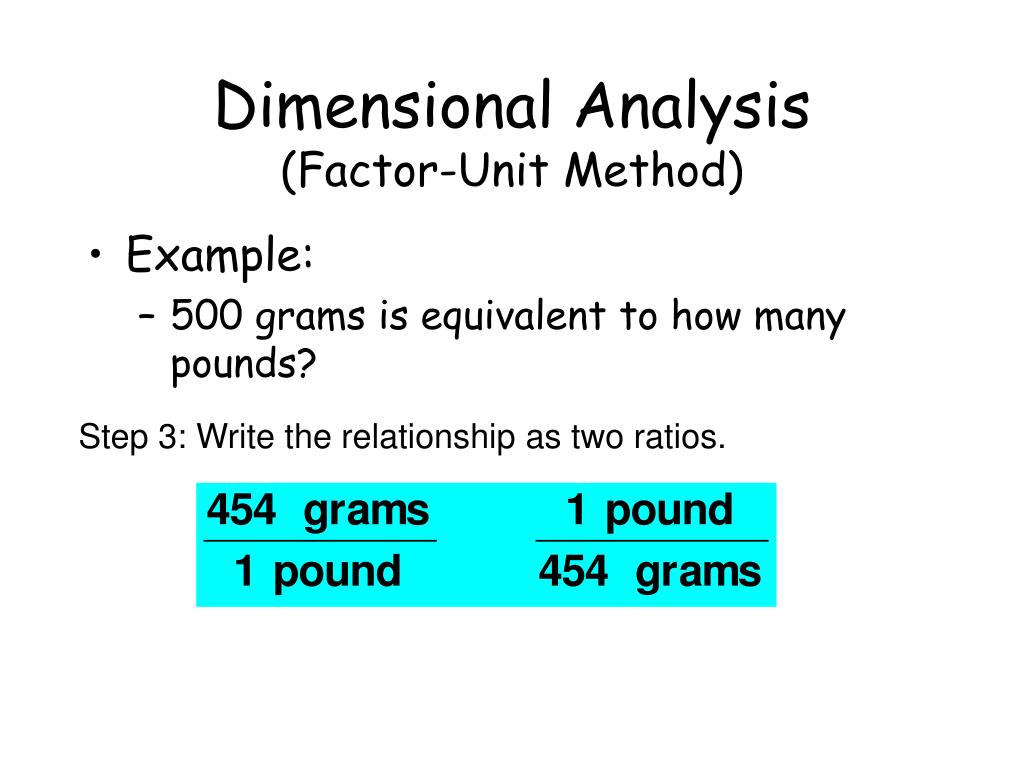

  7. Dimensional Analysis(Factor-Unit Method) • Example: • 500 grams is equivalent to how many pounds? Step 3: Write the relationship as two ratios.

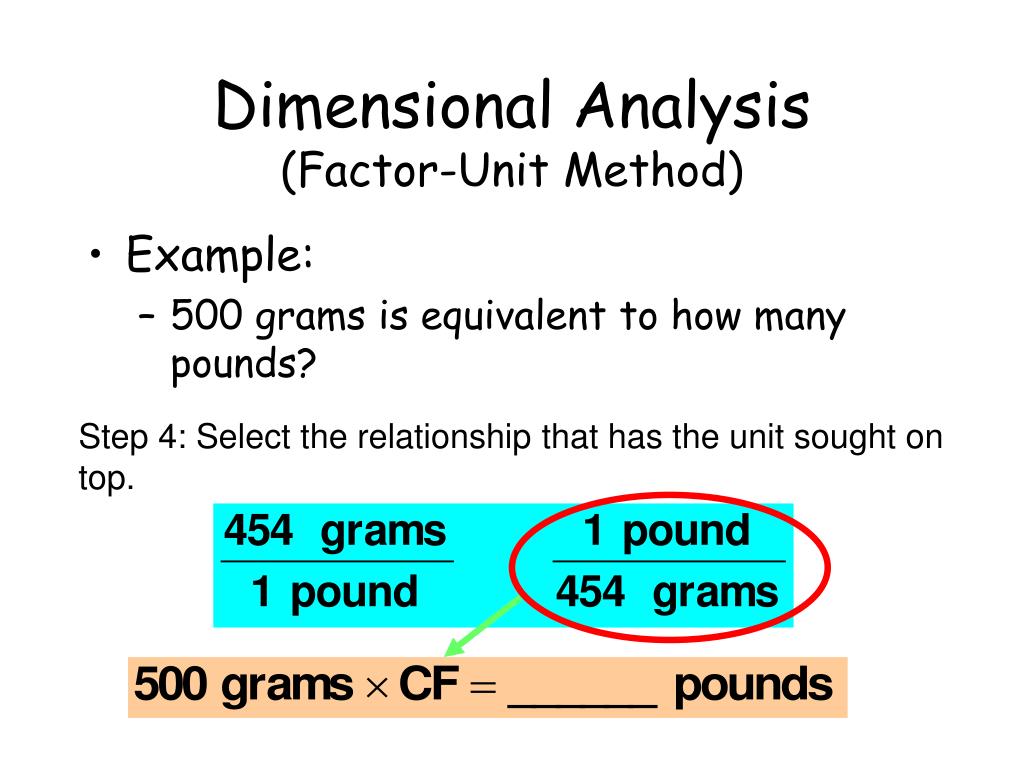

  8. Dimensional Analysis(Factor-Unit Method) • Example: • 500 grams is equivalent to how many pounds? Step 4: Select the relationship that has the unit sought on top.

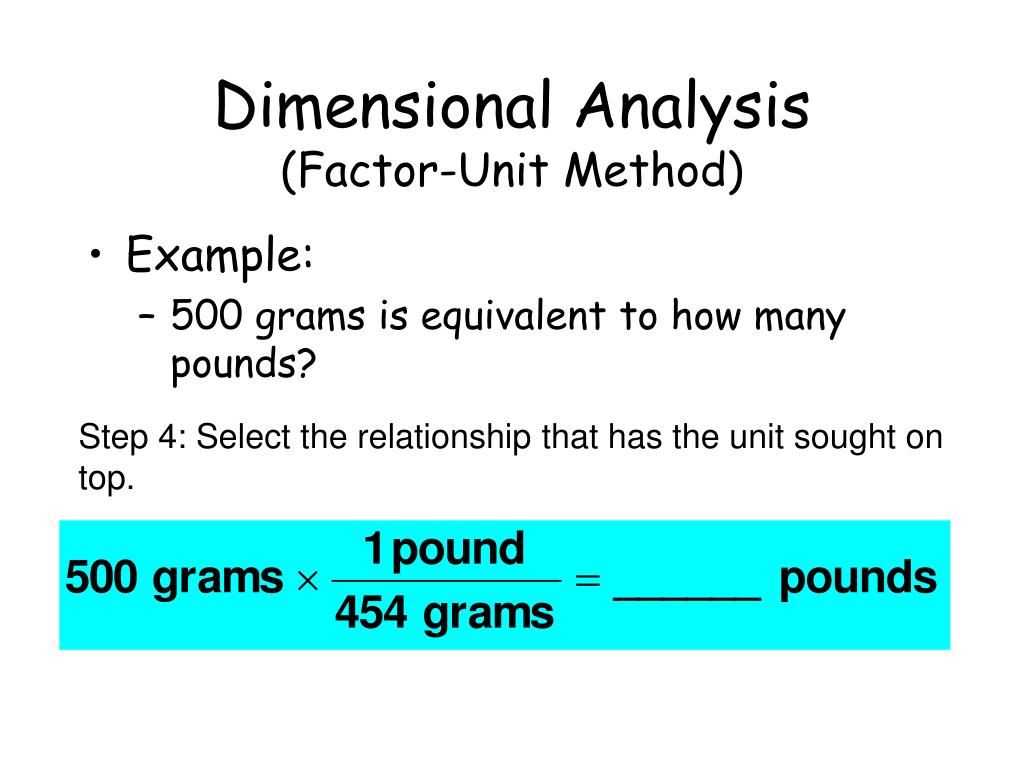

  9. Dimensional Analysis(Factor-Unit Method) • Example: • 500 grams is equivalent to how many pounds? Step 4: Select the relationship that has the unit sought on top.

  10. Dimensional Analysis(Factor-Unit Method) • Example: • 500 grams is equivalent to how many pounds? Step 5: Perform the calculation.

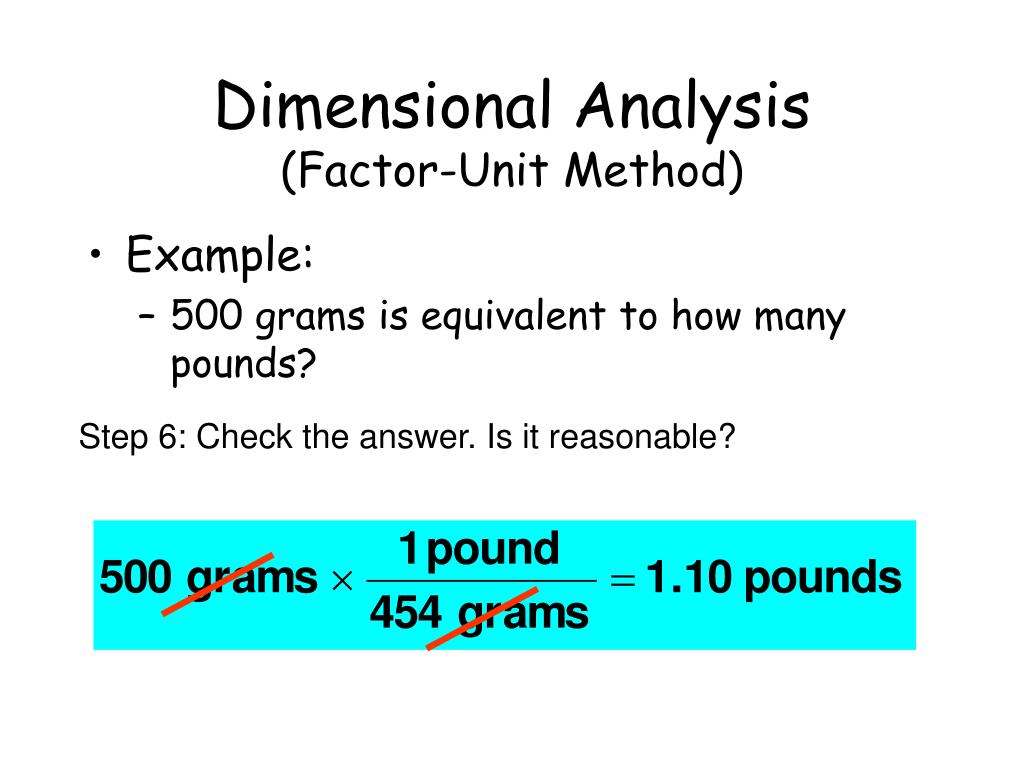

  11. Dimensional Analysis(Factor-Unit Method) • Example: • 500 grams is equivalent to how many pounds? Step 6: Check the answer. Is it reasonable?

  12. Dimensional Analysis(Factor-Unit Method) • Example: • A can of Coca-Cola contains 12 fluid ounces (fl oz). What is the volume of the can in quarts? (Given: 1 qt = 32 fl oz)

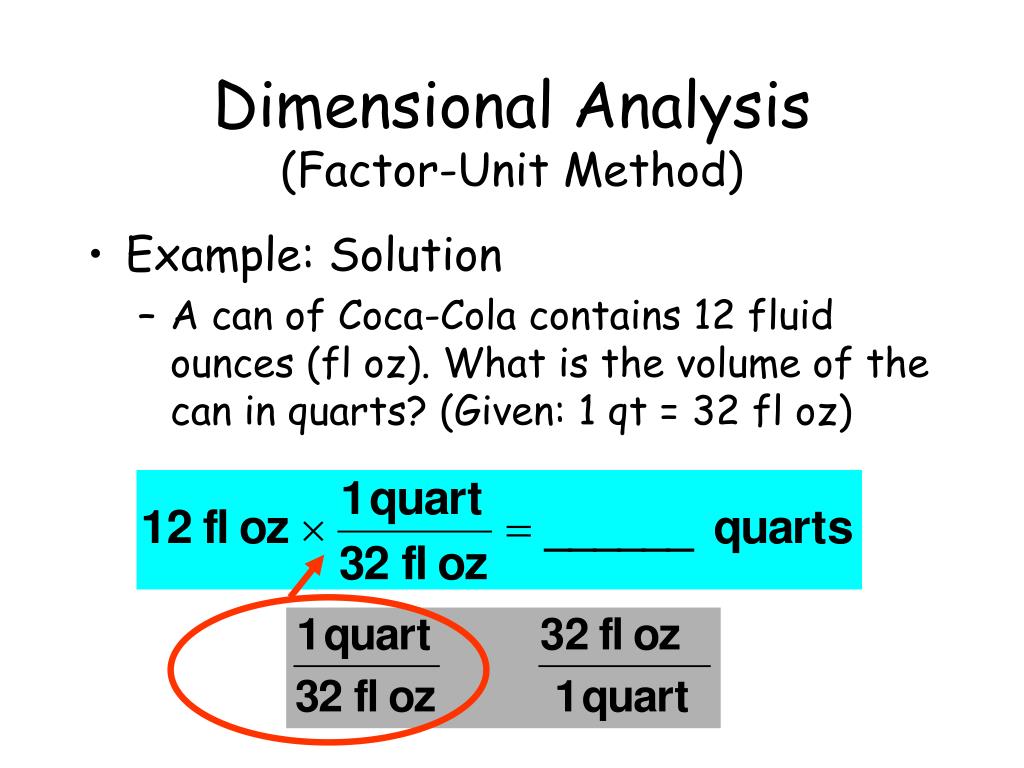

  13. Dimensional Analysis(Factor-Unit Method) • Example: Solution • A can of Coca-Cola contains 12 fluid ounces (fl oz). What is the volume of the can in quarts? (Given: 1 qt = 32 fl oz)

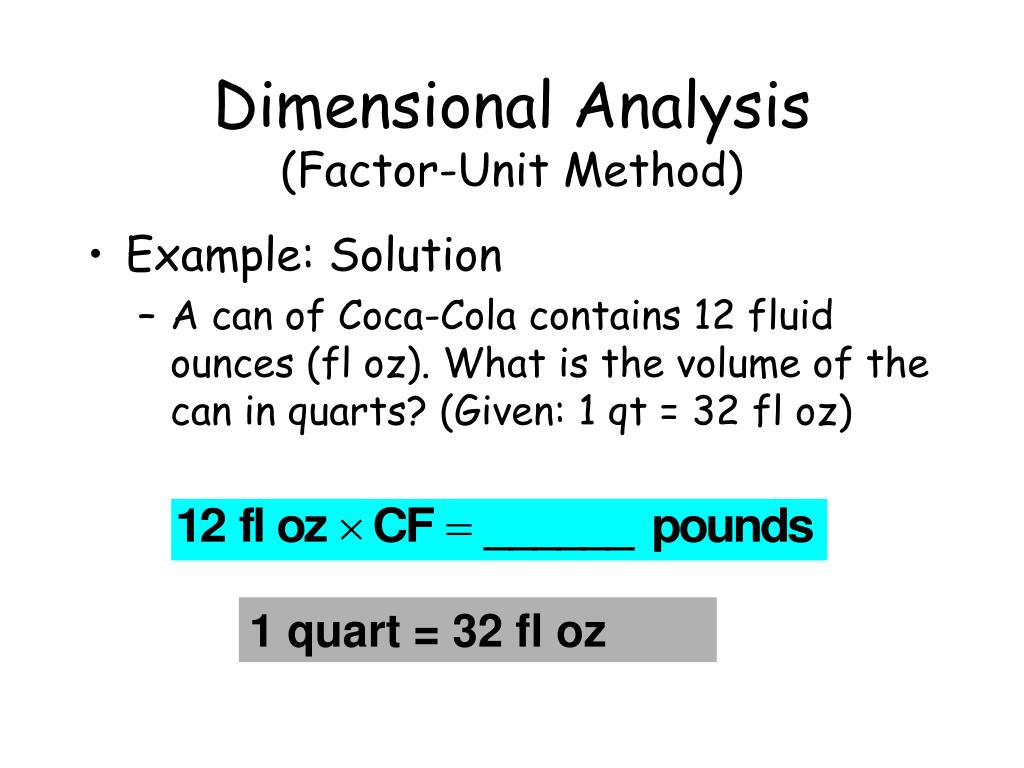

  14. Dimensional Analysis(Factor-Unit Method) • Example: Solution • A can of Coca-Cola contains 12 fluid ounces (fl oz). What is the volume of the can in quarts? (Given: 1 qt = 32 fl oz) 1 quart = 32 fl oz

  15. Dimensional Analysis(Factor-Unit Method) • Example: Solution • A can of Coca-Cola contains 12 fluid ounces (fl oz). What is the volume of the can in quarts? (Given: 1 qt = 32 fl oz)

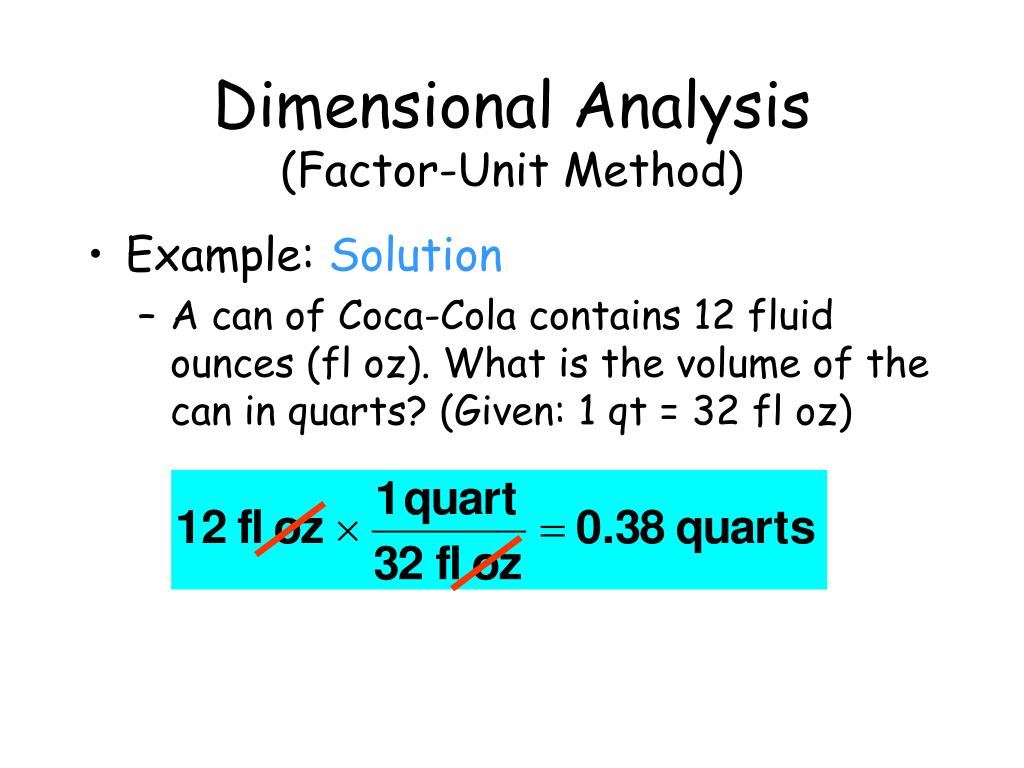

  16. Dimensional Analysis(Factor-Unit Method) • Example: Solution • A can of Coca-Cola contains 12 fluid ounces (fl oz). What is the volume of the can in quarts? (Given: 1 qt = 32 fl oz)
