Global Muon Trigger Overview

This document provides a comprehensive overview of the Global Muon Trigger (GMT) system, detailing input and output bit specifications, signal assignments for RPC (Resistive Plate Chamber) interfaces, and the ongoing FPGA design progress for GMT logic boards. Key milestones include completion dates for logic and FPGA design, and it addresses the necessary updates and choices for cabling and connectors. Special acknowledgments are made to contributors while focusing on enhancing communication between RPC and GMT systems. Documentation URLs are included for further reference.

thibault-jaycob
Télécharger la présentation

Global Muon Trigger Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Global Muon Trigger Overview 252 MIP bits252 Quiet bits 4 m RPC brl 4 m DT Inputs:8 bit f, 6 bit h, 5 bit pT, 2 bits charge, 3 bit quality,1 bit halo/eta fine-coarse Best 4 m 4 m CSC Output:8 bit f, 6 bit h, 5 bit pT, 2 bits charge/synch, 3 bit quality,1 bit MIP, 1 bit Isolation 4 m RPC fwd

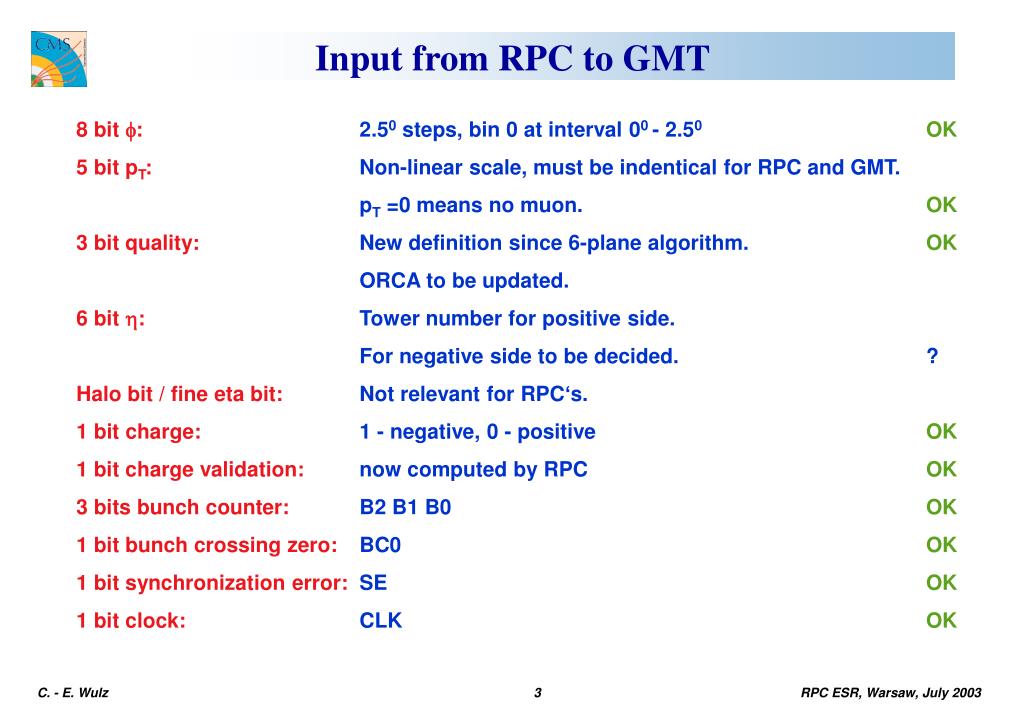

  2. Input from RPC to GMT 8 bit f: 2.50 steps, bin 0 at interval 00 - 2.50OK 5 bit pT: Non-linear scale, must be indentical for RPC and GMT. pT =0 means no muon. OK 3 bit quality: New definition since 6-plane algorithm. OK ORCA to be updated. 6 bit h: Tower number for positive side. For negative side to be decided. ? Halo bit / fine eta bit: Not relevant for RPC‘s. 1 bit charge: 1 - negative, 0 - positive OK 1 bit charge validation: now computed by RPC OK 3 bits bunch counter: B2 B1 B0 OK 1 bit bunch crossing zero: BC0 OK 1 bit synchronization error: SE OK 1 bit clock: CLK OK

  3. Bit Assignment and Hardware Assignment of input bits LVDS drivers and receivers Suggested: SN75LVDS387 16 bit LVDS driver SN75LVDT386 16 bit LVDS receiver Cables for parallel transfer Suggested: Madison cable: 34 pairs, 28 AWG, halogen free (order together with Wisconsin group)

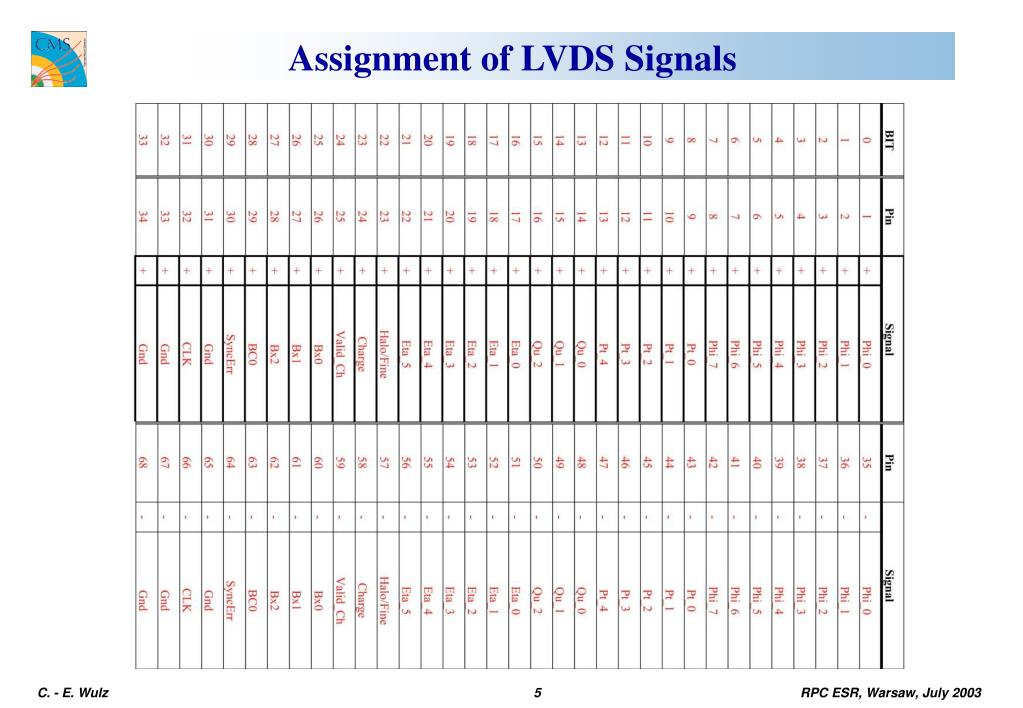

  4. Assignment of LVDS Signals

  5. Connectors SCSI-3 type connector Wire pairs: w1-w2 = pin 35-1, w3-w4 = pin 36-2etc.

  6. GMT in Underground Counting Room

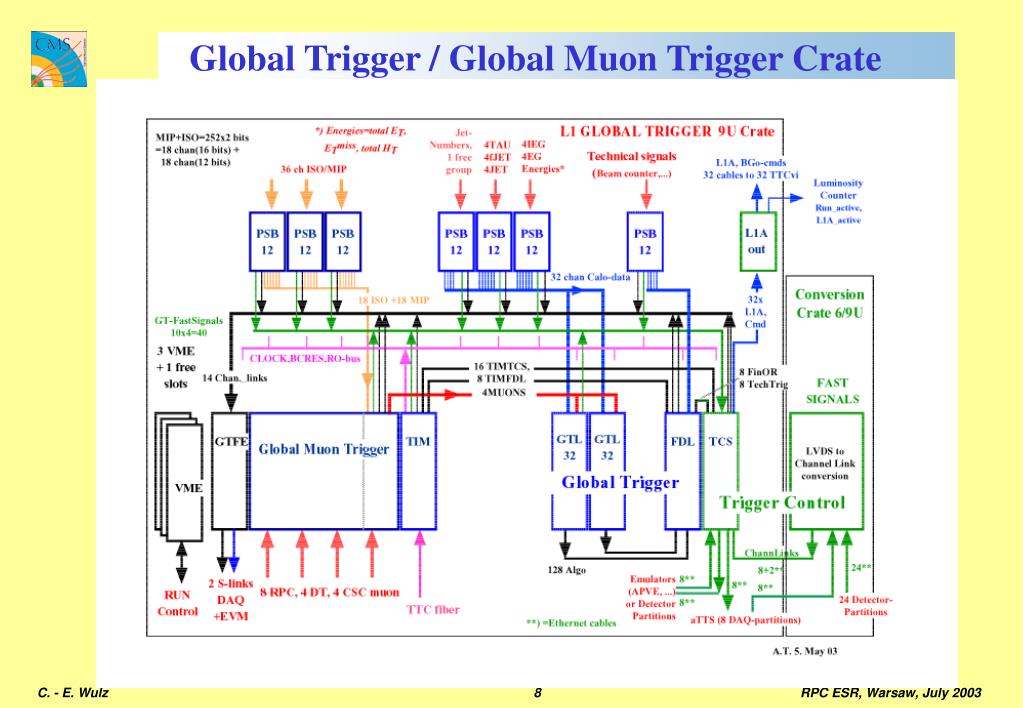

  7. Global Trigger / Global Muon Trigger Crate

  8. Layout of USC55 Counting Room Racks Lower Floor Links ( ~5ns/m) + LVDS driver/receiver stages should not contribute more than 2-3 bx to latency. Need estimate of cable length.

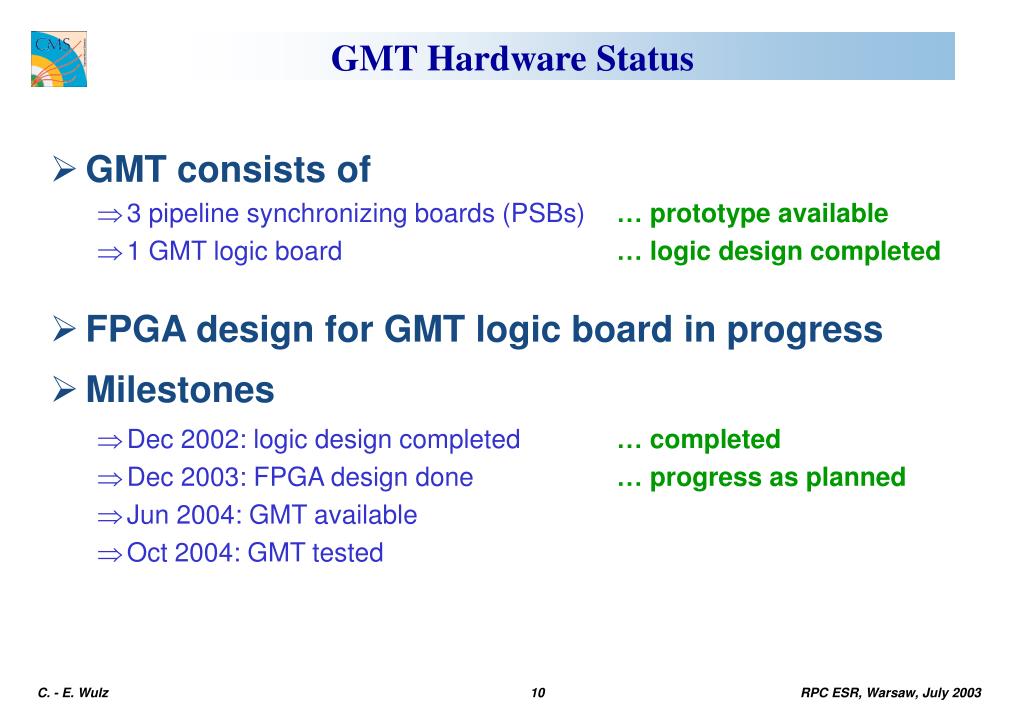

  9. GMT consists of 3 pipeline synchronizing boards (PSBs)… prototype available 1 GMT logic board… logic design completed FPGA design for GMT logic board in progress Milestones Dec 2002: logic design completed… completed Dec 2003: FPGA design done… progress as planned Jun 2004: GMT available Oct 2004: GMT tested GMT Hardware Status

  10. URL’s and Documentation • This talk can be found at: • http://wwwhephy.oeaw.ac.at/p3w/cms/trigger/globalMuonTrigger/trans/ • GMT_RPC_warsaw.ppt • Detailed information about the Global Muon Trigger and the Global Trigger is • available on the HEPHY Vienna web sites: • http://wwwhephy.oeaw.ac.at/p3w/cms/trigger/globalMuonTrigger • http://wwwhephy.oeaw.ac.at/p3w/cms/trigger/globalTrigger • Draft interface document Regional Muon Trigger / GMT to be finalized: • http://wwwhephy.oeaw.ac.at/p3w/cms/trigger/globalMuonTrigger/notes/Reg_to_GMT_Note_0.91.pdf

  11. Conclusions and Acknowledgements • Most of the issues of the RPC/GMT interface are settled. To be done: - Choice of cables and connectors - Coding of h - Update RPC and GMT codes in ORCA - Update documentation Special thanks to M. Kudla, H. Sakulin and A. Taurok.
