Analysis of Global and Muon Trigger Latency in CMS (November 2005)

This document discusses the latency measurements for the Global Trigger (GT) and Global Muon Trigger (GMT) as of November 11, 2005. Authors Anton Taurok and Manfred Jeitler provide insights into the estimated latency values, which include specific delays attributed to various components such as RPC, CSC, DTTF, and GCT. The overall latency between muon inputs and TTCci is reported at 19 bx, with additional transfer times highlighted. This analysis builds upon the previous review conducted in 2004, ensuring comprehensive documentation on the trigger performance.

henry
Télécharger la présentation

Analysis of Global and Muon Trigger Latency in CMS (November 2005)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

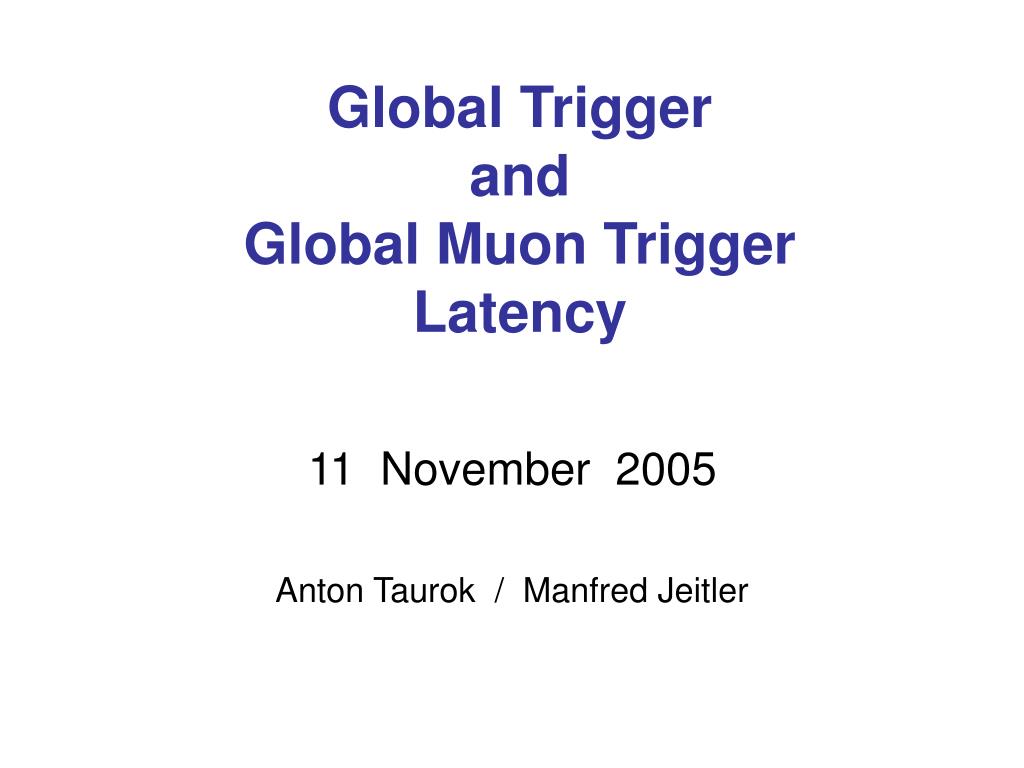

  1. Global Trigger and Global Muon Trigger Latency 11 November 2005 Anton Taurok / Manfred Jeitler Anton Taurok / Manfred Jeitler: GT and GMT latency

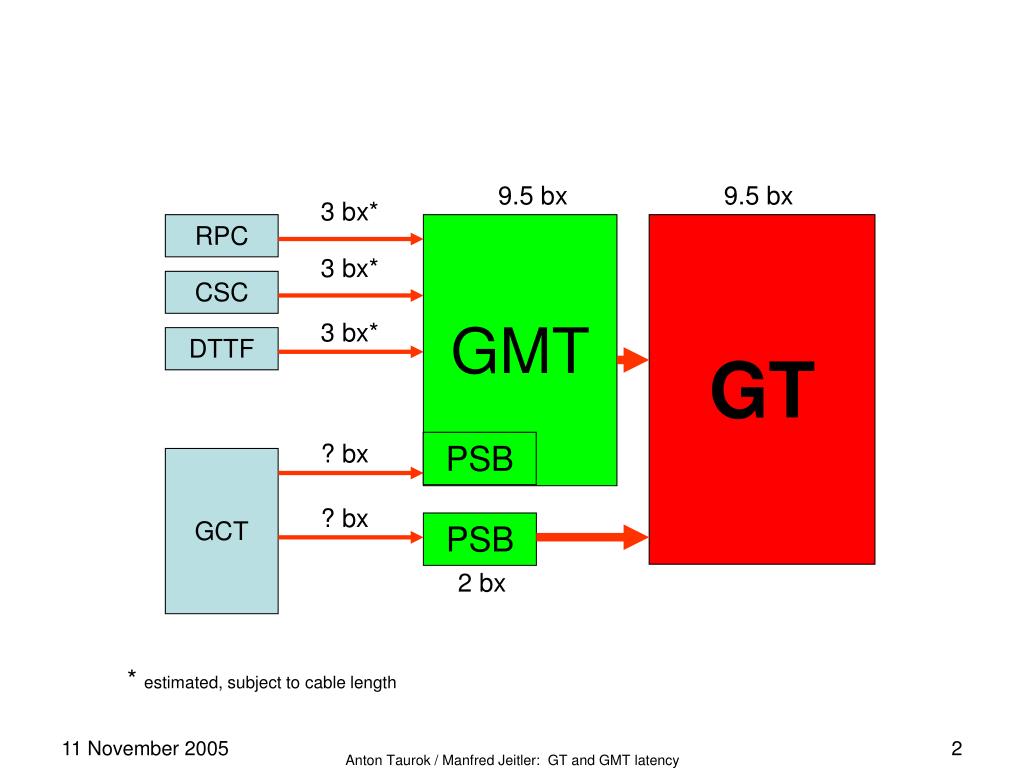

  2. 9.5 bx 9.5 bx 3 bx* RPC GMT GT 3 bx* CSC 3 bx* DTTF ? bx PSB GCT ? bx PSB 2 bx * estimated, subject to cable length Anton Taurok / Manfred Jeitler: GT and GMT latency

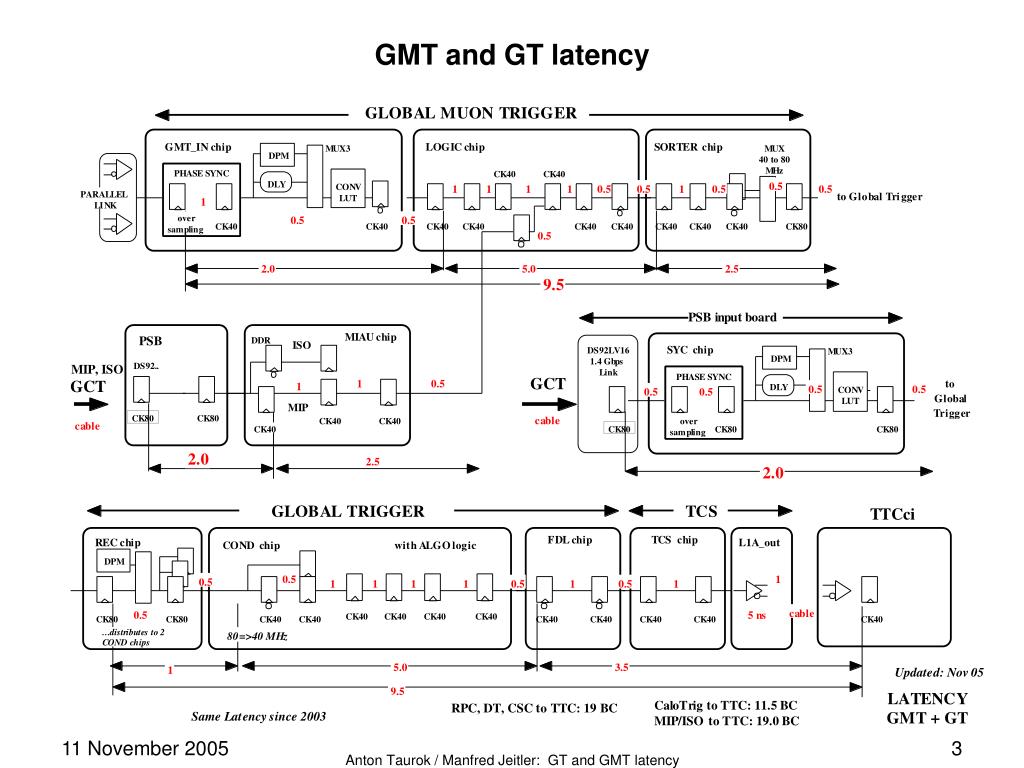

  3. GMT and GT latency Anton Taurok / Manfred Jeitler: GT and GMT latency

  4. comments • latency has not changed since last review in 2004 • overall latency between muon inputs and TTCci is 19 bx • add an estimated 3 bx transfer time for muons from RPC, CSC, DTTF • see CMS note 2004/022, chapter 5 • add transfer time from GCT to GT over ~2-3 m long Infiniband cable Anton Taurok / Manfred Jeitler: GT and GMT latency
