  1. Threat Modeling and the Zero Day Problem A quick look at how methodical threat modeling could combat an enterprise’s security problem Christopher Lee

  2. Agenda • Software Vulnerabilities are Out of Control! • The Basic Vocabulary of Risk Management • What is Threat Modeling • How does Threat Modeling help, even in the face of Zero-day vulnerabilities?

  3. Coping with Vulnerabilities • Vulnerabilities are being reported at an alarming rate, despite vendors’ focus on writing secure code. CERT/CC Statistics 1988-2007

  4. Cost of Reacting to Those Vulnerabilities… • Two major reactionary response to Software Vulnerabilities • Patching • System –or- Software Reconfiguration • “10% of machines will need to patched manually at a cost of $50/machine”. - Marc Donner, executive director, Morgan Stanley • $50 * 500 = $25,000 (plus the cost of patch management software and patch testing). • …and this is only for one patch in a 5000-node network… • Major software vendors have published their own “Hardening Guidelines” • In essence, accept no system defaults and remove everything that you don’t need. • However, the operating system vendor’s harden recommendation could also prevent some application from working… • More importantly, system and/or software reconfiguration tend to cost even more than applying patches. • Reactive measures are not the answer!

  5. Let’s be Proactive… • More Firewalls? • More IDS/IPS? • More Heuristics? • More Security Widgets? • More Consultants? • Where is the end to this Madness!

  6. Establish the Language… • Asset • Control • Threat • Vulnerability • Risk

  7. Establish the Language - Asset • Asset • Something an organization has determined to be valuable and must be protected. • e.g. Resource, Process, Product, Infrastructure, Engineering Diagrams, and etc

  8. Establish the Language - Safeguard • Control • Product and/or processes employed to mitigate a specific threat( or a group of threats) to an acceptable level • e.g. Firewall, Locked Doors, Smart Cards, DRP/BCP Processes, Insurance, and etc.

  9. Establish the Language - Threat • Threat • Activity that represents possible dangers to the Assets • e.g. Unexpected Destruction of Buildings, Loss of Power, Destructive Virus, Departure of key Technical Staff • Not possible to protect against all threats

  10. Establish the Language - Vulnerability • Vulnerability • Weakness that allow threats to materialize • Absence of sufficient safeguard • e.g. Poorly Designed Network, Improperly Configured Equipment, Poor Choice of Passwords, Lack of Redundancy, and etc.

  11. Establish the Language - Risk • Risk • = Threat * Vulnerability * Assets Values • The degree for which the vulnerability can be exploited by one or more previous identified threats • Assessed either Quantitatively or Qualitatively

  12. Threat Modeling • Overview of the methodology: • Identify Assets • Identify Asset Access Mechanism • Create Architecture Overview • Identify Threats • Document Threats • Qualify Threats

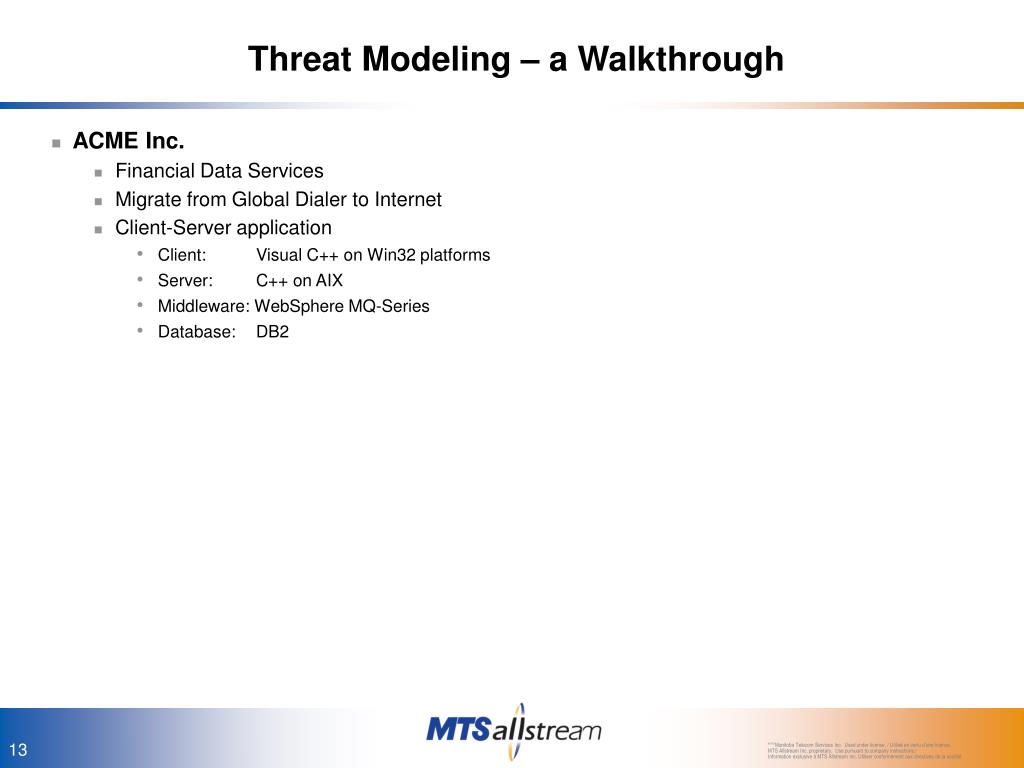

  13. Threat Modeling – a Walkthrough • ACME Inc. • Financial Data Services • Migrate from Global Dialer to Internet • Client-Server application • Client: Visual C++ on Win32 platforms • Server: C++ on AIX • Middleware: WebSphere MQ-Series • Database: DB2

  14. Threat Modeling – a Walkthrough • Step 1, Identify the Assets • The financial data

  15. Threat Modeling – a Walkthrough • Step 2, Identify Asset Access Mechanism • The data is stored in database. And is created, modified, and queried by the end-user through the application server

  16. Threat Modeling – a Walkthrough • Step 3, Create Architecture Overview

  17. Threat Modeling – a Walkthrough • Step 4, Identify the Threats • Eavesdropping Data during Transit • Data Modification/Injection during Transit • Single Points of Failure at • Firewall • Application Server • Database Server • Lack of communication control / physical separation to the DB2

  18. Threat Modeling – a Walkthrough • Step 5, Document the Threats

  19. Threat Modeling – a Walkthrough • Step 6, Qualify the Threats • The DREAD Model (4)

  20. Threat Modeling – a Walkthrough • Threat: Eavesdropping Data during Transit • Damage Potential = 2 • Reproducibility = 3 • Exploitability = 2 • Affected Users = 3 • Discoverability = 2 • RISK = 2 + 3 + 2 + 3 + 2 = 12

  21. Apply the Results of Threat Modeling

  22. Upcoming Advisories?

  23. Time between Vulnerability Discovery and Patch Release • Microsoft Security Bulletin MS05-014 • Vendor Notified on Feb-16-2004 (6) • Patch released on Feb-08-2005 (Previously released on Nov-2004)

  24. The Zero-Day Problem… • Patches and workarounds are released after the fact • So is Anti-Virus signatures… • So is Intrusion Prevention Signatures… • What happens between an exploit for a vulnerability is discovered and when one of the above is released?

  25. Threat Modeling for the Zero-Day • Threat Modeling gives us: • Identification of information assets • Identification of threats and associated qualifications • Basis for Risk Assessment • Risk Mitigation Strategies • Basis for implementation of Products & Processes • No more surprises, no more scrambling, and no more crisis.

  26. Threat Modeling ≠ Silver Bullet • You can’t always eliminate the Risks! • Effectiveness depends on Subject Matter Expertise on the implemented technology • Evolution of Technology

  27. Conclusion • Race between Reactive Countermeasures and Vulnerability Discovery is a fact of life • Systematic defense, build on thorough Threat Modeling methodology, is your best protection • There is still no silver bullet!

  28. References • CERT Statistics: http://www.cert.org/stats/cert_stats.html • Marc Donner, “Bits, Bad Guys, and Bucks”, Volume Three, Issue Two, Secure Business Quarterly, http://www.sbq.com/sbq/patch/sbq_patch_mdonner.pdf • Dana Epp, “Dana Epp's ramblings at the Sanctuary: Understanding Threat Modeling”, retrieved on May 22, 2005, http://silverstr.ufies.org/blog/archives/000611.html • J.D. Meier, Alex Mackman, Michael Dunner, Srinath Vasireddy, Ray Escamilla and Anandha Murukan, Microsoft Corporation, “Threat Modeling”, retrieved on May 22, 2005, http://msdn.microsoft.com/security/securecode/threatmodeling/default.aspx?pull=/library/en-us/dnnetsec/html/thcmch03.asp • Carnegie Mellon Software Engineering Institute, “Operationally Critical Threat, Asset, and Vulnerability Evaluation (OCTAVE) Framework, Version 1.0”, retrieved on May 22, 2005 http://www.sei.cmu.edu/publications/documents/99.reports/99tr017/99tr017figures.html • Jouko Pynnonen (February, 2005). Posting to the BugTraq mailing list RE: “Internet Explorer zone spoofing with encoded URLs”, retrieved on May 22, 2005, http://www.securityfocus.com/archive/1/389859/2005-02-03/2005-02-09/0

  29. Questions?
