Power Steering Test Stand

Maval Visit Summary (October 5, 2012). Power Steering Test Stand. Team Manager - Travis Blais Project Manager - Jordan Shields Manufacturing Leader - Evan Lumby Software Leader - Samuel Slezak. Rack and Pinion Test Stand.

tola
Télécharger la présentation

Power Steering Test Stand

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

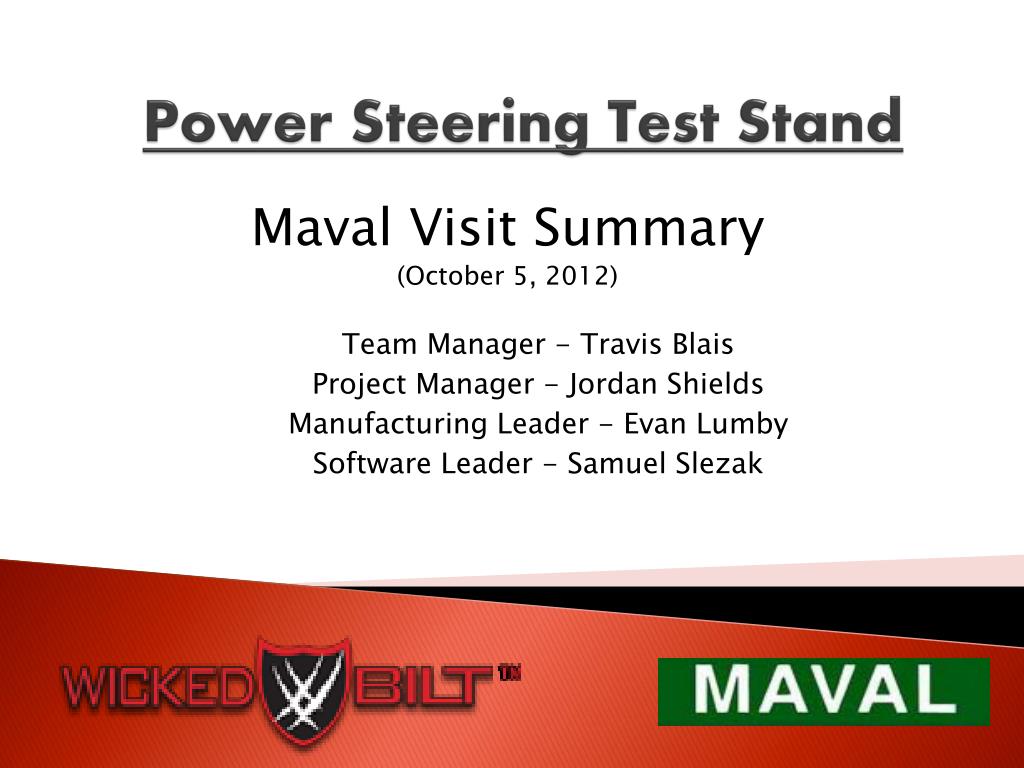

  1. Maval Visit Summary (October 5, 2012) Power Steering Test Stand Team Manager - Travis Blais Project Manager - Jordan Shields Manufacturing Leader - Evan Lumby Software Leader - Samuel Slezak

  2. Rack and Pinion Test Stand This test rack includes many of the features that are fundamental to the Maval way of testing: -Adaptability -Clear Failure Indicators -Ease of Use

  3. Major Features Torque Application System Torque transducer Slip-Shaft Connection

  4. Other Important Features Display Monitor that is at a safe distance from test Additional Operator Information Safe/Clean Computer Storage

  5. Barcode Scanner, Printer, Storage Scanner Serial # and Maker-> <- Barcode Printer Scanner Storage

  6. Documentation • Step By Step Test Instructions: • Includes Pictures and directions • Dated • Approved by Management

  7. Notes From the Visit • Overall: • Change Tolerance on measurements from 10% to 3-5% • Three motors will need to be tested: 170W, 220W, 360W • All have the same housing • Need to check every unit for errors • Consider techniques for a locking mechanism to lock the unit in place if it fails. • Need to check that the unit is in place. • Using torque in/out relationship is good, instead of a device like a proximity sensor • Need to be able to track what operator is using the machine • Each employee has ID with barcode that they use to clock in and out • Maval can handle any manufacturing of components needed • Labels: • Only create label for good units • Same serial number should be used for motor and control module • No need to keep data from failed units • Process to run test: Scan elites S/N  Scan test specs (170W,220W,360W)  Run • To Re-run good parts: • Have option for re-run • Store re-run and original run data in the same folder

  8. Continued Notes • Concepts/Operation: • The monitor mounted in the background or on a swing-arm would be good • Scan to run instead of button • No need for external red/green light, on screen is fine • They preferred the first of the two concepts • No need to have a complete table if its not necessary for functioning, no extra room for miscellaneous items to be left on table! • They do not want to use computer mouse and buttons often • Need to be able to run one stand and put the other in queue • Need to have option for the case that the barcode does not read • Action Items: • Send Maval summary of labview (Functions vs Cost) • Send Maval required computer specifications • Dale Lumby to send contact information for purchasing and Rob, Dave, Jim, and Mark • Dale to send what label printer and scanner they want to use • Additional Visit Notes: • 360W Motor using up to 52 Amps • Input side of motor has all the potential mounting locations • Motor may have to be underneath the unit
