  1. NSLS-II Experimental Facilities Overview Qun Shen Director, Experimental Facilities Division NSLS-II Experimental Facilities Advisory Committee Meeting April 23-24, 2009

  2. Outline Updates since May 2008 EFAC Meeting Selection of project beamlines Staffing, organization Revised labor estimates for beamline construction at CD-3 Activities and progress R&D and infrastructure Beamline design progress BAT Charter Interface management LOB programming Issues and outlook Summary

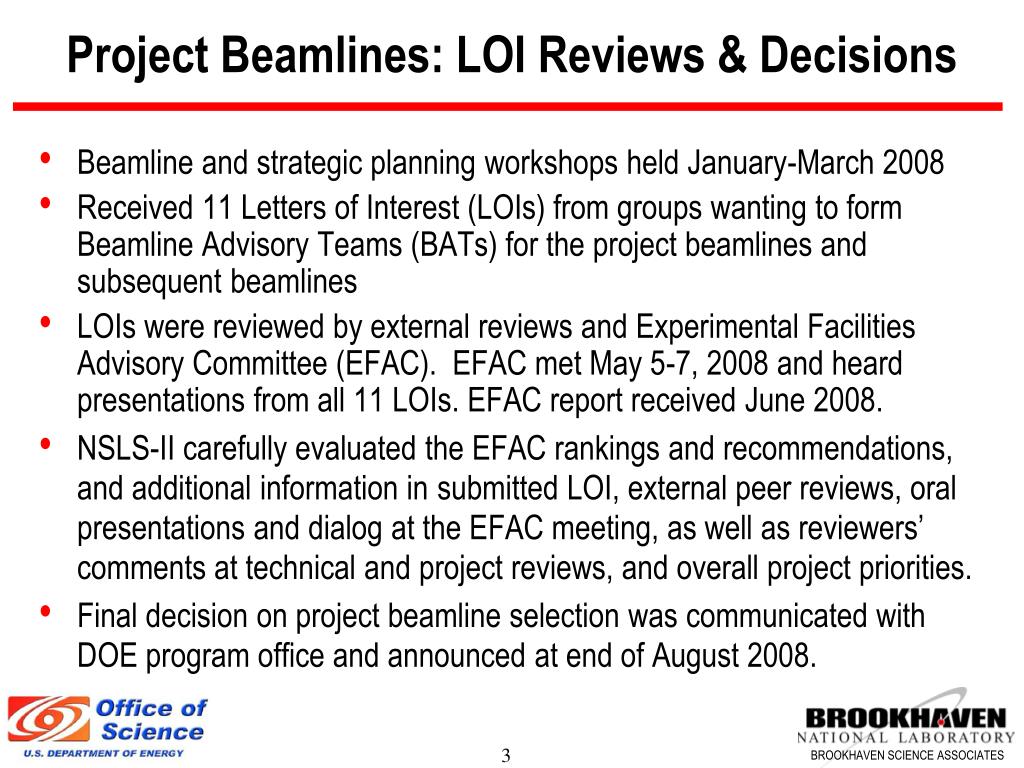

  3. Project Beamlines: LOI Reviews & Decisions • Beamline and strategic planning workshops held January-March 2008 • Received 11 Letters of Interest (LOIs) from groups wanting to form Beamline Advisory Teams (BATs) for the project beamlines and subsequent beamlines • LOIs were reviewed by external reviews and Experimental Facilities Advisory Committee (EFAC). EFAC met May 5-7, 2008 and heard presentations from all 11 LOIs. EFAC report received June 2008. • NSLS-II carefully evaluated the EFAC rankings and recommendations, and additional information insubmitted LOI, external peer reviews, oral presentations and dialog at the EFAC meeting, as well as reviewers’ comments at technical and project reviews, and overall project priorities. • Final decision on project beamline selection was communicated with DOE program office and announced at end of August 2008.

  4. Six Project Beamlines at NSLS-II Inelastic x-ray scattering 100m long 1 meV Hard x-ray nanoprobe 0.1 meV Coherent soft x-ray scattering/polarization 30m long hutch Coherent hard x-ray scattering High-energy powder diffraction Sub-mm reso. x-ray spectroscopy

  5. Staff Hiring • Recruitment of high-quality staff is a major, high-priority activity of XFD during the past year • Since last EFAC meeting in May 2008, 18 staff have joined XFD: • Five group leaders for project beamlines; Final agreement for one remaining position expected soon; • Ten staff for experimental R&D and photon source development; • Two mechanical engineers for beamline designs. Experimental Facilities FTE • Searches on-going for several key areas: • Nanopositioning engineer / scientist; • Mirror metrology expert; • Beamline scientists.

  6. Experimental Facilities Organization Beamline Advisory Teams (BATs)

  7. Design and Construction Labor Profile • As part of CD-3 preparations, beamline labor requirement was refined: • Total effort per BL during project is ~ 28.5 FTE-years (was ~ 23.1 FTE-yrs per BL in original baseline estimate)

  8. Revised Non-R&D FTE & Funding Profiles Total FTE-yrs = 188.6 (baseline = 155.1) • Added engineer and tech support during installation and testing • Revised estimate for Nanoprobe satellite bldg. and beam-transport tunnel • Adjustments have been made in initial beamline endstation instrumentation to offset increased cost due to added labor • The initial scope of all beamlines can be met within baseline XFD non-R&D budget of $76.3M • PCR-08-034 approved & implemented.

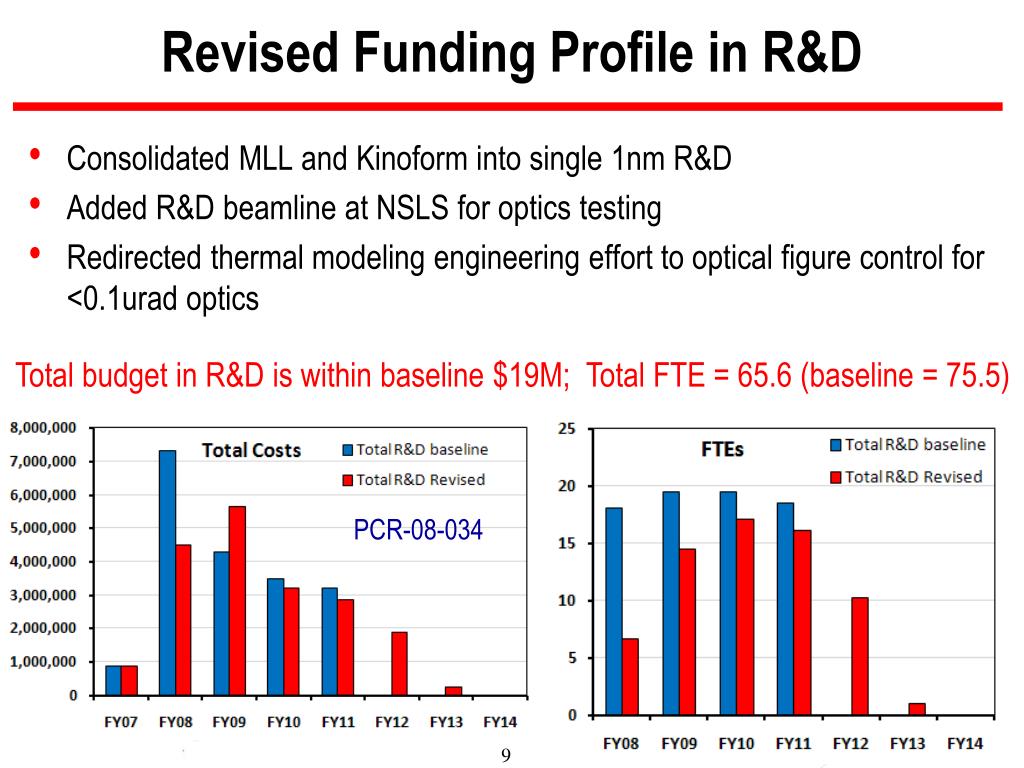

  9. Revised Funding Profile in R&D • Consolidated MLL and Kinoform into single 1nm R&D • Added R&D beamline at NSLS for optics testing • Redirected thermal modeling engineering effort to optical figure control for <0.1urad optics Total budget in R&D is within baseline $19M; Total FTE = 65.6 (baseline = 75.5) PCR-08-034

  10. Experimental Facilities R&D Program • 1 nm focusing optics and nanopositioning • 0.1 meV high-resolution optics • X-ray beam position monitors • Optical figure control (heat load, metrology) The east wing of Bldg.703 has been renovated Seven labs are ISO 7 (Class 10000) clean rooms (4,200 ft2) to accommodate XFD R&D activities Yan, Conley, Lima, Chu (NSLS-II); Maser, Macrander, Rose, Stephenson, et al. (ANL) Optical Metrology Lab Nano-positioning Lab Mechanical & Electrical Tech Area General Purpose Lab Optical Assembly Lab Cai, Huang, Honnicke, Keister, Coburn, Struble (NSLS-II); Shvyd’ko (APS) Etching and Fine Polishing Lab Lapping and Cutting Lab General Purpose Lab Deposition Lab

  11. Moving into R&D Labs and Offices in B703 Apr.21, 2009 Jan.2, 2009

  12. Multilayer Laue Lens (MLL) for 1 nm Optics • wMLL Deposition System (R. Conley): • Contract awarded to CVD; delivery Jul’09; • Grow 1st MLL by Sep’09. • MLL theory (H. Yan): • Effect of interfacial roughness • MLL testing (H. Yan, E. Lima): • Collaboration with CNM/APS; • 1st far-field image of 2D focusing by MLL H. Yan, PRB 79, 1 (2009).

  13. 0.1 meV Optics & R&D Beamline at NSLS Cai, Huang, Honnicke, Keister, Coburn, Struble (NSLS-II) Shvyd’ko (APS) • Crystal fabrication facility in Bldg.703 • R&D beamline X16A at NSLS developed and started operations April 2009 • End-station test instrument designed and assembled with temperature control ovens for dispersion crystals Tilting  (rad) NSLS X16a beamline Mono Mirror Source

  14. Optical Metrology Laboratory • NSLS-II Optical Metrology Lab plans to house/develop cutting-edge metrology tools for advanced optics development: • Fizeau interferometer • Long Trace Profiler (LTP) • Phase shifting micro-interferometer • Atomic Force Microscope (AFM) • At wavelength metrology ALS: flat mirror (InSync) measurements

  15. BAT Meetings • All Beamline Advisory Teams (BATs) have completed first official meetings: • Good progress made on scientific and technical scopes • All BAT reports have been received • Beamline conceptual designs in progress SRX BAT, October 30, 2008 XPD BAT, November 24, 2008 IXS BAT, December 5, 2008 CHX BAT, December 9, 2008 HXN BAT, January 26, 2009 CSX BAT, January 8, 2009

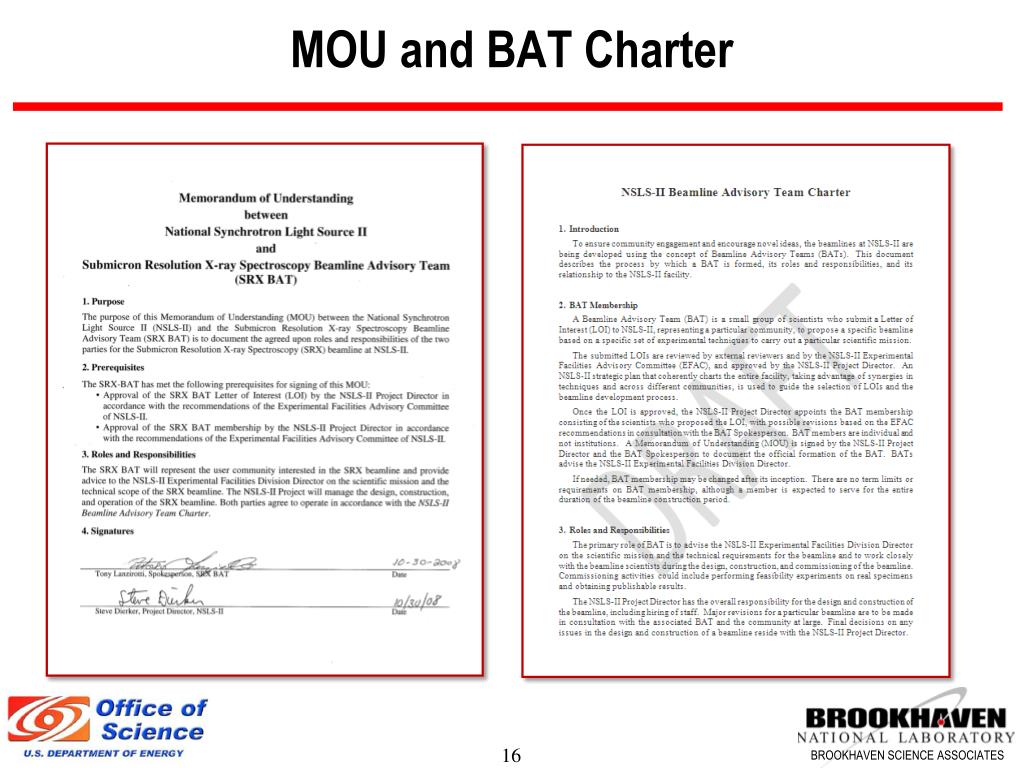

  16. MOU and BAT Charter

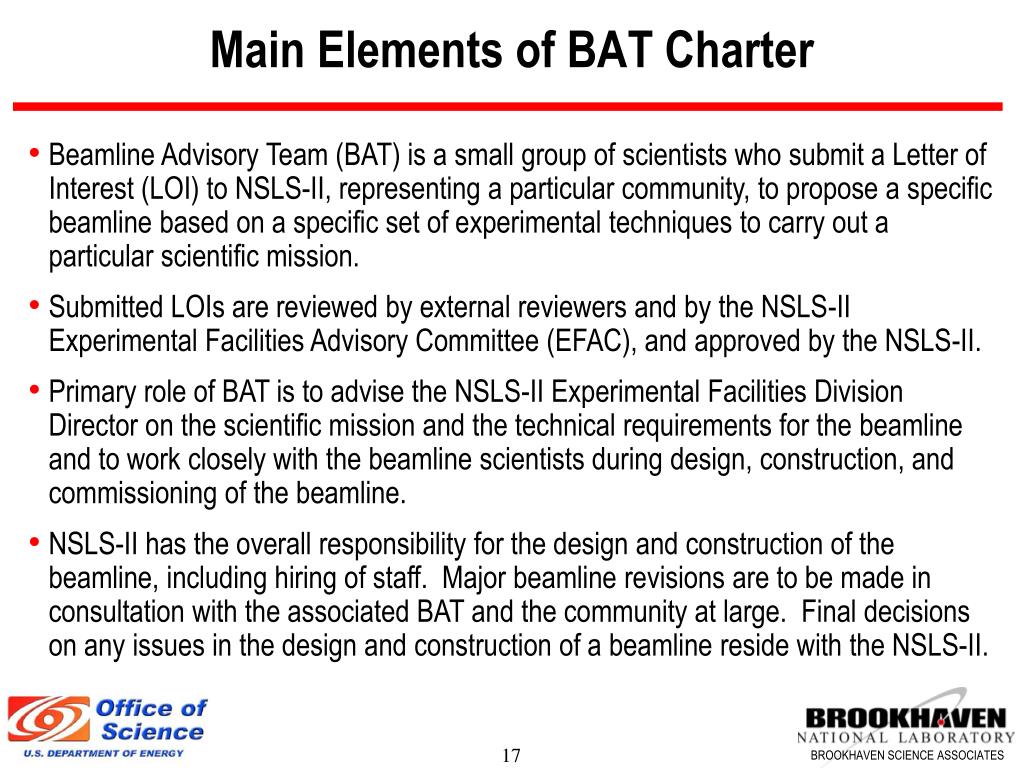

  17. Main Elements of BAT Charter • Beamline Advisory Team (BAT) is a small group of scientists who submit a Letter of Interest (LOI) to NSLS-II, representing a particular community, to propose a specific beamline based on a specific set of experimental techniques to carry out a particular scientific mission. • Submitted LOIs are reviewed by external reviewers and by the NSLS-II Experimental Facilities Advisory Committee (EFAC), and approved by the NSLS-II. • Primary role of BAT is to advise the NSLS-II Experimental Facilities Division Director on the scientific mission and the technical requirements for the beamline and to work closely with the beamline scientists during design, construction, and commissioning of the beamline. • NSLS-II has the overall responsibility for the design and construction of the beamline, including hiring of staff. Major beamline revisions are to be made in consultation with the associated BAT and the community at large. Final decisions on any issues in the design and construction of a beamline reside with the NSLS-II.

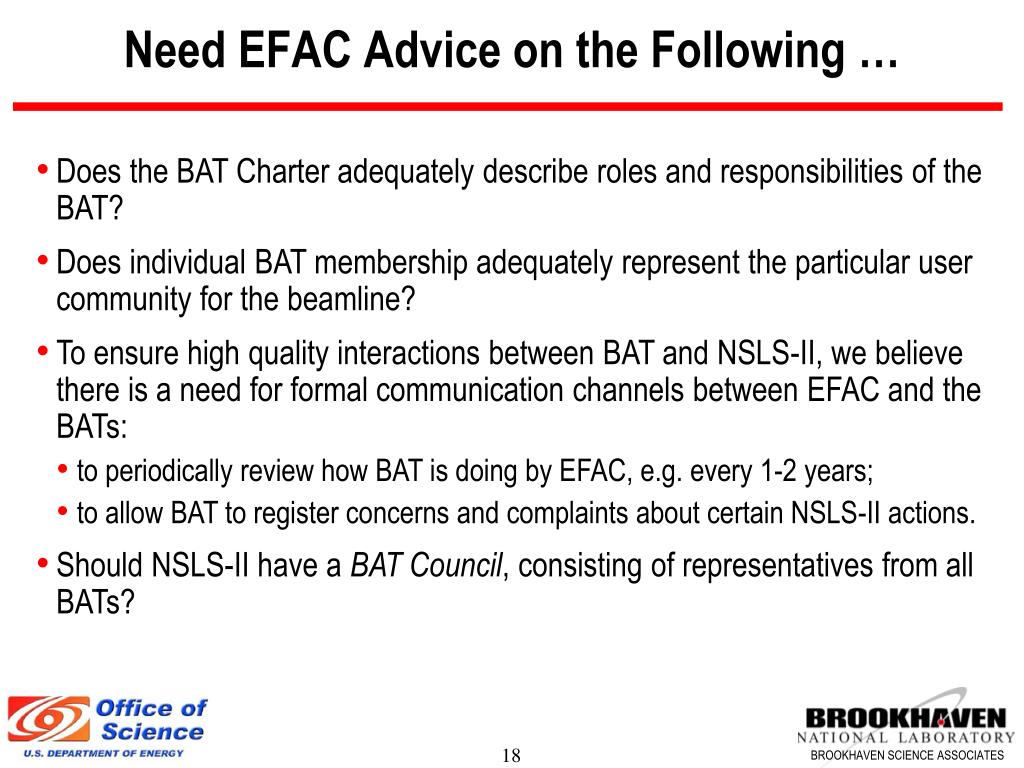

  18. Need EFAC Advice on the Following … • Does the BAT Charter adequately describe roles and responsibilities of the BAT? • Does individual BAT membership adequately represent the particular user community for the beamline? • To ensure high quality interactions between BAT and NSLS-II, we believe there is a need for formal communication channels between EFAC and the BATs: • to periodically review how BAT is doing by EFAC, e.g. every 1-2 years; • to allow BAT to register concerns and complaints about certain NSLS-II actions. • Should NSLS-II have a BAT Council, consisting of representatives from all BATs?

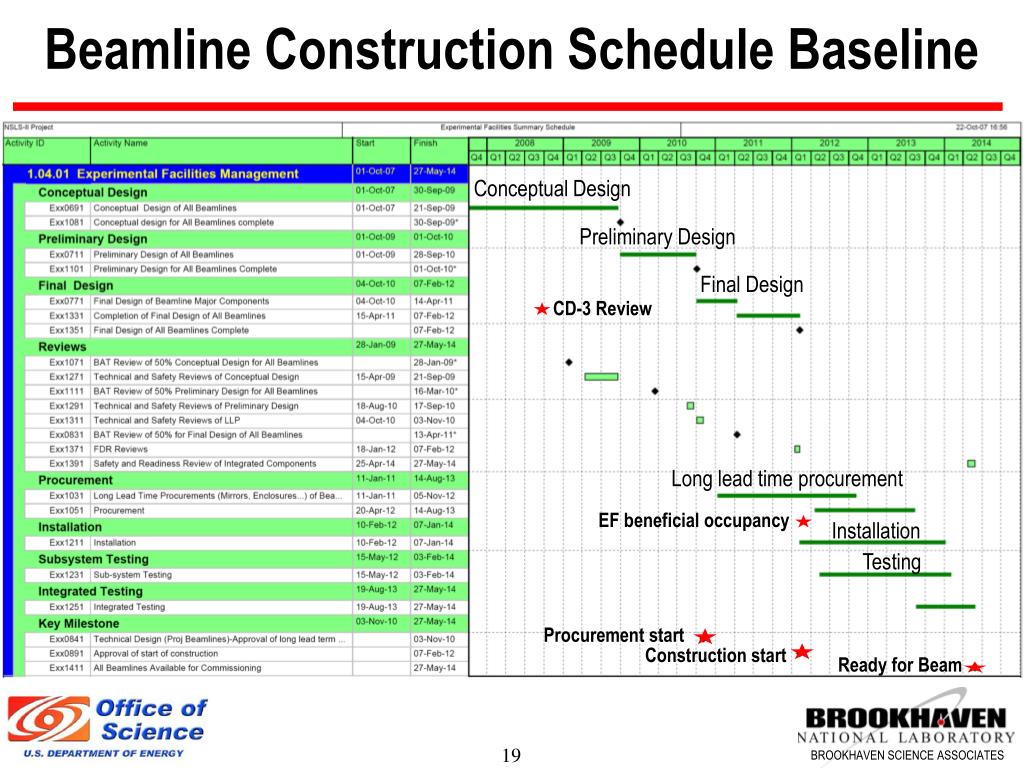

  19. Beamline Construction Schedule Baseline Conceptual Design Preliminary Design Final Design CD-3 Review Long lead time procurement EF beneficial occupancy Installation Testing Procurement start Construction start Ready for Beam

  20. Project Beamline Conceptual Designs • Finalizing X-ray optics and beamline layout; • Optimizing insertion device specifications; • Heat load analysis on x-ray mirrors and monochromators; • Concept of end-station instrument; • Iterating with BAT; • Cost and schedule update

  21. Project Beamline Insertion Device Optimizations Oleg Chubar (XFD/ASD) Toshi Tanabe (ASD) • Studies on insertion device options: • New XFD/ASD joint working group on IDs: members include XFD, ASD, and NSLS staff; meets weekly to discuss ID options and specifications; current focus is on high-beta long straights. IXS beamline

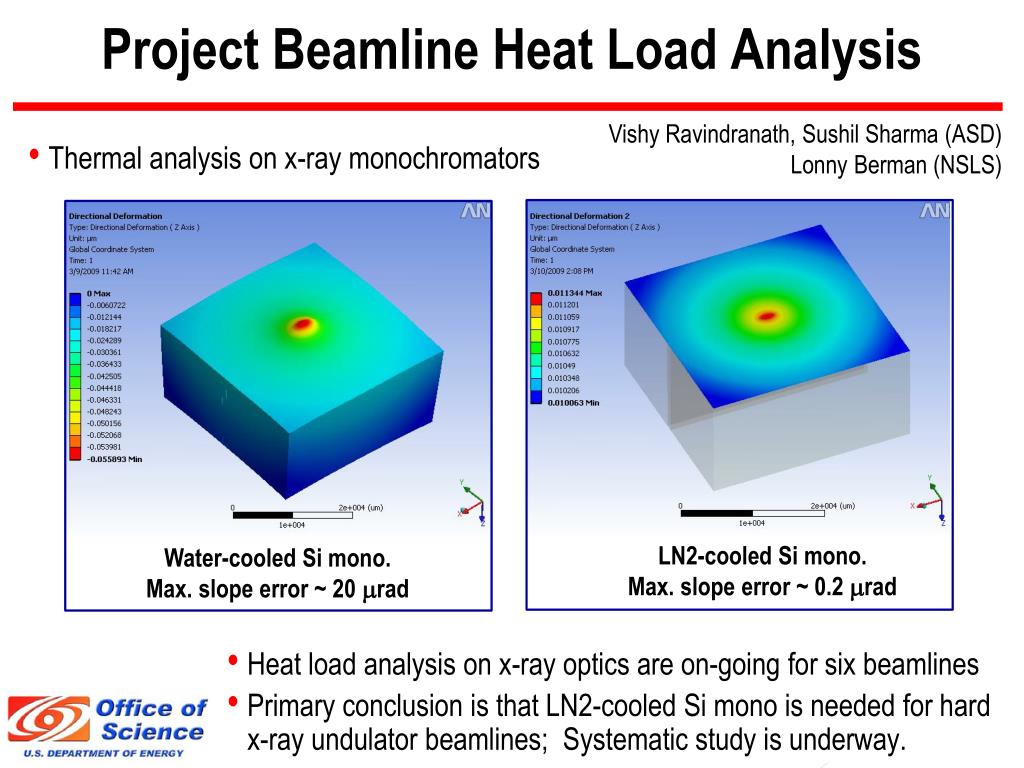

  22. Project Beamline Heat Load Analysis Vishy Ravindranath, Sushil Sharma (ASD) Lonny Berman (NSLS) • Thermal analysis on x-ray monochromators LN2-cooled Si mono. Max. slope error ~ 0.2 mrad Water-cooled Si mono. Max. slope error ~ 20 mrad • Heat load analysis on x-ray optics are on-going for six beamlines • Primary conclusion is that LN2-cooled Si mono is needed for hard x-ray undulatorbeamlines; Systematic study is underway.

  23. Hard X-ray Nanoprobe in Satellite Building • Vibration isolation from main building • 100 m long  larger working distance • Concrete expt. hutch w/ acoustic damping • Consideration of vibration isolation similar to EM, from ground up • Air-lock entry and temperature stability • …… vibration sources N. Simos (CFD)

  24. Laboratory Office Building (LOB) • LOB design at CD-2 was baselined under certain financial constraints, and needs to be reevaluated. • XFD effort on LOB programming requirements: • Held several expanded staff meetings to discuss LOB space requirements • Did detailed estimates on staffing levels and expected number of users, & their office needs • Did detailed analysis on basic equipment needs that are required by most user groups in support of their experiments at beamlines • Worked with professional lab planners from HDR on realistic laboratory layouts • Held a town-hall meeting with broader community to discuss with the community about our current plan and invite feedback • Expanded LOB design has been given the green light by DOE to proceed.

  25. Outreach to Community • Six beamline advisory teams, with combined membership of >50 scientists representing a diverse user community, have been the main focus of community interactions during the past year. • NSLS-II XFD participations in several community organized workshops and meetings, including: • BER/NIH workshop on life science at NSLS-II, Sep.11-12, 2008 • High pressure research workshop, Oct. 6, 2008 • XAS community workshop, Mar. 6, 2009 • Workshop on SR applications in microelectronics, Mar. 20, 2009 • Workshop on SR applications in glass research, Apr. 6, 2009 • Weekly beamline transition workgroup meetings • Focused efforts in XFD on defining BATs, recruitment, R&D infrastructure, and beamline conceptual designs have made it difficult to be more engaged with the community during the past year. • With more staff scientists on board, we fully expect that community outreach will regain momentum in the coming year.

  26. Responses to May 2008 EFAC Recommendations

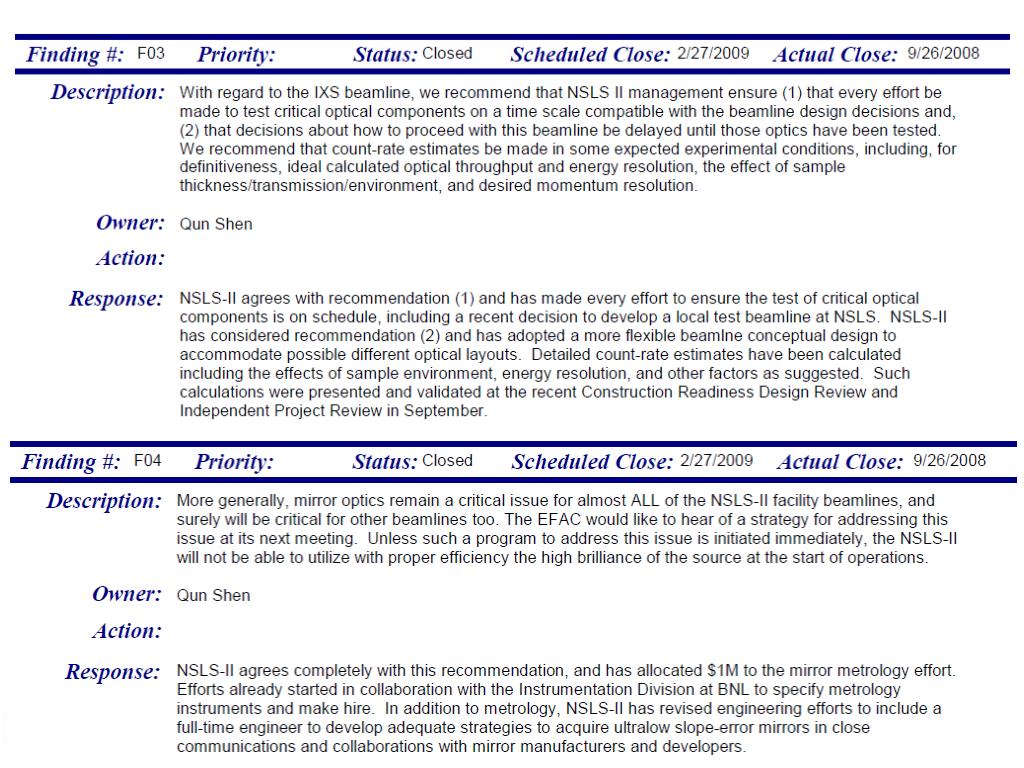

  27. Responses to Previous EFAC Recommendations

  28. Issues and Outlook • High resolution R&D programs, 1 nm and 0.1 meV, are very challenging; Outcomes may have impact on beamline designs •  Need to design beamlineswith built-in flexibility to accommodate R&D outcomes • Interface activities with ASD especially in the area of insertion device optimization and front-end designs; may impact beamline schedule • Need proactive interface management and considerable interactions at several levels • Recruiting and retaining best staff in XFD •  Hiring of in the coming months will focus on nanopositioningeng., optical metrology expert, and beamline scientists. •  Efforts to create and maintain a nurturing research environment in XFD and encourage discussions on science, R&D, and career developments. • Managing priorities and interacting with BATs •  Need open and transparent discussions with BAT so difficult decisions can be made with BAT inputs; EFAC input and advisory are welcome.

  29. Summary • NSLS-II Experimental Facilities Division is making good progress in staff recruitment, infrastructure building, x-ray optics R&D, and beamline conceptual designs. • Beamline Advisory Team selection process for project beamlines completed by CD-3. Beamline advisory team charter developed. • Beamline conceptual designs, with full engagement of BATs, are well underway and on schedule. • Considerable interactions with community and NSLS are on going, particularly in LOB programming and workshop participations. An increasing level of NSLS-II outreach activities are anticipated for the coming year, given much higher level of staffing in XFD. • We appreciate EFAC input and advice on many topics discussed or to be discussed at today’s meeting
