  1. Objective AOP04.1

  2. Objective AOP04.1 • Comprehensive Explanation • Link to European ATM Master Plan • Most important SLoA(s) • Finalisation Criteria and Closed Questions • Supporting Material • ESSIP Report 2012 • Objective Coordinator’s Analysis, recommendations, tips & tricks • Conclusions • Links and contacts September 2013

  3. Comprehensive Explanation Implement Advanced Surface Movement Guidance and Control System (A-SMGCS) Level 1 • This objective aims at implementing an airport surface surveillance system that provides ATC with the position and automatic identity of all relevant aircraft on the movement area & all relevant vehicles on the manoeuvring area; • The applicability area is presented in Table 8 of Part IV Annex B of the ESSIP 2012 document; • Initial operational capability - 01/2007, Full operational capability - 12/2011 September 2013

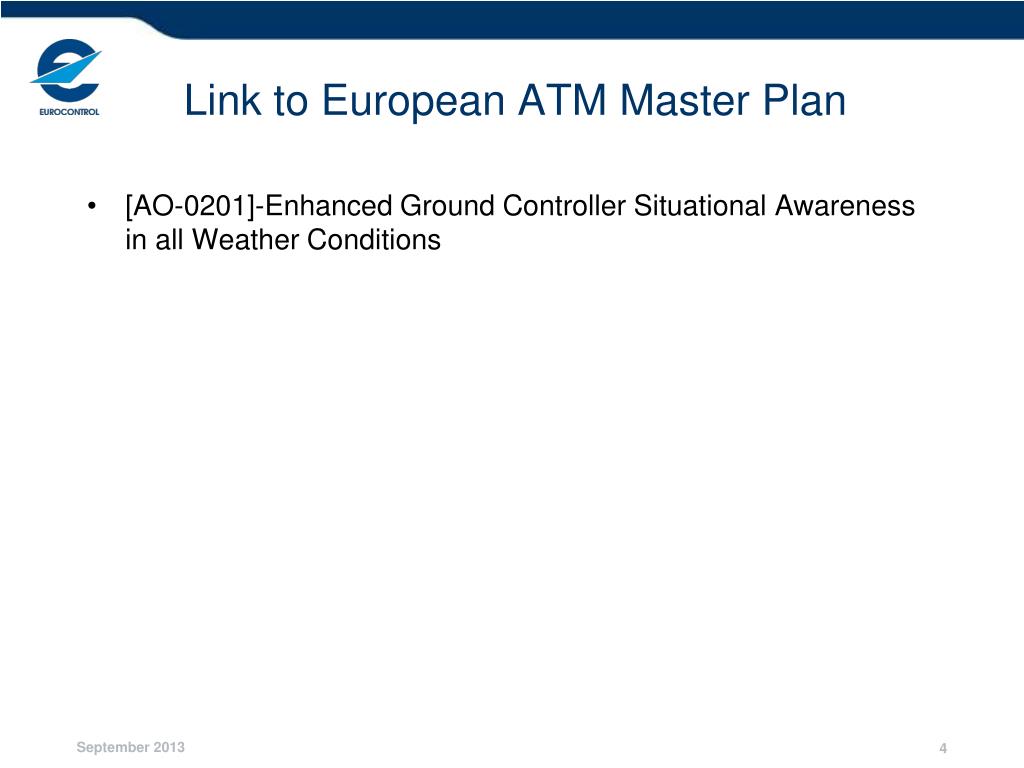

  4. Link to European ATM Master Plan • [AO-0201]-Enhanced Ground Controller Situational Awareness in all Weather Conditions September 2013

  5. Most important SLoA(s) • ASP01 Install required surveillance equipment; • ASP02 Train aerodrome control staff in the use of A-SMGCS Level 1 surveillance in the provision of aerodrome control service; • ASP03 Implement approved A-SMGCS operational procedures at airports equipped with A-SMGCS; • APO01 Install required surveillance equipment; • APO02 Equip Ground Vehicles; • APO03 Train Ground Vehicle Drivers; • USE01 Update aircrew training manual to include procedures for use of correct Mode - S transponder setting for enabling cooperative A-SMGCS detection on the movement area. September 2013

  6. Most important finalisation Criteria • ASP01 - Surveillance equipment that meets required performance specifications have been installed; • ASP02 - Controllers training has been completed in accordance with agreed training requirements and programme; • ASP03 - Implementation of the procedures at airports equipped with A-SMGCS Level 1 has been completed.; • APO01 – Surveillance equipment that meets agreed performance specifications has been installed.; • APO02 - Vehicle equipment that meets required performance specifications have been installed; • APO03 - Vehicle drivers are trained and authorized; • USE01 - Procedures for use of correct Mode-S transponder setting for enabling cooperative A-SMGCS detection on the movement area incorporated in the pilot ab-initio and recurrent training programmes. September 2013

  7. Supporting Material • EUROCONTROL-Advanced Surface Movement, Guidance and Control Systems (A-SMGCS) Implementation Manual, Edition 1.0, dated 15.04.2011 Url : http://www.eurocontrol.int/airports/public/standard_page/surface_library.html; • ETSI-EN303 213 1, V1.2.1 - Advanced Surface Movement Guidance and Control System (A-SMGCS); Part 1: Community Specification for A-SMGCS Level 1 including external interfaces, dated July 2010, OJ 2010/C330/2; • ETSI-EN 303 213-3, Ver. 1.1.1 - Advanced Surface Movement Guidance and Control System (A-SMGCS); Part 3: Community Specification for a deployed cooperative sensor including its interfaces, dated October 2010, OJ 2010/C330/2; • ETSI-EN 303 213-4-1, Ver. 1.1.1 - Advanced Surface Movement Guidance and Control System (A-SMGCS); Part 4: Community Specification for a deployed non-cooperative sensor including its interfaces, Sub-part 1: Generic requirements for non-cooperative sensor, dated October 2010, OJ 2010/C330/2; • ETSI-EN 303 213-4-2, Ver. 1.1.1 - Advanced Surface Movement Guidance and Control System (A-SMGCS); Part 4: Community Specification for a deployed non-cooperative sensor including its interfaces; Sub-part 2: Specific requirements for a deployed Surface Movement Radar sensor, dated October 2010, OJ 2010/C330/2; Url : http://webapp.etsi.org/WorkProgram/SimpleSearch/QueryForm.asp September 2013

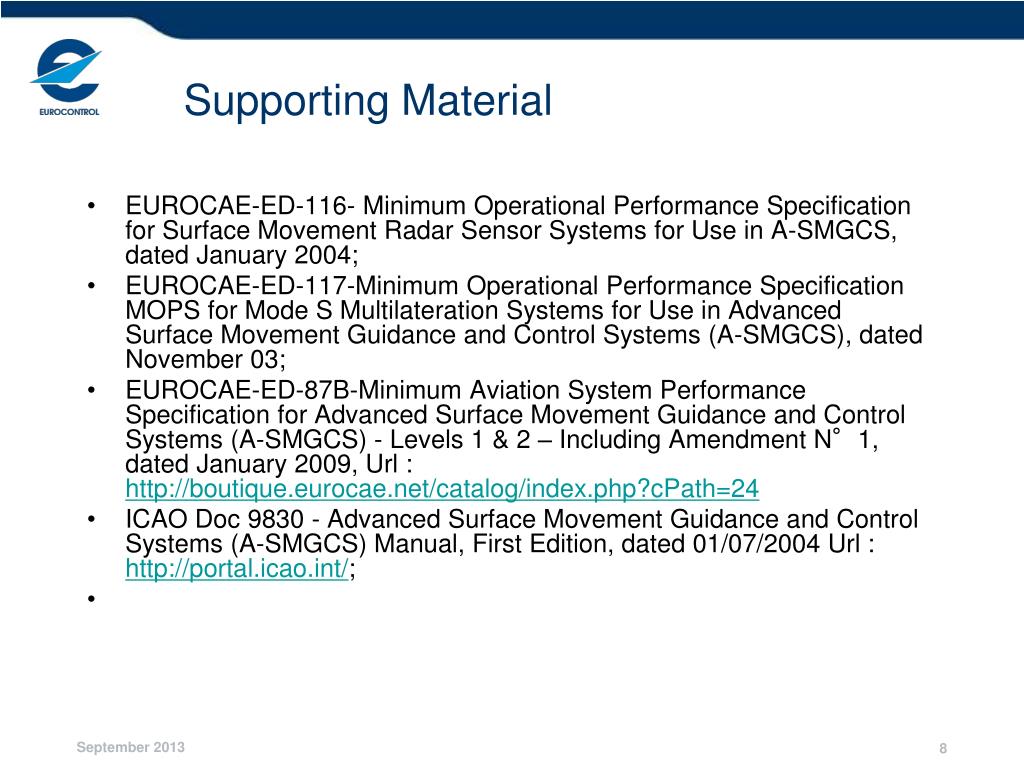

  8. Supporting Material • EUROCAE-ED-116- Minimum Operational Performance Specification for Surface Movement Radar Sensor Systems for Use in A-SMGCS, dated January 2004; • EUROCAE-ED-117-Minimum Operational Performance Specification MOPS for Mode S Multilateration Systems for Use in Advanced Surface Movement Guidance and Control Systems (A-SMGCS), dated November 03; • EUROCAE-ED-87B-Minimum Aviation System Performance Specification for Advanced Surface Movement Guidance and Control Systems (A-SMGCS) - Levels 1 & 2 – Including Amendment N°1, dated January 2009, Url : http://boutique.eurocae.net/catalog/index.php?cPath=24 • ICAO Doc 9830 - Advanced Surface Movement Guidance and Control Systems (A-SMGCS) Manual, First Edition, dated 01/07/2004 Url : http://portal.icao.int/; September 2013

  9. ESSIP Report 2012 September 2013

  10. Objective Coordinator’s Analysis, recommendations, tips & tricks • Information/data are missing for some of airports within the applicability area; • More elaborate explanation of chosen progress assessment is required. September 2013

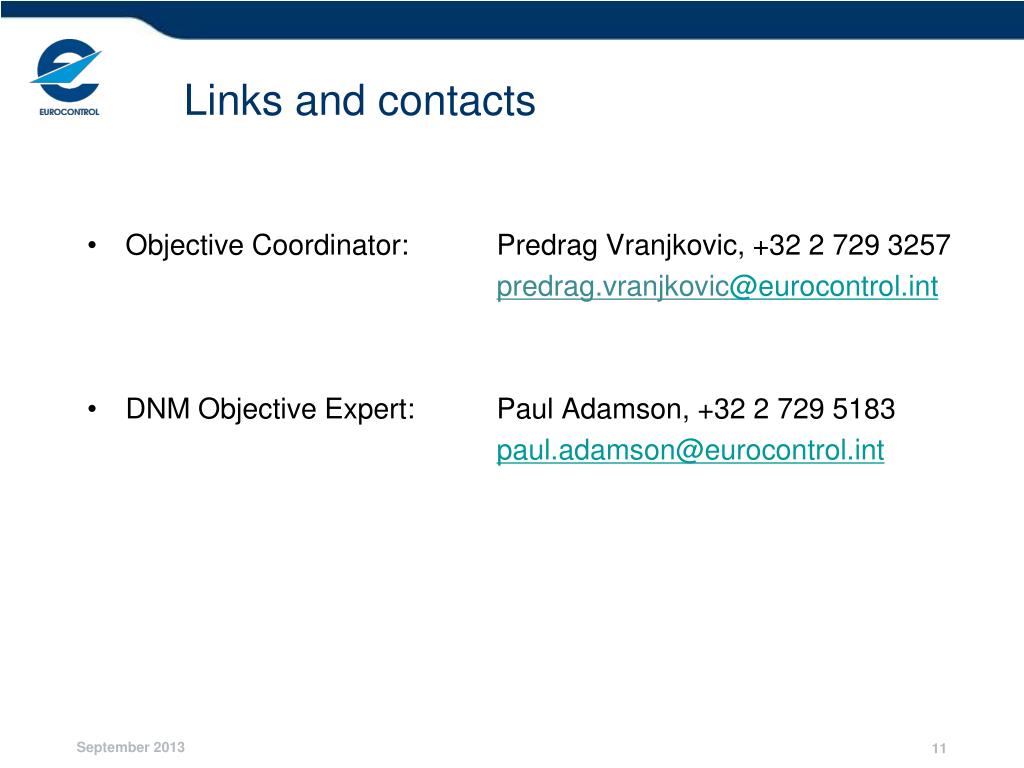

  11. Links and contacts • Objective Coordinator: PredragVranjkovic, +32 2 729 3257 predrag.vranjkovic@eurocontrol.int • DNM Objective Expert: Paul Adamson, +32 2 729 5183 paul.adamson@eurocontrol.int September 2013
