  1. Instrument Peer Review • EFW Flight Software • Commands and Telemetry Charts • Peter R. Harvey • 2009 Sep 03 RBSP Radiation Belt Storm Probes

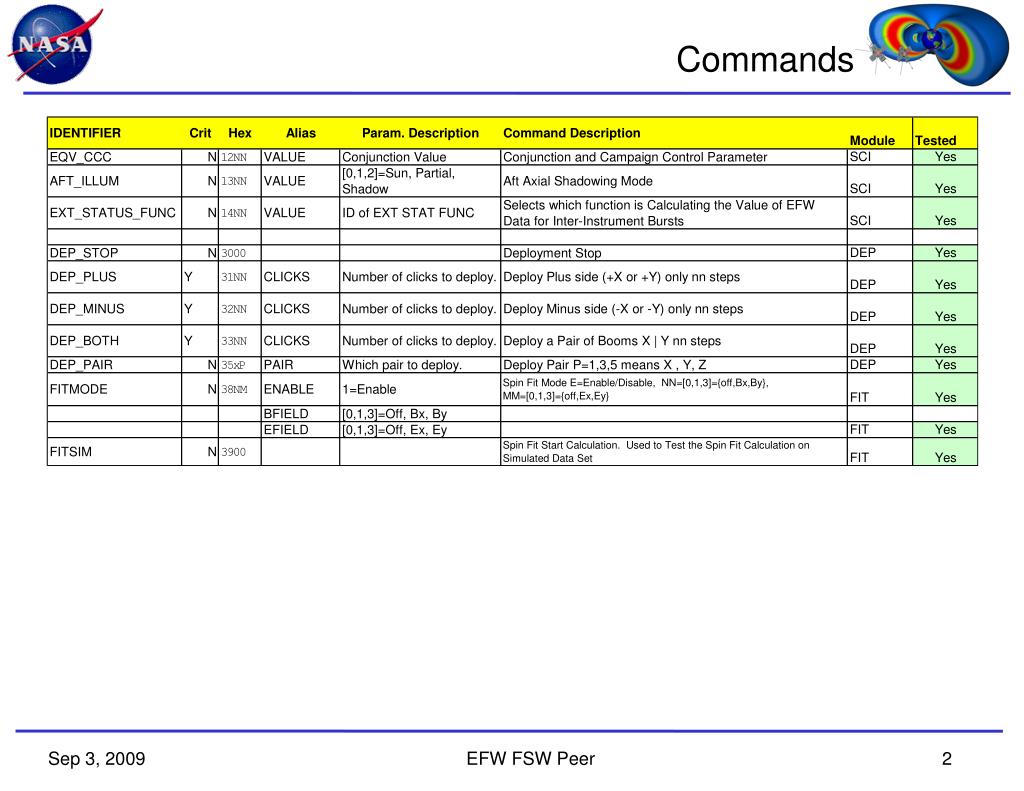

  2. Commands

  3. Commands

  4. Commands

  5. Commands

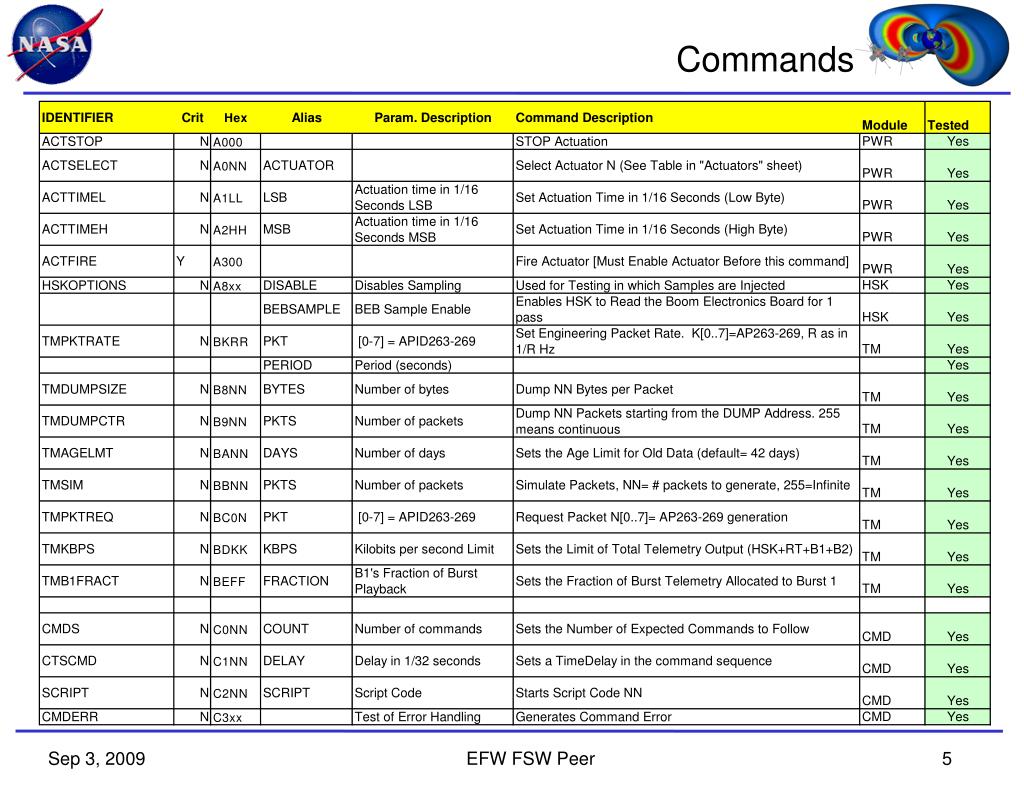

  6. Commands

  7. Commands

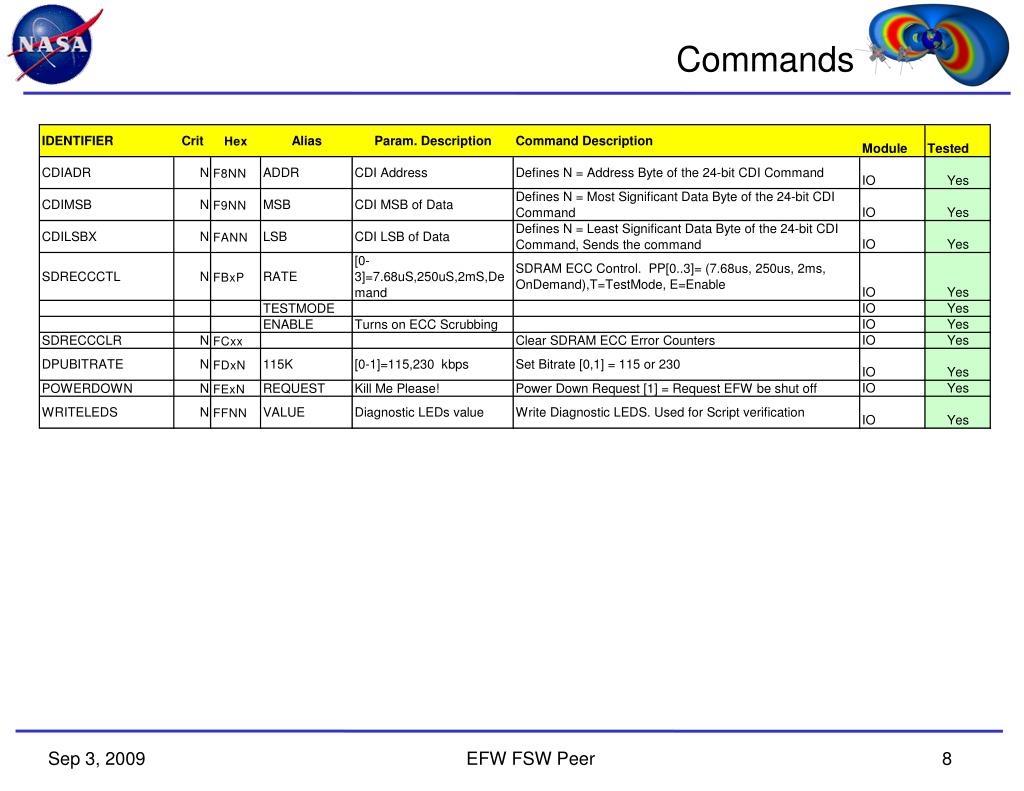

  8. Commands

  9. Errors

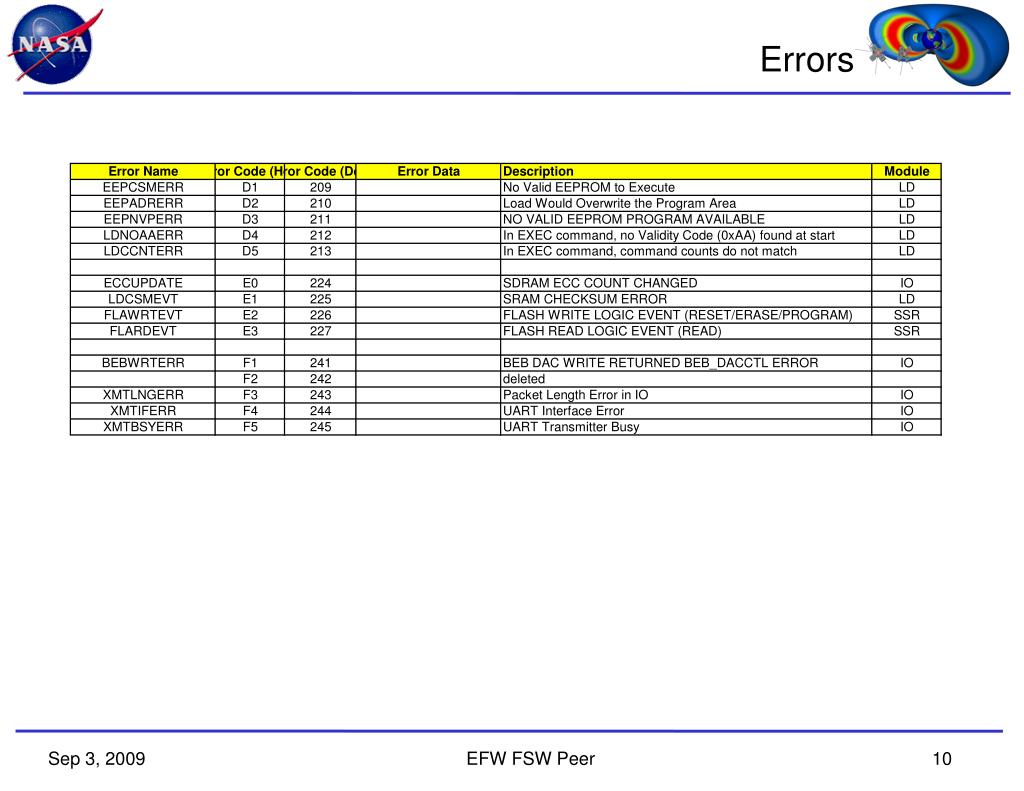

  10. Errors

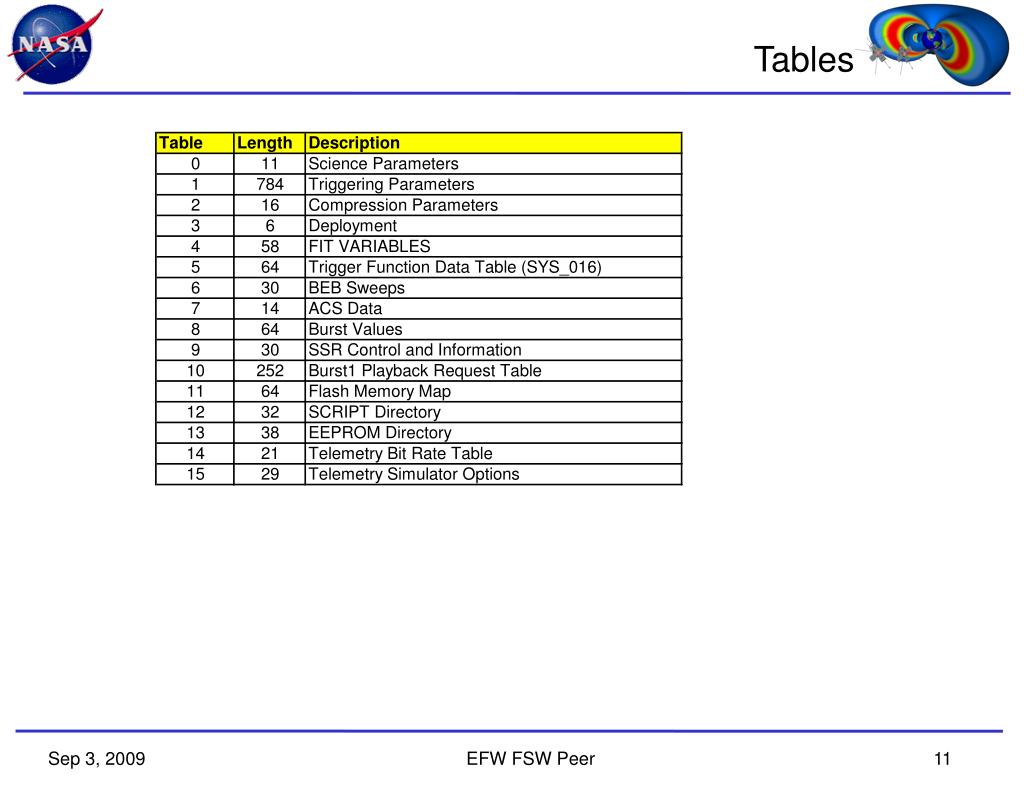

  11. Tables

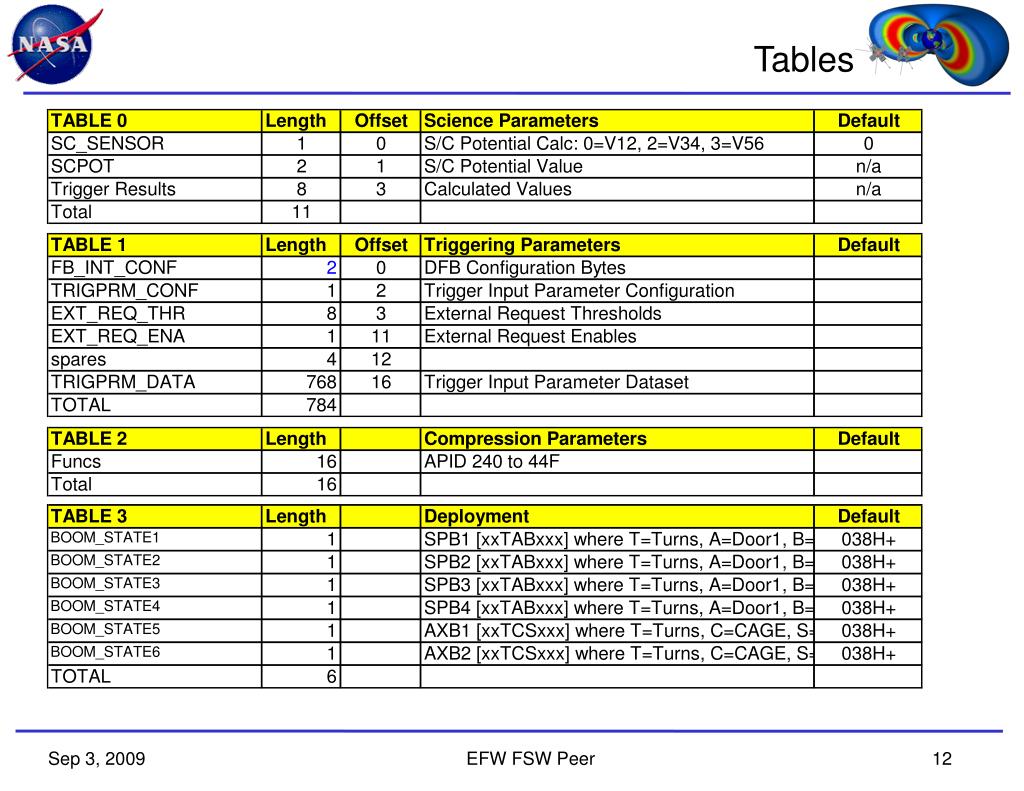

  12. Tables

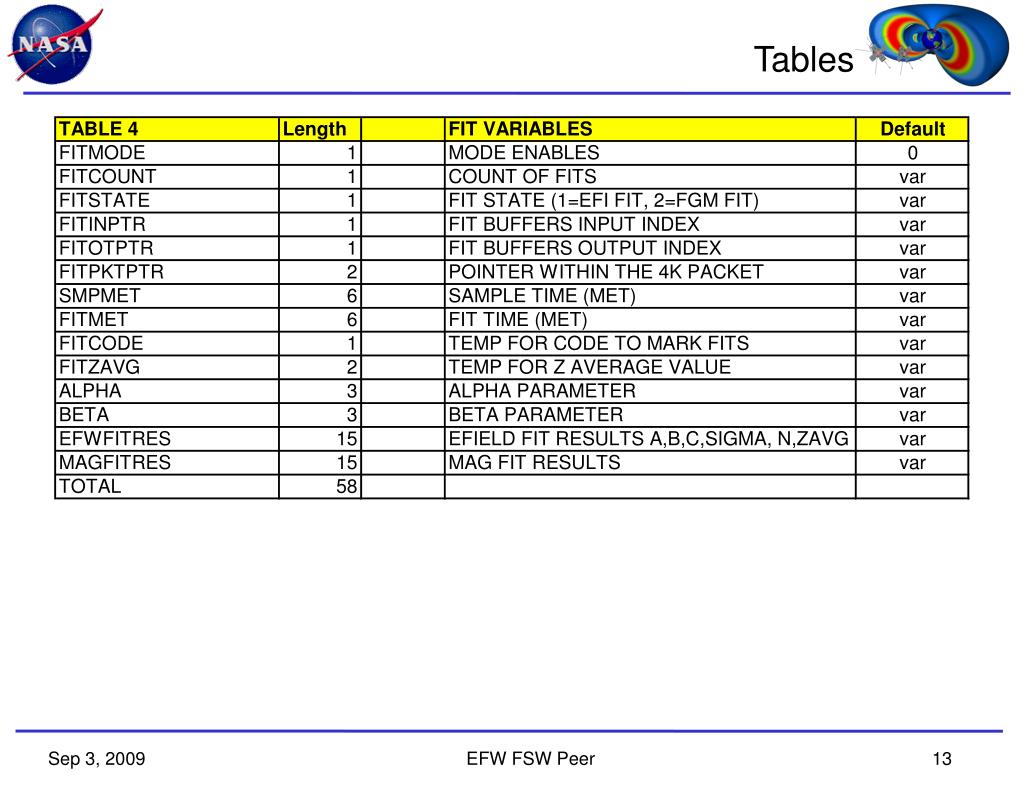

  13. Tables

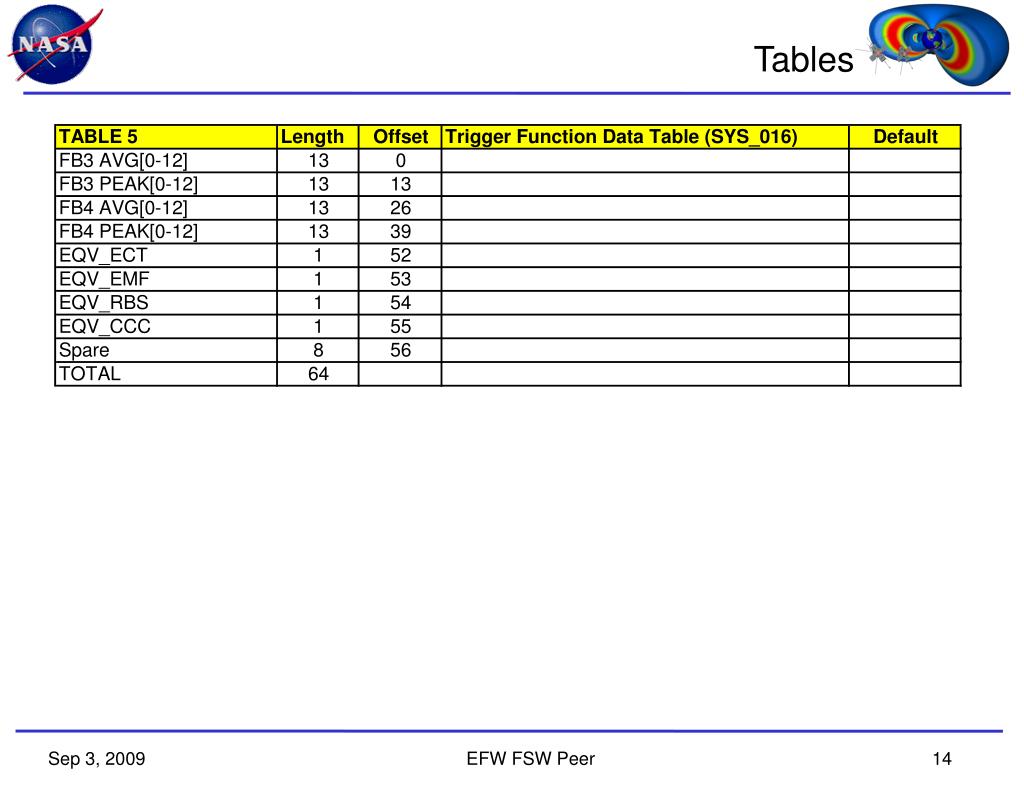

  14. Tables

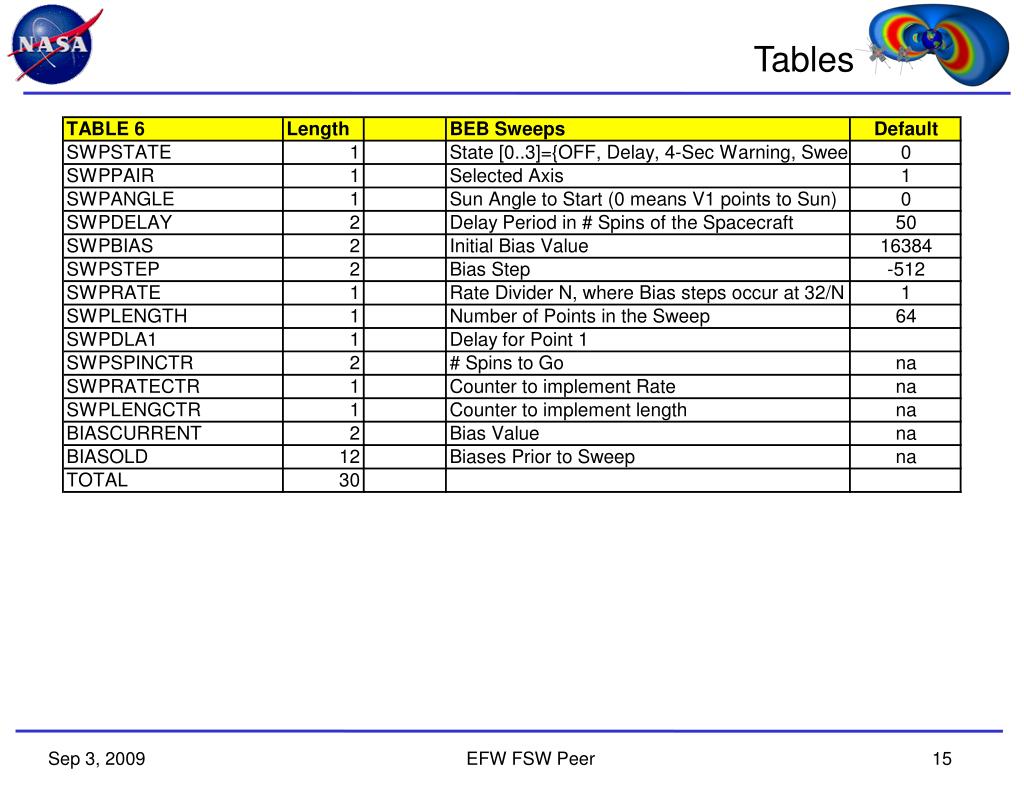

  15. Tables

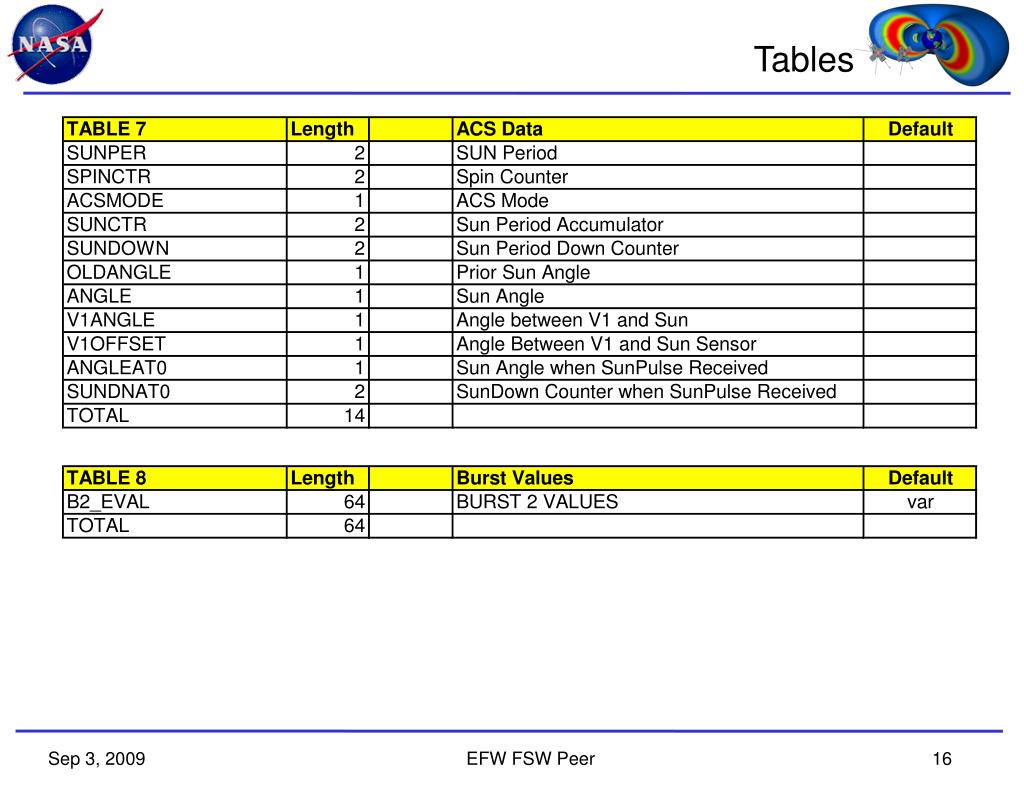

  16. Tables

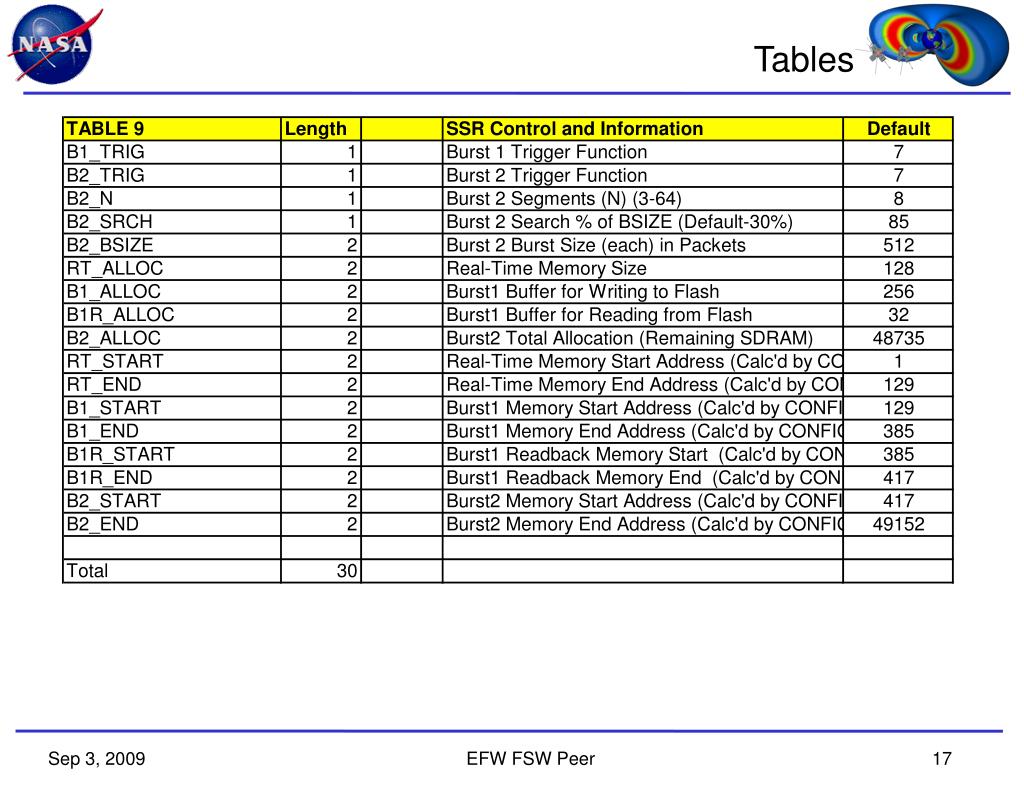

  17. Tables

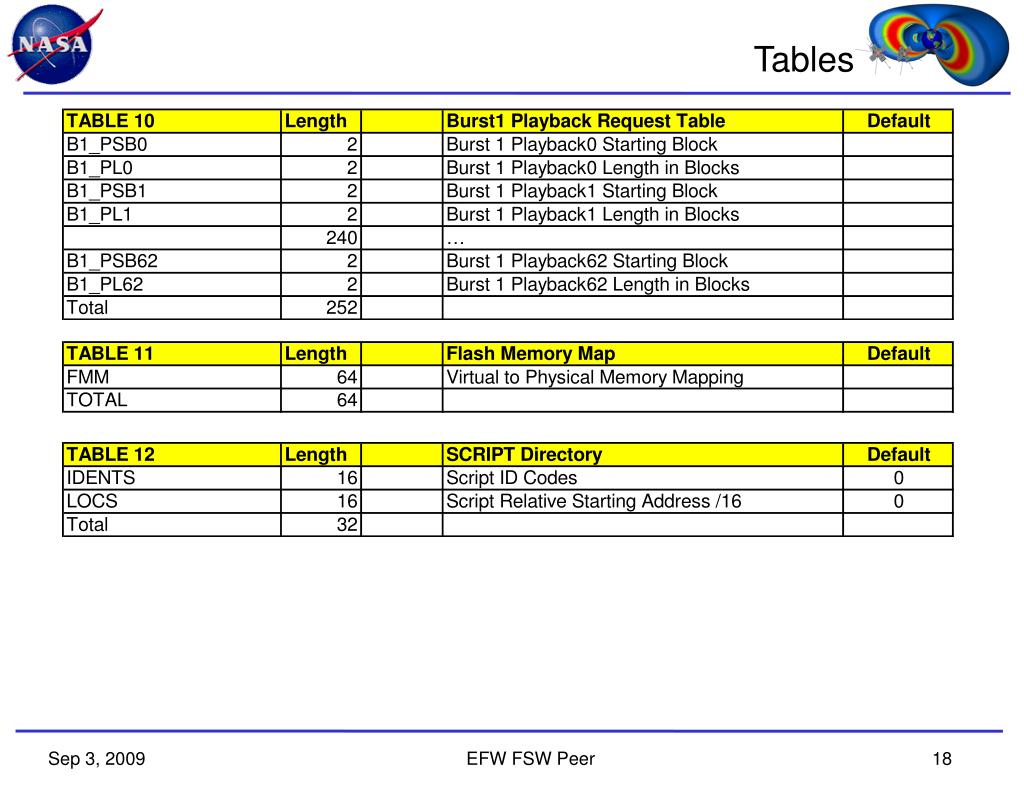

  18. Tables

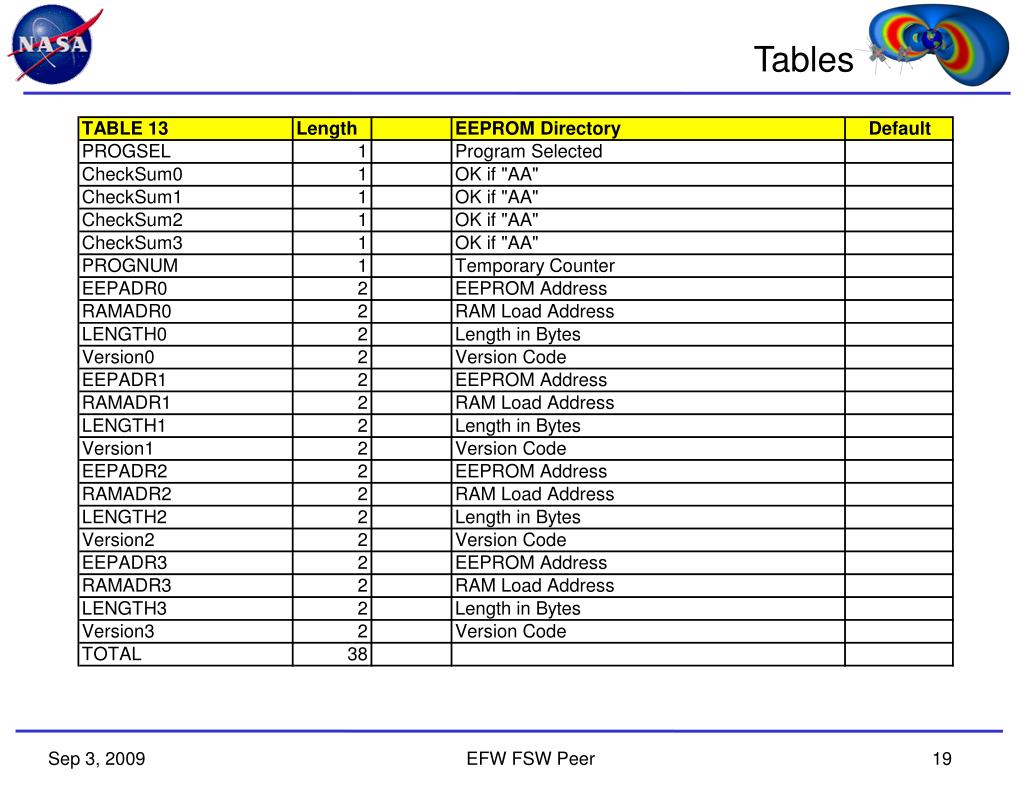

  19. Tables

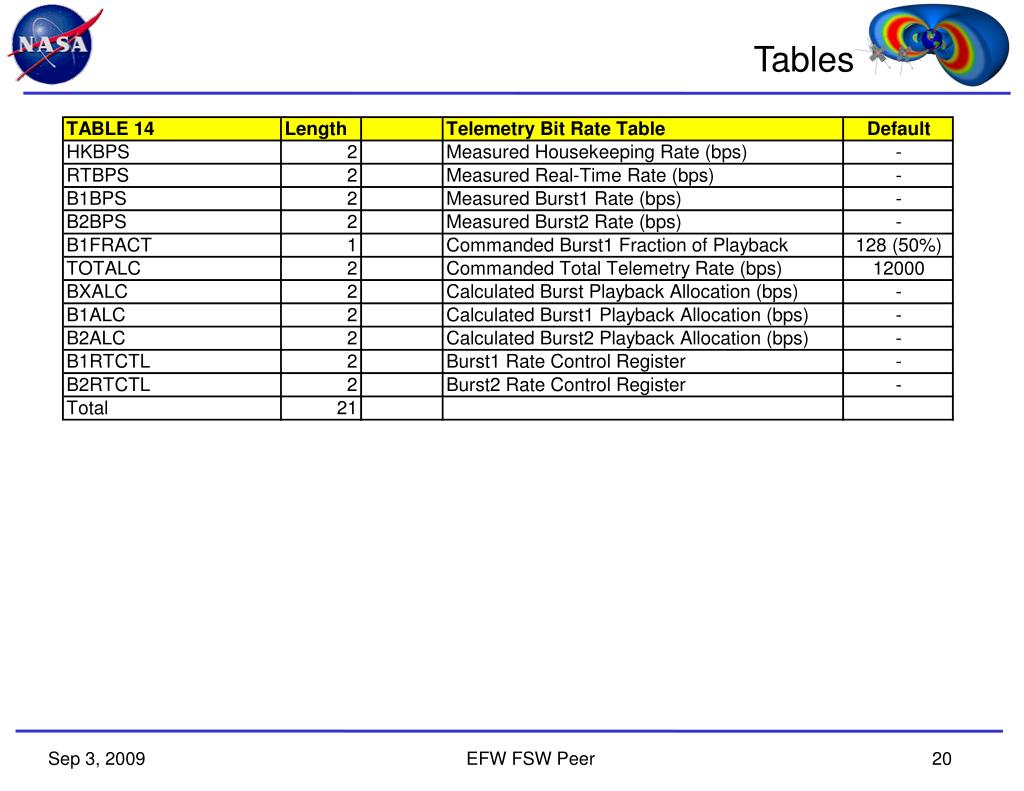

  20. Tables

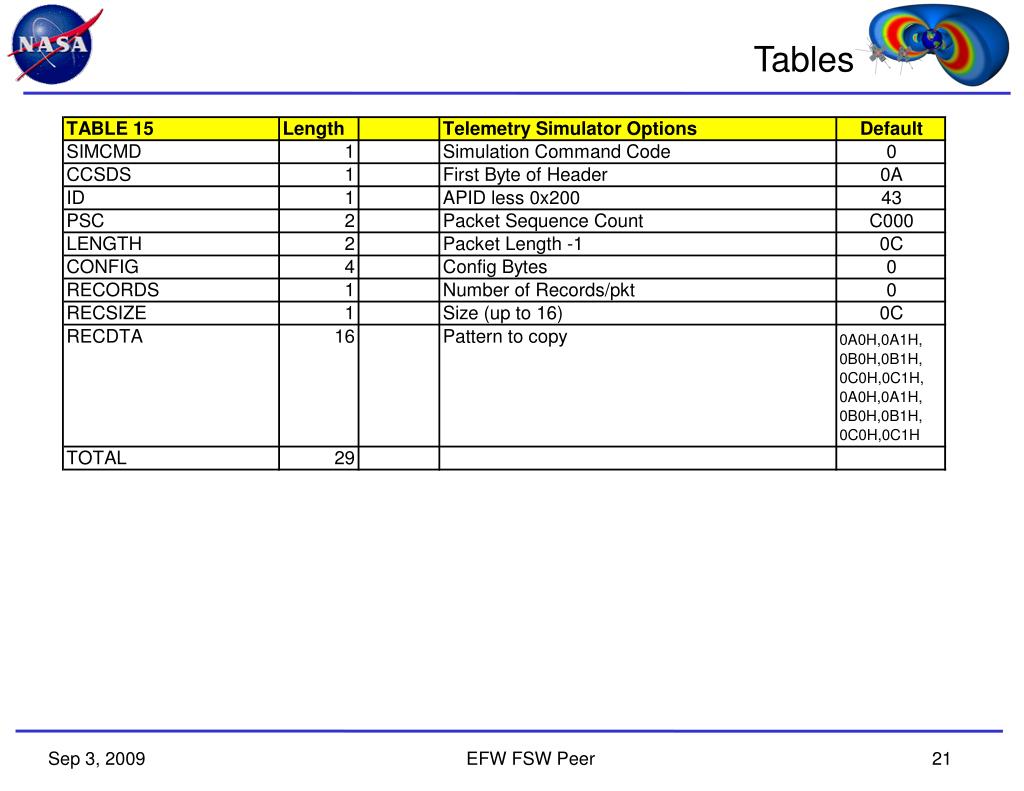

  21. Tables

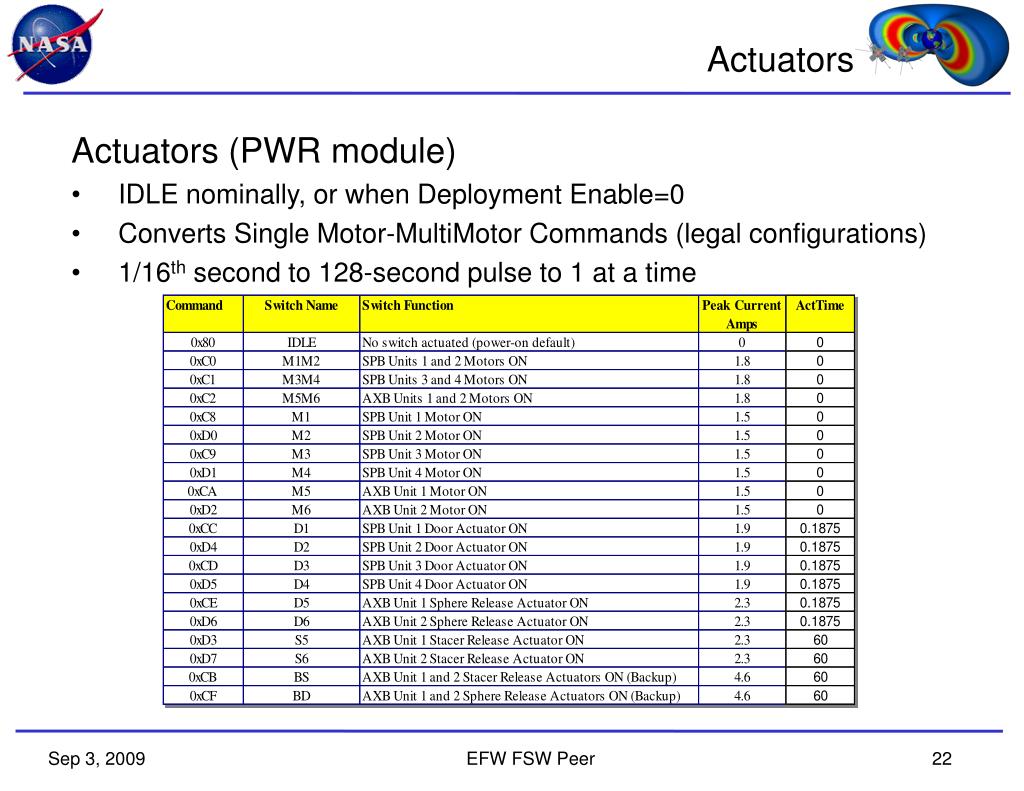

  22. Actuators • Actuators (PWR module) • IDLE nominally, or when Deployment Enable=0 • Converts Single Motor-MultiMotor Commands (legal configurations) • 1/16th second to 128-second pulse to 1 at a time

  23. TM Summary

  24. APID100 • APID 100 (Spacecraft Time & Status) • Decoded by CMD module EMFISIS. The Shared data is a 32 -bit word sent MSB first Bits (31:0). The magnetometer range is in bits 15:14 counting from the msb at 0 on the right. Bit 15 is the msb of the range bit 14 i the lsb: Bit 15 14 0 0 - 256 nT 0 1 - 4096 nT 1 0 - not used 1 1 - 65536 nT S. Bounds 7/30/2009 email

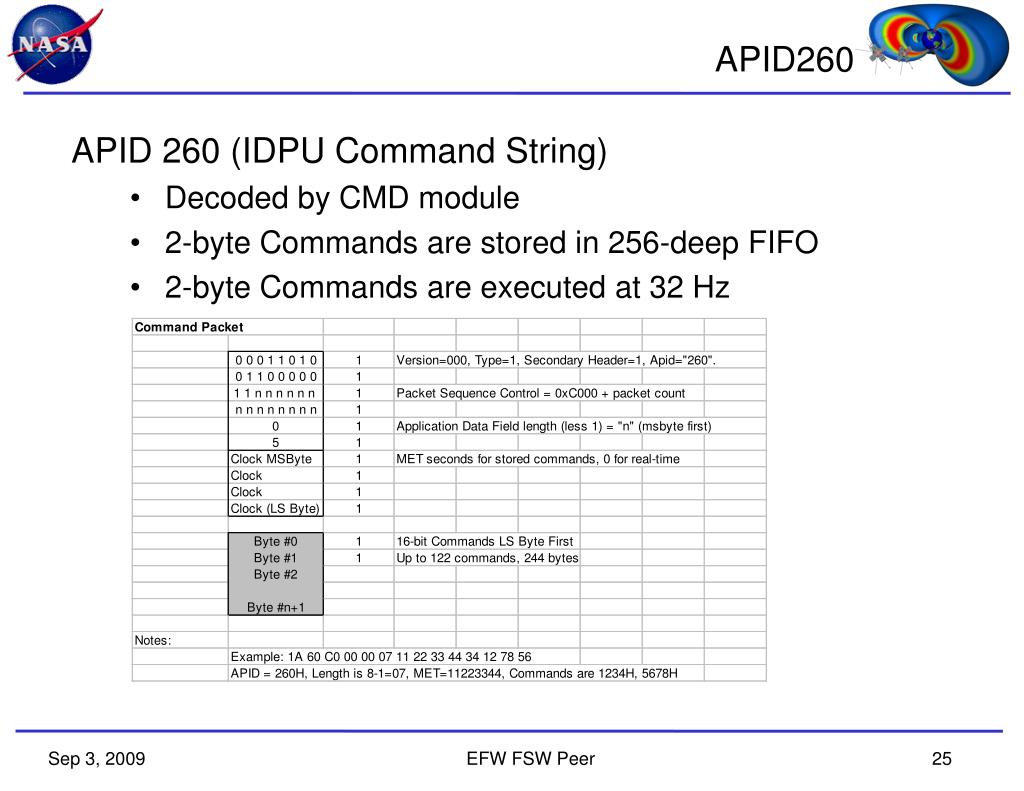

  25. APID260 • APID 260 (IDPU Command String) • Decoded by CMD module • 2-byte Commands are stored in 256-deep FIFO • 2-byte Commands are executed at 32 Hz

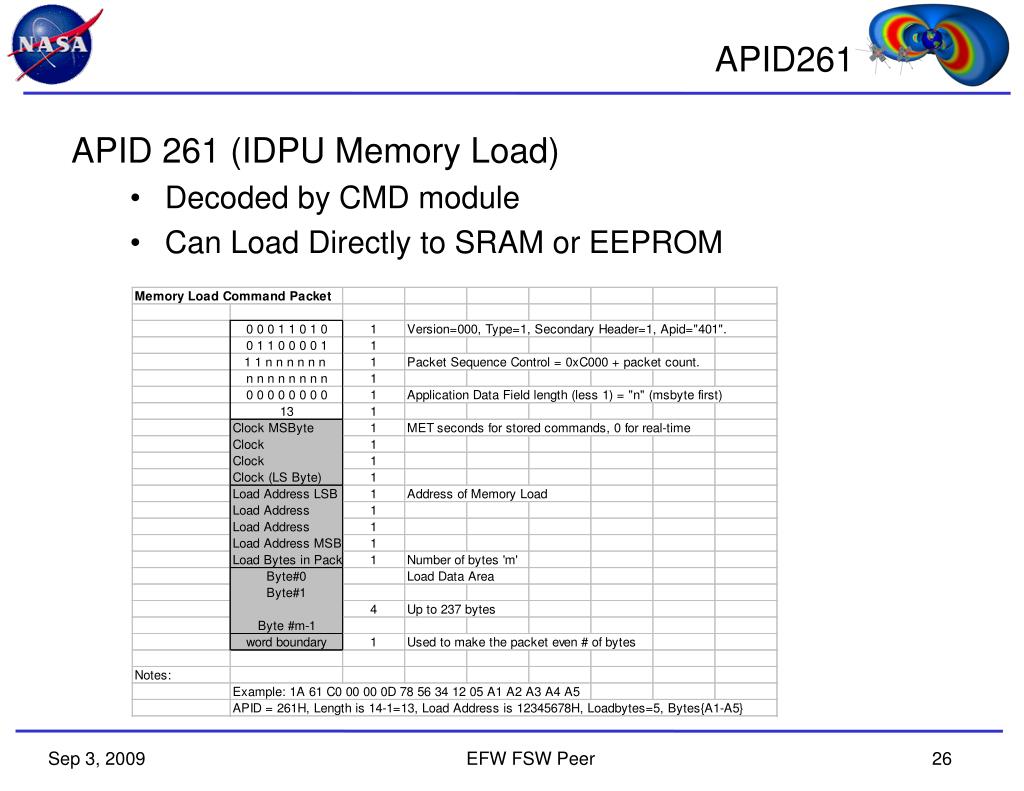

  26. APID261 • APID 261 (IDPU Memory Load) • Decoded by CMD module • Can Load Directly to SRAM or EEPROM

  27. APID262 • APID 262 (IDPU Critical Housekeeping) • Generated by TM module at 1Hz • Does not get stored in S/C SSR

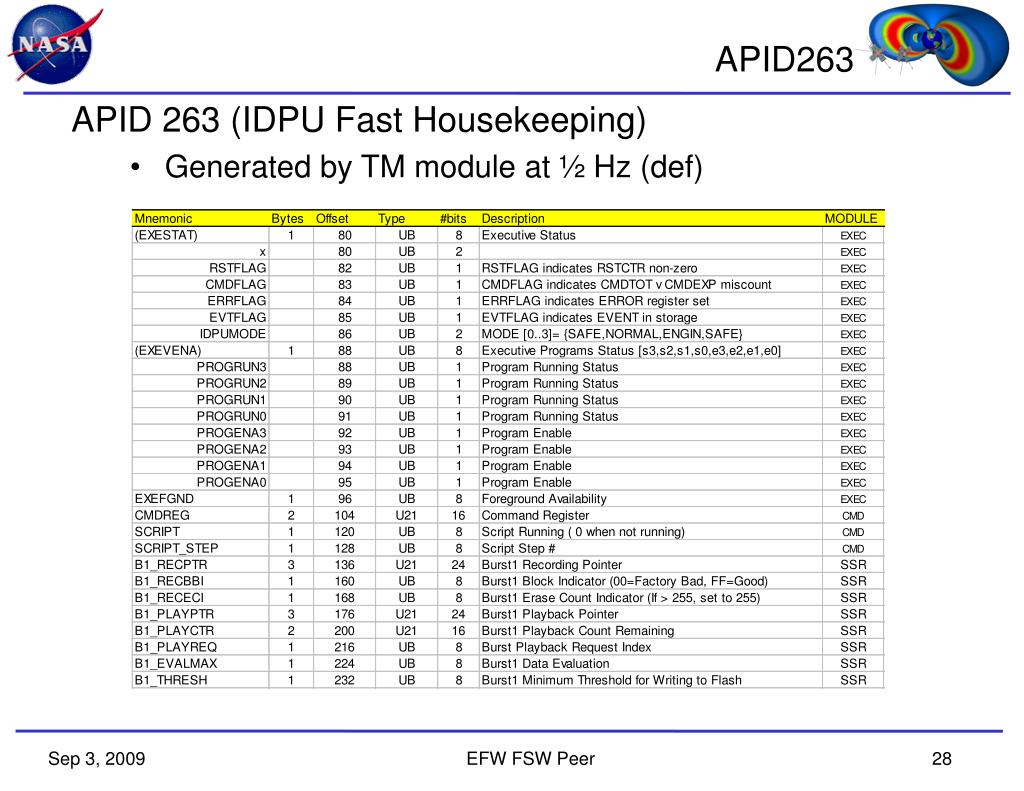

  28. APID263 • APID 263 (IDPU Fast Housekeeping) • Generated by TM module at ½ Hz (def)

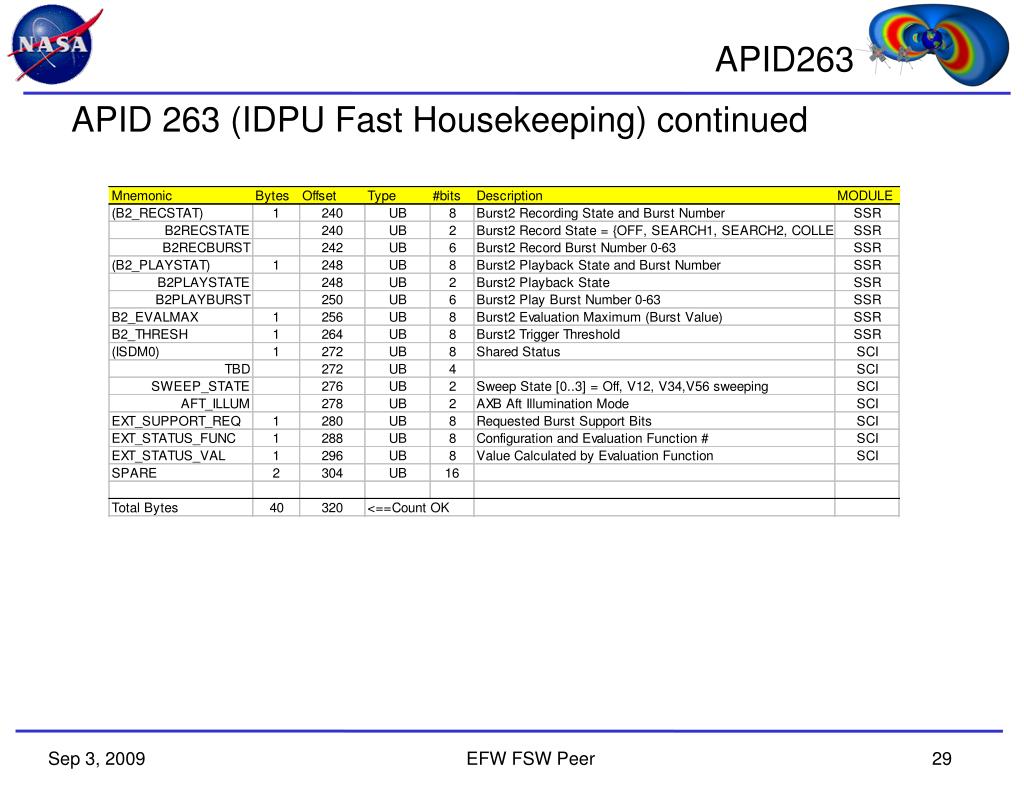

  29. APID263 APID 263 (IDPU Fast Housekeeping) continued

  30. APID264 APID 264 (IDPU Analog Housekeeping)

  31. APID265 APID 265 (BEB Analog Housekeeping)

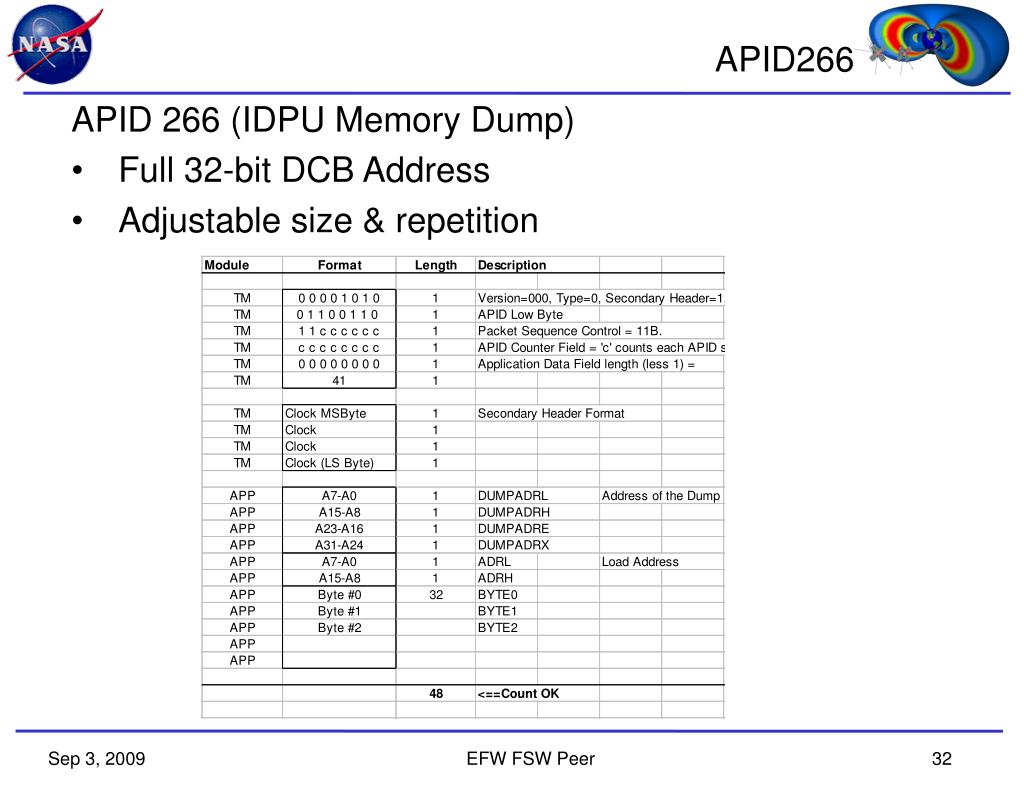

  32. APID266 • APID 266 (IDPU Memory Dump) • Full 32-bit DCB Address • Adjustable size & repetition

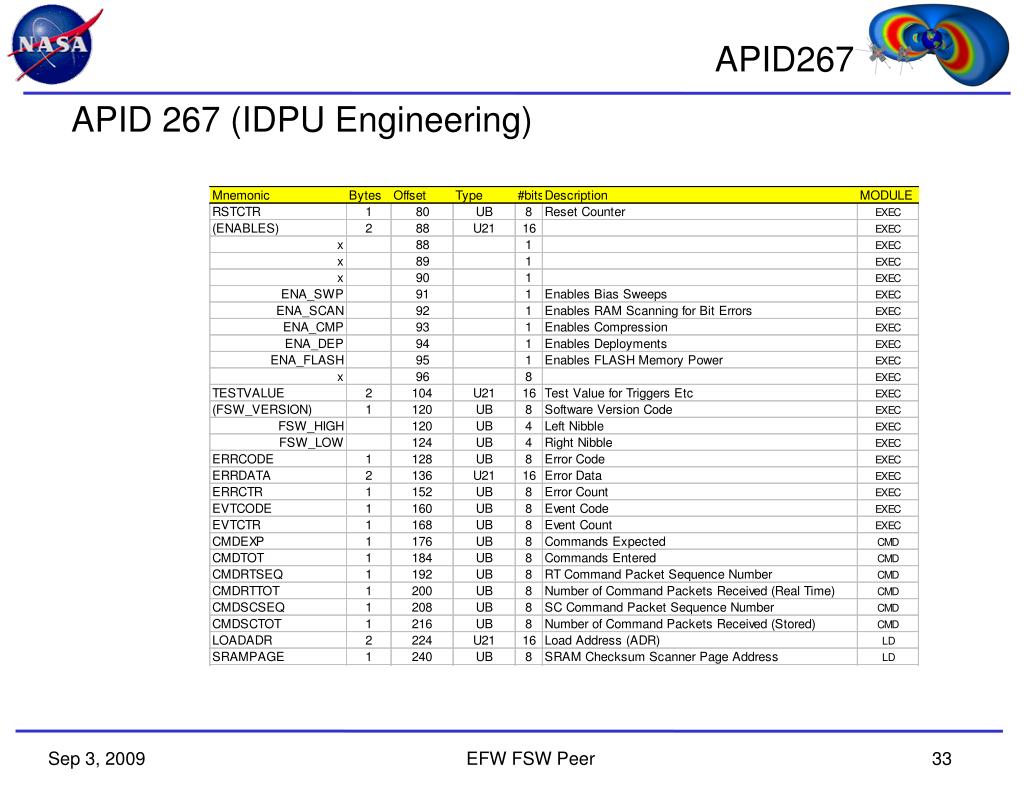

  33. APID267 APID 267 (IDPU Engineering)

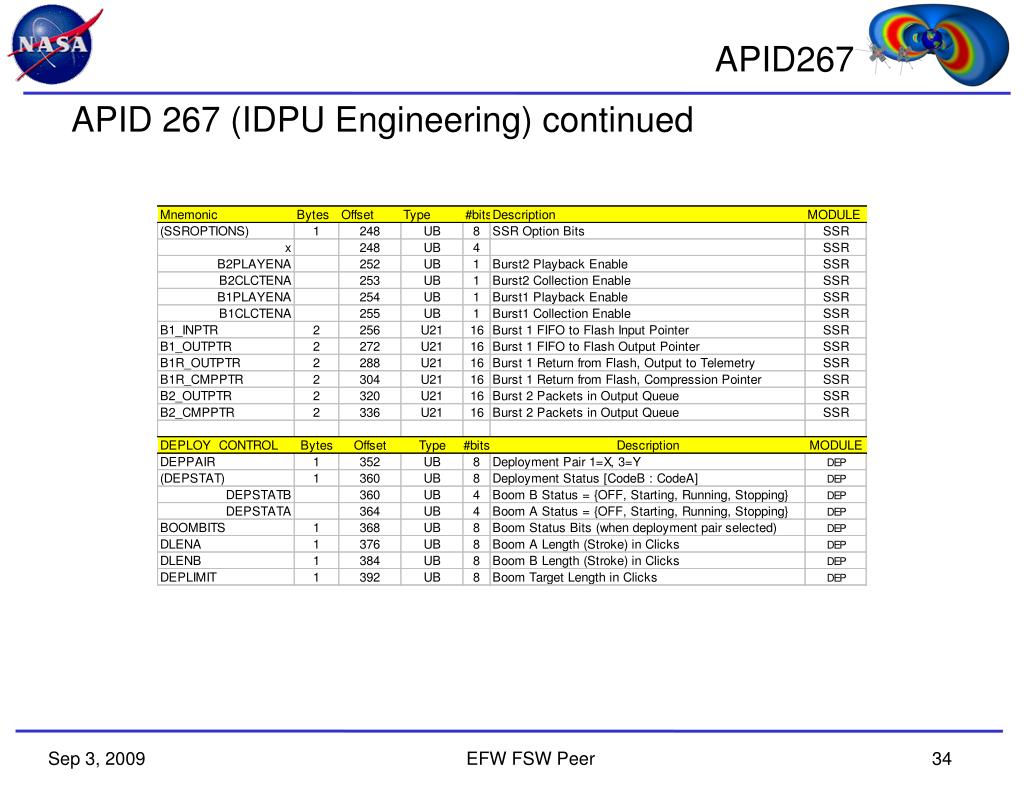

  34. APID267 APID 267 (IDPU Engineering) continued

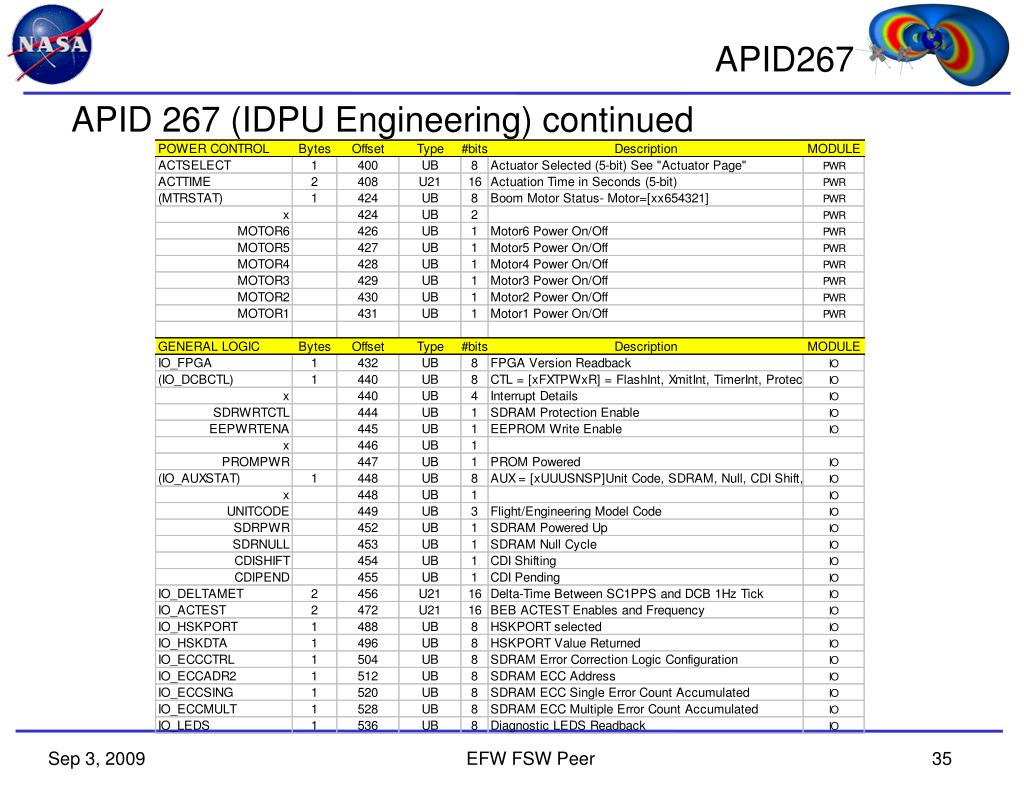

  35. APID267 APID 267 (IDPU Engineering) continued

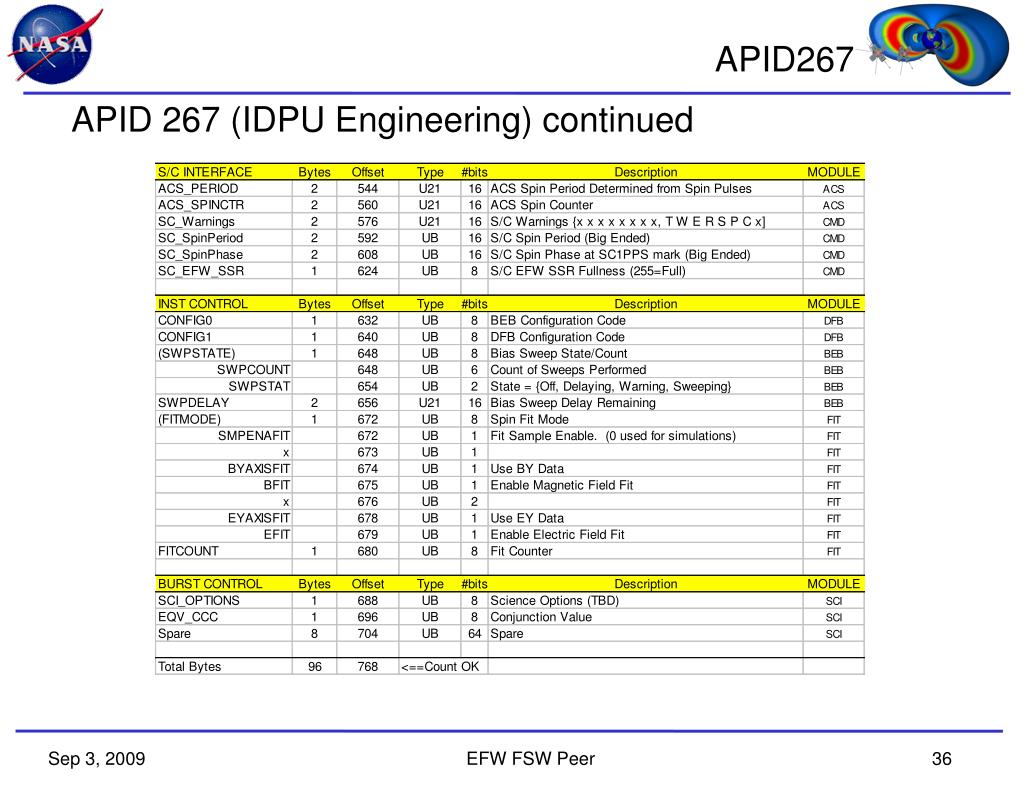

  36. APID267 APID 267 (IDPU Engineering) continued

  37. APID268 APID 268 (IDPU Events)

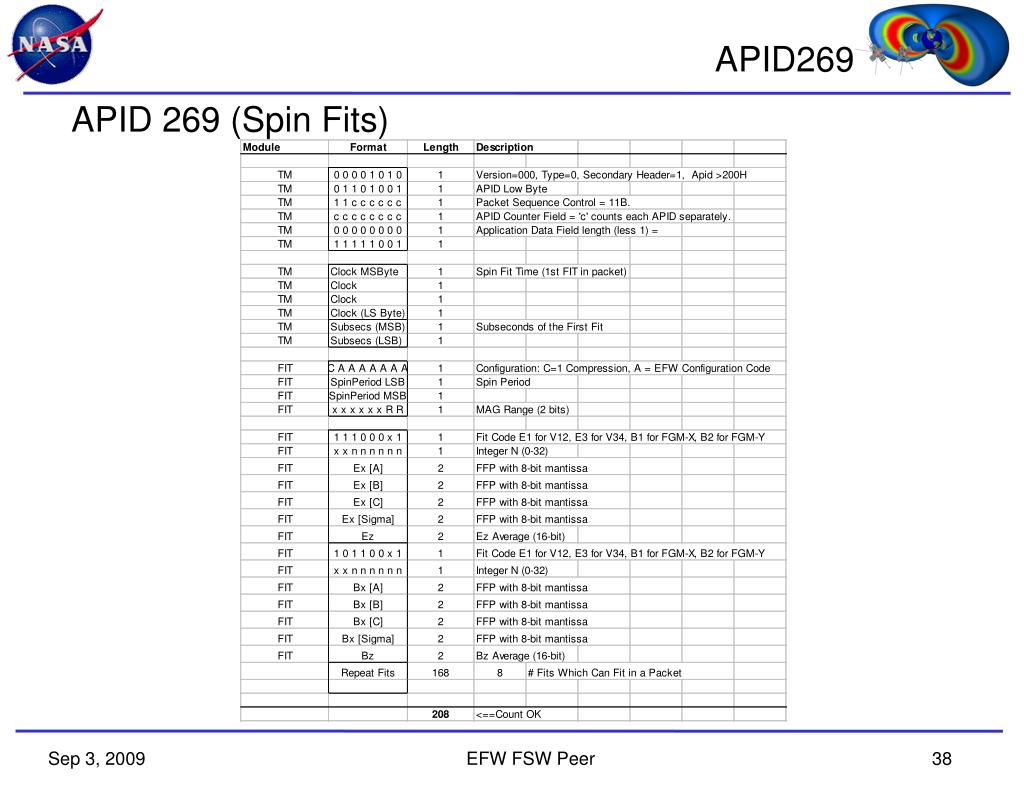

  38. APID269 APID 269 (Spin Fits)

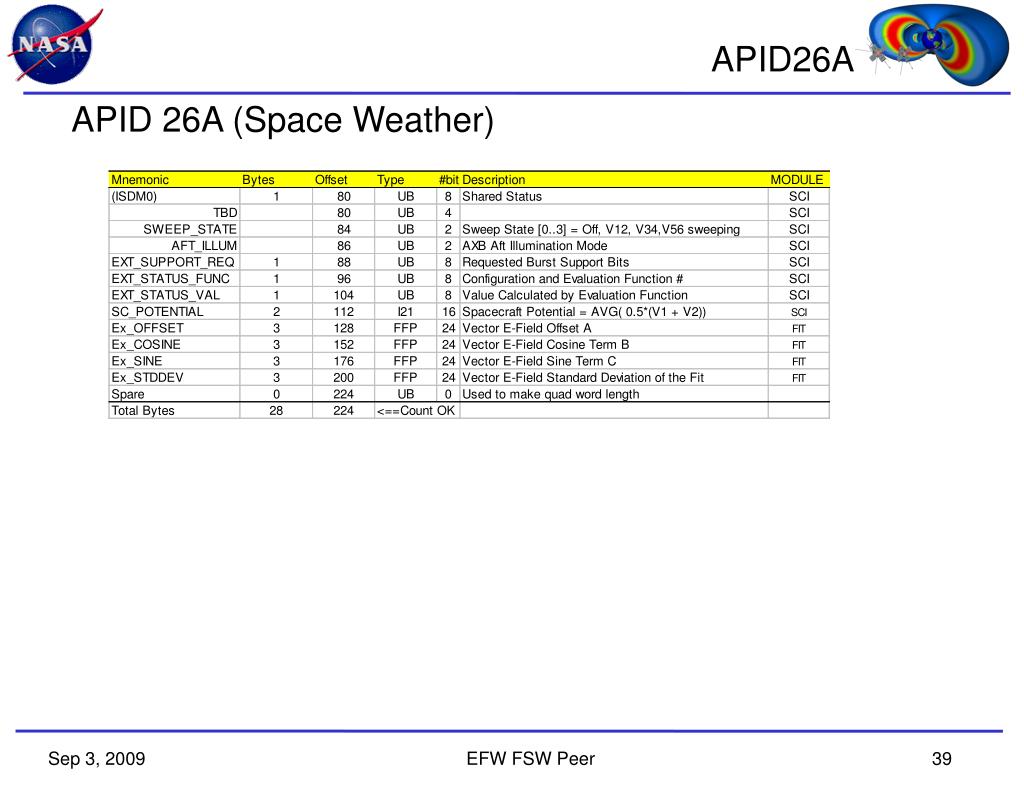

  39. APID26A APID 26A (Space Weather)

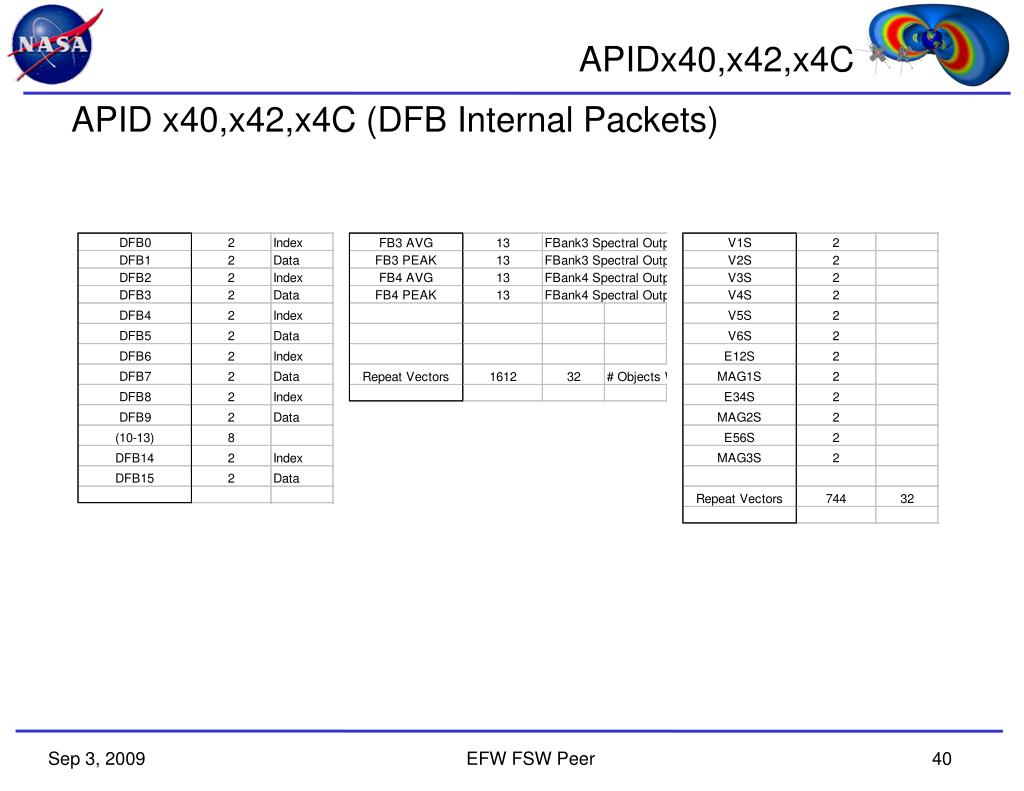

  40. APIDx40,x42,x4C APID x40,x42,x4C (DFB Internal Packets)

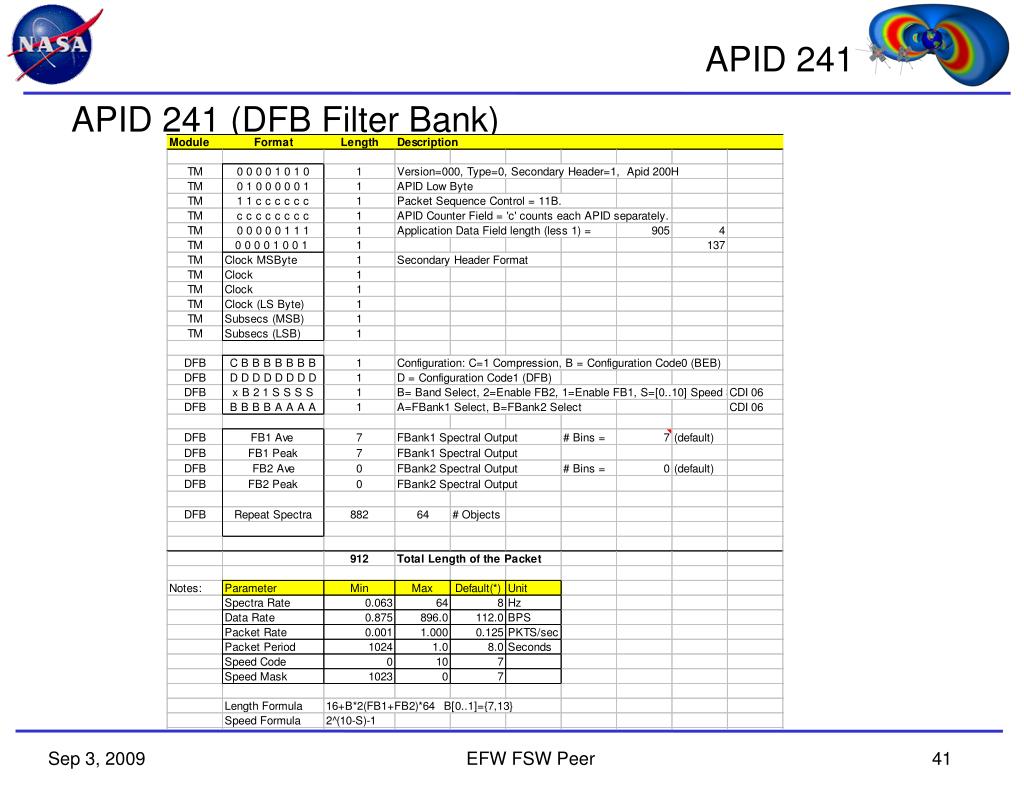

  41. APID 241 APID 241 (DFB Filter Bank)

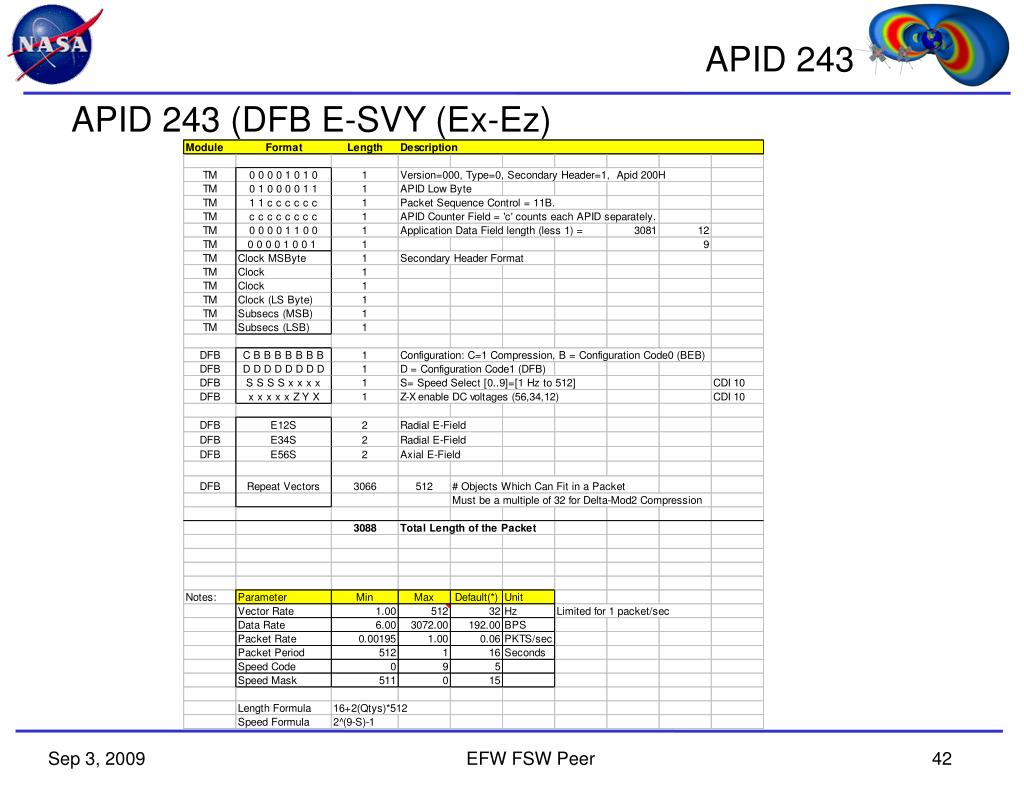

  42. APID 243 APID 243 (DFB E-SVY (Ex-Ez)

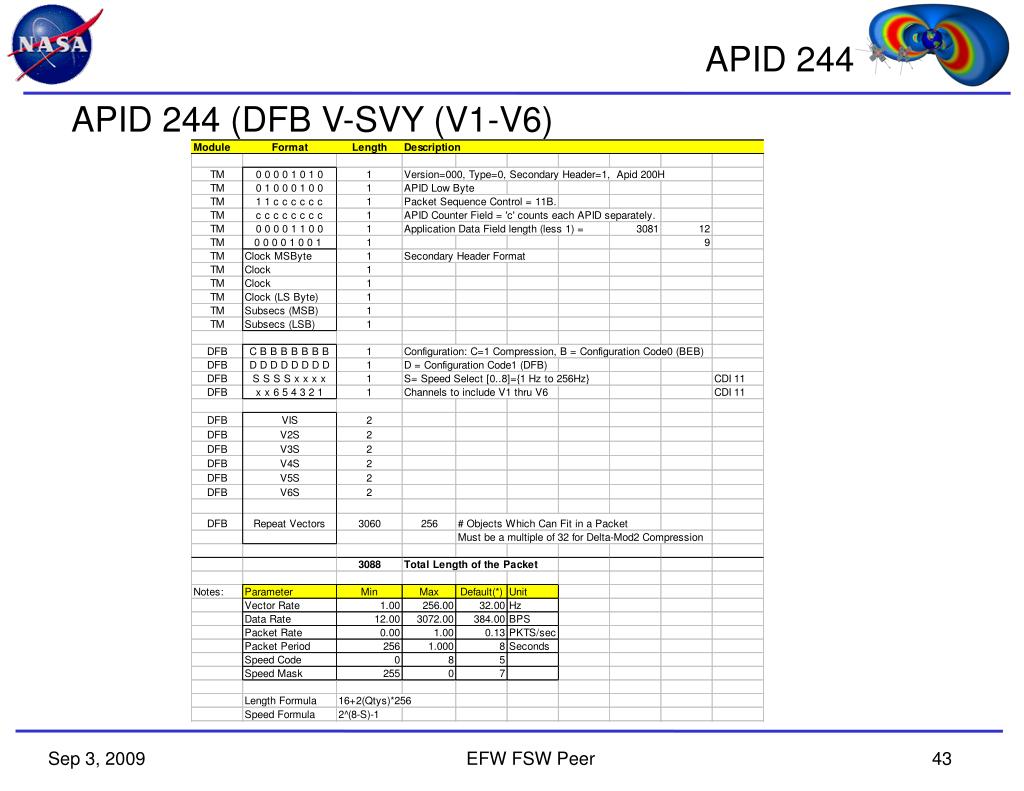

  43. APID 244 APID 244 (DFB V-SVY (V1-V6)

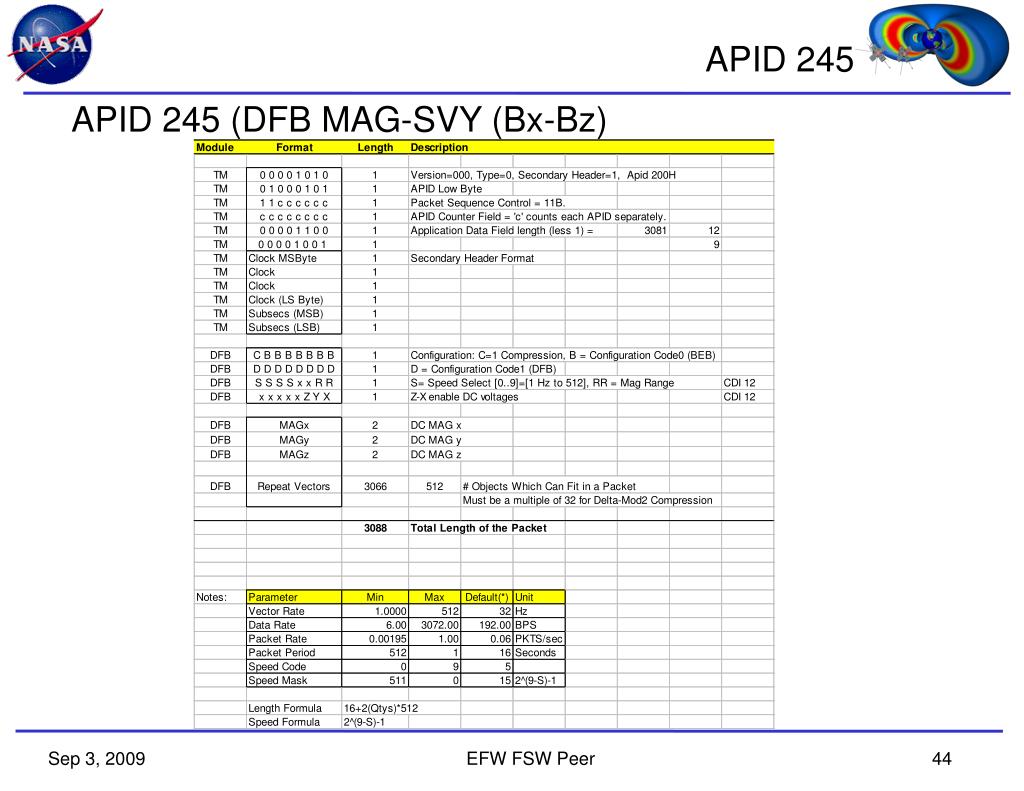

  44. APID 245 APID 245 (DFB MAG-SVY (Bx-Bz)

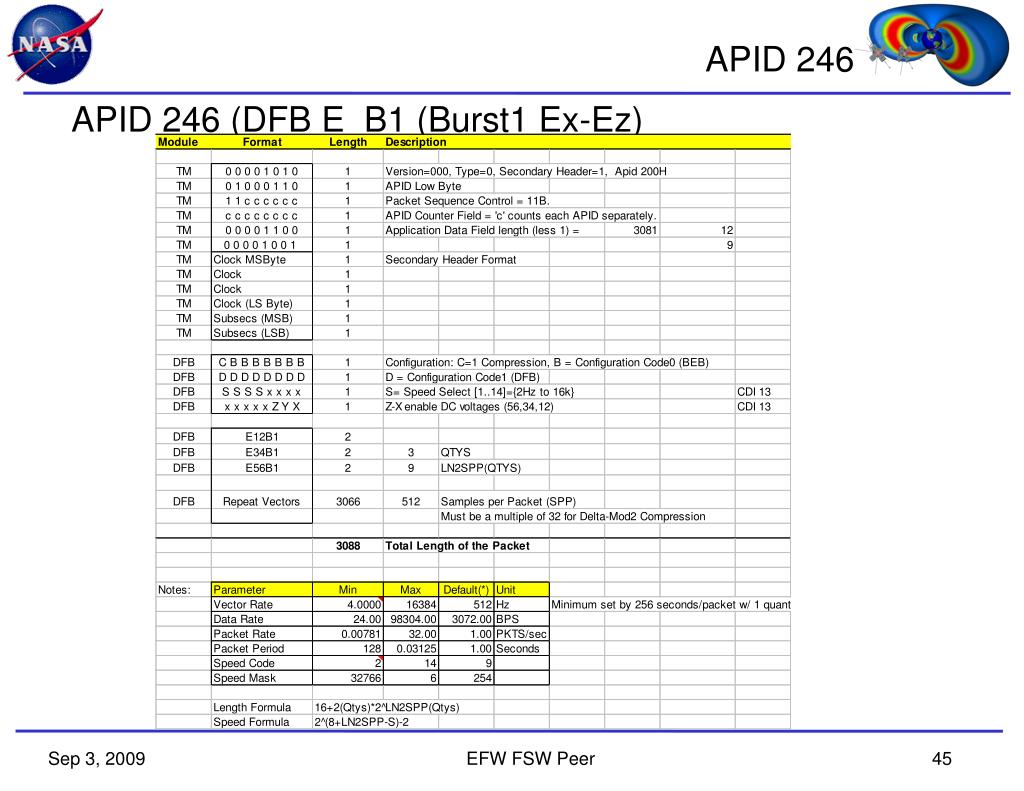

  45. APID 246 APID 246 (DFB E_B1 (Burst1 Ex-Ez)

  46. APID 247 APID 247 (DFB V_B1 (Burst1 V1-V6)

  47. APID 248 APID 248 DFB SCM_B1 (Burst1 SCMx-z)

  48. APID 249 APID 249 DFB E_B2 (Burst2 Ex-Ez)

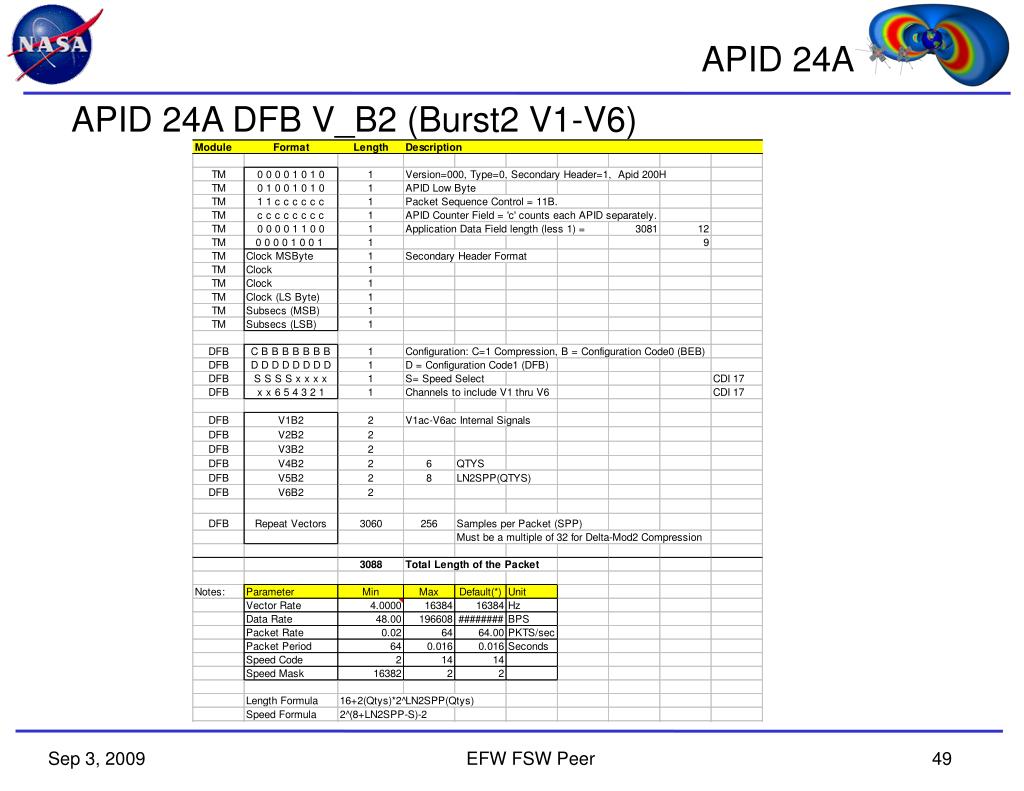

  49. APID 24A APID 24A DFB V_B2 (Burst2 V1-V6)

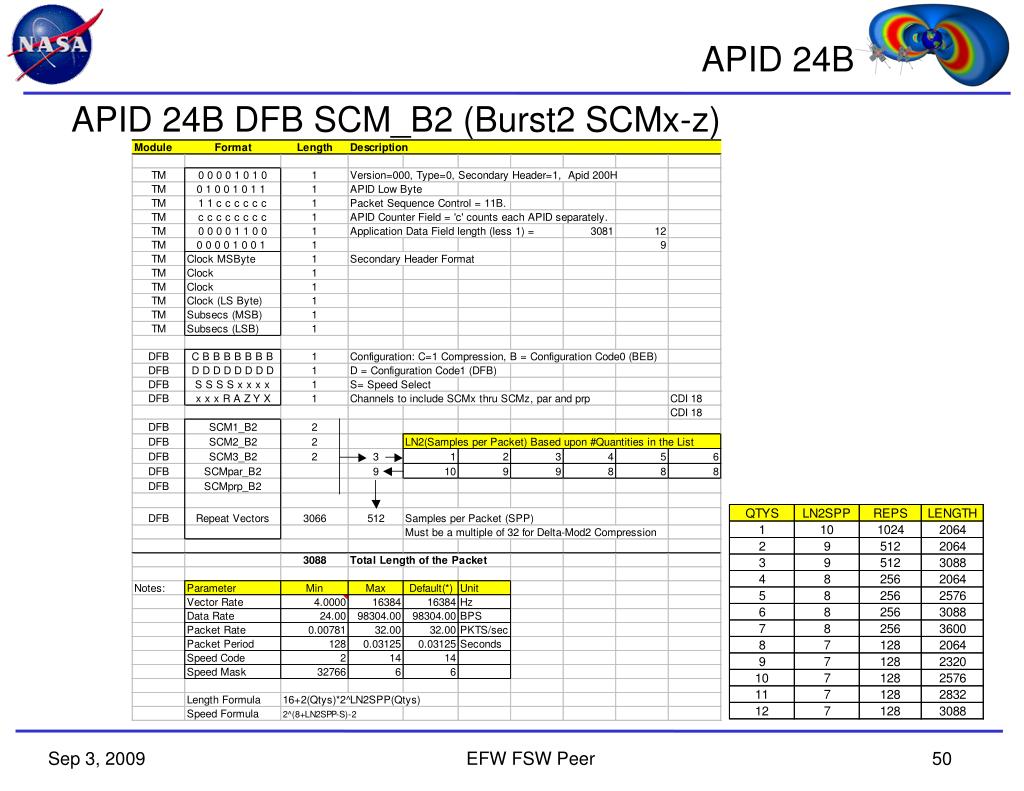

  50. APID 24B APID 24B DFB SCM_B2 (Burst2 SCMx-z)
