Schematic of Air Bleed System

Flow meter. Air. H 2 /CO/H 2 O (in). O 2 /H 2 O (in). Filter. Check valve. H 2 /CO 2 /H 2 O (out). O 2 /H 2 O (out). Schematic of Air Bleed System. Performance comparison between CARBEL CL TM and Single Side ELAT TM GDM for 500 ppm CO.

tory
Télécharger la présentation

Schematic of Air Bleed System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Flow meter Air H2 /CO/H2O (in) O2 /H2O (in) Filter Check valve H2 /CO2 /H2O (out) O2 /H2O (out) Schematic of Air Bleed System

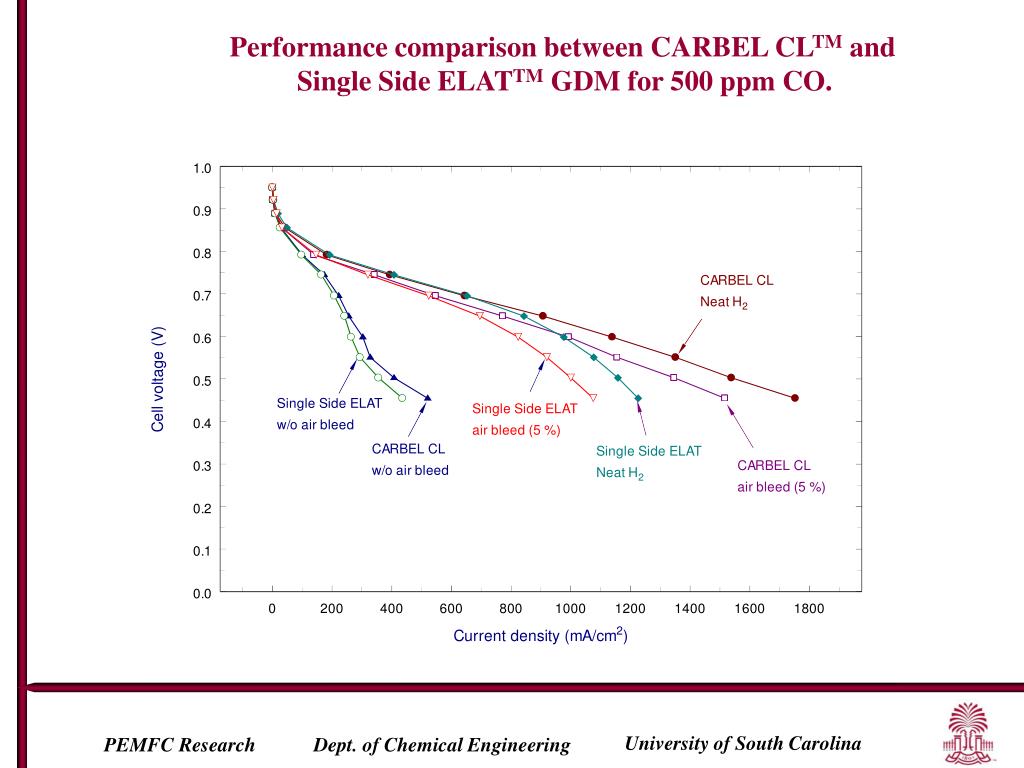

  2. Performance comparison between CARBEL CLTM and Single Side ELATTM GDM for 500 ppm CO.

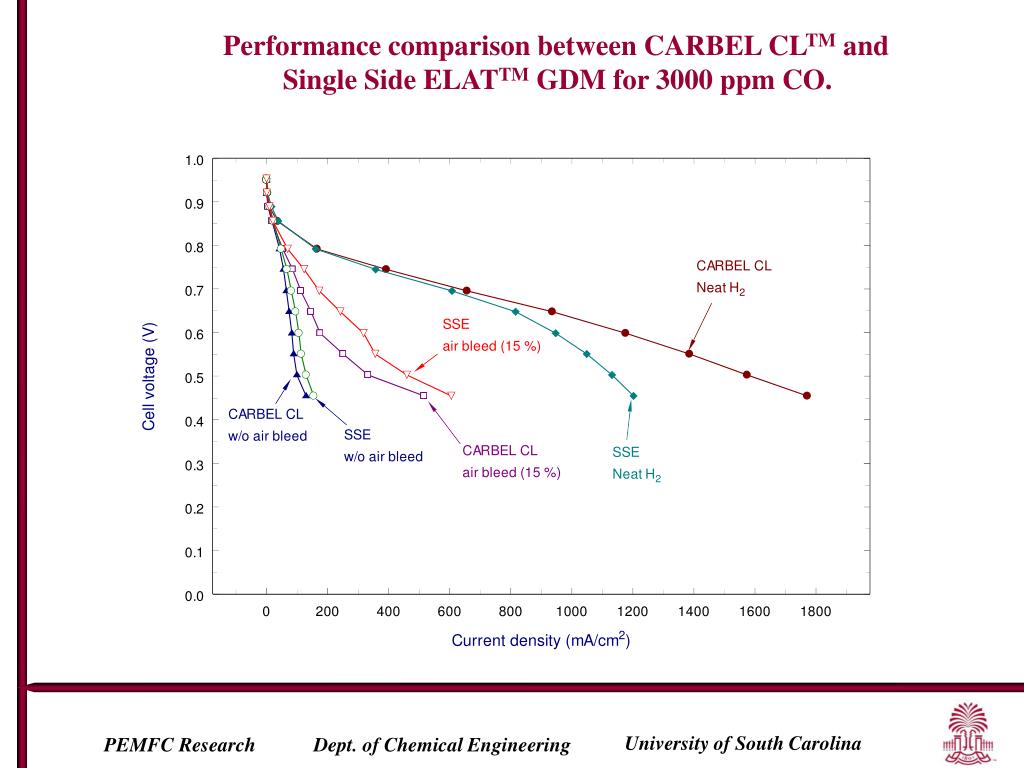

  3. Performance comparison between CARBEL CLTM and Single Side ELATTM GDM for 3000 ppm CO.

  4. Transient performance with 50 and 500 ppm CO at 600 mA/cm2 with CARBEL CL GDM.

  5. Transient performance with neat hydrogen and 3000 ppm CO at 600 mA/cm2 with CARBEL CL GDM.
