  1. Artificial Intelligence for GamesFinite State Machines Patrick Olivier p.l.olivier@ncl.ac.uk

  2. “Intelligent” Behaviours • Restrict “behaviour” to “intelligent behaviours” • For example: • trajectory of a car is not “intelligent”  • decision to fight and what to fight  • decision to flee and what to flee from  • Complex behaviours implement more intelligent opponents • define a kind a “personality” for NPCs or opponents • formalising behaviours makes gameplay explicit

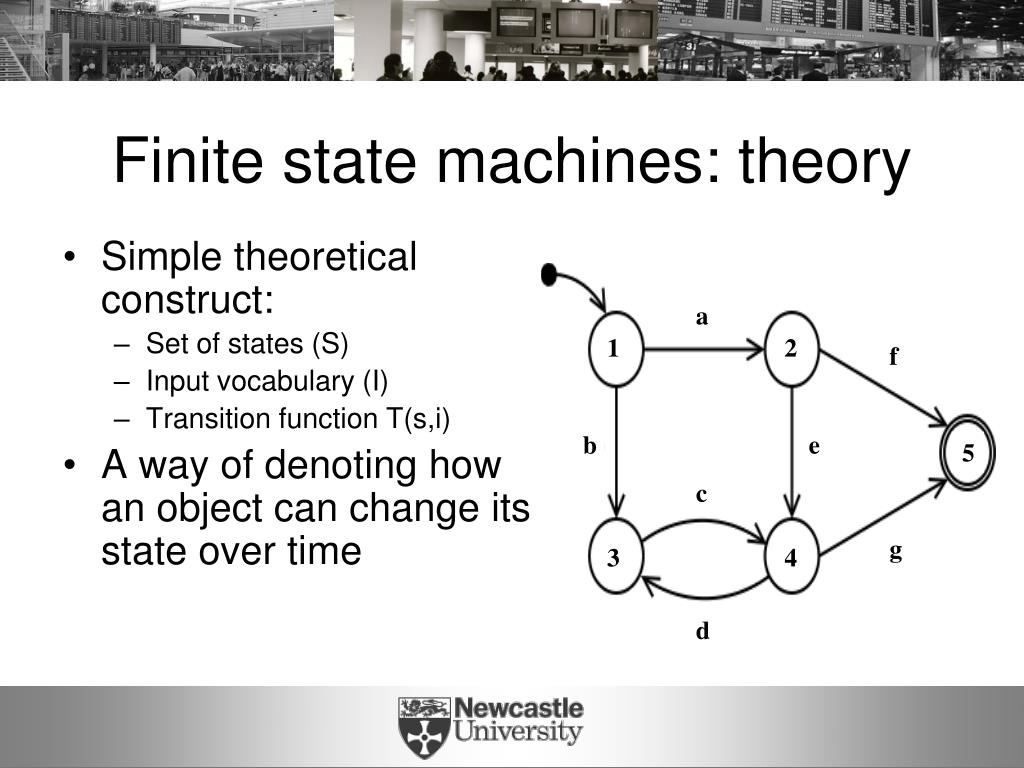

  3. Simple theoretical construct: Set of states (S) Input vocabulary (I) Transition function T(s,i) A way of denoting how an object can change its state over time a 1 2 f b e 5 c g 3 4 d Finite state machines: theory

  4. Character AI modeled as a sequence of mental states World events can force a state change Easy to grasp, even for non-programmers Input to the FSM continues as long as the game continues Monster In Sight Gather Treasure Flee No Monster Fight Monster Dead Cornered Finite state machines: practice

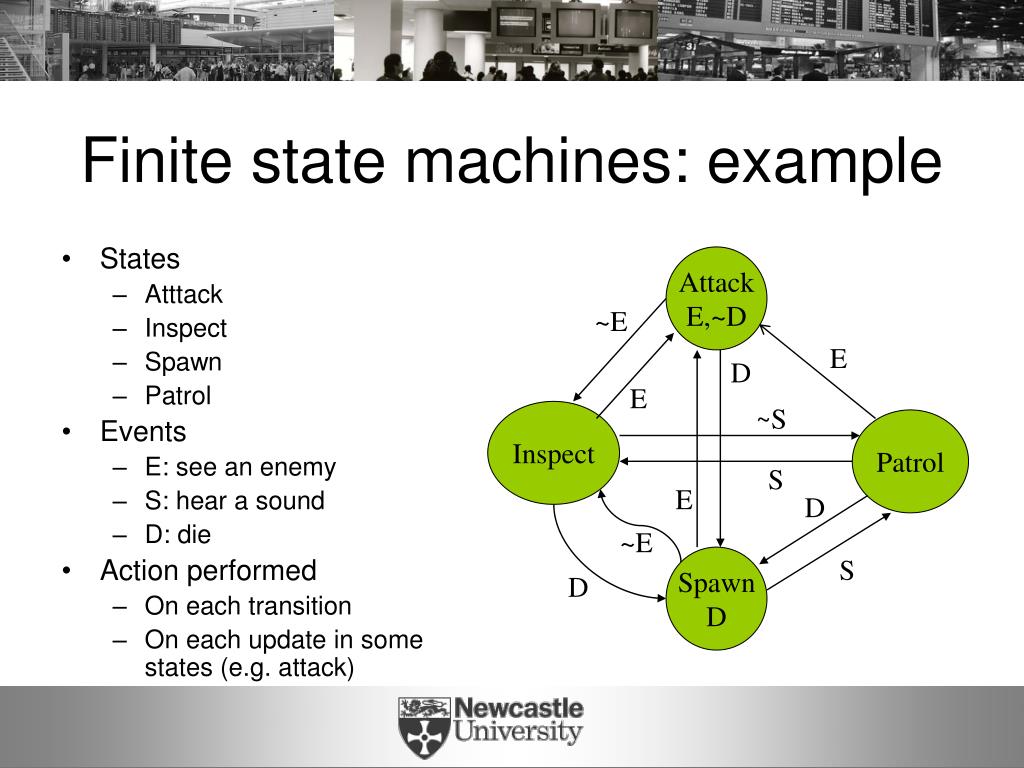

  5. States Atttack Inspect Spawn Patrol Events E: see an enemy S: hear a sound D: die Action performed On each transition On each update in some states (e.g. attack) Attack E,~D ~E E D E ~S Inspect Patrol S E D ~E Spawn D S D Finite state machines: example

  6. Pac-man: Blinky (the red ghost)

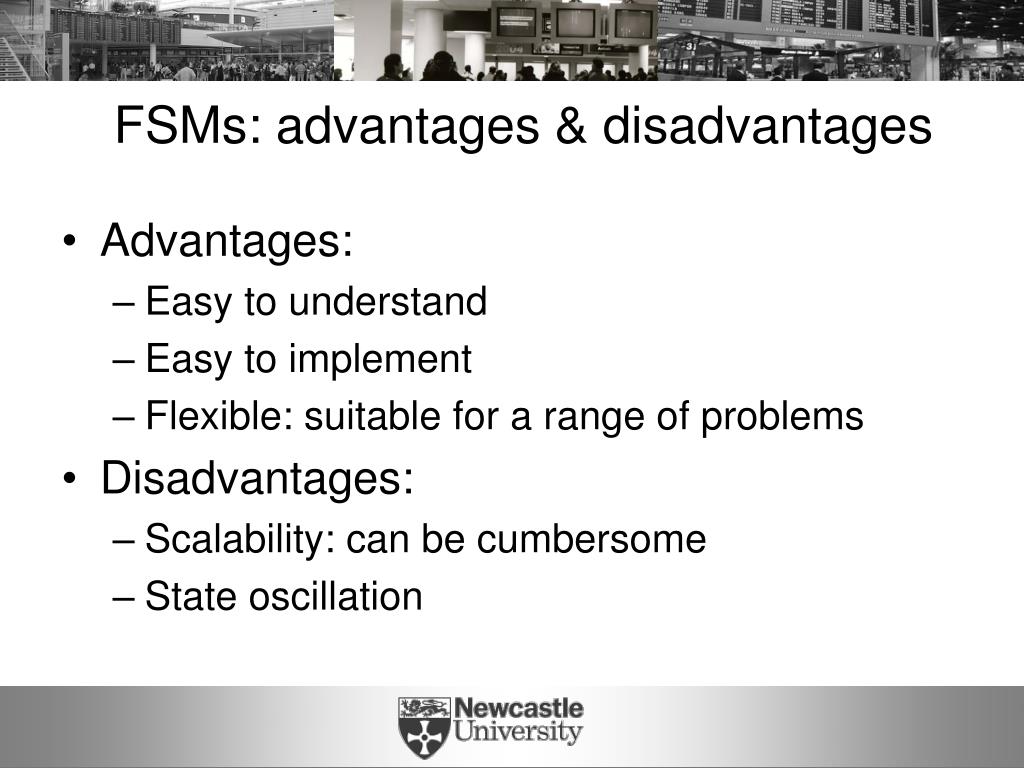

  7. FSMs: advantages & disadvantages • Advantages: • Easy to understand • Easy to implement • Flexible: suitable for a range of problems • Disadvantages: • Scalability: can be cumbersome • State oscillation

  8. FSMs: implementation issues • Polling • Simple and easy to debug • Inefficient since FSM’s are always evaluated • Event Driven Model • FSM registers which events it is interested in • Requires Observer model in engine • Multithreaded • Each FSM assigned its own thread • Requires thread-safe communication • Conceptually elegant • Difficult to debug

  9. Class exercise • 10 minutes exercise • work in pairs or threes • pick a game scenario • agree on percepts for the scenario • each develop an FSM for a different NPCs • aim for interesting interactions: • between player and NPCs • between NPCs • hand in a “final” sheet (with names on it)

  10. Extensions: Hierarchical FSMs • expand a state into its own sub-FSM • some events move you around the same level in the hierarchy, some move you up a level • when entering a state, choose a sub-state: • set a default, and always go to that • random choice • depends on the nature of the behaviour

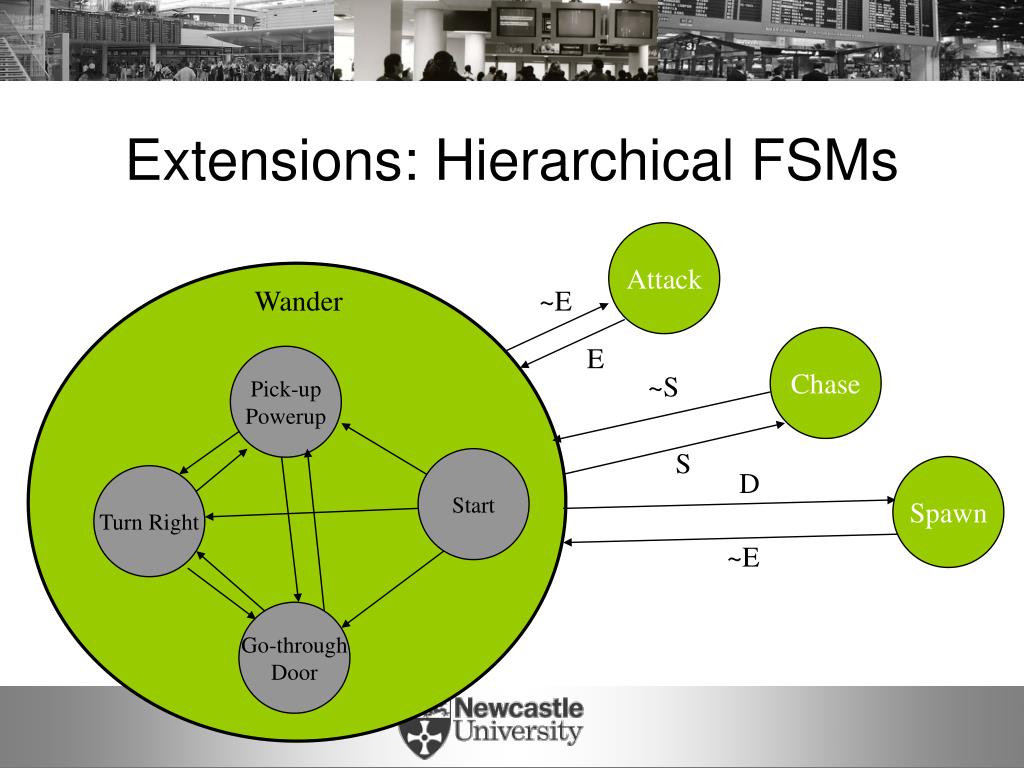

  11. Extensions: Hierarchical FSMs Attack Wander ~E Chase E Pick-up Powerup ~S S Start Spawn D Turn Right ~E Go-through Door

  12. Extensions: stack-based FSMs • Gives the AI a (limited) form of ‘memory’ • Switch states, then return to a previous state • Permits temporary interruption • More realistic behaviour • Not all states stack-able • Replacement behaviours

  13. Extensions: inertial FSMs • Need to address the oscillation problem • For example – basketball: • LOS=FALSE  stand-state • LOS=TRUE  basket-drive-state • Introduce inertia to dampen state changes • State inertia (e.g. minimum running times) • Perceptual inertia (e.g. multiple firings)

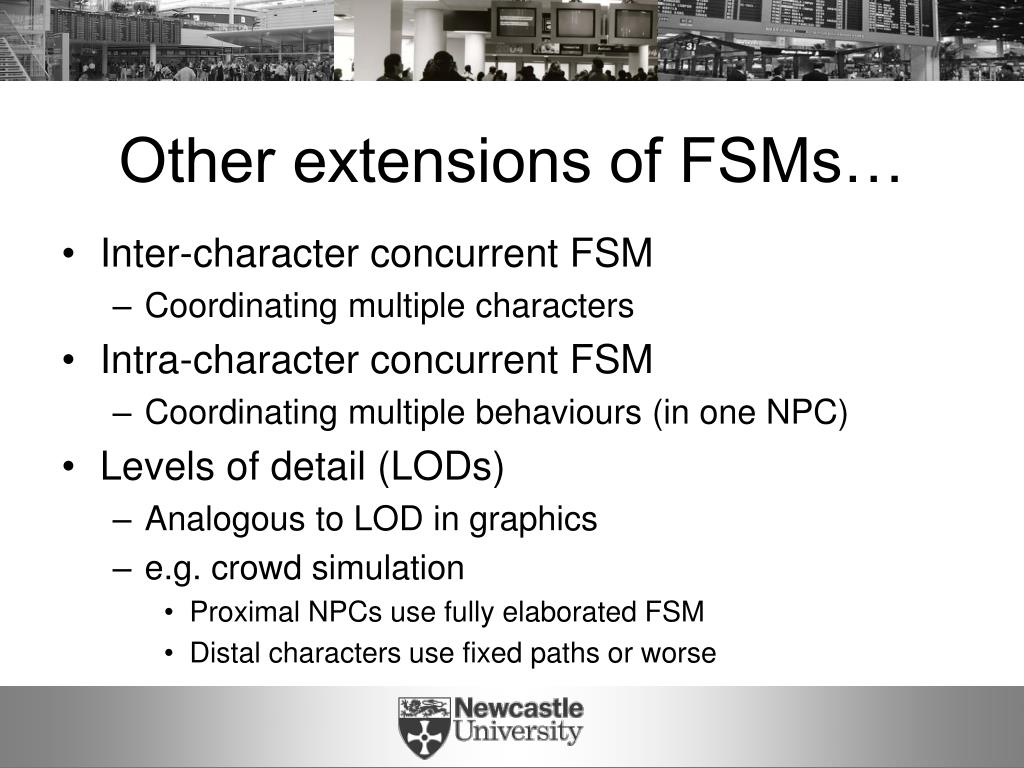

  14. Other extensions of FSMs… • Inter-character concurrent FSM • Coordinating multiple characters • Intra-character concurrent FSM • Coordinating multiple behaviours (in one NPC) • Levels of detail (LODs) • Analogous to LOD in graphics • e.g. crowd simulation • Proximal NPCs use fully elaborated FSM • Distal characters use fixed paths or worse

  15. Approach Attack Slide & Shoot .3 .3 .3 .1 Start .4 .2 Aim & Shoot Jump & Shoot .4 Nondeterministic FSMs • Probabilistic FSMs • multiple transitions for same event • each transition has probability that it will be taken • probabilistically choose a transition at run-time

  16. Questions?
