Automated Cup Monitoring System Flowchart for RFID and CANbus Integration

This flowchart outlines an automated system for monitoring the status of a cup, utilizing RFID technology and CANbus integration. It details the operational flow of events from the cup being taken from the fountain to notifications sent to the server. Key functionalities include checking connections to the HIU, signaling alarms for unauthorized cup removal, and visual/audio alerts upon various conditions. The system ensures continuous monitoring of the cup status and facilitates quick notifications in case of disconnections or unauthorized access.

truda
Télécharger la présentation

Automated Cup Monitoring System Flowchart for RFID and CANbus Integration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

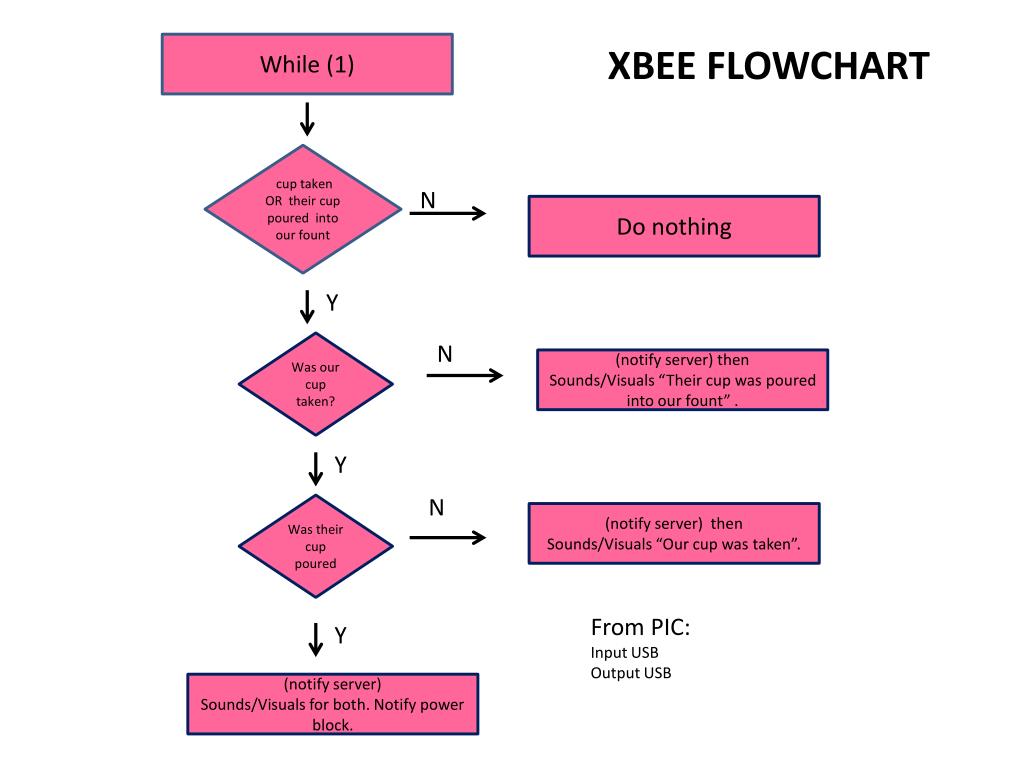

  1. While (1) XBEE FLOWCHART cup taken OR their cup poured into our fount N Do nothing Y Was our cup taken? N (notify server) then Sounds/Visuals “Their cup was poured into our fount” . Y N Was their cup poured (notify server) then Sounds/Visuals “Our cup was taken”. From PIC: Input USB Output USB Y (notify server) Sounds/Visuals for both. Notify power block.

  2. CANbus Flowchart While (cup has been removed from fount) Notify power to Activate battery N Notify server. Notify IR (deadly packets every 2 sec) Is cup connected to HIU? N Y Has cup returned to fount? N Has cup reconnected to HIU? Do nothing Notify server, visual/audio Y Y Notify Server. Send signal to stop IR. Notify visual/audio Notify Server. Send signal to stop IR. Notify visual/audio From PIC: Input USB Output USB

  3. Level O Block Diagram Cup being taken from fount(RFID) Cup poured Alarm (X3) Pouring Status Notify IR that HIU not connected (X3) XBee Cup returned to fount (RFID) CANbus Cup taken alarm (X3) Cup being taken (RFID) Cup connected to HIU status (RFID) Send Signal to stop IR (X3) Cup connected to HIU status (RFID)

  4. XBee CANbus Checking for cup status from fount Checking for pouring Checking cup for status (from fount) Checking for cup status from HIU IR emitter IR emitter RFID RFID Server Server Visual blocks Visual blocks Audio blocks Audio blocks Power Block
